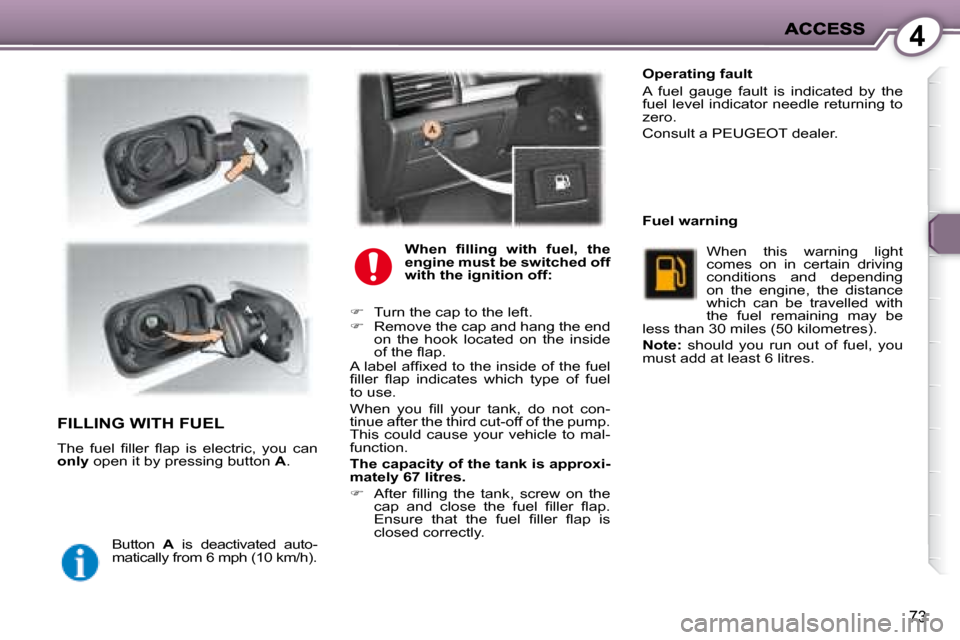

FILLING WITH FUEL
T h e f u e l fi l l e r fl a p i s e l e c t r i c , y o u c a n
only open it by pressing button A .
Button A is deactivated auto-
matically from 6 mph (10 km/h).
W h e n fi l l i n g w i t h f u e l , t h e
e n g i n e m u s t b e s w i t c h e d o f f
w i t h t h e i g n i t i o n o f f : O p e r a t i n g f a u l t
A fuel gauge fault is indicated by the
fuel level indicator needle returning to
zero.
Consult a PEUGEOT dealer.
F u e l w a r n i n g
Turn the cap to the left.
Remove the cap and hang the end
on the hook located on the inside
o f t h e fl a p .
A l a b e l a f fi x e d t o t h e i n s i d e o f t h e f u e l
fi l l e r fl a p i n d i c a t e s w h i c h t y p e o f f u e l
to use.
W h e n y o u fi l l y o u r t a n k , d o n o t c o n -
tinue after the third cut-off of the pump.
This could cause your vehicle to mal-
function.
The capacity of the tank is approxi-
m a t e l y 6 7 l i t r e s .
A f t e r fi l l i n g t h e t a n k , s c r e w o n t h e
c a p a n d c l o s e t h e f u e l fi l l e r fl a p .
E n s u r e t h a t t h e f u e l fi l l e r fl a p i s
closed correctly. When this warning light
comes on in certain driving
conditions and depending
on the engine, the distance
which can be travelled with
the fuel remaining may be
less than 30 miles (50 kilometres).
Note: should you run out of fuel, you
must add at least 6 litres.
Page 82 of 211
5
74
LIGHTS STALK
Lights off
Side lights Dipped/main beam head-
lamps Lights on
With the ignition and the automatic
lights function switched off, on open-
ing the driver's door a buzzer sounds
to warn you that you have left your
lights on.
Front and rear fog lamps (ring B)
Turn ring B forwards to switch on
and backwards to switch off. The
p o s i t i o n i s c o n fi r m e d b y t h e l i g h t
on the instrument panel.
Front fog lamps (one press)
These operate with the side lights, dipped
headlamps or main beam headlamps. Rear fog lamps (two presses)
These operate with the side lights and
the front fog lamps, or with the dipped
or main beam headlamps.
Left: downwards.
Right: upwards
D i r e c t i o n i n d i c a t o r s ( fl a s h e r s )
If you forget to return the di-
rection indicator to its normal
position, the volume of the au-
dible signal will increase, if you
are driving at a speed greater
than 45 mph (70 km/h).
Parking lights *
The side lights are lit on the side the
t r a f fi c i s o n f o r a f e w h o u r s .
With the engine switched off and with-
in 45 seconds maximum, place the in-
d i c a t o r l i g h t s s t a l k o n t h e t r a f fi c s i d e
(for example: for parking on the right;
switching on of the lights on the left).
This is indicated by an audible sig-
nal and lighting of the corresponding
direction indicator on the instrument
panel for a few seconds.
If the parking lights are activat-
ed when your vehicle switches
to economy mode, they will re-
main on. However, you cannot
activate the parking lights if your ve-
hicle is already in economy mode.
Dipped/main beam change
Pull the stalk fully towards you.
* According to version.
Automatic switching on of
the lights.
In the case of vehicles which
a r e n o t fi t t e d w i t h a l i g h t s s t a l k
with the "AUTO" position,
you can deactivate or activate
the automatic lighting via the multi-
function display "Personalisation-
C o n fi g u r a t i o n " menu.
Front and rear lights (ring A)
Turn ring A to the position re-
quired
Page 83 of 211
5
75
The timed duration must also
be set, via the multifunction
display "Personalisation-
C o n fi g u r a t i o n " menu.
A u t o m a t i c s w i t c h i n g o n o f t h e lights
To switch the function on
or off, use the multifunction
display "Personalisation-
C o n fi g u r a t i o n " menu.
Activation
Deactivation When this function is activa-
ted, the indicator light on the
instrument panel comes on.
When the function is deacti-
vated, the indicator light on the
instrument panel comes on.
Cancellation:
fl a s h t h e h e a d l a m p s ,
get out of the vehicle and lock it.
M a n u a l " f o l l o w - m e - h o m e " l i g h t i n g
If the automatic switching on of the lights
is not activated, the manual "follow-me-
home" lighting can be activated.
When you leave your vehicle, the side
lights and dipped headlamps remain
on for approximately 1 minute.
Activation:
switch off the engine,
fl a s h t h e h e a d l a m p s ,
get out of the vehicle and lock it.
Deactivation:
fl a s h t h e h e a d l a m p s a g a i n ,
get out of the vehicle and lock it.
A u t o m a t i c " f o l l o w - m e - h o m e "
lighting
When you leave your vehicle with
the
a u t o m a t i c s w i t c h i n g o n o f t h e l i g h t s
activated , the side lights and dipped
headlamps remain on for the duration
selected when the ignition is switched
off.
To activate or deactivate this func-
tion, pass via the multifunction display
" P e r s o n a l i s a t i o n - C o n f i g u r a t i o n "
menu.
In foggy weather, the bright-
n e s s s e n s o r c a n d e t e c t s u f fi -
cient light. As a consequence,
the lights will not come on au-
tomatically.
This function is active when the vehi-
cle is supplied to the customer.
If the brightness sensor does not
f u n c t i o n c o r r e c t l y , if the system is
activated, the dipped headlamps and
the side lights come on.
Contact a PEUGEOT dealer to have
the system checked.
D a y t i m e l i g h t s *
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
The instruments and controls
(instrument panel, multifunc-
tion display, air conditioning
control panel, ...) are only lit
on switching to the automatic switch-
ing on of the lights mode or when the
lights are switched on manually. This warning light comes on
on the instrument panel.
* According to country.
This function is available di-
rectly at the lights stalk on
certain versions depending on
the type of lights stalk.
The side lights and dipped beam head-
lamps switch on automatically if the light
is poor, or during operation of the wind-
screen wipers. They switch off as soon
as the light becomes bright enough or
the windscreen wipers stop.
Page 84 of 211
5
75
The timed duration must also
be set, via the multifunction
display "Personalisation-
C o n fi g u r a t i o n " menu.
A u t o m a t i c s w i t c h i n g o n o f t h e lights
To switch the function on
or off, use the multifunction
display "Personalisation-
C o n fi g u r a t i o n " menu.
Activation
Deactivation When this function is activa-
ted, the indicator light on the
instrument panel comes on.
When the function is deacti-
vated, the indicator light on the
instrument panel comes on.
Cancellation:
fl a s h t h e h e a d l a m p s ,
get out of the vehicle and lock it.
M a n u a l " f o l l o w - m e - h o m e " l i g h t i n g
If the automatic switching on of the lights
is not activated, the manual "follow-me-
home" lighting can be activated.
When you leave your vehicle, the side
lights and dipped headlamps remain
on for approximately 1 minute.
Activation:
switch off the engine,
fl a s h t h e h e a d l a m p s ,
get out of the vehicle and lock it.
Deactivation:
fl a s h t h e h e a d l a m p s a g a i n ,
get out of the vehicle and lock it.
A u t o m a t i c " f o l l o w - m e - h o m e "
lighting
When you leave your vehicle with
the
a u t o m a t i c s w i t c h i n g o n o f t h e l i g h t s
activated , the side lights and dipped
headlamps remain on for the duration
selected when the ignition is switched
off.
To activate or deactivate this func-
tion, pass via the multifunction display
" P e r s o n a l i s a t i o n - C o n f i g u r a t i o n "
menu.
In foggy weather, the bright-
n e s s s e n s o r c a n d e t e c t s u f fi -
cient light. As a consequence,
the lights will not come on au-
tomatically.
This function is active when the vehi-
cle is supplied to the customer.
If the brightness sensor does not
f u n c t i o n c o r r e c t l y , if the system is
activated, the dipped headlamps and
the side lights come on.
Contact a PEUGEOT dealer to have
the system checked.
D a y t i m e l i g h t s *
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
The instruments and controls
(instrument panel, multifunc-
tion display, air conditioning
control panel, ...) are only lit
on switching to the automatic switch-
ing on of the lights mode or when the
lights are switched on manually. This warning light comes on
on the instrument panel.
* According to country.
This function is available di-
rectly at the lights stalk on
certain versions depending on
the type of lights stalk.
The side lights and dipped beam head-
lamps switch on automatically if the light
is poor, or during operation of the wind-
screen wipers. They switch off as soon
as the light becomes bright enough or
the windscreen wipers stop.
Page 85 of 211
5
76
AUTOMATIC HEADLAMP ADJUSTMENT
W h e n s t a t i o n a r y a n d w h e n t h e v e h i -
c l e i s m o v i n g , the system automatically
corrects the height of the beam, what-
ever the load of the vehicle. The driver
is then assured of having optimum light-
ing and not causing a nuisance to other
road users.
DIRECTIONAL HEADLAMPS
Activation/Deactivation
When the dipped or main beam head-
lamps are on, this function enables the
light beam to follow the direction of the
road.
The quality of your lighting when turning
is improved considerably.
I n c a s e s o f m a l f u n c t i o n ,
the warning light comes on
on the instrument panel dis-
play, accompanied by an au-
dible signal and a message
on the multifunction display. The sys-
tem places your headlamps to the low
position.
Do not touch the xenon bulbs.
Consult a PEUGEOT dealer. F u n c t i o n a c t i v a t e d
F u n c t i o n d e a c t i v a t e d To deactivate or acti-
vate the function, go to
the
"Personalisation-
C o n fi g u r a t i o n " menu on
your multifunction display.
When the engine is switched on, the
status of activation/deactivation of this
function selected when the engine was
switched off is retained.
By default, this function is activated.
Note: when stationary or dri-
ving at very low speed, or in
reverse gear, this function is
inactive.
I n t h e e v e n t o f a m a l f u n c -
t i o n , t h i s w a r n i n g l i g h t fl a s h -
es on the instrument panel.
O n v e h i c l e s fi t t e d w i t h d a y t i m e
lights, the function is only acti-
vated if the lights stalk is in the
dipped/main beam headlamps
position.
On starting, with the engine
running, the headlamps ini-
tialise automatically and per-
form a vertical sweep.
Consult a PEUGEOT dealer.
Page 86 of 211
5
77
WINDSCREEN WIPER STALK
In the Intermittent position, the wiping
speed is in proportion to the speed of
the vehicle.
In the AUTO position, no further action
on your part is required.
A u t o m a t i c w i n d s c r e e n w i p e r
The automatic wiping is controlled by a
r a i n s e n s o r , fi t t e d o n t h e w i n d s c r e e n .
In AUTO mode, the wipers operate
automatically and a d j u s t t h e i r s p e e d
t o t h e i n t e n s i t y o f t h e r a i n f a l l .
Activation Deactivation
This warning light comes on
on the instrument panel, ac-
companied by a message
on the multifunction display,
when the driver presses the
wipers stalk down in AUTO
mode. This warning light comes on
on the instrument panel, ac-
companied by a message
on the multifunction display,
when the driver moves the
wipers stalk to position
I , 1
or 2 .
I n t h e e v e n t o f a m a l f u n c t i o n , the
driver is informed of this by a message
on the multifunction display.
In AUTO mode, the wipers will then
operate in intermittent mode.
Contact a PEUGEOT dealer to have
the system checked.
Do not cover the rain sensor,
located on the windscreen
behind the interior mirror.
When using a car wash, switch off the
ignition.
In winter, it is advisable to wait until the
windscreen is completely clear of ice
before activating the automatic wipers.
When parking in snowy weather,
position the blades at the top of the
windscreen (maintenance position) to
prevent the accumulation of snow.
T h e w i p i n g m u s t b e r e a c t i -
vated if the ignition has been
switched off for more than one
minute . Manual operation of the wipers stalk
by moving the lever
A up and return-
ing it to position "0" cancels the AUTO
position, the deactivation warning light
comes on on the instrument panel dis-
play accompanied by a message on
the multifunction display.
W i n d s c r e e n w i p e r s
2 Fast wipe (heavy rain).
1 Normal wipe
(moderate rain).
I Intermittent wipe
0 Off
AUTO
Automatic wipe then single
sweep.
Page 87 of 211
5
78
Maintenance position
This position enables the wiper blades
to be removed.
In the minute following switching off of
the ignition, any action on the wipers
stalk positions the wipers at the top
of the windscreen (parking in winter,
cleaning, replacement of the blades).
To reposition the wipers after this has
been done, switch on the ignition and
operate the stalk. W i n d s c r e e n a n d h e a d l a m p w a s h
Pull the windscreen wiper stalk to-
wards you. The windscreen wash then
the windscreen wipers operate for a
fi x e d p e r i o d .
The headlamp wash is also activated,
if the headlamps are on .
S c r e e n w a s h / h e a d l a m p w a s h l o w
When the minimum level of
the reservoir is reached, this
warning light comes on, ac-
companied by an audible
signal and a message on the
multi-function display.
N e x t t i m e y o u s t o p , fi l l t h e s c r e e n -
wash/headlamp wash reservoir.
The warning light comes on each time
the stalk is operated, until the reser-
v o i r i s fi l l e d .
Page 88 of 211
5
77
WINDSCREEN WIPER STALK
In the Intermittent position, the wiping
speed is in proportion to the speed of
the vehicle.
In the AUTO position, no further action
on your part is required.
A u t o m a t i c w i n d s c r e e n w i p e r
The automatic wiping is controlled by a
r a i n s e n s o r , fi t t e d o n t h e w i n d s c r e e n .
In AUTO mode, the wipers operate
automatically and a d j u s t t h e i r s p e e d
t o t h e i n t e n s i t y o f t h e r a i n f a l l .
Activation Deactivation
This warning light comes on
on the instrument panel, ac-
companied by a message
on the multifunction display,
when the driver presses the
wipers stalk down in AUTO
mode. This warning light comes on
on the instrument panel, ac-
companied by a message
on the multifunction display,
when the driver moves the
wipers stalk to position
I , 1
or 2 .
I n t h e e v e n t o f a m a l f u n c t i o n , the
driver is informed of this by a message
on the multifunction display.
In AUTO mode, the wipers will then
operate in intermittent mode.
Contact a PEUGEOT dealer to have
the system checked.
Do not cover the rain sensor,
located on the windscreen
behind the interior mirror.
When using a car wash, switch off the
ignition.
In winter, it is advisable to wait until the
windscreen is completely clear of ice
before activating the automatic wipers.
When parking in snowy weather,
position the blades at the top of the
windscreen (maintenance position) to
prevent the accumulation of snow.
T h e w i p i n g m u s t b e r e a c t i -
vated if the ignition has been
switched off for more than one
minute . Manual operation of the wipers stalk
by moving the lever
A up and return-
ing it to position "0" cancels the AUTO
position, the deactivation warning light
comes on on the instrument panel dis-
play accompanied by a message on
the multifunction display.
W i n d s c r e e n w i p e r s
2 Fast wipe (heavy rain).
1 Normal wipe
(moderate rain).
I Intermittent wipe
0 Off
AUTO
Automatic wipe then single
sweep.
Page 89 of 211
5
79
COURTESY LIGHTS
1 . F r o n t c o u r t e s y l i g h t
2 . Front map reading lights
With the ignition on, operate the relevant switch.
3 . R e a r c o u r t e s y l i g h t
4 . Rear map reading lights
With the ignition on, operate the relevant switch. Deactivation
The courtesy lights can be deacti vated
by pressing switch
1 for more than
three seconds. Pressing switch 1 or
3 b r i e fl y s w i t c h e s t h e c o r r e s p o n d i n g
courtesy light on and off.
The map reading lights are not affected
by this and can still be switched on.
Activation
To re-activate the automatic lighting,
press switch 1 again.
S i l l i l l u m i n a t i o n
The sill lighting is at the bottom of each
door trim.
The lights come on automatically
when a door is opened and switch off
automatically when all of the doors are
closed.
Boot light
The boot light is located in the right-
hand boot trim.
It comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.
Pressing switch 1 or 3 switches on the
corresponding courtesy light for ten
minutes.
The front and rear courtesy lights come
on automatically when the ignition key
is removed, on unlocking the vehicle
or on opening one of the doors.
They gradually go off after the ignition
has been switched on or the vehicle
is locked.
Page 90 of 211
6
80

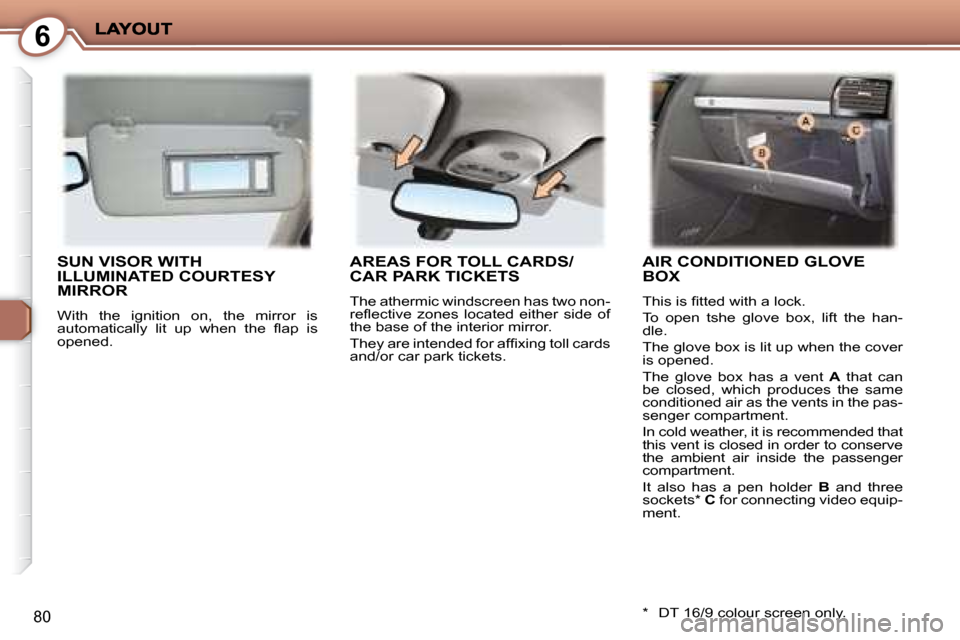

SUN VISOR WITH ILLUMINATED COURTESY MIRROR
With the ignition on, the mirror is
a u t o m a t i c a l l y l i t u p w h e n t h e fl a p i s
opened.
AREAS FOR TOLL CARDS/CAR PARK TICKETS
The athermic windscreen has two non-
r e fl e c t i v e z o n e s l o c a t e d e i t h e r s i d e o f
t h e b a s e o f t h e i n t e r i o r m i r r o r .
T h e y a r e i n t e n d e d f o r a f fi x i n g t o l l c a r d s
and/or car park tickets.
AIR CONDITIONED GLOVE BOX
T h i s i s fi t t e d w i t h a l o c k .
T o o p e n t s h e g l o v e b o x , l i f t t h e h a n -
dle.
T h e g l o v e b o x i s l i t u p w h e n t h e c o v e r
is opened.
T h e g l o v e b o x h a s a v e n t A that can
be closed, which produces the same
c o n d i t i o n e d a i r a s t h e v e n t s i n t h e p a s -
senger compartment.
In cold weather, it is recommended that
t h i s v e n t i s c l o s e d i n o r d e r t o c o n s e r v e
the ambient air inside the passenger
compartment.
It also has a pen holder B and three
sockets * C f o r c o n n e c t i n g v i d e o e q u i p -
ment.
* DT 16/9 colour screen only.
