Displays the following information:
- the time,
- the date,
- the exterior temperature (the value displayed lashes if there is a risk of
ice),
- the accesses check,
- the vehicle function status mes- sages, displayed temporarily,
- the warning displays,
- the RT3 audio equipment displays, the direct inputting of the frequency
of a transmitter on the numeric key-
pad,
- the telematic systems displays (tele- phone, services, ...),
- the trip computer displays,
- the air conditioning displays,
- the satellite navigation system dis- plays.
407 saloon and 407 SW comfort
The general menu
Press the "MENU" button to access
the general menu and select one of
the following parameters and func-
tions: Navigation - Guidance, Audio
functions, Trip computer, Person-
alisation-coniguration, Directory,
Telematics, Map*, Video* and Air
Conditioning.

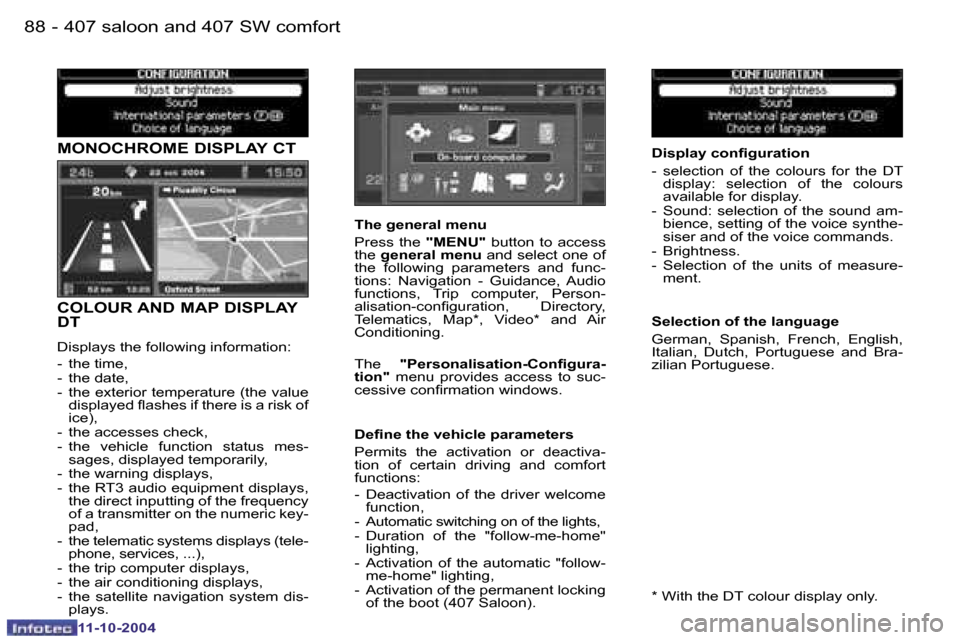

The "Personalisation-Conigura-
tion" menu provides access to suc-
cessive conirmation windows. Display coniguration
- selection of the colours for the DT
display: selection of the colours
available for display.
- Sound: selection of the sound am- bience, setting of the voice synthe-
siser and of the voice commands.
- Brightness.
- Selection of the units of measure- ment.
* With the DT colour display only.
Deine the vehicle parameters
Permits the activation or deactiva-
tion of certain driving and comfort
functions:
- Deactivation of the driver welcome function,
- Automatic switching on of the lights,
- Duration of the "follow-me-home" lighting,
- Activation of the automatic "follow- me-home" lighting,
- Activation of the permanent locking of the boot (407 Saloon). Selection of the language
German, Spanish, French, English,
Italian, Dutch, Portuguese and Bra-
zilian Portuguese.

106 -
11-10-2004
107
-
11-10-2004
You can connect video equipment
(camcorder, digital photographic
equipment, ...) to the three video
sockets, located in the glove box.
Video display is only possible when
stationary.
Select the Video menu from the
general menu:
- "Activate video mode" to activate/
deactivate the video.
- "Video parameters" to set the display format, the brightness, the
contrast and the colours.
Press the "ESC" or "DARK" button to
exit video mode.
Press the "SOURCE" button several
times in succession to select an audio
source other than that of the video.
VIDEO MENU**
** DT colour screen only.
407 saloon and 407 SW comfort

94 -
11-10-2004
95
-
11-10-2004
SATELLITE NAVIGATION
SYSTEM
Introduction
The satellite navigation system
guides you, by means of vocal and
visual instructions, to your chosen
destination.
The heart of the system lies in the
use of a map data base and of the
GPS system. With this system you
can ix the position of your vehicle by
means of a satellite network.
The system uses the following
elements:
- the CD-Rom drive,
- the coniguration CD-Rom,
- the navigation CD-Rom,
- the last voice message recall control,
- the control keypad,
- the monochrome screen or the
colour screen.
Certain functions or services de-
scribed may vary depending on the
version of CD-Rom or the country
where the vehicle is sold. 1.

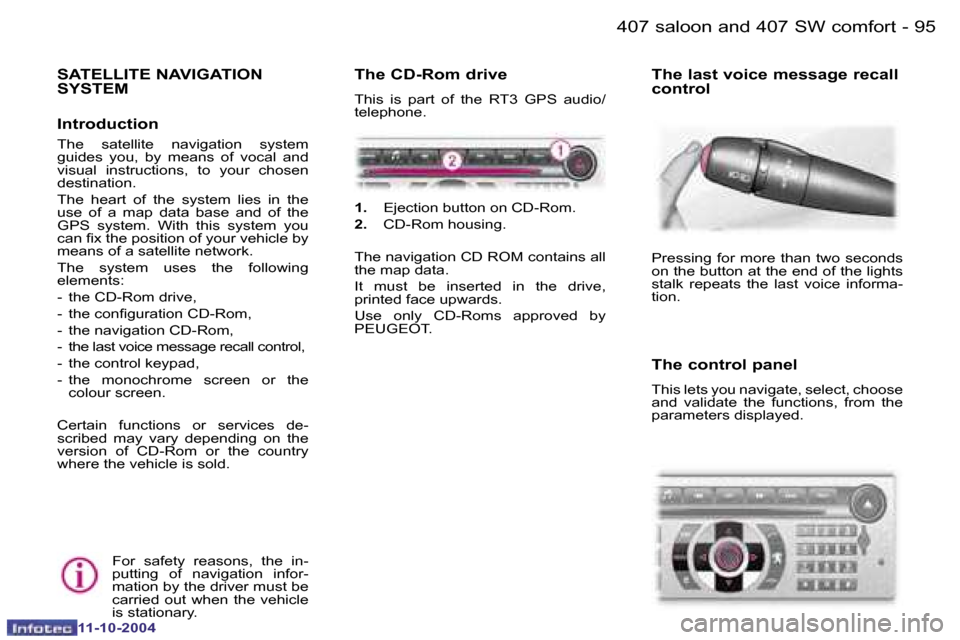

Ejection button on CD-Rom.
2. CD-Rom housing.
The navigation CD ROM contains all
the map data.
It must be inserted in the drive,
printed face upwards.
Use only CD-Roms approved by
PEUGEOT. Pressing for more than two seconds
on the button at the end of the lights
stalk repeats the last voice informa-
tion.
For safety reasons, the in-
putting of navigation infor-
mation by the driver must be
carried out when the vehicle
is stationary.
The CD-Rom drive
This is part of the RT3 GPS audio/
telephone.
The last voice message recall
control

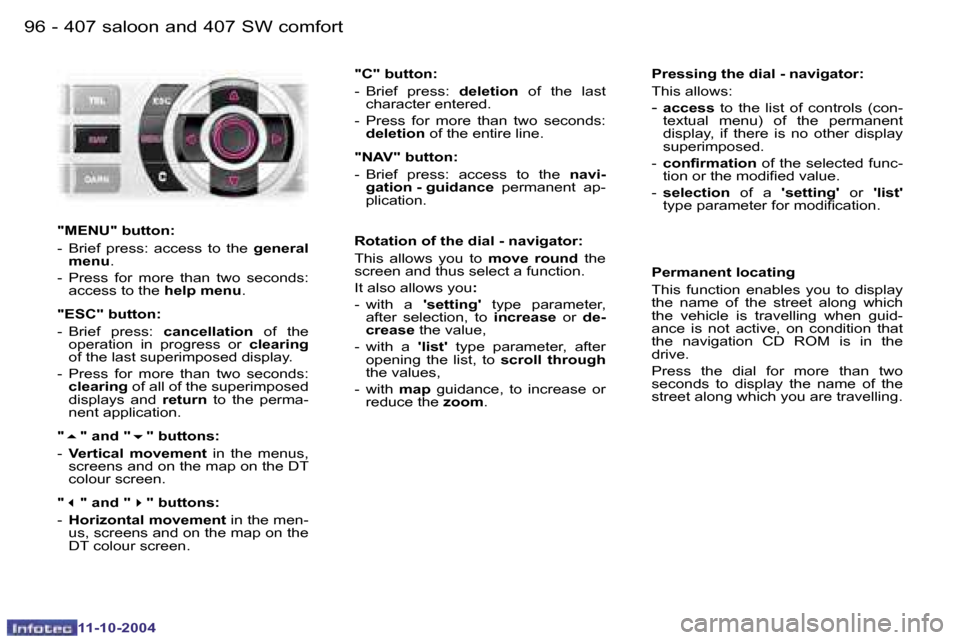

The control panel
This lets you navigate, select, choose
and validate the functions, from the
parameters displayed.
407 saloon and 407 SW comfort

96 -
11-10-2004
97
-
11-10-2004
Pressing the dial - navigator:
This allows:
-
access to the list of controls (con-
textual menu) of the permanent
display, if there is no other display
superimposed.
- conirmation of the selected func-
tion or the modiied value.
- selection of a 'setting' or 'list'
type parameter for modiication.
"C" button:
- Brief press:
deletion of the last
character entered.
- Press for more than two seconds: deletion of the entire line.
"NAV" button:
- Brief press: access to the navi-
gation - guidance permanent ap-
plication.
"MENU" button:
- Brief press: access to the general
menu .
- Press for more than two seconds: access to the help menu.
"ESC" button:
- Brief press: cancellation of the
operation in progress or clearing
of the last superimposed display.
- Press for more than two seconds: clearing of all of the superimposed
displays and return to the perma-
nent application.
" 5 " and " 6" buttons:
- Vertical movement in the menus,
screens and on the map on the DT
colour screen.
" 3 " and " 4" buttons:
- Horizontal movement in the men-
us, screens and on the map on the
DT colour screen. Permanent locating
This function enables you to display
the name of the street along which
the vehicle is travelling when guid-
ance is not active, on condition that
the navigation CD ROM is in the
drive.
Press the dial for more than two
seconds to display the name of the
street along which you are travelling.
Rotation of the dial - navigator:
This allows you to
move round the
screen and thus select a function.
It also allows you :
- with a 'setting' type parameter,
after selection, to increase or de-
crease the value,
- with a 'list' type parameter, after
opening the list, to scroll through
the values,
- with map guidance, to increase or
reduce the zoom.
407 saloon and 407 SW comfort

96 -
11-10-2004
97
-
11-10-2004
General menu
Switch on the RT3 GPS audio/
telephone and insert the navigation
CD-Rom.
Press the "MENU" button to access
the general menu.
1.

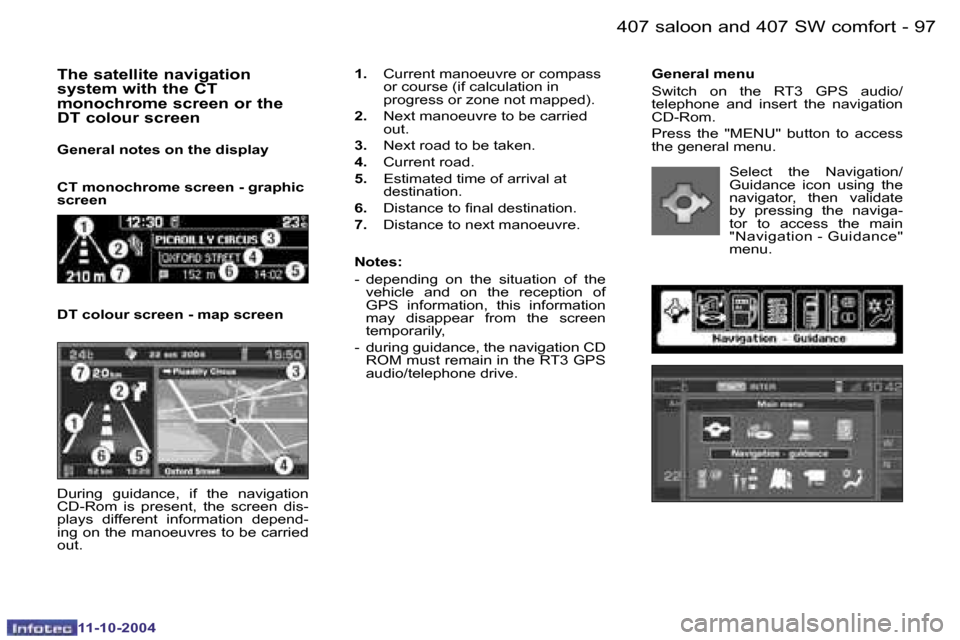

Current manoeuvre or compass
or course (if calculation in
progress or zone not mapped).
2. Next manoeuvre to be carried
out.
3. Next road to be taken.
4. Current road.
5. Estimated time of arrival at
destination.
6. Distance to inal destination.
7. Distance to next manoeuvre.
Notes:
- depending on the situation of the vehicle and on the reception of
GPS information, this information
may disappear from the screen
temporarily,
- during guidance, the navigation CD ROM must remain in the RT3 GPS
audio/telephone drive.The satellite navigation
system with the CT
monochrome screen or the
DT colour screen
General notes on the display
CT monochrome screen - graphic
screen
DT colour screen - map screen
During guidance, if the navigation
CD-Rom is present, the screen dis-
plays different information depend-
ing on the manoeuvres to be carried
out. Select the Navigation/
Guidance icon using the
navigator, then validate
by pressing the naviga-
tor to access the main
"Navigation - Guidance"
menu.
407 saloon and 407 SW comfort

98 -
11-10-2004
99
-
11-10-2004

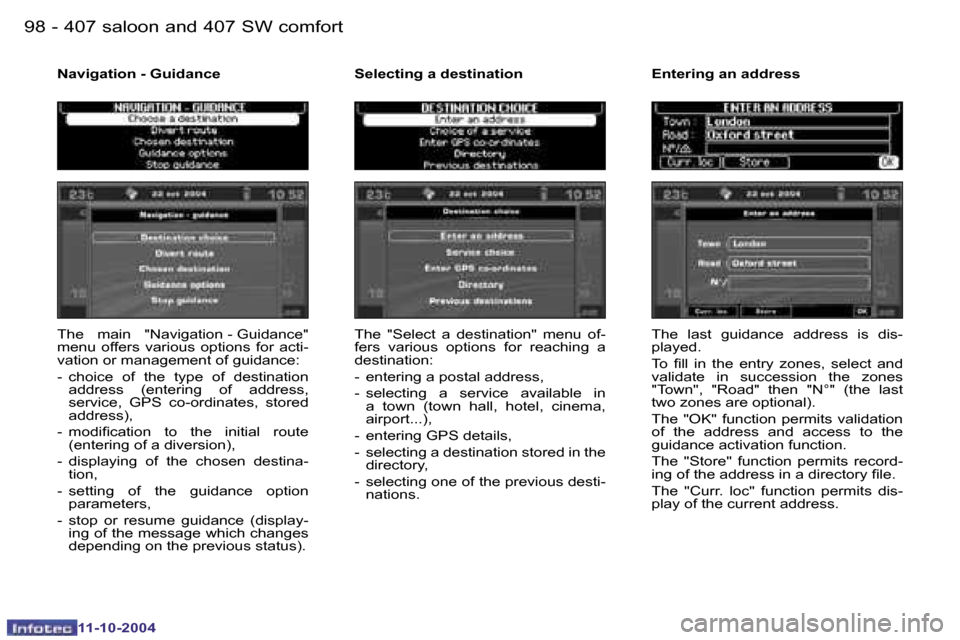

The main "Navigation - Guidance"
menu offers various options for acti-
vation or management of guidance:
- choice of the type of destination
address (entering of address,
service, GPS co-ordinates, stored
address),
- modiication to the initial route (entering of a diversion),
- displaying of the chosen destina- tion,
- setting of the guidance option parameters,
- stop or resume guidance (display- ing of the message which changes
depending on the previous status).
Navigation - Guidance
The "Select a destination" menu of-
fers various options for reaching a
destination:
- entering a postal address,
- selecting a service available in a town (town hall, hotel, cinema,
airport...),
- entering GPS details,
- selecting a destination stored in the directory,
- selecting one of the previous desti- nations.
Selecting a destination
The last guidance address is dis-
played.
To ill in the entry zones, select and
validate in succession the zones
"Town", "Road" then "N°" (the last
two zones are optional).
The "OK" function permits validation
of the address and access to the
guidance activation function.
The "Store" function permits record-
ing of the address in a directory ile.
The "Curr. loc" function permits dis-
play of the current address.
Entering an address
407 saloon and 407 SW comfort

98 -
11-10-2004
99
-
11-10-2004

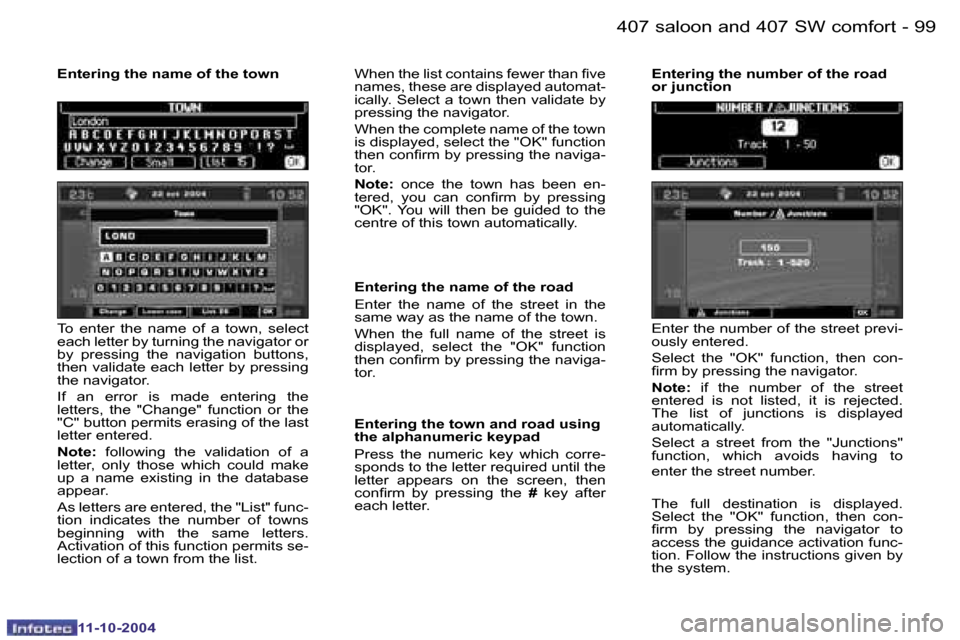

To enter the name of a town, select
each letter by turning the navigator or
by pressing the navigation buttons,
then validate each letter by pressing
the navigator.
If an error is made entering the
letters, the "Change" function or the
"C" button permits erasing of the last
letter entered.
Note:
following the validation of a
letter, only those which could make
up a name existing in the database
appear.
As letters are entered, the "List" func-
tion indicates the number of towns
beginning with the same letters.
Activation of this function permits se-
lection of a town from the list.
Entering the name of the town
Enter the number of the street previ-
ously entered.
Select the "OK" function, then con-
irm by pressing the navigator.
Note: if the number of the street
entered is not listed, it is rejected.
The list of junctions is displayed
automatically.
Select a street from the "Junctions"
function, which avoids having to
enter the street number.
The full destination is displayed.
Select the "OK" function, then con-
irm by pressing the navigator to
access the guidance activation func-
tion. Follow the instructions given by
the system.
Entering the number of the road

or junction
When the list contains fewer than ive
names, these are displayed automat-
ically. Select a town then validate by
pressing the navigator.
When the complete name of the town
is displayed, select the "OK" function
then conirm by pressing the naviga-
tor.
Note:
once the town has been en-
tered, you can conirm by pressing
"OK". You will then be guided to the
centre of this town automatically.
407 saloon and 407 SW comfort
Entering the name of the road
Enter the name of the street in the
same way as the name of the town.
When the full name of the street is
displayed, select the "OK" function
then conirm by pressing the naviga-
tor.
Entering the town and road using
the alphanumeric keypad
Press the numeric key which corre-
sponds to the letter required until the
letter appears on the screen, then
conirm by pressing the # key after
each letter.

100 -
11-10-2004
101
-
11-10-2004

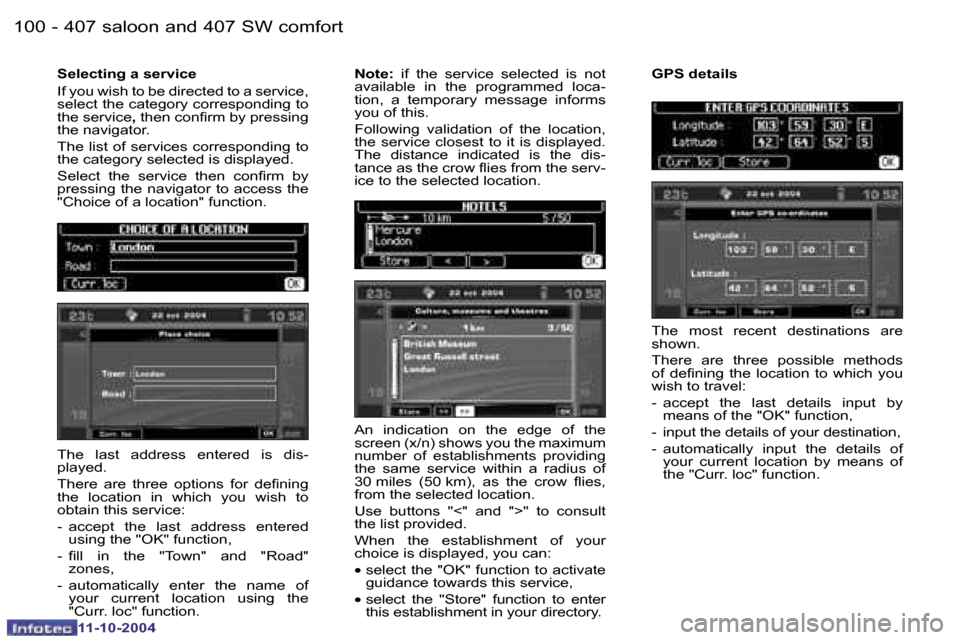

Selecting a service
If you wish to be directed to a service,
select the category corresponding to
the service
, then conirm by pressing
the navigator.
The list of services corresponding to
the category selected is displayed.
Select the service then conirm by
pressing the navigator to access the
"Choice of a location" function. Note:
if the service selected is not
available in the programmed loca-
tion, a temporary message informs
you of this.
Following validation of the location,
the service closest to it is displayed.
The distance indicated is the dis-
tance as the crow lies from the serv-
ice to the selected location.
The last address entered is dis-
played.
There are three options for deining
the location in which you wish to
obtain this service:
- accept the last address entered using the "OK" function,
- ill in the "Town" and "Road"
zones,
- automatically enter the name of your current location using the
"Curr. loc" function. An indication on the edge of the
screen (x/n) shows you the maximum
number of establishments providing
the same service within a radius of
30 miles (50 km), as the crow lies,
from the selected location.
Use buttons "<" and ">" to consult
the list provided.
When the establishment of your
choice is displayed, you can: ฀•฀฀
select the "OK" function to activate
guidance towards this service,
฀•฀฀ select the "Store" function to enter
this establishment in your directory. The most recent destinations are
shown.
There are three possible methods
of deining the location to which you
wish to travel:
- accept the last details input by
means of the "OK" function,
- input the details of your destination,
- automatically input the details of your current location by means of
the "Curr. loc" function.
GPS details
407 saloon and 407 SW comfort

100 -
11-10-2004
101
-
11-10-2004

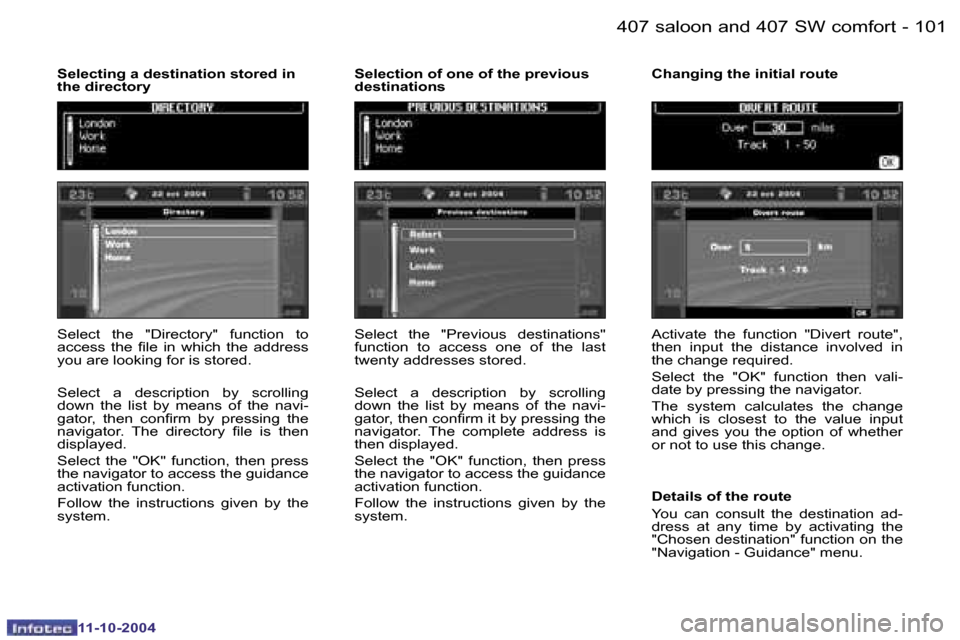

Select the "Directory" function to
access the ile in which the address
you are looking for is stored.
Select a description by scrolling
down the list by means of the navi-
gator, then conirm by pressing the
navigator. The directory ile is then
displayed.
Select the "OK"
function, then press
the navigator to access the guidance
activation function.
Follow the instructions given by the
system.
Selecting a destination stored in
the directory

Select the "Previous destinations"
function to access one of the last
twenty addresses stored.
Select a description by scrolling
down the list by means of the navi-
gator, then conirm it by pressing the
navigator. The complete address is
then displayed.
Select the "OK" function, then press
the navigator to access the guidance
activation function.
Follow the instructions given by the
system.
Selection of one of the previous
destinations
Activate the function "Divert route",
then input the distance involved in
the change required.
Select the "OK" function then vali-
date by pressing the navigator.
The system calculates the change
which is closest to the value input
and gives you the option of whether
or not to use this change.
Changing the initial route
407 saloon and 407 SW comfort
Details of the route
You can consult the destination ad-
dress at any time by activating the
"Chosen destination"
function on the
"Navigation - Guidance" menu.

102 -
11-10-2004
103
-
11-10-2004

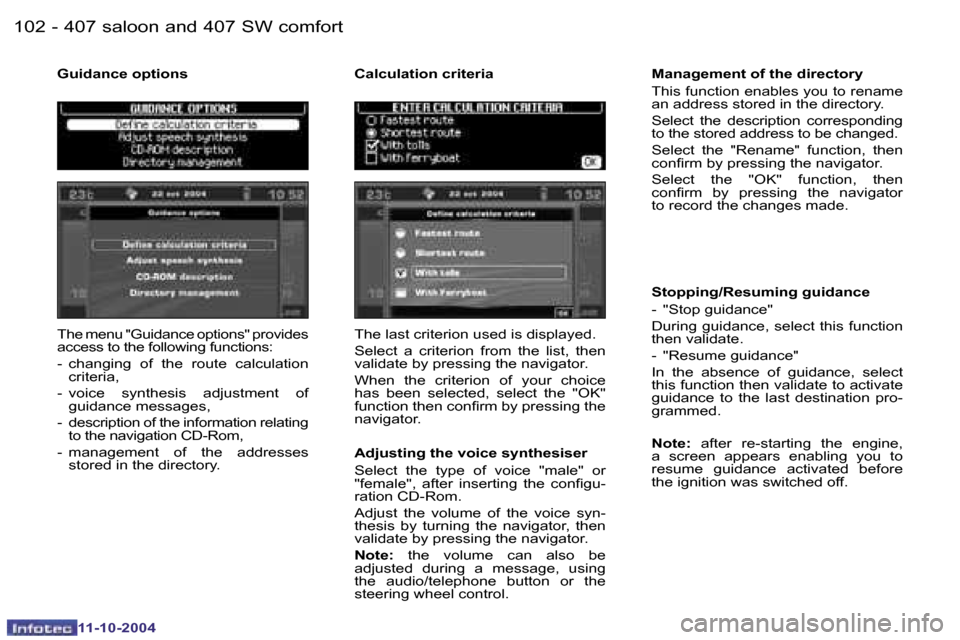

The menu "Guidance options" provides
access to the following functions:
- changing of the route calculation
criteria,
- voice synthesis adjustment of guidance messages,
- description of the information relating to the navigation CD-Rom,
- management of the addresses stored in the directory.
Guidance options
The last criterion used is displayed.
Select a criterion from the list, then
validate by pressing the navigator.
When the criterion of your choice
has been selected, select the "OK"
function then conirm by pressing the
navigator.
Calculation criteria Management of the directory
This function enables you to rename
an address stored in the directory.
Select the description corresponding
to the stored address to be changed.
Select the "Rename" function, then
conirm by pressing the navigator.
Select the "OK" function, then
conirm by pressing the navigator
to record the changes made.
407 saloon and 407 SW comfort
Adjusting the voice synthesiser
Select the type of voice "male" or
"female", after inserting the conigu-
ration CD-Rom.
Adjust the volume of the voice syn-
thesis by turning the navigator, then
validate by pressing the navigator.
Note: the volume can also be
adjusted during a message, using
the audio/telephone button or the
steering wheel control. Stopping/Resuming guidance
- "Stop guidance"
During guidance, select this function
then validate.
- "Resume guidance"
In the absence of guidance, select
this function then validate
to activate
guidance to the last destination pro-
grammed.
Note: after re-starting the engine,
a screen appears enabling you to
resume guidance activated before
the ignition was switched off.
