Navigator
Located on the RD4 audio equip-
ment control keypad, this enables
you to select and conirm the func-
tions, commands and parameters
displayed.
It incorporates:
- the up
5, down 6, left 7, right
8 movement arrows which ena-
ble you to move the cursor on the
screen,
- the central conirmation button. Anti-theft system
The audio equipment is coded in
such a way that it can only work in
your vehicle. If you wish to install
it in another vehicle, contact your
PEUGEOT dealer for coniguration
of the system.
The anti-theft system is automatic.
No action on your part is required.
407 saloon and 407 SW comfort
All selections can be
cancelled prior to con-
irmation by pressing
the "ESC" button or
automatically after a
few seconds without
any action.
Details of each of the keypad con-
trols are indicated on the following
pages.

66 -
11-10-2004
67
-
11-10-2004
On/off
Adjusting the bass
When "Bass" is displayed, press the
navigator buttons to vary the setting.
- "-9" for a minimum bass setting,
- mid-way for a normal setting,
- "+9" for a maximum bass setting.
Press the button to
switch the set on or
off.
Adjusting the volume
Turn the button clockwise to increase
the audio equipment volume or anti-
clockwise to decrease it.
Audio settings
Press the ¯ but-
ton several times to
access the musical
ambience, automatic
volume correction, left/
right balance, rear/front
balance, loudness, tre-
ble and bass setting windows.
Exit from audio mode is by pressing
the "ESC" button or is automatic after
a few seconds without pressing any
button.
407 saloon and 407 SW comfort
Musical ambience
This function permits the selection of
a musical ambience: "None", "Classi-
cal", "Jazz-Blues", "Pop-Rock", "Vo-
cal" or "Techno".
Press the navigator buttons to select
the ambience required.
The selection of a musical ambience
sets the bass and treble automati-
cally. Adjusting the treble
When "Treble" is displayed, press
the navigator buttons to vary the
setting.
- "-9" for a minimum treble setting,
- mid-way for a normal setting,
- "+9" for a maximum treble setting.
Adjusting the loudness
Press the navigator buttons to switch
the function on or off.
The loudness automatically empha-
sises bass and treble tones.
The bass, treble, loudness and mu-
sical ambience settings are speciic
to each source. It is possible to set
them differently for the AM radio, FM
radio, CD, CD changer or auxiliary
equipment.

68 -
11-10-2004
69
-
11-10-2004
Adjusting the front/rear sound
distribution
When "Rear - Front Balance" is dis-
played, press the navigator buttons.
Button
8 increases the volume at
the front.
Button 7 increases the volume at
the rear. Radio
Notes on radio reception
The quality of the audio reception is
subject to external phenomena, due
to the nature of the signals and the
way in which they are transmitted.
Both AM and FM reception are sub-
ject to various forms of interference.
This is no relection on the quality of
the equipment.
On MW/LW, interference may be
noticed when passing under high
voltage power lines or bridges, or in
tunnels.
On FM, interference may be the re-
sult of increasing distance from the
transmitter, delection of the signals
by obstacles (mountains, hills, build-
ings etc.), or of being in an area which
is not covered by a transmitter.Selecting radio mode
Press the "SOURCE"
button several times
until the radio source
is obtained.
Selecting a waveband Press the "BAND"
button briely to select
wavebands FM1, FM2,
FMast and AM.The stored stations for
each waveband are
displayed.
Automatic station search Briely press
button 8 or 7
to search for the
station immedi-
ately above or
below.
The search stops
at the irst station found.
Searching for a station occurs irst in
"LO" sensitivity (selection of the most
powerful transmitters), then in "DX"
sensitivity (selection of the weakest
and most distant transmitters).
407 saloon and 407 SW comfort
Adjusting the right/left sound
distribution
When "Left - Right Balance" is dis-
played, press the navigator buttons.
Button 8 increases the volume on
the right-hand side.
Button 7 increases the volume on
the left-hand side.
Automatic volume correction
This function enables the volume to
be automatically adjusted depending
on the level of noise produced by the
speed of the vehicle.
Press the 7 and 8
navigator but-
tons to switch the function on or off.

68 -
11-10-2004
69
-
11-10-2004
Adjusting the front/rear sound
distribution
When "Rear - Front Balance" is dis-
played, press the navigator buttons.
Button
8 increases the volume at
the front.
Button 7 increases the volume at
the rear. Radio
Notes on radio reception
The quality of the audio reception is
subject to external phenomena, due
to the nature of the signals and the
way in which they are transmitted.
Both AM and FM reception are sub-
ject to various forms of interference.
This is no relection on the quality of
the equipment.
On MW/LW, interference may be
noticed when passing under high
voltage power lines or bridges, or in
tunnels.
On FM, interference may be the re-
sult of increasing distance from the
transmitter, delection of the signals
by obstacles (mountains, hills, build-
ings etc.), or of being in an area which
is not covered by a transmitter.Selecting radio mode
Press the "SOURCE"
button several times
until the radio source
is obtained.
Selecting a waveband Press the "BAND"
button briely to select
wavebands FM1, FM2,
FMast and AM.The stored stations for
each waveband are
displayed.
Automatic station search Briely press
button 8 or 7
to search for the
station immedi-
ately above or
below.
The search stops
at the irst station found.
Searching for a station occurs irst in
"LO" sensitivity (selection of the most
powerful transmitters), then in "DX"
sensitivity (selection of the weakest
and most distant transmitters).
407 saloon and 407 SW comfort
Adjusting the right/left sound
distribution
When "Left - Right Balance" is dis-
played, press the navigator buttons.
Button 8 increases the volume on
the right-hand side.
Button 7 increases the volume on
the left-hand side.
Automatic volume correction
This function enables the volume to
be automatically adjusted depending
on the level of noise produced by the
speed of the vehicle.
Press the 7 and 8
navigator but-
tons to switch the function on or off.

68 -
11-10-2004
69
-
11-10-2004
Manual station search
Briely press button 5
or 6 to decrease or
increase the frequency
displayed.
By continuing to press
the button in the direc-
tion selected, you will
obtain continuous scroll-
ing of the frequency.
The scrolling stops as
soon as the button is
released.
Manual storing of stations in the
memory Select the station re-
quired.
Press one of the but-
tons "1" to "6" for more
than one second.
The sound stops
then becomes audi-
ble again, conirming
that the station has
been stored in the
memory. Automatic storing of FM stations
in the memory (autostore)
For greater listening
pleasure, it is prefer-
able to activate the
RDS function.
Press the "BAND"
button for more than
one second.
Your radio automatically stores the
6 stations with the strongest signal in
FM. These stations are stored in the
FMast waveband.
If it is not possible to ind 6 stations,
the remaining memories are empty. Displaying the stations available
You can display
the list of stations
received locally by
pressing the "LIST"
button. This list can
include up to 30 sta-
tions.
To update this list during your jour-
ney, press the "LIST" button for more
than one second.
To search for an available station:
- press the "LIST" button,
- when the list of available stations is displayed, press button 5 or 6
to select a station, then conirm the
selection using the "OK" button.
Note: stations which permit the
broadcasting of trafic information
are indicated by the display TA.
407 saloon and 407 SW comfort
Recalling stations stored in the
memory
For each waveband, briely press
one of the buttons "1" to "6" to select
the corresponding station.
A superimposed display listing the
stored stations appears, the station
selected being identiied.

70 -
11-10-2004
71
-
11-10-2004
Trafic information program (TA)
Press the "TA" button
to switch the function
on or off.
The multifunction display will show:
- TA if the function is selected, - TA crossed out if the function is se-
lected but not available.
Any trafic information lash will
be given priority, whatever source
you are listening to (radio, CD, CD
changer or auxiliary equipment).
If you wish to interrupt a message,
press an audio equipment function
button to return to the source which
was in use prior to the interruption.
Note: the trafic information volume
is independent of the normal audio
equipment volume.
You can adjust it using the volume
dial or the steering wheel control.
The setting is stored and will be
used when the next messages are
broadcast. "RADIO" menu
Press the "MENU" button to access
the general menu and select the
"Audio functions" menu then "FM
waveband preferences" or press the
"OK" button in radio mode to select
the following functions:
- Activate/Deactivate frequency fol-
lowing (RDS),
- Activate/Deactivate regional mode (REG),
- Activate/Deactivate displaying of the radio text (RDTXT).
Search by type of program (PTY)
This is a search by type of program, if
the coding is activated by the broad-
casting stations.
It allows you to listen to stations
broadcasting a speciic type of pro-
gram (news, culture, sport, rock,
weather, etc.).
Press the "PTY" but-
ton to access this
function.
To search for a type of PTY pro-
gram: - press the "PTY" but-ton,
- press button 5 or 6
to scroll down the list
of the various types
of programs offered,
then conirm the se-
lection using the "OK"
button.
The list of stations is available after
a period during which the FM wave-
band is searched.
- when the list of stations corre- sponding to the type of program is
displayed, press button 5 or 6 to
select a station, then conirm the
selection using the "OK" button.
To switch the PTY function off, select
"Deactivate PTY" from the list of the
various types of program offered.
407 saloon and 407 SW comfort
EON system
This system connects stations which
are part of the same network. It
enables the broadcasting of TA trafic
information by a station that is part
of the same network as the station to
which you are listening.
This service is available when you
have selected the TA trafic informa-
tion programme.

70 -
11-10-2004
71
-
11-10-2004
RDS
Using the RDS (Radio Data
System) function on FM
The RDS allows you to continue lis-
tening to the same station whatever
frequency it is using in the region
you are going through. The display
indicates the name of the station
selected.
However, poor coverage of the net-
work or particular environmental
conditions may interfere with the
transmission.
The radio is continually searching
for the transmitter which is transmit-
ting the same program with the best
reception.
To access the function, press the
"MENU" button, select the "Audio
functions" menu then "FM waveband
preferences" or press the "OK" but-
ton in radio mode.
The "RADIO" contextual menu ap-
pears.
Select "Activate frequency following
(RDS)" or "Deactivate frequency
following (RDS)" depending on the
status of the function on the multi-
function display.
The multifunction display will show:
- RDS if the function is selected,
- RDS crossed out if the function is
selected but not available. Regional following mode (REG)
When they are part of a network, cer-
tain stations broadcast regional pro-
grammes in the various areas which
they serve. The regional following
mode enables you to continue listen-
ing to the same program.
To access the function, press the
"MENU" button, select the "Audio
functions" menu then "FM waveband
preferences" or press the "OK" but-
ton in radio mode.
The "RADIO" contextual menu ap-
pears.
Select "Activate regional mode
(REG)" or "Deactivate regional mode
(REG)" depending on the status
of the function on the multifunction
display.
The multifunction display will show:
- REG if the function is selected,
- REG crossed out if the function is
selected but not available.
407 saloon and 407 SW comfort

72 -
11-10-2004
73
-
11-10-2004

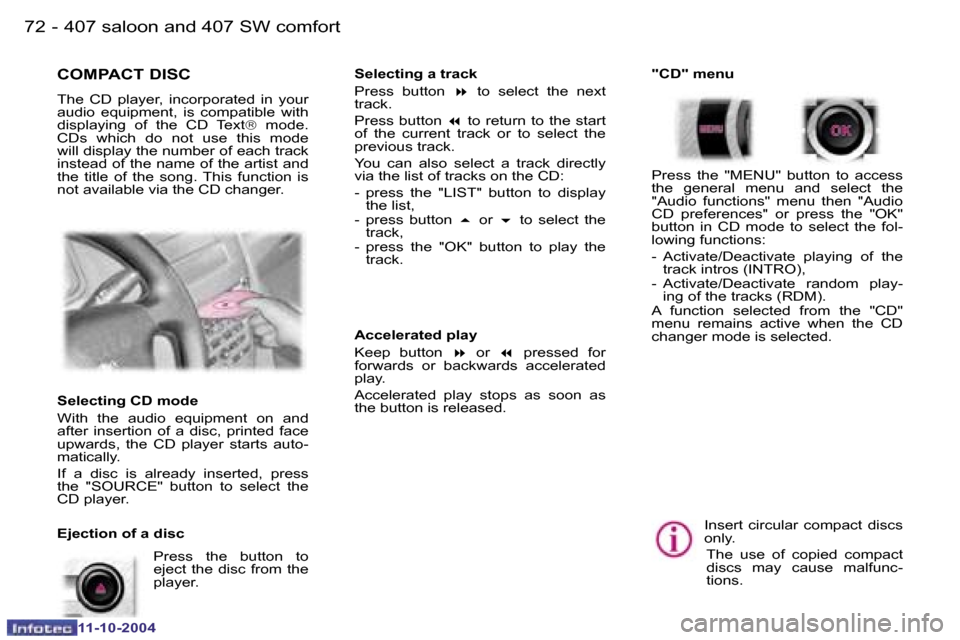

COMPACT DISC
The CD player, incorporated in your
audio equipment, is compatible with
displaying of the CD Text
 mode.
CDs which do not use this mode
will display the number of each track
instead of the name of the artist and
the title of the song. This function is
not available via the CD changer. Selecting a track
Press button
8 to select the next
track.
Press button 7 to return to the start
of the current track or to select the
previous track.
You can also select a track directly
via the list of tracks on the CD:
- press the "LIST" button to display the list,
- press button 5 or 6 to select the
track,
- press the "OK" button to play the track.
Insert circular compact discs
only.
The use of copied compact
discs may cause malfunc-
tions.
"CD" menu
Press the "MENU" button to access
the general menu and select the
"Audio functions" menu then "Audio
CD preferences" or press the "OK"
button in CD mode to select the fol-
lowing functions:
- Activate/Deactivate playing of the
track intros (INTRO),
- Activate/Deactivate random play- ing of the tracks (RDM).
A function selected from the "CD"
menu remains active when the CD
changer mode is selected.
Selecting CD mode
With the audio equipment on and
after insertion of a disc, printed face
upwards, the CD player starts auto-
matically.
If a disc is already inserted, press
the "SOURCE" button to select the
CD player.
Ejection of a disc Press the button to
eject the disc from the
player.
407 saloon and 407 SW comfort
Accelerated play
Keep button 8 or 7 pressed for
forwards or backwards accelerated
play.
Accelerated play stops as soon as
the button is released.

72 -
11-10-2004
73
-
11-10-2004
CD CHANGER
Selecting CD changer mode
Press the "SOURCE" button several
times.
To access the CD changer, you
must insert at least one CD in the
changer.
The CD Text  is not avail-
able when playing a CD via
the changer. "CHANGER" menu
Press the "MENU" button to access
the general menu and select the "Au-
dio functions" menu then "Audio CD
preferences" or press the "OK" but-
ton in CD changer mode to select the
following functions:
- Activate/Deactivate playing of the
track intros (INTRO),
- Activate/Deactivate CD changer repeat (RPT),
- Activate/Deactivate random play- ing of the tracks (RDM).
A function selected in the "changer"
menu remains active when the CD
mode is selected.
Selecting a track
Press button
8 to select the next
track.
Press button 7 to return to the start
of the current track or to select the
previous track.
407 saloon and 407 SW comfort
Selecting a disc
Press one of the buttons "1" to "6" on
the radio to select the corresponding
disc.
Buttons 5 and 6 permit the selec-
tion of the previous/next disc in the
changer.
Each time a disc is selected, a win-
dow appears as a superimposed dis-
play to indicate the presence of discs
in the changer cartridge:
- "Disc" if a CD is present,
- "Cannot be played" if the CD is faulty or upside down,
- Blank line if there is no CD present. Accelerated play
Keep button
8
or 7 pressed for
forwards or backwards accelerated
play.
Accelerated play stops as soon as
the button is released.
Insert circular compact discs
only.
Compact discs of the irst
generation of laser technol-
ogy are no longer detected.
Some anti-pirating systems, on
original discs or CDs copied by a
personal CD writer may cause mal-
functions, irrespective of the quality
of the orignal player.

74 -
11-10-2004
75
-
11-10-2004
MONOCHROME DISPLAY C
Displays the following information:
- the time,
- the date,
- the exterior temperature (the value
displayed lashes if there is a risk of
ice),
- the accesses check,
- the vehicle function status mes- sages, displayed temporarily,
- the warning displays,
- the RD4 audio equipment displays,
- the trip computer displays,
- the vehicle parameters,
- the air conditioning displays,
- the language selection. The general menu Deine the vehicle parameters
Permits the activation or deactiva-
tion of certain driving and comfort
functions.
Example: Automatic switching on of
the lights.
Press the "MENU" button to access
the general menu and select one of
the following functions: Audio func-
tions, Trip computer, Personalisation/
coniguration and air conditioning.
Example: "Audio functions" display
selected.
The "Personalisation-Conigura-
tion" menu provides access to suc-
cessive conirmation windows.
407 saloon and 407 SW comfort
Management of the displays
The "AUDIO" , "TRIP" and "CLIM"
buttons on the RD4 audio equipment
keypad permit displaying in the main
window (on the right).
Example: TRIP Selection of the language
German, Spanish, French, English,
Italian, Dutch, Portuguese and Bra-
zilian Portuguese.
