1010PRACTICAL INFORMATION
Bolt covers
Alloy wheel bolts are covered by
chrome trims.
Use the yellow tool to remove the trims
before slackening the bolts. Fitting the spare wheel
I f y o u r v e h i c l e i s fi t t e d w i t h a s t e e l s p a r e
w h e e l , w h e n fi t t i n g i t , i t i s
normal when
tightening the bolts to notice that the
washers do not come into contact with
the rim. The spare wheel is secured by
the cone shape of each bolt.
VERY COLD CLIMATE SCREEN *
The very cold climate screen is a par-
tial removable cover which is clipped
onto the air intake grille to prevent the
accumulation of snow due to direct
splashes.
O n c e i t h a s b e e n fi t t e d o n y o u r v e h i c l e ,
it must be removed when the ambient
temperature rises above 10°C again.
Consult a PEUGEOT dealer.
215/55 R17 tyres cannot be
fi t t e d w i t h s t a n d a r d s n o w
chains, contact a PEUGEOT
dealer.
* According to country.

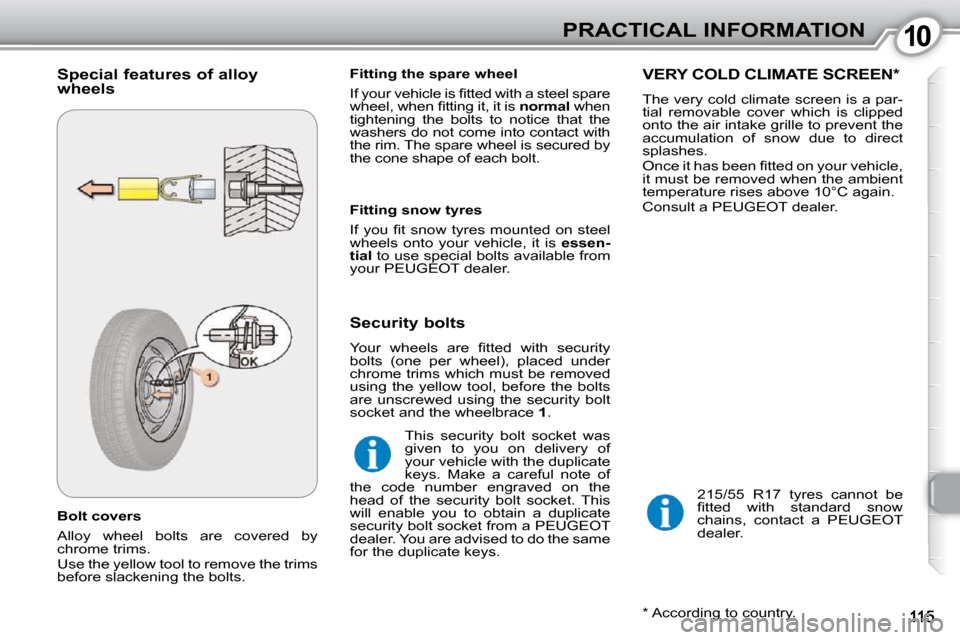

Special features of alloy
wheels
Security bolts
Y o u r w h e e l s a r e fi t t e d w i t h s e c u r i t y
bolts (one per wheel), placed under
chrome trims which must be removed
using the yellow tool, before the bolts
are unscrewed using the security bolt
socket and the wheelbrace 1 .
Fitting snow tyres
I f y o u fi t s n o w t y r e s m o u n t e d o n s t e e l
wheels onto your vehicle, it is
essen-
tial to use special bolts available from
your PEUGEOT dealer.
This security bolt socket was
given to you on delivery of
your vehicle with the duplicate
keys. Make a careful note of
the code number engraved on the
head of the security bolt socket. This
will enable you to obtain a duplicate
security bolt socket from a PEUGEOT
dealer. You are advised to do the same
for the duplicate keys.
Page 132 of 249
1010PRACTICAL INFORMATION
116

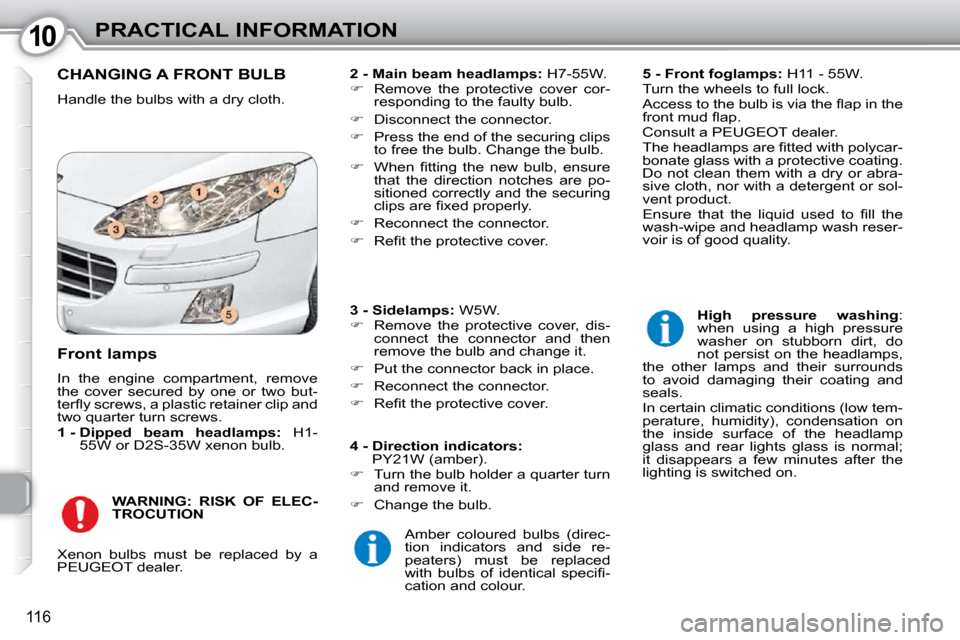

CHANGING A FRONT BULB
Handle the bulbs with a dry cloth.
2 - Main beam headlamps: H7-55W.
Remove the protective cover cor-
responding to the faulty bulb.
Disconnect the connector.
Press the end of the securing clips
to free the bulb. Change the bulb.
W h e n fi t t i n g t h e n e w b u l b , e n s u r e
that the direction notches are po-
sitioned correctly and the securing
c l i p s a r e fi x e d p r o p e r l y .
Reconnect the connector.
R e fi t t h e p r o t e c t i v e c o v e r .
4 - Direction indicators:
PY21W (amber).
Turn the bulb holder a quarter turn
and remove it.
Change the bulb.
WARNING: RISK OF ELEC-
TROCUTION
Front lamps
In the engine compartment, remove
the cover secured by one or two but-
t e r fl y s c r e w s , a p l a s t i c r e t a i n e r c l i p a n d
two quarter turn screws.
1 - Dipped beam headlamps: H1-
55W or D2S-35W xenon bulb.
Xenon bulbs must be replaced by a
PEUGEOT dealer. Amber coloured bulbs (direc-
tion indicators and side re-
peaters) must be replaced
w i t h b u l b s o f i d e n t i c a l s p e c i fi -
cation and colour.
5 - Front foglamps: H11 - 55W.
Turn the wheels to full lock.
A c c e s s t o t h e b u l b i s v i a t h e fl a p i n t h e
f r o n t m u d fl a p .
Consult a PEUGEOT dealer.
T h e h e a d l a m p s a r e fi t t e d w i t h p o l y c a r -
bonate glass with a protective coating.
Do not clean them with a dry or abra-
sive cloth, nor with a detergent or sol-
vent product.
E n s u r e t h a t t h e l i q u i d u s e d t o fi l l t h e
wash-wipe and headlamp wash reser-
voir is of good quality.
High pressure washing :
when using a high pressure
washer on stubborn dirt, do
not persist on the headlamps,
the other lamps and their surrounds
to avoid damaging their coating and
seals.
In certain climatic conditions (low tem-
perature, humidity), condensation on
the inside surface of the headlamp
glass and rear lights glass is normal;
it disappears a few minutes after the
lighting is switched on.
3 - Sidelamps: W5W.
Remove the protective cover, dis-
connect the connector and then
remove the bulb and change it.
Put the connector back in place.
Reconnect the connector.
R e fi t t h e p r o t e c t i v e c o v e r .
Page 133 of 249
1010PRACTICAL INFORMATION
117

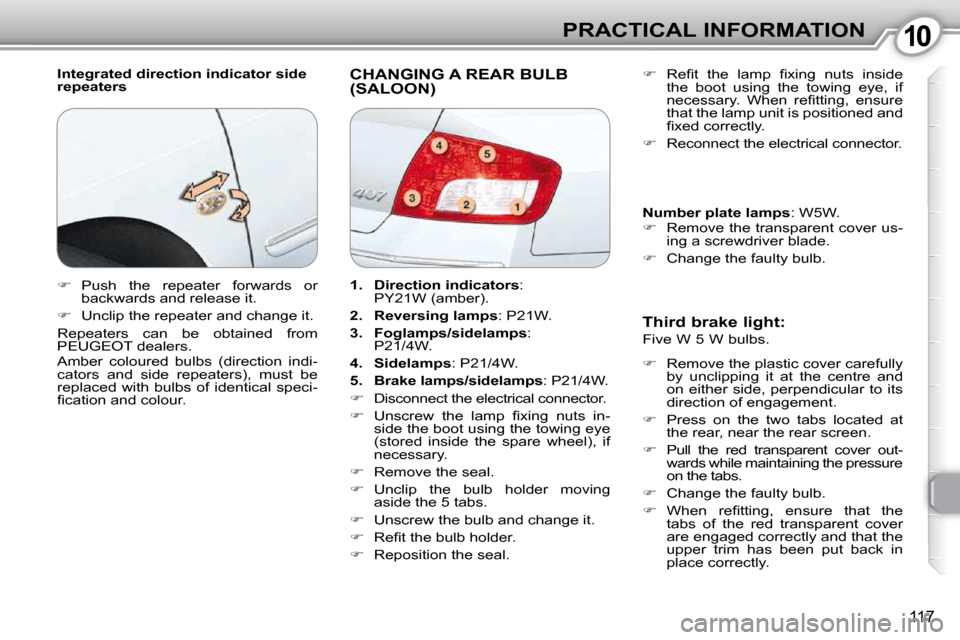

Integrated direction indicator side
repeaters CHANGING A REAR BULB (SALOON)
Third brake light:
Five W 5 W bulbs.
Remove the plastic cover carefully
by unclipping it at the centre and
on either side, perpendicular to its
direction of engagement.
Press on the two tabs located at
the rear, near the rear screen.
Pull the red transparent cover out-
wards while maintaining the pressure
on the tabs.
Change the faulty bulb.
W h e n r e fi t t i n g , e n s u r e t h a t t h e
tabs of the red transparent cover
are engaged correctly and that the
upper trim has been put back in
place correctly.
R e fi t t h e l a m p fi x i n g n u t s i n s i d e
the boot using the towing eye, if
n e c e s s a r y . W h e n r e fi t t i n g , e n s u r e
that the lamp unit is positioned and
fi x e d c o r r e c t l y .
Reconnect the electrical connector.
Number plate lamps : W5W.
Remove the transparent cover us-
ing a screwdriver blade.
Change the faulty bulb.
Push the repeater forwards or
backwards and release it.
Unclip the repeater and change it.
Repeaters can be obtained from
PEUGEOT dealers.
Amber coloured bulbs (direction indi-
cators and side repeaters), must be
replaced with bulbs of identical speci-
fi c a t i o n a n d c o l o u r .
1. Direction indicators :
PY21W (amber).
2. Reversing lamps : P21W.
3. Foglamps/sidelamps :
P21/4W.
4. Sidelamps : P21/4W.
5. Brake lamps/sidelamps : P21/4W.
Disconnect the electrical connector.
U n s c r e w t h e l a m p fi x i n g n u t s i n -
side the boot using the towing eye
(stored inside the spare wheel), if
necessary.
Remove the seal.
Unclip the bulb holder moving
aside the 5 tabs.
Unscrew the bulb and change it.
R e fi t t h e b u l b h o l d e r .
Reposition the seal.
Page 134 of 249
1010PRACTICAL INFORMATION
117
Integrated direction indicator side
repeaters CHANGING A REAR BULB (SALOON)
Third brake light:
Five W 5 W bulbs.
Remove the plastic cover carefully
by unclipping it at the centre and
on either side, perpendicular to its
direction of engagement.
Press on the two tabs located at
the rear, near the rear screen.
Pull the red transparent cover out-
wards while maintaining the pressure
on the tabs.
Change the faulty bulb.
W h e n r e fi t t i n g , e n s u r e t h a t t h e
tabs of the red transparent cover
are engaged correctly and that the
upper trim has been put back in
place correctly.
R e fi t t h e l a m p fi x i n g n u t s i n s i d e
the boot using the towing eye, if
n e c e s s a r y . W h e n r e fi t t i n g , e n s u r e
that the lamp unit is positioned and
fi x e d c o r r e c t l y .
Reconnect the electrical connector.
Number plate lamps : W5W.
Remove the transparent cover us-
ing a screwdriver blade.
Change the faulty bulb.
Push the repeater forwards or
backwards and release it.
Unclip the repeater and change it.
Repeaters can be obtained from
PEUGEOT dealers.
Amber coloured bulbs (direction indi-
cators and side repeaters), must be
replaced with bulbs of identical speci-
fi c a t i o n a n d c o l o u r .
1. Direction indicators :
PY21W (amber).
2. Reversing lamps : P21W.
3. Foglamps/sidelamps :
P21/4W.
4. Sidelamps : P21/4W.
5. Brake lamps/sidelamps : P21/4W.
Disconnect the electrical connector.
U n s c r e w t h e l a m p fi x i n g n u t s i n -
side the boot using the towing eye
(stored inside the spare wheel), if
necessary.
Remove the seal.
Unclip the bulb holder moving
aside the 5 tabs.
Unscrew the bulb and change it.
R e fi t t h e b u l b h o l d e r .
Reposition the seal.
Page 135 of 249
1010PRACTICAL INFORMATION
118

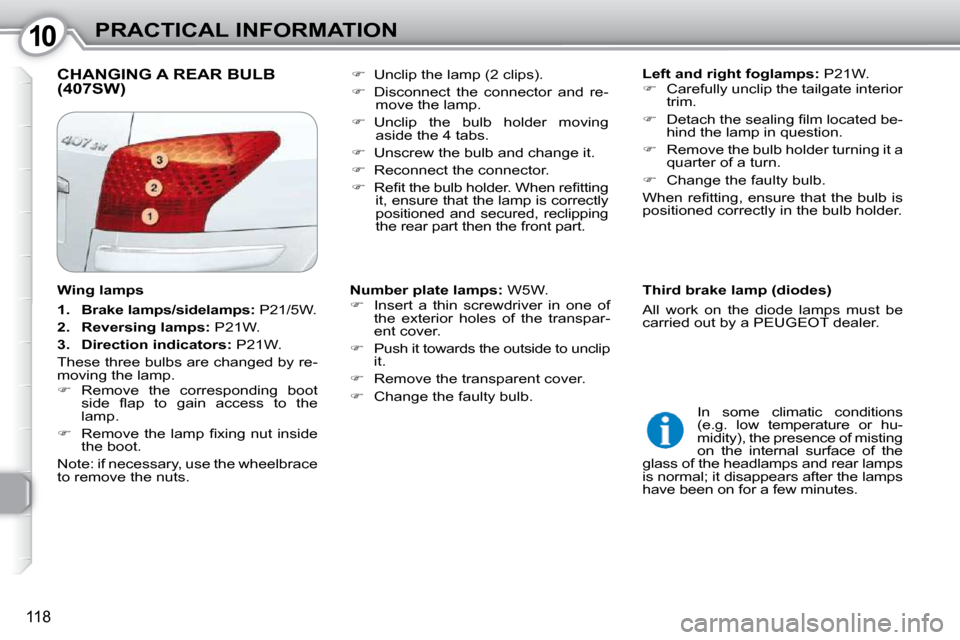

CHANGING A REAR BULB (407SW)
Left and right foglamps: P21W.
Carefully unclip the tailgate interior
trim.
D e t a c h t h e s e a l i n g fi l m l o c a t e d b e -
hind the lamp in question.
Remove the bulb holder turning it a
quarter of a turn.
Change the faulty bulb.
W h e n r e fi t t i n g , e n s u r e t h a t t h e b u l b i s
positioned correctly in the bulb holder.
Unclip the lamp (2 clips).
Disconnect the connector and re-
move the lamp.
Unclip the bulb holder moving
aside the 4 tabs.
Unscrew the bulb and change it.
Reconnect the connector.
R e fi t t h e b u l b h o l d e r . W h e n r e fi t t i n g
it, ensure that the lamp is correctly
positioned and secured, reclipping
the rear part then the front part.
Number plate lamps: W5W.
Insert a thin screwdriver in one of
the exterior holes of the transpar-
ent cover.
Push it towards the outside to unclip
it.
Remove the transparent cover.
Change the faulty bulb. Third brake lamp (diodes)
All work on the diode lamps must be
carried out by a PEUGEOT dealer.
Wing lamps
1. Brake lamps/sidelamps: P21/5W.
2. Reversing lamps: P21W.
3. Direction indicators: P21W.
These three bulbs are changed by re-
moving the lamp.
Remove the corresponding boot
s i d e fl a p t o g a i n a c c e s s t o t h e
lamp.
R e m o v e t h e l a m p fi x i n g n u t i n s i d e
the boot.
Note: if necessary, use the wheelbrace
to remove the nuts. In some climatic conditions
(e.g. low temperature or hu-
midity), the presence of misting
on the internal surface of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
Page 136 of 249
1010PRACTICAL INFORMATION
119

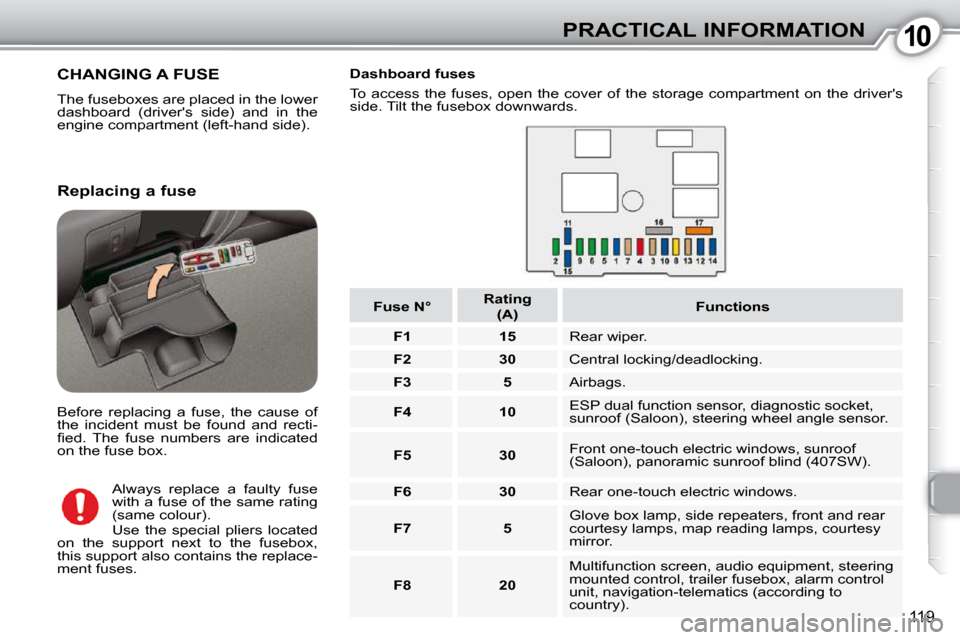

CHANGING A FUSE
The fuseboxes are placed in the lower
dashboard (driver's side) and in the
engine compartment (left-hand side). Dashboard fuses
To access the fuses, open the cover of the storage compartment on
the driver's
side. Tilt the fusebox downwards.
Replacing a fuse
Before replacing a fuse, the cause of
the incident must be found and recti-
fi e d . T h e f u s e n u m b e r s a r e i n d i c a t e d
on the fuse box. Always replace a faulty fuse
with a fuse of the same rating
(same colour).
Use the special pliers located
on the support next to the fusebox,
this support also contains the replace-
ment fuses.
Fuse N°
Rating
(A)
Functions
F1 15 Rear wiper.
F2 30 Central locking/deadlocking.
F3 5 Airbags.
F4 10 ESP dual function sensor, diagnostic socket,
sunroof (Saloon), steering wheel angle sensor.
F5 30 Front one-touch electric windows, sunroof
(Saloon), panoramic sunroof blind (407SW).
F6 30 Rear one-touch electric windows.
F7 5 Glove box lamp, side repeaters, front and rear
courtesy lamps, map reading lamps, courtesy
mirror.
F8 20 Multifunction screen, audio equipment, steering
mounted control, trailer fusebox, alarm control
unit, navigation-telematics (according to
country).
Page 137 of 249
1010PRACTICAL INFORMATION
119
CHANGING A FUSE
The fuseboxes are placed in the lower
dashboard (driver's side) and in the
engine compartment (left-hand side). Dashboard fuses
To access the fuses, open the cover of the storage compartment on
the driver's
side. Tilt the fusebox downwards.
Replacing a fuse
Before replacing a fuse, the cause of
the incident must be found and recti-
fi e d . T h e f u s e n u m b e r s a r e i n d i c a t e d
on the fuse box. Always replace a faulty fuse
with a fuse of the same rating
(same colour).
Use the special pliers located
on the support next to the fusebox,
this support also contains the replace-
ment fuses.
Fuse N°
Rating
(A)
Functions
F1 15 Rear wiper.
F2 30 Central locking/deadlocking.
F3 5 Airbags.
F4 10 ESP dual function sensor, diagnostic socket,
sunroof (Saloon), steering wheel angle sensor.
F5 30 Front one-touch electric windows, sunroof
(Saloon), panoramic sunroof blind (407SW).
F6 30 Rear one-touch electric windows.
F7 5 Glove box lamp, side repeaters, front and rear
courtesy lamps, map reading lamps, courtesy
mirror.
F8 20 Multifunction screen, audio equipment, steering
mounted control, trailer fusebox, alarm control
unit, navigation-telematics (according to
country).
Page 138 of 249
1010PRACTICAL INFORMATION
120
Fuse N°
Rating
(A)
Functions

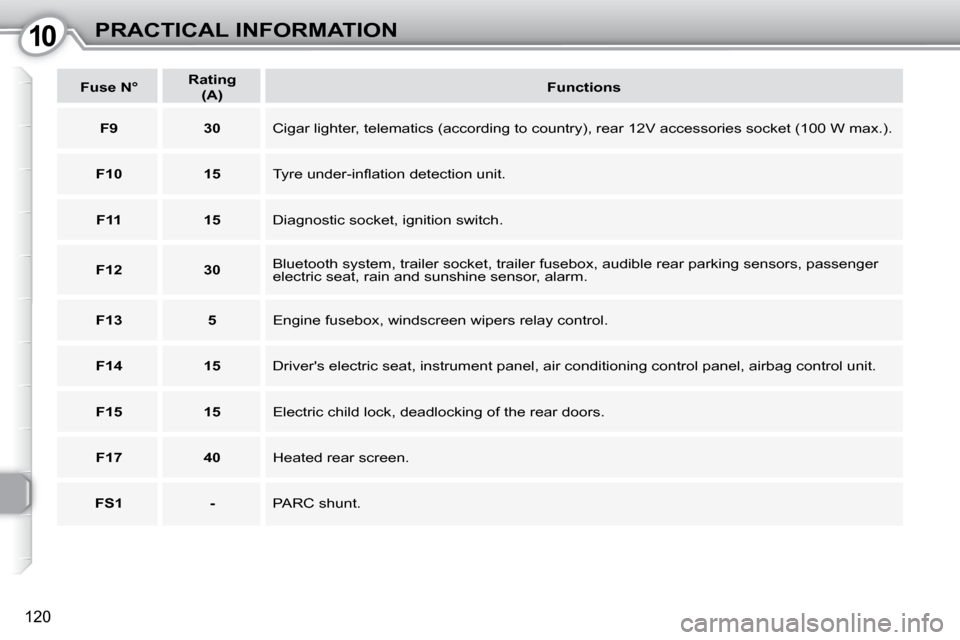

F9 30 Cigar lighter, telematics (according to country), rear 12V acces sories socket (100 W max.).
F10 15 T y r e u n d e r - i n fl a t i o n d e t e c t i o n u n i t .
F11 15 Diagnostic socket, ignition switch.
F12 30 Bluetooth system, trailer socket, trailer fusebox, audible rear pa
rking sensors, passenger
electric seat, rain and sunshine sensor, alarm.
F13 5 Engine fusebox, windscreen wipers relay control.
F14 15 Driver's electric seat, instrument panel, air conditioning co ntrol panel, airbag control unit.
F15 15 Electric child lock, deadlocking of the rear doors.
F17 40 Heated rear screen.
FS1 - PARC shunt.
Page 139 of 249
1010PRACTICAL INFORMATION
121
Fuse N°
Rating
(A)
Functions

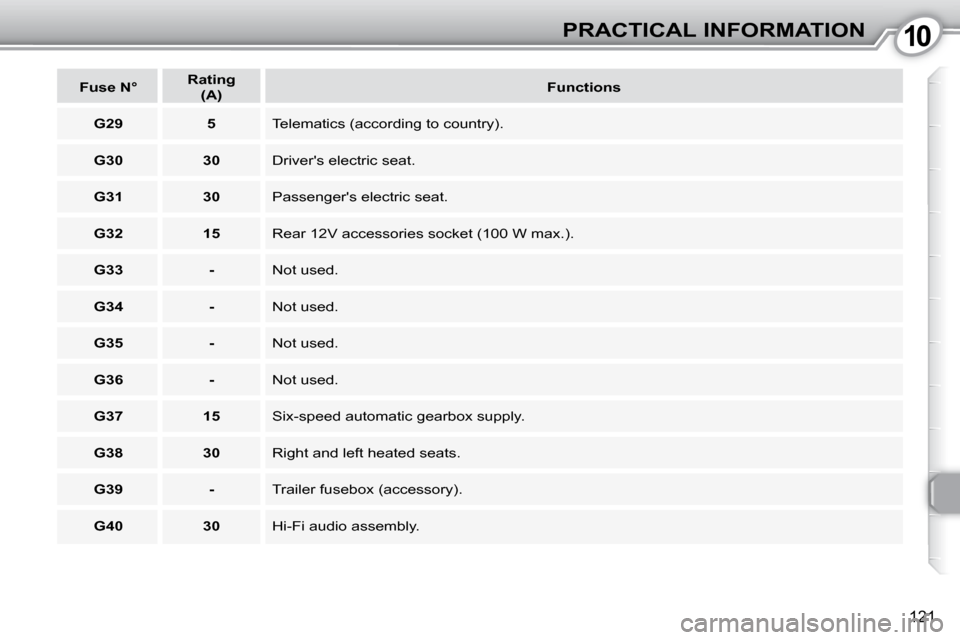

G29 5 Telematics (according to country).
G30 30 Driver's electric seat.
G31 30 Passenger's electric seat.
G32 15 Rear 12V accessories socket (100 W max.).
G33 - Not used.
G34 - Not used.
G35 - Not used.
G36 - Not used.
G37 15 Six-speed automatic gearbox supply.
G38 30 Right and left heated seats.
G39 - Trailer fusebox (accessory).
G40 30 Hi-Fi audio assembly.
Page 140 of 249
1010PRACTICAL INFORMATION
123
The electrical system of your
vehicle is designed to oper-
ate with standard or optional
equipment.
Before installing other electrical equip-
ment or accessories on your vehicle,
contact a PEUGEOT dealer.
PEUGEOT will not accept responsi-
bility for the cost incurred in repairing
your vehicle or for rectifying the mal-
functions resulting from the installation
of accessories not supplied and not
recommended by PEUGEOT and not
installed in accordance with its instruc-
tions, in particular when the combined
consumption of all of the additional
equipment connected exceeds 10 mil-
liamperes.
The maxi-fuses provide additional
protection for the electrical systems.
All work must be carried out by a

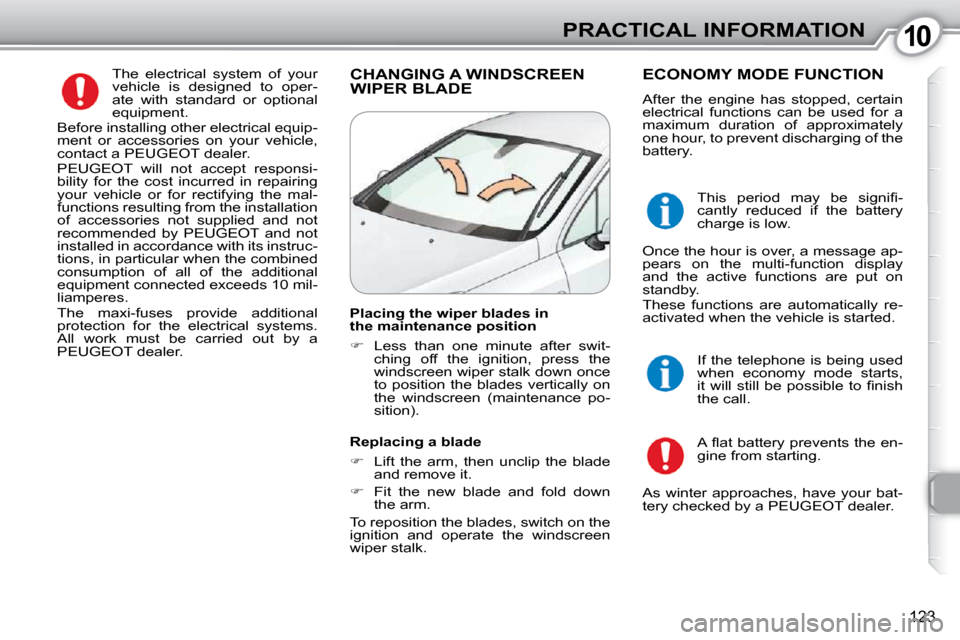

PEUGEOT dealer. CHANGING A WINDSCREEN WIPER BLADE ECONOMY MODE FUNCTION
After the engine has stopped, certain
electrical functions can be used for a
maximum duration of approximately
one hour, to prevent discharging of the
battery.
A fl a t b a t t e r y p r e v e n t s t h e e n -
gine from starting.
If the telephone is being used
when economy mode starts,
i t w i l l s t i l l b e p o s s i b l e t o fi n i s h
the call.
Placing the wiper blades in
the maintenance position
Less than one minute after swit-
ching off the ignition, press the
windscreen wiper stalk down once
to position the blades vertically on
the windscreen (maintenance po-
sition).
Replacing a blade
Lift the arm, then unclip the blade
and remove it.
Fit the new blade and fold down
the arm.
To reposition the blades, switch on the
ignition and operate the windscreen
wiper stalk. T h i s p e r i o d m a y b e s i g n i fi -
cantly reduced if the battery
charge is low.
Once the hour is over, a message ap-
pears on the multi-function display
and the active functions are put on
standby.
These functions are automatically re-
activated when the vehicle is started.
As winter approaches, have your bat-
tery checked by a PEUGEOT dealer.
