Peugeot 407 Dag 2010 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2010, Model line: 407 Dag, Model: Peugeot 407 Dag 2010Pages: 249, PDF Size: 14.8 MB
Page 141 of 249

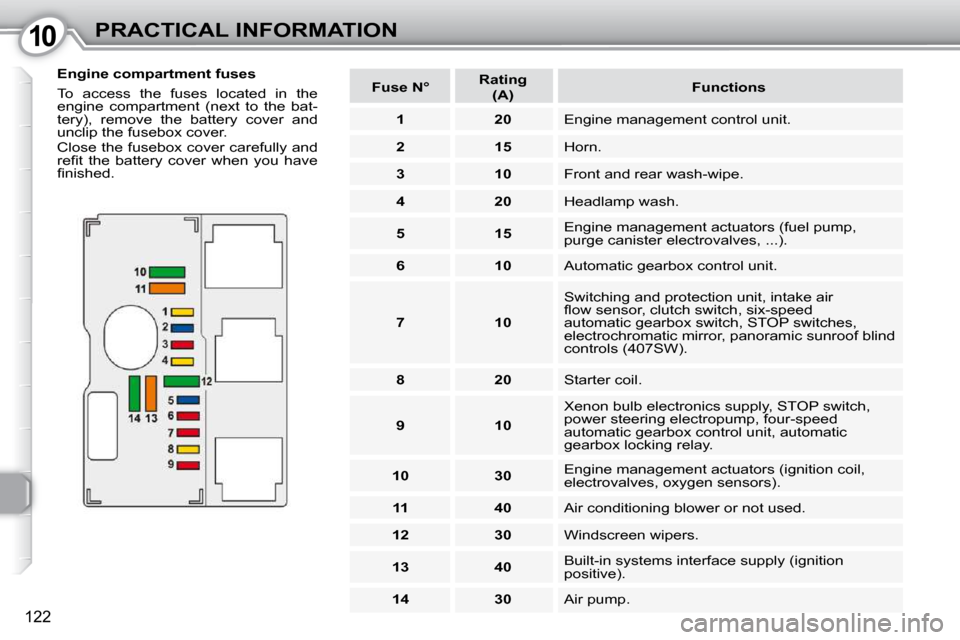

1010PRACTICAL INFORMATION
122
Engine compartment fuses
To access the fuses located in the
engine compartment (next to the bat-
tery), remove the battery cover and
unclip the fusebox cover.
Close the fusebox cover carefully and
r e fi t t h e b a t t e r y c o v e r w h e n y o u h a v e
fi n i s h e d .
Fuse N°
Rating
(A)
Functions
1 20 Engine management control unit.
2 15 Horn.
3 10 Front and rear wash-wipe.
4 20 Headlamp wash.
5 15 Engine management actuators (fuel pump,
purge canister electrovalves, ...).
6 10 Automatic gearbox control unit.
7 10 Switching and protection unit, intake air
fl o w s e n s o r , c l u t c h s w i t c h , s i x - s p e e d
automatic gearbox switch, STOP switches,
electrochromatic mirror, panoramic sunroof blind
controls (407SW).
8 20 Starter coil.
9 10 Xenon bulb electronics supply, STOP switch,
power steering electropump, four-speed
automatic gearbox control unit, automatic
gearbox locking relay.
10 30 Engine management actuators (ignition coil,
electrovalves, oxygen sensors).
11 40 Air conditioning blower or not used.
12 30 Windscreen wipers.
13 40 Built-in systems interface supply (ignition
positive).
14 30 Air pump.
Page 142 of 249

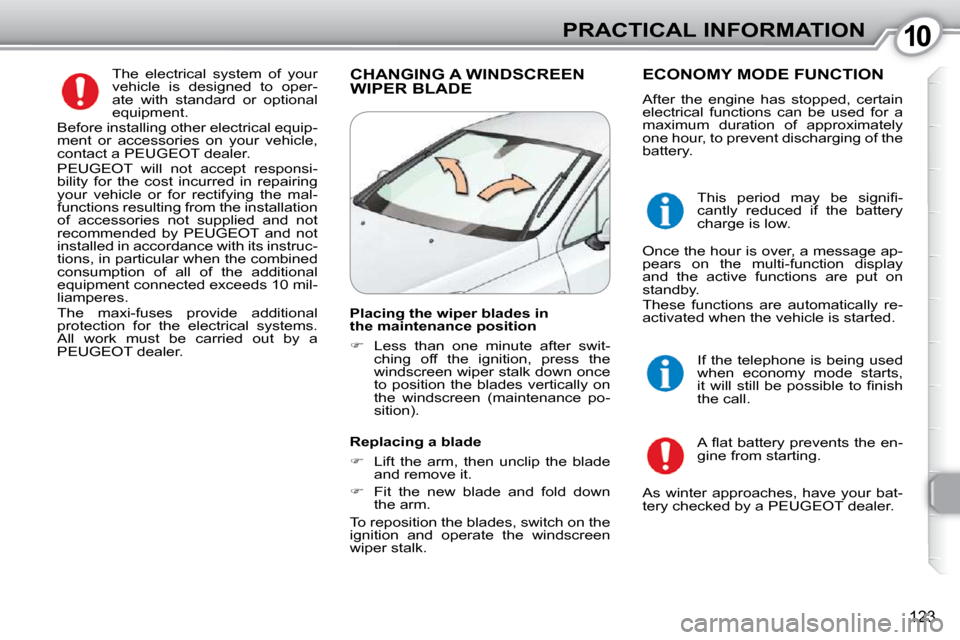

1010PRACTICAL INFORMATION
123
The electrical system of your
vehicle is designed to oper-
ate with standard or optional
equipment.
Before installing other electrical equip-
ment or accessories on your vehicle,
contact a PEUGEOT dealer.
PEUGEOT will not accept responsi-
bility for the cost incurred in repairing
your vehicle or for rectifying the mal-
functions resulting from the installation
of accessories not supplied and not
recommended by PEUGEOT and not
installed in accordance with its instruc-
tions, in particular when the combined
consumption of all of the additional
equipment connected exceeds 10 mil-
liamperes.
The maxi-fuses provide additional
protection for the electrical systems.
All work must be carried out by a
PEUGEOT dealer. CHANGING A WINDSCREEN WIPER BLADE ECONOMY MODE FUNCTION
After the engine has stopped, certain
electrical functions can be used for a
maximum duration of approximately
one hour, to prevent discharging of the
battery.
A fl a t b a t t e r y p r e v e n t s t h e e n -
gine from starting.
If the telephone is being used
when economy mode starts,
i t w i l l s t i l l b e p o s s i b l e t o fi n i s h
the call.
Placing the wiper blades in
the maintenance position
Less than one minute after swit-
ching off the ignition, press the
windscreen wiper stalk down once
to position the blades vertically on
the windscreen (maintenance po-
sition).
Replacing a blade
Lift the arm, then unclip the blade
and remove it.
Fit the new blade and fold down
the arm.
To reposition the blades, switch on the
ignition and operate the windscreen
wiper stalk. T h i s p e r i o d m a y b e s i g n i fi -
cantly reduced if the battery
charge is low.
Once the hour is over, a message ap-
pears on the multi-function display
and the active functions are put on
standby.
These functions are automatically re-
activated when the vehicle is started.
As winter approaches, have your bat-
tery checked by a PEUGEOT dealer.
Page 143 of 249
1010PRACTICAL INFORMATION
123
The electrical system of your
vehicle is designed to oper-
ate with standard or optional
equipment.
Before installing other electrical equip-
ment or accessories on your vehicle,
contact a PEUGEOT dealer.
PEUGEOT will not accept responsi-
bility for the cost incurred in repairing
your vehicle or for rectifying the mal-
functions resulting from the installation
of accessories not supplied and not
recommended by PEUGEOT and not
installed in accordance with its instruc-
tions, in particular when the combined
consumption of all of the additional
equipment connected exceeds 10 mil-
liamperes.
The maxi-fuses provide additional
protection for the electrical systems.
All work must be carried out by a
PEUGEOT dealer. CHANGING A WINDSCREEN WIPER BLADE ECONOMY MODE FUNCTION
After the engine has stopped, certain
electrical functions can be used for a
maximum duration of approximately
one hour, to prevent discharging of the
battery.
A fl a t b a t t e r y p r e v e n t s t h e e n -
gine from starting.
If the telephone is being used
when economy mode starts,
i t w i l l s t i l l b e p o s s i b l e t o fi n i s h
the call.
Placing the wiper blades in
the maintenance position
Less than one minute after swit-
ching off the ignition, press the
windscreen wiper stalk down once
to position the blades vertically on
the windscreen (maintenance po-
sition).
Replacing a blade
Lift the arm, then unclip the blade
and remove it.
Fit the new blade and fold down
the arm.
To reposition the blades, switch on the
ignition and operate the windscreen
wiper stalk. T h i s p e r i o d m a y b e s i g n i fi -
cantly reduced if the battery
charge is low.
Once the hour is over, a message ap-
pears on the multi-function display
and the active functions are put on
standby.
These functions are automatically re-
activated when the vehicle is started.
As winter approaches, have your bat-
tery checked by a PEUGEOT dealer.
Page 144 of 249

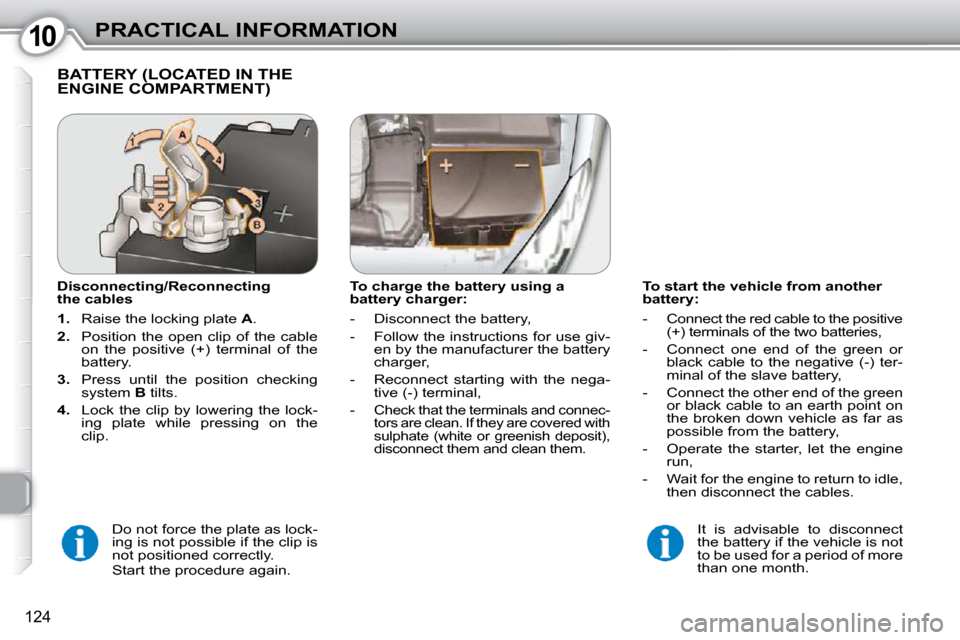

1010PRACTICAL INFORMATION
124
To start the vehicle from another
battery:
- Connect the red cable to the positive (+) terminals of the two batteries,
- Connect one end of the green or black cable to the negative (-) ter-
minal of the slave battery,
- Connect the other end of the green or black cable to an earth point on
the broken down vehicle as far as
possible from the battery,
- Operate the starter, let the engine run,
- Wait for the engine to return to idle, then disconnect the cables.
BATTERY (LOCATED IN THE ENGINE COMPARTMENT)
Disconnecting/Reconnecting
the cables
1. Raise the locking plate A .
2. Position the open clip of the cable
on the positive (+) terminal of the
battery.
3. Press until the position checking
system B tilts.
4. Lock the clip by lowering the lock-
ing plate while pressing on the
clip.
It is advisable to disconnect
the battery if the vehicle is not
to be used for a period of more
than one month.
To charge the battery using a
battery charger:
- Disconnect the battery,
- Follow the instructions for use giv-
en by the manufacturer the battery
charger,
- Reconnect starting with the nega- tive (-) terminal,
-
Check that the terminals and connec-
tors are clean. If they are covered with
sulphate (white or greenish deposit),
disconnect them and clean them.
Do not force the plate as lock-
ing is not possible if the clip is
not positioned correctly.
Start the procedure again.
Page 145 of 249

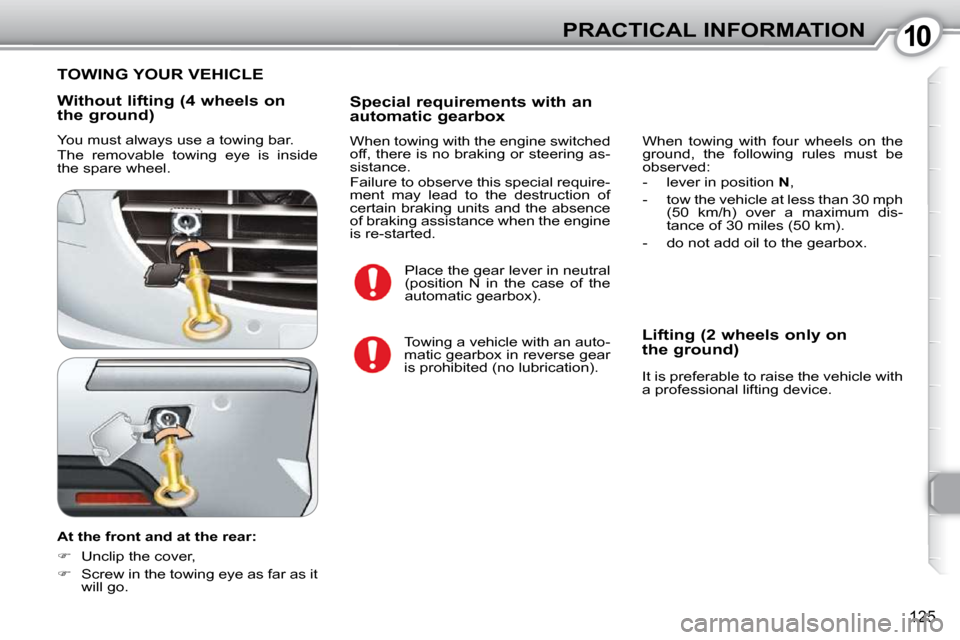

1010PRACTICAL INFORMATION
125
Without lifting (4 wheels on
the ground)
You must always use a towing bar.
The removable towing eye is inside
the spare wheel.
At the front and at the rear:
Unclip the cover,
Screw in the towing eye as far as it
will go. Special requirements with an
automatic gearbox
When towing with the engine switched
off, there is no braking or steering as-
sistance.
Failure to observe this special require-
ment may lead to the destruction of
certain braking units and the absence
of braking assistance when the engine
is re-started.
TOWING YOUR VEHICLE
Lifting (2 wheels only on
the ground)
It is preferable to raise the vehicle with
a professional lifting device.
Place the gear lever in neutral
(position N in the case of the
automatic gearbox).
Towing a vehicle with an auto-
matic gearbox in reverse gear
is prohibited (no lubrication). When towing with four wheels on the
ground, the following rules must be
observed:
- lever in position
N ,
- tow the vehicle at less than 30 mph (50 km/h) over a maximum dis-
tance of 30 miles (50 km).
- do not add oil to the gearbox.
Page 146 of 249

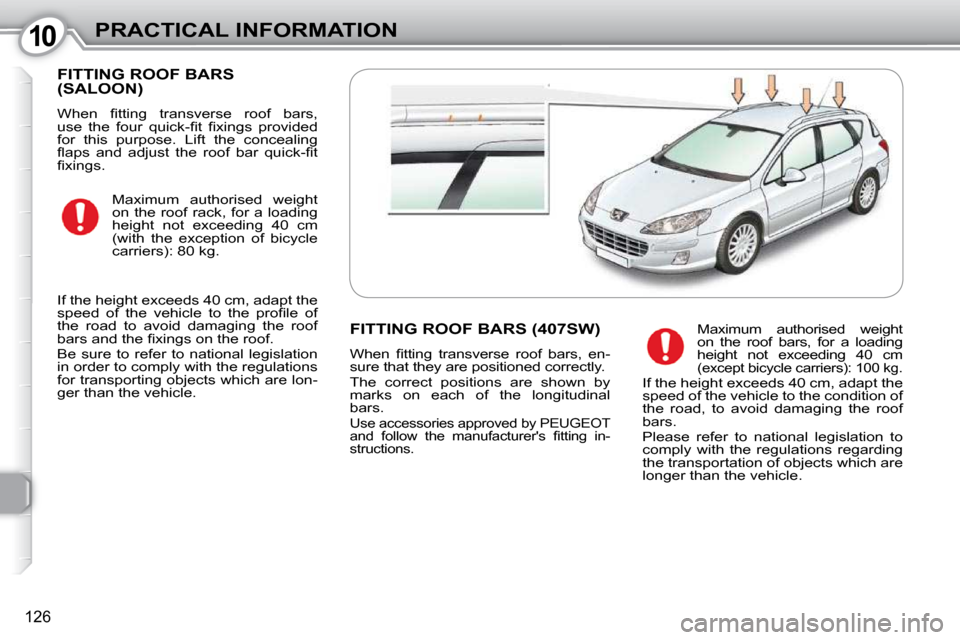

1010PRACTICAL INFORMATION
126
FITTING ROOF BARS (SALOON)
W h e n fi t t i n g t r a n s v e r s e r o o f b a r s ,
u s e t h e f o u r q u i c k - fi t fi x i n g s p r o v i d e d
for this purpose. Lift the concealing
fl a p s a n d a d j u s t t h e r o o f b a r q u i c k - fi t
fi x i n g s . Maximum authorised weight
on the roof rack, for a loading
height not exceeding 40 cm
(with the exception of bicycle
carriers): 80 kg.
If the height exceeds 40 cm, adapt the
s p e e d o f t h e v e h i c l e t o t h e p r o fi l e o f
the road to avoid damaging the roof
b a r s a n d t h e fi x i n g s o n t h e r o o f .
Be sure to refer to national legislation
in order to comply with the regulations
for transporting objects which are lon-
ger than the vehicle.
FITTING ROOF BARS (407SW)
W h e n fi t t i n g t r a n s v e r s e r o o f b a r s , e n -
sure that they are positioned correctly.
The correct positions are shown by
marks on each of the longitudinal
bars.
Use accessories approved by PEUGEOT
a n d f o l l o w t h e m a n u f a c t u r e r ' s fi t t i n g i n -
structions.
Maximum authorised weight
on the roof bars, for a loading
height not exceeding 40 cm
(except bicycle carriers): 100 kg. If the height exceeds 40 cm, adapt the
speed of the vehicle to the condition of
the road, to avoid damaging the roof
bars.
Please refer to national legislation to
comply with the regulations regarding
the transportation of objects which are
longer than the vehicle.
Page 147 of 249

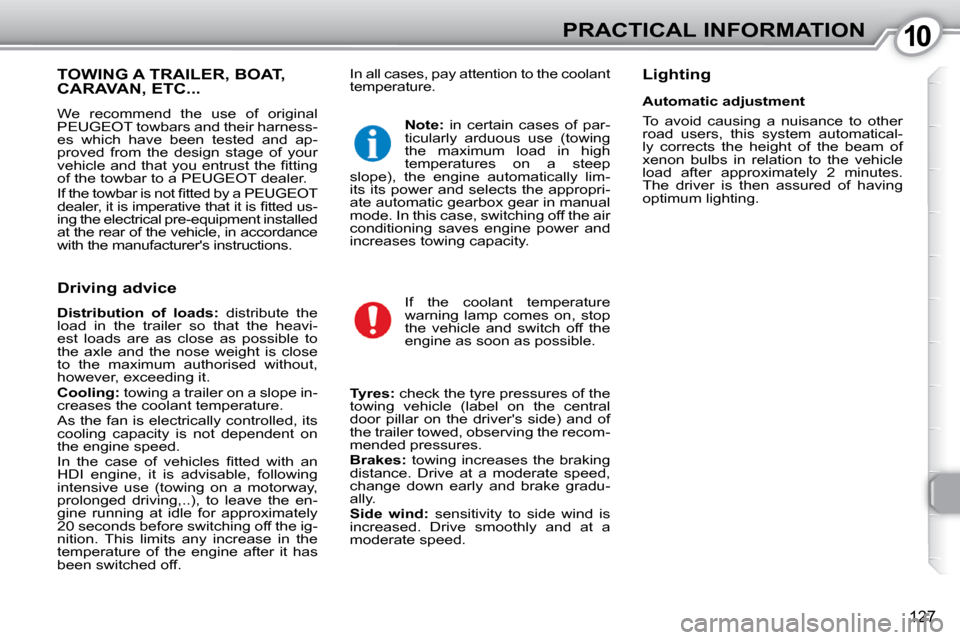

1010PRACTICAL INFORMATION
127
In all cases, pay attention to the coolant
temperature. Lighting TOWING A TRAILER, BOAT, CARAVAN, ETC...
We recommend the use of original
PEUGEOT towbars and their harness-
es which have been tested and ap-
proved from the design stage of your
v e h i c l e a n d t h a t y o u e n t r u s t t h e fi t t i n g
of the towbar to a PEUGEOT dealer.
I f t h e t o w b a r i s n o t fi t t e d b y a P E U G E O T
d e a l e r , i t i s i m p e r a t i v e t h a t i t i s fi t t e d u s -
ing the electrical pre-equipment installed
at the rear of the vehicle, in accordance
with the manufacturer's instructions.
Driving advice
Distribution of loads: distribute the
load in the trailer so that the heavi-
est loads are as close as possible to
the axle and the nose weight is close
to the maximum authorised without,
however, exceeding it.
Cooling: towing a trailer on a slope in-
creases the coolant temperature.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
I n t h e c a s e o f v e h i c l e s fi t t e d w i t h a n
HDI engine, it is advisable, following
intensive use (towing on a motorway,
prolonged driving,..), to leave the en-
gine running at idle for approximately
20 seconds before switching off the ig-
nition. This limits any increase in the
temperature of the engine after it has
been switched off.
Note: in certain cases of par-
ticularly arduous use (towing
the maximum load in high
temperatures on a steep
slope), the engine automatically lim-
its its power and selects the appropri-
ate automatic gearbox gear in manual
mode. In this case, switching off the air
conditioning saves engine power and
increases towing capacity.
If the coolant temperature
warning lamp comes on, stop
the vehicle and switch off the
engine as soon as possible.
Tyres: check the tyre pressures of the
towing vehicle (label on the central
door pillar on the driver's side) and of
the trailer towed, observing the recom-
mended pressures.
Brakes: towing increases the braking
distance. Drive at a moderate speed,
change down early and brake gradu-
ally.
Side wind: sensitivity to side wind is
increased. Drive smoothly and at a
moderate speed. Automatic adjustment
To avoid causing a nuisance to other
road users, this system automatical-
ly corrects the height of the beam of
xenon bulbs in relation to the vehicle
load after approximately 2 minutes.
The driver is then assured of having
optimum lighting.
Page 148 of 249
1010PRACTICAL INFORMATION
128

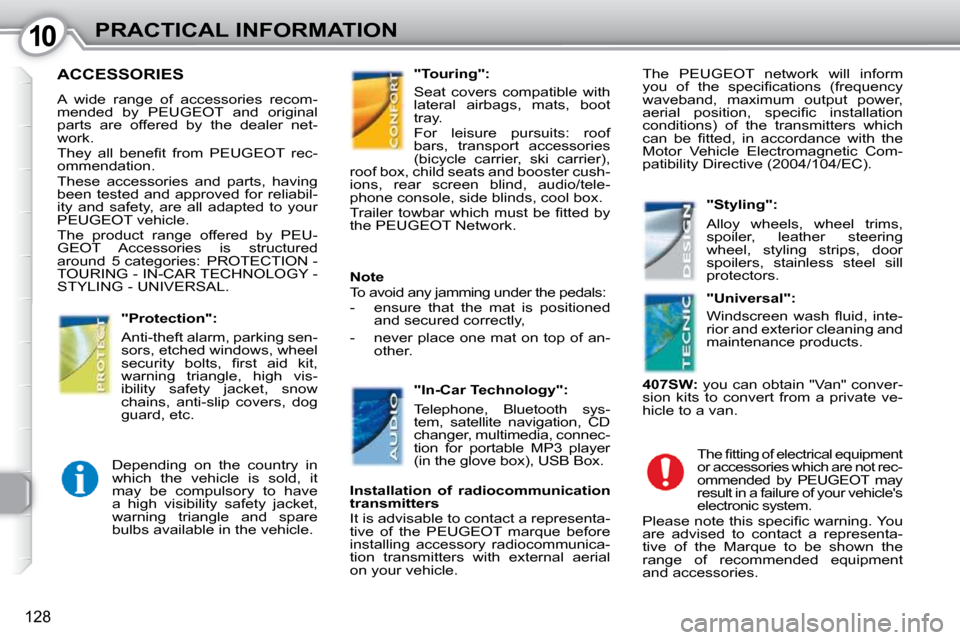

ACCESSORIES
A wide range of accessories recom-
mended by PEUGEOT and original
parts are offered by the dealer net-
work.
T h e y a l l b e n e fi t f r o m P E U G E O T r e c -
ommendation.
These accessories and parts, having
been tested and approved for reliabil-
ity and safety, are all adapted to your
PEUGEOT vehicle.
The product range offered by PEU-
GEOT Accessories is structured
around 5 categories: PROTECTION -
TOURING - IN-CAR TECHNOLOGY -
STYLING - UNIVERSAL. Anti-theft alarm, parking sen-
sors, etched windows, wheel
s e c u r i t y b o l t s , fi r s t a i d k i t ,
warning triangle, high vis-
ibility safety jacket, snow
chains, anti-slip covers, dog
guard, etc.
"Protection": Seat covers compatible with
lateral airbags, mats, boot
tray.
For leisure pursuits: roof
bars, transport accessories
(bicycle carrier, ski carrier),
roof box, child seats and booster cush-
ions, rear screen blind, audio/tele-
phone console, side blinds, cool box.
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y
the PEUGEOT Network.
"Touring":
Telephone, Bluetooth sys-
tem, satellite navigation, CD
changer, multimedia, connec-
tion for portable MP3 player
(in the glove box), USB Box.
"In-Car Technology": Alloy wheels, wheel trims,
spoiler, leather steering
wheel, styling strips, door
spoilers, stainless steel sill
protectors.
"Styling":
W i n d s c r e e n w a s h fl u i d , i n t e -
rior and exterior cleaning and
maintenance products.
"Universal":
T h e fi t t i n g o f e l e c t r i c a l e q u i p m e n t
or accessories which are not rec-
ommended by PEUGEOT may
result in a failure of your vehicle's
electronic system.
P l e a s e n o t e t h i s s p e c i fi c w a r n i n g . Y o u
are advised to contact a representa-
tive of the Marque to be shown the
range of recommended equipment
and accessories.
Note
To avoid any jamming under the pedals:
- ensure that the mat is positioned and secured correctly,
- never place one mat on top of an- other.
Depending on the country in
which the vehicle is sold, it
may be compulsory to have
a high visibility safety jacket,
warning triangle and spare
bulbs available in the vehicle.
Installation of radiocommunication
transmitters
It is advisable to contact a representa-
tive of the PEUGEOT marque before
installing accessory radiocommunica-
tion transmitters with external aerial
on your vehicle. The PEUGEOT network will inform
y o u o f t h e s p e c i fi c a t i o n s ( f r e q u e n c y
waveband, maximum output power,
a e r i a l p o s i t i o n , s p e c i fi c i n s t a l l a t i o n
conditions) of the transmitters which
c a n b e fi t t e d , i n a c c o r d a n c e w i t h t h e
Motor Vehicle Electromagnetic Com-
patibility Directive (2004/104/EC).
407SW: you can obtain "Van" conver-
sion kits to convert from a private ve-
hicle to a van.
Page 149 of 249

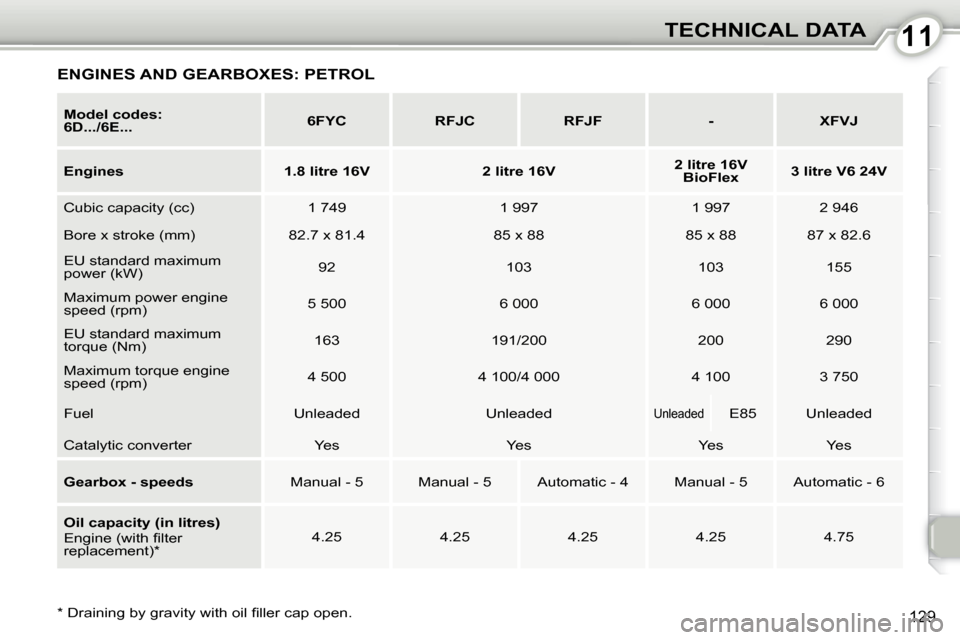

1111TECHNICAL DATA
129 * D r a i n i n g b y g r a v i t y w i t h o i l fi l l e r c a p o p e n .
Model codes:
6D.../6E...
6FYC RFJC RFJF - XFVJ
Engines 1.8 litre 16V 2 litre 16V
2 litre 16V
BioFlex
3 litre V6 24V
C u b i c c a p a c i t y ( c c ) 1 749 1 997 1 997 2 946
B o r e x s t r o k e ( m m ) 8 2 . 7 x 8 1 . 4 8 5 x 8 8 8 5 x 8 8 8 7 x 8 2 . 6
E U s t a n d a r d m a x i m u m
p o w e r ( k W ) 92 103 103 155
M a x i m u m p o w e r e n g i n e
s p e e d ( r p m ) 5 500 6 000 6 000 6 000
E U s t a n d a r d m a x i m u m
t o r q u e ( N m ) 163 191/200 200 290
M a x i m u m t o r q u e e n g i n e
s p e e d ( r p m ) 4 500 4 100/4 000 4 100 3 750
F u e l U n l e a d e d U n l e a d e d
U n l e a d e d E85 U n l e a d e d
C a t a l y t i c c o n v e r t e r Y e s Y e s Y e s Y e s
Gearbox - speeds Manual - 5 Manual - 5 A u t o m a t i c - 4 Manual - 5 A u t o m a t i c - 6
Oil capacity (in litres)
E n g i n e ( w i t h fi l t e r
r e p l a c e m e n t ) * 4 . 2 5 4 . 2 5 4 . 2 5 4 . 2 5 4 . 7 5
ENGINES AND GEARBOXES: PETROL
Page 150 of 249

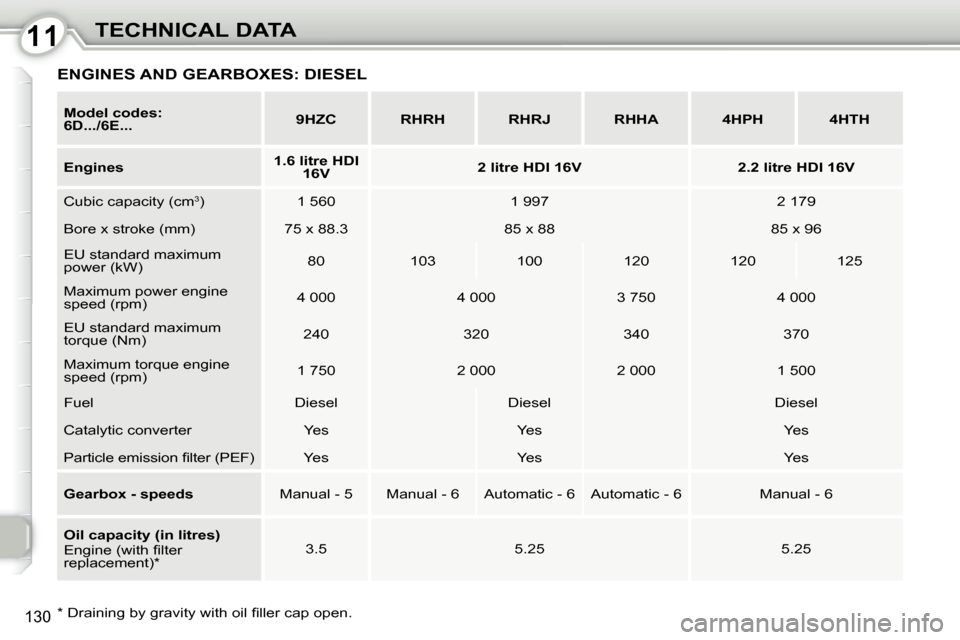

1111TECHNICAL DATA
130
Model codes:
6D.../6E...
9HZC RHRH RHRJ RHHA 4HPH 4HTH
Engines
1.6 litre HDI
16V
2 litre HDI 16V 2.2 litre HDI 16V
C u b i c c a p a c i t y ( c m 3
) 1 560 1 997 2 179
B o r e x s t r o k e ( m m ) 7 5 x 8 8 . 3 8 5 x 8 8 8 5 x 9 6
E U s t a n d a r d m a x i m u m
p o w e r ( k W ) 80 103 100 120 120 125
M a x i m u m p o w e r e n g i n e
s p e e d ( r p m ) 4 000 4 000 3 750 4 000
E U s t a n d a r d m a x i m u m
t o r q u e ( N m ) 240 320 340 370
M a x i m u m t o r q u e e n g i n e
s p e e d ( r p m ) 1 750 2 000 2 000 1 500
F u e l D i e s e l D i e s e l D i e s e l
C a t a l y t i c c o n v e r t e r Y e s Y e s Y e s
P a r t i c l e e m i s s i o n fi l t e r ( P E F ) Y e s Y e s Y e s
Gearbox - speeds Manual - 5 Manual - 6 A u t o m a t i c - 6 A u t o m a t i c - 6 Manual - 6
Oil capacity (in litres)
E n g i n e ( w i t h fi l t e r
r e p l a c e m e n t ) * 3 . 5 5 . 2 5 5 . 2 5
ENGINES AND GEARBOXES: DIESEL
* D r a i n i n g b y g r a v i t y w i t h o i l fi l l e r c a p o p e n .
