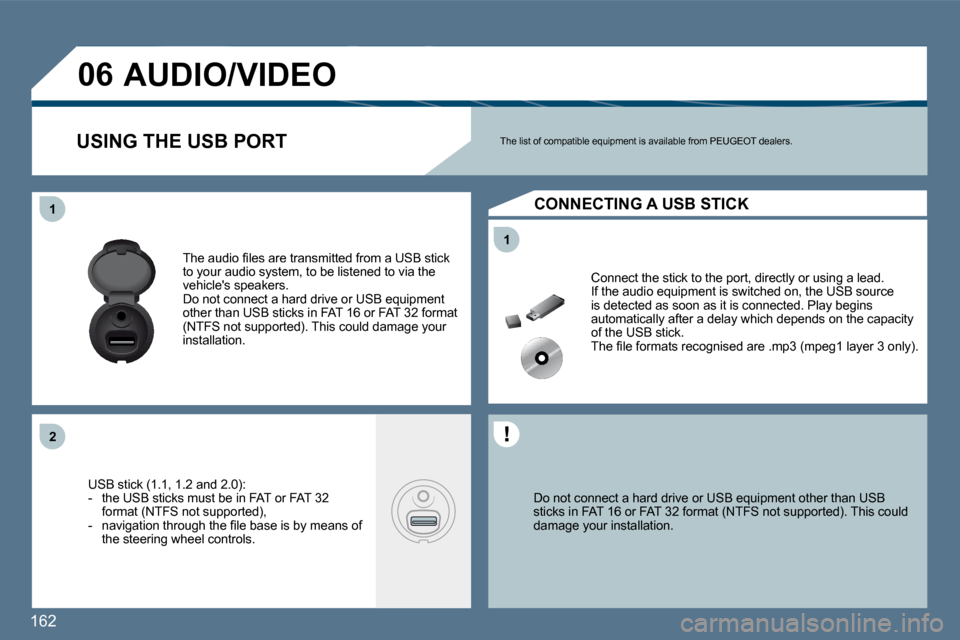

Page 181 of 249
162
11
11
2 2
0 6
Do not connect a hard drive or USB equipment other than USB sticks in FAT 16 or FAT 32 format (NTFS not support ed). This could damage your installation.
Connect the stick to the port, directly or using a lead. If the audio equipment is switched on, the USB sour ce is detected as soon as it is connected. Play begins automatically after a delay which depends on the capacity of the USB stick. T h e fi l e f o r m a t s r e c o g n i s e d a r e . m p 3 ( m p e g 1 l a y e r 3 o n l y ) .
The list of compatible equipment is available from PEUGEOT dealers. USING THE USB PORT
CONNECTING A USB STICK
T h e a u d i o fi l e s a r e t r a n s m i t t e d f r o m a U S B s t i c k to your audio system, to be listened to via the vehicle's speakers. Do not connect a hard drive or USB equipment other than USB sticks in FAT 16 or FAT 32 format (NTFS not supported). This could damage your installation.
USB stick (1.1, 1.2 and 2.0): - the USB sticks must be in FAT or FAT 32 format (NTFS not supported), - n a v i g a t i o n t h r o u g h t h e fi l e b a s e i s b y m e a n s o f the steering wheel controls.
AUDIO/VIDEO
Page 182 of 249
163
2 2
11
3 3
4 4
5 5
2 2
3 3
11
0 6
USB
COPY USB TO JUKEBOX
COMPLETE DISC
Select USB and press the dial to c o n fi r m .
Select COPY USB TO JUKEBOX and p r e s s t h e d i a l t o c o n fi r m .
Select COMPLETE DISC to copy the entire USB stick and press the dial to c o n fi r m .
Select AUDIO FUNCTIONS and press t h e d i a l t o c o n fi r m .
Insert a USB stick in the space provided and press the MENU button.
JUKEBOX
If another source is being played, press the SOURCE button several times in succession and select USB to play it.
Press one of the buttons to select a track on the USB stick. Press the LIST button to display the list of folders on the MP3 USB stick.
To eject the USB stick, use the short-cut menu (press OK) or press the MENU button, select AUDIO FUNCTIONS, USB, then select EJECT USB. The playing and displaying of an MP3 compilation may depend on the parameters programme used.
JUKEBOX
Insert a USB stick in the space provided. ded.
AUDIO/VIDEO
In order to be read, a USB stick must be in FAT 16 or 32 format. The reader only reads USB sticks.
P L A Y I N G A N M P 3 U S B S T I C K C O P Y I N G A N M P 3 U S B S T I C K O N T O T H E H A R D D I S K

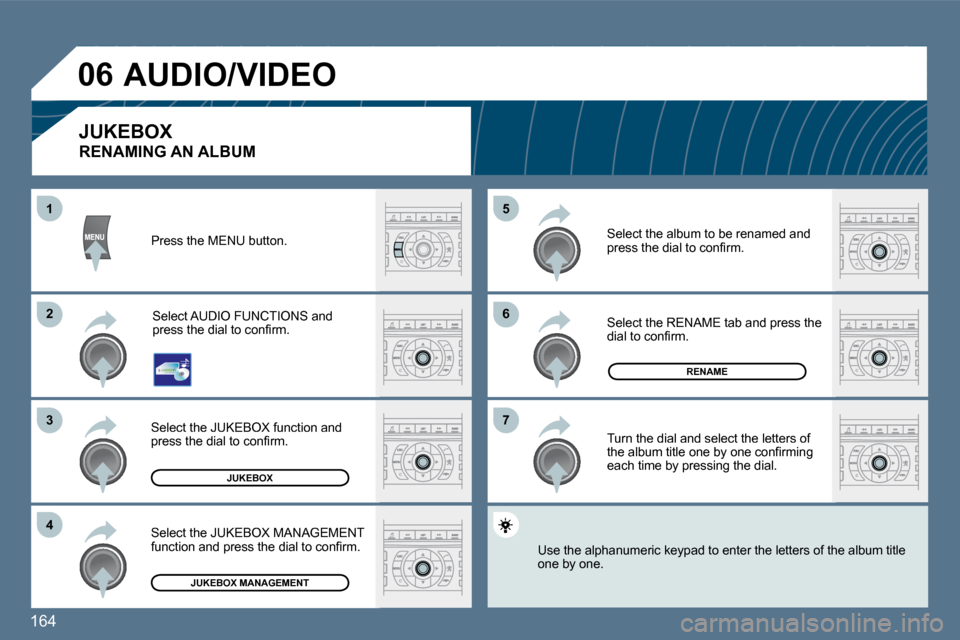

Page 183 of 249
164
6 6
7 7
5 5
2 2
3 3
4 4
11
0 6
JUKEBOX
RENAME
JUKEBOX MANAGEMENT
Press the MENU button.
Select AUDIO FUNCTIONS and p r e s s t h e d i a l t o c o n fi r m .
Select the JUKEBOX function and p r e s s t h e d i a l t o c o n fi r m .
Select the JUKEBOX MANAGEMENT f u n c t i o n a n d p r e s s t h e d i a l t o c o n fi r m .
Select the album to be renamed and p r e s s t h e d i a l t o c o n fi r m .
Select the RENAME tab and press the d i a l t o c o n fi r m .
Turn the dial and select the letters of t h e a l b u m t i t l e o n e b y o n e c o n fi r m i n g each time by pressing the dial.
Use the alphanumeric keypad to enter the letters of the album title one by one.
JUKEBOX
RENAMING AN ALBUM
AUDIO/VIDEO

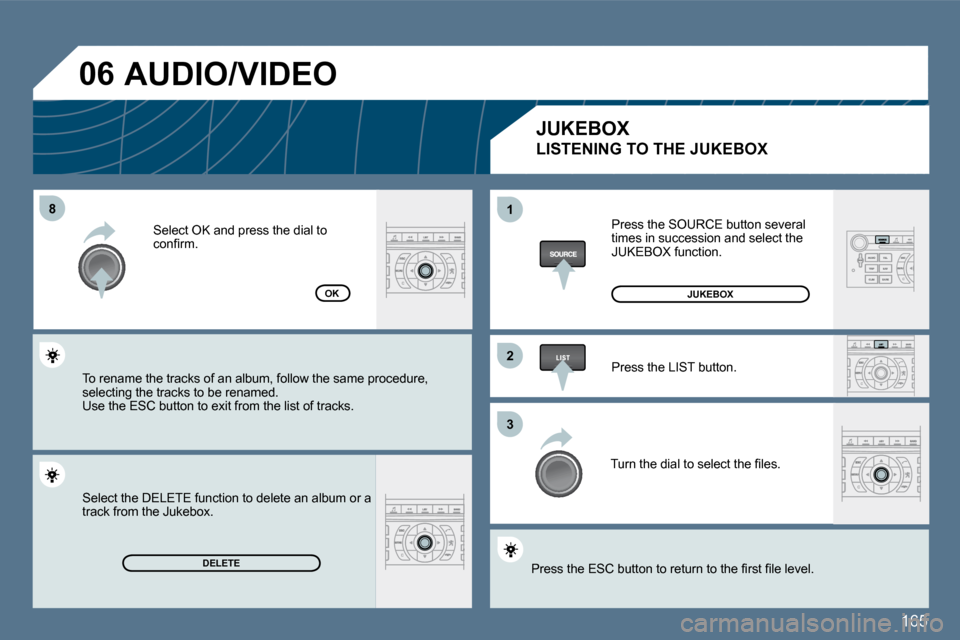

Page 184 of 249
165
8 8
2 2
3 3
11
0 6
DELETE
OK
Press the SOURCE button several times in succession and select the JUKEBOX function.
Press the LIST button.
T u r n t h e d i a l t o s e l e c t t h e fi l e s .
P r e s s t h e E S C b u t t o n t o r e t u r n t o t h e fi r s t fi l e l e v e l .
JUKEBOX
Select OK and press the dial to c o n fi r m .
To rename the tracks of an album, follow the same procedure, selecting the tracks to be renamed. Use the ESC button to exit from the list of tracks.
Select the DELETE function to delete an album or a track from the Jukebox.
JUKEBOX
LISTENING TO THE JUKEBOX
AUDIO/VIDEO

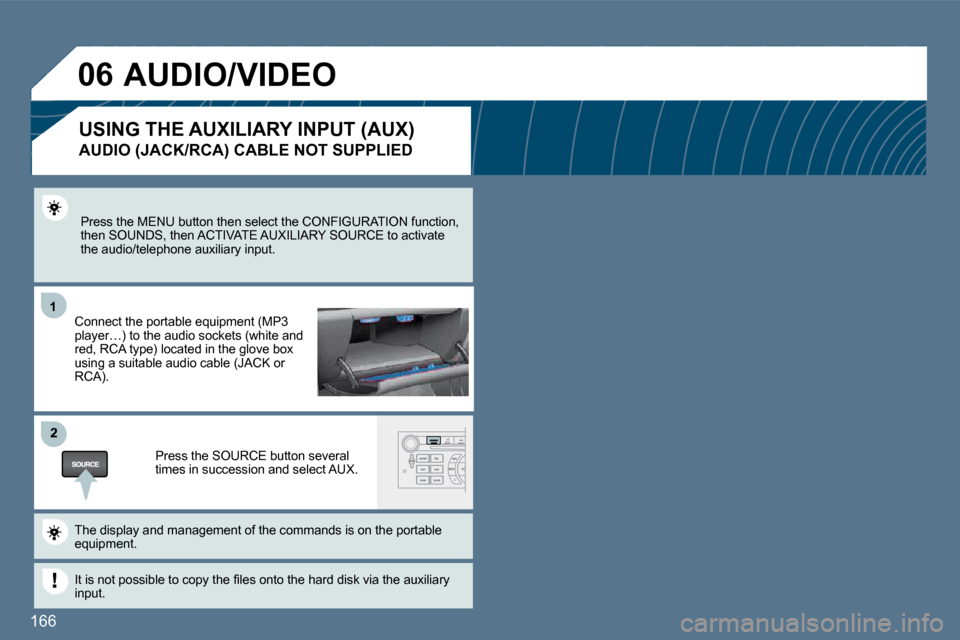

Page 185 of 249
166
11
2
0 6
Press the MENU button then select the CONFIGURATION function, then SOUNDS, then ACTIVATE AUXILIARY SOURCE to acti vate the audio/telephone auxiliary input.
Connect the portable equipment (MP3 player…) to the audio sockets (white and red, RCA type) located in the glove box using a suitable audio cable (JACK or RCA).
Press the SOURCE button several times in succession and select AUX.
The display and management of the commands is on the portable equipment.
I t i s n o t p o s s i b l e t o c o p y t h e fi l e s o n t o t h e h a r d d i s k v i a t h e a u x i l i a r y input.
USING THE AUXILIARY INPUT (AUX)
AUDIO (JACK/RCA) CABLE NOT SUPPLIED
AUDIO/VIDEO
Page 186 of 249
167
11
2 2
3 3
4 4
5 5
6 6
7 7
0 6
ACTIVATE VIDEO MODE
VIDEO PARAMETERS
You can connect video equipment (camcorder, digital camera, DVD player...) to the three audio/video sockets, located in the glove box.
Turn the dial and select the VIDEO function.
After connecting the video equipment, press the MENU button.
Turn the dial and select the ACTIVATE VIDEO MODE function to activate/deactivate the video.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Pressing the "SOURCE" button several times in suc cession permits the selection of an audio source other than that of the video.
Pressing the "DARK" button disconnects display of the video.
Turn the dial and select the VIDEO PARAMETERS function to set the display format, the brightness, the contrast and the colours.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
VIDEO MENU
Videos can only be displayed when stationary.
AUDIO/VIDEO

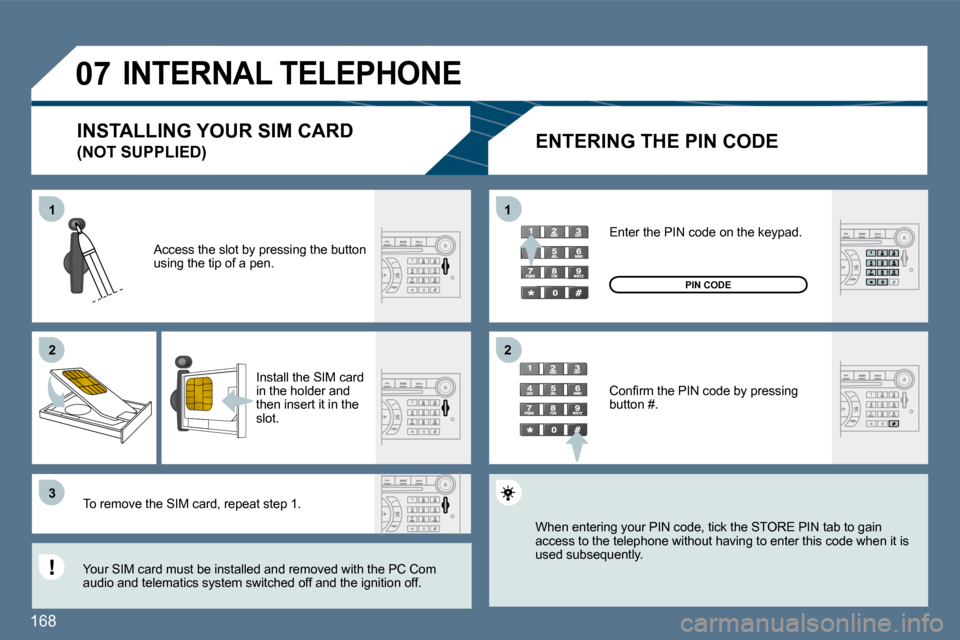

Page 187 of 249
168
11
2 2
3 3
11
2 2
0 7 INTERNAL TELEPHONE
ENTERING THE PIN CODE
Access the slot by pressing the button using the tip of a pen.
Install the SIM card in the holder and then insert it in the slot.
To remove the SIM card, repeat step 1.
Your SIM card must be installed and removed with the PC Com audio and telematics system switched off and the ig nition off.
Enter the PIN code on the keypad.
C o n fi r m t h e P I N c o d e b y p r e s s i n g button #.
PIN CODE
When entering your PIN code, tick the STORE PIN t ab to gain access to the telephone without having to enter this code when it is used subsequently.
INSTALLING YOUR SIM CARD
(NOT SUPPLIED)

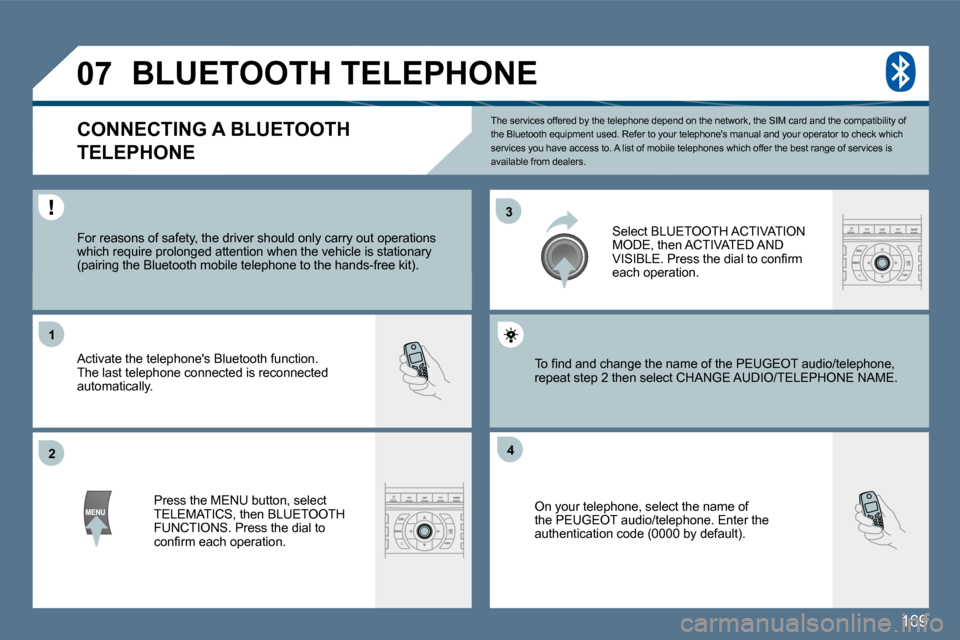

Page 188 of 249
169
3 3
2 2
11
4 4
0 7
The services offered by the telephone depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. Refer to your telepho ne's manual and your operator to check which services you have access to. A list of mobile telephones which offer the best range of services is available from dealers.
BLUETOOTH TELEPHONE
CONNECTING A BLUETOOTH
TELEPHONE
For reasons of safety, the driver should only car ry out operations which require prolonged attention when the vehicle is stationary (pairing the Bluetooth mobile telephone to the hands-free kit).
Activate the telephone's Bluetooth function. The last telephone connected is reconnected automatically.
Select BLUETOOTH ACTIVATION MODE, then ACTIVATED AND V I S I B L E . P r e s s t h e d i a l t o c o n fi r m each operation.
Press the MENU button, select TELEMATICS, then BLUETOOTH FUNCTIONS. Press the dial to c o n fi r m e a c h o p e r a t i o n .
On your telephone, select the name of the PEUGEOT audio/telephone. Enter the authentication code (0000 by default).
T o fi n d a n d c h a n g e t h e n a m e o f t h e P E U G E O T a u d i o / t e l e p h o n e , T o fi n d a n d c h a n g e t h e n a m e o f t h e P E U G E O T a u d i o / t e l e p h o n e , repeat step 2 then select CHANGE AUDIO/TELEPHONPHONE NAME.

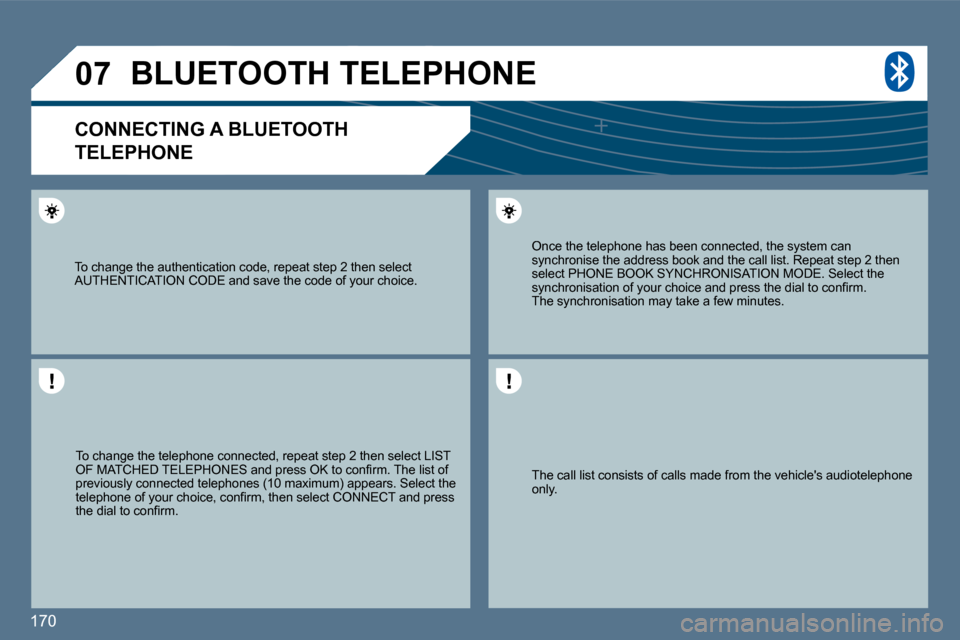

Page 189 of 249
170
0 7
The call list consists of calls made from the vehicle's audiotelephone only.
Once the telephone has been connected, the system can synchronise the address book and the call list. Repeat step 2 then select PHONE BOOK SYNCHRONISATION MODE. Select the s y n c h r o n i s a t i o n o f y o u r c h o i c e a n d p r e s s t h e d i a l t o c o n fi r m . The synchronisation may take a few minutes.
To change the telephone connected, repeat step 2 then select LIST O F M A T C H E D T E L E P H O N E S a n d p r e s s O K t o c o n fi r m . T h e l i s t o f previously connected telephones (10 maximum) appears. Select the t e l e p h o n e o f y o u r c h o i c e , c o n fi r m , t h e n s e l e c t C O N N E C T a n d p r e s s t h e d i a l t o c o n fi r m .
To change the authentication code, repeat step 2 then select AUTHENTICATION CODE and save the code of your choic e.
BLUETOOTH TELEPHONE
CONNECTING A BLUETOOTH
TELEPHONE

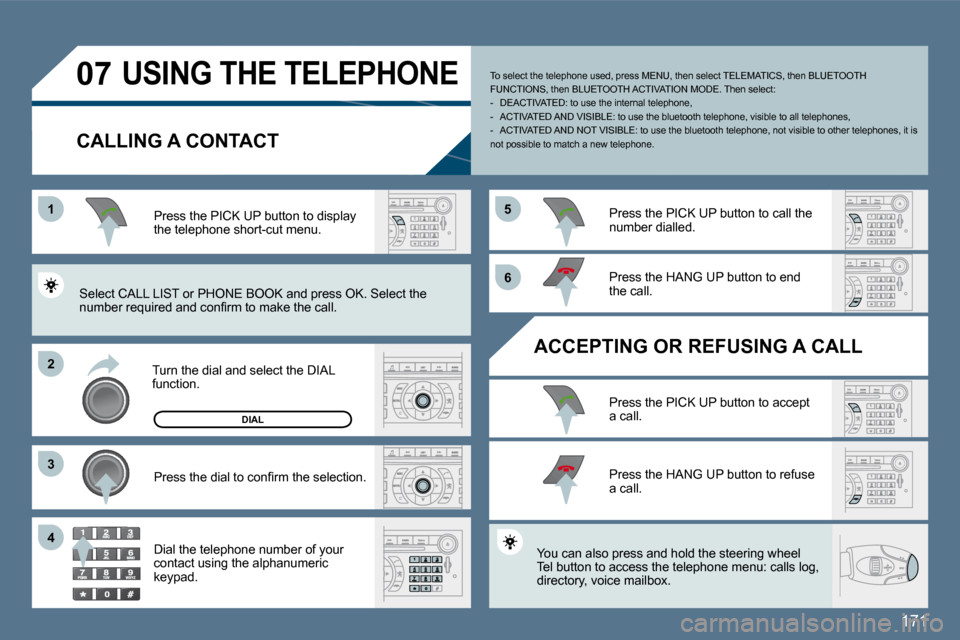

Page 190 of 249
171
11
2 2
3 3
5 5
6 6
4 4
0 7 USING THE TELEPHONE
CALLING A CONTACT
Turn the dial and select the DIAL function.
Press the PICK UP button to display the telephone short-cut menu.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Dial the telephone number of your contact using the alphanumeric keypad.
Press the PICK UP button to call the number dialled.
Press the HANG UP button to end the call.
ACCEPTING OR REFUSING A CALL
Press the PICK UP button to accept a call.
Press the HANG UP button to refuse a call.
You can also press and hold the steering wheel Tel button to access the telephone menu: calls log, directory, voice mailbox.
To select the telephone used, press MENU, then select TELEMATICS, then BLUETOOTH FUNCTIONS, then BLUETOOTH ACTIVATION MODE. Then sel ect: - DEACTIVATED: to use the internal telephone, - ACTIVATED AND VISIBLE: to use the bluetooth telephone, visible to all telephones, - ACTIVATED AND NOT VISIBLE: to use the bluetoot h telephone, not visible to other telephones, it is not possible to match a new telephone.
Select CALL LIST or PHONE BOOK and press OK. Sele ct the n u m b e r r e q u i r e d a n d c o n fi r m t o m a k e t h e c a l l .
DIAL
