PEUGEOT 4C 2015 Owners Manual

The car is close to the obstacle when the display shows a
single constant arc and emits a continuous sound.
If there are several obstacles, the closest one is indicated.
Fault Indication
Parking sensor failures, if any, will be indicated when
reverse is engaged by the switching on of the
warn-
ing light on the instrument panel together with the
message on the display.
General Warnings
When parking, take the utmost care over obstacles that
may be above or under the sensor.
Under certain circumstances, objects close to the vehicle
are not detected by the system and could therefore cause
damage to the car or be damaged themselves.Some conditions may influence the performance of the
parking sensors:
•The presence of ice, snow, mud or multiple layers of
paint on the sensor surface may cause reduced sensi-
tivity of the sensor itself and therefore reduce the
system performance.
•Mechanical interference (e.g washing the car, rain,
strong wind, hail) may cause the sensor to detect a
non-existent obstacle (“echo interference”).
•The presence of ultrasonic systems (e.g. pneumatic
brake systems of trucks or pneumatic drills) near the
car could alter the signals sent by the sensor.
•The variation in sensor position, caused by variation in
ride (due to suspension component wear), changing
tires, overloaded car, or tuning that lowers the car, for
example, may affect parking sensor system perfor-
mance.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99

NOTE:The sensor must be free from mud, dirt snow or
ice in order for the system to operate correctly. Be careful
not to scratch or damage the sensors while cleaning them.
Avoid using dry, rough or hard cloths. The sensors must be
washed using clean water, with the addition of car sham-
poo if necessary. When using special washing equipment
such as high pressure jets or steam cleaning, clean the
sensors very quickly keeping the jet more than 4 in (10 cm)
away. Also, do not apply stickers to the sensors.
CAUTION!
•The Parking Sensor system is only a parking aid
and it is unable to recognize every obstacle, includ-
ing small obstacles. Parking curbs might be tem-
porarily detected or not detected at all. Obstacles
located above or below the sensors will not be
detected when they are in close proximity
(Continued)
CAUTION!(Continued)
•The vehicle must be driven slowly when using the
Parking Sensor system in order to be able to stop in
time when an obstacle is detected. It is recom-
mended that the driver looks over his/her shoulder
when using the Parking Sensor system.
WARNING!
Drivers must be careful when backing up even when
using the Parking Sensor system. Always check care-
fully behind your vehicle, and be sure to check for
pedestrians, animals, other vehicles, obstructions, or
blind spots before backing up. You are responsible
for the safety of your surroundings and must con-
tinue to pay attention while backing up. Failure to do
so can result in serious injury or death.
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

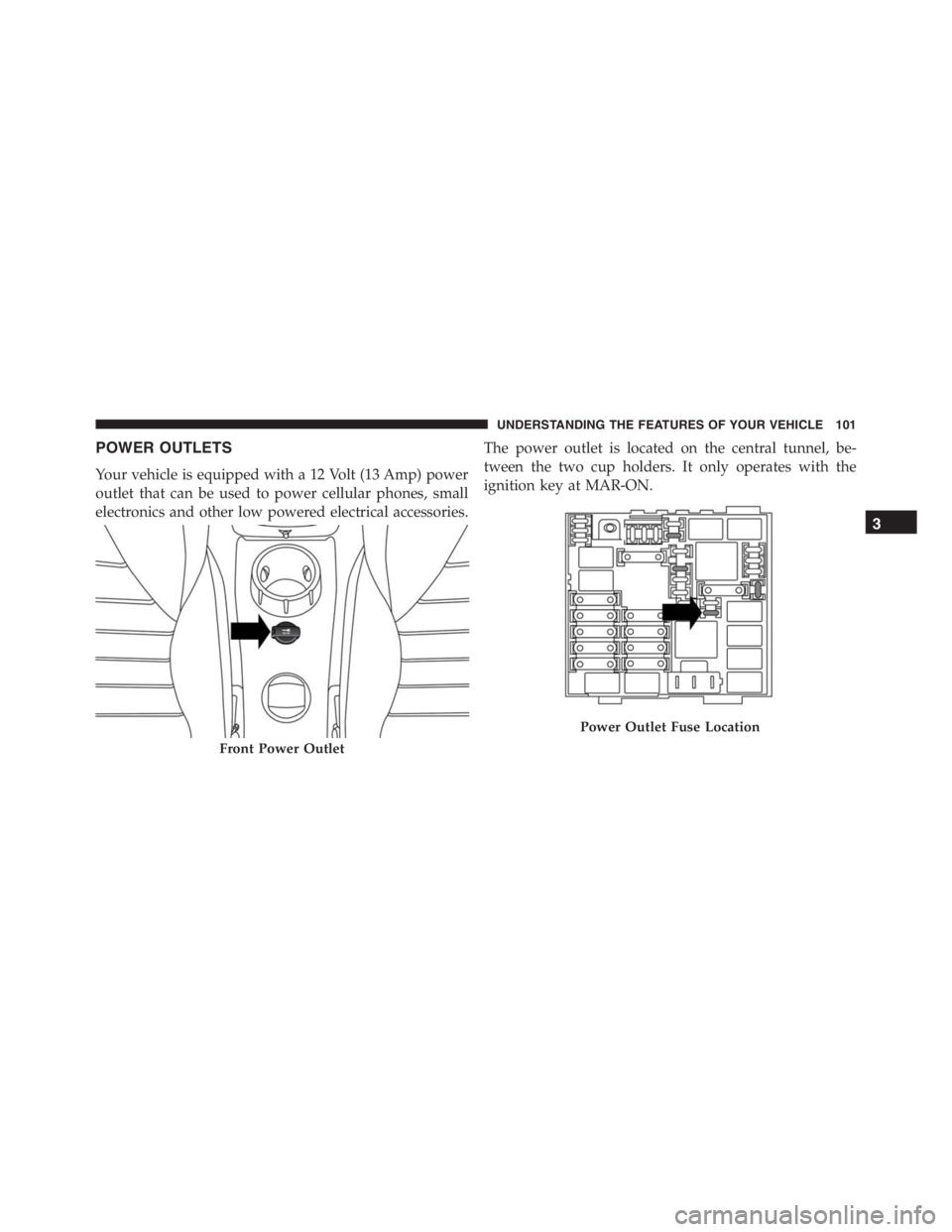

POWER OUTLETS
Your vehicle is equipped with a 12 Volt (13 Amp) power
outlet that can be used to power cellular phones, small
electronics and other low powered electrical accessories.The power outlet is located on the central tunnel, be-
tween the two cup holders. It only operates with the
ignition key at MAR-ON.
Front Power Outlet
Power Outlet Fuse Location
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101

WARNING!
To avoid serious injury or death:
•Only devices designed for use in this type of outlet
should be inserted into any 12 Volt outlet.
•Do not touch with wet hands.
•Close the lid when not in use and while driving the
vehicle.
•If this outlet is mishandled, it may cause an electric
shock and failure.
CAUTION!
•Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life and/or
prevent the engine from starting.
•Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the bat-
tery even more quickly. Only use these intermit-
tently and with greater caution.
•After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.
102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

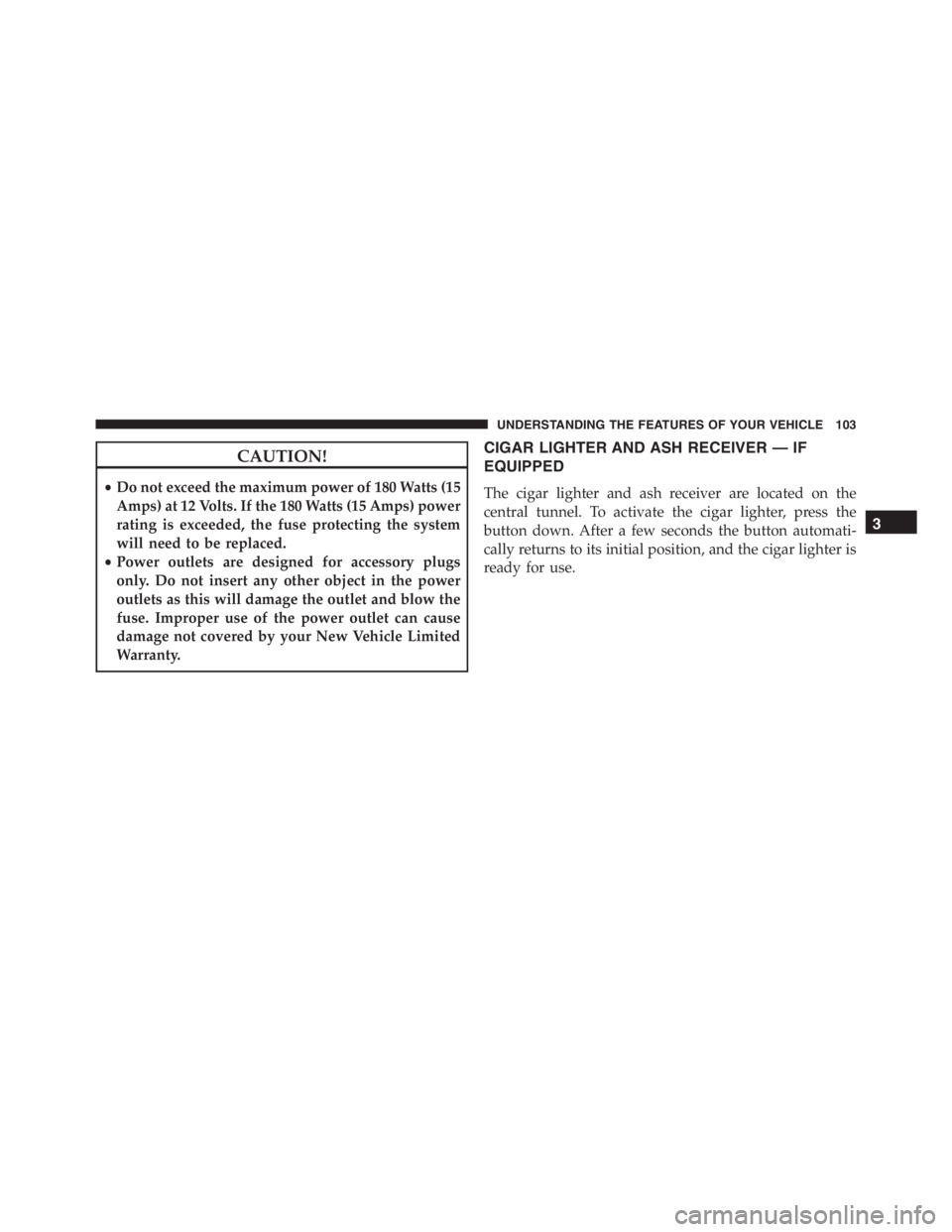

CAUTION!
•Do not exceed the maximum power of 180 Watts (15
Amps) at 12 Volts. If the 180 Watts (15 Amps) power
rating is exceeded, the fuse protecting the system
will need to be replaced.
•Power outlets are designed for accessory plugs
only. Do not insert any other object in the power
outlets as this will damage the outlet and blow the
fuse. Improper use of the power outlet can cause
damage not covered by your New Vehicle Limited
Warranty.
CIGAR LIGHTER AND ASH RECEIVER — IF
EQUIPPED
The cigar lighter and ash receiver are located on the
central tunnel. To activate the cigar lighter, press the
button down. After a few seconds the button automati-
cally returns to its initial position, and the cigar lighter is
ready for use.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 103

NOTE:
•Always check that the cigar lighter is switched off.
•Do not connect devices with power higher than 180 W
to the socket.
•
Do not damage the socket by using unsuitable adaptors.
CUPHOLDER
A cupholder is located in the rear of the center console.
Cigar Lighter/Ashtray — If Equipped
Center Console Cupholder
104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

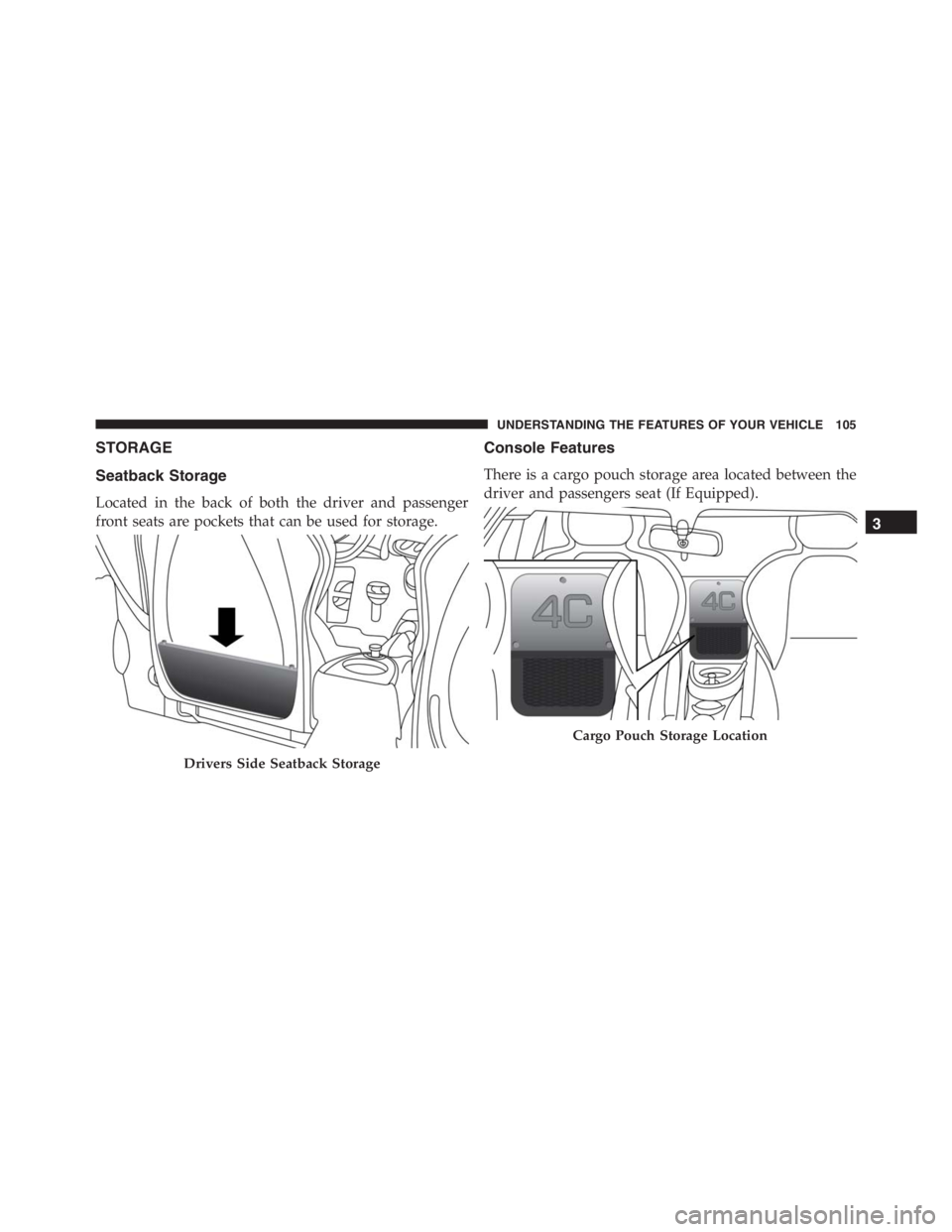

STORAGE
Seatback Storage
Located in the back of both the driver and passenger
front seats are pockets that can be used for storage.
Console Features
There is a cargo pouch storage area located between the
driver and passengers seat (If Equipped).
Drivers Side Seatback Storage
Cargo Pouch Storage Location
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105

Rear Compartment Storage
CAUTION!
•To prevent possible damage, do not slam the deck-
lid to close it. Use a firm downward push at the
center of the decklid to ensure the decklid latch is
fully engaged.
•During normal car operation, the luggage compart-
ment (located rear of the engine) can reach tem-
peratures above 149 degrees. Do not transport ob-
jects in the luggage compartment that may be
damaged at such temperatures. Do not place aero-
sol cans in the luggage compartment.Your vehicle is equipped with a open storage area located
under the decklid.
Decklid Emergency Release
106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

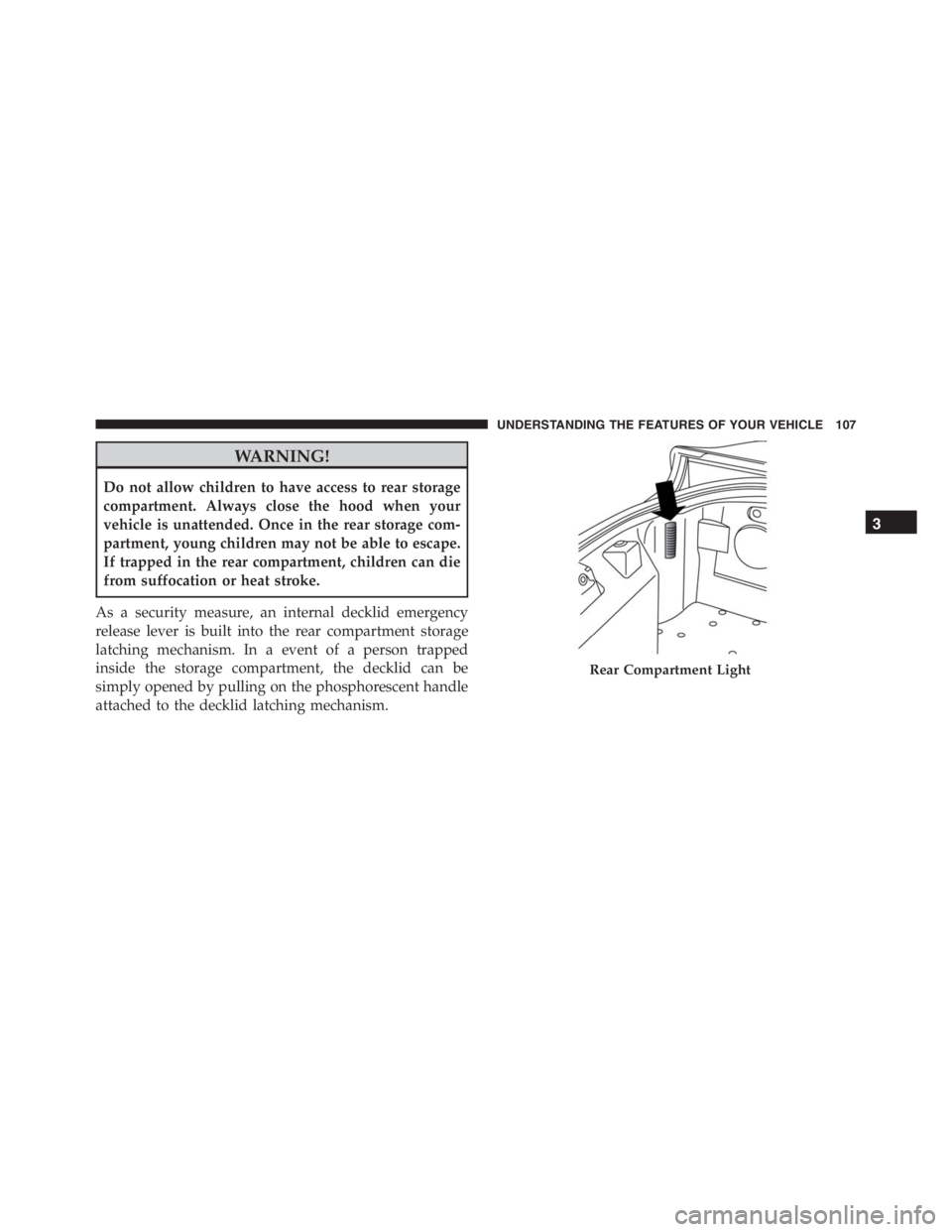

WARNING!
Do not allow children to have access to rear storage
compartment. Always close the hood when your
vehicle is unattended. Once in the rear storage com-
partment, young children may not be able to escape.
If trapped in the rear compartment, children can die
from suffocation or heat stroke.
As a security measure, an internal decklid emergency
release lever is built into the rear compartment storage
latching mechanism. In a event of a person trapped
inside the storage compartment, the decklid can be
simply opened by pulling on the phosphorescent handle
attached to the decklid latching mechanism.
Rear Compartment Light
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107

WARNING!
•The maximum load limit for the luggage compart-
ment (located rear of the engine), in addition to the
kits provided, is 33 lbs. (15kg). Do not exceed the
maximum permitted load in the luggage compart-
ment. When accessing the rear luggage compart-
ment, do not come into contact with engine, or
other components, that may be hot and could burn
you if touched.
•Access the luggage compartment only with the
vehicle stationary. Before exiting a vehicle, you
should always shift the vehicle into PARK, remove
the key from the ignition, and apply the parking
brake. Never leave the key fob in the vehicle or in
a location accessible to children.
(Continued)
WARNING!(Continued)
•The decklid may drop suddenly, causing serious
injury, if the supporting rod is not positioned
correctly.
•The decklid must always be closed properly, and
the lock engaged, while the vehicle is in motions.
108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
