3. When the function is activated (On), briefly push the
SET/BACKbutton to display the previously set speed.
Pushing the UP
or DOWNbuttons selects the
speed limit. PushSET/BACKto confirm selection.
NOTE:The setting can be increased or decreased by
5 mph or km/h each time the UP/DOWN button is
pushed for speed settings above 20 mph (32 km/h). To
increase or decrease the set speed rapidly, push and hold
the UP/DOWN button. Save the setting by briefly push-
ing the button when you approach the required setting.
•Briefly push theSET/BACKbutton to go back to the
menu screen, or push and hold theSET/BACKbutton
(approximately one second) to go back to the main
screen without storing the settings.
To cancel the setting, proceed as follows:
1. Briefly push theSET/BACKbutton. “On” will display.2. Push and release the DOWN
button. “Off” will
display.
3. Briefly push theSET/BACKbutton to go back to the
menu screen, or push and hold theSET/BACKbutton
(approximately one second) to go back to the main
screen without storing the settings.
Trip B Activation
Through this option, it is possible to activate (On) or
deactivate (Off) the Trip B (partial trip) display.
For further information see “Trip Computer.”
For activation / deactivation, proceed as follows:
1. Briefly push theSET/BACKbutton. “On” or “Off”
will display in the EVIC (according to previous set-
ting).
4
UNDERSTANDING YOUR INSTRUMENT PANEL 129

2. Push and release the UPor DOWNbutton to
select the setting and once selected a beep will
occur to signal the setting is saved.
3. Briefly push theSET/BACKbutton to go back to the
menu screen, or push and hold theSET/BACKbutton
(approximately one second) to go back to the main
screen without storing the settings.
Set Time
This function may be used to set the clock through two
sub-menu items: “Time” and “Mode.”
Proceed as follows:
1. Briefly push theSET/BACKbutton. The display will
show the two sub-menu items “Time” and “Mode.”
2. Push and release the UP
or DOWNbutton to
navigate the two sub-menu items.
3. Select the required option and then prush theSET/
BACKbutton.
4. When accessing the “Time” sub-menu item, briefly
push theSET/BACKbutton and “hours” will flash on
the display.
5. Push and release the UP
or DOWNbutton for
setting.
6. Briefly push theSET/BACKbutton and “minutes”
will flash on the display.
7. Push and release the UP
or DOWNbutton for
setting.
130 UNDERSTANDING YOUR INSTRUMENT PANEL

NOTE:
•The setting will increase or decrease by one unit each
time the UP
or DOWNbutton is pushed.
Push and hold the button to increase/decrease the
setting rapidly. Save the setting by briefly pushing
the button when you approach the required set-
ting.
•Briefly push theSET/BACKbutton to return to the
“Time” sub-function.
•When accessing the “Mode” submenu, briefly push
theSET/BACKbutton. The previously set display
format will flash on the display.
•Push and release the UP
or DOWNbutton to
select “24h” or “12h.”
When you have selected the required settings, briefly
push theSET/BACKbutton to go back to the Time, Modesub-menu screen, or push and hold theSET/BACK
button (approximately one second) to go back to the
main screen without storing the settings.
Set Date
This function may be used to set the date (day - month -
year).
To change the date proceed as follows:
1. Briefly push theSET/BACKbutton and “year” will
flash on the display.
2. Push and release the UP
or DOWNbutton for
setting.
3. Briefly push theSET/BACKbutton and “month” will
flash on the display.
4. Push and release the UP
or DOWNbutton for
setting.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 131

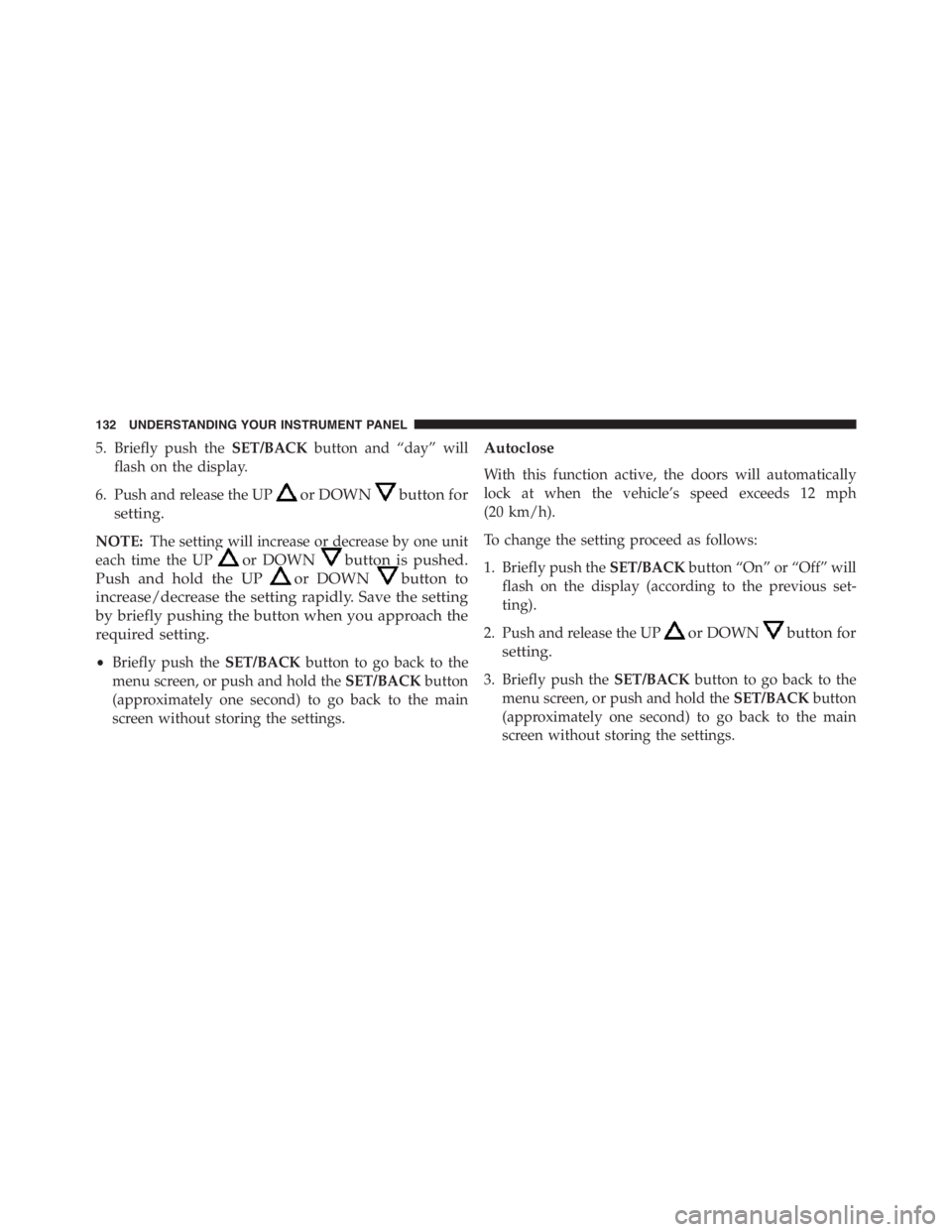

5. Briefly push theSET/BACKbutton and “day” will
flash on the display.
6. Push and release the UP
or DOWNbutton for
setting.
NOTE:The setting will increase or decrease by one unit
each time the UP
or DOWNbutton is pushed.
Push and hold the UP
or DOWNbutton to
increase/decrease the setting rapidly. Save the setting
by briefly pushing the button when you approach the
required setting.
•Briefly push theSET/BACKbutton to go back to the
menu screen, or push and hold theSET/BACKbutton
(approximately one second) to go back to the main
screen without storing the settings.
Autoclose
With this function active, the doors will automatically
lock at when the vehicle’s speed exceeds 12 mph
(20 km/h).
To change the setting proceed as follows:
1. Briefly push theSET/BACKbutton “On” or “Off” will
flash on the display (according to the previous set-
ting).
2. Push and release the UP
or DOWNbutton for
setting.
3. Briefly push theSET/BACKbutton to go back to the
menu screen, or push and hold theSET/BACKbutton
(approximately one second) to go back to the main
screen without storing the settings.
132 UNDERSTANDING YOUR INSTRUMENT PANEL

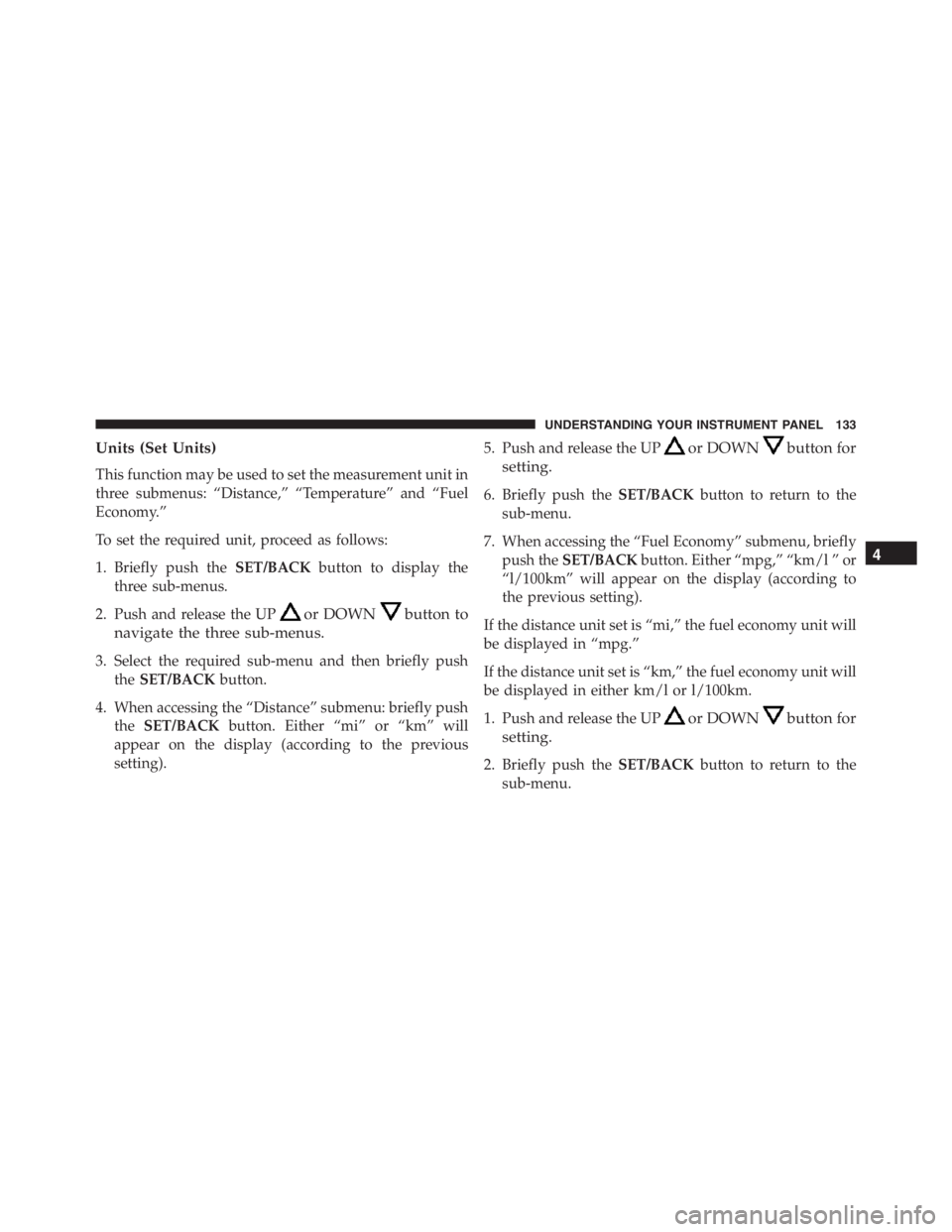

Units (Set Units)
This function may be used to set the measurement unit in
three submenus: “Distance,” “Temperature” and “Fuel
Economy.”
To set the required unit, proceed as follows:
1. Briefly push theSET/BACKbutton to display the
three sub-menus.
2. Push and release the UP
or DOWNbutton to
navigate the three sub-menus.
3. Select the required sub-menu and then briefly push
theSET/BACKbutton.
4. When accessing the “Distance” submenu: briefly push
theSET/BACKbutton. Either “mi” or “km” will
appear on the display (according to the previous
setting).5. Push and release the UP
or DOWNbutton for
setting.
6. Briefly push theSET/BACKbutton to return to the
sub-menu.
7. When accessing the “Fuel Economy” submenu, briefly
push theSET/BACKbutton. Either “mpg,” “km/l ” or
“l/100km” will appear on the display (according to
the previous setting).
If the distance unit set is “mi,” the fuel economy unit will
be displayed in “mpg.”
If the distance unit set is “km,” the fuel economy unit will
be displayed in either km/l or l/100km.
1. Push and release the UP
or DOWNbutton for
setting.
2. Briefly push theSET/BACKbutton to return to the
sub-menu.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 133

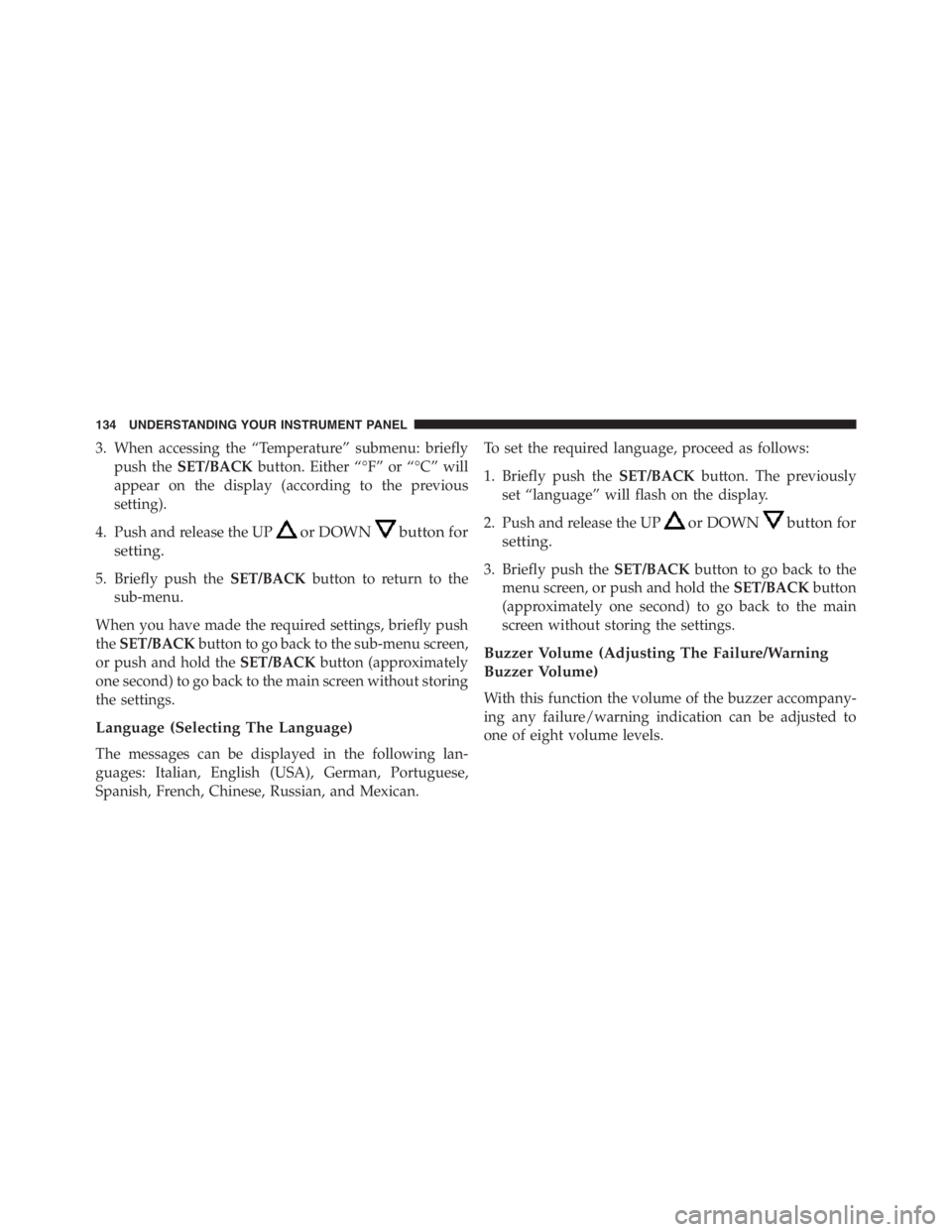

3. When accessing the “Temperature” submenu: briefly
push theSET/BACKbutton. Either “°F” or “°C” will
appear on the display (according to the previous
setting).
4. Push and release the UP
or DOWNbutton for
setting.
5. Briefly push theSET/BACKbutton to return to the
sub-menu.
When you have made the required settings, briefly push
theSET/BACKbutton to go back to the sub-menu screen,
or push and hold theSET/BACKbutton (approximately
one second) to go back to the main screen without storing
the settings.
Language (Selecting The Language)
The messages can be displayed in the following lan-
guages: Italian, English (USA), German, Portuguese,
Spanish, French, Chinese, Russian, and Mexican.To set the required language, proceed as follows:
1. Briefly push theSET/BACKbutton. The previously
set “language” will flash on the display.
2. Push and release the UP
or DOWNbutton for
setting.
3. Briefly push theSET/BACKbutton to go back to the
menu screen, or push and hold theSET/BACKbutton
(approximately one second) to go back to the main
screen without storing the settings.
Buzzer Volume (Adjusting The Failure/Warning
Buzzer Volume)
With this function the volume of the buzzer accompany-
ing any failure/warning indication can be adjusted to
one of eight volume levels.
134 UNDERSTANDING YOUR INSTRUMENT PANEL

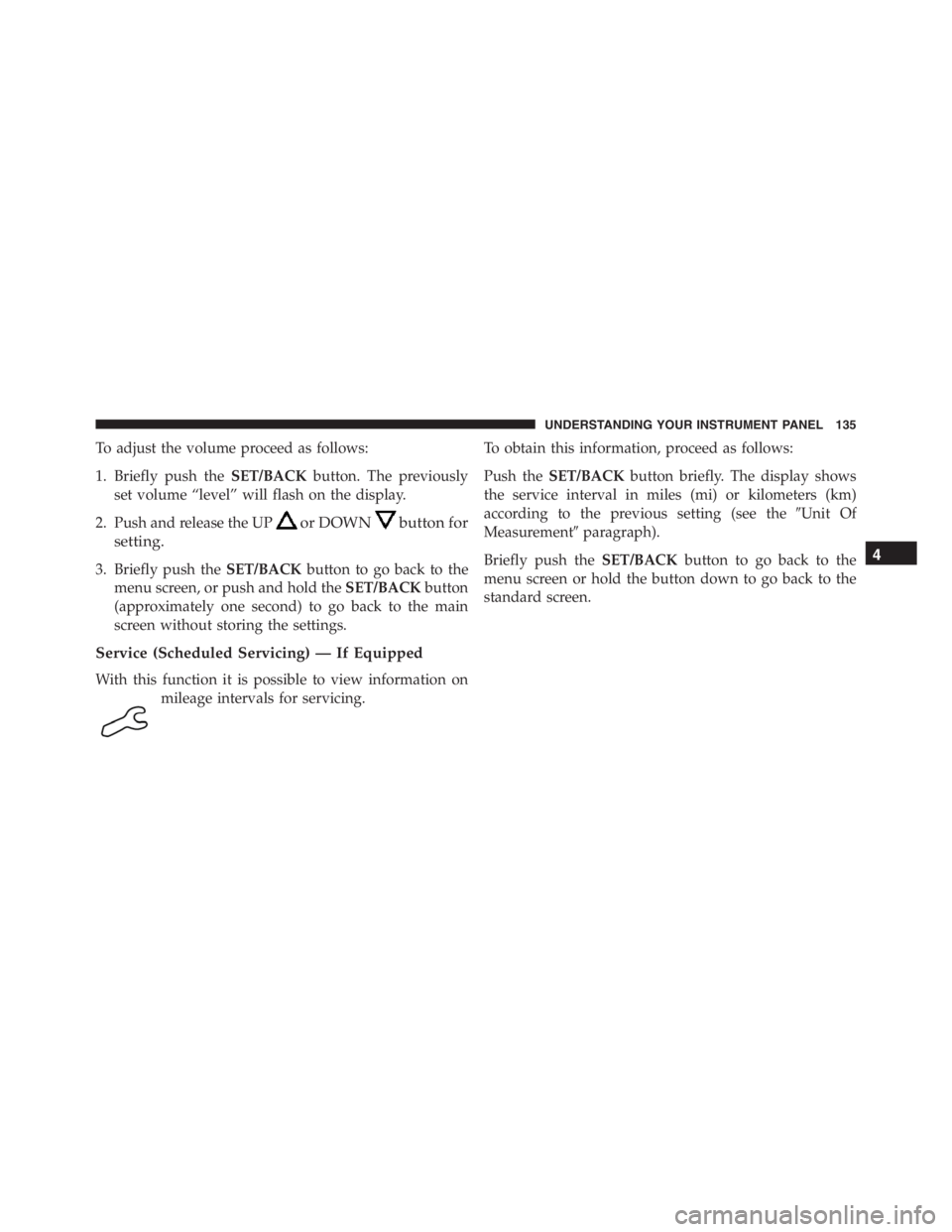

To adjust the volume proceed as follows:
1. Briefly push theSET/BACKbutton. The previously
set volume “level” will flash on the display.
2. Push and release the UP
or DOWNbutton for
setting.
3. Briefly push theSET/BACKbutton to go back to the
menu screen, or push and hold theSET/BACKbutton
(approximately one second) to go back to the main
screen without storing the settings.
Service (Scheduled Servicing) — If Equipped
With this function it is possible to view information on
mileage intervals for servicing.To obtain this information, proceed as follows:
Push theSET/BACKbutton briefly. The display shows
the service interval in miles (mi) or kilometers (km)
according to the previous setting (see theUnit Of
Measurementparagraph).
Briefly push theSET/BACKbutton to go back to the
menu screen or hold the button down to go back to the
standard screen.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 135

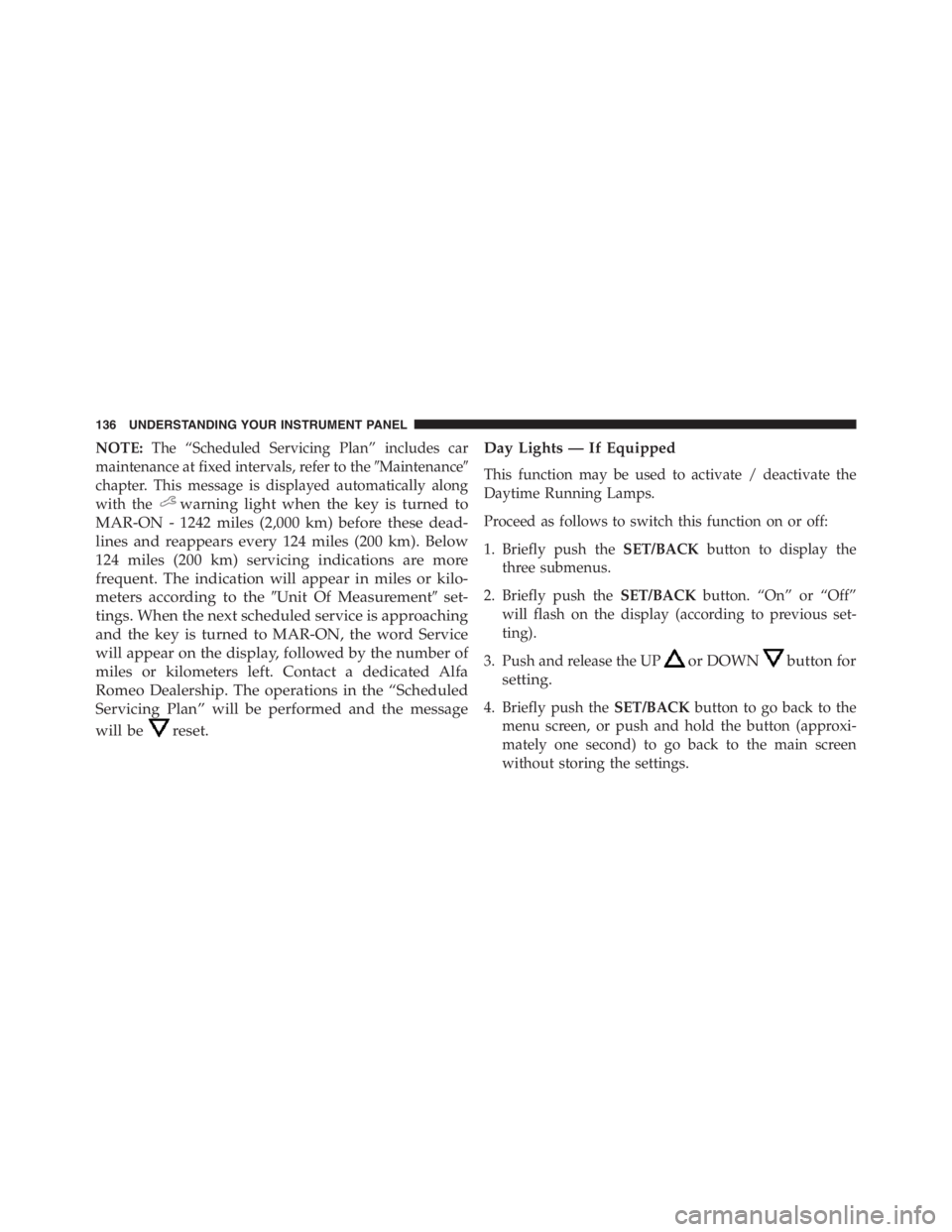

NOTE:The “Scheduled Servicing Plan” includes car
maintenance at fixed intervals, refer to theMaintenance
chapter. This message is displayed automatically along
with the
warning light when the key is turned to
MAR-ON - 1242 miles (2,000 km) before these dead-
lines and reappears every 124 miles (200 km). Below
124 miles (200 km) servicing indications are more
frequent. The indication will appear in miles or kilo-
meters according to theUnit Of Measurementset-
tings. When the next scheduled service is approaching
and the key is turned to MAR-ON, the word Service
will appear on the display, followed by the number of
miles or kilometers left. Contact a dedicated Alfa
Romeo Dealership. The operations in the “Scheduled
Servicing Plan” will be performed and the message
will be
reset.Day Lights — If Equipped
This function may be used to activate / deactivate the
Daytime Running Lamps.
Proceed as follows to switch this function on or off:
1. Briefly push theSET/BACKbutton to display the
three submenus.
2. Briefly push theSET/BACKbutton. “On” or “Off”
will flash on the display (according to previous set-
ting).
3. Push and release the UP
or DOWNbutton for
setting.
4. Briefly push theSET/BACKbutton to go back to the
menu screen, or push and hold the button (approxi-
mately one second) to go back to the main screen
without storing the settings.
136 UNDERSTANDING YOUR INSTRUMENT PANEL

Exit Menu
This function closes the initial menu screen.
Briefly push theSET/BACKbutton to go back to the
main screen.
Push and release the
button to return to the first
menu option (Speed Buzzer).
Push and releasethebutton to return to the last
menu option (Daylights).
Change Engine Oil Indicator System
Your vehicle is equipped with an engine oil
change indicator system. The “Change Engine Oil” mes-
sage will flash in the EVIC display for approximately 10
seconds and the Oil Pressure Warning Light will illumi-
nate. The “Change Engine Oil” message in the EVIC and
the Oil Pressure Warning Light will turn off after ap-
proximately 10 seconds.NOTE:The reset of the Oil Change message must be
performed by an authorized dealer.
Trip Computer
The Trip Computer is located in the instrument cluster. It
features a driver-interactive display (displays informa-
tion such as trip information, range, fuel consumption,
average speed, and travel time).
Trip Button
TheTRIPbutton, located on the right steering column
stalk, can be used to display and to reset the trip values.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 137

•A short button push displays the different values.
•A long button push resets the system and then starts a
new trip.
Trip Functions
Both trip functions are resettable (reset — start of new
trip).
“Trip A” can be used to display the figures relating to:
•Range
•Average Fuel Consumption
•Travel Distance
•Current Fuel Consumption
•Average speed
•Travel time
“Trip B” can be used to display the figures relating to:
•Average Fuel Consumption
•Travel Distance
Trip Button
138 UNDERSTANDING YOUR INSTRUMENT PANEL
