PEUGEOT 4C 2015 Owners Manual

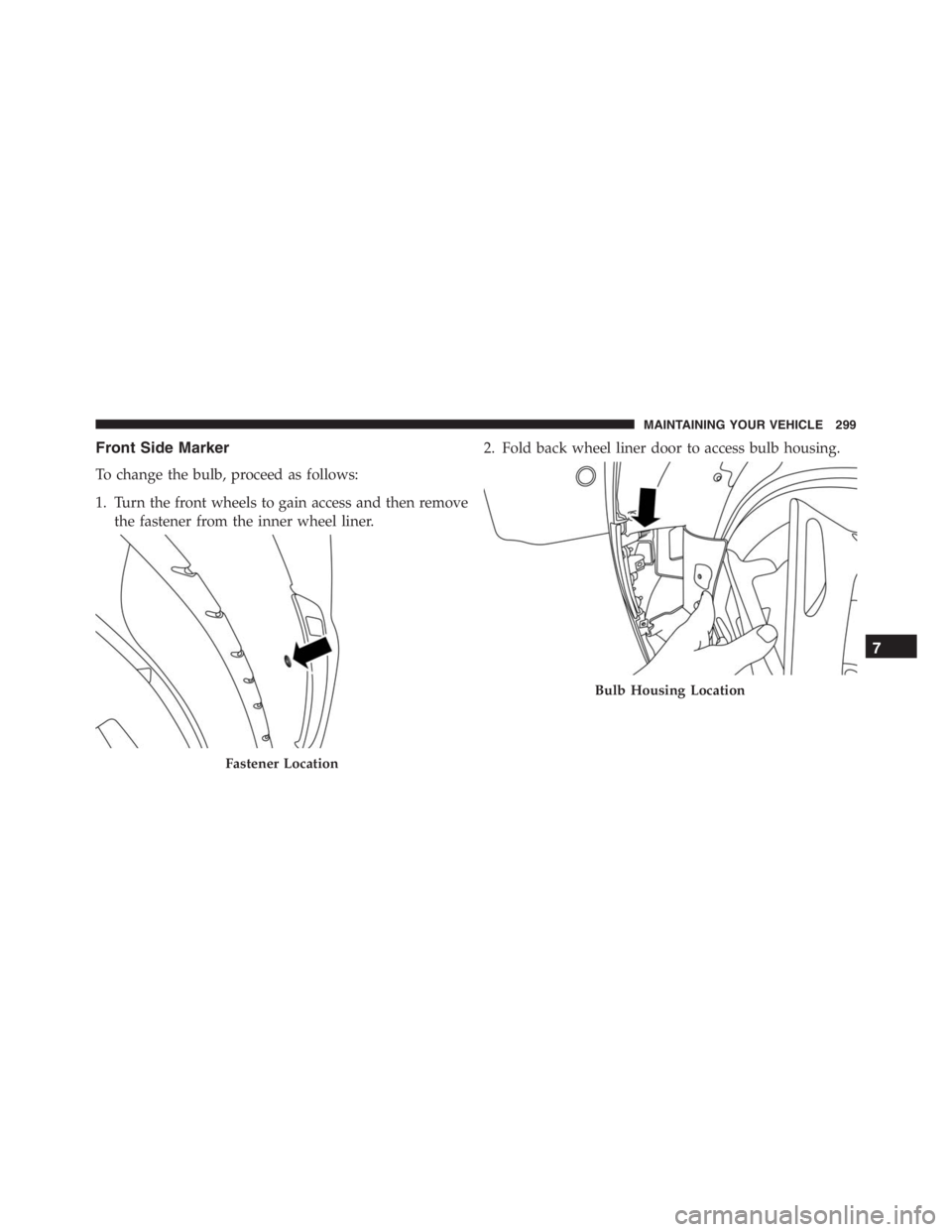

Front Side Marker
To change the bulb, proceed as follows:
1. Turn the front wheels to gain access and then remove
the fastener from the inner wheel liner.2. Fold back wheel liner door to access bulb housing.
Fastener Location
Bulb Housing Location
7
MAINTAINING YOUR VEHICLE 299

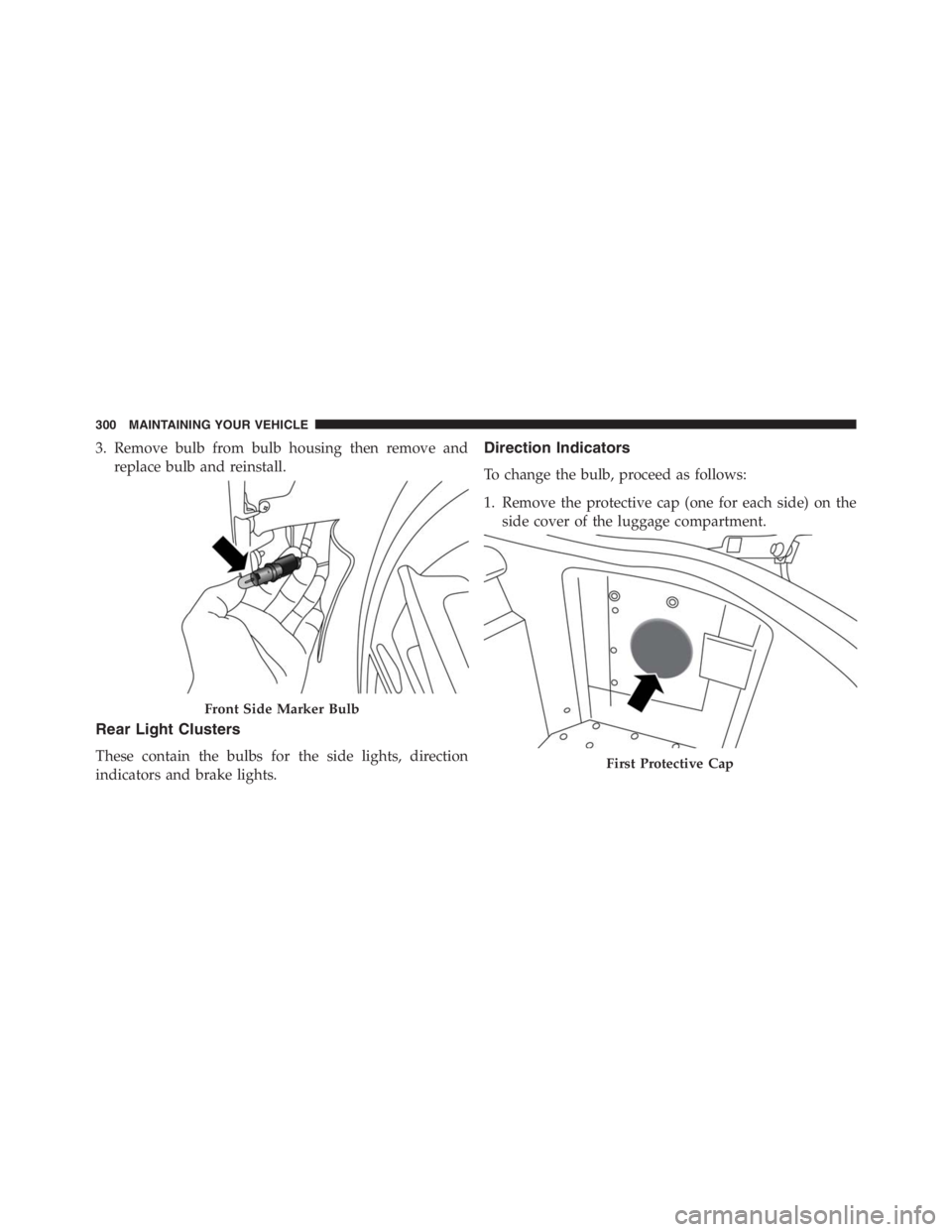

3. Remove bulb from bulb housing then remove and
replace bulb and reinstall.
Rear Light Clusters
These contain the bulbs for the side lights, direction
indicators and brake lights.
Direction Indicators
To change the bulb, proceed as follows:
1. Remove the protective cap (one for each side) on the
side cover of the luggage compartment.
Front Side Marker Bulb
First Protective Cap
300 MAINTAINING YOUR VEHICLE

2. Remove the second protective cap inserting a hand
inside the opening.
3. Rotate clockwise to remove the bulb holder remove
the bulb from the bulb holder.4. Install the bulb by pressing it into bulb holder then
turn install the bulb holder and turn it counterclock-
wise.
5. Install the previously removed protective caps.
Tail Lights/Brake Lights
These are LEDs. For the replacement, contact the your
local dealer.
Reversing Light
WARNING!
The reversing light are located close to the exhaust
pipes; take the utmost care not to get burnt during
the bulb replacement.
Second Protective Cap
7
MAINTAINING YOUR VEHICLE 301

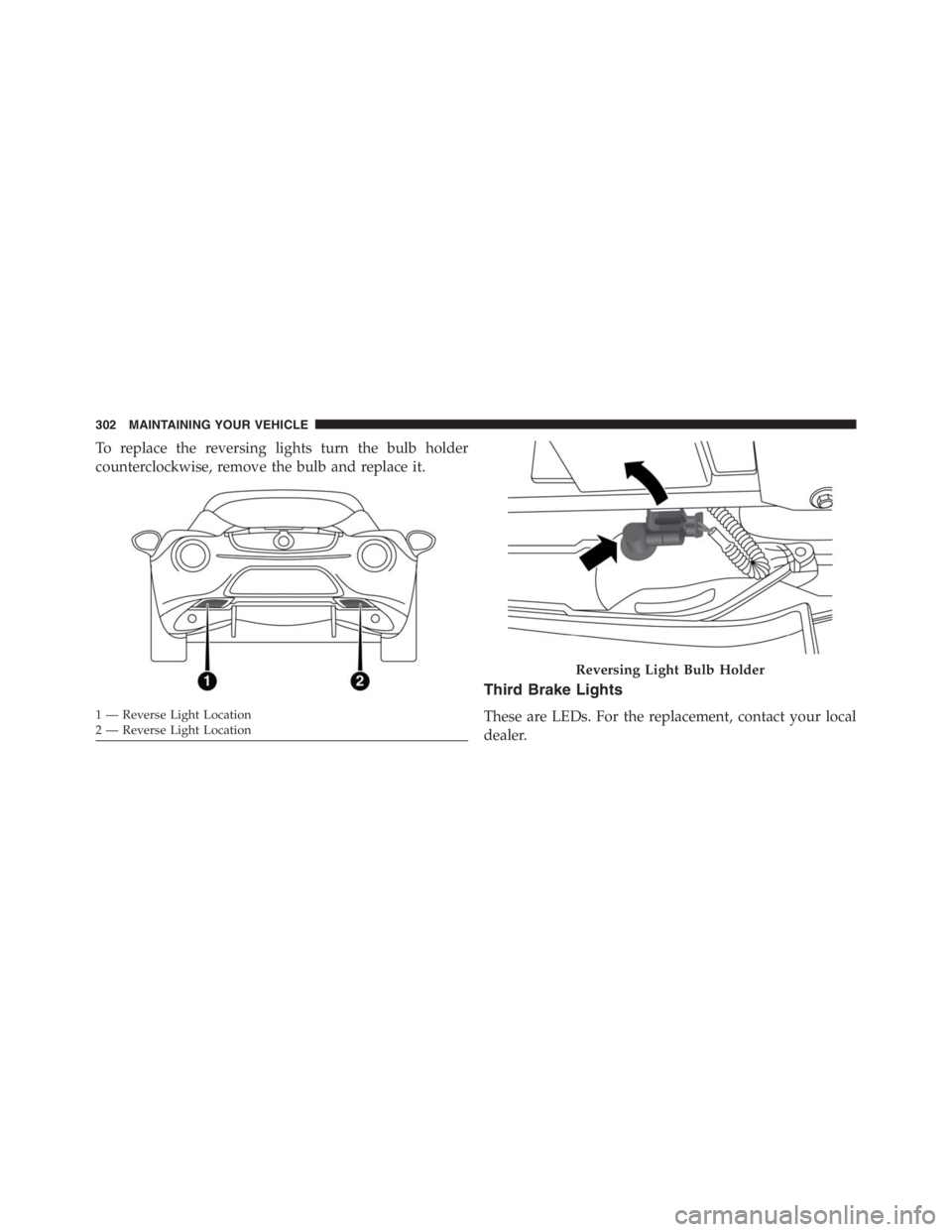

To replace the reversing lights turn the bulb holder
counterclockwise, remove the bulb and replace it.
Third Brake Lights
These are LEDs. For the replacement, contact your local
dealer.1 — Reverse Light Location
2 — Reverse Light Location
Reversing Light Bulb Holder
302 MAINTAINING YOUR VEHICLE

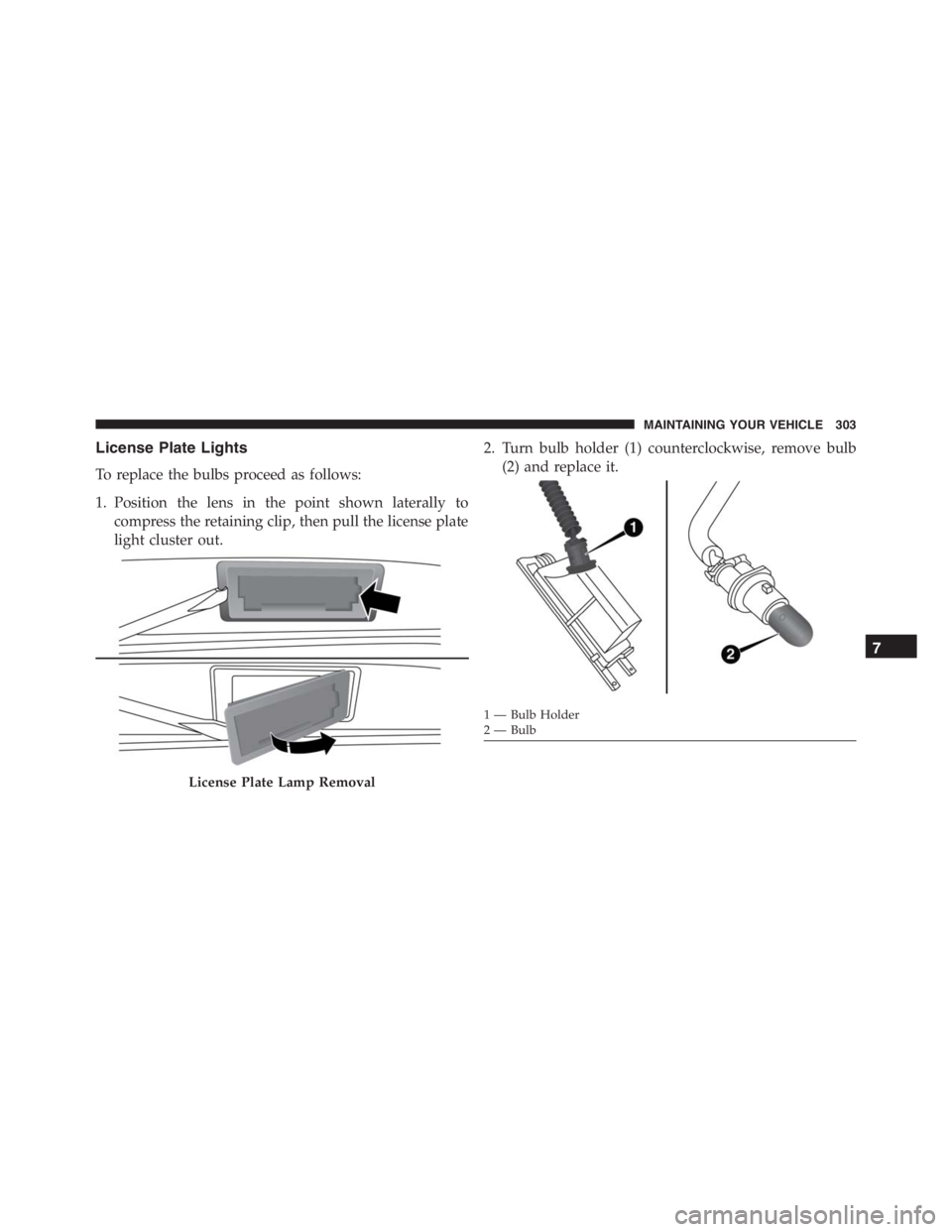

License Plate Lights
To replace the bulbs proceed as follows:
1. Position the lens in the point shown laterally to
compress the retaining clip, then pull the license plate
light cluster out.2. Turn bulb holder (1) counterclockwise, remove bulb
(2) and replace it.
License Plate Lamp Removal
1 — Bulb Holder
2 — Bulb
7
MAINTAINING YOUR VEHICLE 303

Roof Light
To change the bulb, proceed as follows:
1. Remove roof light working at the points indicated by
the arrows.2. Open protective flap (2) and replace bulb (1), releasing
it from the side contacts. Make sure that the new bulb
is correctly secured between the contacts.
Roof Light
1 — Bulb
2 — Protective Flap 304 MAINTAINING YOUR VEHICLE

3. Close protective flap (2) and install roof light in its
housing, making sure that it is locked in place.
Luggage Compartment Roof Light
To replace the bulb, proceed as follows:
1. Open the luggage compartment and remove luggage
compartment roof light, working in the direction
shown by the arrow.
2. Open light protector (2) and replace the bulb.
3. Close protector on the lens.
1 — Light Cover
2 — Light Protector
7
MAINTAINING YOUR VEHICLE 305

4. Install luggage compartment roof light by inserting it
in its correct position, first on one side and then
pressing on the other side until it clicks into place.
FLUID CAPACITIES
U.S. Metric
Fuel (Approximate)
1.750 Turbo Engine 10.5 Gallons 40 Liters
Reserve Fuel 1.1 Gallons 4 Liters
Engine Oil with Filter
1.750 Turbo Engine 6.1 Quarts 5.8 Liters
Cooling System
1.750 Turbo Engine (MOPAR®
Antifreeze/Engine Coolant 10
Year/150,000 Mile Formula).11.2 Quarts 10.6 Liters
306 MAINTAINING YOUR VEHICLE

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
Component Fluid, Lubricant, or Genuine Part
Engine Coolant - 1.750 Turbo Engine We recommend you use MOPAR® Antifreeze/Coolant
10 Year/150,000 Mile Formula OAT (Organic Additive
Technology) or equivalent meeting the requirements of
Chrysler Material Standard MS.90032.
Engine Oil - 1.750 Turbo Engine We recommend you use SAE 5W-40 API Certified
Synthetic Engine Oil, meeting the requirements of
Chrysler Material Standard MS-12991. Refer to your
engine oil filler cap for correct SAE grade.
Engine Oil Filter - 1.750 Turbo Engine We recommend you use MOPAR® Engine Oil Filter.
Spark Plugs - 1.750 Turbo Engine We recommend you use MOPAR® Spark Plugs. *
Fuel Selection - 1.750 Turbo Engine Use Only 91 Octane or higher.
7
MAINTAINING YOUR VEHICLE 307

NOTE:* The following are essential to ensure correct
operation and prevent serious damage to the engine: only
use spark plugs of the same make and type which are
specially certified for such engines strictly comply with
the spark plug replacement interval given in the mainte-
nance schedule. For spark plug replacement, it is advis-
able to contact the dedicated Alfa Romeo Dealership.
Refer to the “Maintenance Schedule” section for the
required spark plug intervals.
