FA
M
4
EXTERIOR
Welcome lighting
This additional exterior and interior lighting,
controlled remotely, makes your approach
to the vehicle easier when the light is poor.
93
Stop & Start
This system puts the engine temporarily
into standby during stops in the traffi c (red
lights, traffi c jams, etc...). The engine re-
starts automatically as soon as you want
to move off. The Stop & Start system
reduces fuel consumption and exhaust
emissions and provides the comfort of
complete silence when stationary
164
Directional lighting
This lighting automatically provides addi-
tional visibility when cornering.
95

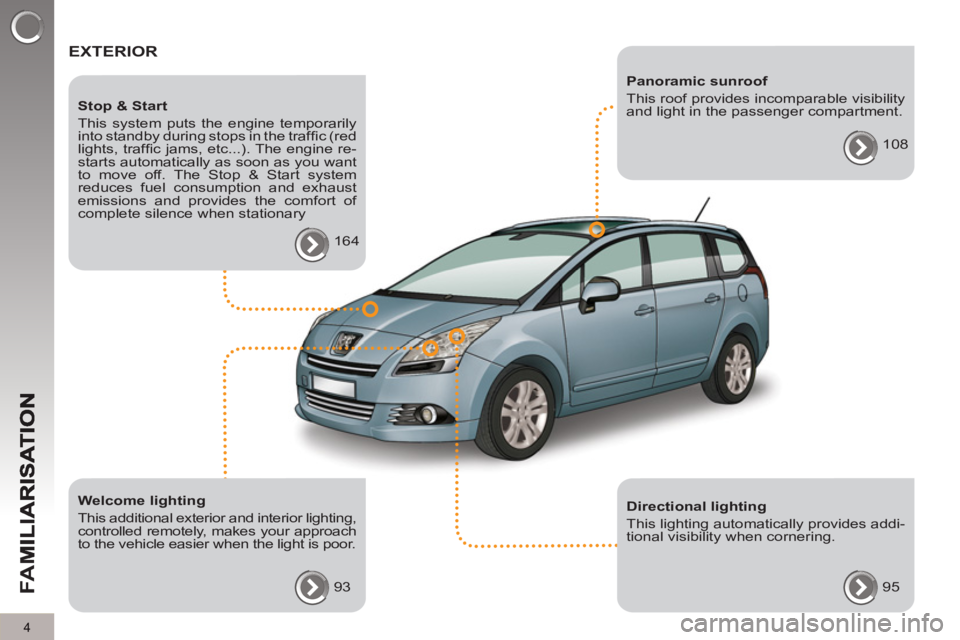

Panoramic sunroof
This roof provides incomparable visibility
and light in the passenger compartment.
108
Page 9 of 340
FA
M
7
OPENING

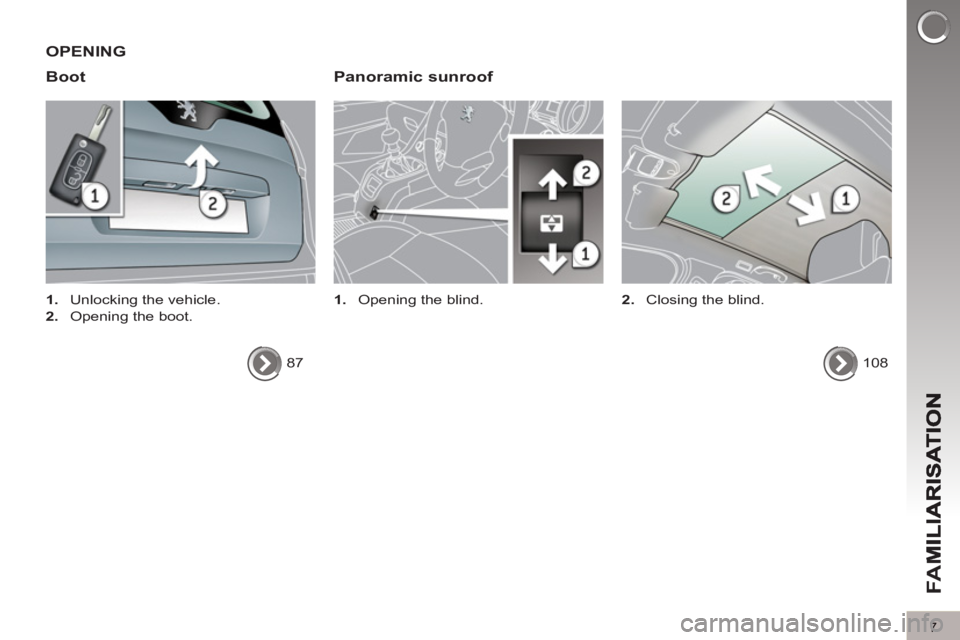

Boot
Panoramic sunroof
1.
Opening the blind.
1.
Unlocking the vehicle.
2.
Opening the boot.
87
108
2.
Closing the blind.
Page 11 of 340
FA
M
9
INSTRUMENTS AND CONTROLS
1.
Audio and telematics system
steering mounted control stalk.
2.
Steering lock and ignition.
3.
Wipers/screenwash/trip computer
control stalk.
4.
Instrument panel.
5.
Driver’s airbag.
Horn.
6.
Gear lever.
7.
Electric parking brake.
8.
12 V accessory socket.
9.
Centre console.
10.
Panoramic sunroof control.
11 .
Handbook storage compartment.
12.
Manual headlamp adjustment.
Instrument panel navigator
associated with the Peugeot
Connect Media Navigation (RT6).
13.
Alarm switch.
Parking sensors switch.
Dynamic stability control switch
(ESP/ASR).
Stop & Start deactivation switch.
14.
Door mirror controls.
Electric window controls.
Child lock.
15.
Front door window demist/defrost
vent.
16.
Windscreen demist/defrost vent.
Page 27 of 340
Optimise the use of your gearbox
With a manual gearbox, move off gently,
change up without waiting and drive by
changing up quite soon. If your vehicle
has the system, the gear effi ciency indi-
cator invites you to change up; it is dis-
played in the instrument panel, follow its
instructions.
With an automatic or electronic gear-
box, stay in Drive "D"
or Auto "A"
, ac-
cording to the type of gearbox, without
pressing the accelerator pedal heavily
or suddenly.
Drive smoothly
Maintain a safe distance between ve-
hicles, use engine braking rather than
the brake pedal, and press the accel-
erator progressively. These practices
contribute towards a reduction in fuel
consumption and CO
2 emissions and
also helps reduce the background traf-
fi c noise.
If your vehicle has cruise control, make
use of the system at speeds above 25 mph
(40 km/h) when the traffi c is fl owing well.
Control the use of your electrical equipment
Before moving off, if the passenger
compartment is too warm, ventilate it by
opening the windows and air vents be-
fore using the air conditioning.
Above 30 mph (50 km/h), close the win-
dows and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature in
the passenger compartment down (sun
roof and window blinds...).
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is at-
tained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.
Switch off the headlamps and front
foglamps when the level of light does
not require their use.
Avoid running the engine before moving
off, particularly in winter; your vehicle will
warm up much faster while driving.
As a passenger, if you avoid connect-
ing your multimedia devices (fi lm, music,
video game...), you will contribute towards
limiting the consumption of electrical en-
ergy, and so of fuel.
Disconnect your portable devices be-
fore leaving the vehicle.
ECO-DRIVING
2525
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.
Page 28 of 340
26
Limit the causes of excess consumption
Spread loads throughout the vehicle;
place the heaviest items in the bottom
of the boot, as close as possible to the
rear seats.
Limit the loads carried in the vehicle
and reduce wind resistance (roof bars,
roof rack, bicycle carrier, trailer...). Use
a roof box in preference.
Remove roof bars and roof racks after
use.
At the end of winter, remove snow
tyres and refi t your summer tyres.
Observe the recommendationson maintenance
Check the tyre pressures regularly,
when cold, referring to the label in the
door aperture, driver's side.
Carry out this check in particular:
- before a long journey,
- at each change of season,
- after a long period out of use.
Don't forget the spare wheel and the
tyres on any trailer or caravan.
Have your vehicle serviced regularly (en-
gine oil, oil fi lter, air fi lter...) and observe the
schedule of operations recommended by
the manufacturer.
When refuelling, do not continue after
the 3 rd cut-off of the nozzle to avoid
any overfl ow.
At the wheel of your new vehicle, it is only
after the fi rst 1 800 miles (3 000 kilome-
tres) that you will see the fuel consumption
settle down to a consistent average.
Page 110 of 340
FITTINGS
108

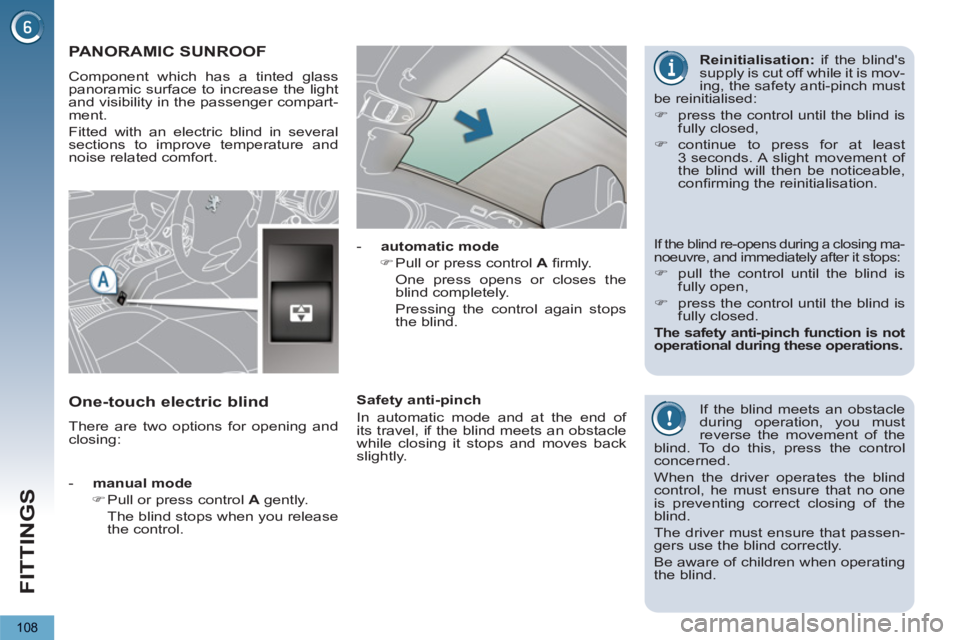

PANORAMIC SUNROOF
Component which has a tinted glass
panoramic surface to increase the light
and visibility in the passenger compart-
ment.
Fitted with an electric blind in several
sections to improve temperature and
noise related comfort.
If the blind meets an obstacle
during operation, you must
reverse the movement of the
blind. To do this, press the control
concerned.
When the driver operates the blind
control, he must ensure that no one
is preventing correct closing of the
blind.
The driver must ensure that passen-
gers use the blind correctly.
Be aware of children when operating
the blind.
- manual mode
)
Pull or press control A
gently.
The blind stops when you release
the control.
- automatic mode
)
Pull or press control A
fi rmly.
One press opens or closes the
blind completely.
Pressing the control again stops
the blind.
Safety anti-pinch
In automatic mode and at the end of
its travel, if the blind meets an obstacle
while closing it stops and moves back
slightly.
One-touch electric blind
There are two options for opening and
closing:
If the blind re-opens during a closing ma-
noeuvre, and immediately after it stops:
)
pull the control until the blind is
fully open,
)
press the control until the blind is
fully closed.
The safety anti-pinch function is not
operational during these operations.
Reinitialisation:
if the blind's
supply is cut off while it is mov-
ing, the safety anti-pinch must
be reinitialised:
)
press the control until the blind is
fully closed,
)
continue to press for at least
3 seconds. A slight movement of
the blind will then be noticeable,
confi rming the reinitialisation.
Page 114 of 340
FITTINGS
11 2

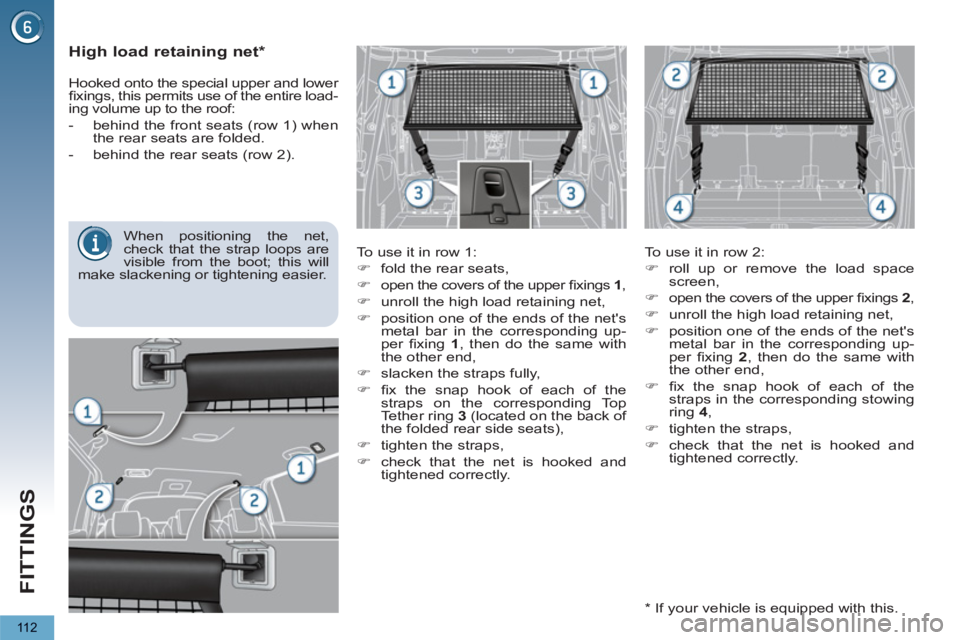

High load retaining net *
To use it in row 1:
)
fold the rear seats,
)
open the covers of the upper fi xings 1
,
)
unroll the high load retaining net,
)
position one of the ends of the net's
metal bar in the corresponding up-
per fi xing 1
, then do the same with
the other end,
)
slacken the straps fully,
)
fi x the snap hook of each of the
straps on the corresponding Top
Tether ring 3
(located on the back of
the folded rear side seats),
)
tighten the straps,
)
check that the net is hooked and
tightened correctly.
To use it in row 2:
)
roll up or remove the load space
screen,
)
open the covers of the upper fi xings 2
,
)
unroll the high load retaining net,
)
position one of the ends of the net's
metal bar in the corresponding up-
per fi xing 2
, then do the same with
the other end,
)
fi x the snap hook of each of the
straps in the corresponding stowing
ring 4
,
)
tighten the straps,
)
check that the net is hooked and
tightened correctly.
When positioning the net,
check that the strap loops are
visible from the boot; this will
make slackening or tightening easier.
Hooked onto the special upper and lower
fi xings, this permits use of the entire load-
ing volume up to the roof:
- behind the front seats (row 1) when
the rear seats are folded.
- behind the rear seats (row 2).
*
If your vehicle is equipped with this.
Page 136 of 340
SA
F
134

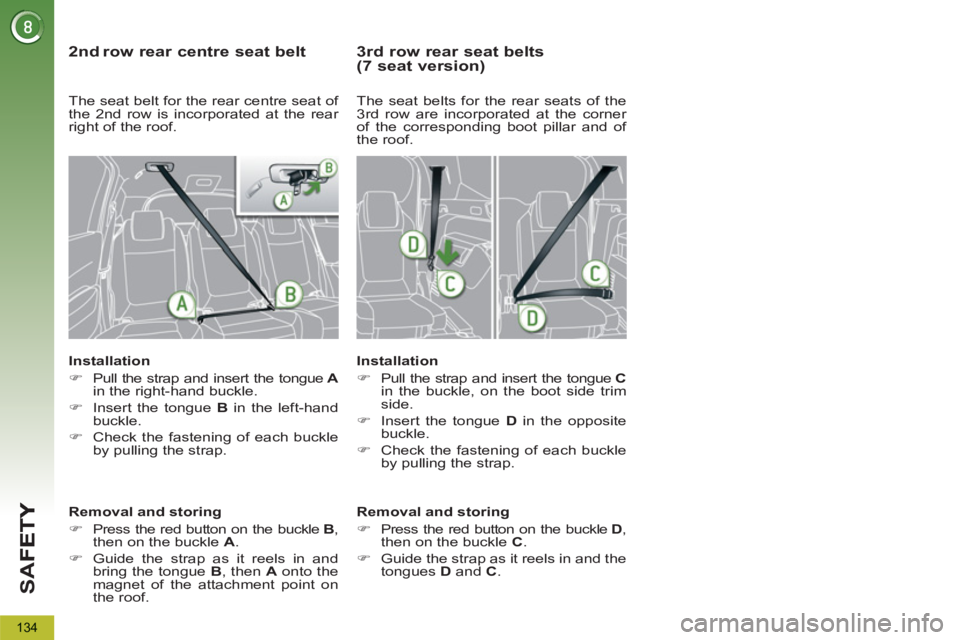

2 ndrow rear centre seat belt
Installation
)
Pull the strap and insert the tongue A
in the right-hand buckle.
)
Insert the tongue B
in the left-hand
buckle.
)
Check the fastening of each buckle
by pulling the strap.
Removal and storing
)
Press the red button on the buckle B
,
then on the buckle A
.
)
Guide the strap as it reels in and
bring the tongue B
, then A
onto the
magnet of the attachment point on
the roof.
3rd row rear seat belts (7 seat version)
Installation
)
Pull the strap and insert the tongue C
in the buckle, on the boot side trim
side.
)
Insert the tongue D
in the opposite
buckle.
)
Check the fastening of each buckle
by pulling the strap.
The seat belts for the rear seats of the
3 r
d
row are incorporated at the corner
of the corresponding boot pillar and of
the roof.
Removal and storing
)
Press the red button on the buckle D
,
then on the buckle C
.
)
Guide the strap as it reels in and the
tongues D
and C
.
The seat belt for the rear centre seat of
the 2 nd row is incorporated at the rear
right of the roof.
