PEUGEOT 5008 2011 User Guide

FA
M
9
INSTRUMENTS AND CONTROLS


1.
Audio and telematics system
steering mounted control stalk.

2.
Steering lock and ignition.

3.
Wipers/screenwash/trip computer
control stalk.

4.
Instrument panel.

5.
Driver’s airbag.
Horn.

6.
Gear lever.

7.
Electric parking brake.

8.
12 V accessory socket.

9.
Centre console.

10.
Panoramic sunroof control.

11 .
Handbook storage compartment.

12.
Manual headlamp adjustment.
Instrument panel navigator
associated with the Peugeot
Connect Media Navigation (RT6).

13.
Alarm switch.
Parking sensors switch.
Dynamic stability control switch
(ESP/ASR).
Stop & Start deactivation switch.

14.
Door mirror controls.
Electric window controls.
Child lock.

15.
Front door window demist/defrost
vent.

16.
Windscreen demist/defrost vent.

FA
M
10

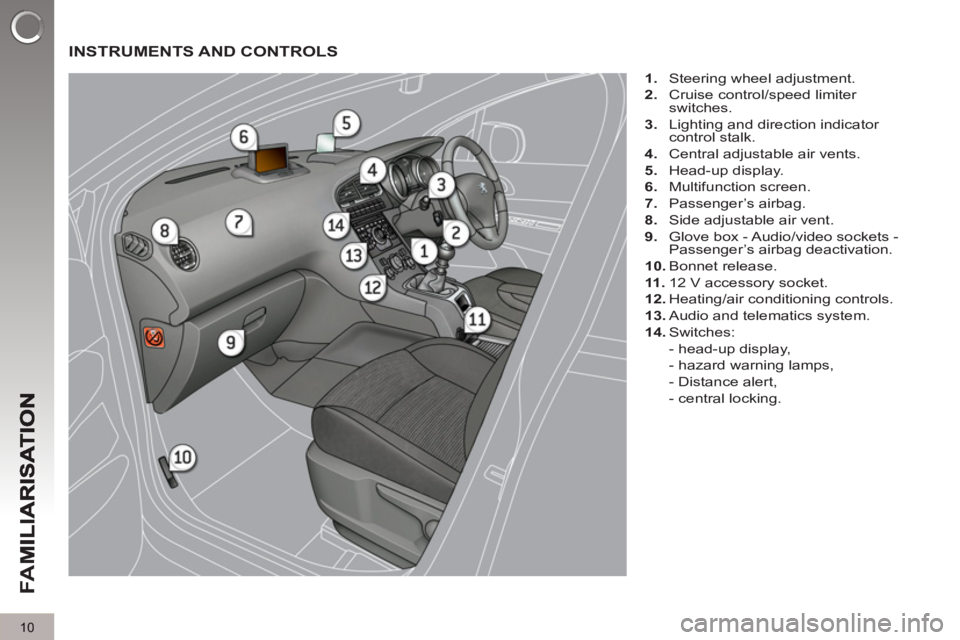

INSTRUMENTS AND CONTROLS



1.
Steering wheel adjustment.

2.
Cruise control/speed limiter
switches.

3.
Lighting and direction indicator
control stalk.

4.
Central adjustable air vents.

5.
Head-up display.

6.
Multifunction screen.

7.
Passenger’s airbag.

8.
Side adjustable air vent.

9.
Glove box - Audio/video sockets -
Passenger’s airbag deactivation.

10.
Bonnet release.

11 .
12 V accessory socket.

12.
Heating/air conditioning controls.

13.
Audio and telematics system.

14.
Switches:
- head-up display,
- hazard warning lamps,
- Distance alert,
- central locking.

FA
M
11

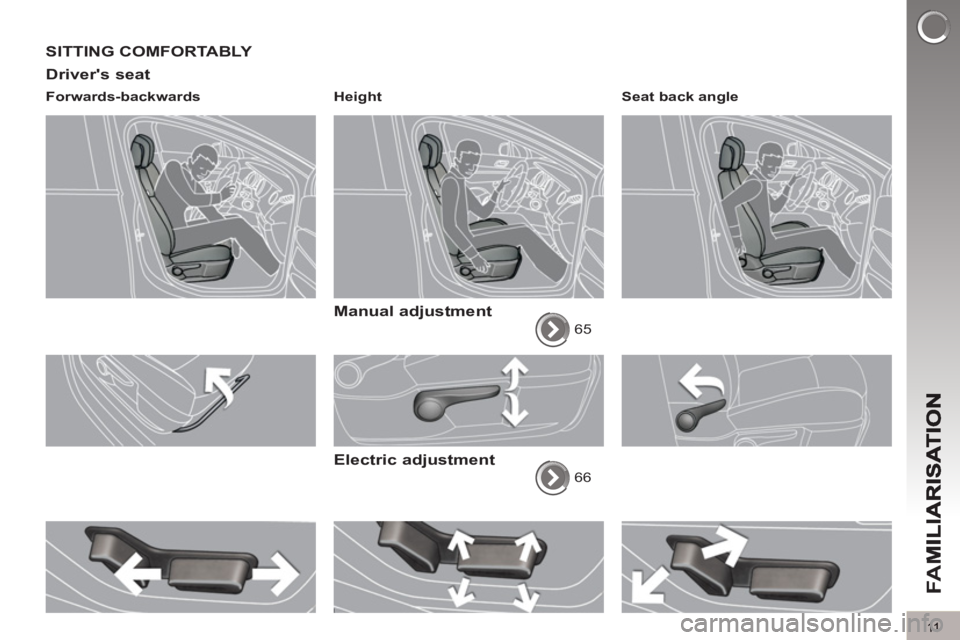

SITTING COMFORTABLY
Driver's seat

Forwards-backwards
Height



Manual adjustment

65


Electric adjustment

66
Seat back angle

FA
M
12
SITTING COMFORTABLY

Front seats


Head restraint height and angle

Lumbar
67

Steering wheel adjustment



1.
Releasing the adjustment mechanism.

2.
Adjustment of height and reach.

3.
Locking the adjustment mechanism.
As a safety precaution, these operations
must only be carried out when stationary.
75


Centre console

This has a large storage area (with re-
cesses for 2 bottles, ...) for the front
passengers and, according to version,
a multimedia system for the rear pas-
sengers.
104,
107

13
SITTING COMFORTABLY
Door mirrors

Adjustment

A.
Selection of the mirror to be adjusted.

B.
Adjustment of the position of the
mirror in the four directions.
74


Rear view mirror


Manual model


1.
Selection of the "day" position of the
mirror.

2.
Adjustment of the mirror.
75

Automatic day/night model


1.
Adjustment of the mirror.
75

Front seat belts



1.
Fastening the buckle.
132
2.
Height adjustment.
Also...


C.
Folding/
Unfolding.

FA
M
14

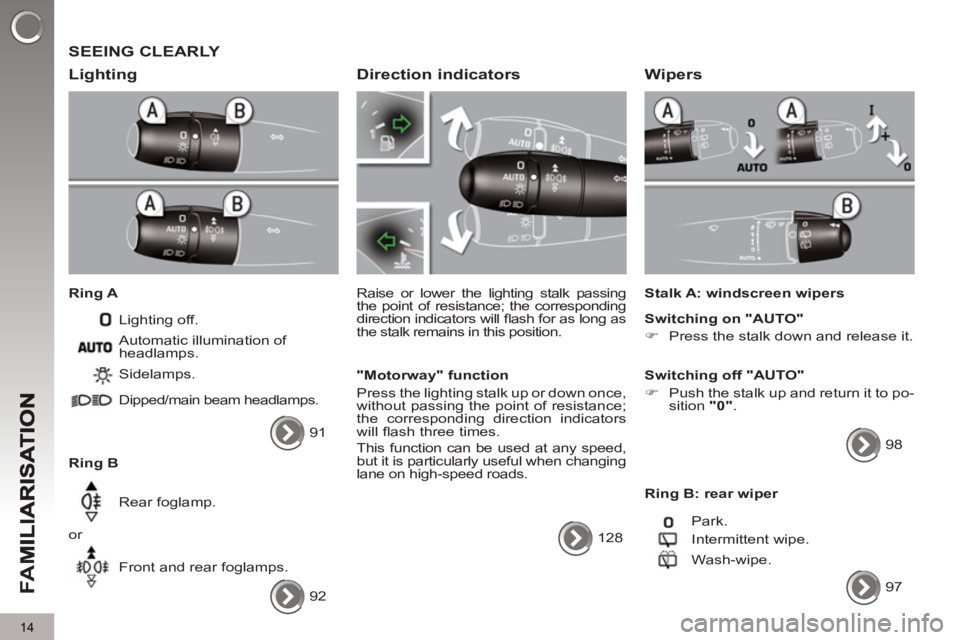

SEEING CLEARLY

Li
ghting


Ring A
Lighting off.

Ring B Sidelamps.
Dipped/main beam headlamps.
Rear foglamp.
or
Front and rear foglamps. Automatic illumination of
headlamps.
92

Direction indicators

Raise or lower the lighting stalk passing
the point of resistance; the corresponding
direction indicators will fl ash for as long as
the stalk remains in this position.

"Motorway" function
Press the lighting stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.
This function can be used at any speed,
but it is particularly useful when changing
lane on high-speed roads.
128



Wipers


Stalk A: windscreen wipers

Switching on "AUTO"


)
Press the stalk down and release it.


Switching off "AUTO"


)
Push the stalk up and return it to po-
sition "0"
.
98

Ring B: rear wiper
Park.
Intermittent wipe.
Wash-wipe.
97
91

FA
M
15

Digital air conditioning:
we recommend use of the fully automatic mode by pressing the "AUTO"
button.

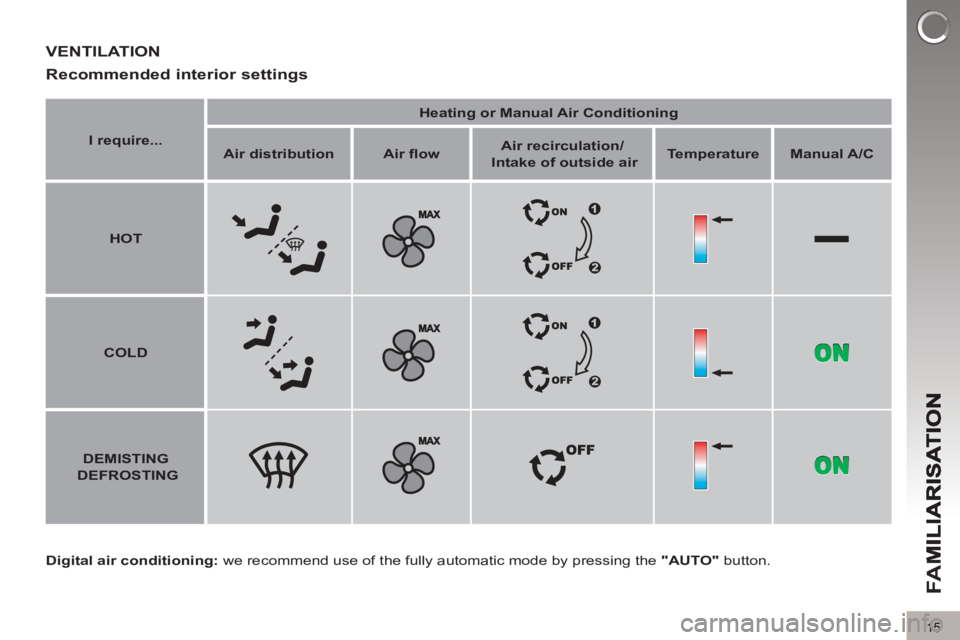

VENTILATION
Recommended interior settin
gs


I require...



Heating or Manual Air Conditioning




Air distribution



Air fl ow



Air recirculation/


Intake of outside air



Temperature



Manual A/C




HOT







COLD






DEMISTING

DEFROSTING

FA
M
16

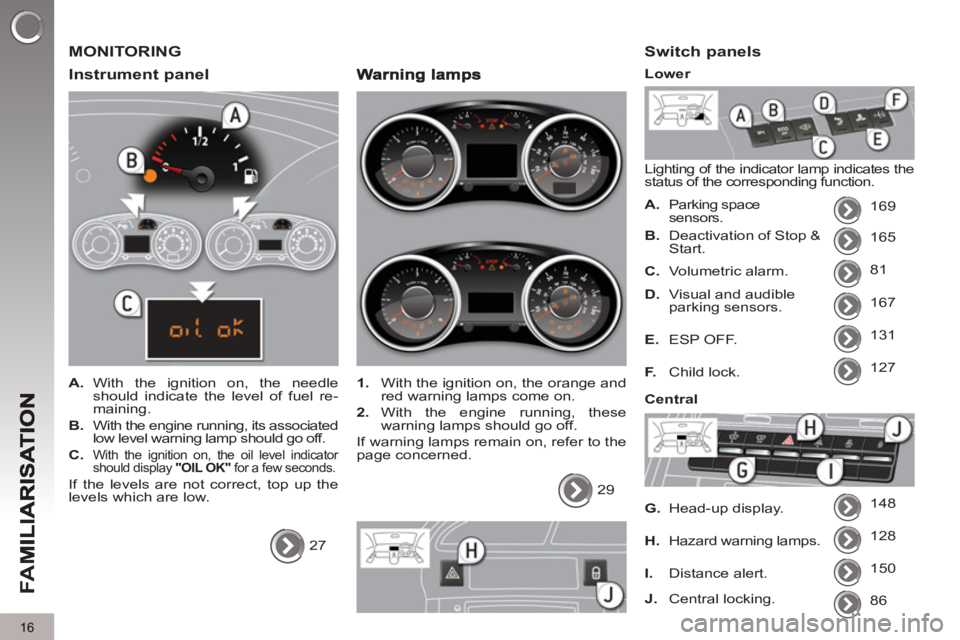

MONITORING

Instrument
panel



A.
With the ignition on, the needle
should indicate the level of fuel re-
maining.

B.
With the engine running, its associated
low level warning lamp should go off.

C.

With the ignition on, the oil level indicator
should display "OIL OK"
for a few seconds.

If the levels are not correct, top up the
levels which are low.
27



1.
With the ignition on, the orange and
red warning lamps come on.

2.
With the engine running, these
warning lamps should go off.
If warning lamps remain on, refer to the
page concerned.
29


Switch panels

Lighting of the indicator lamp indicates the
status of the corresponding function.


A.
Parking space
sensors. 169
165
81
167
131
127
148
128
B.
Deactivation of Stop &
Start.

C.
Volumetric alarm.

D.
Visual and audible
parking sensors.

E.
ESP OFF.

F.
Child lock.

G.
Head-up display.

H.
Hazard warning lamps.
Lower


Central

150

I.
Distance alert.
86

J.
Central locking.

FA
M
17

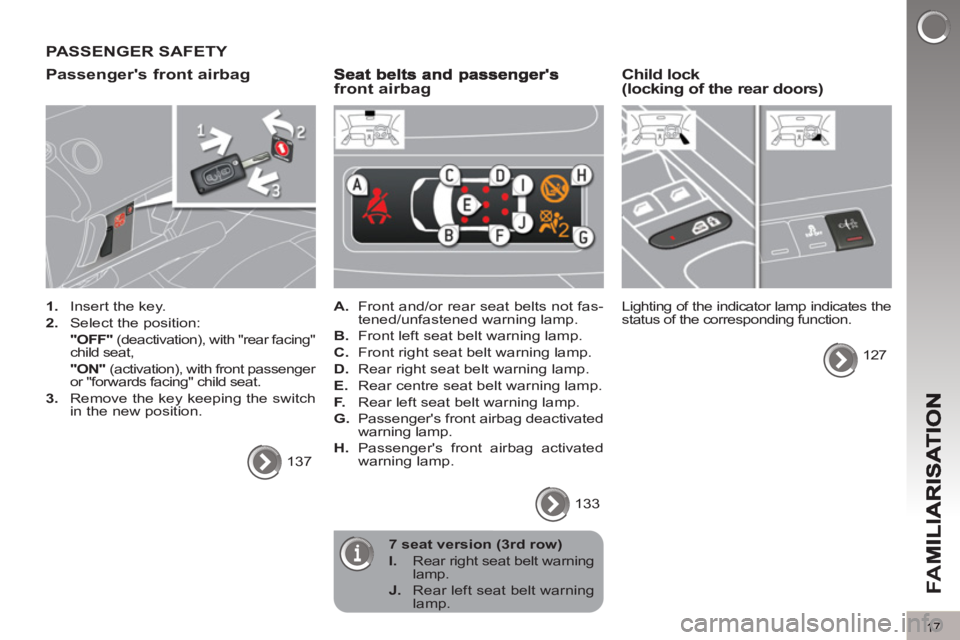

PASSENGER SAFETY
Passen
ger's front airbag


1.
Insert the key.

2.
Select the position:
"OFF"
(deactivation), with "rear facing"
child seat,
"ON"
(activation), with front passenger
or "forwards facing" child seat.

3.
Remove the key keeping the switch
in the new position.
137
front airbag



A.
Front and/or rear seat belts not fas-
tened/unfastened warning lamp.

B.
Front left seat belt warning lamp.

C.
Front right seat belt warning lamp.

D.
Rear right seat belt warning lamp.

E.
Rear centre seat belt warning lamp.

F.
Rear left seat belt warning lamp.

G.
Passenger's front airbag deactivated
warning lamp.

H.
Passenger's front airbag activated
warning lamp.
133
Child lock (locking of the rear doors)

Lighting of the indicator lamp indicates the
status of the corresponding function.
127


7 seat version (3rd row)


I.
Rear right seat belt warning
lamp.

J.
Rear left seat belt warning
lamp.

FA
M
18

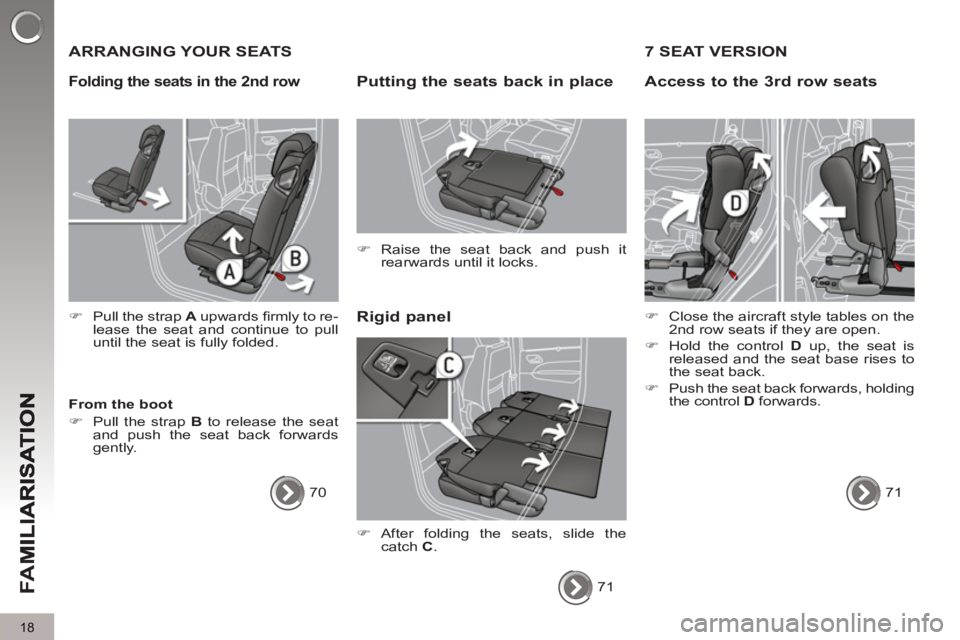

ARRANGING YOUR SEATS
Ri
gid panel
Putting the seats back in place


)
Raise the seat back and push it
rearwards until it locks.


From the boot


)
Pull the strap B
to release the seat
and push the seat back forwards
gently.



Folding the seats in the 2nd row




)
Pull the strap A
upwards fi rmly to re-
lease the seat and continue to pull
until the seat is fully folded.



Access to the 3rd row seats



)
Close the aircraft style tables on the
2 nd row seats if they are open.

)
Hold the control D
up, the seat is
released and the seat base rises to
the seat back.

)
Push the seat back forwards, holding
the control D
forwards.
71
70
71

7 SEAT VERSION



)
After folding the seats, slide the
catch C
.
