PEUGEOT 5008 2011 Workshop Manual
Manufacturer: PEUGEOT, Model Year: 2011, Model line: 5008, Model: PEUGEOT 5008 2011Pages: 340, PDF Size: 16.4 MB
Page 51 of 340
M
U
49
Displays in the screen
When the screen is unfolded, it displays
the following information automatically
and directly:
- time,
- date,
- altitude,
- ambient temperature (the value dis-
played fl ashes if there is a risk of
ice),
- doors check,
- warning and vehicle function status
messages, displayed temporarily,
- audio functions,
- trip computer information,
- satellite navigation system information.
Depending on the equipment fi tted to
your vehicle, the trip computer informa-
tion appears in either the multifunction
screen or the instrument panel screen. From the Peugeot Connect Navigation
(RNEG) control panel, to select one of
the applications:
)
press the dedicated "RADIO"
,
"MUSIC"
, "NAV"
, "TRAFFIC"
,
"SETUP"
or "PHONE"
button for
access to the corresponding menu,
)
turn the navigator to move the selection,
)
press the navigator to confi rm the
selection,
or
)
press the "ESC"
button to abandon
the current operation and return to
the previous display.

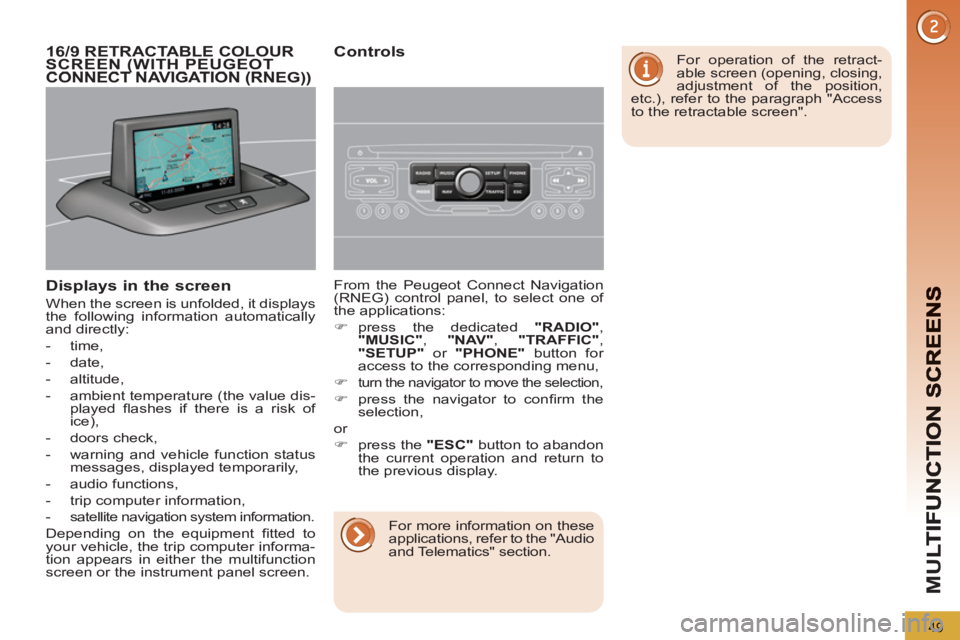

16/9 RETRACTABLE COLOUR SCREEN (WITH PEUGEOTCONNECT NAVIGATION (RNEG)) ((
Controls
For operation of the retract-
able screen (opening, closing,
adjustment of the position,
etc.), refer to the paragraph "Access
to the retractable screen".
For more information on these
applications, refer to the "Audio
and Telematics" section.
Page 52 of 340
M
U
50

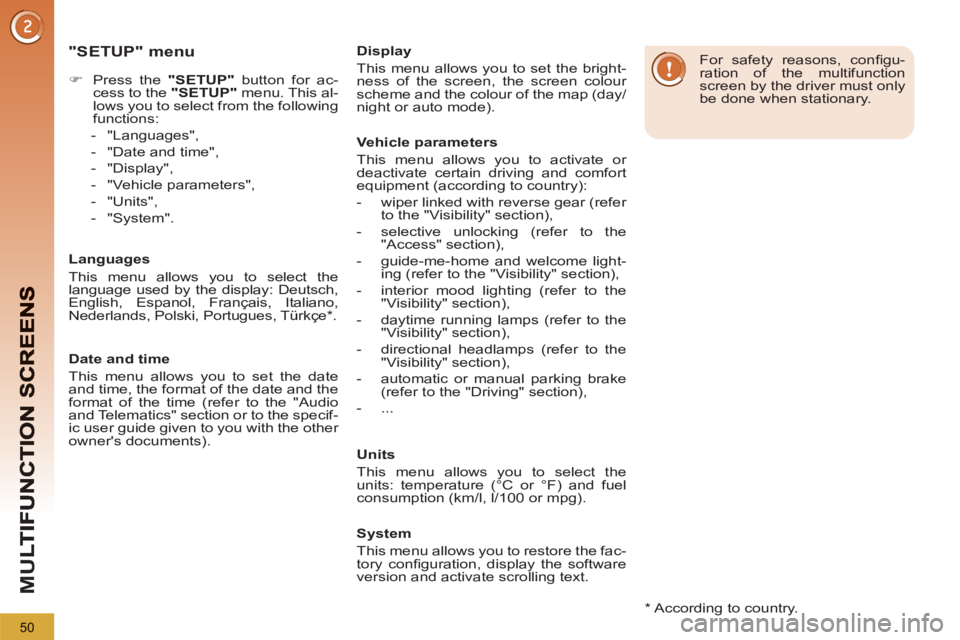

"SETUP" menu
)
Press the "SETUP"
button for ac-
cess to the "SETUP"
menu. This al-
lows you to select from the following
functions:
- "Languages",
- "Date and time",
- "Display",
- "Vehicle parameters",
- "Units",
- "System".
Languages
This menu allows you to select the
language used by the display: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Polski, Portugues, Türkçe * .
Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time (refer to the "Audio
and Telematics" section or to the specif-
ic user guide given to you with the other
owner's documents).
*
According to country.
Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).
Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment (according to country):
- wiper linked with reverse gear (refer
to the "Visibility" section),
- selective unlocking (refer to the
"Access" section),
- guide-me-home and welcome light-
ing (refer to the "Visibility" section),
- interior mood lighting (refer to the
"Visibility" section),
- daytime running lamps (refer to the
"Visibility" section),
- directional headlamps (refer to the
"Visibility" section),
- automatic or manual parking brake
(refer to the "Driving" section),
- ...
Units
This menu allows you to select the
units: temperature (°C or °F) and fuel
consumption (km/l, l/100 or mpg).
For safety reasons, confi gu-
ration of the multifunction
screen by the driver must only
be done when stationary.
System
This menu allows you to restore the fac-
tory confi guration, display the software
version and activate scrolling text.
Page 53 of 340
M
U
51

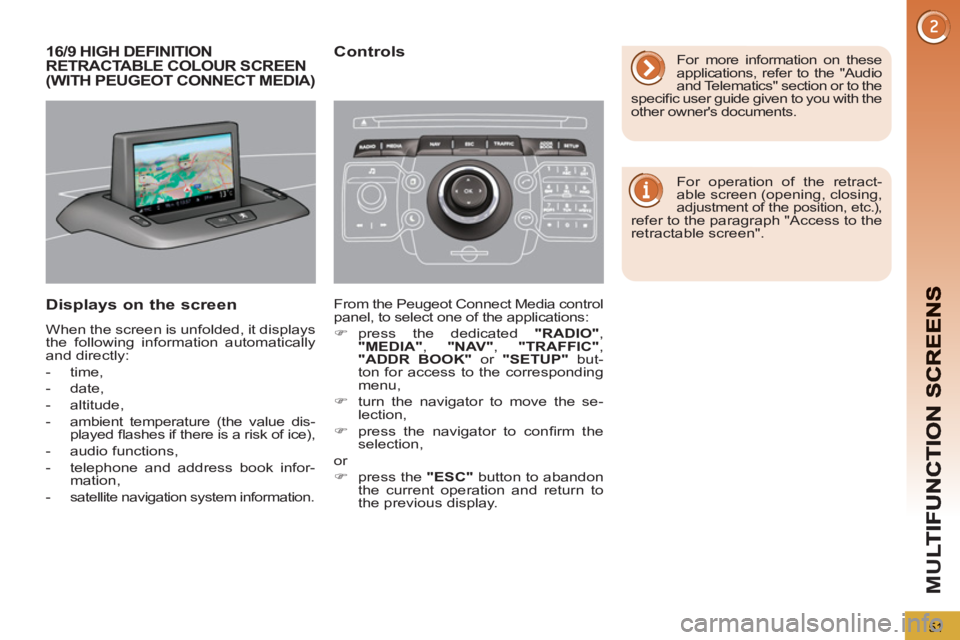

16/9 HIGH DEFINITION RETRACTABLE COLOUR SCREEN(WITH PEUGEOT CONNECT MEDIA)
Displays on the screen
When the screen is unfolded, it displays
the following information automatically
and directly:
- time,
- date,
- altitude,
- ambient temperature (the value dis-
played fl ashes if there is a risk of ice),
- audio functions,
- telephone and address book infor-
mation,
- satellite navigation system information.
Controls
From the Peugeot Connect Media control
panel, to select one of the applications:
)
press the dedicated "RADIO"
,
"MEDIA"
, "NAV"
, "TRAFFIC"
,
"ADDR BOOK"
or "SETUP"
but-
ton for access to the corresponding
menu,
)
turn the navigator to move the se-
lection,
)
press the navigator to confi rm the
selection,
or
)
press the "ESC"
button to abandon
the current operation and return to
the previous display. For more information on these
applications, refer to the "Audio
and Telematics" section or to the
specifi c user guide given to you with the
other owner's documents.
For operation of the retract-
able screen (opening, closing,
adjustment of the position, etc.), refer to the paragraph "Access to the
retractable screen".
Page 54 of 340
M
U
52
*
According to country.

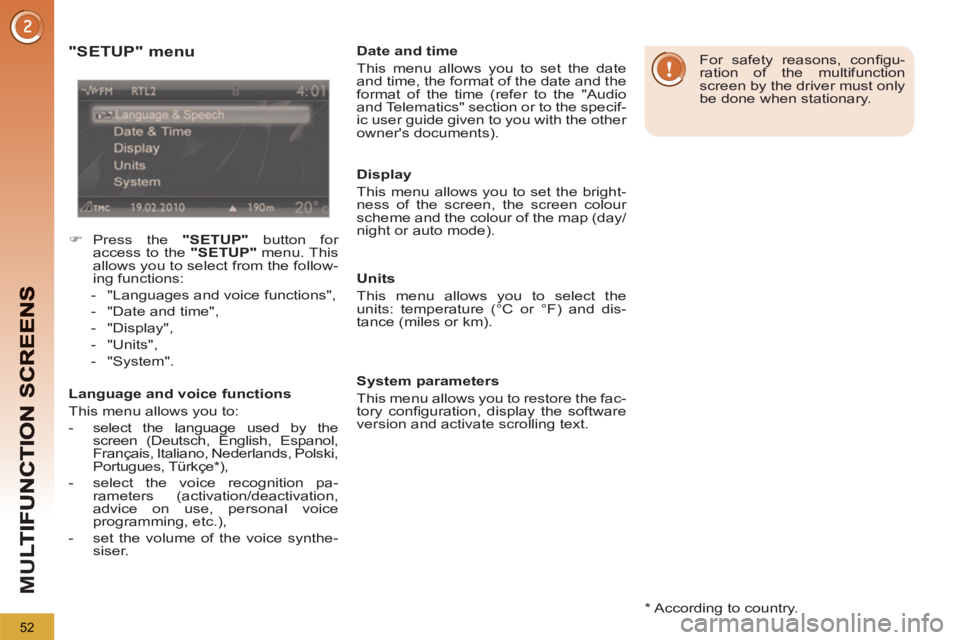

"SETUP" menu
)
Press the "SETUP"
button for
access to the "SETUP"
menu. This
allows you to select from the follow-
ing functions:
- "Languages and voice functions",
- "Date and time",
- "Display",
- "Units",
- "System".
Language and voice functions
This menu allows you to:
- select the language used by the
screen (Deutsch, English, Espanol,
Français, Italiano, Nederlands, Polski,
Portugues, Türkçe * ),
- select the voice recognition pa-
rameters (activation/deactivation,
advice on use, personal voice
programming, etc.),
- set the volume of the voice synthe-
siser.
Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time (refer to the "Audio
and Telematics" section or to the specif-
ic user guide given to you with the other
owner's documents).
Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).
Units
This menu allows you to select the
units: temperature (°C or °F) and dis-
tance (miles or km).
System parameters
This menu allows you to restore the fac-
tory confi guration, display the software
version and activate scrolling text.
For safety reasons, confi gu-
ration of the multifunction
screen by the driver must only
be done when stationary.
Page 55 of 340
M
U
53

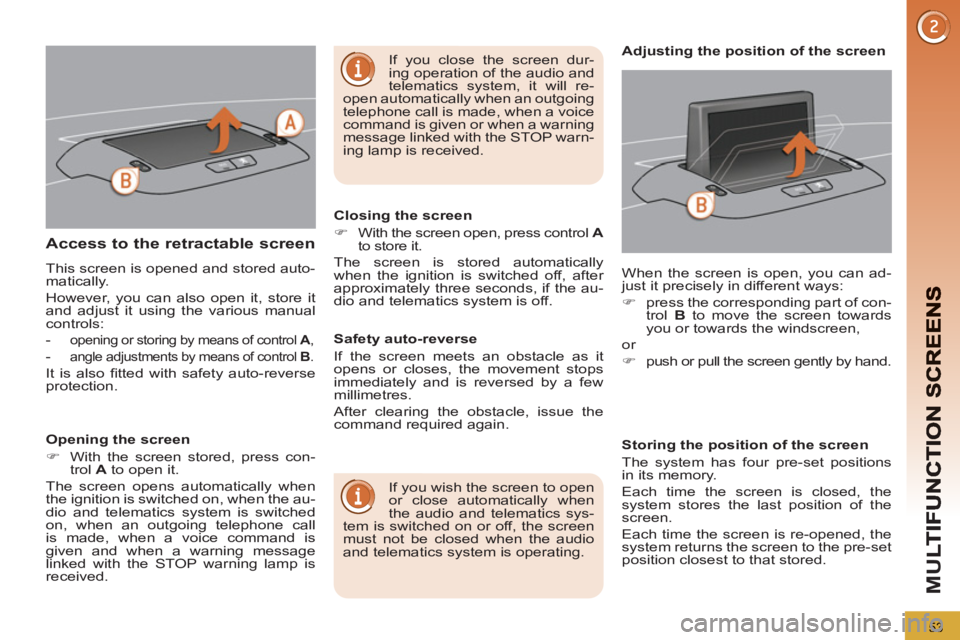

Access to the retractable screen
This screen is opened and stored auto-
matically.
However, you can also open it, store it
and adjust it using the various manual
controls:
-
opening or storing by means of control A
,
- angle adjustments by means of control B
.
It is also fi tted with safety auto-reverse
protection.
Opening the screen
)
With the screen stored, press con-
trol A
to open it.
The screen opens automatically when
the ignition is switched on, when the au-
dio and telematics system is switched
on, when an outgoing telephone call
is made, when a voice command is
given and when a warning message
linked with the STOP warning lamp is
received.
Closing the screen
)
With the screen open, press control A
to store it.
The screen is stored automatically
when the ignition is switched off, after
approximately three seconds, if the au-
dio and telematics system is off.
If you wish the screen to open
or close automatically when
the audio and telematics sys-
tem is switched on or off, the screen
must not be closed when the audio
and telematics system is operating. When the screen is open, you can ad-
just it precisely in different ways:
)
press the corresponding part of con-
trol B
to move the screen towards
you or towards the windscreen,
or
)
push or pull the screen gently by hand.
Adjusting the position of the screen
Safety auto-reverse
If the screen meets an obstacle as it
opens or closes, the movement stops
immediately and is reversed by a few
millimetres.
After clearing the obstacle, issue the
command required again.
Storing the position of the screen
The system has four pre-set positions
in its memory.
Each time the screen is closed, the
system stores the last position of the
screen.
Each time the screen is re-opened, the
system returns the screen to the pre-set
position closest to that stored.
If you close the screen dur-
ing operation of the audio and
telematics system, it will re-
open automatically when an outgoing
telephone call is made, when a voice
command is given or when a warning
message linked with the STOP warn-
ing lamp is received.
Page 56 of 340
M
U
54

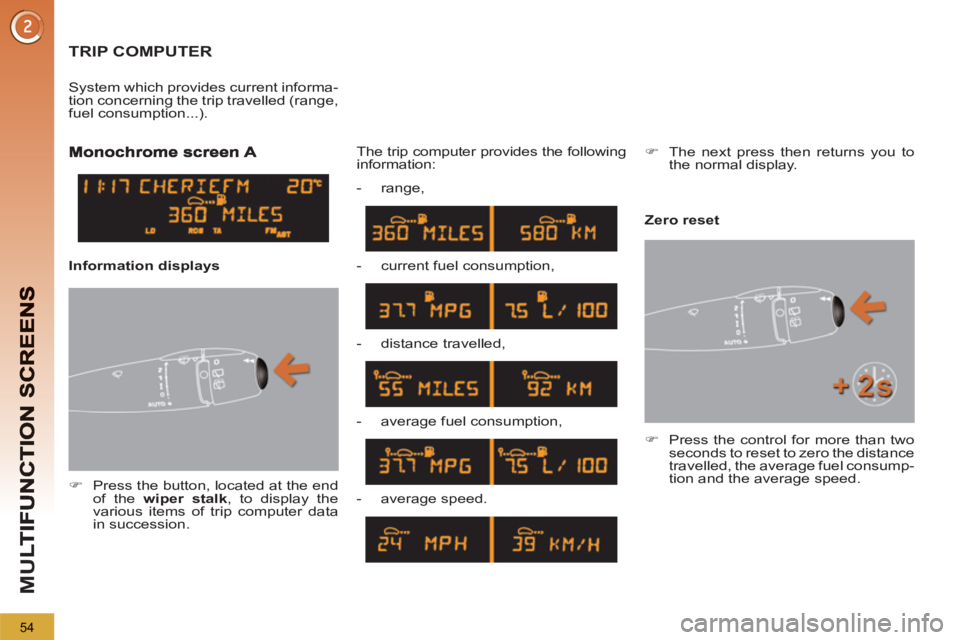

TRIP COMPUTER
)
Press the button, located at the end
of the wiper stalk
, to display the
various items of trip computer data
in succession. The trip computer provides the following
information: System which provides current informa-
tion concerning the trip travelled (range,
fuel consumption...).
)
Press the control for more than two
seconds to reset to zero the distance
travelled, the average fuel consump-
tion and the average speed.
Zero reset
Information displays
- range,
- current fuel consumption,
- distance travelled,
- average fuel consumption,
- average speed.
)
The next press then returns you to
the normal display.
Page 57 of 340
M
U
55

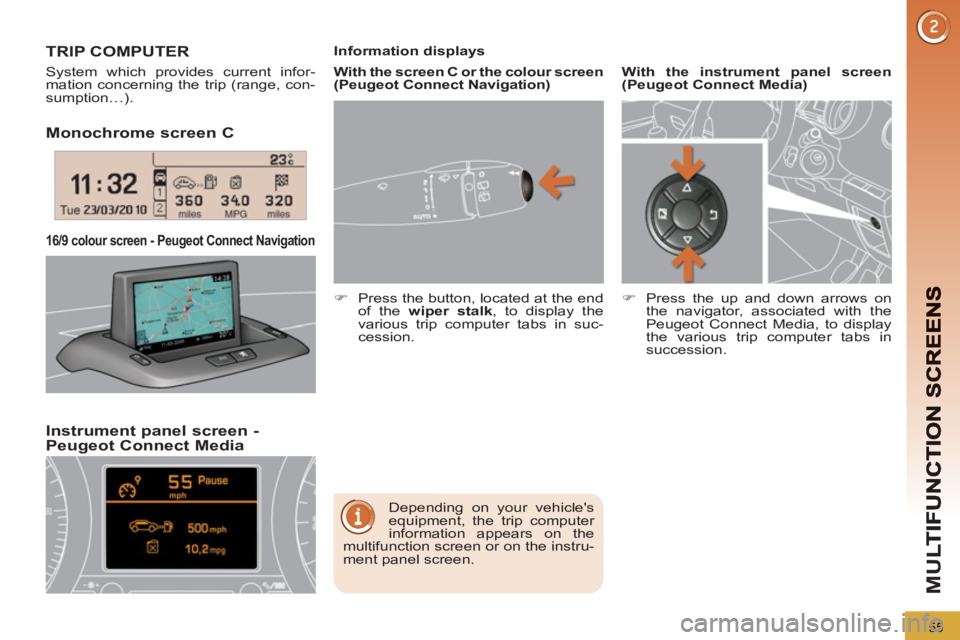

Monochrome screen C
Instrument
panel screen - Peugeot Connect Media
16/9 colour screen - Peugeot Connect Navigation
TRIP COMPUTER
System which provides current infor-
mation concerning the trip (range, con-
sumption…).
Depending on your vehicle's
equipment, the trip computer
information appears on the
multifunction screen or on the instru-
ment panel screen.
Information displays
)
Press the button, located at the end
of the wiper stalk
, to display the
various trip computer tabs in suc-
cession.
With the instrument panel screen
(Peugeot Connect Media)
)
Press the up and down arrows on
the navigator, associated with the
Peugeot Connect Media, to display
the various trip computer tabs in
succession.
With the screen C or the colour screen
(Peugeot Connect Navigation)
Page 58 of 340
56

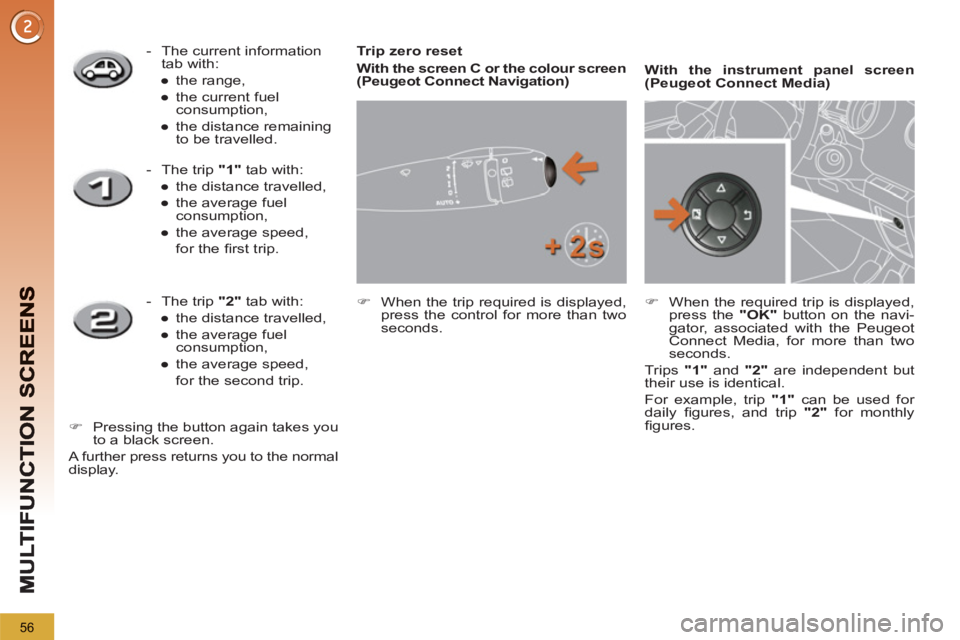

Trip zero reset
With the screen C or the colour screen
(Peugeot Connect Navigation)
)
When the trip required is displayed,
press the control for more than two
seconds.
With the instrument panel screen
(Peugeot Connect Media)
)
When the required trip is displayed,
press the "OK"
button on the navi-
gator, associated with the Peugeot
Connect Media, for more than two
seconds.
Trips "1"
and "2"
are independent but
their use is identical.
For example, trip "1"
can be used for
daily fi gures, and trip "2"
for monthly
fi gures.
- The current information
tab with:
●
the range,
●
the current fuel
consumption,
●
the distance remaining
to be travelled.
- The trip "1"
tab with:
●
the distance travelled,
●
the average fuel
consumption,
●
the average speed,
for the fi rst trip.
- The trip "2"
tab with:
●
the distance travelled,
●
the average fuel
consumption,
●
the average speed,
for the second trip.
)
Pressing the button again takes you
to a black screen.
A further press returns you to the normal
display.
Page 59 of 340
M
U
57

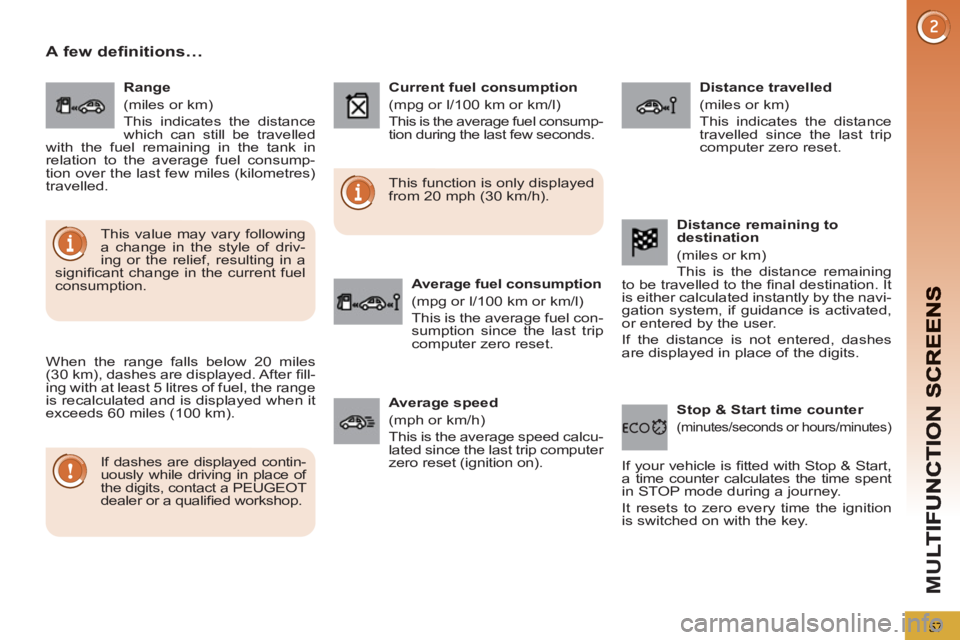

A few definitions…
When the range falls below 20 miles
(30 km), dashes are displayed. After fi ll-
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km).
If dashes are displayed contin-
uously while driving in place of
the digits, contact a PEUGEOT
dealer or a qualifi ed workshop. This function is only displayed
from 20 mph (30 km/h).
This value may vary following
a change in the style of driv-
ing or the relief, resulting in a
signifi cant change in the current fuel
consumption.
Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled.
Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel consump-
tion during the last few seconds.
Average fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption since the last trip
computer zero reset.
Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.
Average speed
(mph or km/h)
This is the average speed calcu-
lated since the last trip computer
zero reset (ignition on).
Stop & Start time counter
(minutes/seconds or hours/minutes)
If your vehicle is fi tted with Stop & Start,
a time counter calculates the time spent
in STOP mode during a journey.
It resets to zero every time the ignition
is switched on with the key.
Distance remaining to
destination
(miles or km)
This is the distance remaining
to be travelled to the fi nal destination. It
is either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
Page 60 of 340
CO
58
HEATING AND VENTILATION
System which creates and maintains
good conditions of comfort and visibility in
the vehicle's passenger compartment.
Controls
The incoming air follows various routes
depending on the controls selected by
the driver, the front passenger and rear
passengers, according to the level of
equipment.
The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits.
The air distribution control enables you
to select the air vents used in the pas-
senger compartment by the combined
use of the associated buttons. The air fl ow control enables you to in-
crease or reduce the speed of the ventila-
tion fan.
These controls are grouped together on
control panel A
on the centre console.
The air circulating in the passenger com-partment is fi ltered and originates either
from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode.

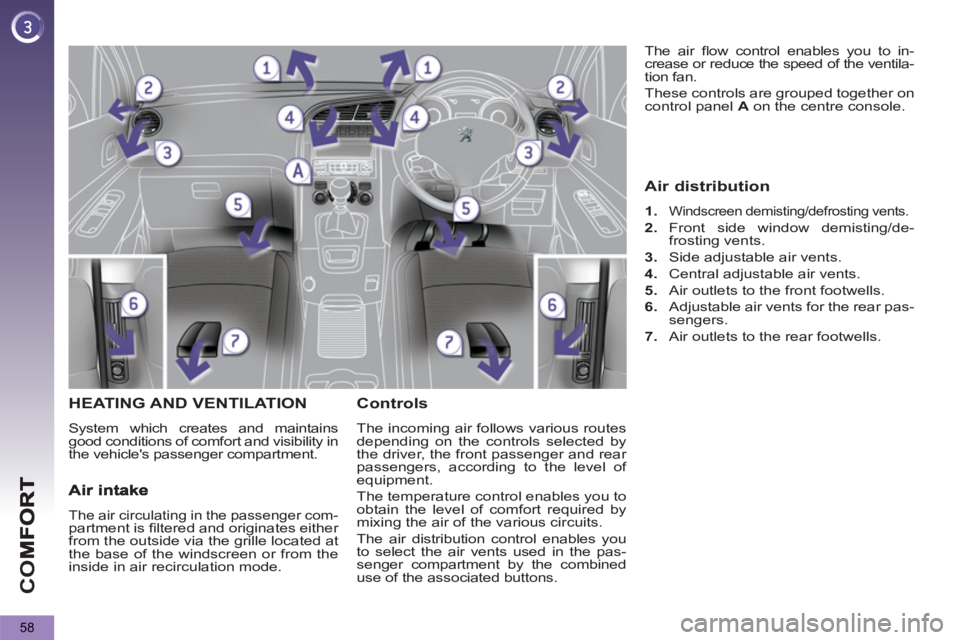

Air distribution
1.
Windscreen demisting/defrosting vents.
2.
Front side window demisting/de-
frosting vents.
3.
Side adjustable air vents.
4.
Central adjustable air vents.
5.
Air outlets to the front footwells.
6.
Adjustable air vents for the rear pas-
sengers.
7.
Air outlets to the rear footwells.
