CO
69

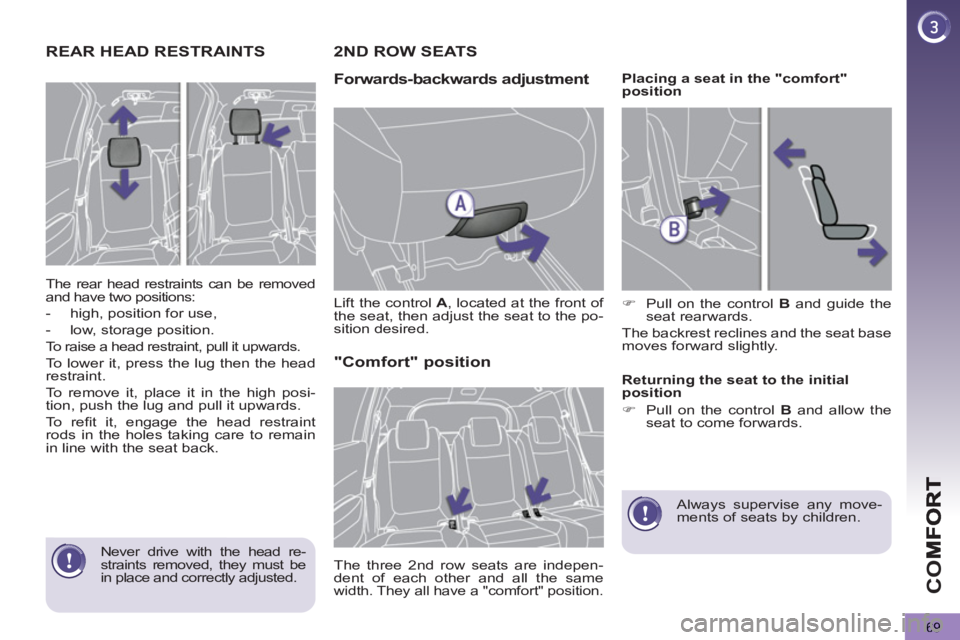

REAR HEAD RESTRAINTS
The rear head restraints can be removed
and have two positions:
- high, position for use,
- low, storage position.
To raise a head restraint, pull it upwards.
To lower it, press the lug then the head
restraint.
To remove it, place it in the high posi-
tion, push the lug and pull it upwards.
To r efi t it, engage the head restraint
rods in the holes taking care to remain
in line with the seat back.
2 NDROW SEATS
Forwards-backwards ad
justment
Lift the control A
, located at the front of
the seat, then adjust the seat to the po-
sition desired.
"Comfort" position
The three 2 nd row seats are indepen-
dent of each other and all the same
width. They all have a "comfort" position.
Placing a seat in the "comfort"
position
)
Pull on the control B
and guide the
seat rearwards.
The backrest reclines and the seat base
moves forward slightly.
Returning the seat to the initial
position
)
Pull on the control B
and allow the
seat to come forwards.
Always supervise any move-
ments of seats by children.
Never drive with the head re-
straints removed, they must be
in place and correctly adjusted.
Page 72 of 340
CO
70

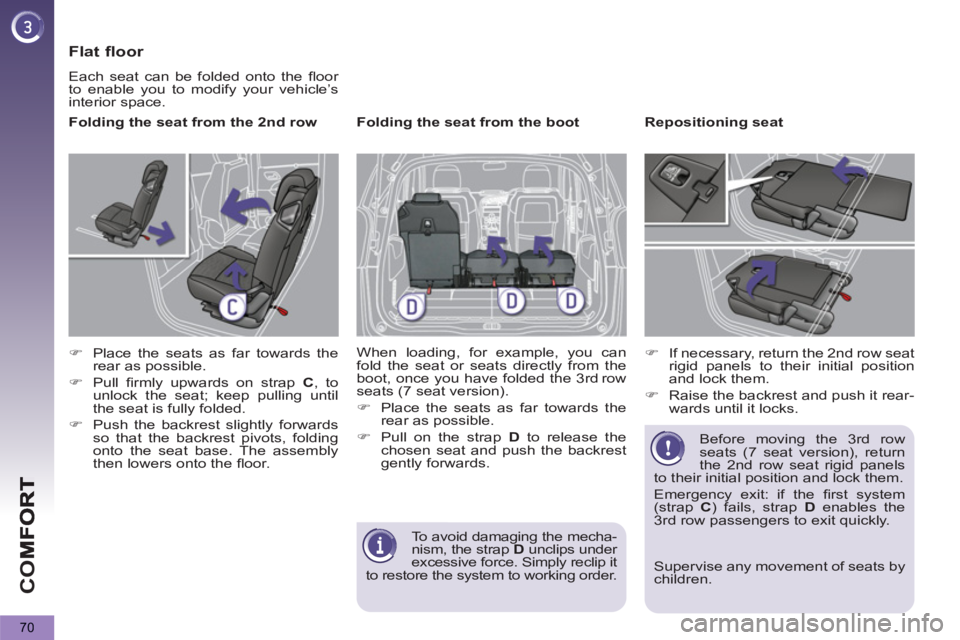

Flat floor
Each seat can be folded onto the fl oor
to enable you to modify your vehicle’s
interior space.
Folding the seat from the 2 nd row
)
Place the seats as far towards the
rear as possible.
)
Pull fi rmly upwards on strap C
, to
unlock the seat; keep pulling until
the seat is fully folded.
)
Push the backrest slightly forwards
so that the backrest pivots, folding
onto the seat base. The assembly
then lowers onto the fl oor.
Folding the seat from the boot
When loading, for example, you can
fold the seat or seats directly from the
boot, once you have folded the 3 rd
row
seats (7 seat version).
)
Place the seats as far towards the
rear as possible.
)
Pull on the strap D
to release the
chosen seat and push the backrest
gently forwards.
Repositioning seat
)
If necessary, return the 2 nd row seat
rigid panels to their initial position
and lock them.
)
Raise the backrest and push it rear-
wards until it locks.
Before moving the 3 rd row
seats (7 seat version), return
the 2
nd row seat rigid panels
to their initial position and lock them.
Emergency exit: if the fi rst system
(strap C
) fails, strap D
enables the
3 rd row passengers to exit quickly.
To avoid damaging the mecha-
nism, the strap D
unclips under
excessive force. Simply reclip it
to restore the system to working order.
Supervise any movement of seats by
children.
Page 73 of 340
CO
71

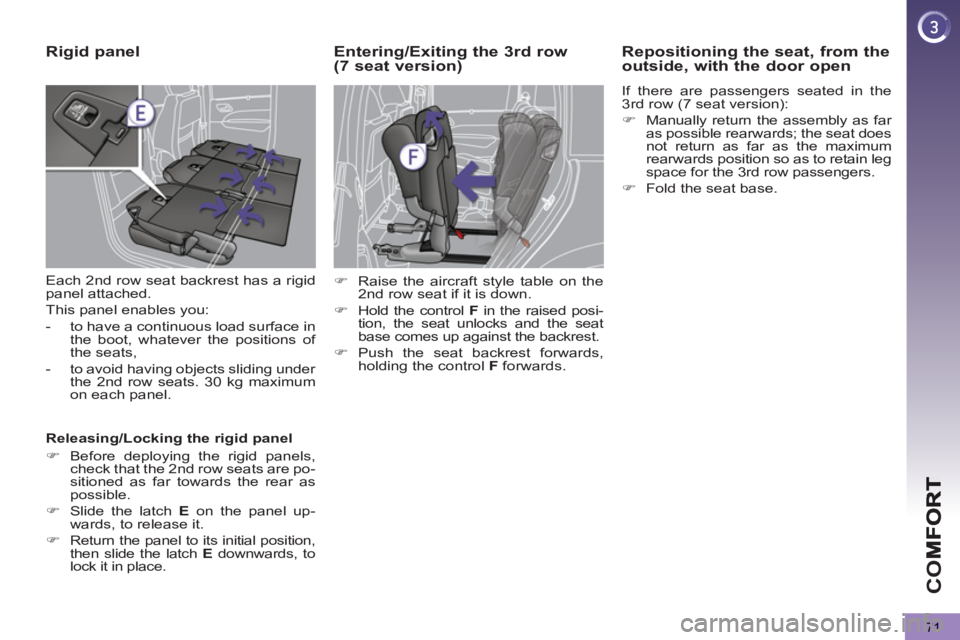

Rigid panel
Each 2 nd row seat backrest has a rigid
panel attached.
This panel enables you:
- to have a continuous load surface in
the boot, whatever the positions of
the seats,
- to avoid having objects sliding under
the 2 nd row seats. 30 kg maximum
on each panel.
Releasing/Locking the rigid panel
)
Before deploying the rigid panels,
check that the 2 nd row seats are po-
sitioned as far towards the rear as
possible.
)
Slide the latch E
on the panel up-
wards, to release it.
)
Return the panel to its initial position,
then slide the latch E
downwards, to
lock it in place.
Entering/Exiting the 3rd
row (7 seat version) Repositioning the seat, from the outside, with the door open
If there are passengers seated in the
3 rd row (7 seat version):
)
Manually return the assembly as far
as possible rearwards; the seat does
not return as far as the maximum
rearwards position so as to retain leg
space for the 3 rd row passengers.
)
Fold the seat base.
)
Raise the aircraft style table on the
2 nd row seat if it is down.
)
Hold the control F
in the raised posi-
tion, the seat unlocks and the seat
base comes up against the backrest.
)
Push the seat backrest forwards,
holding the control F
forwards.
Page 74 of 340
CO
72

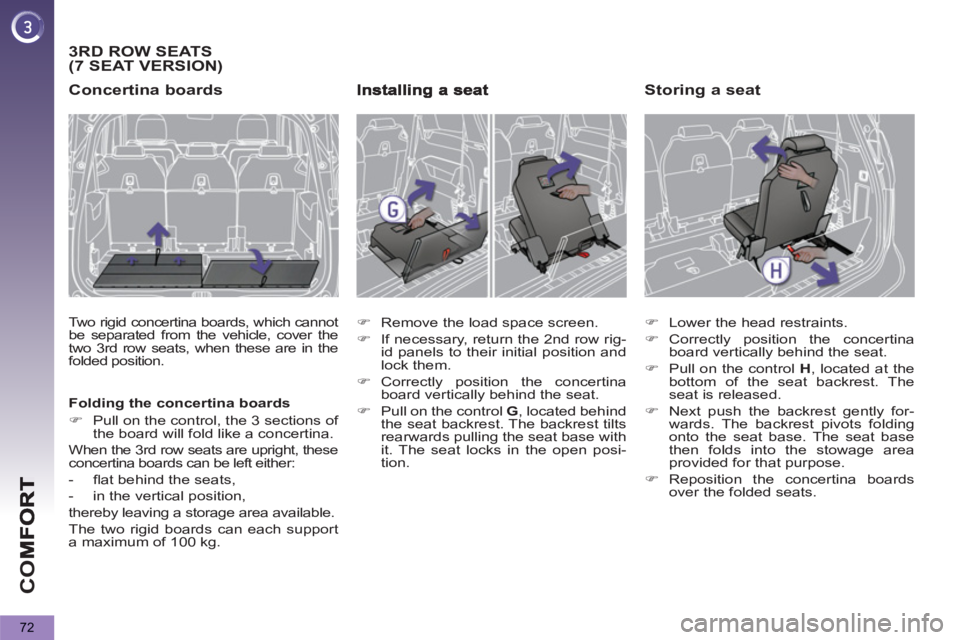

3 RDROW SEATS(7 SEAT VERSION)
Concertina boards
Two rigid concertina boards, which cannot
be separated from the vehicle, cover the
two 3 rd row seats, when these are in the
folded position.
Folding the concertina boards
)
Pull on the control, the 3 sections of
the board will fold like a concertina.
When the 3 rd row seats are upright, these
concertina boards can be left either:
- fl at behind the seats,
- in the vertical position,
thereby leaving a storage area available.
The two rigid boards can each support
a maximum of 100 kg.
)
Remove the load space screen.
)
If necessary, return the 2 nd row rig-
id panels to their initial position and
lock them.
)
Correctly position the concertina
board vertically behind the seat.
)
Pull on the control G
, located behind
the seat backrest. The backrest tilts
rearwards pulling the seat base with
it. The seat locks in the open posi-
tion.
Storing a seat
)
Lower the head restraints.
)
Correctly position the concertina
board vertically behind the seat.
)
Pull on the control H
, located at the
bottom of the seat backrest. The
seat is released.
)
Next push the backrest gently for-
wards. The backrest pivots folding
onto the seat base. The seat base
then folds into the stowage area
provided for that purpose.
)
Reposition the concertina boards
over the folded seats.
Page 75 of 340
CO
73
SEAT MODULARITY AND THE VARIOUS SEAT
CONFIGURATIONS
Designed to be modular, your vehicle
offers numerous seat installation and
loading confi gurations.
Operations to change the existing
confi guration must only be carried out
when stationary (see paragraphs "Rear
seats".

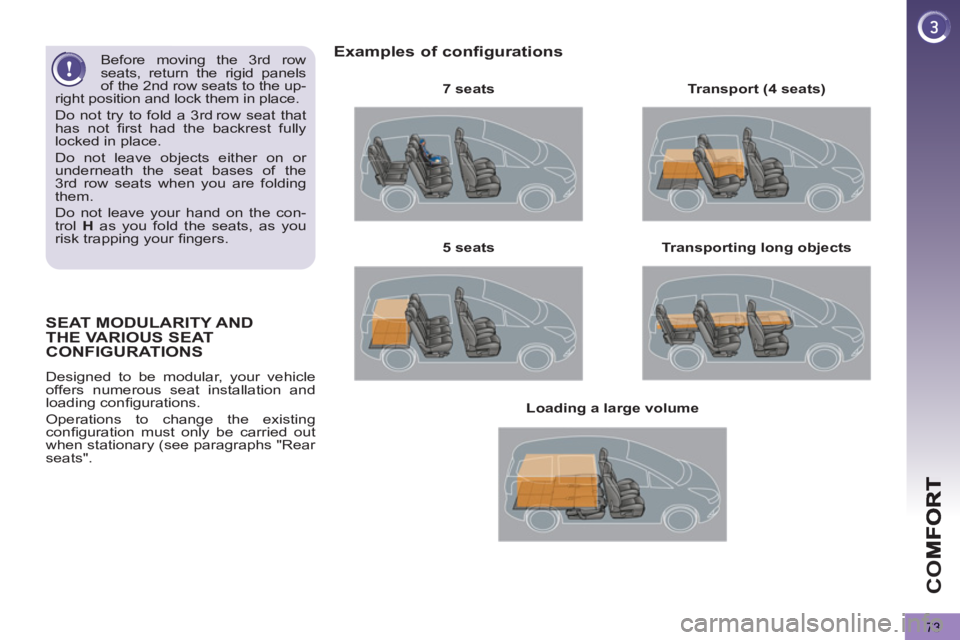

Examples of configurations
7 seats
Transporting long objects
5 seats
Transport (4 seats)
Loading a large volume
Before moving the 3 rd row
seats, return the rigid panels
of the 2 nd row seats to the up-
right position and lock them in place.
Do not try to fold a 3 rd
row seat that
has not fi rst had the backrest fully
locked in place.
Do not leave objects either on or
underneath the seat bases of the
3 rd row seats when you are folding
them.
Do not leave your hand on the con-
trol H
as you fold the seats, as you
risk trapping your fi ngers.
Page 76 of 340
CO
74
The objects observed are, in
reality, closer than they ap-
pear.
Take this into account in order to cor-
rectly judge the distance of vehicles
approaching from behind.

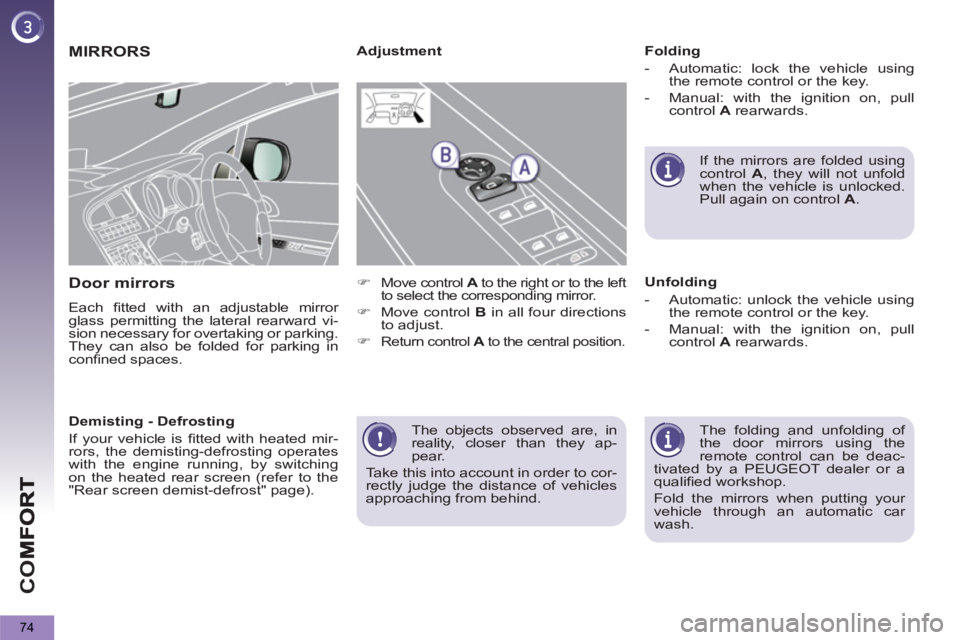

MIRRORS
Door mirrors
Each fi tted with an adjustable mirror
glass permitting the lateral rearward vi-
sion necessary for overtaking or parking.
They can also be folded for parking in
confi ned spaces.
Folding
- Automatic: lock the vehicle using
the remote control or the key.
- Manual: with the ignition on, pull
control A
rearwards.
The folding and unfolding of
the door mirrors using the
remote control can be deac-
tivated by a PEUGEOT dealer or a
qualifi ed workshop.
Fold the mirrors when putting your
vehicle through an automatic car
wash.
Adjustment
Unfolding
- Automatic: unlock the vehicle using
the remote control or the key.
- Manual: with the ignition on, pull
control A
rearwards.
If the mirrors are folded using
control A
, they will not unfold
when the vehicle is unlocked.
Pull again on control A
.
)
Move control A
to the right or to the left
to select the corresponding mirror.
)
Move control B
in all four directions
to adjust.
)
Return control A
to the central position.
Demisting - Defrosting
If your vehicle is fi tted with heated mir-
rors, the demisting-defrosting operates
with the engine running, by switching
on the heated rear screen (refer to the
"Rear screen demist-defrost" page).
Page 77 of 340
CO
75
Adjustment
)
Adjust the mirror so that the glass is di-
rected correctly in the "day" position.
As a safety measure, the mirrors
should be adjusted to reduce the
"blind spot".
Manual day/night model
Day/night position
)
Pull the lever to change to the "night"
anti-dazzle position.
)
Push the lever to change to the normal
"day" position.

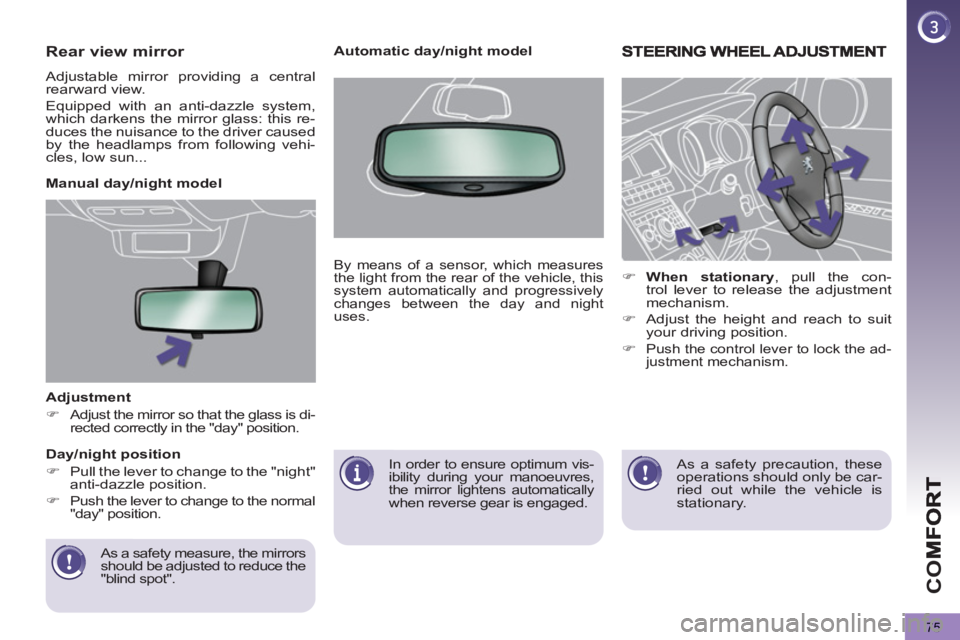

Rear view mirror
Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
which darkens the mirror glass: this re-
duces the nuisance to the driver caused
by the headlamps from following vehi-
cles, low sun...
In order to ensure optimum vis-
ibility during your manoeuvres,
the mirror lightens automatically when reverse gear is engaged.
Automatic day/night model
By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes between the day and night
uses.
)
When stationary
, pull the con-
trol lever to release the adjustment
mechanism.
)
Adjust the height and reach to suit
your driving position.
)
Push the control lever to lock the ad-
justment mechanism.
As a safety precaution, these
operations should only be car-
ried out while the vehicle is
stationary.
Page 78 of 340
76
Unfolding the key
)
First press this button to unfold the
key.
Unlocking the vehicle
)
Press the open padlock to
unlock the vehicle.
Complete unlocking using the
remote control

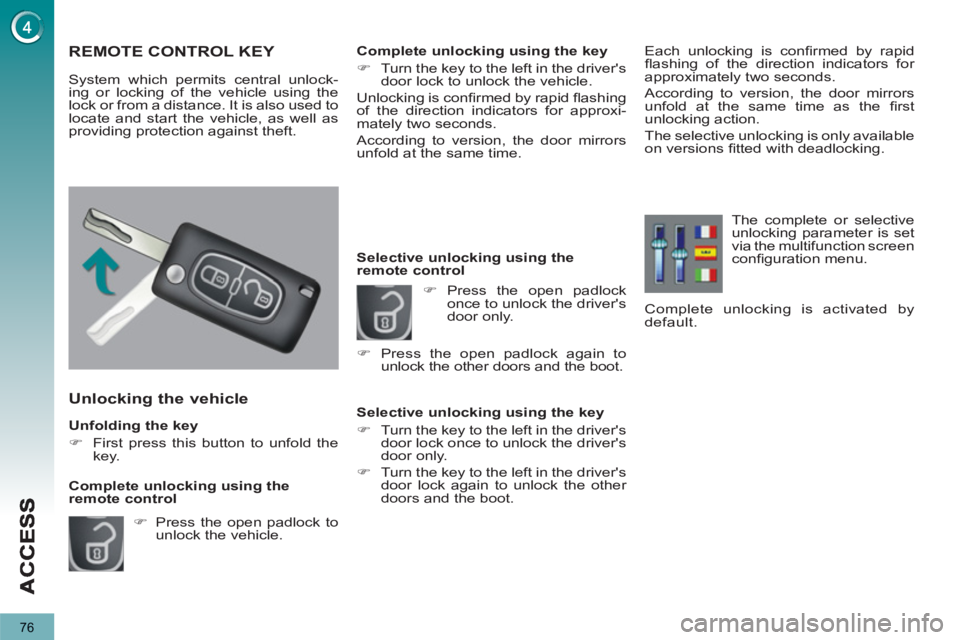

REMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It is also used to
locate and start the vehicle, as well as
providing protection against theft.
Complete unlocking using the key
)
Turn the key to the left in the driver's
door lock to unlock the vehicle.
Unlocking is confi rmed by rapid fl ashing
of the direction indicators for approxi-
mately two seconds.
According to version, the door mirrors
unfold at the same time.
Selective unlocking using the
remote control
Selective unlocking using the key
)
Turn the key to the left in the driver's
door lock once to unlock the driver's
door only.
)
Turn the key to the left in the driver's
door lock again to unlock the other
doors and the boot.
)
Press the open padlock
once to unlock the driver's
door only.
)
Press the open padlock again to
unlock the other doors and the boot.
Each unlocking is confi rmed by rapid
fl ashing of the direction indicators for
approximately two seconds.
According to version, the door mirrors
unfold at the same time as the fi rst
unlocking action.
The selective unlocking is only available
on versions fi tted with deadlocking.
The complete or selective
unlocking parameter is set
via the multifunction screen
confi guration menu.
Complete unlocking is activated by
default.
Page 79 of 340

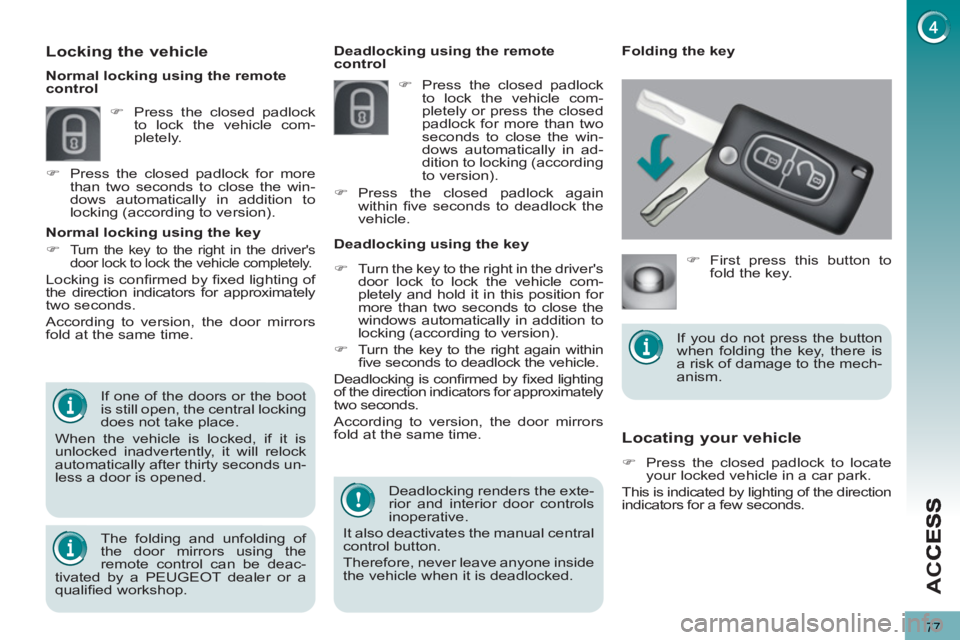

AC
77
Locating your vehicle
)
Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the direction
indicators for a few seconds. Deadlocking renders the exte-
rior and interior door controls
inoperative.
It also deactivates the manual central
control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
Deadlocking using the remote
control
Deadlocking using the key
Folding the key
)
Press the closed padlock
to lock the vehicle com-
pletely or press the closed
padlock for more than two
seconds to close the win-
dows automatically in ad-
dition to locking (according
to version).
)
Turn the key to the right in the driver's
door lock to lock the vehicle com-
pletely and hold it in this position for
more than two seconds to close the
windows automatically in addition to
locking (according to version).
)
Turn the key to the right again within
fi ve seconds to deadlock the vehicle.
Deadlocking is confi rmed by fi xed lighting
of the direction indicators for approximately two seconds.
According to version, the door mirrors
fold at the same time. If one of the doors or the boot
is still open, the central locking
does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will relock
automatically after thirty seconds un-
less a door is opened.
Normal locking using the key
)
Turn the key to the right in the driver's
door lock to lock the vehicle completely.
Locking is confi rmed by fi xed lighting of
the direction indicators for approximately
two seconds.
According to version, the door mirrors
fold at the same time.
The folding and unfolding of
the door mirrors using the
remote control can be deac-
tivated by a PEUGEOT dealer or a
qualifi ed workshop.
Locking the vehicle
)
Press the closed padlock
to lock the vehicle com-
pletely.
)
Press the closed padlock for more
than two seconds to close the win-
dows automatically in addition to
locking (according to version).
Normal locking using the remote
control
)
First press this button to
fold the key.
)
Press the closed padlock again
within fi ve seconds to deadlock the
vehicle.
If you do not press the button
when folding the key, there is
a risk of damage to the mech-
anism.
Page 80 of 340

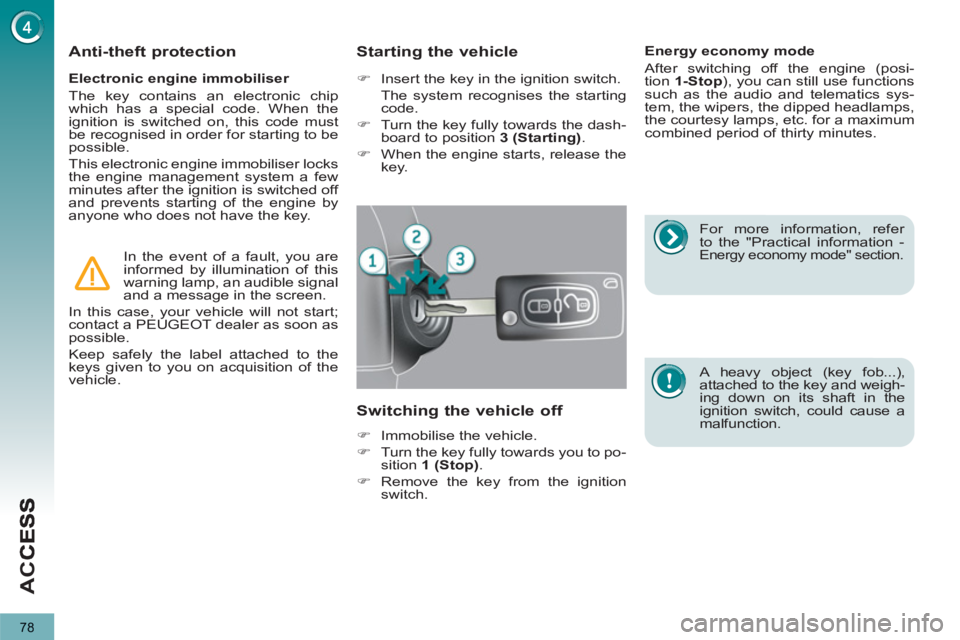

AC
C
78
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal
and a message in the screen.
In this case, your vehicle will not start;
contact a PEUGEOT dealer as soon as
possible.
Keep safely the label attached to the
keys given to you on acquisition of the
vehicle.
For more information, refer
to the "Practical information - Energy economy mode" section.
Starting the vehicle
)
Insert the key in the ignition switch.
The system recognises the starting
code.
)
Turn the key fully towards the dash-
board to position 3 (Starting)
.
)
When the engine starts, release the
key.
Switching the vehicle off
)
Immobilise the vehicle.
)
Turn the key fully towards you to po-
sition 1 (Stop)
.
)
Remove the key from the ignition
switch.
Energy economy mode
After switching off the engine (posi-
tion 1-Stop
), you can still use functions
such as the audio and telematics sys-
tem, the wipers, the dipped headlamps,
the courtesy lamps, etc. for a maximum
combined period of thirty minutes.
A heavy object (key fob...),
attached to the key and weigh-
ing down on its shaft in the
ignition switch, could cause a
malfunction.
