FITTINGS
109
1.
Load space cover
2.
Hooks
3.
12 V accessory socket (120 W)
4.
To r c h
5.
Concertina boards
6.
Stowing rings on the fl oor
7.
Cup holder
8.
Armrests
9.
Storage compartments or audio
amplifi er
10.
3 rd row seat belt buckles

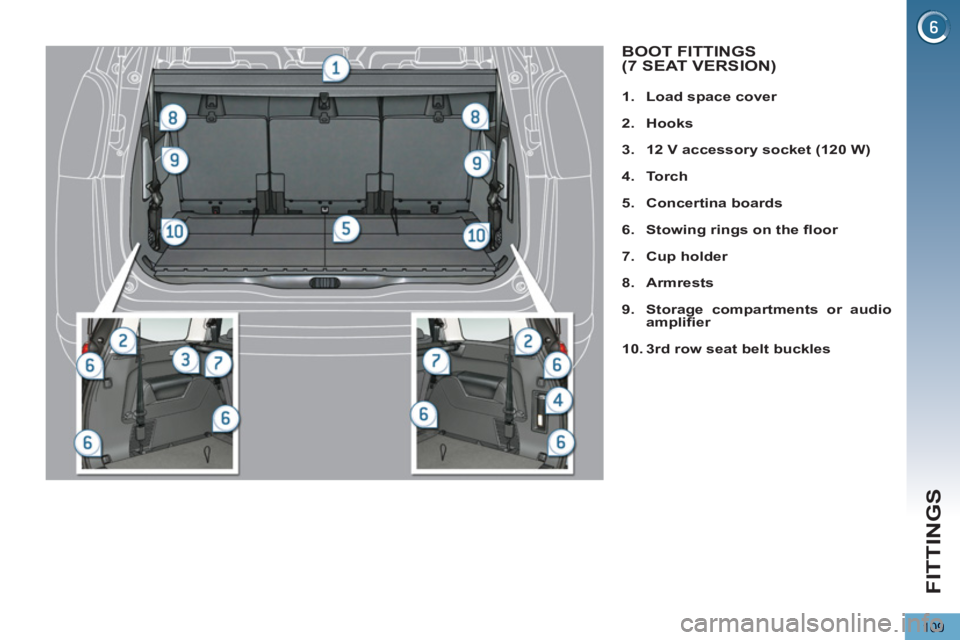

BOOT FITTINGS (7 SEAT VERSION)
Page 112 of 364
FITTINGS
110
Roller load space cover
To install the load space cover:
)
position one of the ends of the roller
in its support,
)
insert the second end in its support,
)
pivot the ends of the roller down-
wards to secure it,
)
reel out the load space cover to the
boot pillars,
)
insert the load space screen guides
in the rails on the boot pillars.
To remove the load space cover:
)
remove the load space cover guides
from the rails on the boot pillars,
)
reel in the load space cover in its
roller,
To store the load space cover, roller
uppermost and fl ap facing towards the
inside of the vehicle:
)
place the right-hand end in its housing,
)
slide the left-hand end into the guide
then into its housing,
)
pivot the ends of the roller upwards
to release it,
)
remove the roller from its support.
The roller has two rings for
fi xing the luggage retaining
net depending on its location. If you use the 3 rd row seats
(7 seat version), it is essential
to store the roller in its housing.
)
secure the assembly by pivoting the
ends downwards.
Page 113 of 364
FITTINGS
111

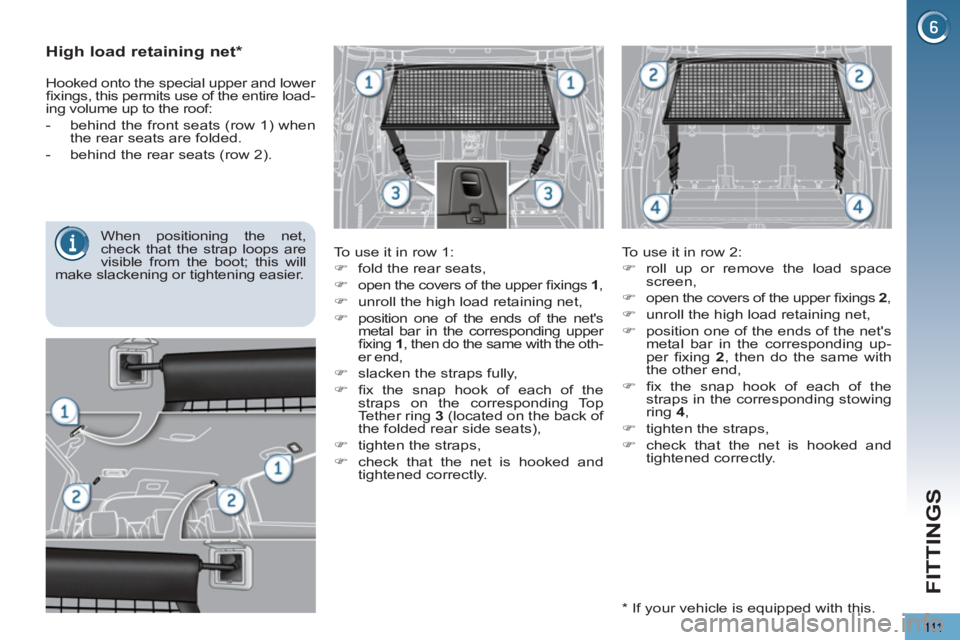

High load retaining net *
To use it in row 1:
)
fold the rear seats,
)
open the covers of the upper fi xings 1
,
)
unroll the high load retaining net,
)
position one of the ends of the net's
metal bar in the corresponding upper
fi xing 1
, then do the same with the oth-
er end,
)
slacken the straps fully,
)
fi x the snap hook of each of the
straps on the corresponding Top
Tether ring 3
(located on the back of
the folded rear side seats),
)
tighten the straps,
)
check that the net is hooked and
tightened correctly.
To use it in row 2:
)
roll up or remove the load space
screen,
)
open the covers of the upper fi xings 2
,
)
unroll the high load retaining net,
)
position one of the ends of the net's
metal bar in the corresponding up-
per fi xing 2
, then do the same with
the other end,
)
fi x the snap hook of each of the
straps in the corresponding stowing
ring 4
,
)
tighten the straps,
)
check that the net is hooked and
tightened correctly.
When positioning the net,
check that the strap loops are
visible from the boot; this will
make slackening or tightening easier.
Hooked onto the special upper and lower
fi xings, this permits use of the entire load-
ing volume up to the roof:
- behind the front seats (row 1) when
the rear seats are folded.
- behind the rear seats (row 2).
*
If your vehicle is equipped with this.
Page 114 of 364
FITTINGS

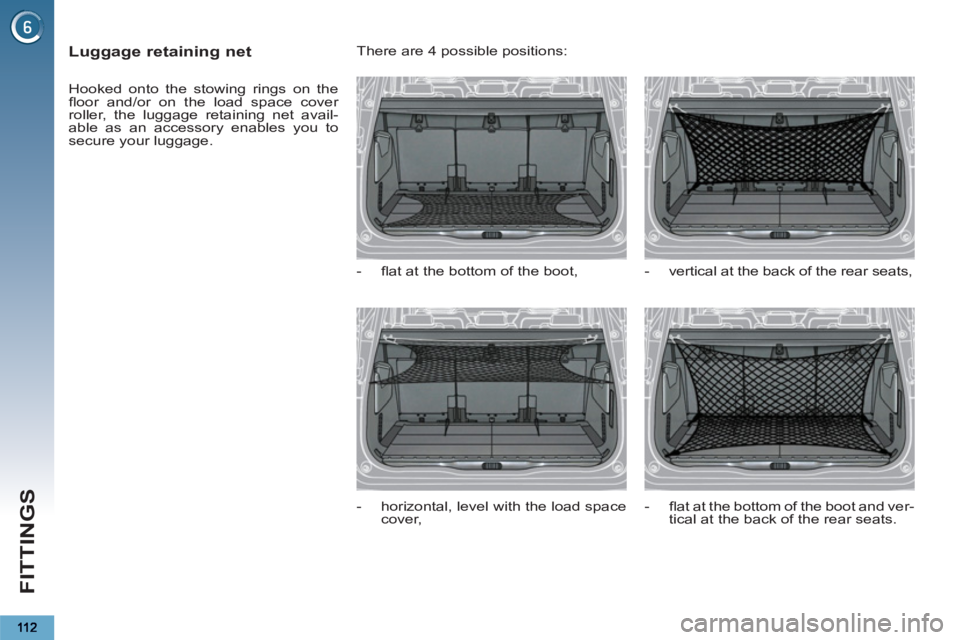

Luggage retaining net
Hooked onto the stowing rings on the
fl oor and/or on the load space cover
roller, the luggage retaining net avail-
able as an accessory enables you to
secure your luggage. There are 4 possible positions:
- fl at at the bottom of the boot,
- horizontal, level with the load space
cover,
- vertical at the back of the rear seats,
- fl at at the bottom of the boot and ver-
tical at the back of the rear seats.
Page 115 of 364
FITTINGS
113
The hooks permit the securing of shop-
ping bags.

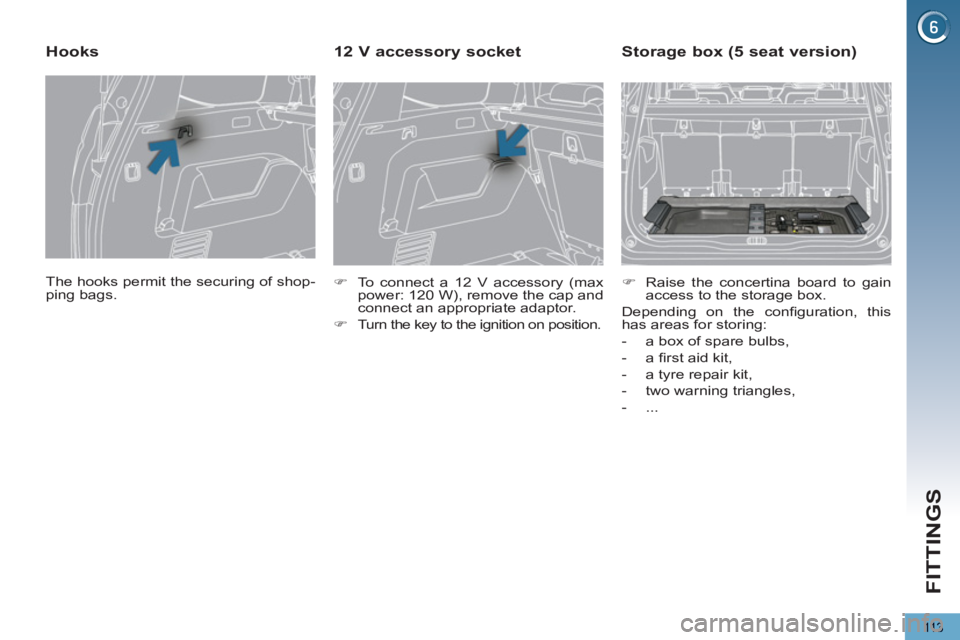

Hooks
)
To connect a 12 V accessory (max
power: 120 W), remove the cap and
connect an appropriate adaptor.
)
Turn the key to the ignition on position.
12 V accessory socket
)
Raise the concertina board to gain
access to the storage box.
Depending on the confi guration, this
has areas for storing:
- a box of spare bulbs,
- a fi rst aid kit,
- a tyre repair kit,
- two warning triangles,
- ...
Storage box (5 seat version)
Page 116 of 364
FITTINGS
11 4

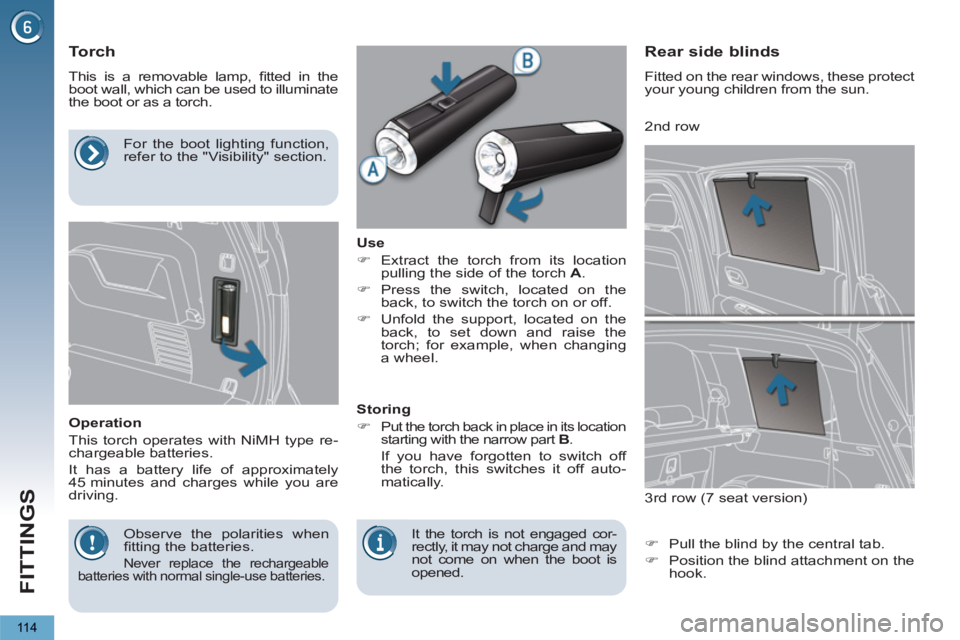

Torch
This is a removable lamp, fi tted in the
boot wall, which can be used to illuminate
the boot or as a torch.
Operation
This torch operates with NiMH type re-
chargeable batteries.
It has a battery life of approximately
45 minutes and charges while you are
driving.
Use
)
Extract the torch from its location
pulling the side of the torch A
.
)
Press the switch, located on the
back, to switch the torch on or off.
)
Unfold the support, located on the
back, to set down and raise the
torch; for example, when changing
a wheel.
Storing
)
Put the torch back in place in its location
starting with the narrow part B
.
If you have forgotten to switch off
the torch, this switches it off auto-
matically.
Rear side blinds
Fitted on the rear windows, these protect
your young children from the sun.
)
Pull the blind by the central tab.
)
Position the blind attachment on the
hook.
Observe the polarities when
fi tting the batteries.
Never replace the rechargeable
batteries with normal single-use batteries.
It the torch is not engaged cor-
rectly, it may not charge and may
not come on when the boot is
opened.
For the boot lighting function,
refer to the "Visibility" section.
3 rd row (7 seat version)
2 nd row
Page 117 of 364
CHILD SAFETY
115
PEUGEOT recommends
that
children should travel in the outer
rear seats
of your vehicle:
-
"rearwards-facing"
up to the age
of 2,
- "forwards-facing"
over the age
of 2.
TO CHILD SEATS
"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat
,
adjust the vehicle's seat to the fully back
and highest position with the seat back
upright and leave the passenger's airbag
activated.
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the front passenger seat
,
it is essential that the passenger airbag
is deactivated. Otherwise, the child
would risk being seriously injured or
killed if the airbag were to infl ate
.

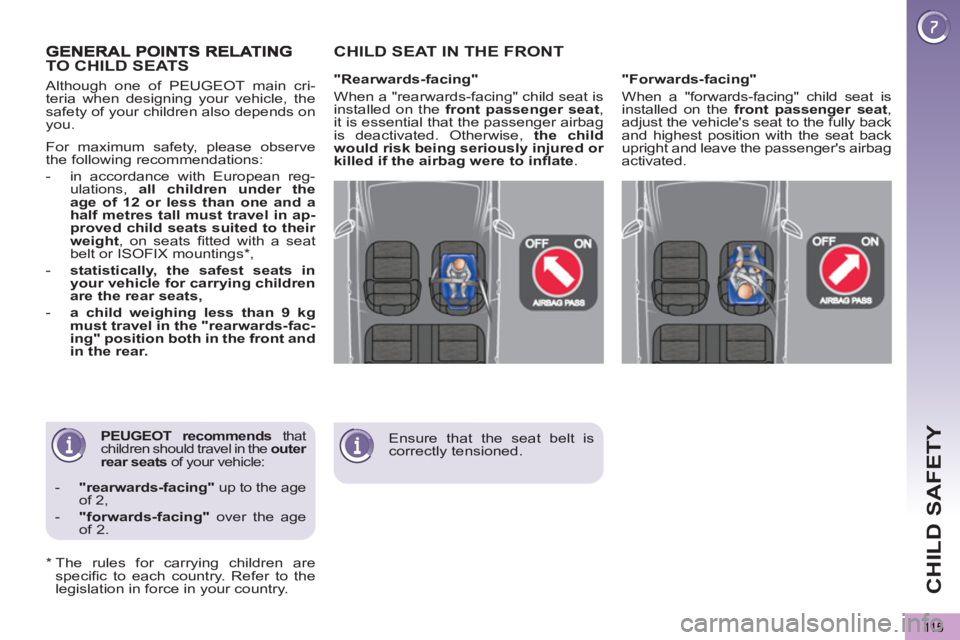

CHILD SEAT IN THE FRONT
Although one of PEUGEOT main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please observe
the following recommendations:
- in accordance with European reg-
ulations, all children under the
age of 12 or less than one and a
half metres tall must travel in ap-
proved child seats suited to their
weight
, on seats fi tted with a seat
belt or ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for carrying children
are the rear seats,
- a child weighing less than 9 kg
must travel in the "rearwards-fac-
ing" position both in the front and
in the rear.
*
The rules for carrying children are
specifi c to each country. Refer to the
legislation in force in your country.
Ensure that the seat belt is
correctly tensioned.
Page 118 of 364
CHILD SAFETY
116

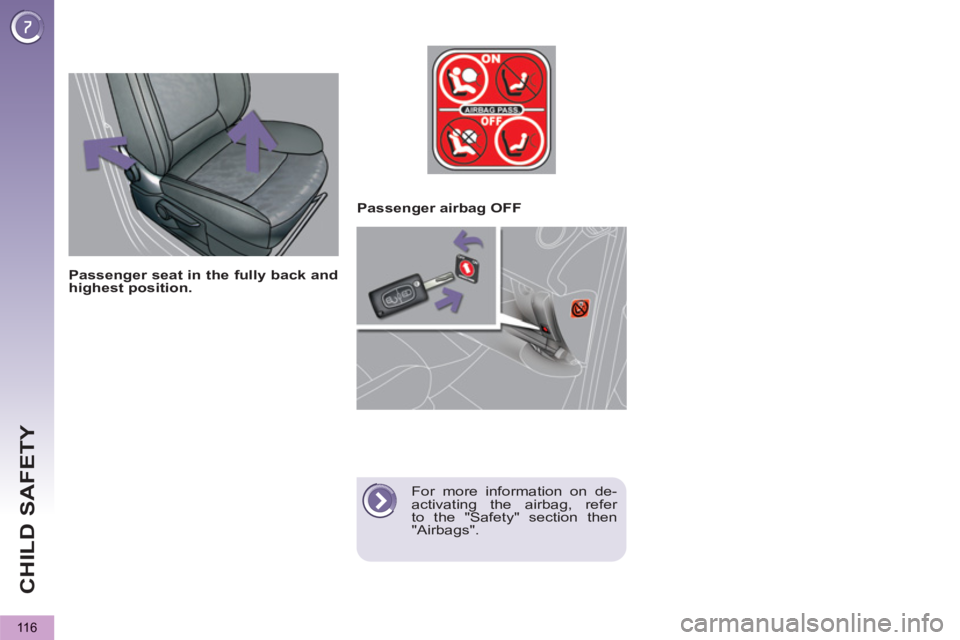

Passenger airbag OFF
For more information on de-
activating the airbag, refer
to the "Safety" section then
"Airbags".
Passenger seat in the fully back and
highest position.
