VIS
99

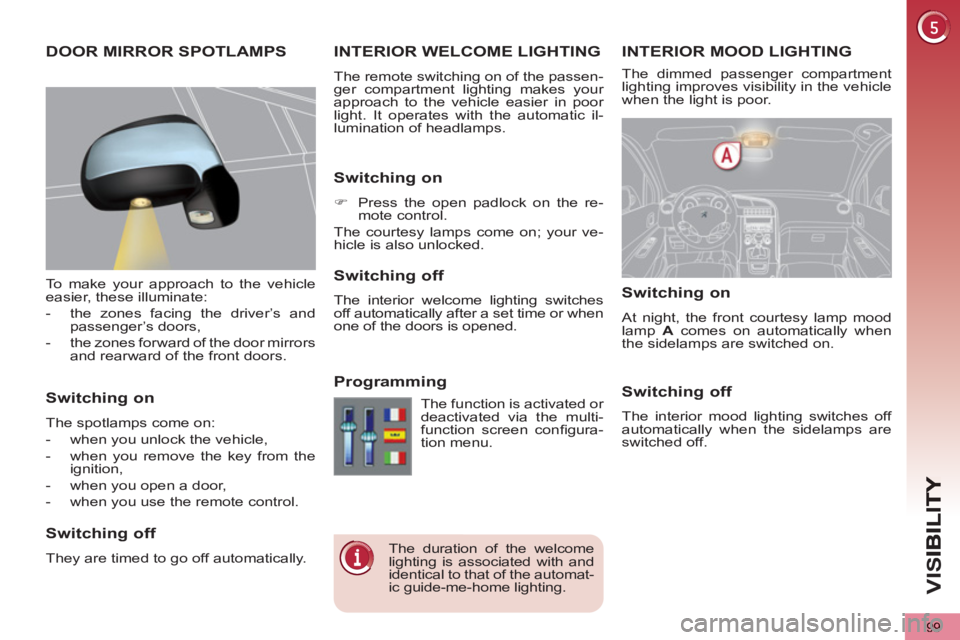

INTERIOR MOOD LIGHTING INTERIOR WELCOME LIGHTING

The remote switching on of the passen-
ger compartment lighting makes your
approach to the vehicle easier in poor
light. It operates with the automatic il-
lumination of headlamps.

Switching on



)
Press the open padlock on the re-
mote control.
The courtesy lamps come on; your ve-
hicle is also unlocked.


Switching off

The interior welcome lighting switches
off automatically after a set time or when
one of the doors is opened.


Programming
Switching on

At night, the front courtesy lamp mood
lamp A
comes on automatically when
the sidelamps are switched on.
Switching off

The interior mood lighting switches off
automatically when the sidelamps are
switched off.

The duration of the welcome
lighting is associated with and
identical to that of the automat-
ic guide-me-home lighting.
The function is activated or
deactivated via the multi-
function screen confi gura-
tion menu.
DOOR MIRROR SPOTLAMPS
To make your approach to the vehicle
easier, these illuminate:


- the zones facing the driver’s and
passenger’s doors,

- the zones forward of the door mirrors
and rearward of the front doors.
Switching on

The spotlamps come on:


- when you unlock the vehicle,

- when you remove the key from the
ignition,

- when you open a door,

- when you use the remote control.

Switching off

They are timed to go off automatically.
The dimmed passenger compartment
lighting improves visibility in the vehicle
when the light is poor.

VIS
100

Different lighting times are
available:


- when the ignition is off, approxi-
mately ten minutes,

- in energy economy mode, ap-
proximately thirty seconds,

- when the engine is running, no limit.


This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.

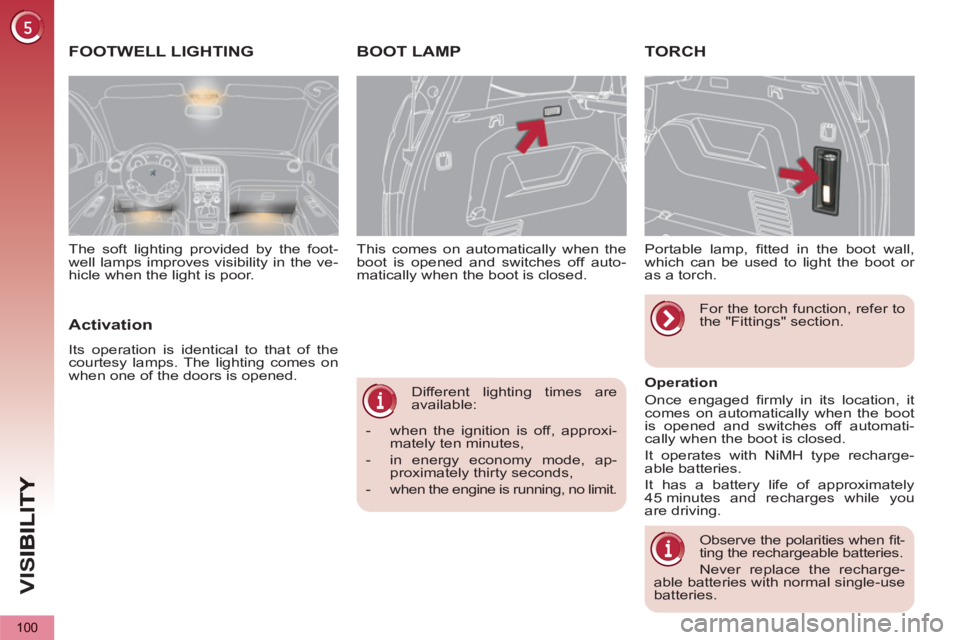

BOOT LAMP TORCH

Portable lamp, fi tted in the boot wall,
which can be used to light the boot or
as a torch.

Operation
Once engaged fi rmly in its location, it
comes on automatically when the boot
is opened and switches off automati-
cally when the boot is closed.
It operates with NiMH type recharge-
able batteries.
It has a battery life of approximately
45 minutes and recharges while you
are driving.

Observe the polarities when fi t-
ting the rechargeable batteries.
Never replace the recharge-
able batteries with normal single-use
batteries.

For the torch function, refer to
the "Fittings" section.
FOOTWELL LIGHTING

Activation

Its operation is identical to that of the
courtesy lamps. The lighting comes on
when one of the doors is opened. The soft lighting provided by the foot-
well lamps improves visibility in the ve-
hicle when the light is poor.

FITTINGS
101

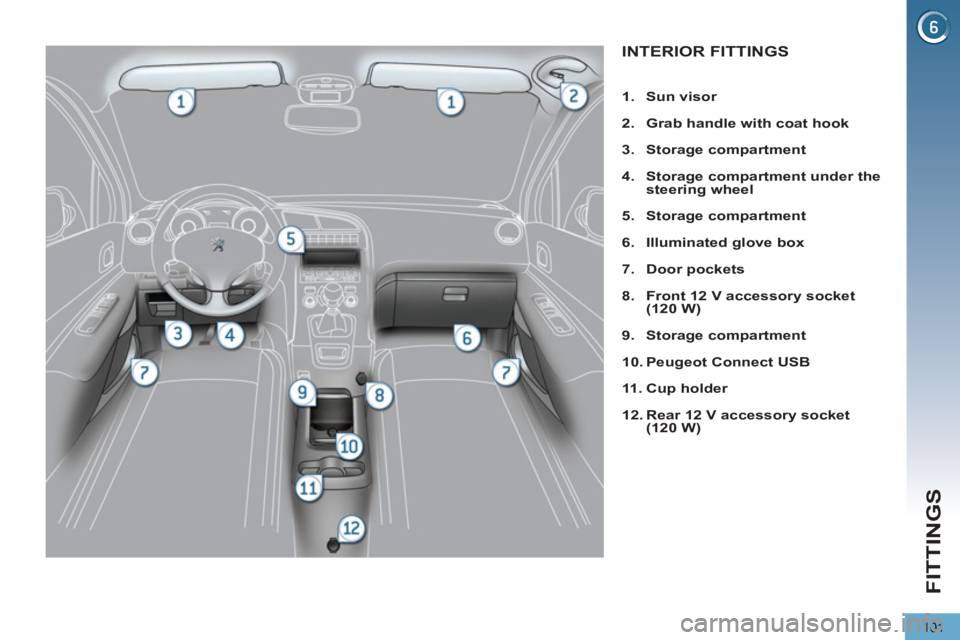

INTERIOR FITTINGS


1.
Sun visor


2.
Grab handle with coat hook


3.
Storage compartment


4.
Storage compartment under the
steering wheel


5.
Storage compartment


6.
Illuminated glove box


7.
Door pockets


8.
Front 12 V accessory socket
(120 W)


9.
Storage compartment


10.
Peugeot Connect USB


11 .
Cup holder


12.
Rear 12 V accessory socket
(120 W)

FITTINGS
102

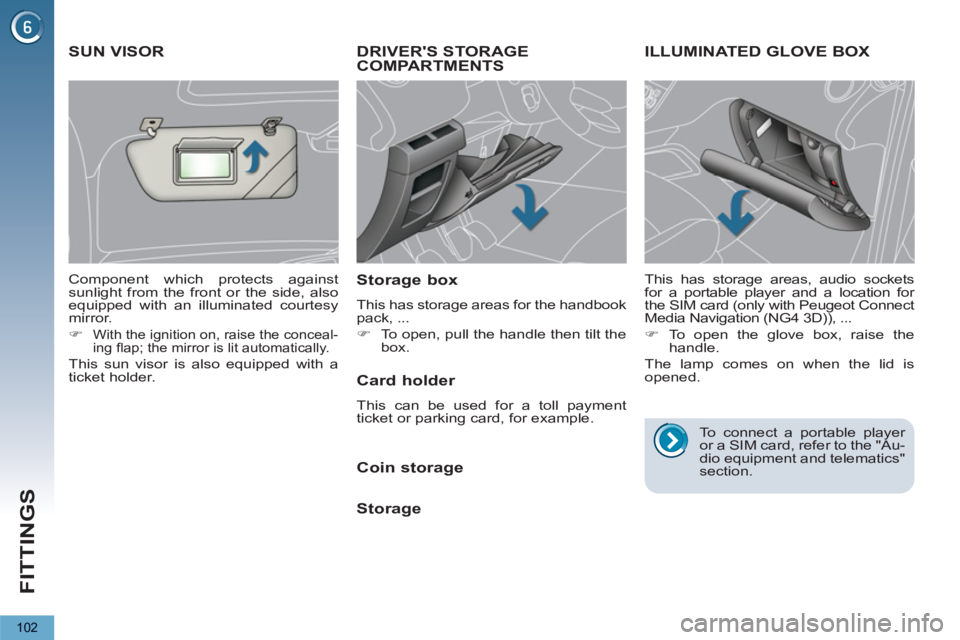

DRIVER'S STORAGE
COMPARTMENTS

Storage box

This has storage areas for the handbook
pack, ...


)
To open, pull the handle then tilt the
box.

ILLUMINATED GLOVE BOX


This has storage areas, audio sockets
for a portable player and a location for
the SIM card (only with Peugeot Connect
Media Navigation (NG4 3D)), ...


)
To open the glove box, raise the
handle.
The lamp comes on when the lid is
opened.
SUN VISOR

Component which protects against
sunlight from the front or the side, also
equipped with an illuminated courtesy
mirror.


)

With the ignition on, raise the conceal-
ing fl ap; the mirror is lit automatically.

This sun visor is also equipped with a
ticket holder.

Card holder

This can be used for a toll payment
ticket or parking card, for example.


Coin storage

Storage


To connect a portable player
or a SIM card, refer to the "Au-
dio equipment and telematics"
section.

FITTINGS
103

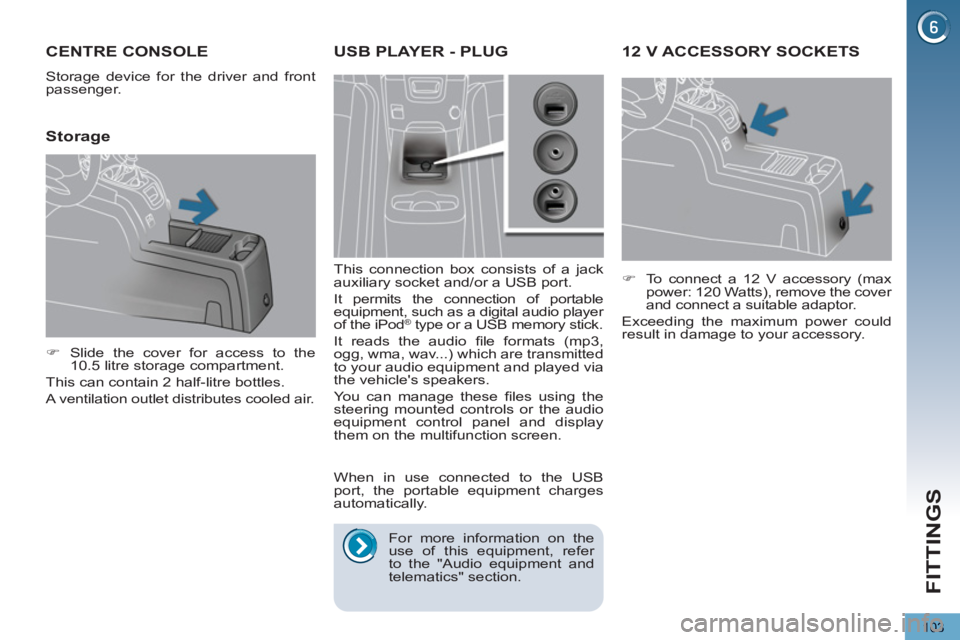

12 V ACCESSORY SOCKETS


)
To connect a 12 V accessory (max
power: 120 Watts), remove the cover
and connect a suitable adaptor.
Exceeding the maximum power could
result in damage to your accessory.
CENTRE CONSOLE
Storage device for the driver and front
passenger.

Storage



)
Slide the cover for access to the
10.5 litre storage compartment.
This can contain 2 half-litre bottles.
A ventilation outlet distributes cooled air.
USB PLAYER - PLUG


This connection box consists of a jack
auxiliary socket and/or a USB port.
It permits the connection of portable
equipment, such as a digital audio player
of the iPod
® type or a USB memory stick.
It reads the audio fi le formats (mp3,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
You can manage these fi les using the
steering mounted controls or the audio
equipment control panel and display
them on the multifunction screen.

When in use connected to the USB
port, the portable equipment charges
automatically.

For more information on the
use of this equipment, refer
to the "Audio equipment and
telematics" section.

FITTINGS
104

To avoid any risk of jamming
of the pedals:

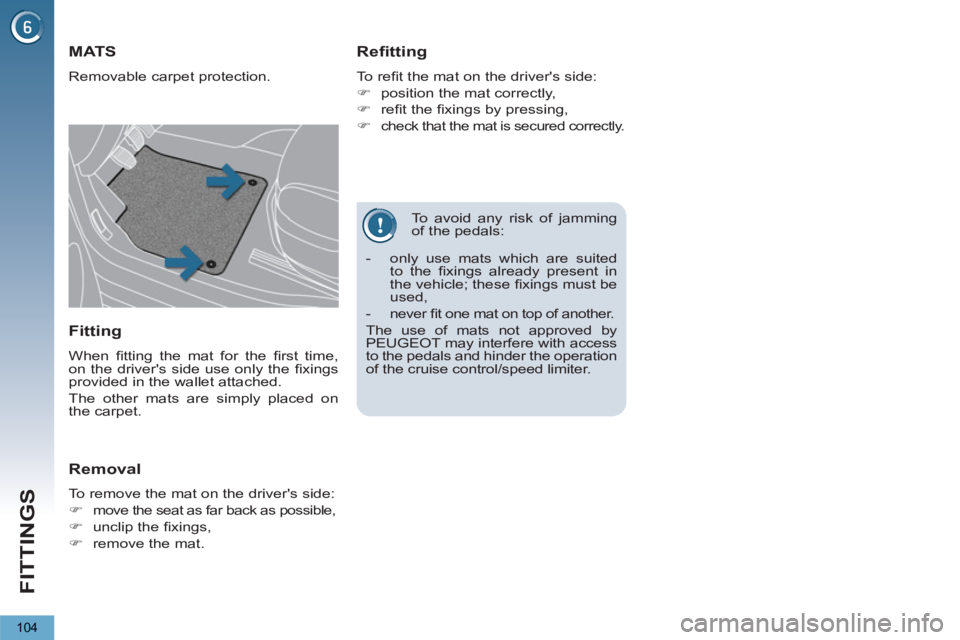

MATS
Removable carpet protection.


Refitting

To refi t the mat on the driver's side:


)
position the mat correctly,

)
refi t the fi xings by pressing,

)

check that the mat is secured correctly.


Fitting

When fi tting the mat for the fi rst time,
on the driver's side use only the fi xings
provided in the wallet attached.
The other mats are simply placed on
the carpet.


Removal

To remove the mat on the driver's side:


)
move the seat as far back as possible,

)
unclip the fi xings,

)
remove the mat.


- only use mats which are suited
to the fi xings already present in
the vehicle; these fi xings must be
used,

- never fi t one mat on top of another.
The use of mats not approved by
PEUGEOT may interfere with access
to the pedals and hinder the operation
of the cruise control/speed limiter.

FITTINGS
105

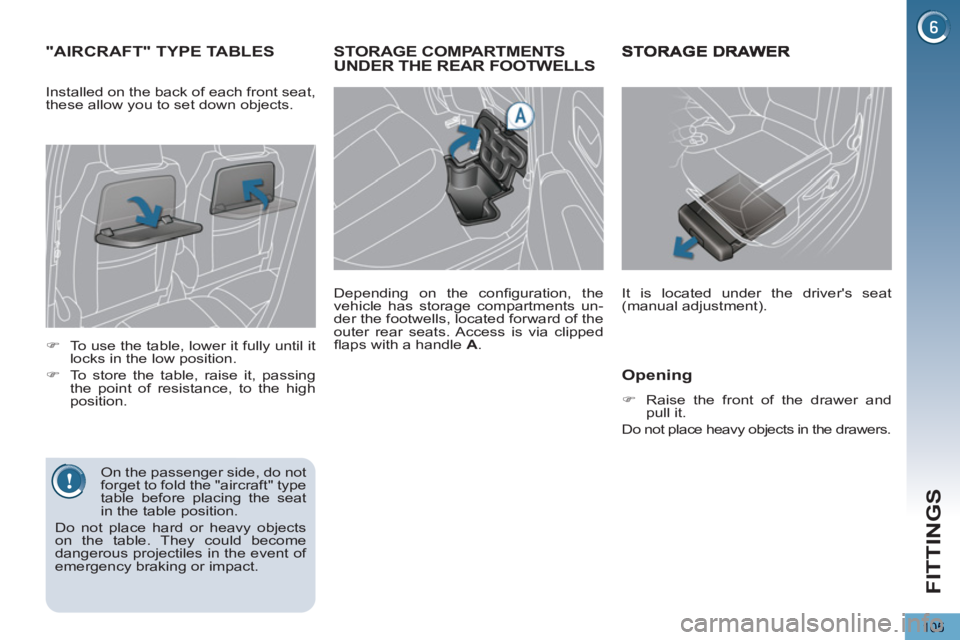

STORAGE COMPARTMENTS UNDER THE REAR FOOTWELLS

Depending on the confi guration, the
vehicle has storage compartments un-
der the footwells, located forward of the
outer rear seats. Access is via clipped
fl aps with a handle A
.
"AIRCRAFT" TYPE TABLES



)
To use the table, lower it fully until it
locks in the low position.

)
To store the table, raise it, passing
the point of resistance, to the high
position.

On the passenger side, do not
forget to fold the "aircraft" type
table before placing the seat
in the table position.
Do not place hard or heavy objects
on the table. They could become
dangerous projectiles in the event of
emergency braking or impact. Installed on the back of each front seat,
these allow you to set down objects.
It is located under the driver's seat
(manual adjustment).

Opening



)
Raise the front of the drawer and
pull it.
Do not place heavy objects in the drawers.

FITTINGS
106

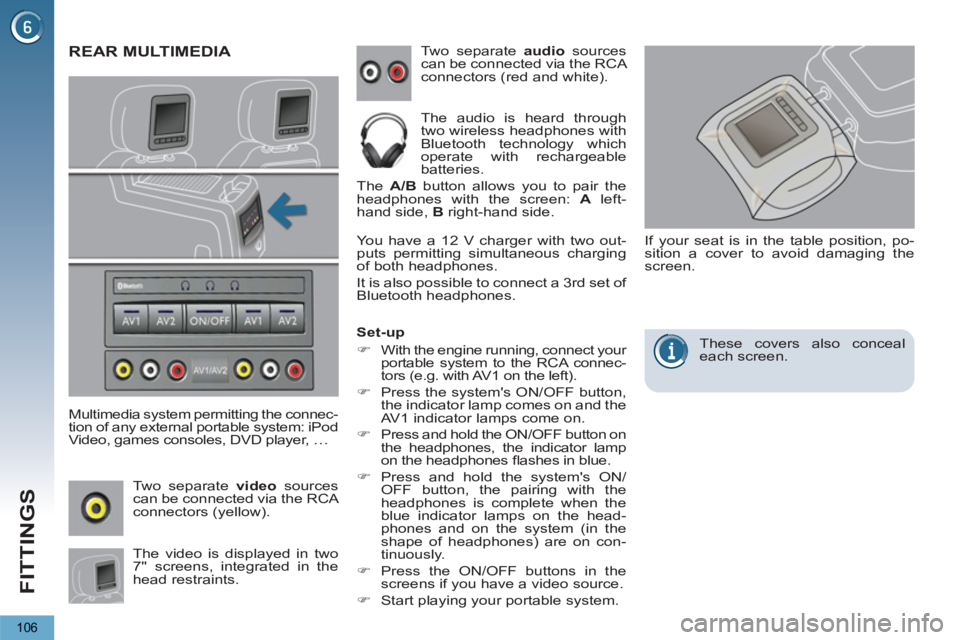

REAR MULTIMEDIA

Multimedia system permitting the connec-
tion of any external portable system: iPod
Video, games consoles, DVD player, … Two separate audio
sources
can be connected via the RCA
connectors (red and white).
The audio is heard through
two wireless headphones with
Bluetooth technology which
operate with rechargeable
batteries.
The A/B
button allows you to pair the
headphones with the screen: A
left-
hand side, B
right-hand side.
The video is displayed in two
7'' screens, integrated in the
head restraints. Two separate video
sources
can be connected via the RCA
connectors (yellow).
You have a 12 V charger with two out-
puts permitting simultaneous charging
of both headphones.
It is also possible to connect a 3rd set of
Bluetooth headphones.

Set-up


)
With the engine running, connect your
portable system to the RCA connec-
tors (e.g. with AV1 on the left).

)
Press the system's ON/OFF button,
the indicator lamp comes on and the
AV1 indicator lamps come on.

)
Press and hold the ON/OFF button on
the headphones, the indicator lamp
on the headphones fl ashes in blue.

)
Press and hold the system's ON/
OFF button, the pairing with the
headphones is complete when the
blue indicator lamps on the head-
phones and on the system (in the
shape of headphones) are on con-
tinuously.

)
Press the ON/OFF buttons in the
screens if you have a video source.

)
Start playing your portable system.

If your seat is in the table position, po-
sition a cover to avoid damaging the
screen.
These covers also conceal
each screen.

FITTINGS
107
PANORAMIC SUNROOF
Component which has a tinted glass
panoramic surface to increase the light
and visibility in the passenger compart-
ment.
Fitted with an electric blind in several
sections to improve temperature and
noise related comfort.

If the blind meets an obstacle
during operation, you must
reverse the movement of the
blind. To do this, press the control
concerned.
When the driver operates the blind
control, he must ensure that no one
is preventing correct closing of the
blind.
The driver must ensure that passen-
gers use the blind correctly.
Be aware of children when operating
the blind.

Manual mode


)
Pull or press control A
gently, without
going past the point of resistance.
The blind stops when you release
the control.

Automatic mode


)
Pull or press control A
fi rmly, going
beyond the point of resistance.
One press opens or closes the blind
completely.
Pressing the control again stops the
blind.


Safety anti-pinch
In automatic mode and at the end of
its travel, if the blind meets an obstacle
while closing it stops and moves back
slightly.

One-touch electric blind

There are two ways of opening and
closing.
If the blind re-opens during a closing
manoeuvre, and immediately after it
stops.


)
Pull the control until the blind is
fully open.

)
Press the control until the blind is
fully closed.

The safety anti-pinch function is not
operational during these operations.




Reinitialisation:
if the blind's
supply is cut off while it is mov-
ing, the safety anti-pinch must be
reinitialised.


)
Press the control until the blind is
fully closed.

)
Continue to press for at least
3 seconds. A slight movement of
the blind will then be noticeable,
confi rming the reinitialisation.

FITTINGS
108

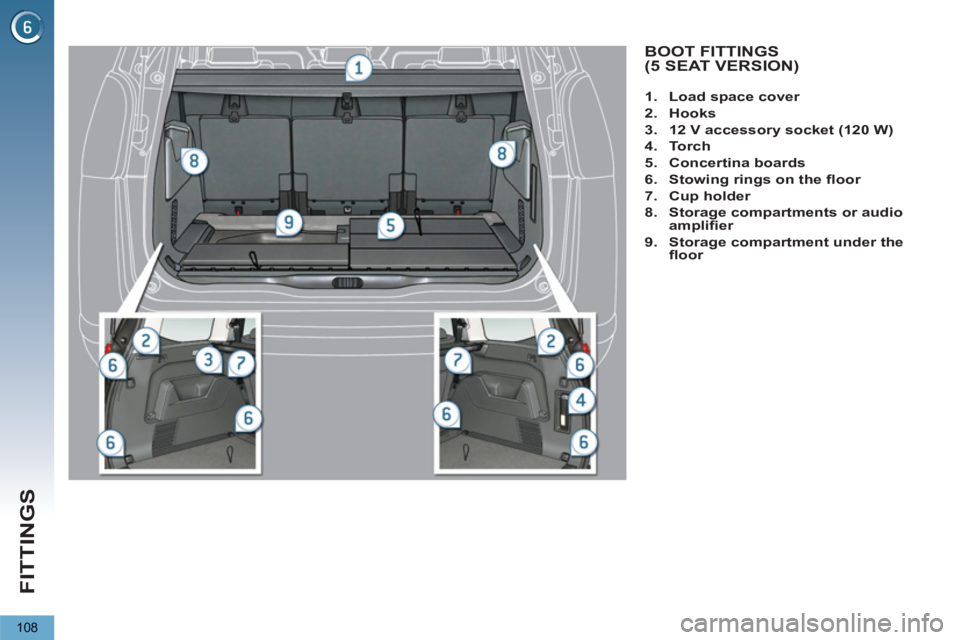

BOOT FITTINGS(5 SEAT VERSION)



1.
Load space cover


2.
Hooks


3.
12 V accessory socket (120 W)


4.
Torch


5.
Concertina boards


6.
Stowing rings on the fl oor


7.
Cup holder


8.
Storage compartments or audio
amplifi er


9.
Storage compartment under the
fl oor
