Page 331 of 364

PEUGEOT 5008 2015  Owners Manual 329

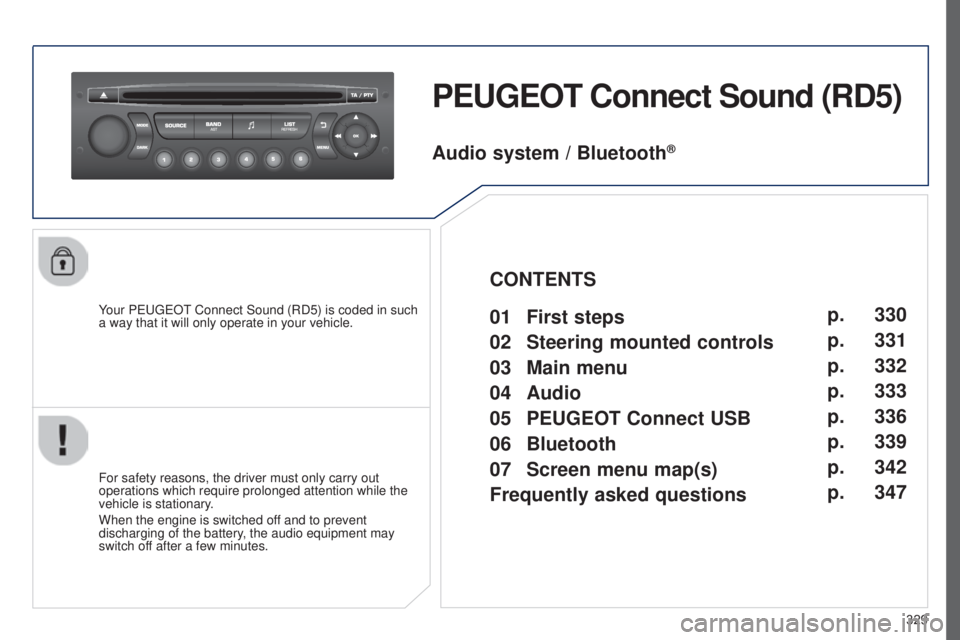

PEUGEOT Connect Sound (RD5)
Your PEUGEOT Connect Sound (RD5) is coded in such
a way that it will only operate in your vehicle.
For safety reasons, the driver must only carry out
operations which

Page 332 of 364

PEUGEOT 5008 2015  Owners Manual 01
330

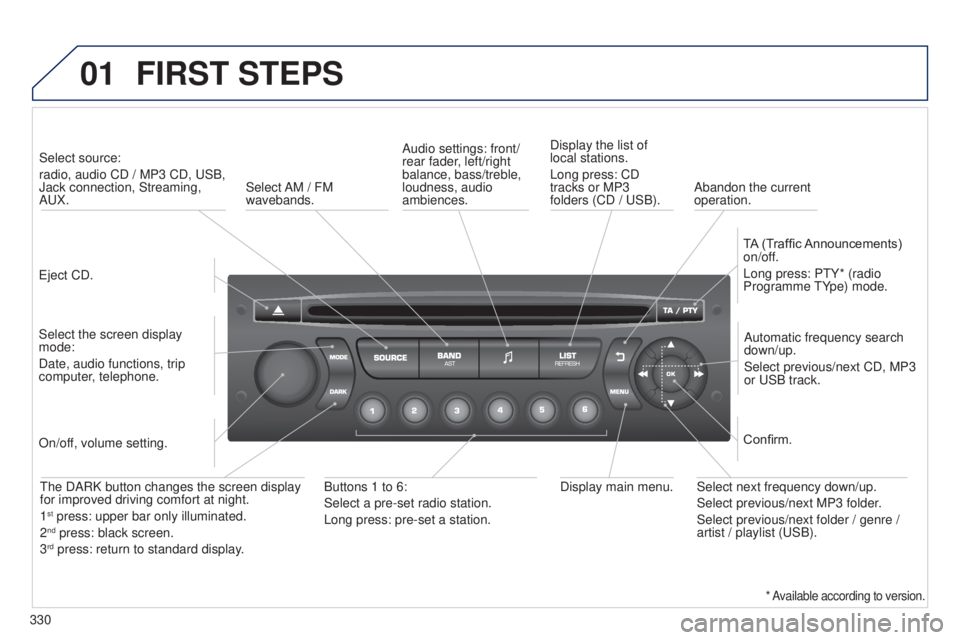

FIRST STEPS
Eject CD.Select source:
radio, audio CD / MP3 CD, USB,
Jack connection, Streaming,
AUX.
Select the screen display
mode:
Date, audio functions, trip
computer, telephone. Automat

Page 333 of 364

PEUGEOT 5008 2015  Owners Manual 02
331

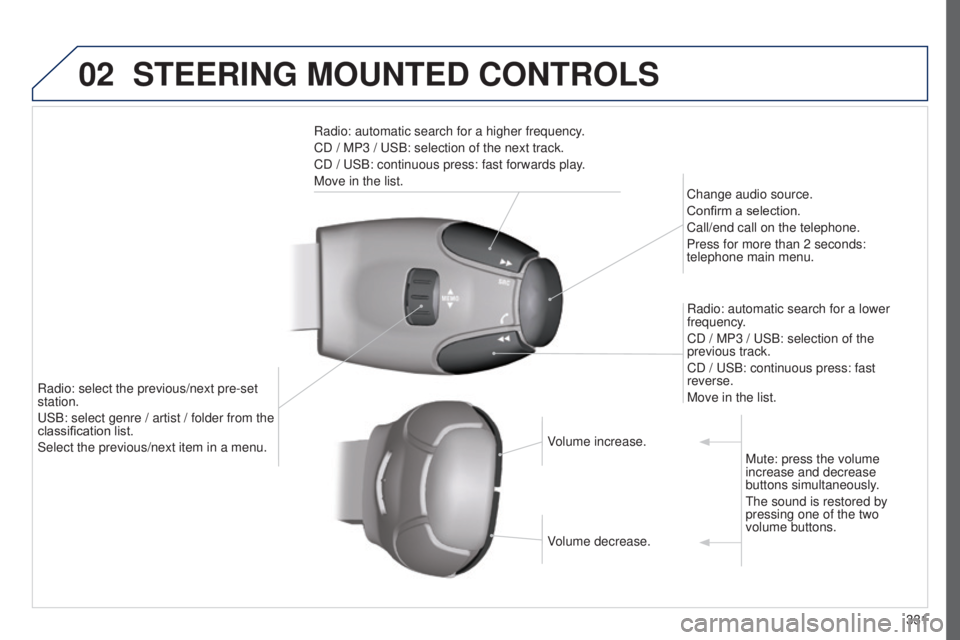

STEERING MOUNTED CONTROLS
Radio: automatic search for a higher frequency.
CD / MP3 / USB: selection of the next track.
CD / USB: continuous press: fast forwards play.
Move in the list.Change au

Page 334 of 364

PEUGEOT 5008 2015  Owners Manual 03
332

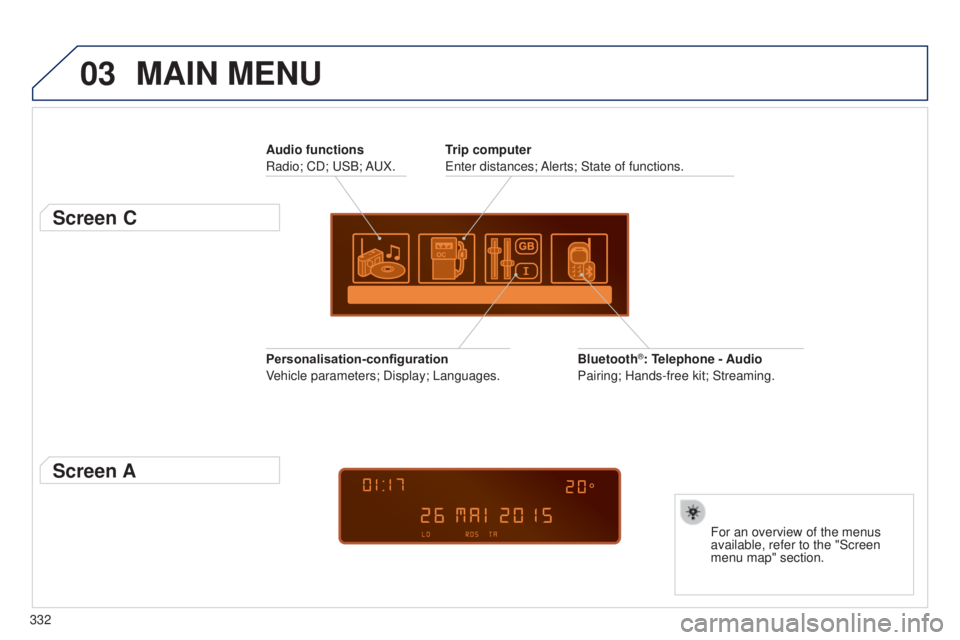

MAIN MENU
Audio functions
Radio; CD; USB; AUX.
Screen C
For an overview of the menus
available, refer to the "Screen
menu map" section.
Trip computer
Enter distances; Alerts; State of

Page 335 of 364

PEUGEOT 5008 2015  Owners Manual 04
333

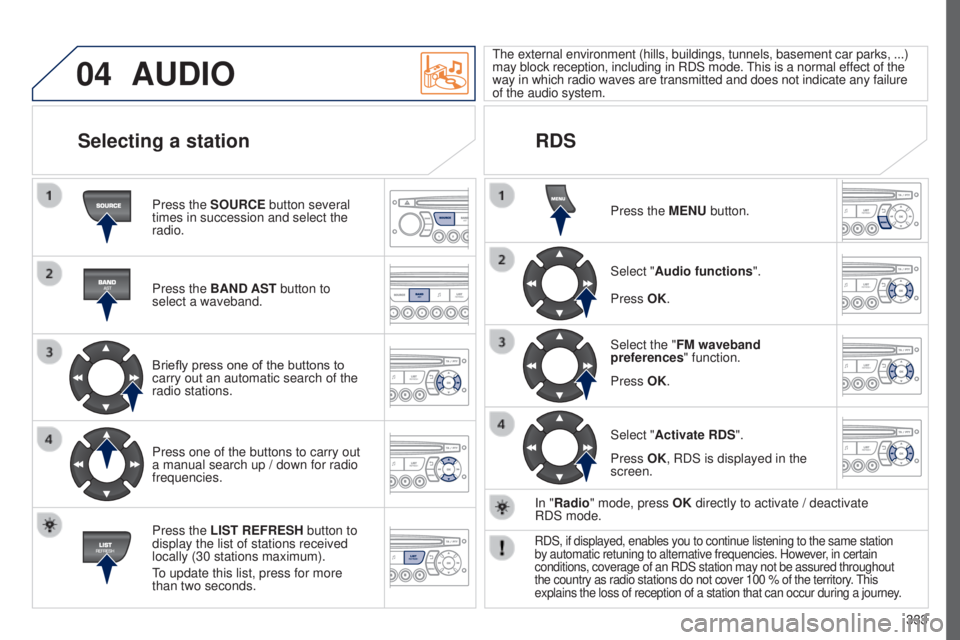

AUDIO
Press the SOURCE button several
times in succession and select the
radio.
Press the BAND AST button to
select a waveband.
Briefly press one of the buttons to
carry out an automatic se

Page 336 of 364

PEUGEOT 5008 2015  Owners Manual 04
334

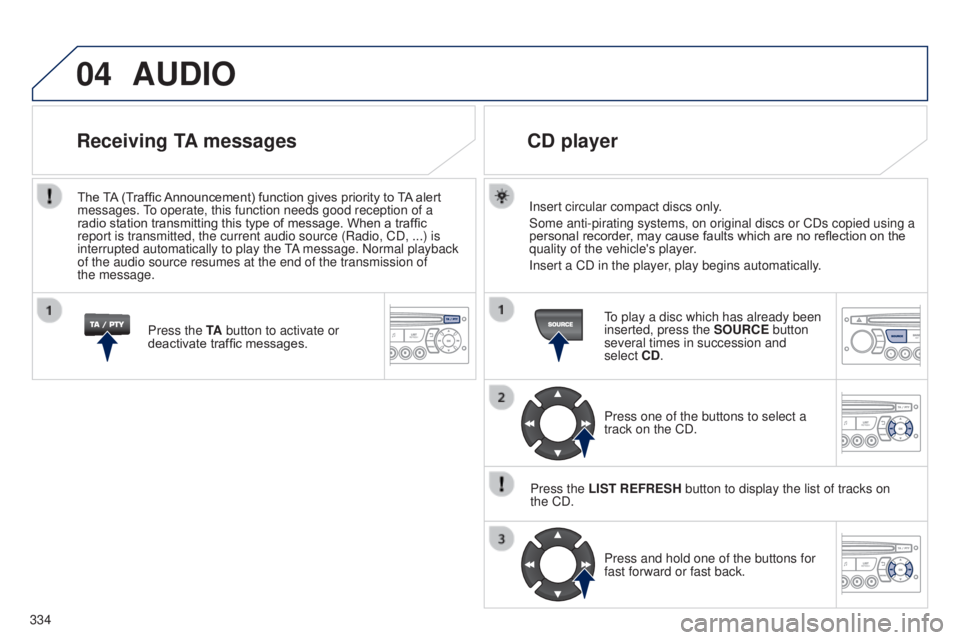

AUDIO
Insert circular compact discs only.
Some anti-pirating systems, on original discs or CDs copied using a
personal recorder, may cause faults which are no reflection on the
quality of the

Page 337 of 364

PEUGEOT 5008 2015  Owners Manual 04
335
The audio system will only play files with the extension ".mp3" with
a sampling rate of 22.05 KHz or 44.1 KHz. No other type of file
(.wma, .mp4, .m3u...) can be played.
In order to b

Page 338 of 364

PEUGEOT 5008 2015  Owners Manual 05
336

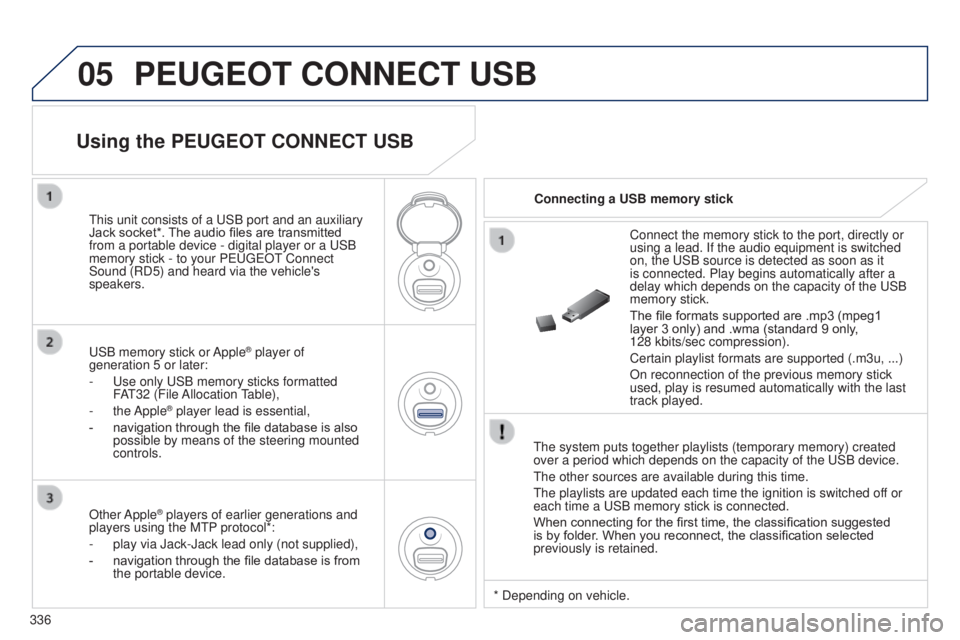

PEUGEOT CONNECT USB
The system puts together playlists (temporary memory) created
over a period which depends on the capacity of the USB device.
The other sources are available during this tim

Page 339 of 364

PEUGEOT 5008 2015  Owners Manual 05
337

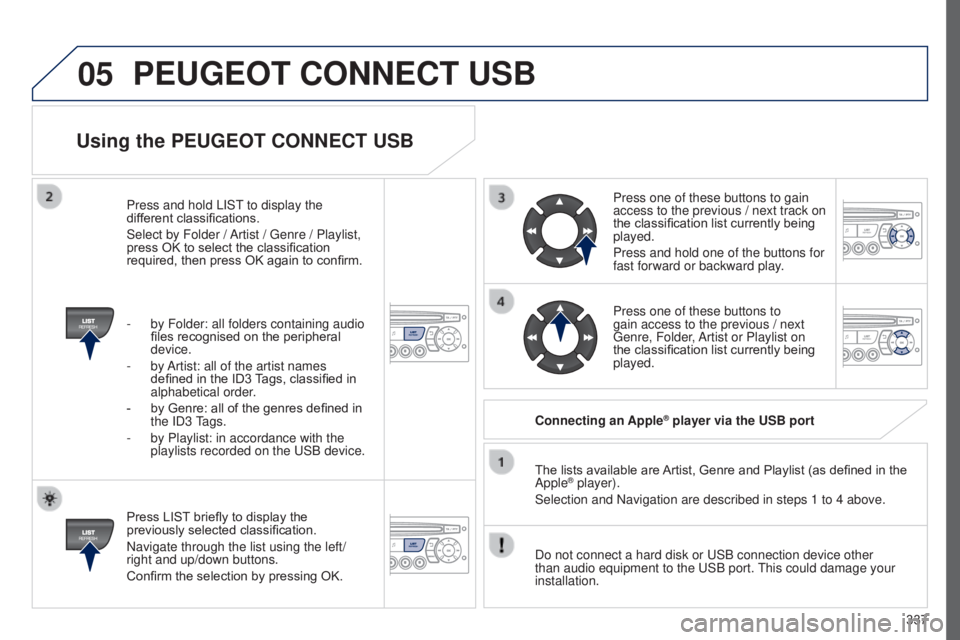

Using the PEUGEOT CONNECT USB
Press LIST briefly to display the
previously selected classification.
Navigate through the list using the left/
right and up/down buttons.
Confirm the selection b

Page 340 of 364

PEUGEOT 5008 2015  Owners Manual 05

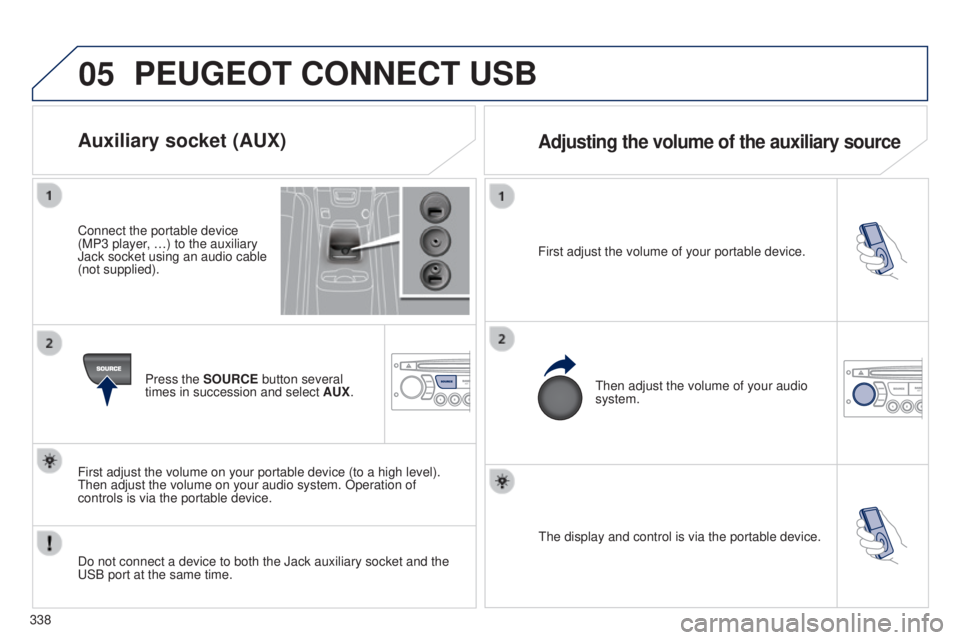

338The display and control is via the portable device.
First adjust the volume of your portable device.
Then adjust the volume of your audio
system.
Auxiliary socket (AUX)Adjusting the volume of t
