79

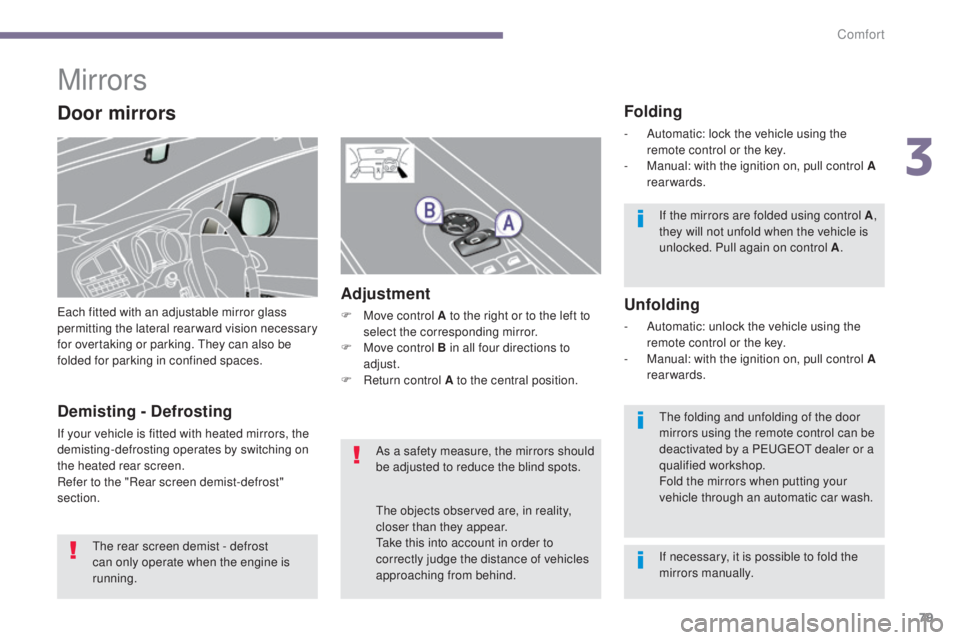

Mirrors
Each fitted with an adjustable mirror glass
permitting the lateral rearward vision necessary
for overtaking or parking. They can also be
folded for parking in confined spaces.
Folding
- Automatic: lock the vehicle using the remote control or the key.
-

M
anual: with the ignition on, pull control A
rearwards.
Unfolding
- Automatic: unlock the vehicle using the remote control or the key.
-

M
anual: with the ignition on, pull control A
rearwards.
Adjustment
F Move control A to the right or to the left to select the corresponding mirror.
F

M
ove control B in all four directions to
adjust.
F

R
eturn control A to the central position.
Demisting - Defrosting
If your vehicle is fitted with heated mirrors, the
demisting-defrosting operates by switching on
the heated rear screen.
Refer to the "Rear screen demist-defrost"
section. The rear screen demist - defrost
can only operate when the engine is
running. As a safety measure, the mirrors should
be adjusted to reduce the blind spots.
The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of vehicles
approaching from behind.If the mirrors are folded using control A
,
they will not unfold when the vehicle is
unlocked. Pull again on control A .
The folding and unfolding of the door
mirrors using the remote control can be
deactivated by a PEUGEOT dealer or a
qualified workshop.
Fold the mirrors when putting your
vehicle through an automatic car wash.
Door mirrors
If necessary, it is possible to fold the
mirrors manually.
3
Comfort

80
Adjustment
F Adjust the mirror so that the glass is directed correctly in the "day" position.
Manual day/night model
Day / night position
F Pull the lever to change to the "night" anti-dazzle position.
F

P
ush the lever to change to the normal
"day" position.

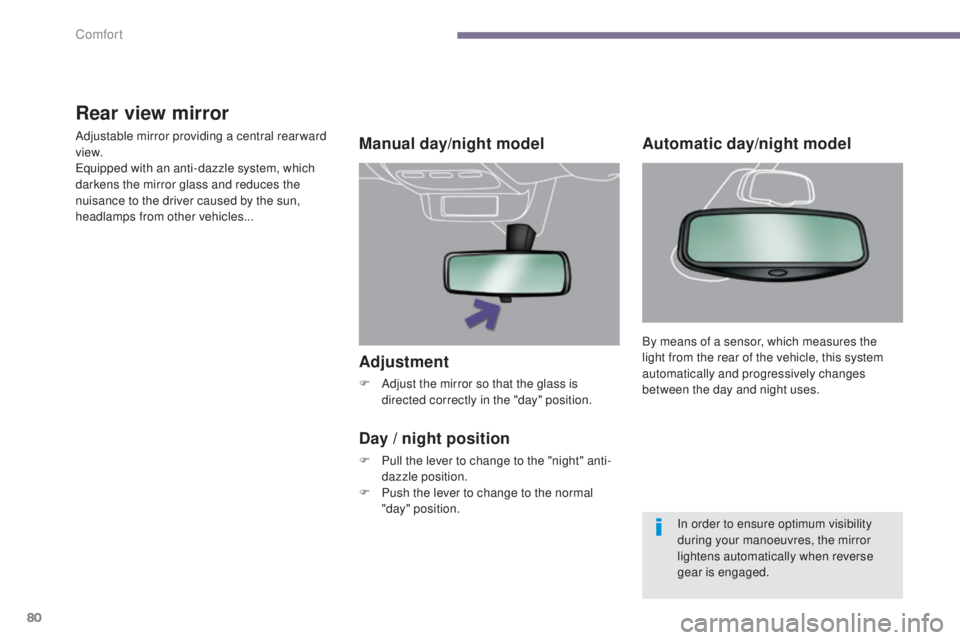

Rear view mirror
Adjustable mirror providing a central rearward
view.
Equipped with an anti-dazzle system, which
darkens the mirror glass and reduces the
nuisance to the driver caused by the sun,
headlamps from other vehicles...Automatic day/night model
By means of a sensor, which measures the
light from the rear of the vehicle, this system
automatically and progressively changes
between the day and night uses.
In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.
Comfort

81
Steering wheel adjustment
F When stationary, pull the control lever to
release the adjustment mechanism.
F

A
djust the height and reach to suit your
driving position.
F

P
ush the control lever to lock the
adjustment mechanism.
As a safety measure, these operations
should only be carried out with the
vehicle stationary.
3
Comfort

82

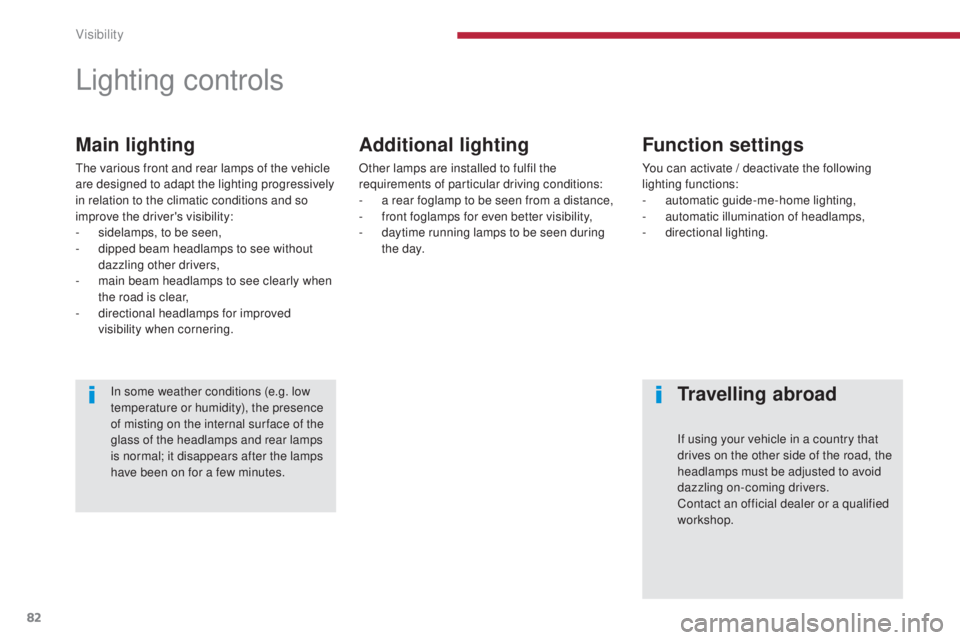

Lighting controls
Main lighting
The various front and rear lamps of the vehicle
are designed to adapt the lighting progressively
in relation to the climatic conditions and so
improve the driver's visibility:
-
s
idelamps, to be seen,
-

d
ipped beam headlamps to see without
dazzling other drivers,
-

m
ain beam headlamps to see clearly when
the road is clear,
-
d

irectional headlamps for improved
visibility when cornering.
Additional lighting
Other lamps are installed to fulfil the
requirements of particular driving conditions:
-

a r
ear foglamp to be seen from a distance,
-

f
ront foglamps for even better visibility,
-

d
aytime running lamps to be seen during
t h e d ay.
Function settings
You can activate / deactivate the following
lighting functions:
-
a

utomatic guide-me-home lighting,
-

a
utomatic illumination of headlamps,
-
d

irectional lighting.
Travelling abroad
If using your vehicle in a country that
drives on the other side of the road, the
headlamps must be adjusted to avoid
dazzling on-coming drivers.
Contact an official dealer or a qualified
workshop.
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
Visibility

83
Model without AUTO lighting
Model with AUTO lighting
The lighting is controlled directly by the driver
by means of the ring A and the stalk B.
B. Stalk for switching headlamps: pull the stalk
towards you to switch the lighting between
dipped and main beam headlamps.
In the lamps off and sidelamps modes, the
driver can switch on the main beam headlamps
temporarily ("headlamp flash") by maintaining a
pull on the stalk. Automatic illumination of
headlamps. Lighting off (ignition off) /
Daytime running lamps (engine
running).
Sidelamps.
Dipped headlamps or main
beam headlamps.
Displays
Illumination of the corresponding indicator
lamp in the instrument panel confirms that the
lighting selected is on.
Manual controls
A. Main lighting mode selection ring: turn it
to position the symbol required facing the
mark.
4
Visibility

84

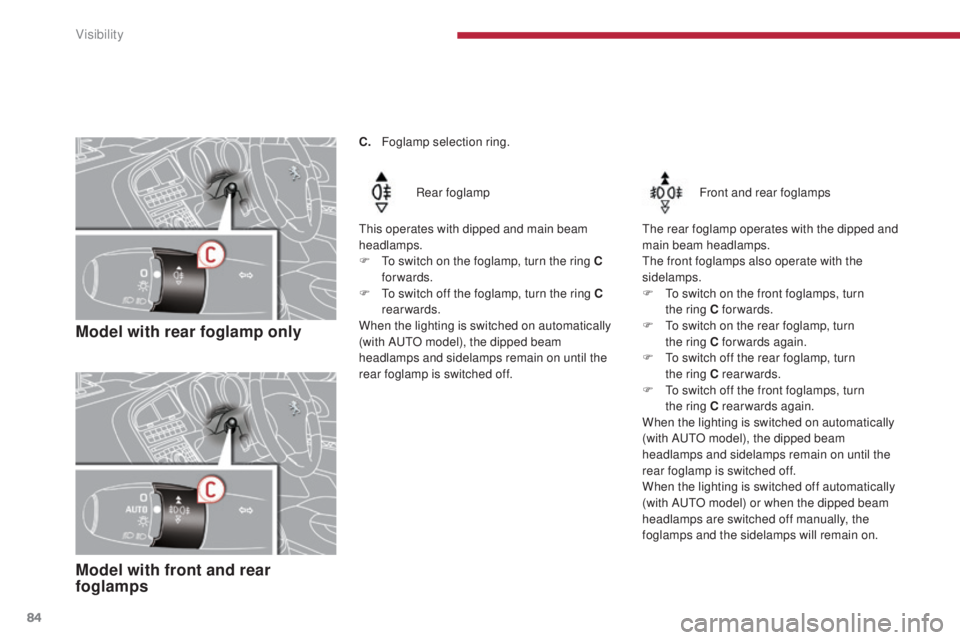

Model with rear foglamp only
Rear foglamp
This operates with dipped and main beam
headlamps.
F

T

o switch on the foglamp, turn the ring C
forwards.
F

T

o switch off the foglamp, turn the ring C
rearwards.
When the lighting is switched on automatically
(with AUTO model), the dipped beam
headlamps and sidelamps remain on until the
rear foglamp is switched off.
Model with front and rear
foglamps
Front and rear foglamps
The rear foglamp operates with the dipped and
main beam headlamps.
The front foglamps also operate with the
sidelamps.
F

T

o switch on the front foglamps, turn
the

ring C forwards.
F

T

o switch on the rear foglamp, turn
the

ring C forwards again.
F

T

o switch off the rear foglamp, turn
the

ring C rearwards.
F

T

o switch off the front foglamps, turn
the

ring C rearwards again.
When the lighting is switched on automatically
(with AUTO model), the dipped beam
headlamps and sidelamps remain on until the
rear foglamp is switched off.
When the lighting is switched off automatically
(with AUTO model) or when the dipped beam
headlamps are switched off manually, the
foglamps and the sidelamps will remain on.
C.
F

oglamp selection ring.
Visibility

85
Switching off the lighting when
switching off the ignition
When the ignition is switched off, all of the
lamps switch off immediately, except for the
dipped beam headlamps if automatic guide-
me-home lighting is activated.
In good or rainy weather, by both day
and night, the front foglamps and the
rear foglamps are prohibited. In these
situations, the power of their beams
may dazzle other drivers. They should
only be used in fog or falling snow.
In these weather conditions, you should
switch on the foglamps and dipped
beam headlamps manually, as the
sunshine sensor may detect sufficient
light.
Do not forget to switch off the front and
rear foglamps when they are no longer
necessary.
Switching on the lighting when
switching on the ignition
To reactivate the lighting control stalk, turn the
ring A to position "0"
- lighting off, then to the
position of your choice.
When the driver's door is opened, a temporary
audible signal warns you that the vehicle's
lighting is on.
They switch off automatically after a period
which depends on the state of charge of the
battery (entry to energy economy mode).
4
Visibility

86

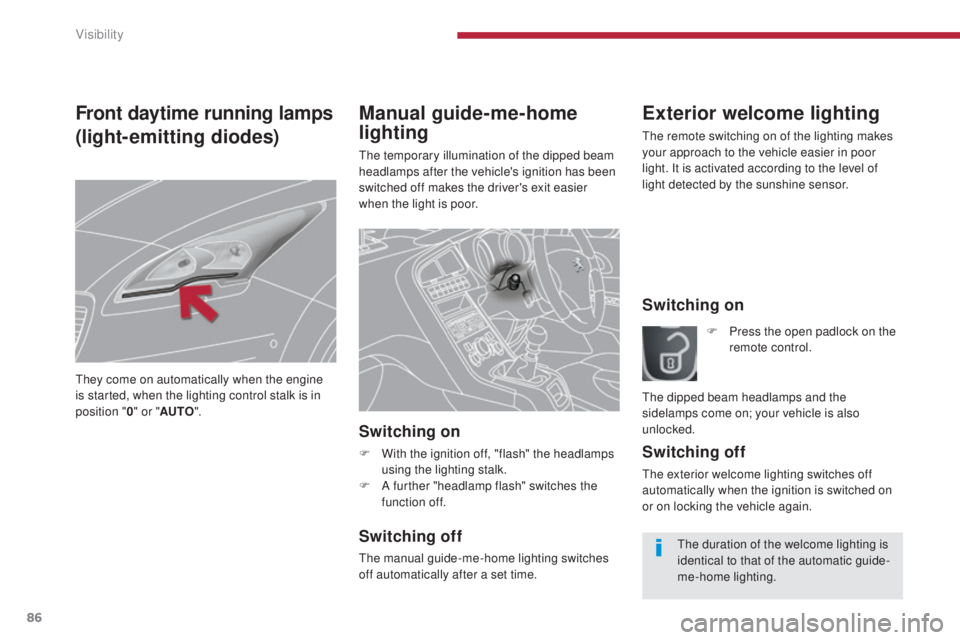

Manual guide-me-home
lighting
The temporary illumination of the dipped beam
headlamps after the vehicle's ignition has been
switched off makes the driver's exit easier
when the light is poor.
Switching on
F With the ignition off, "flash" the headlamps using the lighting stalk.
F

A f
urther "headlamp flash" switches the
function off.
Switching off
The manual guide-me-home lighting switches
off automatically after a set time.
Front daytime running lamps
(light-emitting diodes)
They come on automatically when the engine
is started, when the lighting control stalk is in
position " 0" or " AUTO ".
Switching on
Switching off
The exterior welcome lighting switches off
automatically when the ignition is switched on
or on locking the vehicle again. F

P
ress the open padlock on the
remote control.
The dipped beam headlamps and the
sidelamps come on; your vehicle is also
unlocked.
Exterior welcome lighting
The remote switching on of the lighting makes
your approach to the vehicle easier in poor
light. It is activated according to the level of
light detected by the sunshine sensor.
The duration of the welcome lighting is
identical to that of the automatic guide-
me-home lighting.
Visibility

87
Automatic illumination of headlamps
F Turn the ring to the "AUTO" position. The
activation of the function is accompanied
by the display of a message in the screen.
Deactivation
F Turn the ring to another position. Deactivation of the function is accompanied
by the display of a message in the screen.
Operating fault
In the event of a malfunction of the sunshine
sensor, the lighting comes on, this warning
lamp is displayed in the instrument panel
and/or a message appears in the screen,
accompanied by an audible signal.
Contact a PEUGEOT dealer or a qualified
workshop.
Automatic guide-me-home
lighting
When the automatic illumination of headlamps
function is activated (lighting control stalk in the
"AUTO " position), under low ambient light the
dipped beam headlamps remain on when the
ignition is switched off.
In fog or snow, the sunshine sensor
may detect sufficient light. In this
case, the lighting will not come on
automatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the centre of the windscreen
behind the rear view mirror; the
associated functions would no longer
be controlled.
When a low level of ambient light is detected
by a sunshine sensor, the number plate
lamps,
s

idelamps and dipped beam headlamps
are switched on automatically, without any
action on the part of the driver. They can also
come on if rain is detected, at the same time as
automatic operation of the windscreen wipers.
As soon as the ambient light returns to a
sufficient level or after the windscreen wipers
are switched off, the lamps are switched off
automatically.
ActivationProgramming
Activation or deactivation,
as well as the duration of the
guide-me-home lighting, is set
in the vehicle configuration
menu.
4
Visibility

88

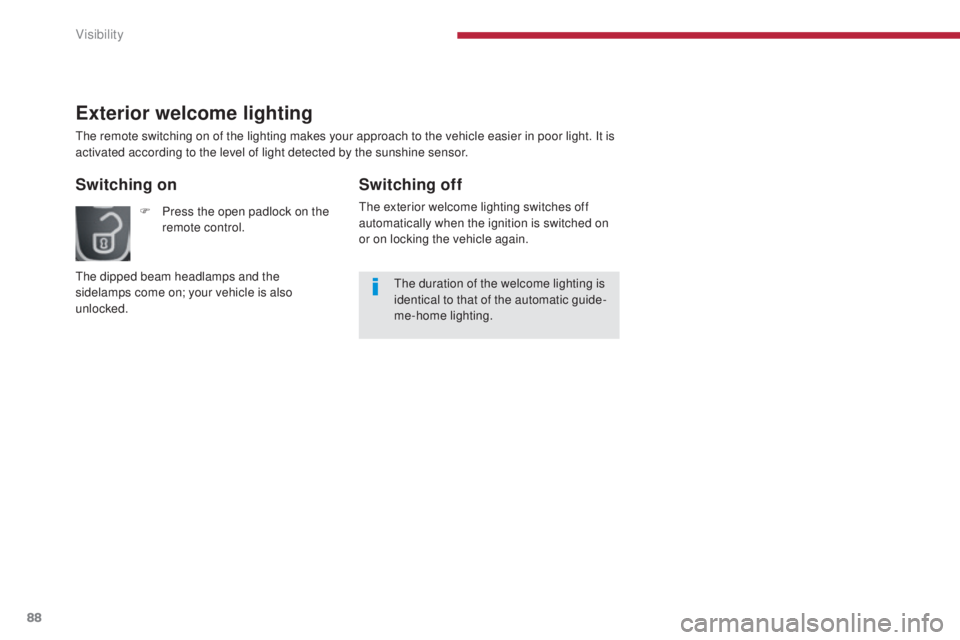

Exterior welcome lighting
The remote switching on of the lighting makes your approach to the vehicle easier in poor light. It is
activated according to the level of light detected by the sunshine sensor.
Switching on
The duration of the welcome lighting is
identical to that of the automatic guide-
me-home lighting.
F

P

ress the open padlock on the
remote control.
The dipped beam headlamps and the
sidelamps come on; your vehicle is also
unlocked.
Switching off
The exterior welcome lighting switches off
automatically when the ignition is switched on
or on locking the vehicle again.
Visibility
