PEUGEOT 5008 2023 Owners Manual

259

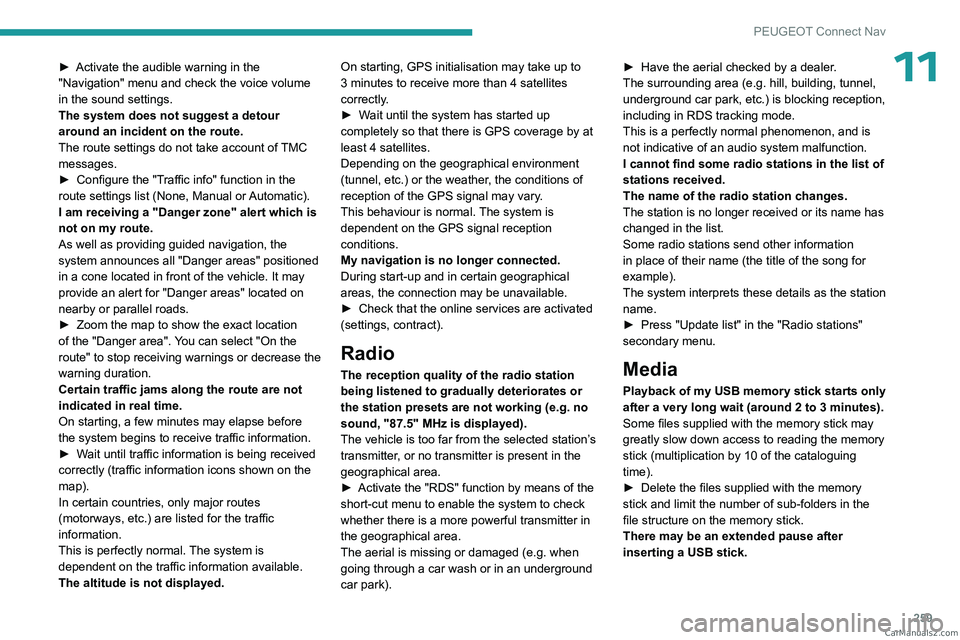

PEUGEOT Connect Nav
11► Activate the audible warning in the
"Navigation" menu and check the voice volume
in the sound settings.
The system does not suggest a detour
around an incident on the route.
The route settings do not take account of
TMC
messages.
►

Configure the "T
raffic info" function in the
route settings list (None, Manual or Automatic).
I am receiving a "Danger zone" alert which is
not on my route.
As well as providing guided navigation, the
system announces all "Danger areas" positioned
in a cone located in front of the vehicle. It may
provide an alert for "Danger areas" located on
nearby or parallel roads.
►

Zoom the map to show the exact location
of the "Danger area".

You can select "On the
route" to stop receiving warnings or decrease the
warning duration.
Certain traffic jams along the route are not
indicated in real time.
On starting, a few minutes may elapse before
the system begins to receive traffic information.
►

W
ait until traffic information is being received
correctly (traffic information icons shown on the
map).
In certain countries, only major routes
(motorways, etc.) are listed for the traffic
information.
This is perfectly normal. The system is
dependent on the traffic information available.
The altitude is not displayed. On starting, GPS initialisation may take up to
3 minutes to receive more than 4 satellites
correctly.
►

W
ait until the system has started up
completely so that there is GPS coverage by at
least 4
satellites.
Depending on the geographical environment
(tunnel, etc.) or the weather, the conditions of
reception of the GPS signal may vary.
This behaviour is normal. The system is
dependent on the GPS signal reception
conditions.
My navigation is no longer connected.
During start-up and in certain geographical
areas, the connection may be unavailable.
►

Check that the online services are activated
(settings, contract).
Radio
The reception quality of the radio station
being listened to gradually deteriorates or
the station presets are not working (e.g.
no
sound, "87.5" MHz is displayed).
The vehicle is too far from the selected station’s
transmitter, or no transmitter is present in the
geographical area.
►

Activate the "RDS" function by means of the
short-cut menu to enable the system to check
whether there is a more powerful transmitter in
the geographical area.
The aerial is missing or damaged (e.g.

when
going through a car wash or in an underground
car park). ►

Have the aerial checked by a dealer
.
The surrounding area (e.g. hill, building, tunnel,
underground car park, etc.) is blocking reception,
including in RDS tracking mode.
This is a perfectly normal phenomenon, and is
not indicative of an audio system malfunction.
I cannot find some radio stations in the list of
stations received.
The name of the radio station changes.
The station is no longer received or its name has
changed in the list.
Some radio stations send other information
in place of their name (the title of the song for
example).
The system interprets these details as the station
name.
►
Press "Update list" in the "Radio stations"
secondary menu.
Media
Playback of my USB memory stick starts only
after a very long wait (around 2 to 3 minutes).
Some files supplied with the memory stick may
greatly slow down access to reading the memory
stick (multiplication by 10 of the cataloguing
time).
►

Delete the files supplied with the memory
stick and limit the number of sub-folders in the
file structure on the memory stick.
There may be an extended pause after
inserting a USB stick. CarM an uals 2 .c o m

260

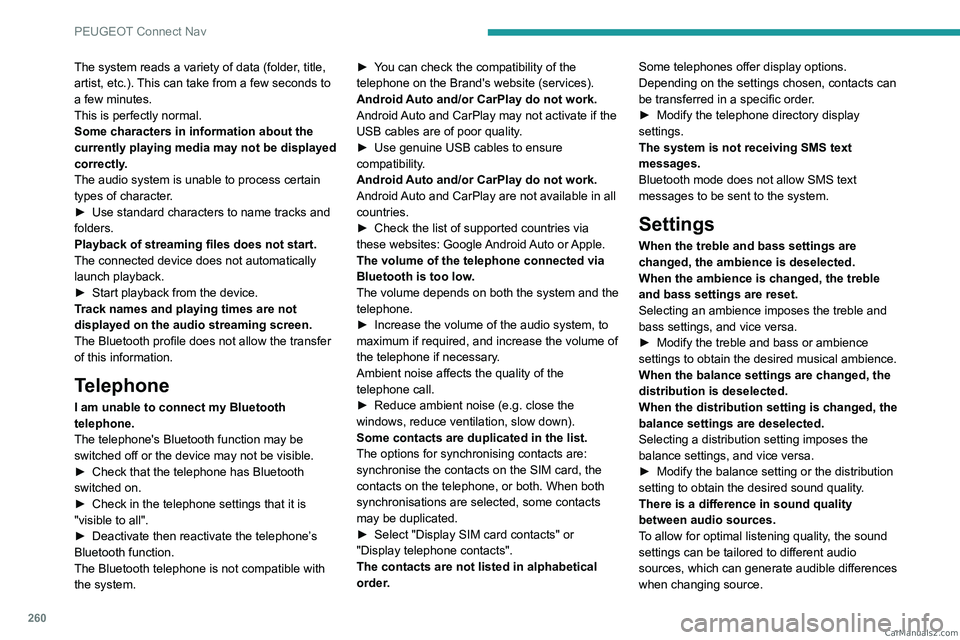

PEUGEOT Connect Nav
The system reads a variety of data (folder, title,
artist, etc.). This can take from a few seconds to
a few minutes.
This is perfectly normal.
Some characters in information about the
currently playing media may not be displayed
correctly.
The audio system is unable to process certain
types of character.
►
Use standard characters to name tracks and
folders.
Playback of streaming files does not start.
The connected device does not automatically
launch playback.
►


Start playback from the device.
T

rack names and playing times are not
displayed on the audio streaming screen.
The Bluetooth profile does not allow the transfer
of this information.
Telephone
I am unable to connect my Bluetooth
telephone.
The telephone's Bluetooth function may be
switched off or the device may not be visible.
►

Check that the telephone has Bluetooth
switched on.
►


Check in the telephone settings that it is
"visible to all".
►


Deactivate then reactivate the telephone’
s
Bluetooth function.
The Bluetooth telephone is not compatible with
the system. ►

Y
ou can check the compatibility of the
telephone on the Brand's website (services).
Android Auto and/or CarPlay do not work.
Android Auto and CarPlay may not activate if the
USB cables are of poor quality.
►
Use genuine USB cables to ensure
compatibility
.
Android Auto and/or CarPlay do not work.
Android Auto and CarPlay are not available in all
countries.
►
Check the list of supported countries via
these
websites: Google Android Auto or Apple.
The volume of the telephone connected via
Bluetooth is too low.
The volume depends on both the system and the
telephone.
►
Increase the volume of the audio system, to
maximum if required, and increase the volume of
the telephone if necessary
.
Ambient noise affects the quality of the
telephone call.
► Reduce ambient noise (e.g. close the
windows, reduce ventilation, slow down).
Some contacts are duplicated in the list.
The options for synchronising contacts are:
synchronise the contacts on the SIM card, the
contacts on the telephone, or both. When both
synchronisations are selected, some contacts
may be duplicated.
►

Select "Display SIM card contacts" or
"Display telephone contacts".
The contacts are not listed in alphabetical
order

.Some telephones offer display options.
Depending on the settings chosen, contacts can
be transferred in a specific order.
►

Modify the telephone directory display
settings.
The system is not receiving SMS text
messages.
Bluetooth mode does not allow SMS text
messages to be sent to the system.
Settings
When the treble and bass settings are
changed, the ambience is deselected.
When the ambience is changed, the treble
and bass settings are reset.
Selecting an ambience imposes the treble and
bass settings, and vice versa.
►

Modify the treble and bass or ambience
settings to obtain the desired musical ambience.
When the balance settings are changed, the
distribution is deselected.
When the distribution setting is changed, the
balance settings are deselected.
Selecting a distribution setting imposes the
balance settings, and vice versa.
►


Modify the balance setting or the distribution
setting to obtain the desired sound quality

.
There is a difference in sound quality
between audio sources.
To allow for optimal listening quality, the sound
settings can be tailored to different audio
sources, which can generate audible differences
when changing source. CarM an uals 2 .c o m

261

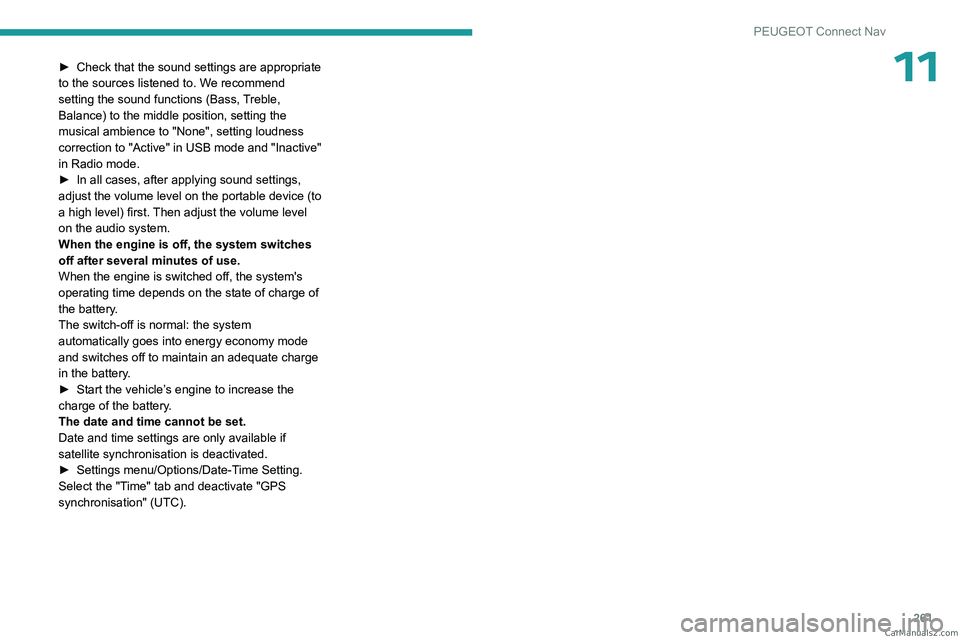

PEUGEOT Connect Nav
11► Check that the sound settings are appropriate
to the sources listened to. W e recommend
setting the sound functions (Bass, Treble,
Balance) to the middle position, setting the
musical ambience to "None", setting loudness
correction to "Active" in USB mode and "Inactive"
in Radio mode.
►

In all cases, after applying sound settings,
adjust the volume level on the portable device (to
a high level) first.

Then adjust the volume level
on the audio system.
When the engine is off, the system switches
off after several minutes of use.
When the engine is switched off, the system's
operating time depends on the state of charge of
the battery.
The switch-off is normal: the system
automatically goes into energy economy mode
and switches off to maintain an adequate charge
in the battery.
►

Start the vehicle’
s engine to increase the
charge of the battery.
The date and time cannot be set.
Date and time settings are only available if
satellite synchronisation is deactivated.
►

Settings
menu/Options/Date-Time Setting.
Select the "Time" tab and deactivate "GPS
synchronisation" (UTC). CarM an uals 2 .c o m

262
Vehicle data recording and privacy
Vehicle data recording
and privacy
Electronic control units are installed in your
vehicle. These control units process data
received from the vehicle's sensors, for example,
or data they generate themselves or exchange
with each other. Some of these control units are
required for the correct operation of your vehicle,
some others assist you while driving (driving or
manoeuvring aids), while others provide comfort
or infotainment functions.
The following contains general information about
how data is processed within the vehicle.
You will find additional information about the
specific data which is downloaded, stored
and transmitted to third parties and what it is
used for in your vehicle under the keyword
"Data protection". This information is directly
associated with the references for the functions
in question contained in the corresponding
vehicle handbook, or in the general terms and
conditions of sale.
This information is also available online.
Vehicle operating data
The control units process the data used for the
operation of the vehicle.
This data includes, for example:
–
Information about the state of the vehicle
(e.g.

speed, travel time, lateral acceleration,
wheel rotation rate, fastened seat belts display). –

Environmental conditions (e.g.
temperature,
rain sensor, distance sensor).
As a general rule, this data is temporary, is
not stored for longer than one operating cycle
and is only used within the vehicle itself. The
control units often record this data (including the
vehicle's key). This function allows either the
temporary or permanent storage of information
about the state of the vehicle, stresses on
components, servicing requirements, as well as
events and technical errors.
Depending on the vehicle's equipment level, the
data stored is as follows:
–
Operating state of system components
(e.g.
filling level, tyre pressures, battery charge
status).
–
Faults and malfunctions in important system
components (e.g.
lamps, brakes).
–
System reactions in specific driving situations
(e.g.
deployment of an airbag, triggering of
stability control and braking systems).
–
Information about events which have
damaged the vehicle.
–

For electric and rechargeable hybrid vehicles,
the traction battery charge level and the
estimated driving range.
In particular circumstances (e.g.
if the vehicle
has detected a malfunction), it may be necessary
to record data which would otherwise simply not
be stored.
When taking your vehicle in for servicing
(e.g.
repairs, maintenance), the stored operating
data may be read along with the vehicle's identification number and used if necessary.
The personnel working for the servicing network
(e.g.
garages, manufacturers) or third parties
(e.g. roadside assistance agents) may read
the vehicle's data. This also applies to work
carried out under warranty and quality assurance
measures.
This data is generally read via the OBD
(On-Board Diagnostics) port fitted by law to
the vehicle. It is used to report on the technical
state of the vehicle or its components and
facilitates the diagnosis of malfunctions, in
compliance with warranty obligations and for
quality improvement. This data, in particular the
information relating to stress on components,
technical events, operator errors and other
malfunctions, is sent to the Manufacturer, if
necessary, along with the vehicle's identification
number. The Manufacturer's liability may also be
engaged. The Manufacturer may also use the
operating data taken from the vehicle for product
recalls. This data may also be used to check the
customer's warranty and any claims made under
warranty.
Any malfunctions stored in the vehicle may be
reset by an after-sales service company during
servicing or repair work, or at your request. CarM an uals 2 .c o m

263
Vehicle data recording and privacy

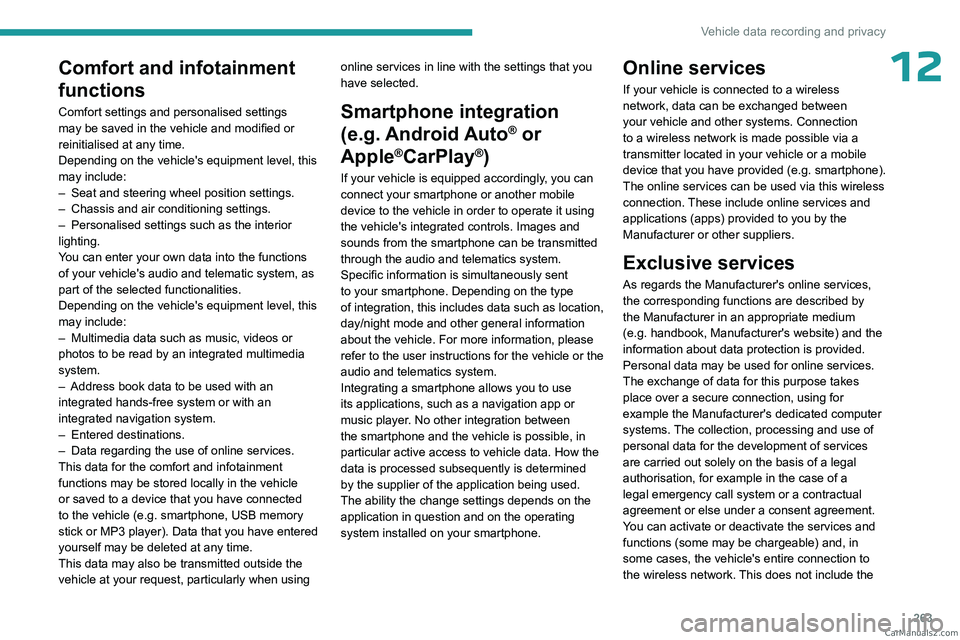

12Comfort and infotainment
functions
Comfort settings and personalised settings
may be saved in the vehicle and modified or
reinitialised at any time.
Depending on the vehicle's equipment level,
this
may
include:
–

Seat and steering wheel position settings.
–


Chassis and air conditioning settings.
–


Personalised settings such as the interior
lighting.
Y

ou can enter your own data into the functions
of your vehicle's audio and telematic system, as
part of the selected functionalities.
Depending on the vehicle's equipment level,
this
may
include:
–

Multimedia data such as music, videos or
photos to be read by an integrated multimedia
system.
–


Address book data to be used with an
integrated hands-free system or with an
integrated navigation system.
–


Entered destinations.
–


Data regarding the use of online services.
This data for the comfort and infotainment
functions may be stored locally in the vehicle
or saved to a device that you have connected
to the vehicle (e.g.

smartphone, USB memory
stick or MP3 player). Data that you have entered
yourself may be deleted at any time.
This data may also be transmitted outside the
vehicle at your request, particularly when using online services in line with the settings that you
have selected. Smartphone integration
(e.g.

Android
Auto
® or
Apple
®CarPlay®)
If your vehicle is equipped accordingly, you can
connect your smartphone or another mobile
device to the vehicle in order to operate it using
the vehicle's integrated controls. Images and
sounds from the smartphone can be transmitted
through the audio and telematics system.
Specific information is simultaneously sent
to your smartphone. Depending on the type
of
integration, this includes data such as location,
day/night mode and other general information
about the vehicle. For more information, please
refer to the user instructions for the vehicle or the
audio and telematics system.
Integrating a smartphone allows you to use
its applications, such as a navigation app or
music player. No other
integration between
the smartphone and the vehicle is possible, in
particular active access to vehicle data. How the
data is processed subsequently is determined
by the supplier of the application being used.
The ability the change settings depends on the
application in question and on the operating
system installed on your smartphone.
Online services
If your vehicle is connected to a wireless
network, data can be exchanged between
your vehicle and other systems. Connection
to a wireless network is made possible
via a
transmitter located in your vehicle or a mobile
device that you have provided (e.g.

smartphone).
The online services can be used via this wireless
connection.

These include online services and
applications (apps) provided to you by the
Manufacturer or other suppliers.
Exclusive services
As regards the Manufacturer's online services,
the corresponding functions are described by
the Manufacturer in an appropriate medium
(e.g.
handbook, Manufacturer's website) and the
information about data protection is provided.
Personal data may be used for online services.
The exchange of data for this purpose takes
place over a secure connection, using for
example the Manufacturer's dedicated computer
systems. The collection, processing and use of
personal data for the development of services
are carried out solely on the basis of a legal
authorisation, for example in the case of a
legal emergency call system or a contractual
agreement or else under a consent agreement.
You can activate or deactivate the services and
functions (some may be chargeable) and, in
some cases, the vehicle's entire connection to
the wireless network. This does not include the CarM an uals 2 .c o m

264
Vehicle data recording and privacy

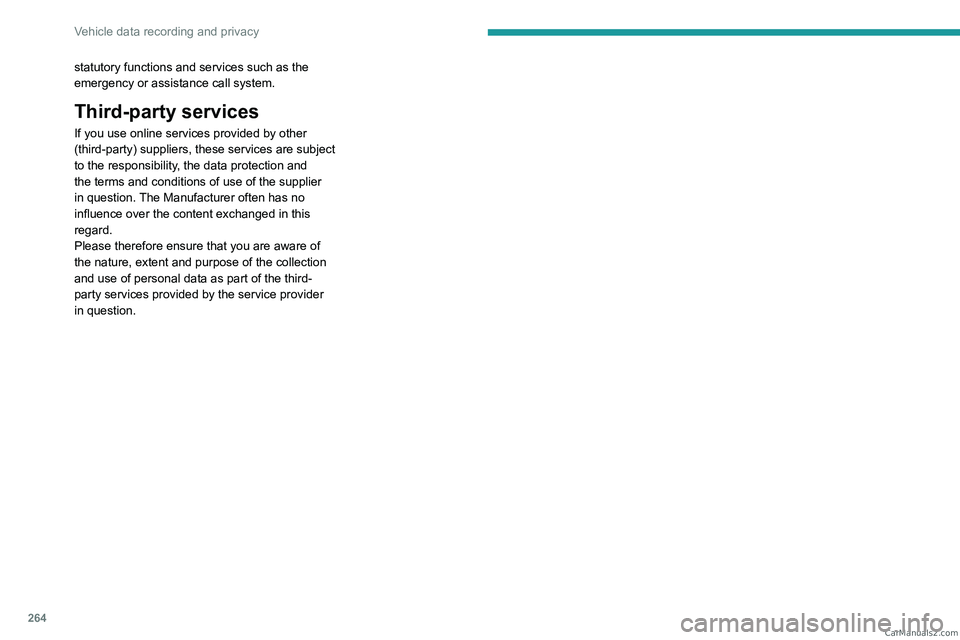

statutory functions and services such as the
emergency or assistance call system.
Third-party services
If you use online services provided by other
(third-party) suppliers, these services are subject
to the responsibility, the data protection and
the terms and conditions of use of the supplier
in question. The Manufacturer often has no
influence over the content exchanged in this
regard.
Please therefore ensure that you are aware of
the nature, extent and purpose of the collection
and use of personal data as part of the third-
party services provided by the service provider
in question. CarM an uals 2 .c o m

265

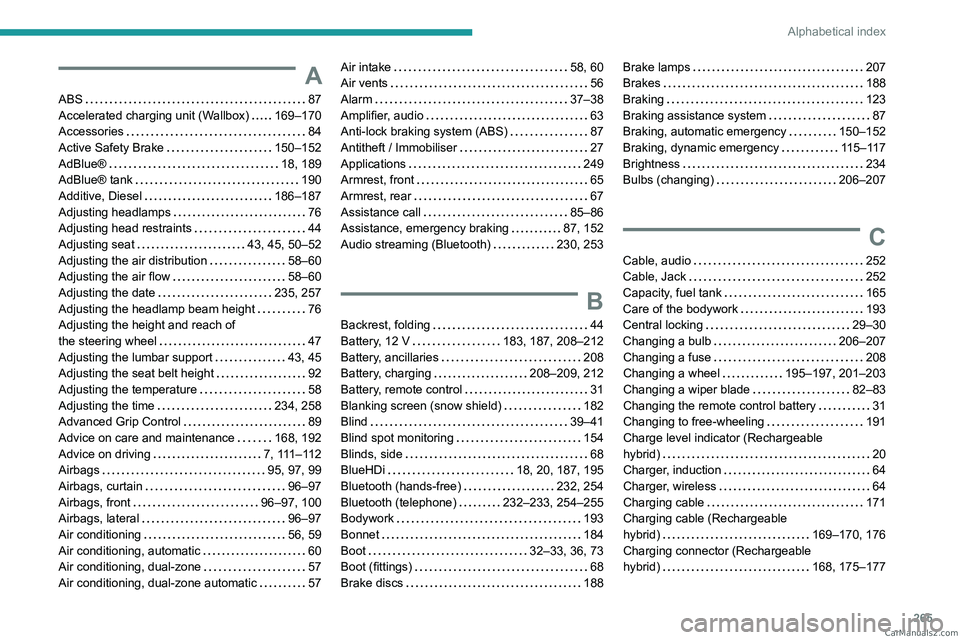

Alphabetical index
A
ABS 87
Accelerated charging unit (Wallbox)
169–170
Accessories

84
Active Safety Brake

150–152
AdBlue®

18, 189
AdBlue® tank

190
Additive, Diesel

186–187
Adjusting headlamps

76
Adjusting head restraints

44
Adjusting seat

43, 45, 50–52
Adjusting the air distribution

58–60
Adjusting the air flow

58–60
Adjusting the date

235, 257
Adjusting the headlamp beam height

76
Adjusting the height and reach of
the steering wheel

47
Adjusting the lumbar support

43, 45
Adjusting the seat belt height

92
Adjusting the temperature

58
Adjusting the time

234, 258
Advanced Grip Control

89
Advice on care and maintenance

168, 192
Advice on driving

7, 111–112
Airbags

95, 97, 99
Airbags, curtain

96–97
Airbags, front

96–97, 100
Airbags, lateral

96–97
Air conditioning

56, 59
Air conditioning, automatic

60
Air conditioning, dual-zone

57
Air conditioning, dual-zone automatic

57
Air intake 58, 60
Air vents
56
Alarm

37–38
Amplifier, audio

63
Anti-lock braking system (ABS)

87
Antitheft / Immobiliser

27
Applications

249
Armrest, front

65
Armrest, rear

67
Assistance call

85–86
Assistance, emergency braking

87, 152
Audio streaming (Bluetooth)

230, 253
B
Backrest, folding 44
Battery, 12 V
183, 187, 208–212
Battery, ancillaries

208
Battery, charging

208–209, 212
Battery, remote control

31
Blanking screen (snow shield)

182
Blind

39–41
Blind spot monitoring

154
Blinds, side

68
BlueHDi

18, 20, 187, 195
Bluetooth (hands-free)

232, 254
Bluetooth (telephone)

232–233, 254–255
Bodywork

193
Bonnet

184
Boot

32–33, 36, 73
Boot (fittings)

68
Brake discs

188
Brake lamps 207
Brakes
188
Braking

123
Braking assistance system

87
Braking, automatic emergency

150–152
Braking, dynamic emergency

115–117
Brightness

234
Bulbs (changing)

206–207
C
Cable, audio 252
Cable, Jack
252
Capacity, fuel tank

165
Care of the bodywork

193
Central locking

29–30
Changing a bulb

206–207
Changing a fuse

208
Changing a wheel

195–197, 201–203
Changing a wiper blade

82–83
Changing the remote control battery

31
Changing to free-wheeling

191
Charge level indicator (Rechargeable
hybrid)

20
Charger, induction

64
Charger, wireless

64
Charging cable

171
Charging cable (Rechargeable
hybrid)

169–170, 176
Charging connector (Rechargeable
hybrid)

168, 175–177 CarM an uals 2 .c o m

266
Alphabetical index
Charging flap (Rechargeable
hybrid)
168, 175–177
Charging the traction battery
(Rechargeable hybrid)

19, 167, 175–177
CHECK

20
Checking the engine oil level

17
Checking the levels

185–186
Checking tyre pressures
(using the kit)

198, 200
Checks

185–186, 187–189
Checks, routine

187–188
Child lock

109
Children

94, 101–102, 105–106, 108
Children (safety)

109
Child seats

94, 97–101, 107, 108
Child seats, conventional

100–101
Child seats, i-Size

108
Child seats, ISOFIX

102, 104–105
Cleaning (advice)

168, 192–194
Closing the boot

29, 33
Closing the doors

29, 32
Collision Risk Alert

150–151
Configurations, seats

55
Configuration, vehicle

23–24
Connected applications

249
Connection, Android Auto

249
Connection, Apple CarPlay

231, 248
Connection, Bluetooth

232–233,
249–250, 254–255
Connection, MirrorLink

231
Connection, Wi-Fi network

250
Connectivity

248
Consumptions

24Container, AdBlue® 190
Control, emergency boot release
33
Control, emergency door

30–31
Control, heated seats

46
Controls, steering mounted

118, 121–123
Control stalk, lighting

74–75
Control stalk, wipers

80–82
Control unit

169–171, 176
Courtesy lamps

66
Cruise control

131, 134, 137–139
Cruise control, adaptive

139
Cruise control, adaptive with Stop function

134
Cruise control by speed limit recognition

134
Cup holder

62
D
DAB (Digital Audio Broadcasting) -
Digital radio
229, 252
Date (setting)

235, 257
Daytime running lamps

75, 207
Deactivating the passenger airbag

96, 99–100
Deadlocking

27, 29
Deferred charging

24, 176
Deferred charging (Rechargeable
hybrid)

23–24, 168, 175
Defrosting

48, 60
Defrosting, front

60
Defrosting, rear screen

61
Demisting

48, 60
Demisting, front

60
Demisting, rear

61
Dials and gauges 9
Digital instrument panel
9–10
Dimensions

222
Dipstick

17, 185
Direction indicators (turn signals)

75, 207
Domestic charging

171
Domestic charging (Rechargeable
hybrid)

176–177
Door pockets

62
Doors

32
Drive Assist Plus

139
Driver’s attention warning

153
Driving

42–43, 111–112
Driving aids camera (warnings)

130
Driving aids (recommendations)

130
Driving economically

7
Driving modes

89–90, 125
Driving positions (storing)

45–46
Dynamic stability control (DSC)

88, 90
E
EBFD 87
Eco-driving (advice)
7
ECO mode

125
Electric windows

38
Electronic brake force distribution (EBFD)

87
Emergency braking assistance (EBA)

87
Emergency call

85–86
Emergency switching off

11 4
Emergency warning lamps

84, 195
Emissions control system, SCR

19, 189 CarM an uals 2 .c o m

267

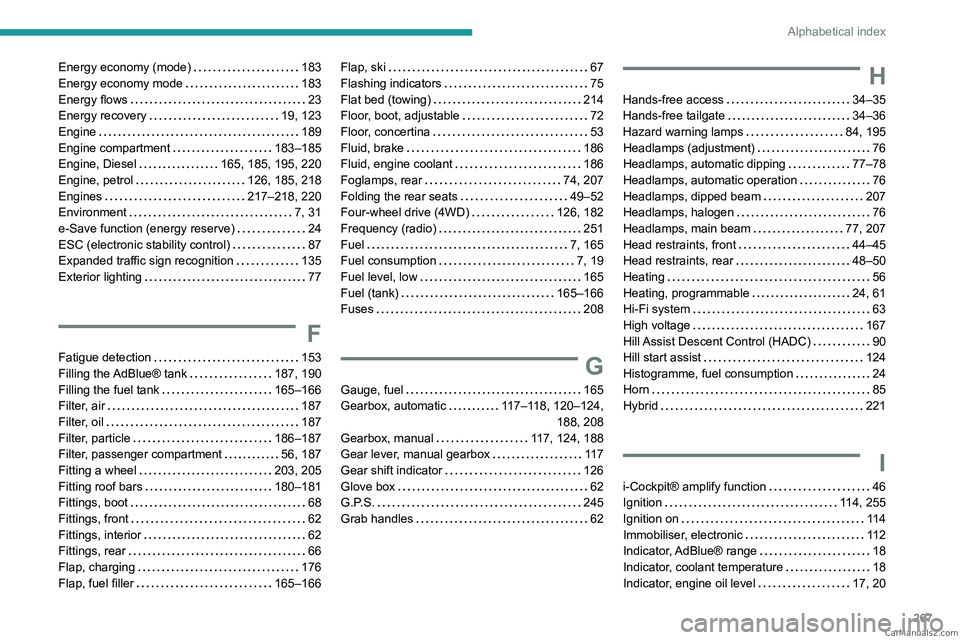

Alphabetical index
Energy economy (mode) 183
Energy economy mode
183
Energy flows

23
Energy recovery

19, 123
Engine

189
Engine compartment

183–185
Engine, Diesel

165, 185, 195, 220
Engine, petrol

126, 185, 218
Engines

217–218, 220
Environment

7, 31
e-Save function (energy reserve)

24
ESC (electronic stability control)

87
Expanded traffic sign recognition

135
Exterior lighting

77
F
Fatigue detection 153
Filling the AdBlue® tank
187, 190
Filling the fuel tank

165–166
Filter, air

187
Filter, oil

187
Filter, particle

186–187
Filter, passenger compartment

56, 187
Fitting a wheel

203, 205
Fitting roof bars

180–181
Fittings, boot

68
Fittings, front

62
Fittings, interior

62
Fittings, rear

66
Flap, charging

176
Flap, fuel filler

165–166
Flap, ski 67
Flashing indicators
75
Flat bed (towing)

214
Floor, boot, adjustable

72
Floor, concertina

53
Fluid, brake

186
Fluid, engine coolant

186
Foglamps, rear

74, 207
Folding the rear seats

49–52
Four-wheel drive (4WD)

126, 182
Frequency (radio)

251
Fuel

7, 165
Fuel consumption

7, 19
Fuel level, low

165
Fuel (tank)

165–166
Fuses

208
G
Gauge, fuel 165
Gearbox, automatic
117–118, 120–124, 188, 208
Gearbox, manual

117, 124, 188
Gear lever, manual gearbox

11 7
Gear shift indicator

126
Glove box

62
G.P.S.

245
Grab handles

62
H
Hands-free access 34–35
Hands-free tailgate
34–36
Hazard warning lamps

84, 195
Headlamps (adjustment)

76
Headlamps, automatic dipping

77–78
Headlamps, automatic operation

76
Headlamps, dipped beam

207
Headlamps, halogen

76
Headlamps, main beam

77, 207
Head restraints, front

44–45
Head restraints, rear

48–50
Heating

56
Heating, programmable

24, 61
Hi-Fi system

63
High voltage

167
Hill Assist Descent Control (HADC)

90
Hill start assist

124
Histogramme, fuel consumption

24
Horn

85
Hybrid

221
I
i-Cockpit® amplify function 46
Ignition
114, 255
Ignition on

11 4
Immobiliser, electronic

11 2
Indicator, AdBlue® range

18
Indicator, coolant temperature

18
Indicator, engine oil level

17, 20 CarM an uals 2 .c o m

268

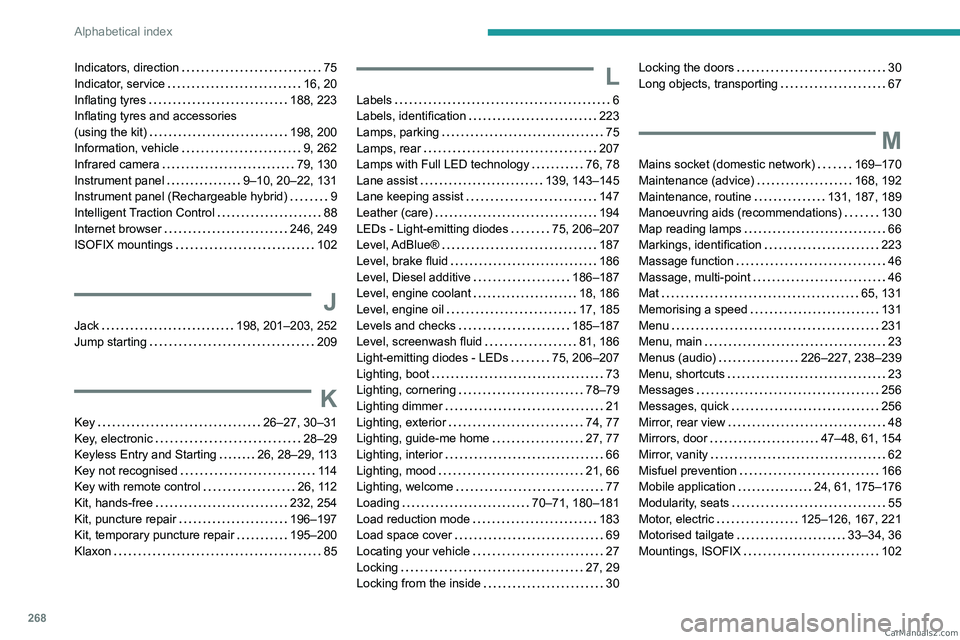

Alphabetical index
Indicators, direction 75
Indicator, service
16, 20
Inflating tyres

188, 223
Inflating tyres and accessories
(using the kit)

198, 200
Information, vehicle

9, 262
Infrared camera

79, 130
Instrument panel

9–10, 20–22, 131
Instrument panel (Rechargeable hybrid)

9
Intelligent Traction Control

88
Internet browser

246, 249
ISOFIX mountings

102
J
Jack 198, 201–203, 252
Jump starting
209
K
Key 26–27, 30–31
Key, electronic
28–29
Keyless Entry and Starting

26, 28–29, 113
Key not recognised

11 4
Key with remote control

26, 112
Kit, hands-free

232, 254
Kit, puncture repair

196–197
Kit, temporary puncture repair

195–200
Klaxon

85
L
Labels 6
Labels, identification
223
Lamps, parking

75
Lamps, rear

207
Lamps with Full LED technology

76, 78
Lane assist

139, 143–145
Lane keeping assist

147
Leather (care)

194
LEDs - Light-emitting diodes

75, 206–207
Level, AdBlue®

187
Level, brake fluid

186
Level, Diesel additive

186–187
Level, engine coolant

18, 186
Level, engine oil

17, 185
Levels and checks

185–187
Level, screenwash fluid

81, 186
Light-emitting diodes - LEDs

75, 206–207
Lighting, boot

73
Lighting, cornering

78–79
Lighting dimmer

21
Lighting, exterior

74, 77
Lighting, guide-me home

27, 77
Lighting, interior

66
Lighting, mood

21, 66
Lighting, welcome

77
Loading

70–71, 180–181
Load reduction mode

183
Load space cover

69
Locating your vehicle

27
Locking

27, 29
Locking from the inside

30
Locking the doors 30
Long objects, transporting
67
M
Mains socket (domestic network) 169–170
Maintenance (advice)
168, 192
Maintenance, routine

131, 187, 189
Manoeuvring aids (recommendations)

130
Map reading lamps

66
Markings, identification

223
Massage function

46
Massage, multi-point

46
Mat

65, 131
Memorising a speed

131
Menu

231
Menu, main

23
Menus (audio)

226–227, 238–239
Menu, shortcuts

23
Messages

256
Messages, quick

256
Mirror, rear view

48
Mirrors, door

47–48, 61, 154
Mirror, vanity

62
Misfuel prevention

166
Mobile application

24, 61, 175–176
Modularity, seats

55
Motor, electric

125–126, 167, 221
Motorised tailgate

33–34, 36
Mountings, ISOFIX

102 CarM an uals 2 .c o m
