Access

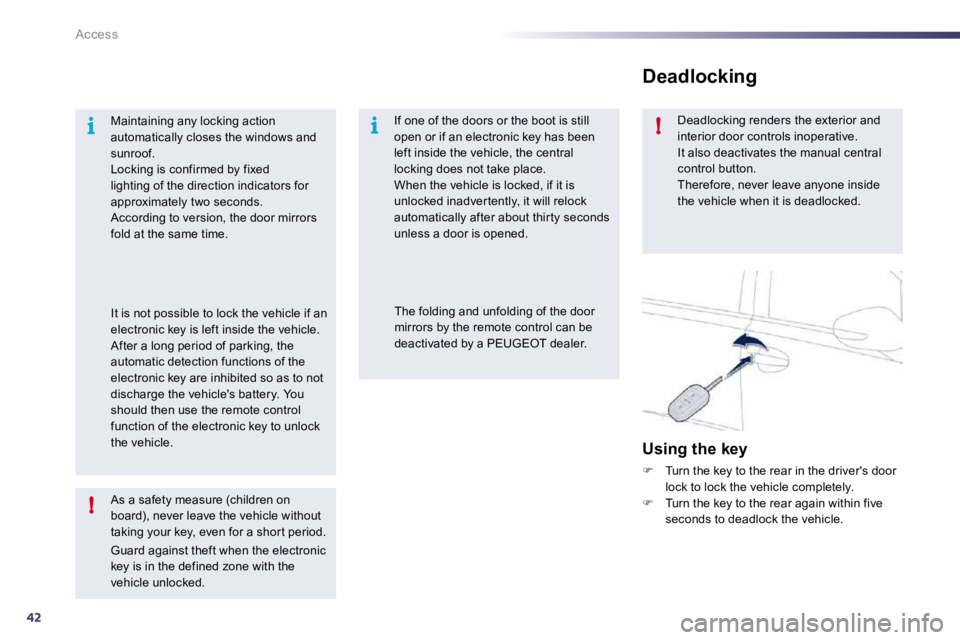

As a safety measure (children on board), never leave the vehicle without taking your key, even for a shor t period.
Guard against theft when the electronic key is in the defined zone with the vehicle unlocked.
Maintaining any locking action automatically closes the windows and sunroof. Locking is confirmed by fixed lighting of the direction indicators for approximately two seconds. According to version, the door mirrors fold at the same time.
If one of the doors or the boot is still open or if an electronic key has been left inside the vehicle, the central locking does not take place. When the vehicle is locked, if it is unlocked inadver tently, it will relock automatically after about thir ty seconds unless a door is opened.
It is not possible to lock the vehicle if an electronic key is left inside the vehicle. After a long period of parking, the automatic detection functions of the electronic key are inhibited so as to not discharge the vehicle's battery. You should then use the remote control function of the electronic key to unlock the vehicle.
The folding and unfolding of the door mirrors by the remote control can be deactivated by a PEUGEOT dealer.
Deadlocking
Deadlocking renders the exterior and interior door controls inoperative. It also deactivates the manual central control button. Therefore, never leave anyone inside the vehicle when it is deadlocked.
Using the key
 Turn the key to the rear in the driver's door lock to lock the vehicle completely.  Turn the key to the rear again within five seconds to deadlock the vehicle.

243i
Access
lighting of the direction indicators for approximately two seconds.
Using the remote control
 Press the closed padlock to lock the vehicle completely or press the closed padlock for more than two seconds to close the windows automatically in addition to locking.
Using the electronic key

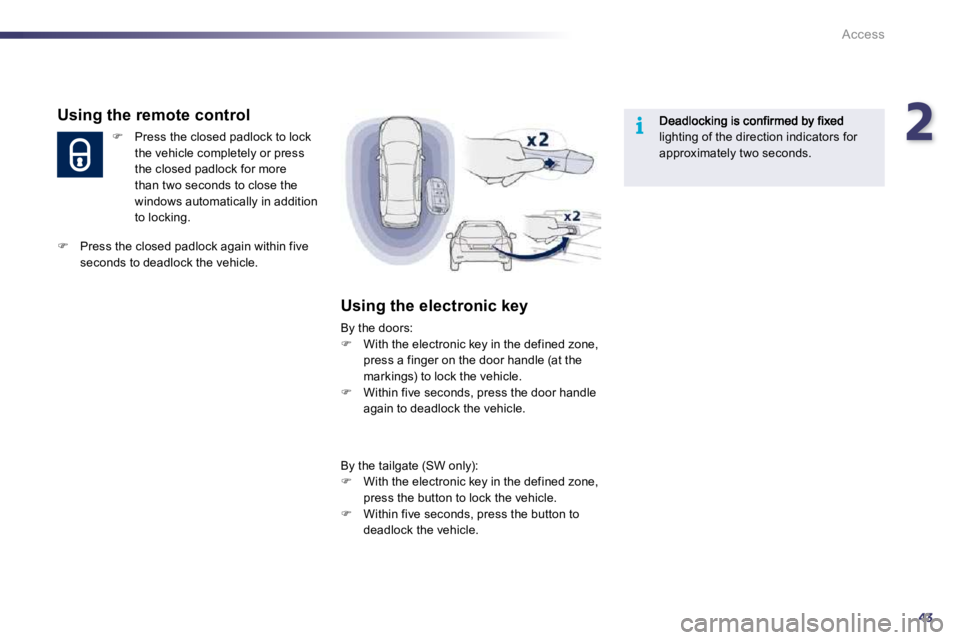

By the doors:  With the electronic key in the defined zone, press a finger on the door handle (at the markings) to lock the vehicle.  Within five seconds, press the door handle again to deadlock the vehicle.
By the tailgate (SW only):  With the electronic key in the defined zone, press the button to lock the vehicle.  Within five seconds, press the button to deadlock the vehicle.
 Press the closed padlock again within five seconds to deadlock the vehicle.

245
Access

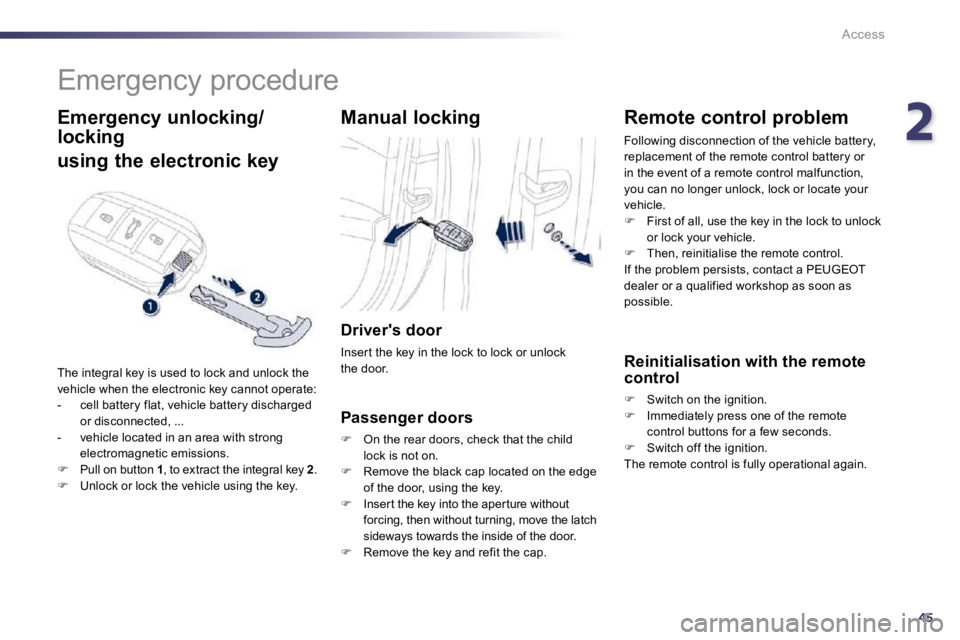

Emergency procedure
Emergency unlocking/
locking
using the electronic key
The integral key is used to lock and unlock the vehicle when the electronic key cannot operate: - cell battery flat, vehicle battery discharged or disconnected, ... - vehicle located in an area with strong electromagnetic emissions.  Pull on button 1 , to extract the integral key 2 .  Unlock or lock the vehicle using the key.
Manual locking
Driver's door
Inser t the key in the lock to lock or unlock the door.
Passenger doors
 On the rear doors, check that the child lock is not on.  Remove the black cap located on the edge
of the door, using the key.  Insert the key into the aperture without forcing, then without turning, move the latch
sideways towards the inside of the door.  Remove the key and refit the cap.
Remote control problem
Following disconnection of the vehicle battery, replacement of the remote control battery or in the event of a remote control malfunction, you can no longer unlock, lock or locate your vehicle.  First of all, use the key in the lock to unlock or lock your vehicle.  Then, reinitialise the remote control. If the problem persists, contact a PEUGEOT dealer or a qualified workshop as soon as possible.
Reinitialisation with the remote control
 Switch on the ignition.  Immediately press one of the remote control buttons for a few seconds.  Switch off the ignition. The remote control is fully operational again.

46
Access

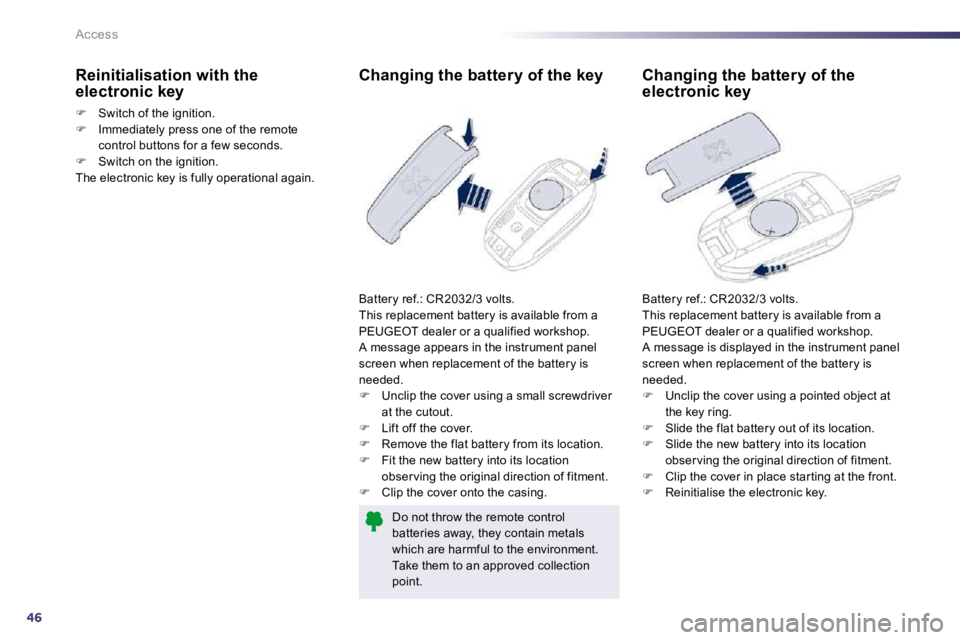

Changing the battery of the key
Battery ref.: CR2032/3 volts. This replacement battery is available from a PEUGEOT dealer or a qualified workshop. A message appears in the instrument panel screen when replacement of the battery is needed.  Unclip the cover using a small screwdriver at the cutout.  Lift off the cover.
 Remove the flat battery from its location.  Fit the new battery into its location obser ving the original direction of fitment.  Clip the cover onto the casing.
Do not throw the remote control batteries away, they contain metals which are harmful to the environment. Take them to an approved collection point.
Reinitialisation with the electronic key
 Switch of the ignition.  Immediately press one of the remote control buttons for a few seconds.  Switch on the ignition. The electronic key is fully operational again.
Changing the battery of the electronic key
Battery ref.: CR2032/3 volts. This replacement battery is available from a PEUGEOT dealer or a qualified workshop. A message is displayed in the instrument panel screen when replacement of the battery is needed.  Unclip the cover using a pointed object at the key ring.  Slide the flat battery out of its location.
 Slide the new battery into its location obser ving the original direction of fitment.  Clip the cover in place star ting at the front.  Reinitialise the electronic key.

46
Access
Changing the battery of the key
Battery ref.: CR2032/3 volts. This replacement battery is available from a PEUGEOT dealer or a qualified workshop. A message appears in the instrument panel screen when replacement of the battery is needed.  Unclip the cover using a small screwdriver at the cutout.  Lift off the cover.
 Remove the flat battery from its location.  Fit the new battery into its location obser ving the original direction of fitment.  Clip the cover onto the casing.
Do not throw the remote control batteries away, they contain metals which are harmful to the environment. Take them to an approved collection point.
Reinitialisation with the electronic key
 Switch of the ignition.  Immediately press one of the remote control buttons for a few seconds.  Switch on the ignition. The electronic key is fully operational again.
Changing the battery of the electronic key
Battery ref.: CR2032/3 volts. This replacement battery is available from a PEUGEOT dealer or a qualified workshop. A message is displayed in the instrument panel screen when replacement of the battery is needed.  Unclip the cover using a pointed object at the key ring.  Slide the flat battery out of its location.
 Slide the new battery into its location obser ving the original direction of fitment.  Clip the cover in place star ting at the front.  Reinitialise the electronic key.

48
!
Access

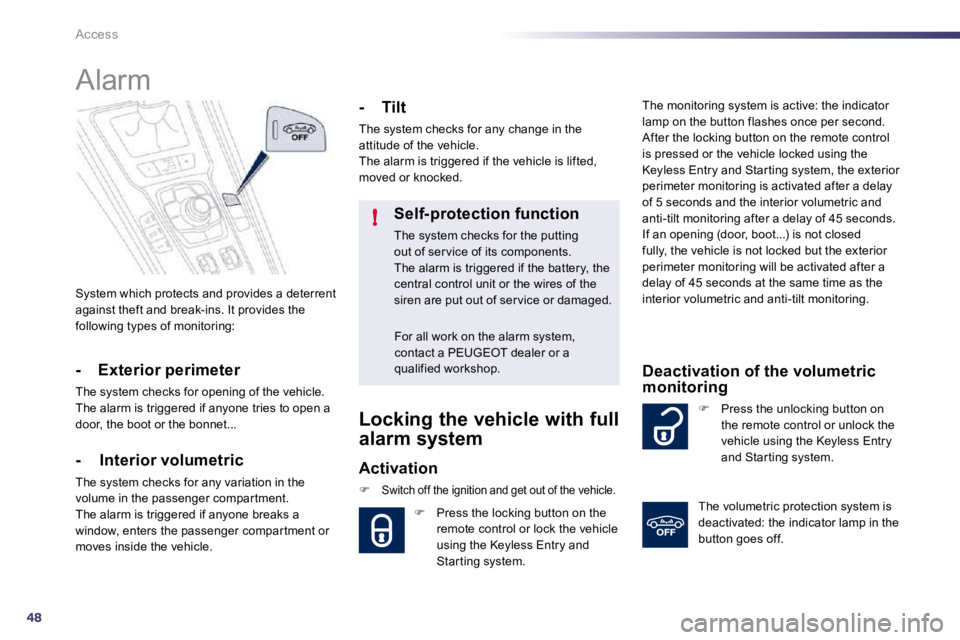

System which protects and provides a deterrent against theft and break-ins. It provides the following types of monitoring:
Alarm
- Exterior perimeter
The system checks for opening of the vehicle. The alarm is triggered if anyone tries to open a door, the boot or the bonnet...
- Interior volumetric
The system checks for any variation in the volume in the passenger compar tment. The alarm is triggered if anyone breaks a window, enters the passenger compar tment or moves inside the vehicle.
- Tilt
The system checks for any change in the attitude of the vehicle. The alarm is triggered if the vehicle is lifted, moved or knocked.
Self-protection function
The system checks for the putting out of ser vice of its components. The alarm is triggered if the battery, the central control unit or the wires of the siren are put out of ser vice or damaged.
For all work on the alarm system, contact a PEUGEOT dealer or a qualified workshop.
Locking the vehicle with full
alarm system
Activation
Switch off the ignition and get out of the vehicle.
 Press the locking button on the remote control or lock the vehicle
using the Keyless Entry and Star ting system.
The monitoring system is active: the indicator lamp on the button flashes once per second. After the locking button on the remote control is pressed or the vehicle locked using the Keyless Entry and Star ting system, the exterior perimeter monitoring is activated after a delay of 5 seconds and the interior volumetric and anti-tilt monitoring after a delay of 45 seconds.
If an opening (door, boot...) is not closed fully, the vehicle is not locked but the exterior perimeter monitoring will be activated after a delay of 45 seconds at the same time as the interior volumetric and anti-tilt monitoring.
 Press the unlocking button on the remote control or unlock the vehicle using the Keyless Entry and Star ting system.
Deactivation of the volumetric monitoring
The volumetric protection system is deactivated: the indicator lamp in the button goes off.

249
Access
Locking the vehicle
with exterior perimeter
monitoring only
Deactivate the interior volumetric and anti-lift monitoring to avoid unwanted triggering of the alarm in cer tain cases such as: - leaving a window par tially open, - washing your vehicle, - changing a wheel, - having your vehicle towed, - transpor tation by sea.
Deactivation of the interior volumetric and anti-tilt monitoring
 Switch of the ignition and within ten seconds, press this button until the indicator lamp is on continuously.  Get out of the vehicle.
 Press the locking button on the remote control immediately
or lock the vehicle using the Keyless Entry and Star ting system.
The exterior perimeter monitoring alone is activated: the indicator lamp in the button flashes once per second. To be effective, this deactivation must be carried out each time the ignition is switched off.
Reactivation of the interior volumetric and anti-tilt monitoring
Triggering of the alarm
This is indicated by sounding of the siren and flashing of the direction indicators for thirty sec onds. The monitoring functions remain active until the alarm has been triggered eleven times in succession.
 Press the unlocking button on the remote control or unlock the vehicle using the Keyless Entry and Star ting system to deactivate the exterior perimeter monitoring.
 Press the locking button on the remote control or lock the vehicle using the Keyless Entry and Star ting system to activate all the monitoring functions.
The indicator lamp in the button again flashes once per second.
When the vehicle is unlocked using the remote control or unlocked using the Keyless Entry and Star ting system, rapid flashing of the indicator lamp in the button informs you that the alarm was triggered during your absence. When the ignition is switched on, this flashing stops immediately.
Failure of the remote control
To deactivate the monitoring functions:
 Unlock the vehicle using the key in the driver's door lock.  Open the door; the alarm is triggered.  Switch on the ignition; the alarm stops. The indicator lamp in the button switches off.
Locking the vehicle without
activating the alarm
 Lock or deadlock the vehicle using the key in the driver's door lock.
Operating fault
When the ignition is switched on, fixed illumination of the indicator lamp in the button indicates a fault in the system. Have it checked by a PEUGEOT dealer or a qualified workshop.
* According to country.
Automatic activation *
2 minutes after the last door or the boot is closed, the system is activated automatically.  To avoid triggering the alarm on entering the vehicle, first press the unlocking button on the remote control or unlock the vehicle using the Keyless Entry and Star ting system.

50
Access
Electric windows

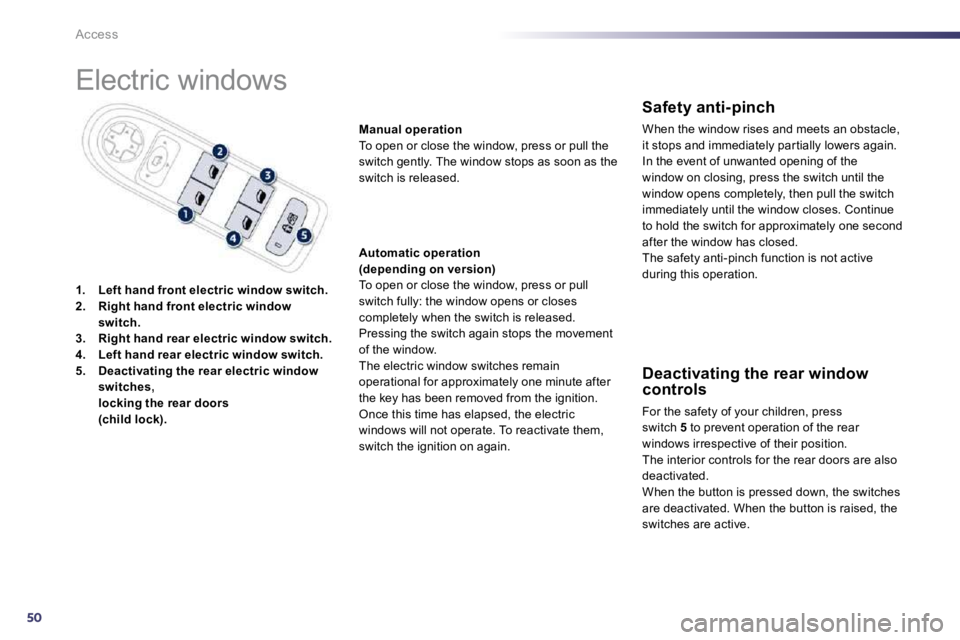

1. Left hand front electric window switch.2. Right hand front electric window switch.3. Right hand rear electric window switch.4. Left hand rear electric window switch.5. Deactivating the rear electric window switches,locking the rear doors(child lock).
Manual operation To open or close the window, press or pull the switch gently. The window stops as soon as the switch is released.
Automatic operation (depending on version) To open or close the window, press or pull switch fully: the window opens or closes completely when the switch is released. Pressing the switch again stops the movement of the window. The electric window switches remain operational for approximately one minute after the key has been removed from the ignition. Once this time has elapsed, the electric windows will not operate. To reactivate them, switch the ignition on again.
Safety anti-pinch
When the window rises and meets an obstacle, it stops and immediately par tially lowers again. In the event of unwanted opening of the window on closing, press the switch until the window opens completely, then pull the switch immediately until the window closes. Continue to hold the switch for approximately one second after the window has closed. The safety anti-pinch function is not active during this operation.
Deactivating the rear window controls
For the safety of your children, press switch 5 to prevent operation of the rear windows irrespective of their position. The interior controls for the rear doors are also deactivated. When the button is pressed down, the switches are deactivated. When the button is raised, the switches are active.

251
!
Access
Reinitialisation of
the electric windows
Always remove the key from the ignition when leaving the vehicle, even for a shor t time. In the event of contact during operation
of the windows, you must reverse the movement of the window. To do this, press the switch concerned. When operating the passenger electric window switches, the driver must ensure that no one is preventing correct closing of the windows. The driver must ensure that the passengers use the electric windows correctly. Be aware of children when operating the windows.
Following reconnection of the battery, the safety anti-pinch function must be reinitialised. The safety anti-pinch function is not active during these operations: - lower the window completely, then raise it, it will rise in steps of a few centimetres each time the switch is pressed. Repeat the operation until the window closes completely, - continue to press the switch for at least one 2 second after reaching this position, window closed.

52
Access

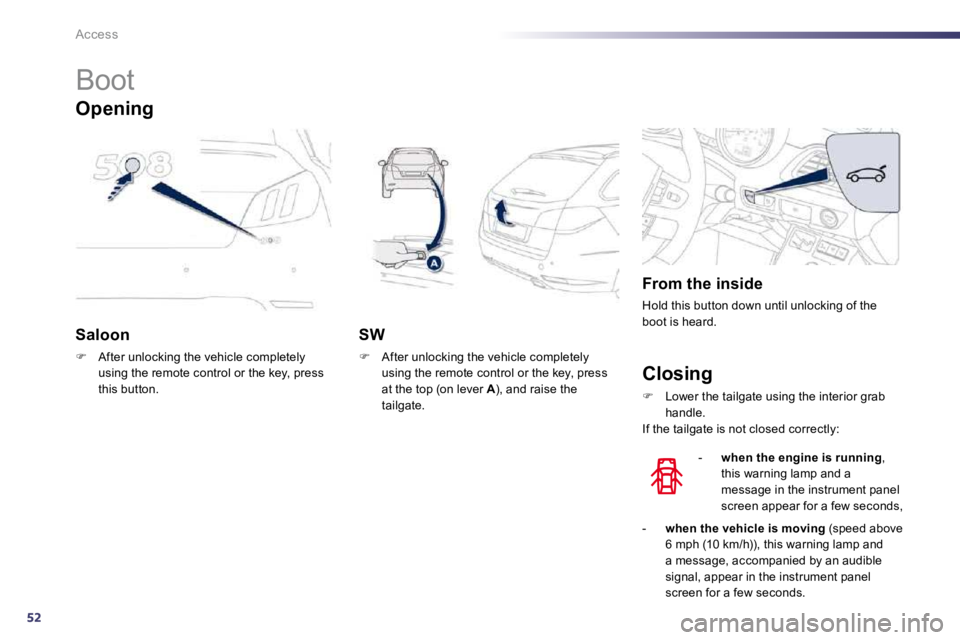

Boot
Saloon
 After unlocking the vehicle completely using the remote control or the key, press this button.
SW
 After unlocking the vehicle completely using the remote control or the key, press at the top (on lever A ), and raise the Atailgate.
From the inside
Hold this button down until unlocking of the boot is heard.
Opening
Closing
 Lower the tailgate using the interior grab handle. If the tailgate is not closed correctly:
- when the engine is running , this warning lamp and a
message in the instrument panel screen appear for a few seconds,
- when the vehicle is moving (speed above 6 mph (10 km/h)), this warning lamp and a message, accompanied by an audible signal, appear in the instrument panel screen for a few seconds.
