Peugeot 508 2011 Owner's Manual - RHD (UK, Australia)

10
219
Technical data

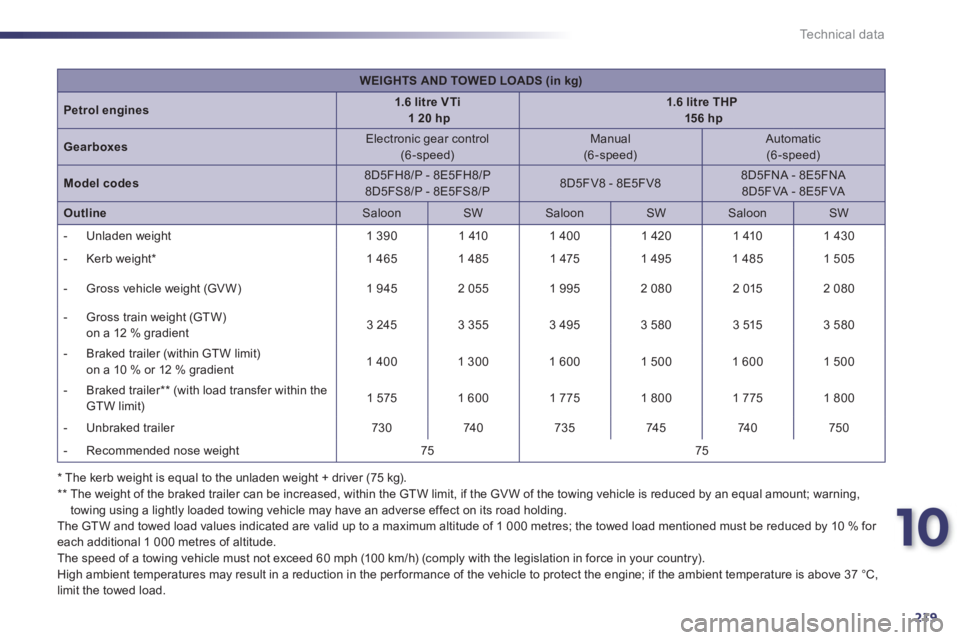

WEIGHTS AND TOWED LOADS (in kg)



Petrol engines


1.6 litre VTi

1
20 hp



1.6 litre THP

15 6 hp



Gearbox

es

Electronic gear control
(6 -speed)
Manual
(6 -speed)
Automatic
(6 -speed)

Model codes

8D5FH8/P - 8E5FH8/P
8D5FS8/P - 8E5FS8/P
8D5FV8 - 8E5FV8
8D5FNA - 8E5FNA
8D5FVA - 8E5FVA

Outline

Saloon
SW
Saloon
SW
Saloon
SW


- Unladen weight
1 390
1 410
1 400
1 420
1 410
1 430


- Kerb weight *

1 465
1 485
1 475
1 495

1 485
1 505


- Gross vehicle weight (GV W)
1 945
2 055
1 995
2 080
2 015
2 080


- Gross train weight (GTW)
on a 12 % gradient
3 245
3 355
3 495
3 580
3 515
3 580


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 400
1 300
1 600
1 500
1 600
1 500


- Braked trailer ** (with load transfer within the
GTW limit)
1 575
1 600
1 775
1 800
1 775
1 800


- Unbraked trailer
730
74 0
735
74 5
74 0
750


- Recommended nose weight
75
75

*
The kerb weight is equal to the unladen weight + driver (75 kg).

**
The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

220
Technical data

* The kerb weight is equal to the unladen weight + driver (75 kg).

** The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

WEIGHTS AND TOWED LOADS (In kg)



Petrol engine


1.6 litre THP
160 hp



Gearbox

Manual
(6 -speed)

Model code


-

Outine

Saloon
SW


- Unladen weight
-
-


- Kerb weight *

-
-


- Gross vehicle weight (GV W)
-
-


- Gross train weight (GTW)
on a 12 % gradient
-
-


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
-
-


- Braked trailer ** (with load transfer within
the GTW limit)
-
-


- Unbraked trailer
-
-


- Recommended nose weight
-
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

10
221
Technical data


ENGINES AND GEARBOXES



Diesel engine


1.6 litre HDi

110 h p



Gearbox

es

Manual
(5 -speed)
Electronic gear control
(6 -speed)

Model codes

8D9HL0 - 8E9HL0
8D9HR8/PS - 8E9HR8/PS

Outline

Saloon
SW
Saloon
SW
Cubic capacity (cc)
1 560
1 560
Bore x stroke (mm)
75 x 88.3
75 x 88,3
Max power: EU standard (kW)
82
82
Max power engine speed (rpm)
3 600
3 600
Max torque: EU standard (Nm)
240
270
Max torque engine speed (rpm)
1 750
1 750
Fuel

Diesel
Catalytic conver ter

yes
Particle emission filter

yes

OIL CAPACITIES (in litres)



Engine (with filter replacement)
3.25

222
Technical data


ENGINES AND GEARBOXES



Diesel engines


2.0 litre HDi
14 0 hp



2.0 litre HDi
163 hp



2.0 litre HDi




Gearboxes

Manual
(6 -speed)
Automatic
(6 -speed)
-

Model codes

8DRHR8 - 8ERHR8
8DRHF8 - 8ERHF8
8DRHHA - 8ERHHA
8DRHDA - 8ERHDA
-

Outline

Saloon
SW
Saloon
SW
Saloon
SW
Cubic capacity (cc)
1 997
1 997
-
Bore x stroke (mm)
85 x 88
85 x 88
-
Max power: EU standard (kW)
10 0
103
10 0
120
-
Max power engine speed (rpm)
4 000

3 750
-
Max torque: EU standard (Nm)
320
340
-
Max torque engine speed (rpm)
2 000
2 000
-
Fuel

Diesel
Catalytic conver ter

yes
Particle emission filter
yes
no

OIL CAPACITIES (in litres)






Engine (with filter replacement)
5.25
5
-

10
223
Technical data


ENGINES AND GEARBOXES



Diesel
engine


2.2 litre HDi
204 hp



Gearbox

Automatic
(6 -speed)

Model codes


8D4HLA - 8E4HLA

Outline

Saloon
SW
Cubic capacity (cc)

2 179
Bore x stroke (mm)

85 x 96
Max power: EU standard (kW)
15 0
Max power engine speed (rpm)
3 500
Max torque: EU standard (Nm)
450
Max torque engine speed (rpm)
2 000
Fuel

Diesel
Catalytic conver ter

yes
Particle emissions filter

yes

OIL
CAPACITIES (in litres)



Engine (with filter replacement)
5.25

224
Technical data

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.


*
The kerb weight is equal to the unladen weight + driver (75 kg).

**
The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

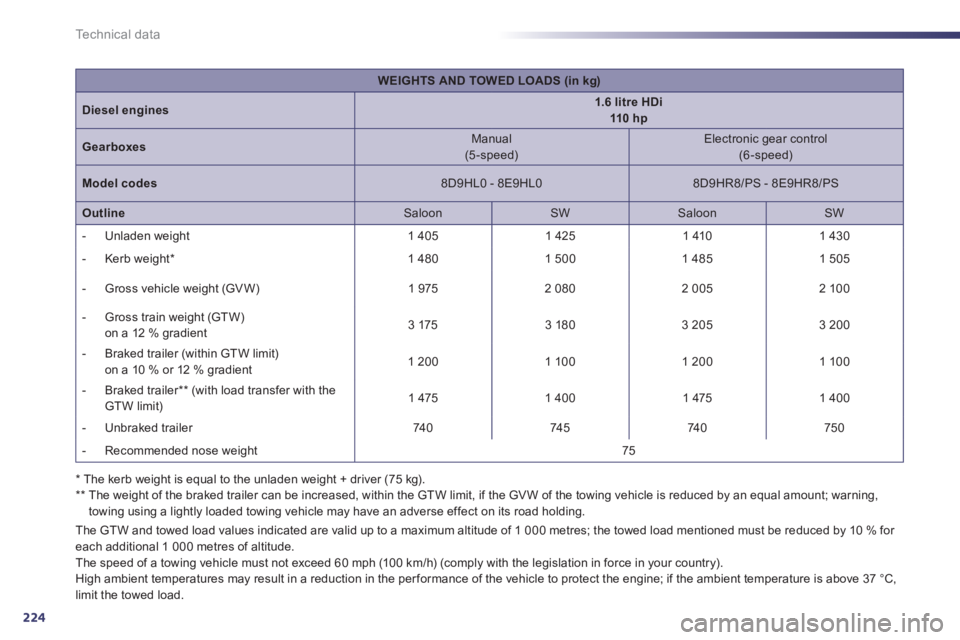

WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


1.6 litre HDi
110 h p



Gearbox

es

Manual
(5 -speed)
Electronic gear control
(6 -speed)

Model codes

8D9HL0 - 8E9HL0
8D9HR8/PS - 8E9HR8/PS

Outline

Saloon
SW
Saloon
SW


- Unladen weight
1 405
1 425
1 410
1 430


- Kerb weight *

1 480
1 500
1 485
1 505


- Gross vehicle weight (GV W)
1 975
2 080
2 005
2 100



- Gross train weight (GTW)
on a 12 % gradient
3 175
3 180
3 205
3 200


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 200
1 100
1 200
1 100


- Braked trailer ** (with load transfer with the
GTW limit)
1 475
1 400
1 475
1 400


- Unbraked trailer
74 0
74 5
74 0
750


- Recommended nose weight
75

10
225
Technical data

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.


* The kerb weight is equal to the unladen weight + driver (75 kg).

** The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


2.0 litre HDi
14 0 hp



2.0 litre HDi
163 hp



2.0 litre HDi




Gearboxes

Manual
(6 -speed)
Automatic
(6 -speed)
-

Model codes

8DRHR8 - 8ERHR8
8DRHF8 - 8ERHF8
8DRHHA - 8ERHHA
8DRHDA - 8ERHDA
-

Outline

Saloon
SW
Saloon
SW
Saloon
SW


- Unladen weight
1 430
1 500
1 520
1 540
-
-



- Kerb weight *

1 505
1 575
1 595
1 615
-
-


- Gross vehicle weight (GV W)
2 065
2 140
2 105
2 180
-
-


- Gross train weight (GTW)
on a 12 % gradient
3 565
3 640
3 205
3 180
-
-


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 600
1 500
1 300
1 200
-
-


- Braked trailer ** (with load transfer with the
GTW limit)
1 775
1 790
1 375
1 300
-
-


- Unbraked trailer
750
-


- Recommended nose weight

75

226
Technical data

* The kerb weight is equal to the unladen weight + driver (75 kg).

** The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

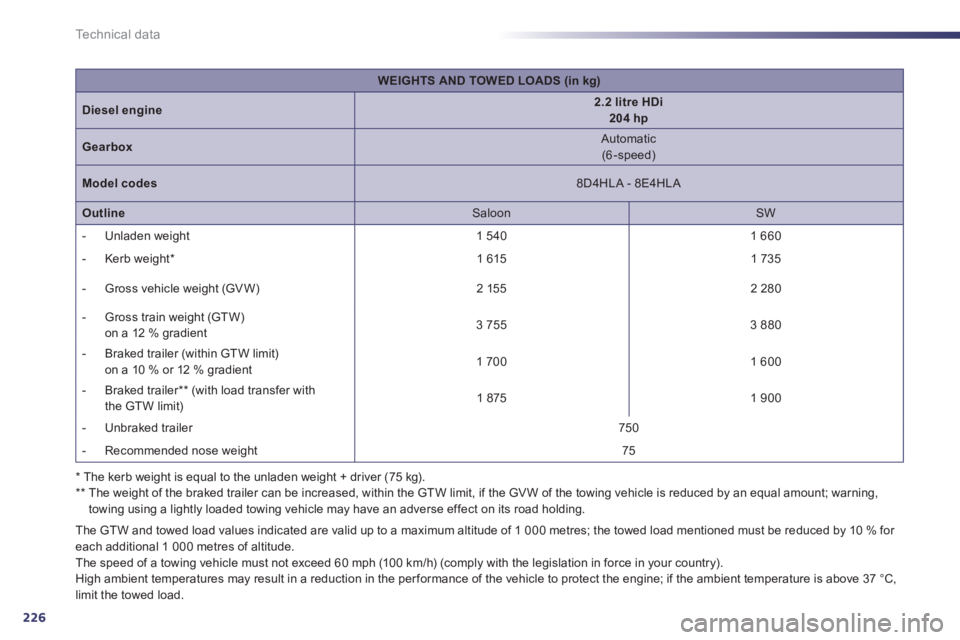

WEIGHTS AND TOWED LOADS (in kg)



Diesel engine


2.2 litre HDi
204 hp



Gearbox

Automatic
(6 -speed)

Model codes


8D4HLA - 8E4HLA

Outline

Saloon
SW


- Unladen weight
1 540
1 660


- Kerb weight *

1 615
1 735


- Gross vehicle weight (GV W)
2 155
2 280


- Gross train weight (GTW)
on a 12 % gradient
3 755
3 880


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 700
1 600


- Braked trailer **
(with load transfer with
the GTW limit)
1 875
1 900


- Unbraked trailer

750


- Recommended nose weight
75

10
227
Technical data







Berline


SW







Dimensions (in mm)

228
i
Technical data























Identifi cation markings
Various visible markings for the identification and tracing of your vehicle.



A.
Vehicle Identification Number (VIN)
under the bonnet.

This number is engraved on the bodywork
near the damper suppor t.
The tyre pressures must be checked
when the tyres are cold, at least once
a month.

If the tyre pressures are too low, this
increases fuel consumption.


B.
Vehicle identification Number (VIN) on
the windscreen lower crossmember.

This number is indicated on a self-
adhesive label which is visible through the
windscreen.
C.
Manufacturer's label.

The VIN is indicated on a self-destroying
label affixed to the door aper ture, on the
driver's side.

D.
Ty r e / p a i n t l a b e l .

This label is affixed to the door aper ture, on
the driver's side. It bears the following information:


- the tyre inflation pressures with and without
load,

- the wheel rim and tyre sizes,

- the brands of tyre recommended by the
manufacturer,

- the inflation pressure of the spare wheel,

- the paint colour code.
