Page 29 of 340
1
27
Instruments and controls
Warning/indicator lamp
State
Cause
Action/Observations
Electric parking
brake
flashing. The electric parking brake is not
applied automatically.
The application/release is faulty. You must stop as soon as it is safe to do so.
Park on level ground, switch off the ignition and
contact a PEUGEOT dealer or a qualified workshop.
Electric parking
brake fault
fixed. The electric parking brake has a fault. Contact a PEUGEOT dealer or a qualified workshop
without delay.
The parking brake can be released manually.
For more information on the electric parking brake,
refer to the "Driving" section.
Braking
fixed. The braking system fluid level has
dropped significantly. You must stop as soon as it is safe to do so.
Top up with brake fluid listed by PEUGEOT.
If the problem persists, have the system checked by a
PEUGEOT dealer or a qualified workshop.
+
fixed, associated
with the ABS warning
lamp. The electronic brake force distribution
(EBFD) system has a fault. You must stop as soon as it is safe to do so.
Have it checked by a PEUGEOT or a qualified
workshop.
Deactivation of
the automatic
functions of the
electric parking
brake
fixed. The "automatic application"
(on switching off the engine) and
"automatic release" functions are
deactivated or faulty. Activate the function (according to country) via the
vehicle configuration menu or contact a PEUGEOT
dealer or a qualified workshop if automatic application/
release is not possible.
The parking brake can be released manually using the
emergency release procedure.
For more information on the electric parking brake,
refer to the "Driving" section.
Page 30 of 340
28
Instruments and controls

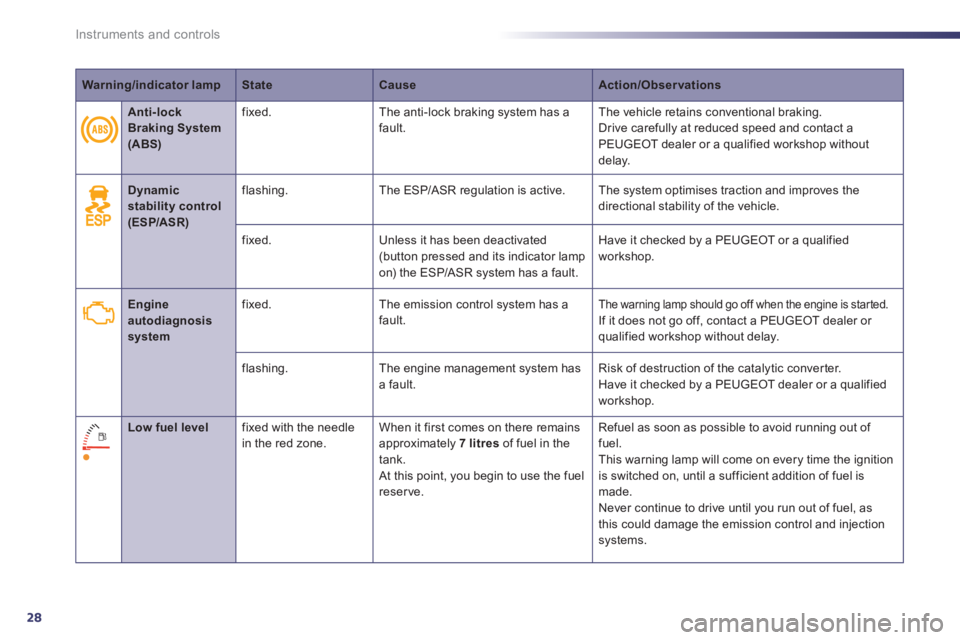

Warning/indicator lamp
State
Cause
Action/Observations
Dynamic
stability control
(ESP/ASR)
flashing. The ESP/ASR regulation is active. The system optimises traction and improves the
directional stability of the vehicle.
fixed. Unless it has been deactivated
(button pressed and its indicator lamp
on) the ESP/ASR system has a fault. Have it checked by a PEUGEOT or a qualified
workshop.
Engine
autodiagnosis
system
fixed. The emission control system has a
fault. The warning lamp should go off when the engine is star ted.
If it does not go off, contact a PEUGEOT dealer or
qualified workshop without delay.
flashing. The engine management system has
a fault. Risk of destruction of the catalytic conver ter.
Have it checked by a PEUGEOT dealer or a qualified
workshop.
Low fuel level
fixed with the needle
in the red zone. When it first comes on there remains
approximately 7 litres
of fuel in the
tank.
At this point, you begin to use the fuel
reser ve. Refuel as soon as possible to avoid running out of
fuel.
This warning lamp will come on every time the ignition
is switched on, until a sufficient addition of fuel is
made.
Never continue to drive until you run out of fuel, as
this could damage the emission control and injection
systems.
Anti-lock
Braking System
(ABS)
fixed. The anti-lock braking system has a
fault. The vehicle retains conventional braking.
Drive carefully at reduced speed and contact a
PEUGEOT dealer or a qualified workshop without
delay.
Page 38 of 340
36
Instruments and controls
System which provides current information
concerning the trip (range, fuel consumption…).
Tr i p c o m p u t e r
Instrument panel screen
Information display
)
Press the steering mounted control
to
display the various trip computer tabs in
succession.
- The current information tab
with:
●
the range,
●
the current fuel
consumption,
●
the Stop & Star t time
counter.
- The trip "1"
tab with:
●
the average speed,
for the first trip.
●
the average fuel
consumption,
●
the distance travelled,
- The trip "2"
tab with:
●
the average speed,
for the second trip.
●
the average fuel
consumption,
●
the distance travelled,
)
Or on the end of the wiper stalk.
Page 51 of 340
2
49
Access

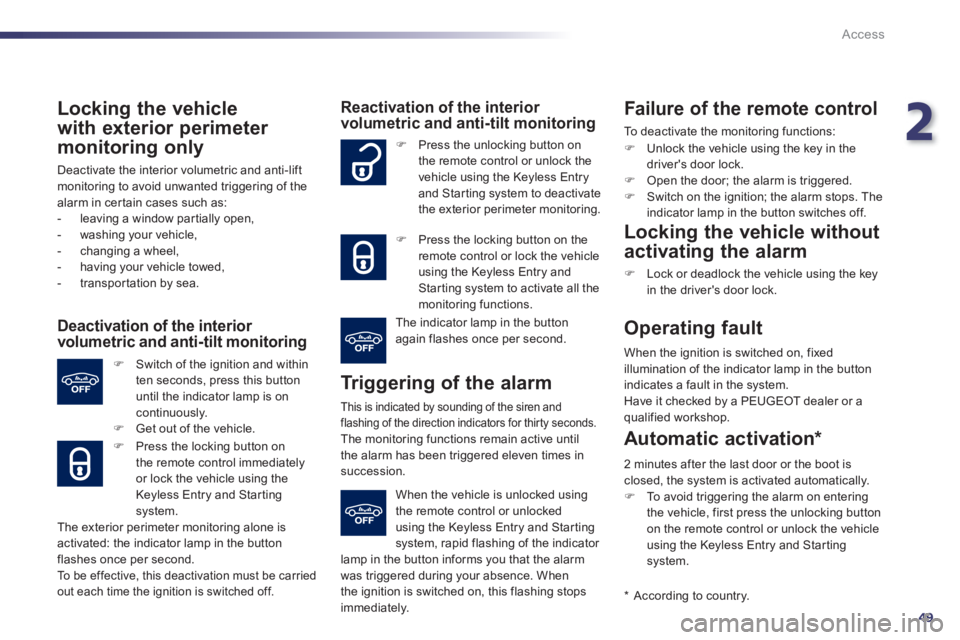

Locking the vehicle
with exterior perimeter
monitoring only
Deactivate the interior volumetric and anti-lift
monitoring to avoid unwanted triggering of the
alarm in cer tain cases such as:
- leaving a window par tially open,
- washing your vehicle,
- changing a wheel,
- having your vehicle towed,
- transpor tation by sea.
Deactivation of the interior
volumetric and anti-tilt monitoring
)
Switch of the ignition and within
ten seconds, press this button
until the indicator lamp is on
continuously.
)
Get out of the vehicle.
)
Press the locking button on
the remote control immediately
or lock the vehicle using the
Keyless Entry and Star ting
system.
The exterior perimeter monitoring alone is
activated: the indicator lamp in the button
flashes once per second.
To be effective, this deactivation must be carried
out each time the ignition is switched off.
Reactivation of the interior
volumetric and anti-tilt monitoring
Tr i g g e r i n g o f t h e a l a r m
This is indicated by sounding of the siren and
flashing of the direction indicators for thirty seconds.
The monitoring functions remain active until
the alarm has been triggered eleven times in
succession.
)
Press the unlocking button on
the remote control or unlock the
vehicle using the Keyless Entry
and Starting system to deactivate
the exterior perimeter monitoring.
)
Press the locking button on the
remote control or lock the vehicle
using the Keyless Entry and
Starting system to activate all the
monitoring functions.
The indicator lamp in the button
again flashes once per second.
When the vehicle is unlocked using
the remote control or unlocked
using the Keyless Entry and Star ting
system, rapid flashing of the indicator
lamp in the button informs you that the alarm
was triggered during your absence. When
the ignition is switched on, this flashing stops
immediately.
Failure of the remote control
To deactivate the monitoring functions:
)
Unlock the vehicle using the key in the
driver's door lock.
)
Open the door; the alarm is triggered.
)
Switch on the ignition; the alarm stops. The
indicator lamp in the button switches off.
Locking the vehicle without
activating the alarm
)
Lock or deadlock the vehicle using the key
in the driver's door lock.
Operating fault
When the ignition is switched on, fixed
illumination of the indicator lamp in the button
indicates a fault in the system.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
*
According to country.
Automatic activation *
2 minutes after the last door or the boot is
closed, the system is activated automatically.
)
To avoid triggering the alarm on entering
the vehicle, first press the unlocking button
on the remote control or unlock the vehicle
using the Keyless Entry and Star ting
system.
Page 153 of 340
6
151
!
Child safety
The incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack
relative to the child's body to a minimum,
even for shor t journeys.
When installing a child seat using the seat
belt, ensure that the seat belt is tightened
correctly on the child seat and that it secures
the child seat firmly on the seat of your
vehicle. Move the seat for wards if necessary.
For optimum installation of the "for wards-
facing" child seat, ensure that the back of
the child seat is in contact with the back of
the vehicle's seat and that the head restraint
does not cause any discomfor t.
If the head restraint has to be removed,
ensure that it is stored or attached securely
to prevent it from being thrown around the
vehicle in the event of sharp braking.
Advice on child seats
As a safety precaution, do not leave:
- a child or children alone and
unsuper vised in a vehicle,
- a child or an animal in a vehicle which
is exposed to the sun, with the windows
closed,
- the keys within reach of children inside
the vehicle.
To prevent accidental opening of the doors
and rear windows, use the "Child lock".
Take care not to open the rear windows by
more than one third.
To protect young children from the rays of
the sun, fit side blinds on the rear windows.
Children under the age of 10 must not travel
in the "for wards-facing" position on the front
passenger seat, unless the rear seats are
already occupied by other children, cannot
be used or are absent.
Deactivate the passenger airbag when a
"rear wards-facing" child seat is installed on
the front seat.
Other wise, the child would risk being
seriously injured or killed if the airbag were
to inflate.
Installing a booster seat
The chest par t of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
PEUGEOT recommends the use of a booster
seat which has a back, fitted with a seat belt
guide at shoulder level.
Page 159 of 340
7
157
i
Safety

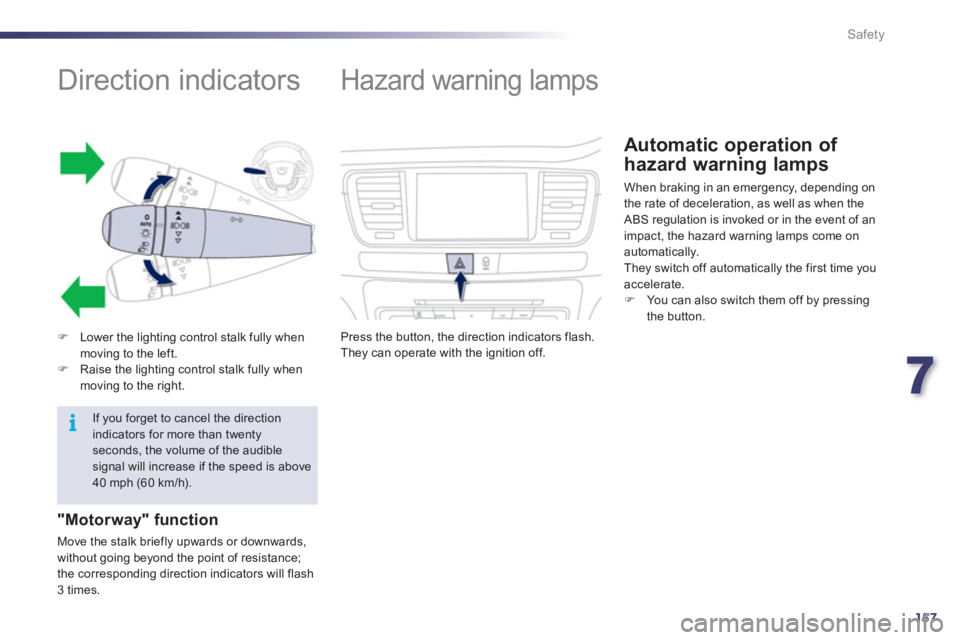

Direction indicators
)
Lower the lighting control stalk fully when
moving to the left.
)
Raise the lighting control stalk fully when
moving to the right.
"Motorway" function
Move the stalk briefly upwards or downwards,
without going beyond the point of resistance;
the corresponding direction indicators will flash
3 times.
If you forget to cancel the direction
indicators for more than twenty
seconds, the volume of the audible
signal will increase if the speed is above
40 mph (60 km/h).
Hazard warning lamps
Press the button, the direction indicators flash.
They can operate with the ignition off.
Automatic operation of
hazard warning lamps
When braking in an emergency, depending on
the rate of deceleration, as well as when the
ABS regulation is invoked or in the event of an
impact, the hazard warning lamps come on
automatically.
They switch off automatically the first time you
accelerate.
)
You can also switch them off by pressing
the button.
Page 162 of 340
160
Safety

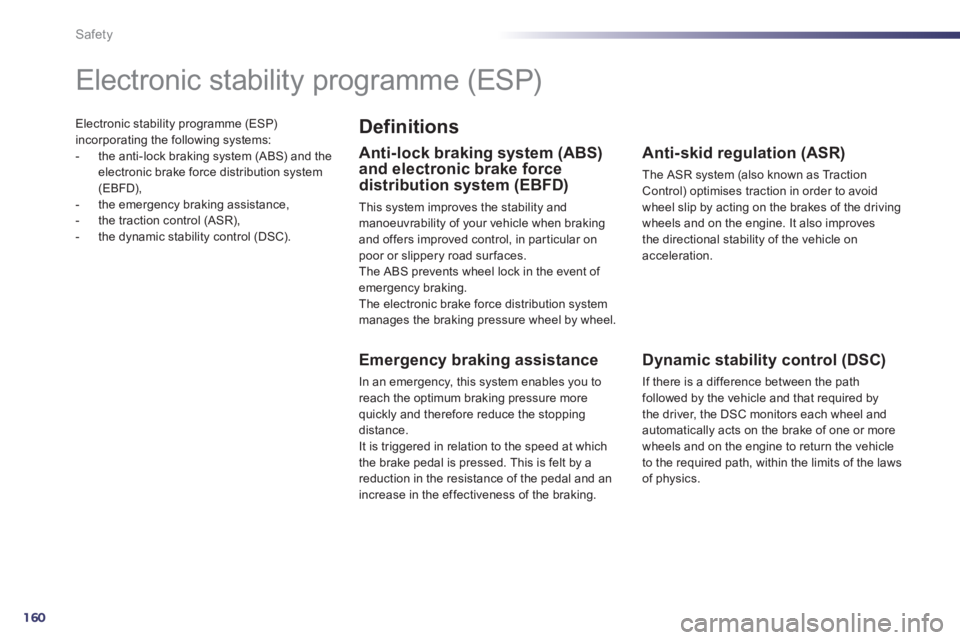

Electronic stability programme (ESP)
incorporating the following systems:
- the anti-lock braking system (ABS) and the
electronic brake force distribution system
(EBFD),
- the emergency braking assistance,
- the traction control (ASR),
- the dynamic stability control (DSC).
Electronic stability programme (ESP)
Definitions
Anti-lock braking system (ABS)
and electronic brake force
distribution system (EBFD)
This system improves the stability and
manoeuvrability of your vehicle when braking
and offers improved control, in particular on
poor or slippery road sur faces.
The ABS prevents wheel lock in the event of
emergency braking.
The electronic brake force distribution system
manages the braking pressure wheel by wheel.
Emergency braking assistance
In an emergency, this system enables you to
reach the optimum braking pressure more
quickly and therefore reduce the stopping
distance.
It is triggered in relation to the speed at which
the brake pedal is pressed. This is felt by a
reduction in the resistance of the pedal and an
increase in the effectiveness of the braking.
Anti-skid regulation (ASR)
The ASR system (also known as Traction
Control) optimises traction in order to avoid
wheel slip by acting on the brakes of the driving
wheels and on the engine. It also improves
the directional stability of the vehicle on
acceleration.
Dynamic stability control (DSC)
If there is a difference between the path
followed by the vehicle and that required by
the driver, the DSC monitors each wheel and
automatically acts on the brake of one or more
wheels and on the engine to return the vehicle
to the required path, within the limits of the laws
of physics.
Page 163 of 340
7
161
i
!
Safety
Snow driving assistance
(Intelligent Traction Control)
Your vehicle has a system to help driving on
snow: Intelligent Traction Control
.
This automatic system continuously checks
for situations of difficult sur face adhesion that
could make it difficult to move off or make
progress on deep fresh snow or compacted
snow.
In these situations, Intelligent Traction
Control
takes over from the ASR
system,
limiting the amount of wheel slip to provide
the best traction and trajectory control, even
without snow tyres and with or without chains.
In extremely severe conditions (snow on top
of ice, sand, deep mud…), it can be useful to
deactivate the ESP/ASR
systems to allow a
degree of wheel spin and so recover grip.
Operation
Anti-lock braking system (ABS)
and electronic brake force
distribution (EBFD)
In emergency braking, press
ver y firmly without releasing the
pressure.
When changing wheels (tyres and rims),
make sure that these are approved for
your vehicle.
Normal operation of the ABS may make
itself felt by slight vibrations of the brake
pedal. When this warning lamp comes on,
accompanied by an audible signal
and a message, it indicates that
there is a fault with the ABS, which
could cause loss of control of the vehicle when
braking.
When this warning lamp comes on,
coupled with the STOP
warning lamp,
accompanied by an audible signal
and a message, it indicates that
there is a fault with the electronic brake force
distribution (EBFD), which could cause loss of
control of the vehicle when braking.
You must stop as soon as it is safe to do so.
In both cases, contact a PEUGEOT dealer or a
qualified workshop.
Page 190 of 340
188
i
Practical information
1.
Brake lamps/sidelamps
(light emitting diodes - LEDs).
2.
Reversing lamps (P21W).
3.
Direction indicators (PY21W amber).
4.
Sidelamps (light emitting
diodes - LEDs).
5.
Foglamps (H21W).
Rear lamps (Saloon)
Reversing lamp, direction
indicator and foglamp bulbs
)
Open the boot, then the plastic cover.
)
Remove the two lamp unit fixing nuts.
)
Extract the lamp unit carefully from the
outside.
)
Disconnect the electrical connector.
)
Spread the six tabs and remove the bulb
holder.
)
Turn the bulb a quar ter of a turn and pull it
out.
For reassembly, carry out these operations in
reverse order.
Changing the light emitting
diode-LED lamps
For replacement, contact a PEUGEOT
dealer or qualified workshop.
Page 203 of 340
8
201
i
!
Practical information

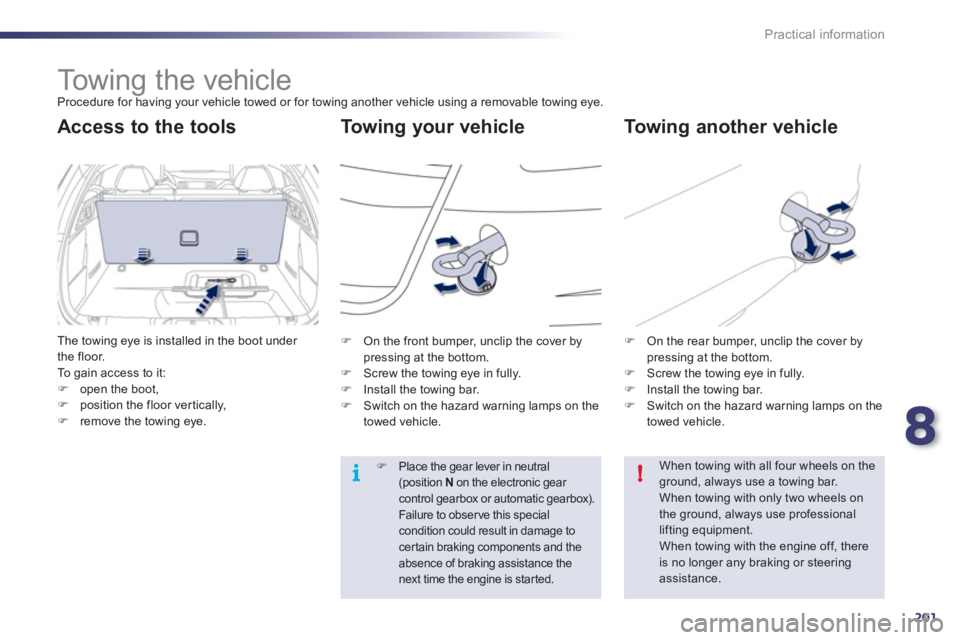

Towing the vehicle
Procedure for having your vehicle towed or for towing another vehicle using a removable towing eye.
Towing your vehicle
Towing another vehicle
Access to the tools
The towing eye is installed in the boot under
the floor.
To gain access to it:
)
open the boot,
)
position the floor ver tically,
)
remove the towing eye.
)
On the front bumper, unclip the cover by
pressing at the bottom.
)
Screw the towing eye in fully.
)
Install the towing bar.
)
Switch on the hazard warning lamps on the
towed vehicle.
)
On the rear bumper, unclip the cover by
pressing at the bottom.
)
Screw the towing eye in fully.
)
Install the towing bar.
)
Switch on the hazard warning lamps on the
towed vehicle.
When towing with all four wheels on the
ground, always use a towing bar.
When towing with only two wheels on
the ground, always use professional
lifting equipment.
When towing with the engine off, there
is no longer any braking or steering
assistance.
)
Place the gear lever in neutral
(position N
on the electronic gear
control gearbox or automatic gearbox).
Failure to obser ve this special
condition could result in damage to
cer tain braking components and the
absence of braking assistance the
next time the engine is started.
