Instruments and controls










Warning lamps

When the engine is running or the vehicle is being driven, illumination of one of the following warning lamps indicates a fault which requires action on
the par t of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated fur ther by reading the associated message in the instrument panel screen.
If you encounter any problems, contact a PEUGEOT dealer or a qualified workshop.



Warning/indicator lamp



State



Cause



Action/Observations








STOP


fixed, associated
with another warning
lamp, accompanied
by an audible signal
and a message in the
screen. It is associated with a punctured
wheel, the braking system, the power
steering, the engine oil pressure,
the engine coolant temperature or a
major electrical fault. Stop as soon as it is safe to do so as the engine may
cut out.
Park, switch off the ignition and call a PEUGEOT
dealer or a qualified workshop.





Service


on temporarily. Minor faults have occurred for which
there is no specific warning lamp. Identify the fault by reading the message shown in the
screen, such as, for example:


- the engine oil level,

- saturation of the par ticle emissions filter (Diesel).

- the power steering,

- a minor electrical fault.

- ...
For any other faults, contact a PEUGEOT dealer or a
qualified workshop.

fixed. Major faults have occurred for which
there is no specific warning lamp. Identify the fault by reading the message shown in
the screen and then contact a PEUGEOT dealer or
qualified workshop.

210
Checks
The various caps and covers allow access for
checking the levels of the various fluids and for
replacing cer tain components.

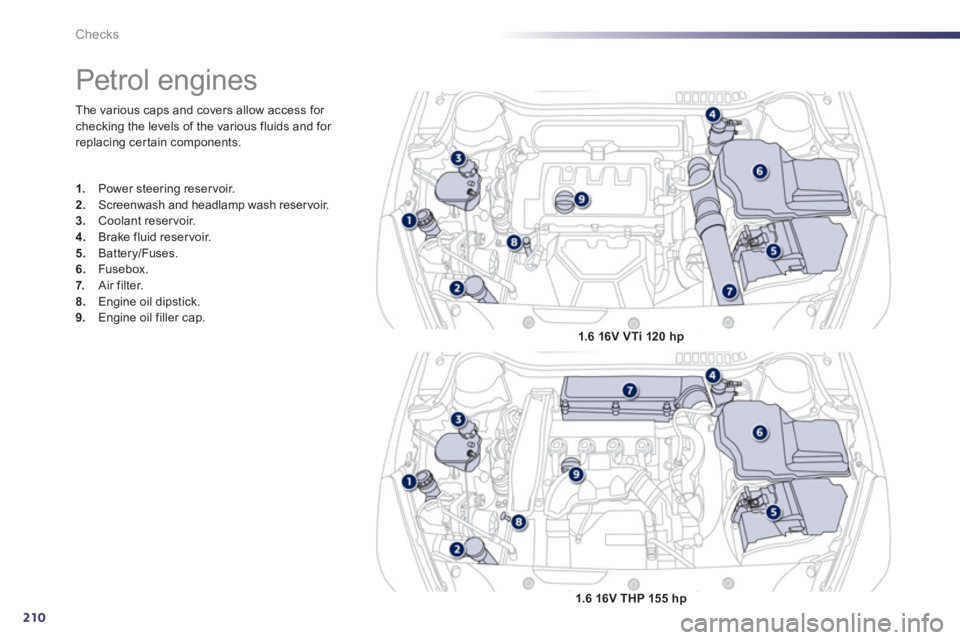

Petrol engines



1.
Power steering reservoir.

2.
Screenwash and headlamp wash reservoir.

3.
Coolant reser voir.

4.
Brake fluid reser voir.

5.
Battery/Fuses.

6.
Fusebox.

7.
Air filter.

8.
Engine oil dipstick.

9.
Engine oil filler cap.


1.6 16V VTi 120 hp


1.6 16V THP 155 hp

9
211
Checks
The various caps and covers allow access for
checking the levels of the various fluids, for
replacing cer tain components and for priming
the fuel system.

*
According to engine.

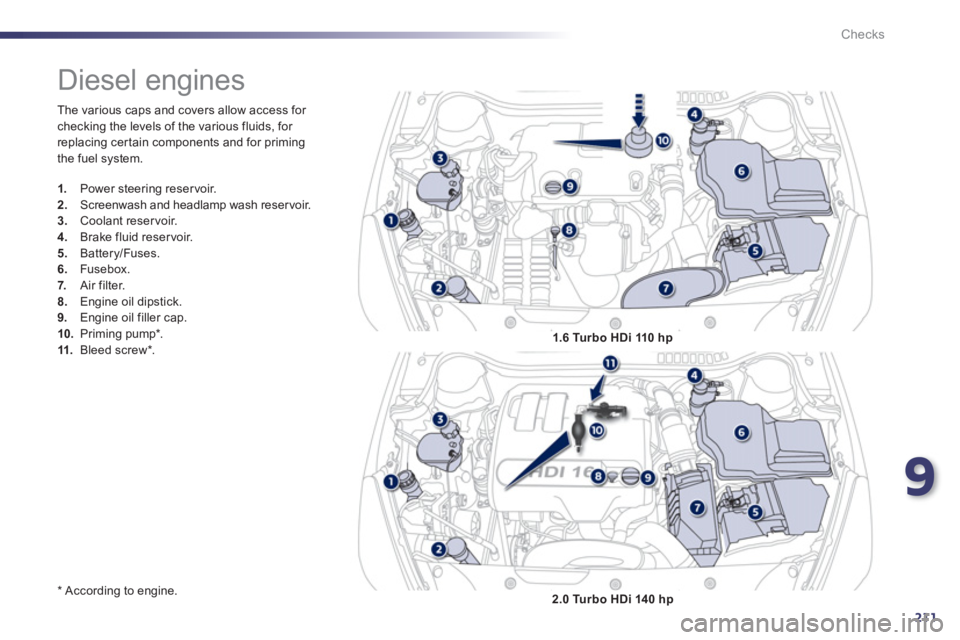

Diesel engines



1.
Power steering reservoir.

2.
Screenwash and headlamp wash reser voir.

3.
Coolant reser voir.

4.
Brake fluid reser voir.

5.
Battery/Fuses.

6.
Fusebox.

7.
Air filter.

8.
Engine oil dipstick.

9.
Engine oil filler cap.

10.
Priming pump * .

11.
Bleed screw * .

1.6 Turbo HDi 110 hp


2.0 Turbo HDi 140 hp

212
Checks
The various caps and covers allow access for
checking the levels of the various fluids, for
replacing cer tain components and for priming
the fuel system.

*
According to engine.












Diesel engines



1.
Power steering reservoir.

2.
Screenwash and headlamp wash reservoir.

3.
Coolant reser voir.

4.
Brake fluid reser voir.

5.
Battery/Fuses.

6.
Fusebox.

7.
Air filter.

8.
Engine oil dipstick.

9.
Engine oil filler cap.

10.
Priming pump * .

11.
Bleed screw * .
2.0 Turbo HDi 163 hp


2.2 Turbo HDi 200 hp

9
215
!
Checks
Avoid prolonged contact of used oil or
fluids with the skin.
Most of these fluids are harmful to
health or indeed very corrosive.
Do not discard used oil or fluids into
sewers or onto the ground.
Take used oil to a PEUGEOT dealer or
a qualified workshop (France) or to an
authorised waste disposal site.










Used products


Topping up

This additive must be topped up by a
PEUGEOT dealer or a qualified workshop
without delay.











Diesel additive level
(Diesel engine with particle
emission filter)
A low additive level is indicated by illumination
of the ser vice warning lamp, accompanied
by an audible warning and a message in the
instrument panel screen.

216
i

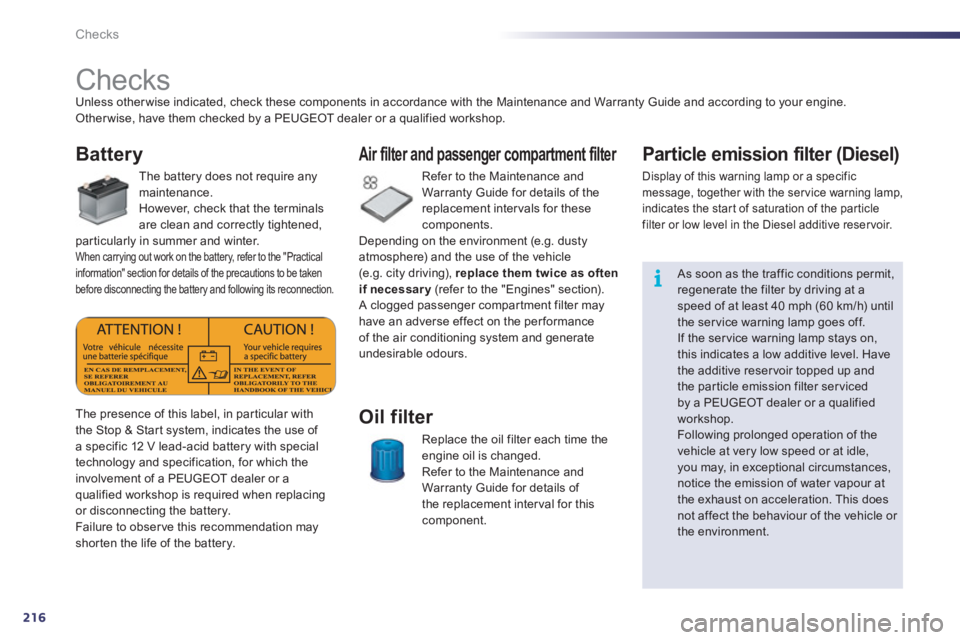

Checks





























Checks
Unless other wise indicated, check these components in accordance with the Maintenance and Warranty Guide and according to your engine.
Other wise, have them checked by a PEUGEOT dealer or a qualified workshop.


Battery

The battery does not require any
maintenance.
However, check that the terminals
are clean and correctly tightened,
particularly in summer and winter.
When carrying out work on the battery, refer to the "Practical
information" section for details of the precautions to be taken
before disconnecting the battery and following its reconnection.

Refer to the Maintenance and
Warranty Guide for details of the
replacement inter vals for these
components.
Depending on the environment (e.g. dusty
atmosphere) and the use of the vehicle
(e.g. city driving), replace them twice as often
if necessary
(refer to the "Engines" section).
A clogged passenger compar tment filter may
have an adverse effect on the per formance
of the air conditioning system and generate
undesirable odours.

Air filter and passenger compartment filter

Replace the oil filter each time the
engine oil is changed.

Refer to the Maintenance and
Warranty Guide for details of
the replacement inter val for this
component.


Oil filter






The presence of this label, in particular with
the Stop & Star t system, indicates the use of
a specific 12 V lead-acid battery with special
technology and specification, for which the
involvement of a PEUGEOT dealer or a
qualified workshop is required when replacing
or disconnecting the battery.
Failure to obser ve this recommendation may
shor ten the life of the battery.










Particle emission filter (Diesel)

Display of this warning lamp or a specific
message, together with the ser vice warning lamp,
indicates the star t of saturation of the par ticle
filter or low level in the Diesel additive reser voir.
As soon as the traffic conditions permit,
regenerate the filter by driving at a
speed of at least 40 mph (60 km/h) until
the ser vice warning lamp goes off.
If the ser vice warning lamp stays on,
this indicates a low additive level. Have
the additive reser voir topped up and
the par ticle emission filter ser viced
by a PEUGEOT dealer or a qualified
workshop.
Following prolonged operation of the
vehicle at very low speed or at idle,
you may, in exceptional circumstances,
notice the emission of water vapour at
the exhaust on acceleration. This does
not affect the behaviour of the vehicle or
the environment.

218
Technical data


ENGINES AND GEARBOXES



Petrol engines


1.6 litre VTi

120 hp



1.6 litre THP

15 6 hp



Gearboxes

Electronic gear control
(6 -speed)
Manual
(6 -speed)
Automatic
(6 -speed)

Model codes

8D5FH8/P - 8E5FH8/P
8D5FS8/P - 8E5FS8/P
8D5FV8 - 8E5FV8
8D5FNA - 8E5FNA
8 D5 F VA - 8 E5 F VA
Cubic capacity (cc)
1 598
1 598
Bore x stroke (mm)
77 x 85.8
77 x 85.8
Max power: EU standard (kW)
85
88
11 0
115
Max power engine speed (rpm)
6 000
6 000
Max torque: EU standard (Nm)
160
240
Max torque engine speed (rpm)
4 250
1 400
Fuel
Unleaded
Unleaded
Catalytic conver ter
yes
yes

OIL CAPACITIES (in litres)



Engine (with filter replacement)
4.25
4.25

10
221
Technical data


ENGINES AND GEARBOXES



Diesel engine


1.6 litre HDi

110 h p



Gearbox

es

Manual
(5 -speed)
Electronic gear control
(6 -speed)

Model codes

8D9HL0 - 8E9HL0
8D9HR8/PS - 8E9HR8/PS

Outline

Saloon
SW
Saloon
SW
Cubic capacity (cc)
1 560
1 560
Bore x stroke (mm)
75 x 88.3
75 x 88,3
Max power: EU standard (kW)
82
82
Max power engine speed (rpm)
3 600
3 600
Max torque: EU standard (Nm)
240
270
Max torque engine speed (rpm)
1 750
1 750
Fuel

Diesel
Catalytic conver ter

yes
Particle emission filter

yes

OIL CAPACITIES (in litres)



Engine (with filter replacement)
3.25

222
Technical data


ENGINES AND GEARBOXES



Diesel engines


2.0 litre HDi
14 0 hp



2.0 litre HDi
163 hp



2.0 litre HDi




Gearboxes

Manual
(6 -speed)
Automatic
(6 -speed)
-

Model codes

8DRHR8 - 8ERHR8
8DRHF8 - 8ERHF8
8DRHHA - 8ERHHA
8DRHDA - 8ERHDA
-

Outline

Saloon
SW
Saloon
SW
Saloon
SW
Cubic capacity (cc)
1 997
1 997
-
Bore x stroke (mm)
85 x 88
85 x 88
-
Max power: EU standard (kW)
10 0
103
10 0
120
-
Max power engine speed (rpm)
4 000

3 750
-
Max torque: EU standard (Nm)
320
340
-
Max torque engine speed (rpm)
2 000
2 000
-
Fuel

Diesel
Catalytic conver ter

yes
Particle emission filter
yes
no

OIL CAPACITIES (in litres)






Engine (with filter replacement)
5.25
5
-

10
223
Technical data


ENGINES AND GEARBOXES



Diesel
engine


2.2 litre HDi
204 hp



Gearbox

Automatic
(6 -speed)

Model codes


8D4HLA - 8E4HLA

Outline

Saloon
SW
Cubic capacity (cc)

2 179
Bore x stroke (mm)

85 x 96
Max power: EU standard (kW)
15 0
Max power engine speed (rpm)
3 500
Max torque: EU standard (Nm)
450
Max torque engine speed (rpm)
2 000
Fuel

Diesel
Catalytic conver ter

yes
Particle emissions filter

yes

OIL
CAPACITIES (in litres)



Engine (with filter replacement)
5.25
