Page 4 of 340
.
Contents
Instrument panel 20
Indicator and warning lamps 21
Gauges and indicators 31
Tr i p c o m p u t e r 3 6
Instruments and controlsFamiliarisation
Remote control key 39
Alarm 48
Electric windows 50
Boot 52
Motorised tailgate (SW) 53
Panoramic sunroof (SW) 56
Fuel tank 58
Diesel misfuel prevention 59
Access
Front seats 61
Rear seats 66
Mirrors 68
Steering wheel adjustment 70
Interior fi ttings 71
Boot fi ttings (Saloon) 74
Boot fi ttings (SW) 75
Heating and Ventilation 80
Manual air conditioning 82
Dual-zone digital air conditioning 84
Quad-zone digital air conditioning 87
Rear screen demist - defrost 92
Programmable Heating/ Ventilation 93
Comfort
Star ting-switching off the engine 94
Electric parking brake 96
Manual parking brake 103
Manual gearbox 104
Gear shift indicator 105
Automatic gearbox 106
6 -speed electronic gear control gearbox 110
Stop & Start 114
Hill start assist 117
Head-up display 118
Speed limiter 121
Cruise control 123
Parking sensors 125
Parking space sensors 127
Driving
Lighting controls 129
Automatic illumination of headlamps 134
Headlamp adjustment 137
Directional lighting 138
Wiper controls 140
Automatic rain sensitive wipers 142
Cour tesy lamps 144
Interior mood lighting 145
Visibility

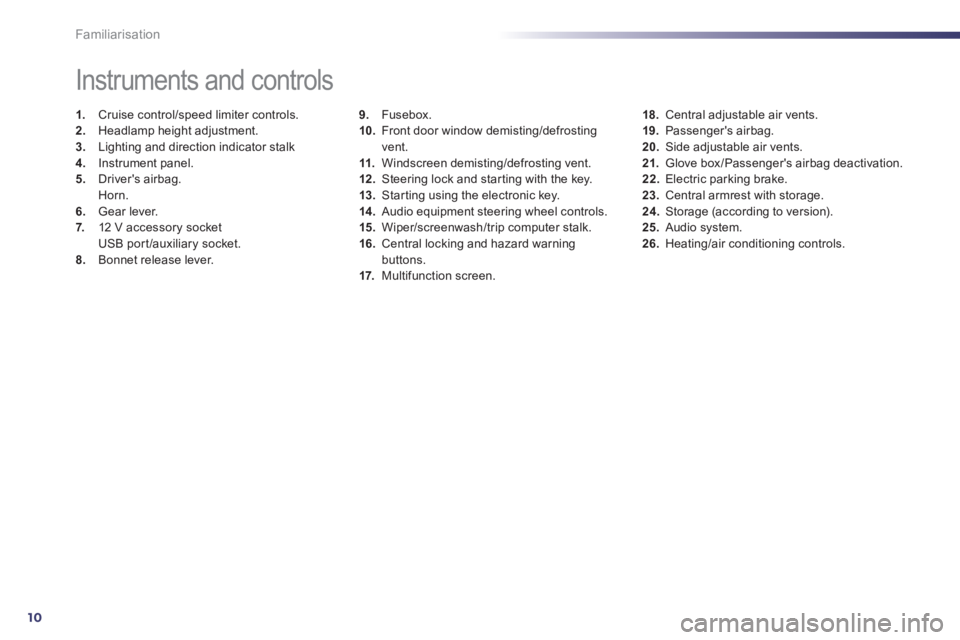

Page 12 of 340
10
Familiarisation
9.
Fusebox.
10.
Front door window demisting/defrosting
vent.
11.
Windscreen demisting/defrosting vent.
12 .
Steering lock and star ting with the key.
13.
Star ting using the electronic key.
14 .
Audio equipment steering wheel controls.
15.
Wiper/screenwash/trip computer stalk.
16.
Central locking and hazard warning
buttons.
17.
Multifunction screen.
Instruments and controls
1.
Cruise control/speed limiter controls.
2.
Headlamp height adjustment.
3.
Lighting and direction indicator stalk
4.
Instrument panel.
5.
Driver's airbag.
Horn.
6.
Gear lever.
7.
12 V accessory socket
USB port /auxiliary socket.
8.
Bonnet release lever.
18.
Central adjustable air vents.
19.
Passenger's airbag.
20.
Side adjustable air vents.
21.
Glove box /Passenger's airbag deactivation.
22.
Electric parking brake.
23.
Central armrest with storage.
24.
Storage (according to version).
25.
Audio system.
26.
Heating/air conditioning controls.

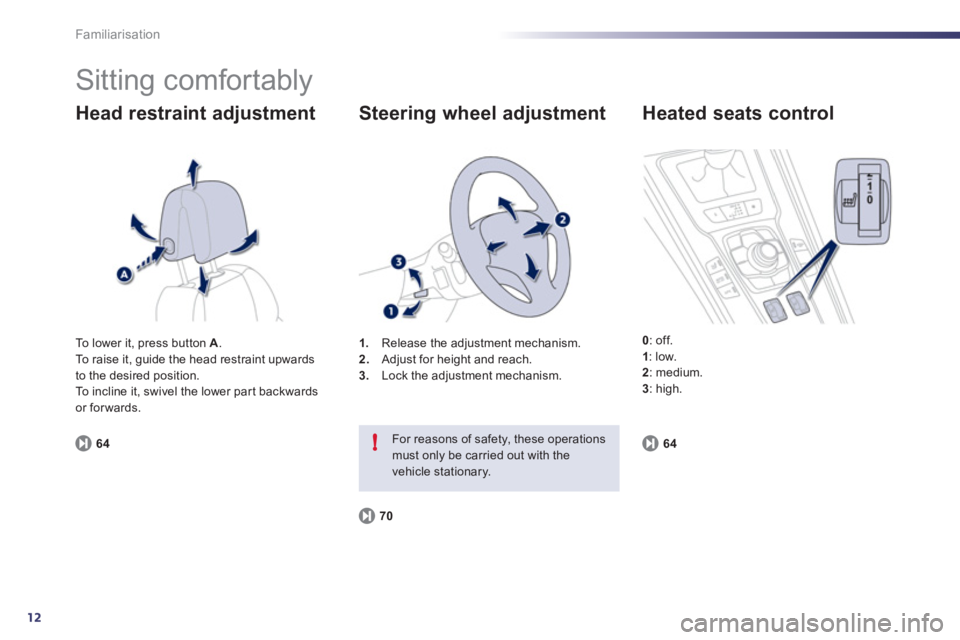

Page 14 of 340
12
!
Familiarisation
Sitting comfortably
Head restraint adjustment
64
1.
Release the adjustment mechanism.
2.
Adjust for height and reach.
3.
Lock the adjustment mechanism.
Steering wheel adjustment
70
For reasons of safety, these operations
must only be carried out with the
vehicle stationary.
Heated seats control
0
: off.
1
: low.
2
: medium.
3
: high. To lower it, press button A
.
To raise it, guide the head restraint upwards
to the desired position.
To incline it, swivel the lower part backwards
or for wards.
64
Page 28 of 340
26
Instruments and controls
Warning lamps
When the engine is running or the vehicle is being driven, illumination of one of the following warning lamps indicates a fault which requires action on
the par t of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated fur ther by reading the associated message in the instrument panel screen.
If you encounter any problems, contact a PEUGEOT dealer or a qualified workshop.
Warning/indicator lamp
State
Cause
Action/Observations
STOP
fixed, associated
with another warning
lamp, accompanied
by an audible signal
and a message in the
screen. It is associated with a punctured
wheel, the braking system, the power
steering, the engine oil pressure,
the engine coolant temperature or a
major electrical fault. Stop as soon as it is safe to do so as the engine may
cut out.
Park, switch off the ignition and call a PEUGEOT
dealer or a qualified workshop.
Service
on temporarily. Minor faults have occurred for which
there is no specific warning lamp. Identify the fault by reading the message shown in the
screen, such as, for example:
- the engine oil level,
- saturation of the par ticle emissions filter (Diesel).
- the power steering,
- a minor electrical fault.
- ...
For any other faults, contact a PEUGEOT dealer or a
qualified workshop.
fixed. Major faults have occurred for which
there is no specific warning lamp. Identify the fault by reading the message shown in
the screen and then contact a PEUGEOT dealer or
qualified workshop.

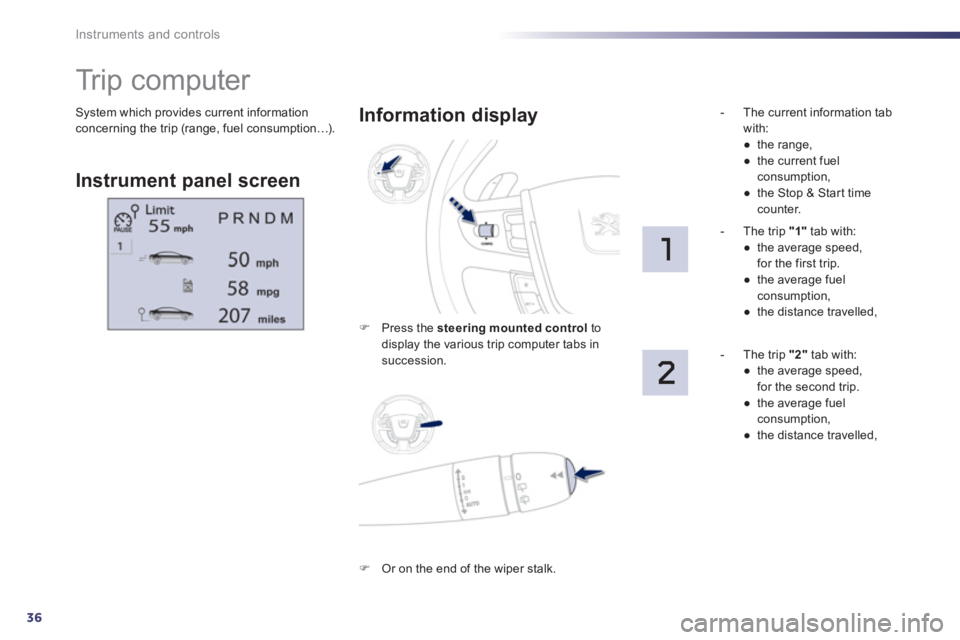

Page 38 of 340
36
Instruments and controls
System which provides current information
concerning the trip (range, fuel consumption…).
Tr i p c o m p u t e r
Instrument panel screen
Information display
)
Press the steering mounted control
to
display the various trip computer tabs in
succession.
- The current information tab
with:
●
the range,
●
the current fuel
consumption,
●
the Stop & Star t time
counter.
- The trip "1"
tab with:
●
the average speed,
for the first trip.
●
the average fuel
consumption,
●
the distance travelled,
- The trip "2"
tab with:
●
the average speed,
for the second trip.
●
the average fuel
consumption,
●
the distance travelled,
)
Or on the end of the wiper stalk.

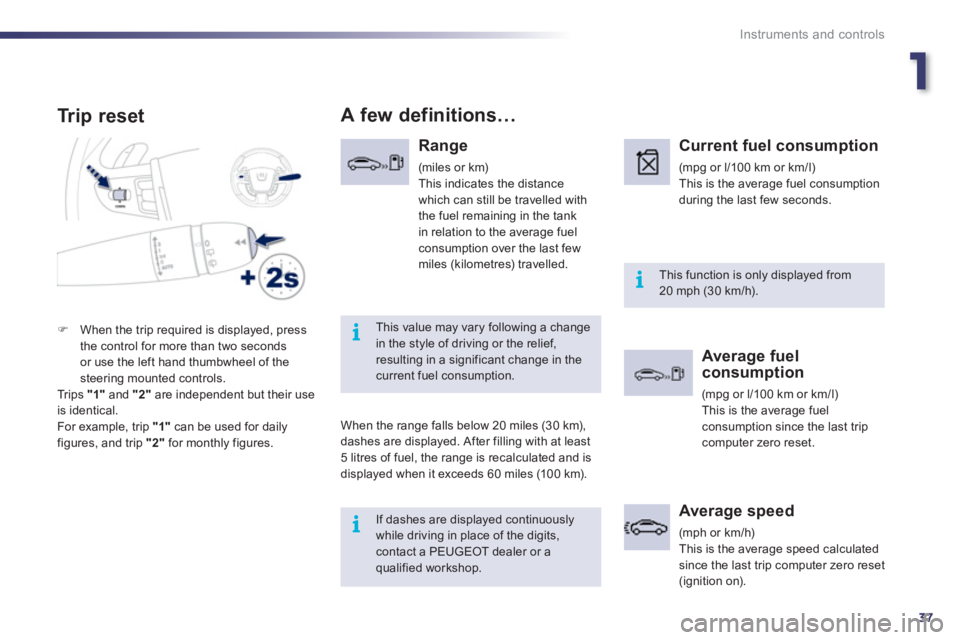

Page 39 of 340
1
37
i
i
i
Instruments and controls
Tr i p r e s e t
If dashes are displayed continuously
while driving in place of the digits,
contact a PEUGEOT dealer or a
qualified workshop. This function is only displayed from
20 mph (30 km/h).
This value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption.
A few definitions…
Range
(miles or km)
This indicates the distance
which can still be travelled with
the fuel remaining in the tank
in relation to the average fuel
consumption over the last few
miles (kilometres) travelled.
When the range falls below 20 miles (30 km),
dashes are displayed. After filling with at least
5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km).
Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel consumption
during the last few seconds.
Average fuel
consumption
(mpg or l/100 km or km/l)
This is the average fuel
consumption since the last trip
computer zero reset.
Average speed
(mph or km/h)
This is the average speed calculated
since the last trip computer zero reset
(ignition on).
)
When the trip required is displayed, press
the control for more than two seconds
or use the left hand thumbwheel of the
steering mounted controls.
Trips "1"
and "2"
are independent but their use
is identical.
For example, trip "1"
can be used for daily
figures, and trip "2"
for monthly figures.

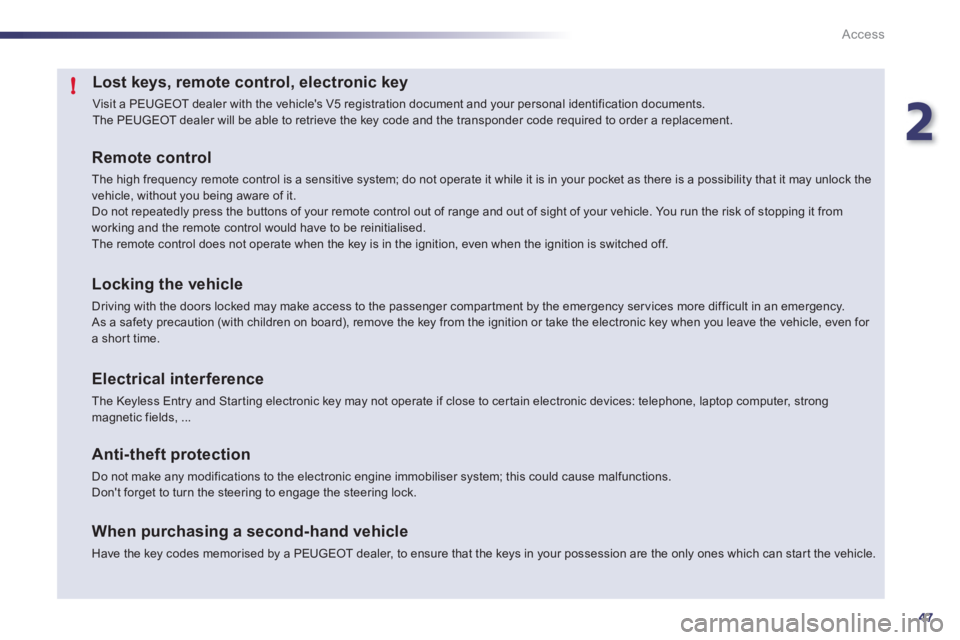

Page 49 of 340
2
47
!
Access
Lost keys, remote control, electronic key
Visit a PEUGEOT dealer with the vehicle's V5 registration document and your personal identification documents.
The PEUGEOT dealer will be able to retrieve the key code and the transponder code required to order a replacement.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the
vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from
working and the remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even when the ignition is switched off.
Locking the vehicle
Driving with the doors locked may make access to the passenger compar tment by the emergency ser vices more difficult in an emergency.
As a safety precaution (with children on board), remove the key from the ignition or take the electronic key when you leave the vehicle, even for
a shor t time.
Electrical interference
The Keyless Entry and Star ting electronic key may not operate if close to cer tain electronic devices: telephone, laptop computer, s t r o n g
magnetic fields, ...
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.
Don't forget to turn the steering to engage the steering lock.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can star t the vehicle.

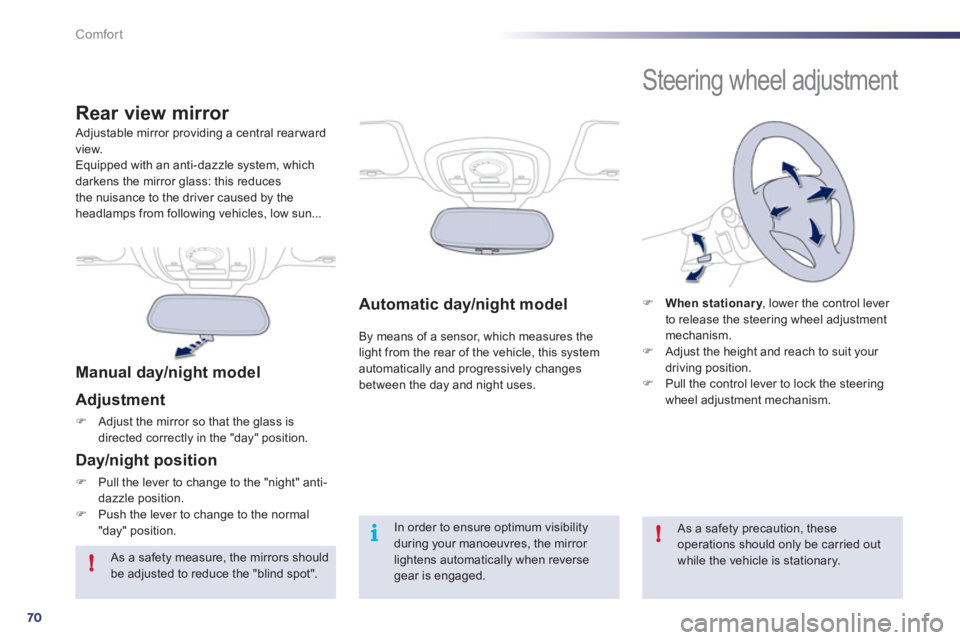

Page 72 of 340
70
!
i!
Comfort
Automatic day/night model
By means of a sensor, which measures the
light from the rear of the vehicle, this system
automatically and progressively changes
between the day and night uses. Adjustable mirror providing a central rear ward
view.
Equipped with an anti-dazzle system, which
darkens the mirror glass: this reduces
the nuisance to the driver caused by the
headlamps from following vehicles, low sun...
Rear view mirror
Manual day/night model
Adjustment
)
Adjust the mirror so that the glass is
directed correctly in the "day" position.
Day/night position
)
Pull the lever to change to the "night" anti-
dazzle position.
)
Push the lever to change to the normal
"day" position.
In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.
Steering wheel adjustment
)
When stationary
, lower the control lever
to release the steering wheel adjustment
mechanism.
)
Adjust the height and reach to suit your
driving position.
)
Pull the control lever to lock the steering
wheel adjustment mechanism.
As a safety precaution, these
operations should only be carried out
while the vehicle is stationary.
As a safety measure, the mirrors should
be adjusted to reduce the "blind spot".
Page 75 of 340
3
73
i
Comfort
Peugeot Connect USB
This connection box, consisting of a JACK
auxiliary socket and a USB port, is located in
the front armrest (under the cover).
It permits the connection of por table device,
such as a digital audio player of the iPod
® type
or a USB memory stick.
It reads the audio file formats (MP3, OGG,
WMA, WAV, ...) which are transmitted to your
audio equipment and played via the vehicle's
speakers.
You can manage these files using the steering
mounted controls or the audio system control
panel and display them in the instrument panel
screen.
When the USB por t is used, the por table device
charges automatically.
For more information on the use of
this system, refer to the "Audio and
Telematics" section.
Ski flap
Device for storing and transpor ting long
objects.
Opening
)
Lower the armrest.
)
Press the flap opening control.
)
Lower the flap.
)
Load the objects from inside the boot.

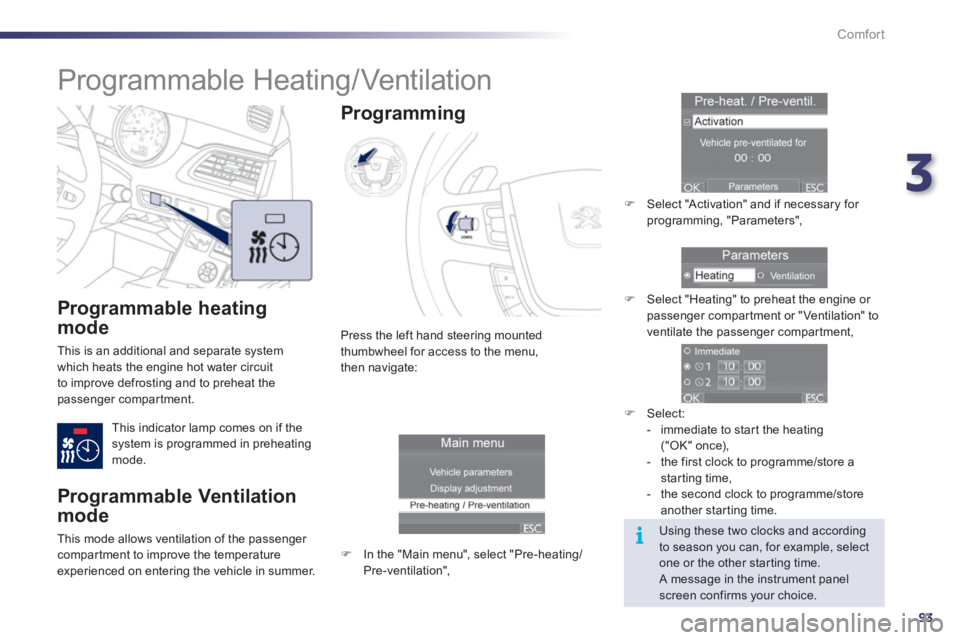

Page 95 of 340
3
93
i
Comfort
Programmable heating
mode
This is an additional and separate system
which heats the engine hot water circuit
to improve defrosting and to preheat the
passenger compartment.
This indicator lamp comes on if the
system is programmed in preheating
mode. Press the left hand steering mounted
thumbwheel for access to the menu,
then navigate:
Programming
)
In the "Main menu", select "Pre-heating/
Pre-ventilation",
)
Select "Activation" and if necessary for
programming, "Parameters",
)
Select "Heating" to preheat the engine or
passenger compar tment or "Ventilation" to
ventilate the passenger compartment,
)
Select:
- immediate to star t the heating
("OK" once),
- the first clock to programme/store a
starting time,
- the second clock to programme/store
another star ting time.
Programmable Heating/ Ventilation
Programmable Ventilation
mode
This mode allows ventilation of the passenger
compar tment to improve the temperature
experienced on entering the vehicle in summer.
Using these two clocks and according
to season you can, for example, select
one or the other star ting time.
A message in the instrument panel
screen confirms your choice.
