30
Instruments and controls
Warning/indicator lamp
State
Cause
Action/Observations
Airbags
on temporarily. This lamp comes on for a few
seconds when you turn on the
ignition, then goes off. This lamp should go off when the engine is star ted.
If it does not go off, contact a PEUGEOT dealer or a
qualified workshop.
fixed. One of the airbag or seat belt
pretensioner systems has a fault. Have it checked by a PEUGEOT dealer or a qualified
workshop.
Directional
headlamps
flashing. The directional headlamps system
has a fault. Have it checked by a PEUGEOT dealer or a qualified
workshop.
Seat belt(s)
not fastened/
unfastened
fixed then flashing
accompanied by an
increasing audible
signal. A seat belt has not been fastened or
has been unfastened. Pull the strap then inser t the tongue in the buckle.
Page 33 of 340
1
31
!
Instruments and controls

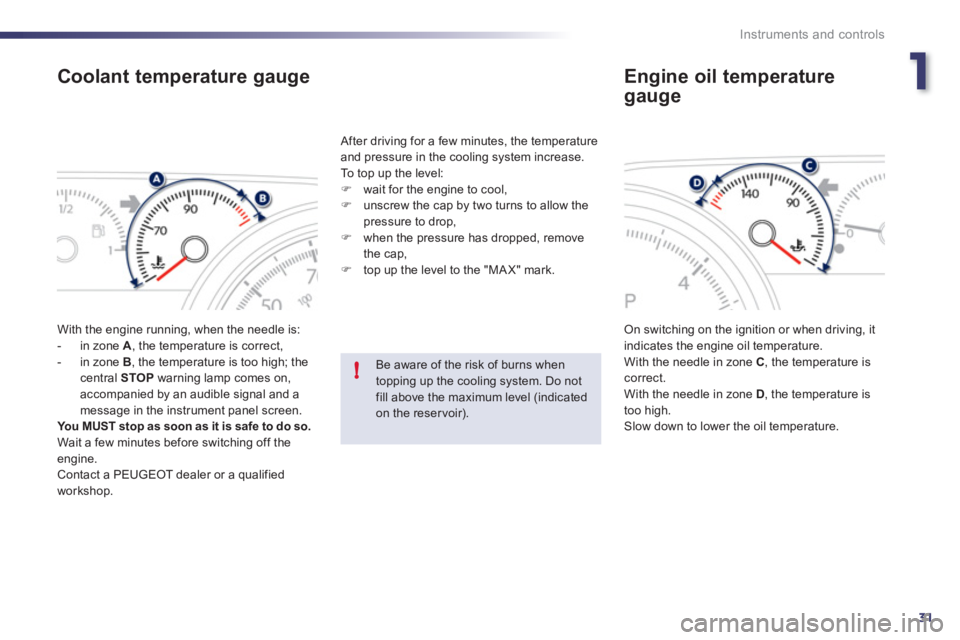

Coolant temperature gauge
With the engine running, when the needle is:
- in zone A
, the temperature is correct,
- in zone B
, the temperature is too high; the
central STOP
warning lamp comes on,
accompanied by an audible signal and a
message in the instrument panel screen.
You MUST stop as soon as it is safe to do so.
Wait a few minutes before switching off the
engine.
Contact a PEUGEOT dealer or a qualified
workshop.
After driving for a few minutes, the temperature
and pressure in the cooling system increase.
To top up the level:
)
wait for the engine to cool,
)
unscrew the cap by two turns to allow the
pressure to drop,
)
when the pressure has dropped, remove
the cap,
)
top up the level to the "MA X" mark.
On switching on the ignition or when driving, it
indicates the engine oil temperature.
With the needle in zone C
, the temperature is
correct.
With the needle in zone D
, the temperature is
too high.
Slow down to lower the oil temperature.
Engine oil temperature
gauge
Be aware of the risk of burns when
topping up the cooling system. Do not
fill above the maximum level (indicated
on the reservoir).
Page 96 of 340
94
i
!
i
i
Driving

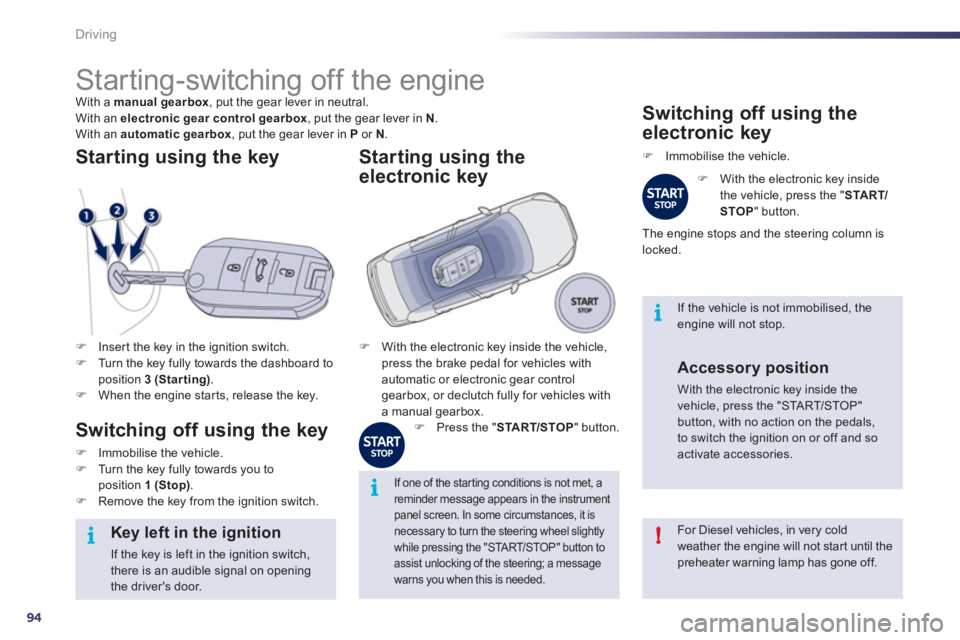

Starting-switching off the engine
With a manual gearbox
, put the gear lever in neutral.
With an electronic gear control gearbox
, put the gear lever in N
.
With an automatic gearbox
, put the gear lever in P
or N
.
)
Inser t the key in the ignition switch.
)
Turn the key fully towards the dashboard to
position 3 (Star ting)
.
)
When the engine star ts, release the key.
Starting using the key
Switching off using the key
)
Immobilise the vehicle.
)
Turn the key fully towards you to
position 1 (Stop)
.
)
Remove the key from the ignition switch.
For Diesel vehicles, in very cold
weather the engine will not start until the
preheater warning lamp has gone off.
Key left in the ignition
If the key is left in the ignition switch,
there is an audible signal on opening
the driver's door.
If one of the star ting conditions is not met, a
reminder message appears in the instrument
panel screen. In some circumstances, it is
necessary to turn the steering wheel slightly
while pressing the "START/STOP" button to
assist unlocking of the steering; a message
warns you when this is needed.
If the vehicle is not immobilised, the
engine will not stop.
)
With the electronic key inside the vehicle,
press the brake pedal for vehicles with
automatic or electronic gear control
gearbox, or declutch fully for vehicles with
a manual gearbox.
Starting using the
electronic key
)
Press the " START/STOP
" button.
Switching off using the
electronic key
)
Immobilise the vehicle.
)
With the electronic key inside
the vehicle, press the " START/
STOP
" button.
The engine stops and the steering column is
locked.
Accessory position
With the electronic key inside the
vehicle, press the "START/STOP"
button, with no action on the pedals,
to switch the ignition on or off and so
activate accessories.
Page 99 of 340
4
97
!
i
Driving
With the ignition on or the engine running,
to release the parking brake, press
the brake
pedal
, pull
then release control lever A
.
The full release of the parking brake is
confirmed by:

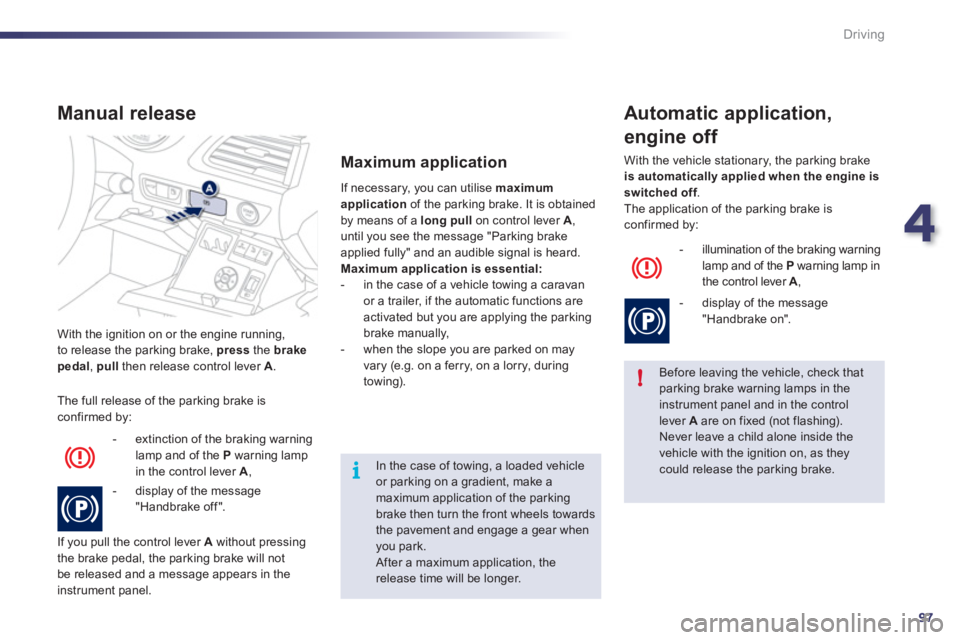

Manual release
- extinction of the braking warning
lamp and of the P
warning lamp
in the control lever A
,
- display of the message
"Handbrake off ".
If you pull the control lever A
without pressing
the brake pedal, the parking brake will not
be released and a message appears in the
instrument panel.
If necessary, you can utilise maximum
application
of the parking brake. It is obtained
by means of a long pull
on control lever A
,
until you see the message "Parking brake
applied fully" and an audible signal is heard.
Maximum application is essential:
- in the case of a vehicle towing a caravan
or a trailer, if the automatic functions are
activated but you are applying the parking
brake manually,
- when the slope you are parked on may
vary (e.g. on a ferry, on a lorry, during
towing).
Maximum application
Before leaving the vehicle, check that
parking brake warning lamps in the
instrument panel and in the control
lever A
are on fixed (not flashing).
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake.
Automatic application,
engine off
- illumination of the braking warning
lamp and of the P
warning lamp in
the control lever A
,
- display of the message
"Handbrake on". With the vehicle stationary, the parking brake
is automatically applied when the engine is
switched off.
The application of the parking brake is
confirmed by:
In the case of towing, a loaded vehicle
or parking on a gradient, make a
maximum application of the parking
brake then turn the front wheels towards
the pavement and engage a gear when
you park.
After a maximum application, the
release time will be longer.
Page 109 of 340
4
107
i!
Driving

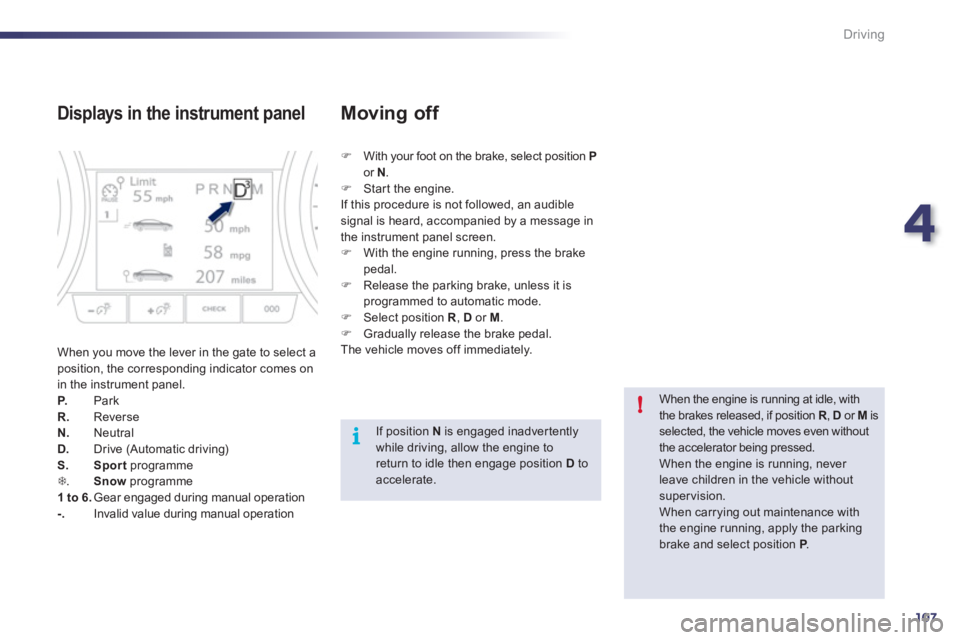

Displays in the instrument panel
When you move the lever in the gate to select a
position, the corresponding indicator comes on
in the instrument panel.
P.
Park
R.
Reverse
N.
Neutral
D.
Drive (Automatic driving)
S.
Sport
programme
7
. Snow
programme
1 to 6.
Gear engaged during manual operation
-.
Invalid value during manual operation
)
With your foot on the brake, select position P
or N
.
)
Star t the engine.
If this procedure is not followed, an audible
signal is heard, accompanied by a message in
the instrument panel screen.
)
With the engine running, press the brake
pedal.
)
Release the parking brake, unless it is
programmed to automatic mode.
)
Select position R
, D
or M
.
)
Gradually release the brake pedal.
The vehicle moves off immediately.
Moving off
When the engine is running at idle, with
the brakes released, if position R
, D
or M
is
selected, the vehicle moves even without
the accelerator being pressed.
When the engine is running, never
leave children in the vehicle without
supervision.
When carrying out maintenance with
the engine running, apply the parking
brake and select position P
.
If position N
is engaged inadvertently
while driving, allow the engine to
return to idle then engage position D
to
accelerate.
Page 111 of 340
4
109
i!
Driving

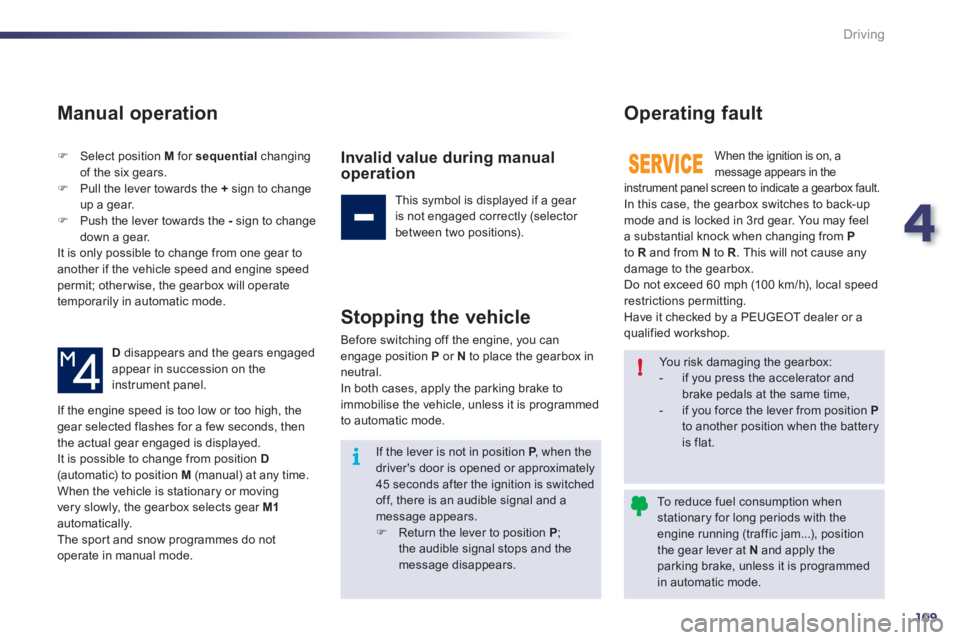

Manual operation
)
Select position M
for sequential
changing
of the six gears.
)
Pull the lever towards the +
sign to change
up a gear.
)
Push the lever towards the -
sign to change
down a gear.
It is only possible to change from one gear to
another if the vehicle speed and engine speed
permit; other wise, the gearbox will operate
temporarily in automatic mode.
D
disappears and the gears engaged
appear in succession on the
instrument panel.
Invalid value during manual
operation
This symbol is displayed if a gear
is not engaged correctly (selector
between two positions).
Stopping the vehicle
Before switching off the engine, you can
engage position P
or N
to place the gearbox in
neutral.
In both cases, apply the parking brake to
immobilise the vehicle, unless it is programmed
to automatic mode.
Operating fault
When the ignition is on, a
message appears in the
instrument panel screen to indicate a gearbox fault.
In this case, the gearbox switches to back-up
mode and is locked in 3rd gear. You may feel
a substantial knock when changing from P
to R
and from N
to R
. This will not cause any
damage to the gearbox.
Do not exceed 60 mph (100 km/h), local speed
restrictions permitting.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
If the engine speed is too low or too high, the
gear selected flashes for a few seconds, then
the actual gear engaged is displayed.
It is possible to change from position D
(automatic) to position M
(manual) at any time.
When the vehicle is stationary or moving
very slowly, the gearbox selects gear M1
automatically.
The spor t and snow programmes do not
operate in manual mode.
You risk damaging the gearbox:
- if you press the accelerator and
brake pedals at the same time,
- if you force the lever from position P
to another position when the battery
is flat.
If the lever is not in position P
, when the
driver's door is opened or approximately
45 seconds after the ignition is switched
off, there is an audible signal and a
message appears.
)
Return the lever to position P
;
the audible signal stops and the
message disappears.
To reduce fuel consumption when
stationary for long periods with the
engine running (traffic jam...), position
the gear lever at N
and apply the
parking brake, unless it is programmed
in automatic mode.
Page 135 of 340
5
133
Visibility
Parking lamps
Side markers for the vehicle by illumination of
the sidelamps on the traffic side only.
)
Within one minute of switching off the
ignition, operate the lighting control stalk up
or down depending on the traffic side (for
example: when parking on the left; lighting
control stalk upwards; the right hand
sidelamps are on).
This is confirmed by an audible signal and
illumination of the corresponding direction
indicator warning lamp in the instrument panel.
To switch off the parking lamps, return the
lighting control stalk to position 0 or switch on
the ignition. Temporarily keeping the dipped beam
headlamps on after the vehicle's ignition has
been switched off makes the driver's exit easier
when the light is poor.

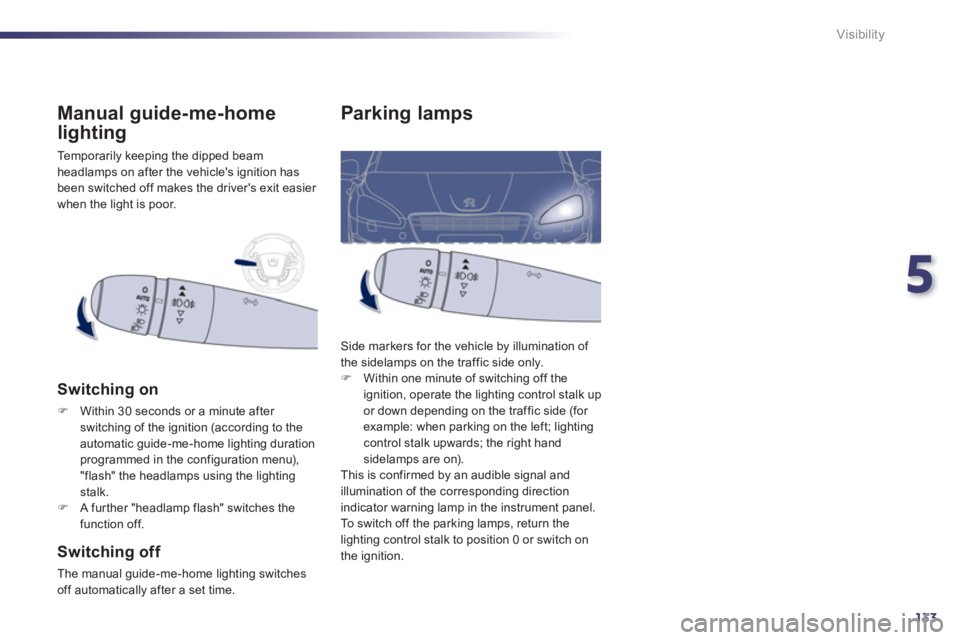

Manual guide-me-home
lighting
Switching on
)
Within 30 seconds or a minute after
switching of the ignition (according to the
automatic guide-me-home lighting duration
programmed in the configuration menu),
"flash" the headlamps using the lighting
stalk.
)
A fur ther "headlamp flash" switches the
function off.
Switching off
The manual guide-me-home lighting switches
off automatically after a set time.
Page 136 of 340
134
!
Visibility
The sidelamps and dipped beam headlamps
are switched on automatically, without any
action on the par t of the driver, when a low level
of external light is detected or in cer tain cases
of activation of the windscreen wipers.
As soon as the brightness returns to a sufficient
level or after the windscreen wipers are switched
off, the lamps are switched off automatically.
Automatic illumination of
headlamps
Activation
)
Turn the ring to the "AU TO "
position. The automatic
illumination of headlamps is accompanied by a
message in the instrument panel screen.
Deactivation
)
Turn the ring to another position.
Deactivation is accompanied by a message
in the instrument panel screen.
Associated with the automatic
Guide-me-home lighting
Association with the automatic lighting provides
the guide-me-home lighting with the following
additional options:
- selection of the lighting duration of 15, 30
or 60 seconds,
- automatic activation of guide-me-home
lighting when the automatic illumination of
headlamps is in operation.
Operating fault
In the event of a fault with the
sunshine sensor, the lighting
comes on, this warning lamp
is displayed in the instrument panel and/or
a message appears in the instrument panel
screen, accompanied by an audible signal.
Contact a PEUGEOT dealer or a qualified
workshop.
In fog or snow, the sunshine sensor may
detect sufficient light. In this case, the
lighting will not come on automatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the centre of the windscreen
behind the rear view mirror; the
associated functions would no longer
be controlled.
Programming
Selection of the duration of the
guide-me-home lighting is done
in the configuration menu vehicle
parameters, in the instrument panel
screen.
The duration of the guide-me-home lighting
is associated with and identical to that of the
welcome lighting.
Page 216 of 340
214

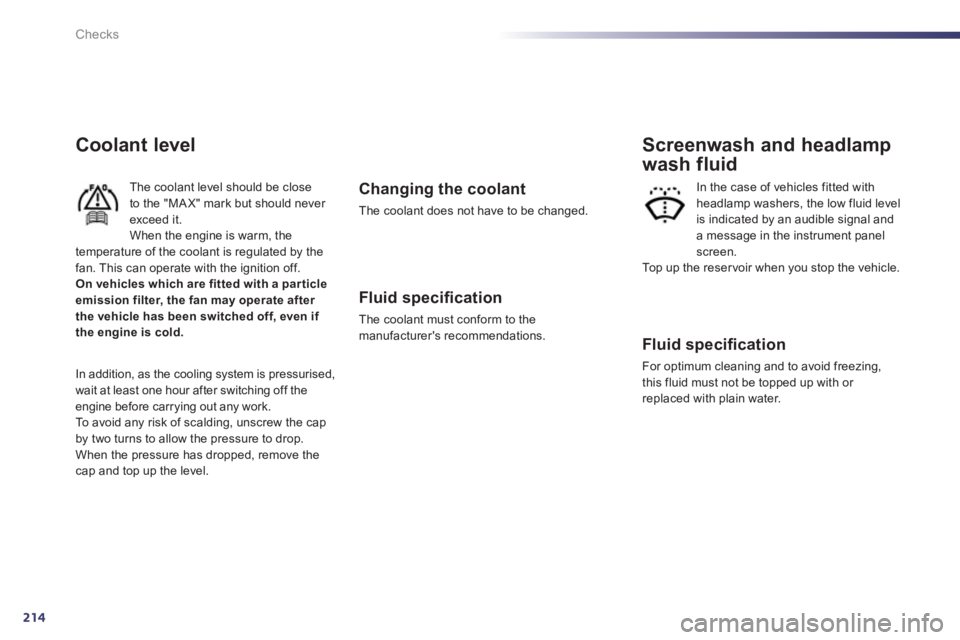

Checks
Coolant level
The coolant level should be close
to the "MA X" mark but should never
exceed it.
When the engine is warm, the
temperature of the coolant is regulated by the
fan. This can operate with the ignition off.
On vehicles which are fitted with a par ticle
emission filter, the fan may operate after
the vehicle has been switched off, even if
the engine is cold.
In addition, as the cooling system is pressurised,
wait at least one hour after switching off the
engine before carrying out any work.
To avoid any risk of scalding, unscrew the cap
by two turns to allow the pressure to drop.
When the pressure has dropped, remove the
cap and top up the level.
Changing the coolant
The coolant does not have to be changed.
Fluid specifi cation
The coolant must conform to the
manufacturer's recommendations.
Fluid specifi cation
For optimum cleaning and to avoid freezing,
this fluid must not be topped up with or
replaced with plain water.
Screenwash and headlamp
wash fluid
In the case of vehicles fitted with
headlamp washers, the low fluid level
is indicated by an audible signal and
a message in the instrument panel
screen.
Top up the reser voir when you stop the vehicle.
Page 270 of 340
268

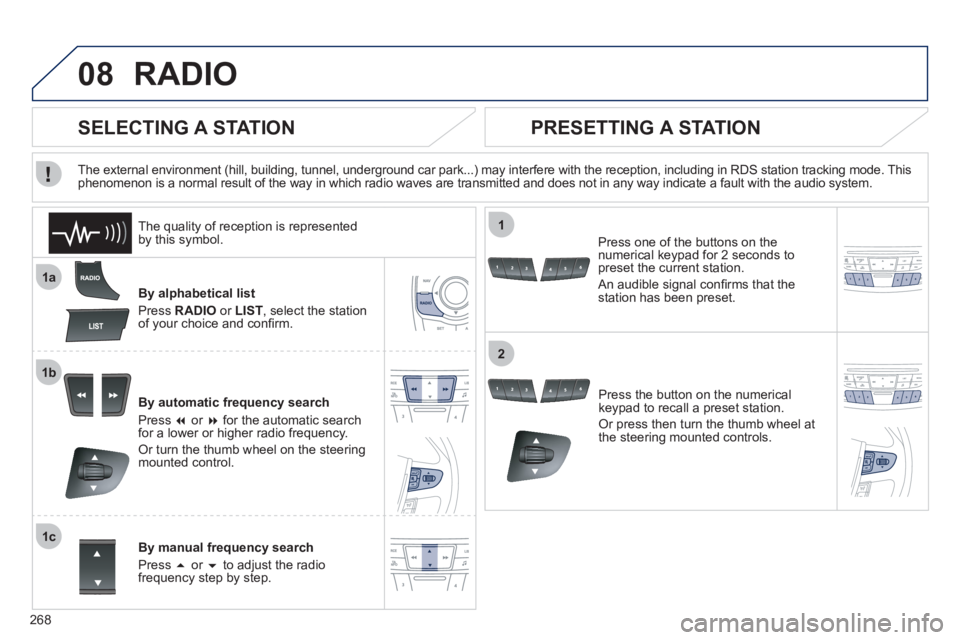

08
1a
1b
1c
1
2
RADIO
By alphabetical list
Press RADIO
or LIST
, select the station
of your choice and confi rm.
By automatic frequency search
Press
or
for the automatic search
for a lower or higher radio frequency.
Or turn the thumb wheel on the steering
mounted control.
By manual frequency search
Press
or
to adjust the radio
frequency step by step.
Press the button on the numerical
keypad to recall a preset station.
Or press then turn the thumb wheel at
the steering mounted controls.
SELECTING A STATION
The external environment (hill, building, tunnel, underground car park...) may interfere with the reception, including in RDS station tracking mode. This
phenomenon is a normal result of the way in which radio waves are transmitted and does not in any way indicate a fault with the audio system.
PRESETTING A STATION
Press one of the buttons on the
numerical keypad for 2 seconds to
preset the current station.
An audible signal confi rms that the
station has been preset.
The quality of reception is represented
by this symbol.
