5
143
!i
Visibility

Do not cover the rain sensor, linked with
the sunshine sensor and located in the
centre of the windscreen behind the
rear view mirror.
Switch off the automatic rain sensitive
wipers when using an automatic car wash.
In winter, it is advisable to wait until
the windscreen is completely clear of
ice before activating the automatic rain
sensitive wipers.



Operating fault

If a fault occurs with the automatic rain
sensitive wipers, the wipers will operate in
intermittent mode.
Have it checked by PEUGEOT dealer or a
qualified workshop.

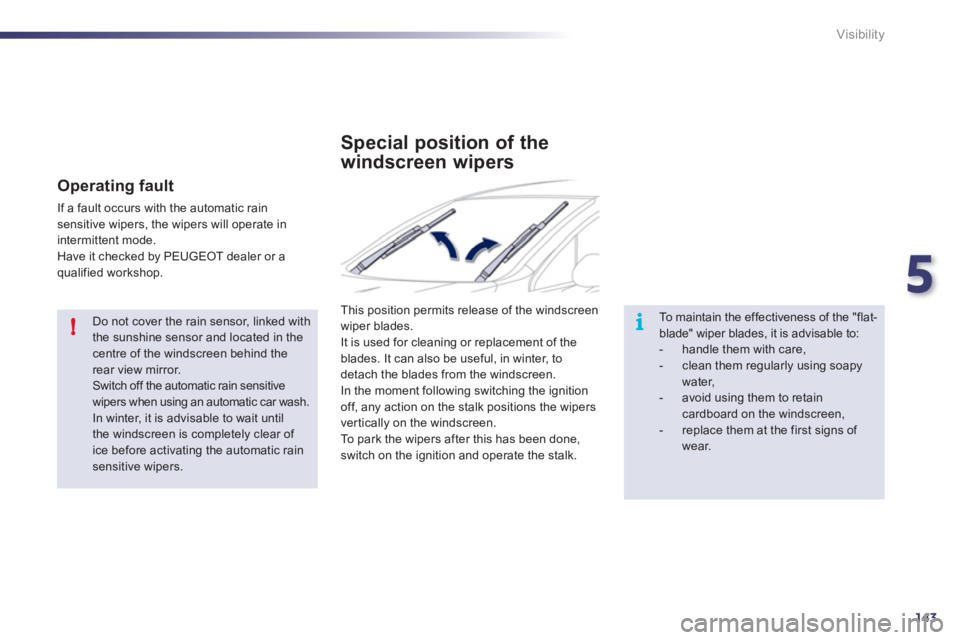

Special position of the
windscreen wipers
This position permits release of the windscreen
wiper blades.
It is used for cleaning or replacement of the
blades. It can also be useful, in winter, to
detach the blades from the windscreen.
In the moment following switching the ignition
off, any action on the stalk positions the wipers
ver tically on the windscreen.
To park the wipers after this has been done,
switch on the ignition and operate the stalk. To maintain the effectiveness of the "flat-
blade" wiper blades, it is advisable to:


- handle them with care,

- clean them regularly using soapy
water,

- avoid using them to retain
cardboard on the windscreen,

- replace them at the first signs of
wear.

200
Practical information

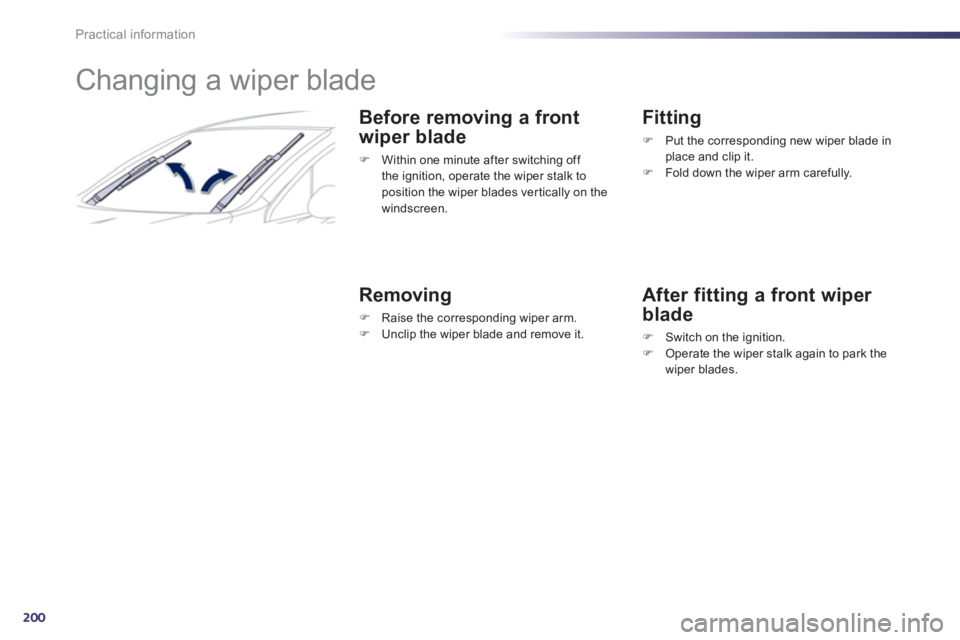

Changing a wiper blade


Before removing a front
wiper blade


)
Within one minute after switching off
the ignition, operate the wiper stalk to
position the wiper blades vertically on the
windscreen.



Removing



)
Raise the corresponding wiper arm.

)
Unclip the wiper blade and remove it.



Fitting



)
Put the corresponding new wiper blade in
place and clip it.

)
Fold down the wiper arm carefully.



After fitting a front wiper
blade


)
Switch on the ignition.

)
Operate the wiper stalk again to park the
wiper blades.

.
321
Alphabetical index
Lighting bulbs
(replacement) ...................... 183, 188, 189, 191
Lighting on reminder ..................................... 131
Lighting stalk ......................................... 129, 133
Loading..........................................................204
Load reduction mode .................................... 198
Load space cover ............................................ 76
Locating your vehicle ......................................44
Long objects, transporting .............................. 73
Luggage retaining strap ............................ 74, 75
Main beam .............................129, 183 -185, 187
Manual gearbox .................... 104, 105, 114, 217
Manufacturer’s identification plates ..............228
Map reading lamps ....................................... 144
Markings, identification .................................228
Massage function ...........................................65
Mat .................................................................. 72
Menu, main ...................................................290
Mini fuel level ..................................................58
Monochrome screen ............................. 290, 312
Motor way function (direction indicators) ....... 157
Mountings for ISOFIX seats ......................... 152
MP3 CD ................................................ 295, 296
Multifunction screen
(with audio equipment) ...............................290
Music media players ..................................... 270Oil filter .......................................................... 216
Oil level .................................................... 35, 213
Opening the boot ................................39, 40, 52
Opening the doors ..........................................39
Opening the panoramic sunroof blind ............56
Operation indicator lamps ............. 21, 23, 25, 27
Paint colour code ..........................................228
Panoramic sunroof ..........................................56
Parking brake .................................. 99, 103, 217
Parking lights ................................................ 133
Parking space sensor .................................. 127
Par ticle emission filter .......................... 215, 216
Passenger compar tment filter ...................... 216
Petrol engine ................................... 60, 210, 218
PEUGEOT CONNECT ASSISTANCE ..........230
Peugeot Connect Navigation (RT6) ..............233
PEUGEOT CONNECT SOS .........................230
Player, CD MP3 .................................... 295, 296
Priming the fuel system ................................209
Protecting children .........146, 149, 152-154, 166
Puncture ........................................................ 170
Radio ............................................. 267, 268, 291
Rear armrest ................................................... 72
Rear foglamps ....................... 131, 188, 189, 191
Rear head restraints .......................................66
Rear parking sensors .................................... 125
Rear screen (demisting) .................................. 92
Rear seats .......................................................66Safety for children ......................................... 149
Satellite navigation system ........................... 240
Screen, instrument panel .......................... 21, 36
Screen-wash reser voir.................................. 213
Screen menu map ......................... 278, 312, 313
Screenwash fluid level .......................... 141, 213
M
O
P
RS
Navigation .............................................239, 240
Number plate lamps ...................................... 191
N
Rear view mirror .............................................. 70
Rear wash-wipe ............................................ 141
Rear wiper ..................................................... 141
Recharging the battery ................................. 196
Reduction of electrical load .......................... 198
Refitting a wheel ........................................... 179
Reinitialising the remote control ...............45, 46
Remote control .................................... 39 - 41, 47
Removing a wheel ........................................ 179
Removing the mat ........................................... 72
Repair kit, puncture ....................................... 170
Replacing bulbs .................... 183, 188, 189, 191
Replacing fuses ............................................ 192
Replacing the air filter ................................... 216
Replacing the oil filter ................................... 216
Replacing the particle emission filter ........... 216
Replacing the passenger
compar tment filter ...................................... 216
Replacing wiper blades .........................143, 200
Resetting the ser vice indicator .......................34
Reversing lamp .....................................188, 189
Roof bars .......................................................204
Roof blind ........................................................56
Routine checks ..................................... 216, 217
Running out of fuel (Diesel) ..........................209
