Peugeot 508 2011 User Guide

.
9
Familiarisation
Sitting comfortably


Front seats


61




Manual adjustments



1.
Head restraint height and angle
adjustment.

2.
Backrest angle adjustment.

3.
Seat cushion height adjustment.

4.
Lumbar support adjustment.

5.
Seat forwards-backwards adjustment.


Electrical adjustment



1.
Angle, seat height and seat for wards-
backwards adjustment.

2.
Backrest angle adjustment.

3.
Lumbar support adjustment.

62




6.
Adjusting the cushion.

10
Familiarisation

9.
Fusebox.

10.
Front door window demisting/defrosting
vent.

11.
Windscreen demisting/defrosting vent.

12 .
Steering lock and star ting with the key.

13.
Star ting using the electronic key.

14 .
Audio equipment steering wheel controls.

15.
Wiper/screenwash/trip computer stalk.

16.
Central locking and hazard warning
buttons.

17.
Multifunction screen.

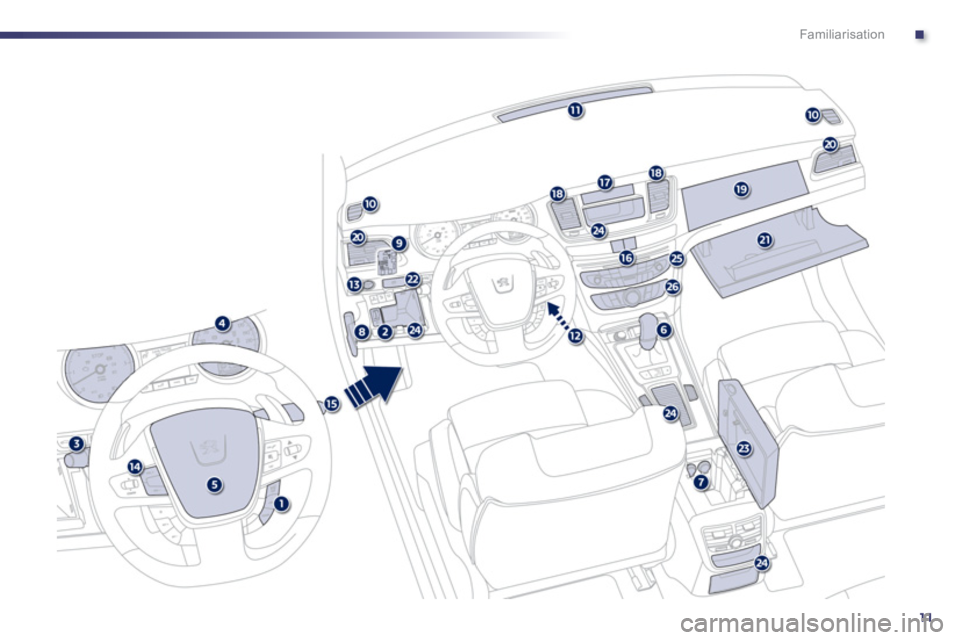

Instruments and controls



1.
Cruise control/speed limiter controls.

2.
Headlamp height adjustment.

3.
Lighting and direction indicator stalk

4.
Instrument panel.

5.
Driver's airbag.
Horn.

6.
Gear lever.

7.
12 V accessory socket
USB port /auxiliary socket.

8.
Bonnet release lever.
18.
Central adjustable air vents.

19.
Passenger's airbag.

20.
Side adjustable air vents.

21.
Glove box /Passenger's airbag deactivation.

22.
Electric parking brake.

23.
Central armrest with storage.

24.
Storage (according to version).

25.
Audio system.

26.
Heating/air conditioning controls.

.
11
Familiarisation

12
!
Familiarisation
Sitting comfortably


Head restraint adjustment


64



1.
Release the adjustment mechanism.

2.
Adjust for height and reach.

3.
Lock the adjustment mechanism.


Steering wheel adjustment


70

For reasons of safety, these operations
must only be carried out with the
vehicle stationary.

Heated seats control


0
: off.

1
: low.

2
: medium.

3
: high. To lower it, press button A
.
To raise it, guide the head restraint upwards to
the desired position.
To incline it, swivel the lower part backwards or
forwards.

64

.
13
i
Familiarisation

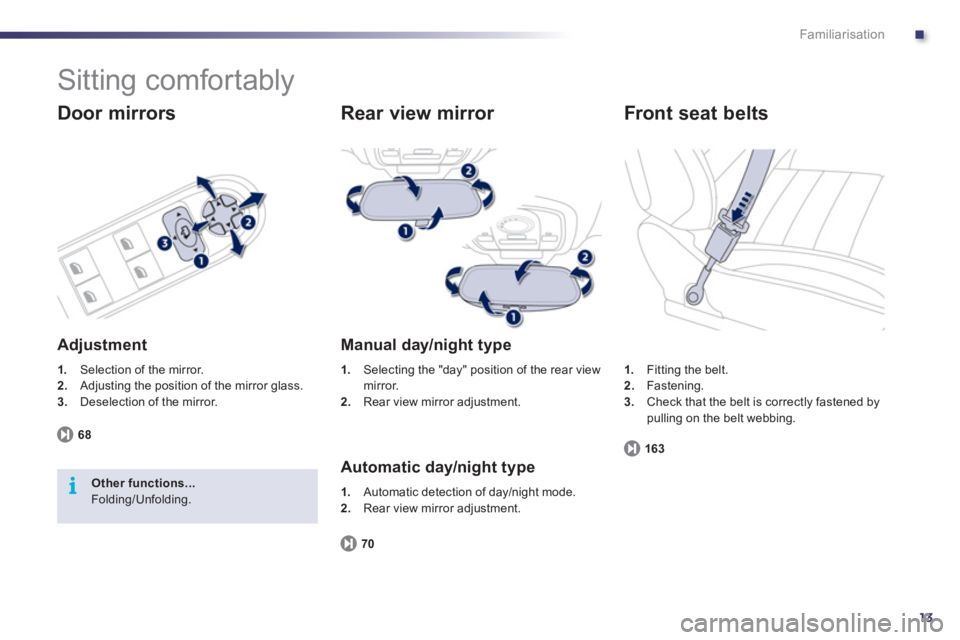

Sitting comfortably


Door mirrors


Adjustment



1.
Selection of the mirror.

2.
Adjusting the position of the mirror glass.

3.
Deselection of the mirror.

68



Other functions...

Folding/Unfolding.


Rear view mirror


Manual day/night type



1.
Selecting the "day" position of the rear view
mirror.

2.
Rear view mirror adjustment.



Automatic day/night type


70




1.
Automatic detection of day/night mode.

2.
Rear view mirror adjustment.

1.
Fitting the belt.

2.
Fastening.

3.
Check that the belt is correctly fastened by
pulling on the belt webbing.


Front seat belts


163

14
Familiarisation

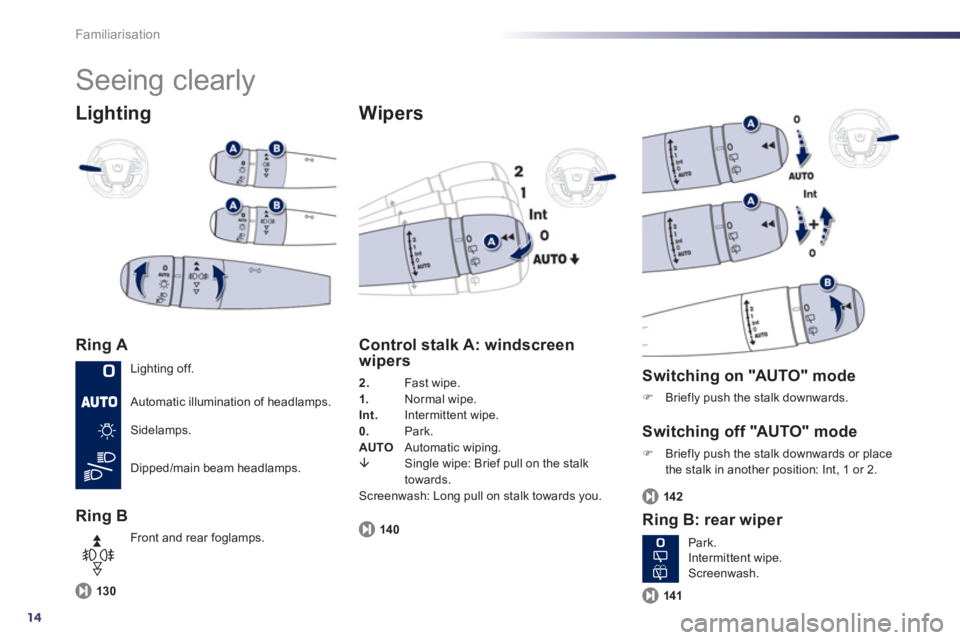

Seeing clearly


Lighting


Ring A

Ring B


Wipers


130





Control stalk A: windscreen
wipers

2.
Fast wipe.

1.
Normal wipe.

Int.
Intermittent wipe.

0.
Park.

AUTO
Automatic wiping.

È
Single wipe: Brief pull on the stalk
towards.
Screenwash: Long pull on stalk towards you.

14 0



Switching on "AUTO" mode



)
Briefly push the stalk downwards.



Switching off "AUTO" mode



)
Briefly push the stalk downwards or place
the stalk in another position: Int, 1 or 2.


Ring B: rear wiper


142



141


Lighting off.
Automatic illumination of headlamps.
Sidelamps.
Dipped/main beam headlamps.
Front and rear foglamps.
Park.
Intermittent wipe.
Screenwash.

.
15
Familiarisation

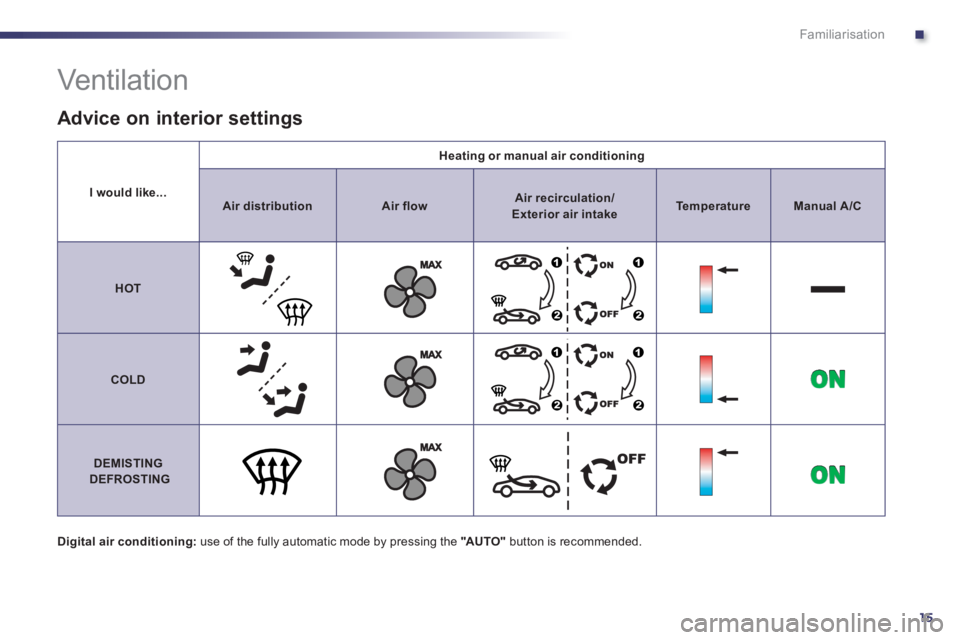

I would like...



Heating or manual air conditioning




Air
distribution



Air flow



Air recirculation/
Exterior air intake



Te m p e r a t u r e



Manual
A/C




HOT







COLD






DEMISTING

DEFROSTING




Vent ilat ion


Digital air conditioning:
use of the fully automatic mode by pressing the "AU TO "
button is recommended.


Advice on interior settings

16
Familiarisation

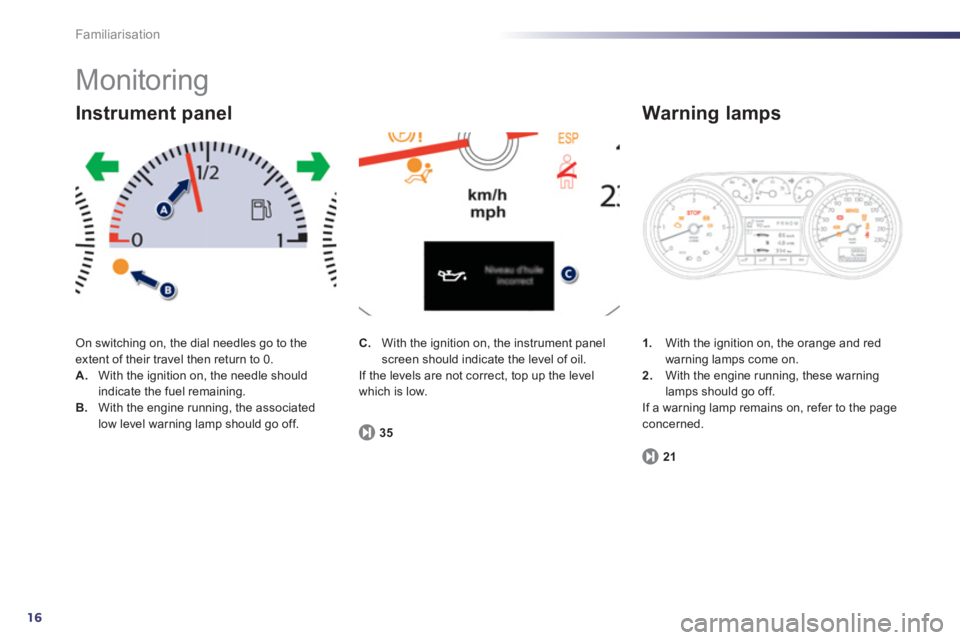

Monitoring

On switching on, the dial needles go to the
extent of their travel then return to 0.


A.
With the ignition on, the needle should
indicate the fuel remaining.

B.
With the engine running, the associated
low level warning lamp should go off.

Instrument panel



1.
With the ignition on, the orange and red
warning lamps come on.

2.
With the engine running, these warning
lamps should go off.
If a warning lamp remains on, refer to the page
concerned.

Warning lamps


21


C.
With the ignition on, the instrument panel
screen should indicate the level of oil.
If the levels are not correct, top up the level
which is low.

35

.
17
Familiarisation

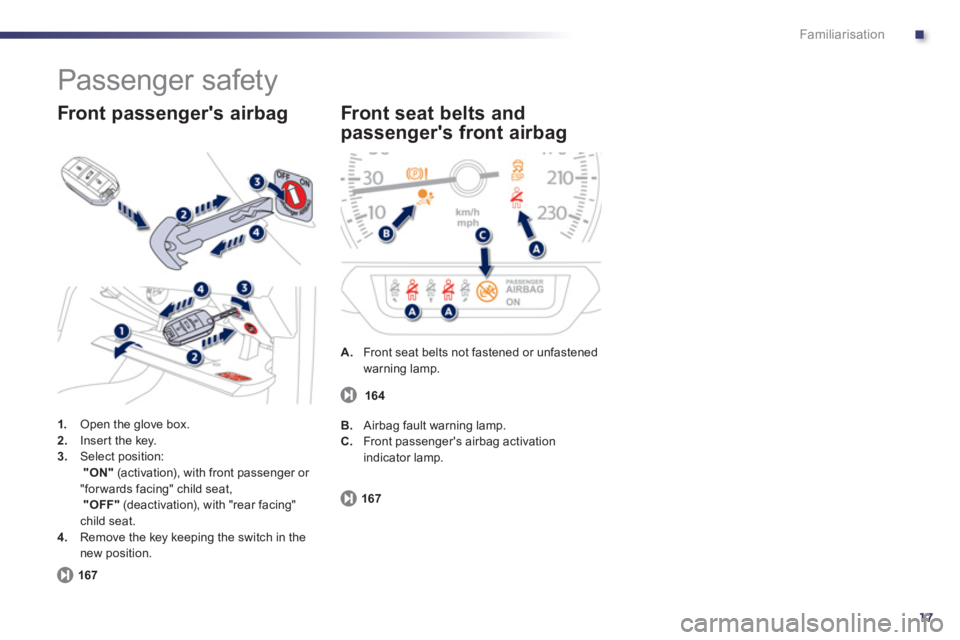

Passenger safety



1.
Open the glove box.

2.
Inser t the key.

3.
Select position:
"ON"
(activation), with front passenger or
"for wards facing" child seat,
"OFF"
(deactivation), with "rear facing"
child seat.

4.
Remove the key keeping the switch in the
new position.


Front passenger's airbag


167



A.
Front seat belts not fastened or unfastened
warning lamp.


Front seat belts and
passenger's front airbag

167


B.
Airbag fault warning lamp.

C.
Front passenger's airbag activation
indicator lamp. 164

18
i
!
Familiarisation

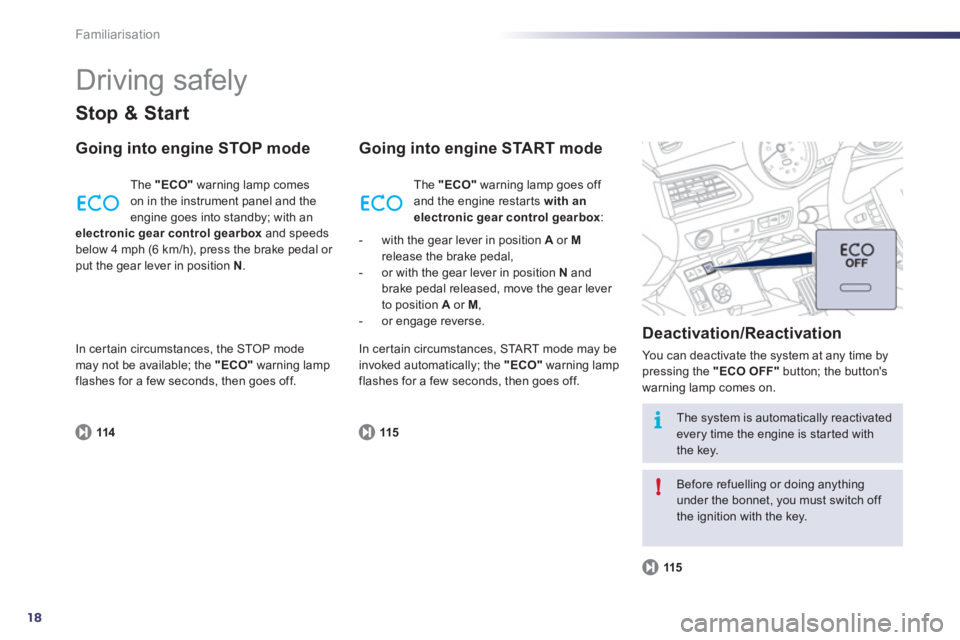

Driving safely


Stop & Start


Going into engine STOP mode


114

The "ECO"
warning lamp comes
on in the instrument panel and the
engine goes into standby; with an
electronic gear control gearbox
and speeds
below 4 mph (6 km/h), press the brake pedal or
put the gear lever in position N
.


Going into engine START mode

Deactivation/Reactivation

You can deactivate the system at any time by
pressing the "ECO OFF"
button; the button's
warning lamp comes on.

115



115


The system is automatically reactivated
every time the engine is star ted with
the key.
Before refuelling or doing anything
under the bonnet, you must switch off
the ignition with the key. The "ECO"
warning lamp goes off
and the engine restar ts with an
electronic gear control gearbox
:


- with the gear lever in position A
or M

release the brake pedal,

- or with the gear lever in position N
and
brake pedal released, move the gear lever
to position A
or M
,

- or engage reverse.
In certain circumstances, the STOP mode
may not be available; the "ECO"
warning lamp
flashes for a few seconds, then goes off. In certain circumstances, START mode may be
invoked automatically; the "ECO"
warning lamp
flashes for a few seconds, then goes off.
