Peugeot 508 2011 Workshop Manual

2
49

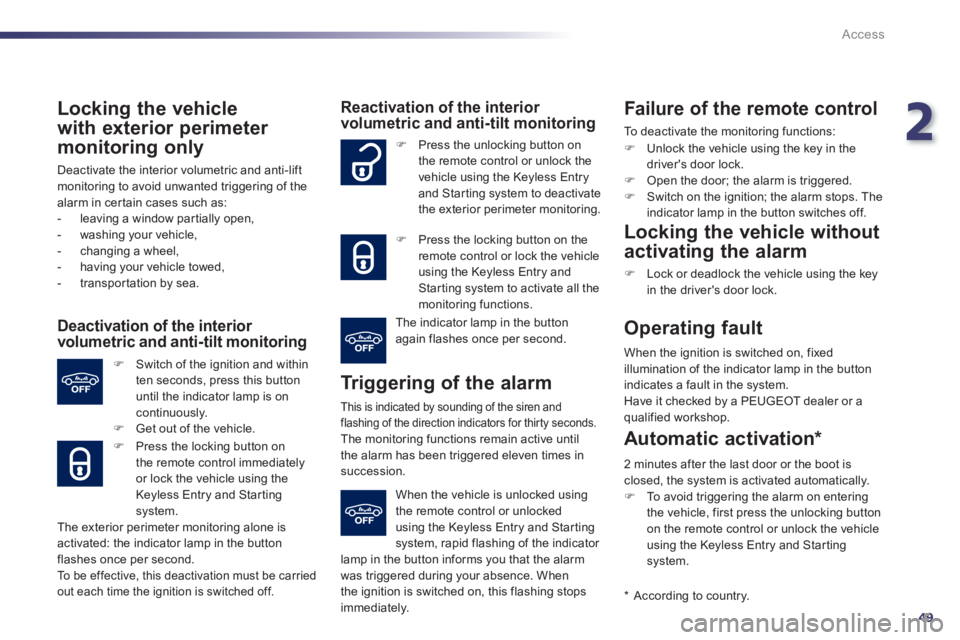

Access

Locking the vehicle
with exterior perimeter
monitoring only
Deactivate the interior volumetric and anti-lift
monitoring to avoid unwanted triggering of the
alarm in cer tain cases such as:


- leaving a window par tially open,

- washing your vehicle,

- changing a wheel,

- having your vehicle towed,

- transpor tation by sea.


Deactivation of the interior
volumetric and anti-tilt monitoring


)
Switch of the ignition and within
ten seconds, press this button
until the indicator lamp is on
continuously.

)
Get out of the vehicle.

)
Press the locking button on
the remote control immediately
or lock the vehicle using the
Keyless Entry and Star ting
system.
The exterior perimeter monitoring alone is
activated: the indicator lamp in the button
flashes once per second.
To be effective, this deactivation must be carried
out each time the ignition is switched off.


Reactivation of the interior
volumetric and anti-tilt monitoring

Tr i g g e r i n g o f t h e a l a r m


This is indicated by sounding of the siren and
flashing of the direction indicators for thirty seconds.
The monitoring functions remain active until
the alarm has been triggered eleven times in
succession.

)
Press the unlocking button on
the remote control or unlock the
vehicle using the Keyless Entry
and Starting system to deactivate
the exterior perimeter monitoring.

)
Press the locking button on the
remote control or lock the vehicle
using the Keyless Entry and
Starting system to activate all the
monitoring functions.
The indicator lamp in the button
again flashes once per second.

When the vehicle is unlocked using
the remote control or unlocked
using the Keyless Entry and Star ting
system, rapid flashing of the indicator
lamp in the button informs you that the alarm
was triggered during your absence. When
the ignition is switched on, this flashing stops
immediately.



Failure of the remote control

To deactivate the monitoring functions:



)
Unlock the vehicle using the key in the
driver's door lock.

)
Open the door; the alarm is triggered.

)
Switch on the ignition; the alarm stops. The
indicator lamp in the button switches off.




Locking the vehicle without
activating the alarm



)
Lock or deadlock the vehicle using the key
in the driver's door lock.




Operating fault


When the ignition is switched on, fixed
illumination of the indicator lamp in the button
indicates a fault in the system.
Have it checked by a PEUGEOT dealer or a
qualified workshop.


*
According to country.


Automatic activation *


2 minutes after the last door or the boot is
closed, the system is activated automatically.


)
To avoid triggering the alarm on entering
the vehicle, first press the unlocking button
on the remote control or unlock the vehicle
using the Keyless Entry and Star ting
system.

50
Access

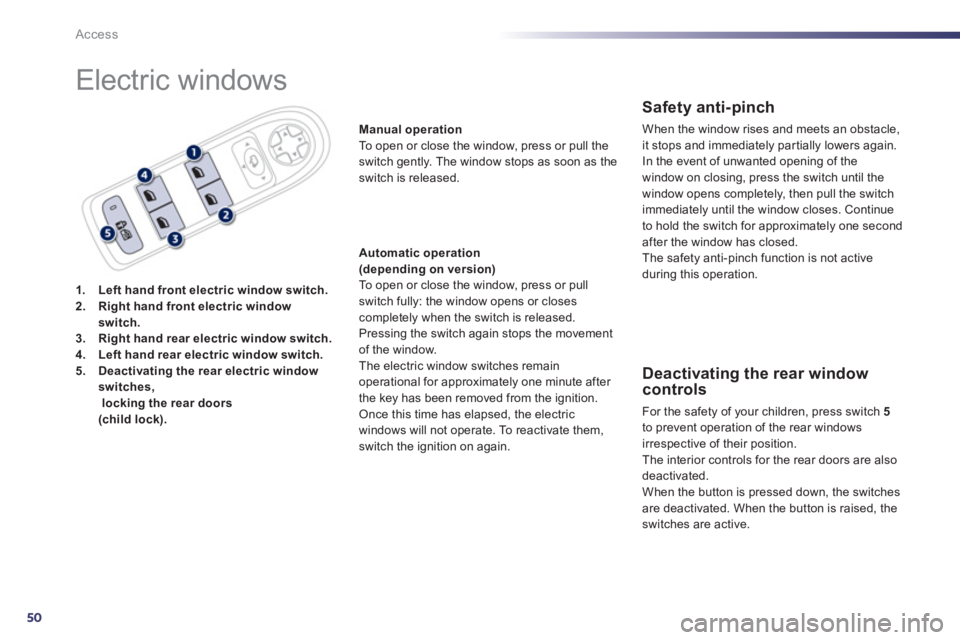

Electric windows



1.
Left hand front electric window switch.


2.
Right hand front electric window
switch.


3.
Right hand rear electric window switch.


4.
Left hand rear electric window switch.


5.
Deactivating the rear electric window
switches,

locking the rear doors

(child lock).


Manual operation

To open or close the window, press or pull the
switch gently. The window stops as soon as the
switch is released.

Automatic operation

(depending on version)

To open or close the window, press or pull
switch fully: the window opens or closes
completely when the switch is released.
Pressing the switch again stops the movement
of the window.
The electric window switches remain
operational for approximately one minute after
the key has been removed from the ignition.
Once this time has elapsed, the electric
windows will not operate. To reactivate them,
switch the ignition on again.


Safety anti-pinch

When the window rises and meets an obstacle,
it stops and immediately partially lowers again.
In the event of unwanted opening of the
window on closing, press the switch until the
window opens completely, then pull the switch
immediately until the window closes. Continue
to hold the switch for approximately one second
after the window has closed.
The safety anti-pinch function is not active
during this operation.


Deactivating the rear window
controls
For the safety of your children, press switch 5

to prevent operation of the rear windows
irrespective of their position.
The interior controls for the rear doors are also
deactivated.
When the button is pressed down, the switches
are deactivated. When the button is raised, the
switches are active.

2
51
!
Access

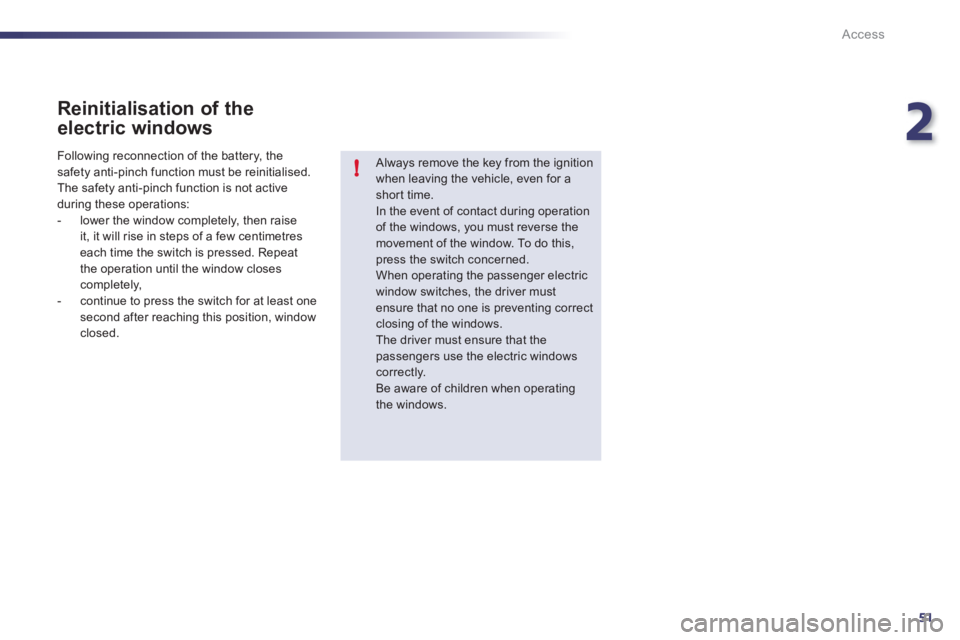

Reinitialisation of the
electric windows

Always remove the key from the ignition
when leaving the vehicle, even for a
shor t time.
In the event of contact during operation
of the windows, you must reverse the
movement of the window. To do this,
press the switch concerned.
When operating the passenger electric
window switches, the driver must
ensure that no one is preventing correct
closing of the windows.
The driver must ensure that the
passengers use the electric windows
correctly.
Be aware of children when operating
the windows.
Following reconnection of the battery, the
safety anti-pinch function must be reinitialised.
The safety anti-pinch function is not active
during these operations:


- lower the window completely, then raise
it, it will rise in steps of a few centimetres
each time the switch is pressed. Repeat
the operation until the window closes
completely,

- continue to press the switch for at least one
second after reaching this position, window
closed.

52
Access

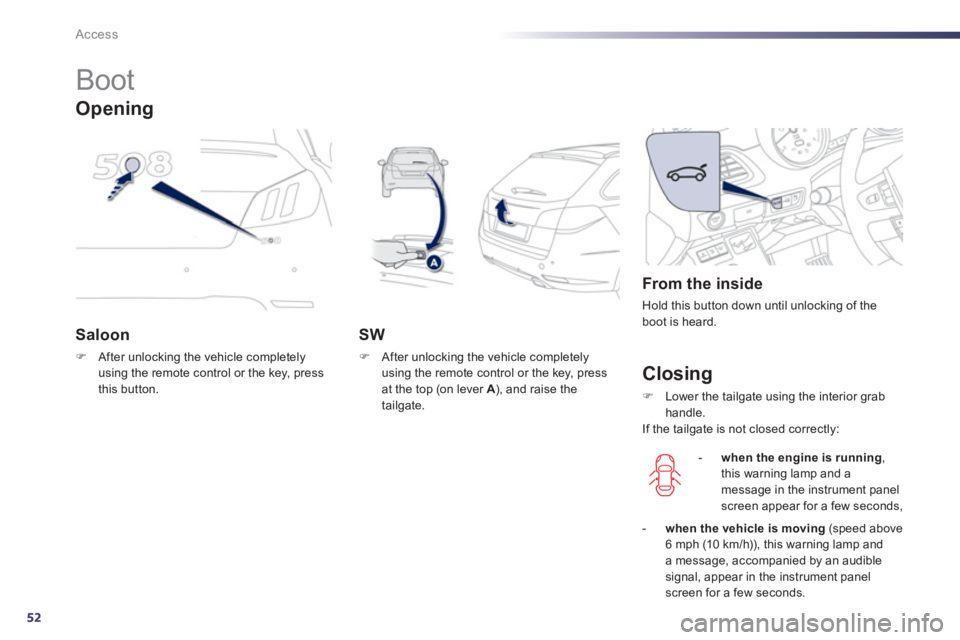

Boot


Saloon



)
After unlocking the vehicle completely
using the remote control or the key, press
this button.



SW



)
After unlocking the vehicle completely
using the remote control or the key, press
at the top (on lever A
), and raise the
tailgate.



From the inside

Hold this button down until unlocking of the
boot is heard.



Opening

Closing



)
Lower the tailgate using the interior grab
handle.
If the tailgate is not closed correctly:


- when the engine is running
,
this warning lamp and a
message in the instrument panel
screen appear for a few seconds,

- when the vehicle is moving
(speed above
6 mph (10 km/h)), this warning lamp and
a message, accompanied by an audible
signal, appear in the instrument panel
screen for a few seconds.

2
53
Access

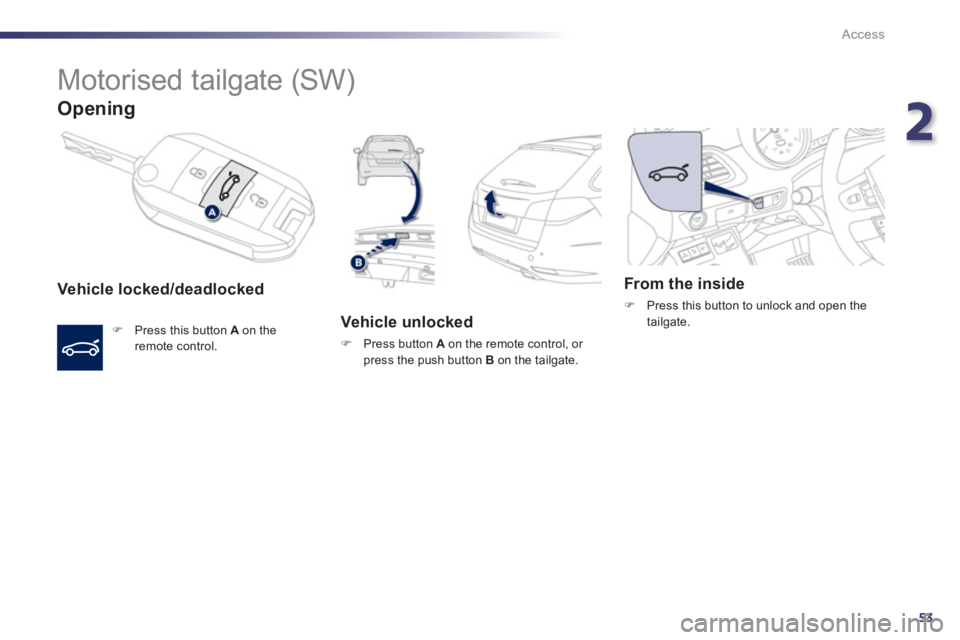

Motorised tailgate (SW)


Opening


Vehicle locked/deadlocked



)
Press this button A
on the
remote control.


Vehicle unlocked



)
Press button A
on the remote control, or
press the push button B
on the tailgate.



From the inside



)
Press this button to unlock and open the
tailgate.

54
!
Access

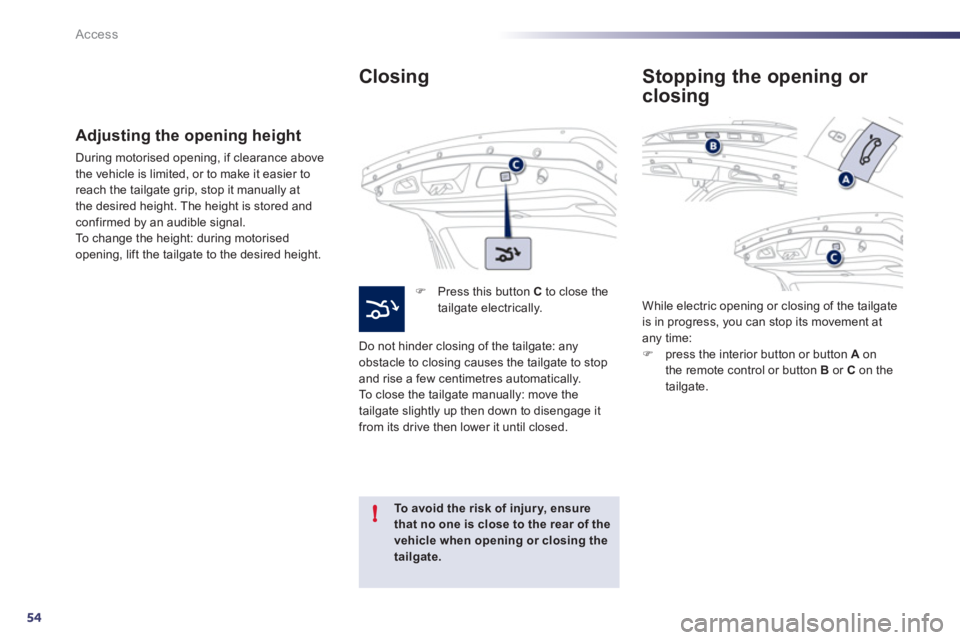

Closing




)
Press this button C
to close the
tailgate electrically.
Do not hinder closing of the tailgate: any
obstacle to closing causes the tailgate to stop
and rise a few centimetres automatically.
To close the tailgate manually: move the
tailgate slightly up then down to disengage it
from its drive then lower it until closed.


To

avoid the risk of injur y

, ensure
that no



one is close to the rear of the
vehicle

when

opening or closing the
tailgate

.





Adjusting the opening height

During motorised opening, if clearance above
the vehicle is limited, or to make it easier to
reach the tailgate grip, stop it manually at
the desired height. The height is stored and
confirmed by an audible signal.
To change the height: during motorised
opening, lift the tailgate to the desired height.

While electric opening or closing of the tailgate
is in progress, you can stop its movement at
any time:


)
press the interior button or button A
on
the remote control or button B
or C
on the
tailgate.




Stopping the opening or
closing

2
55
Access

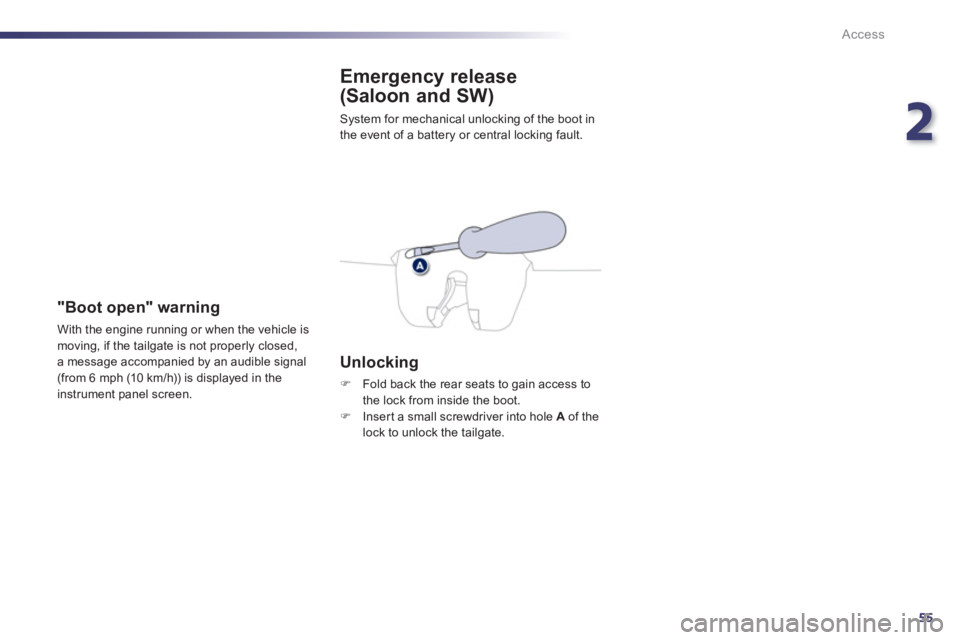

Emergency release
(Saloon and SW)
System for mechanical unlocking of the boot in
the event of a battery or central locking fault.

Unlocking



)
Fold back the rear seats to gain access to
the lock from inside the boot.

)
Inser t a small screwdriver into hole A
of the
lock to unlock the tailgate.




"Boot open" warning

With the engine running or when the vehicle is
moving, if the tailgate is not properly closed,
a message accompanied by an audible signal
(from 6 mph (10 km/h)) is displayed in the
instrument panel screen.

56
Access











Panoramic sunroof (SW)

Your vehicle is fitted with a tinted glass
panoramic sunroof which increases the light
and visibility in the passenger compar tment. Its
electric blind helps control the temperature and
noise level in the passenger compar tment. The blind is controlled electrically by a rotary
opening dial.

Opening

Turn the dial to the left (several possible
opening settings).


Safety anti-pinch

If the blind encounters an obstacle during
closing, it stops and par tially opens again to the
2nd position.
If the blind fails to close at a second attempt,
it may be necessary to force the closing of the
blind using the reinitialisation procedure.



Closing

Return the dial to the initial position.
If the position of the blind does not agree with
the position indicated by the dial, press the dial
to open the blind to this position.


Electric blind

2
57
!
Access

In the event of contact during operation
of the blind, you must reverse its
movement. To do this, turn the dial.
When the driver operates the dial, they
must ensure that nothing prevents the
blind from closing correctly.
The driver must ensure that the
passengers use the blind correctly.
Be aware of children during operation
of the blind.

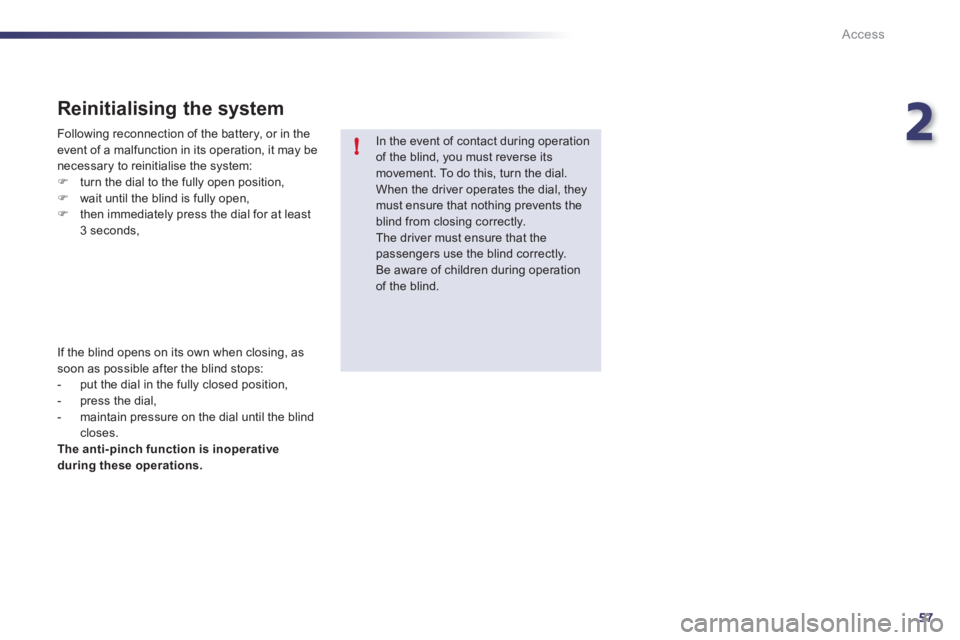

Reinitialising the system


Following reconnection of the battery, or in the
event of a malfunction in its operation, it may be
necessary to reinitialise the system:


)
turn the dial to the fully open position,

)
wait until the blind is fully open,

)
then immediately press the dial for at least
3 seconds,


If the blind opens on its own when closing, as
soon as possible after the blind stops:


- put the dial in the fully closed position,

- press the dial,

- maintain pressure on the dial until the blind
closes.

The anti-pinch function is inoperative
during these operations.

58
!
!
Access

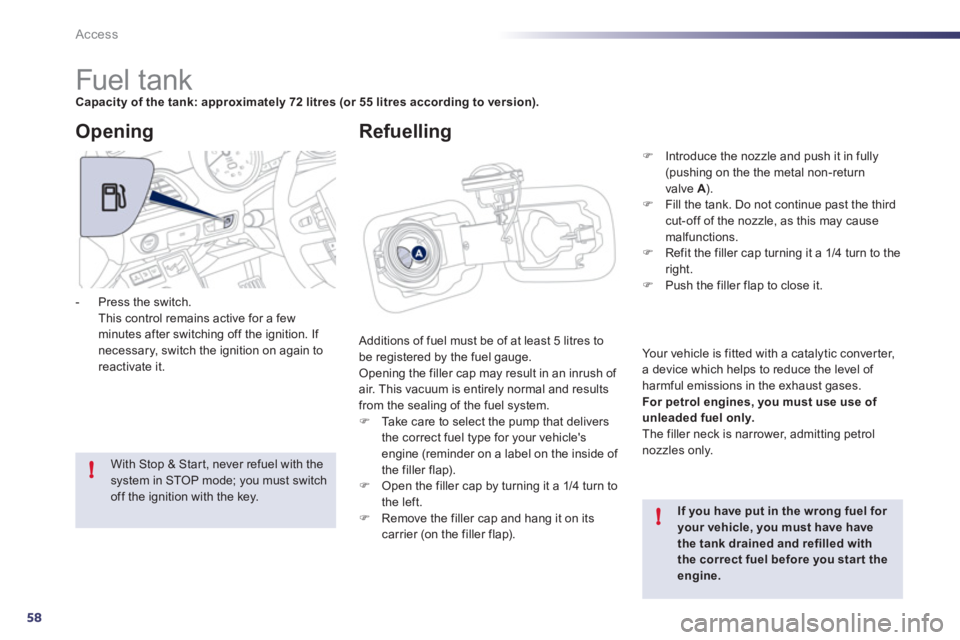

Fuel tank

Capacity of the tank: approximately 72 litres
(or 55 litres according to version).

Additions of fuel must be of at least 5 litres to
be registered by the fuel gauge.
Opening the filler cap may result in an inrush of
air. This vacuum is entirely normal and results
from the sealing of the fuel system.


)
Take care to select the pump that delivers
the correct fuel type for your vehicle's
engine (reminder on a label on the inside of
the filler flap).

)
Open the filler cap by turning it a 1/4 turn to
the left.

)
Remove the filler cap and hang it on its
carrier (on the filler flap).

Opening


If you have put in the wrong fuel for
your vehicle, you must have have
the tank drained and refilled with
the correct fuel before you star t the
engine.








With Stop & Star t, never refuel with the
system in STOP mode; you must switch
off the ignition with the key.

- Press the switch.
This control remains active for a few
minutes after switching off the ignition. If
necessary, switch the ignition on again to
reactivate it.



Refuelling


)
Introduce the nozzle and push it in fully
(pushing on the the metal non-return
valve A
).

)
Fill the tank. Do not continue past the third
cut-off of the nozzle, as this may cause
malfunctions.

)
Refit the filler cap turning it a 1/4 turn to the
right.

)
Push the filler flap to close it.

Your vehicle is fitted with a catalytic conver ter,
a device which helps to reduce the level of
harmful emissions in the exhaust gases.

For petrol engines, you must use use of
unleaded fuel only.

The filler neck is narrower, admitting petrol
nozzles only.
