technical data Peugeot 508 2011 User Guide

226
Technical data

* The kerb weight is equal to the unladen weight + driver (75 kg).

** The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

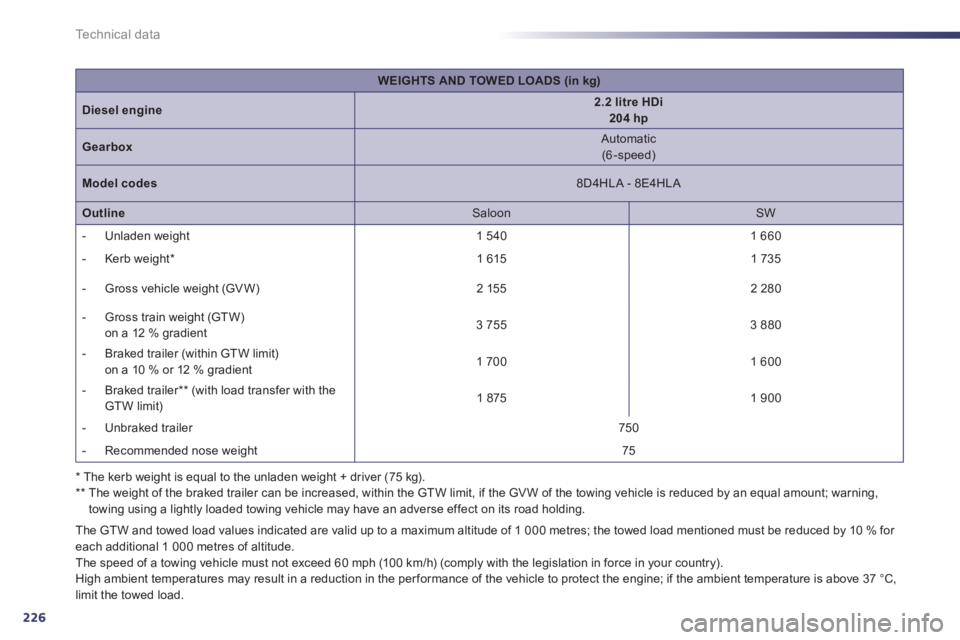

WEIGHTS AND TOWED LOADS (in kg)



Diesel engine


2.2 litre HDi
204 hp



Gearbox

Automatic
(6 -speed)

Model codes


8D4HLA - 8E4HLA

Outline

Saloon
SW


- Unladen weight
1 540
1 660


- Kerb weight *

1 615
1 735


- Gross vehicle weight (GV W)
2 155
2 280


- Gross train weight (GTW)
on a 12 % gradient
3 755
3 880


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 700
1 600


- Braked trailer **
(with load transfer with the
GTW limit)
1 875
1 900


- Unbraked trailer

750


- Recommended nose weight
75

10
227
Technical data







Saloon

SW

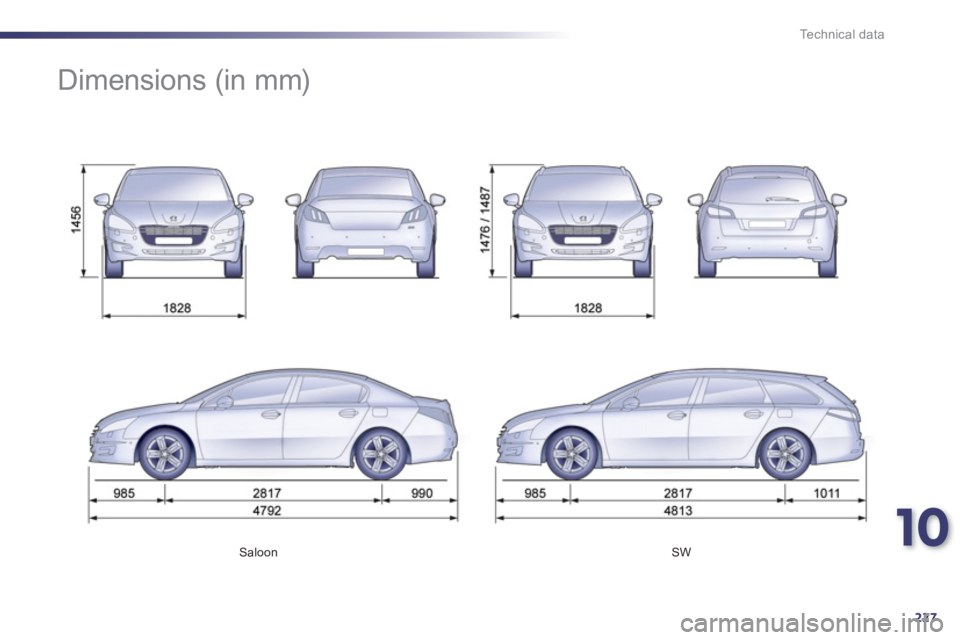

Dimensions (in mm)

228
i
Technical data

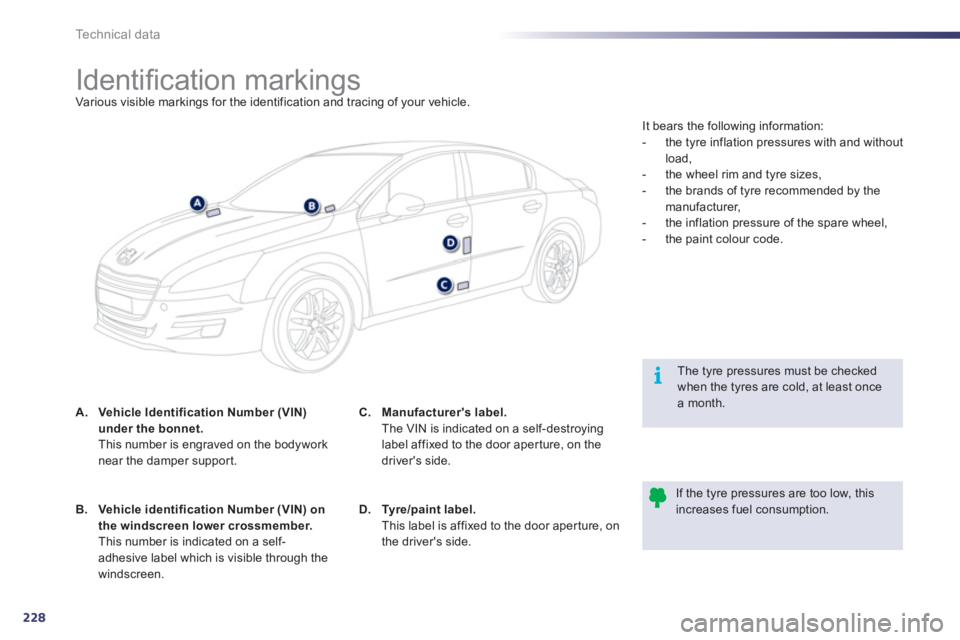

Identifi cation markings
Various visible markings for the identification and tracing of your vehicle.



A.
Vehicle Identification Number (VIN)
under the bonnet.

This number is engraved on the bodywork
near the damper suppor t.
The tyre pressures must be checked
when the tyres are cold, at least once
a month.

If the tyre pressures are too low, this
increases fuel consumption.


B.
Vehicle identification Number (VIN) on
the windscreen lower crossmember.

This number is indicated on a self-
adhesive label which is visible through the
windscreen.
C.
Manufacturer's label.

The VIN is indicated on a self-destroying
label affixed to the door aper ture, on the
driver's side.

D.
Ty r e / p a i n t l a b e l .

This label is affixed to the door aper ture, on
the driver's side. It bears the following information:


- the tyre inflation pressures with and without
load,

- the wheel rim and tyre sizes,

- the brands of tyre recommended by the
manufacturer,

- the inflation pressure of the spare wheel,

- the paint colour code.

322Alphabetical index
Seat adjustment ........................................ 61, 62
Seat belts ...............................................163 -165
Serial number, vehicle ..................................228
Ser vice indicator .............................................33
Setting the clock ...........................................277
Shor t-cut menus ...........................................238
Sidelamps .............. 129, 133, 183, 185, 187-189
Side repeater................................................. 187
Side spotlamps ..................................... 136, 187
Ski flap ............................................................ 73
Spare wheel .......................................... 176, 177
Speed limiter ......................................... 120, 121
Stability control (ESP) ................................... 162
Star ting the vehicle ......................... 94, 106, 110
Status indicator lamps ..............................23, 27
Steering mounted controls ............................236
Steering mounted controls,
audio ...........................................................289
Stopping the vehicle ....................... 94, 106, 110
Stop & Star t ................... 38, 58, 85, 88, 92, 114,
196, 208, 216, 311
Storage .......................................... 71, 72, 74, 75
Storage wells............................................. 74, 75
Storing the driving positions ........................... 63
Stowing rings ............................................ 74, 75
Synchronising the remote
control .......................................................45, 46
Synthesiser, voice ......................................... 251
Systems, ASR and ESP ................................ 162
Table of weights .................................... 219, 224
Tables of engines .......................... 218, 221, 224
Tables of fuses .............................................. 192
Technical data ....................... 218, 219, 221, 224Telephone ............................................. 257, 259
Temperature control for heated seats ............64
Temporary tyre repair kit ............................... 170
Third brake lamp ........................................... 191
Time .............................................................. 310
TMC (Traffic info) ..........................................254
Tools ...................................................... 176, 177
To w b a r ...........................................................202
Towed loads .......................................... 219, 224
Towing another vehicle ................................. 201
Tr a c t i o n c o n t r o l
(ASR) .......................................................... 162
Traffic information
(TA) ............................................ 255, 269, 292
Traffic information
(TMC) ..................................................254, 255
Trip computer ............................................36, 37
Tyre pressures ..............................................228
Tyre under-inflation detection ....................... 159
Under-inflation
(detection) ................................................... 159
Unlocking ........................................................39
Unlocking the boot .......................................... 40
USB (Peugeot Connect) ................................. 73
USB port..................................................73, 297
U
T
Warning triangle .............................................. 77
Weights ................................................. 219, 224
Welcome function ........................................... 63
Welcome lighting ........................................... 136
Wipers ................................................... 140, 142
W
Xenon headlamps ......................................... 183
X
Vehicle identification .....................................228
Ventilation ................................................. 80 - 82
V

328

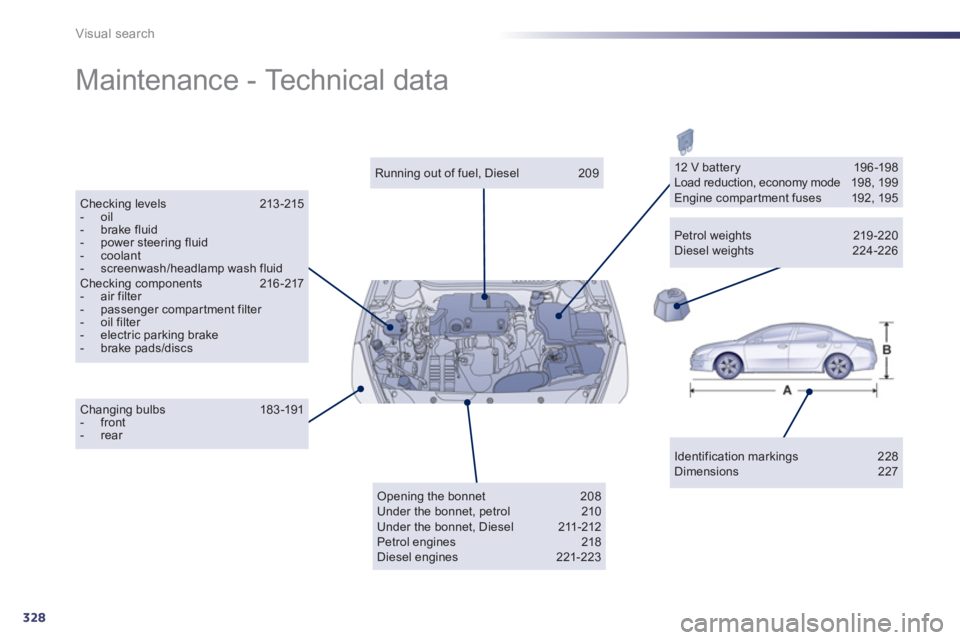

Visual search
Maintenance - Technical data


Identification markings 228
Dimensions 227

Running out of fuel, Diesel 209

Checking levels 213 -215


- oil

- brake fluid

- power steering fluid

- coolant

- screenwash/headlamp wash fluid
Checking components 216-217


- air filter

- passenger compartment filter

- oil filter

- electric parking brake

- brake pads/discs


Changing bulbs 183 -191


- front

- rear

12 V battery 196 -198
Load reduction, economy mode 198, 19 9
Engine compartment fuses 192, 195

Opening the bonnet 208
Under the bonnet, petrol 210
Under the bonnet, Diesel 211-212
Petrol engines 218
Diesel engines 221-223
Petrol weights 219 -220
Diesel weights 224-226
