Peugeot 508 2012 Owner's Manual - RHD (UK, Australia)

4
119
i
!
!
Driving
The system is reactivated automatically at every new star t using the key.

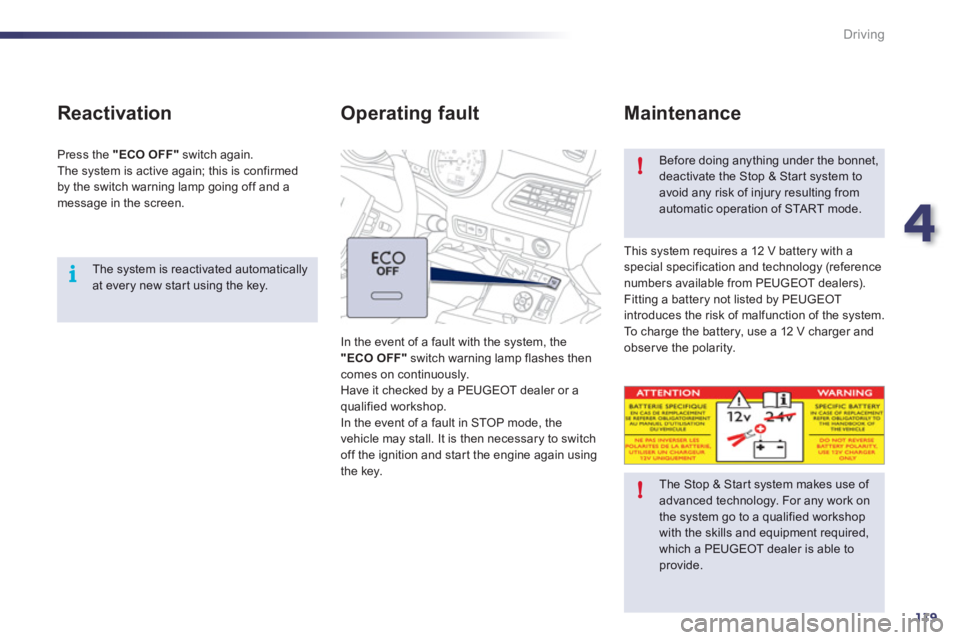

Reactivation

Press the "ECO OFF"switch again.
The s
ystem is active again; this is confirmed
by the switch warning lamp going off and a message in the screen.
Operating fault
In the event of a fault with the system, the
"ECO OFF"
switch warning lamp flashes thencomes on continuously.
Have it checked by a PEUGEOT dealer or aqualified workshop.
In the event of a fault in STOP mode, the
vehicle ma
y stall. It is then necessary to switch
off the ignition and star t the engine again using
the key.

Before doing anything under the bonnet,deactivate the Stop & Start system toavoid any risk of injury resulting fromautomatic operation of STA R T m o d e .
This system requires a 12 V battery with a
special specification and technology (reference
numbers available from PEUGEOT dealers).
Fitting a battery not listed by PEUGEOT
introduces the risk of malfunction of the system.
To c h a rge the battery, use a 12 V charger andobser ve the polarity.


Maintenance


The Stop & Star t system makes use of advanced technology. For any work onthe system go to a qualified workshopwith the skills and equipment required,which a PEUGEOT dealer is able toprovide.

120
!
Driving





Hill start assist
System which keeps your vehicle immobilised
temporarily (approximately 2 seconds) whenstarting on a gradient, the time it takes to move your foot from the brake pedal to the accelerator pedal. This system only operates when:
- the vehicle is completely stationary, withyour foot on the brake pedal,
- in par ticular conditions on a slope,
- with th
e driver’s door closed.
The hill star t assist system cannot be deactivated.
On an ascendin
g slope, with the vehiclestationary, the vehicle is held for amomentarily when you release the brakepedal:


- provided you are in first gear or neutral on
a manual gearbox,

- provided you are in position A
or M
on an electronic gear control gearbox,

- provided you are in position D
or M
on an
automatic gearbox.


Operation
On a descending slope, with the vehicle
stationary and reverse gear engaged, thevehicle is held momentarily when yourelease the brake pedal.

Do not exit the vehicle while it is beingheld in the hill star t assist phase.
If you need to exit the vehicle withthe engine running, apply the parkingbrake manually then ensure that the parking brake warning lamp(and the warning lamp P
in the lever of the electric parking brake) are onfixed (not flashing).


Operating fault

If a fault in the system occurs, these warning
lamps come on. Contact a PEUGEOT dealer
or a qualified workshop to have the systemchecked.

4
121
i
Driving

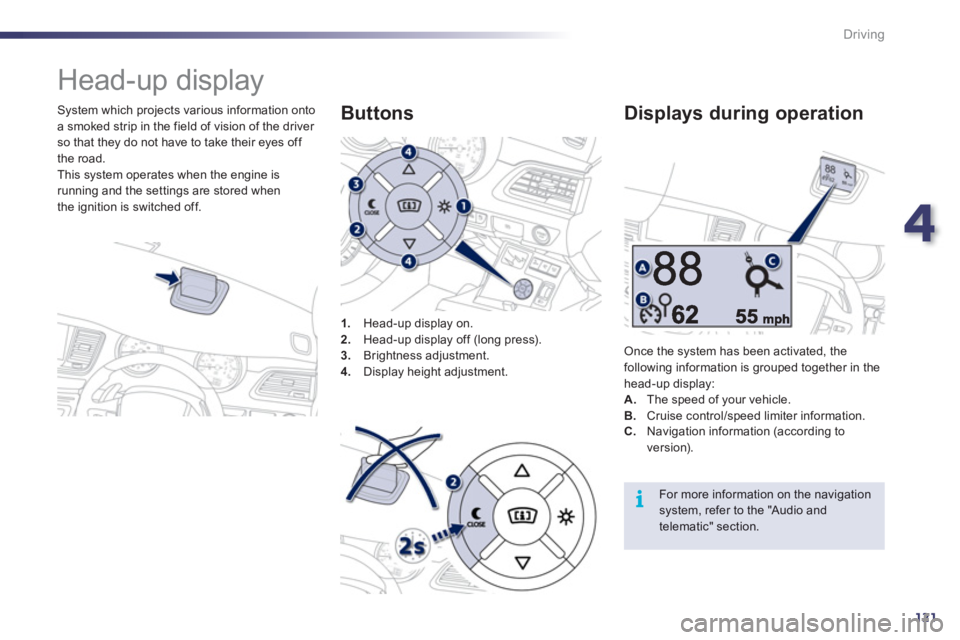

Head-up display


System which projects various information onto
a smoked strip in the field of vision of the driver so that they do not have to take their eyes off
the road.
This system operates when the engine is
running and the settings are stored when
the ignition is switched off.


1
.Head-up display on. 2. Head-up display off (long press).3.
Brightness adjustment. 4.
Display height adjustment.
Buttons
Once the system has been activated, thefollowing information is grouped together in the
head-up display:A.The speed of your vehicle. B. Cruise control/speed limiter information.


Displays during operation
C.
Navigation information (according to
version).
For more information on the navigation system, refer to the "Audio andtelematic" section.

122
i !
Driving

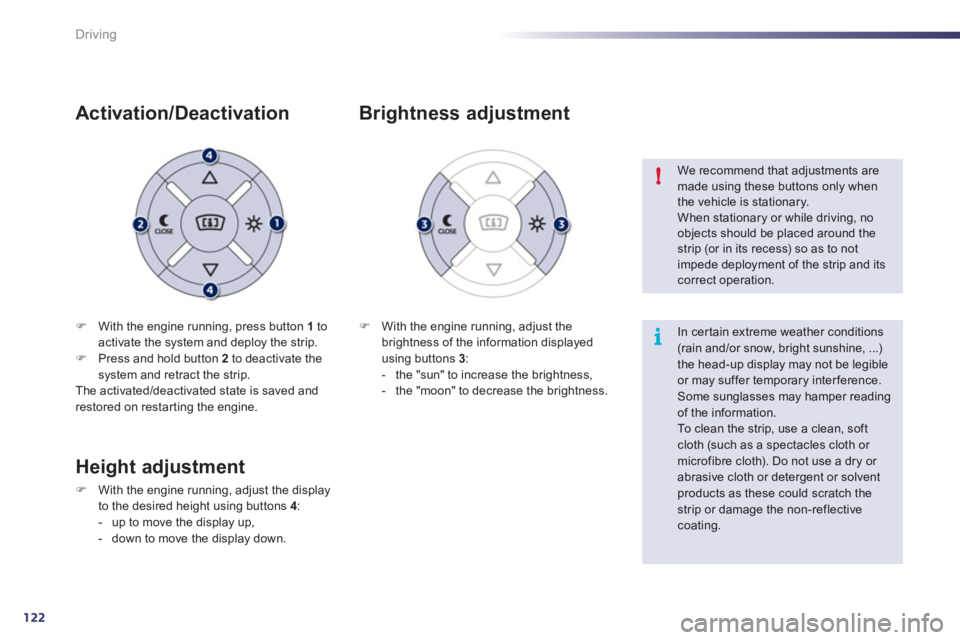

)With the engine running, press button 1 toactivate the system and deploy the strip. )Press and hold button 2
to deactivate the
system and retract the strip.
The activated/deactivated state is saved and restored on restar ting the engine.
Activation/Deactivation
) With the engine running, adjust the
brightness of the information displayedusing buttons 3 :


- the "sun" to increase the brightness,

- the "moon" to decrease the brightness.





Brightness adjustment
We recommend that adjustments aremade using these buttons only whenthe vehicle is stationary. When stationary or while driving, noobjects should be placed around thestrip (or in its recess) so as to not impede deployment of the strip and itscorrect operation.


In certain extreme weather conditions (rain and/or snow, bright sunshine, ...) the head-up display may not be legibleor may suffer temporary interference. Some sunglasses may hamper readingof the information.
To clean the strip, use a clean, soft cloth (such as a spectacles cloth or microfibre cloth). Do not use a dry or abrasive cloth or detergent or solventproducts as these could scratch thestrip or damage the non-reflectivecoating.

Height adjustment
)With the engine running, adjust the display
to the desired height using buttons 4 :
- up to move the display up,
- down to move the display down.

4
123
!
Driving

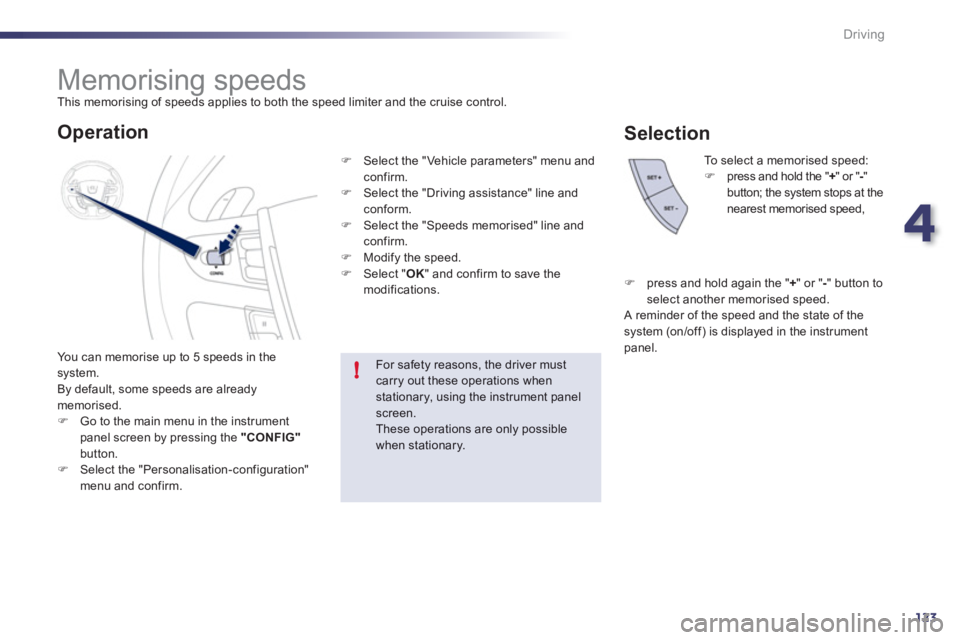

Memorising speeds
This memorising of speeds applies to both the speed limiter and the cruise control.
You can memorise u
p to 5 speeds in the system.
By default, some speeds are already memorised.)Go to the main menu in the instrument
panel screen by pressing the "CONFIG"button.)Select the "Personalisation-configuration" menu and confirm.
To select a memorised speed:)press and hold the "+" or " -"button; the system stops at thenearest memorised speed,
For safety reasons, the driver mustcarry out these operations when stationary, using the instrument panel screen.These operations are only possible when stationary.


Operation
)
Select the "Vehicle parameters" menu andconfirm.)
Select the "Driving assistance" line and conform.
)
Select the "Speeds memorised" line andconfirm.)
Modify the speed. )
Select " OK" and confirm to save the
modifications.

Selection
)
press and hold again the "+ " or " - " button toselect another memorised speed.
A reminder of the speed and the state of thesystem (on/off) is displayed in the instrument
panel.

124
i
i
Driving

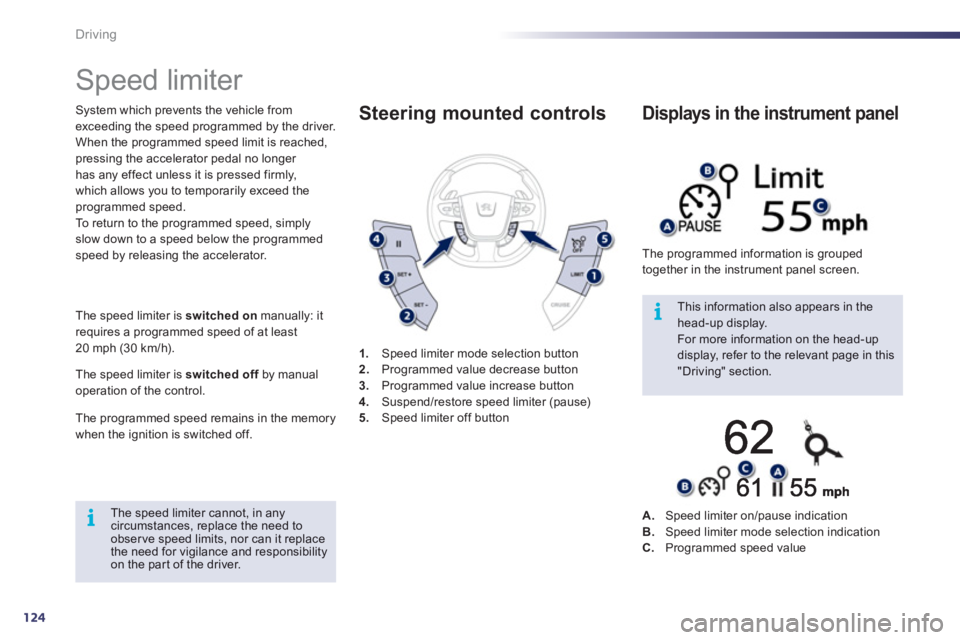

Speed limiter
System which prevents the vehicle fromexceeding the speed programmed by the driver.
When the programmed speed limit is reached,
pressing the accelerator pedal no longer has any effect unless it is pressed firmly,
which allows you to temporarily exceed theprogrammed speed.
To return to the programmed speed, simply
slow down to a speed below the programmed speed by releasing the accelerator.
The speed limiter is switched onmanuall
y: it requires a programmed speed of at least
20 mph (30 km/h).
The speed limiter is
switched off by manual foperation of the control.
The pro
grammed speed remains in the memorywhen the ignition is switched off.

The speed limiter cannot, in anycircumstances, replace the need to observe speed limits, nor can it replacethe need for vigilance and responsibility on the par t of the driver.
This information also appears in the head-up display.
For more information on the head-updisplay, refer to the relevant page in this "Driving" section. 1
.Speed limiter mode selection button
2. Programmed value decrease button3.
Programmed value increase button4.Suspend/restore speed limiter (pause)5.Speed limiter off button


Steering mounted controls

The programmed information is grouped
together in the instrument panel screen.

Displays in the instrument panel
A.Speed limiter on/pause indicationB.Speed limiter mode selection indicationC.Programmed speed value

4
125
!
Driving

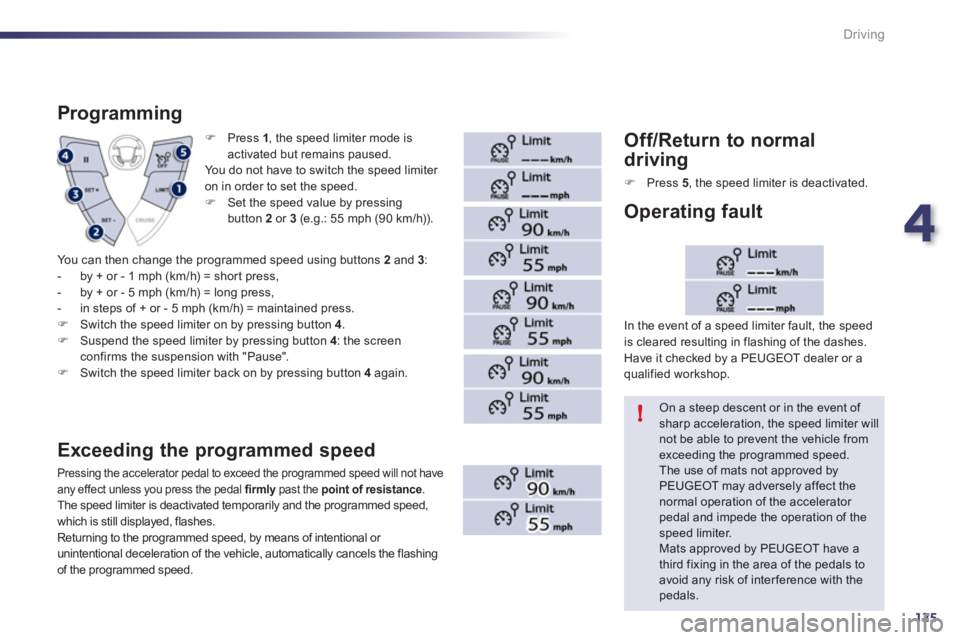

) Press 1, the speed limiter mode is
activated but remains paused.
You do not have to switch the s
peed limiter
on in order to set the speed. ) Set the speed value by pressingbutton 2or 3(e.g.: 55 mph (90 km/h)).


Programming


Exceeding the programmed speed
Pressing the accelerator pedal to exceed the programmed speed will not have
any effect unless you press the pedal firmlypast the ypoint of resistance.e The speed limiter is deactivated temporarily and the programmed speed,
which is still displayed, flashes.
Returning to the programmed speed, by means of intentional or
unintentional deceleration of the vehicle, automatically cancels the flashing
of the programmed speed.

Off/Return to normal
driving
)
Press 5, the speed limiter is deactivated.

On a steep descent or in the event of sharp acceleration, the speed limiter willnot be able to prevent the vehicle from exceeding the programmed speed.
The use of mats not approved byPEUGEOT may adversely affect the normal operation of the accelerator pedal and impede the operation of thespeed limiter.
Mats approved by PEUGEOT have a third fixing in the area of the pedals to avoid any risk of inter ference with thepedals.
In the event o
f a speed limiter fault, the speed
is cleared resulting in flashing of the dashes.
Have it checked by a PEUGEOT dealer or a qualified workshop.


Operating fault
You can then change the programmed speed using buttons 2
and 3:


- by + or - 1 mph (km/h) = shor t press,

- by + or - 5 mph (km/h) = long press,

- in steps of + or - 5 mph (km/h) = maintained press. )Switch the speed limiter on by pressing button 4 . )Suspend the speed limiter by pressing button 4: the screen confirms the suspension with "Pause".)Switch the speed limiter back on by pressing button 4
again.

126
i
i
Driving

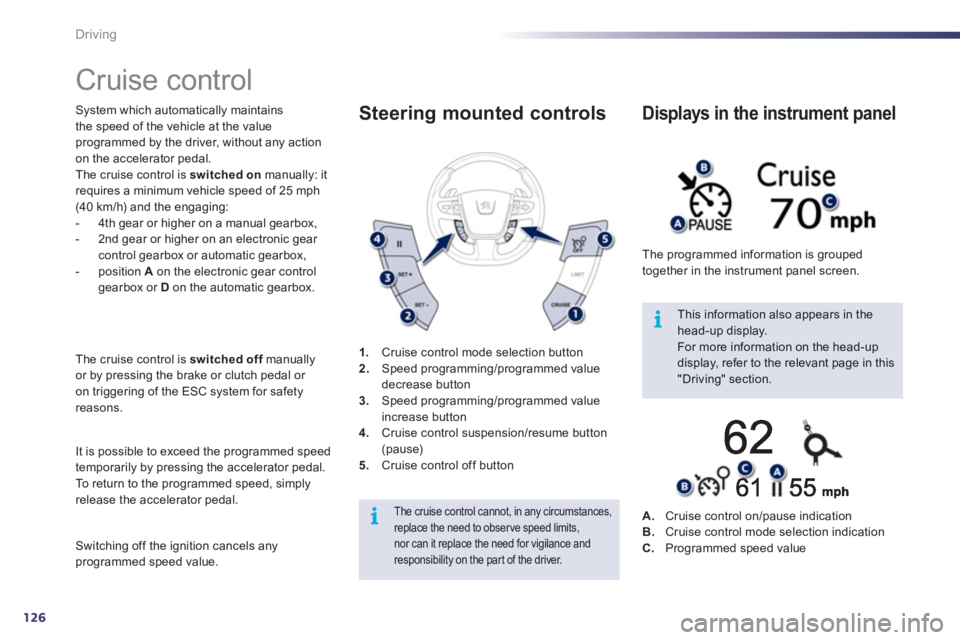

Cruise control
System which automatically maintains
the speed of the vehicle at the value
programmed by the driver, without any action
on the accelerator pedal.
The cruise control is switched on
manually: itrequires a minimum vehicle speed of 25 mph(40 km/h) and the engaging:
- 4th gear or higher on a manual gearbox,
- 2nd
gear or higher on an electronic gear control gearbox or automatic gearbox,
- position A
on the electronic gear control gearbox or Don the automatic gearbox.
Th
e cruise control is switched offmanuallyfor by pressing the brake or clutch pedal or
on triggering of the ESC system for safety reasons.
It is possible to exceed the programmed speed
temporarily by pressing the accelerator pedal. To return to the programmed speed, simply release the accelerator pedal.
Switching off the ignition cancels any programmed speed value. 1
.Cruise control mode selection button
2. Speed programming/programmed value decrease button 3.
Speed programming/programmed value
increase button 4.Cruise control suspension/resume button (pause)5.Cruise control off button


Steering mounted controls
The cruise control cannot, in any circumstances,replace the need to observe speed limits,
nor can it replace the need for vigilance and responsibility on the par t of the driver.
This information also appears in the head-up display.
For more information on the head-updisplay, refer to the relevant page in this "Driving" section. The pro
grammed information is grouped
together in the instrument panel screen.

Displays in the instrument panel
A.Cruise control on/pause indicationB.Cruise control mode selection indication
C.Programmed speed value

4
127
!
Driving

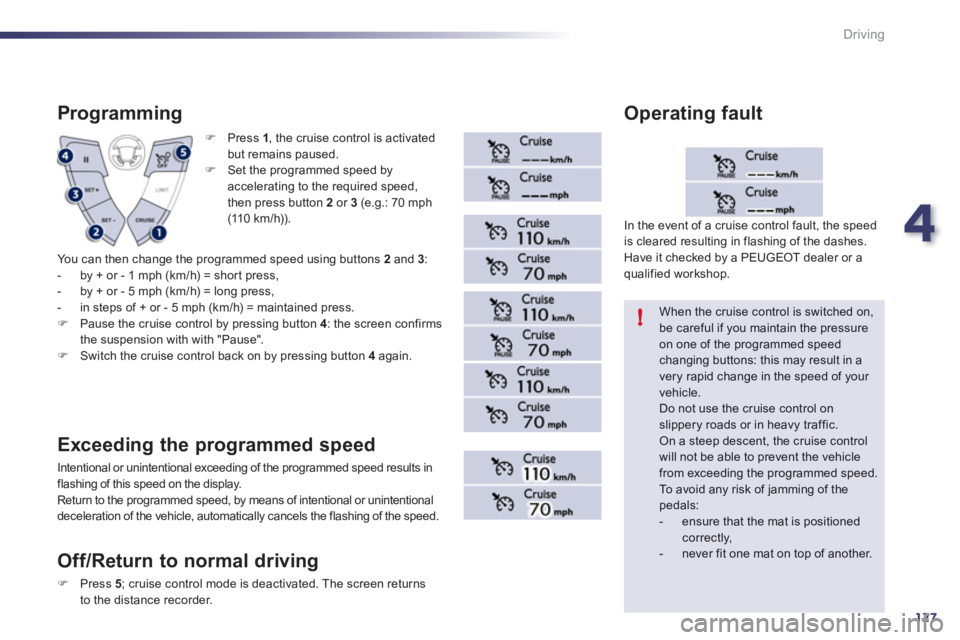

) Press 1, the cruise control is activated but remains paused.
)
Set the programmed speed by
accelerating to the required speed,
then press button 2or 3(e.g.: 70 mph (11 0 k m / h)).

Programming

You can then change the programmed speed using buttons 2
and 3
:


- by + or - 1 mph (km/h) = shor t press,

- by + or - 5 mph (km/h) = long press,

- in steps of + or - 5 mph (km/h) = maintained press. )Pause the cruise control by pressing button 4
: the screen confirmsthe suspension with with "Pause".)Switch the cruise control back on by pressing button 4again.




Exceeding the programmed speed

Intentional or unintentional exceeding of the programmed speed results in
flashing of this speed on the display.
Return to the programmed speed, by means of intentional or unintentional
deceleration of the vehicle, automatically cancels the flashing of the speed.
When the cruise control is switched on,be careful if you maintain the pressure on one of the programmed speedchanging buttons: this may result in avery rapid change in the speed of your vehicle.
Do not use the cruise control on slippery roads or in heavy traffic.

On a steep descent, the cruise control will not be able to prevent the vehicle from exceeding the programmed speed.
To avoid any risk of jamming of the pedals:


- ensure that the mat is positioned correctly,

- never fit one mat on top of another.
In the event o
f a cruise control fault, the speed
is cleared resulting in flashing of the dashes.
Have it checked by a PEUGEOT dealer or a qualified workshop.


Operating fault

Off/Return to normal drivin
g
)Press 5
; cruise control mode is deactivated. The screen returns
to the distance recorder.

128
!
Driving

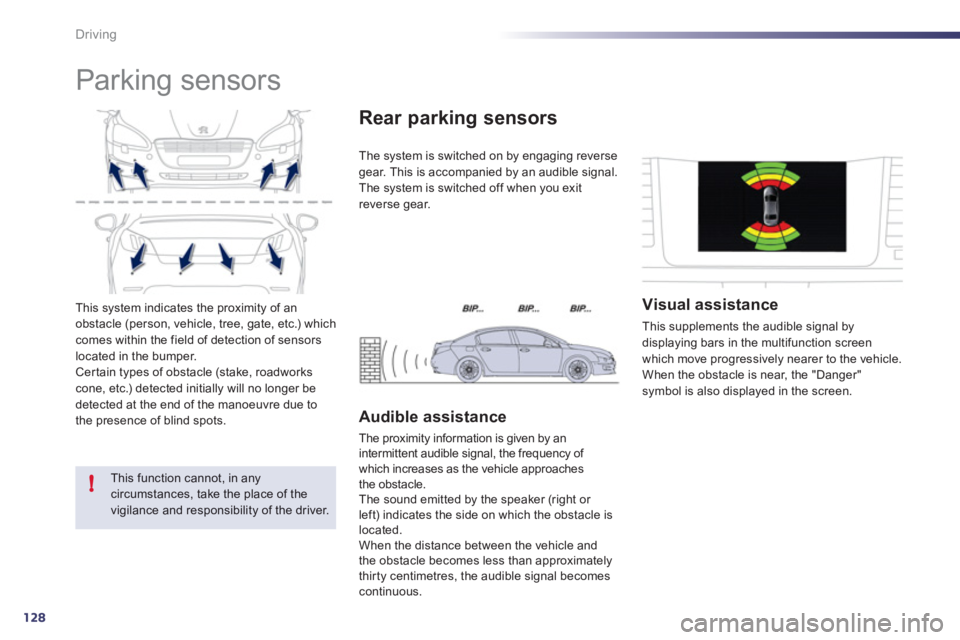

This system indicates the proximity of an
obstacle (person, vehicle, tree, gate, etc.) which comes within the field of detection of sensorslocated in the bumper.Certain types of obstacle (stake, roadworks cone, etc.) detected initially will no longer be detected at the end of the manoeuvre due to
the presence of blind spots.






Parking sensors


This function cannot, in any circumstances, take the place of the vigilance and responsibility of the driver.

The system is switched on by engaging reverse
gear. This is accompanied by an audible signal.
The s
ystem is switched off when you exit reverse gear.


Rear parking sensors


Audible assistance
The proximity information is given by an
intermittent audible signal, the frequency of
which increases as the vehicle approaches
th
e obstacle.
The sound emitted by the speaker (right or left) indicates the side on which the obstacle is located.
When the distance between the vehicle andthe obstacle becomes less than approximatelythirty centimetres, the audible signal becomes continuous.



Visual assistance

This supplements the audible signal by
displaying bars in the multifunction screen
which move progressively nearer to the vehicle.
When the obstacle is near, the "Danger"symbol is also displayed in the screen.
