Peugeot 508 2012 Owner's Manual - RHD (UK, Australia)

6
149
i
Child safety

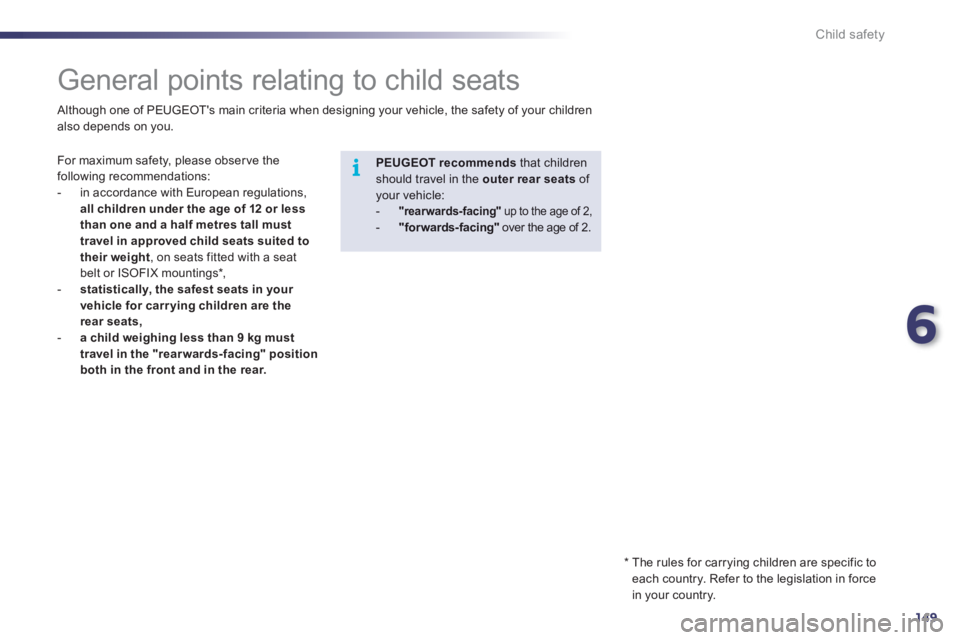

General points relating to child seats

For maximum safety, please obser ve the following recommendations:


- in accordance with European regulations,
all children under the age of 12 or less
than one and a half metres tall must
travel in a
pproved child seats suited to
their weight , on seats fitted with a seat
belt or ISOFIX mountings * ,-statistically, the safest seats in your
vehicle for carrying children are the rear seats, -
a child weighing less than 9 kg must
travel in the "rearwards-facing" position both in the front and in the rear.
PEUGEOT recommends that childrenshould travel in the outerrear seatsof your vehicle: -"rearwards-facing"
up to the age of 2, -
"forwards-facing"
over the age of 2.
Although one of PEUGEOT's main criteria when designing your vehicle, the safety of your children
also depends on you.

*

The rules for carrying children are specific to each country. Refer to the legislation in force
in
your country.

150
i
Child safety
Child seat in the front
"Rearwards-facing"
When a "rear wards-facing" child seat is installed on the front passenger seat, itis essential that the passenger airbag is
deactivated. Other wise, the child would risk being seriously injured or killed if
the airbag were to inflate .


"Forwards-facing"

When a "for wards-facing" child seat is installed on the front passenger seat, adjust the
vehicle's seat to the fully back and highest
position with the seat back upright and leave
the passenger's airbag activated.
Passenger seat in the fully back and
highest position.
Ensure that the seat belt is correctlytensioned.

6
151
ii
Child safety

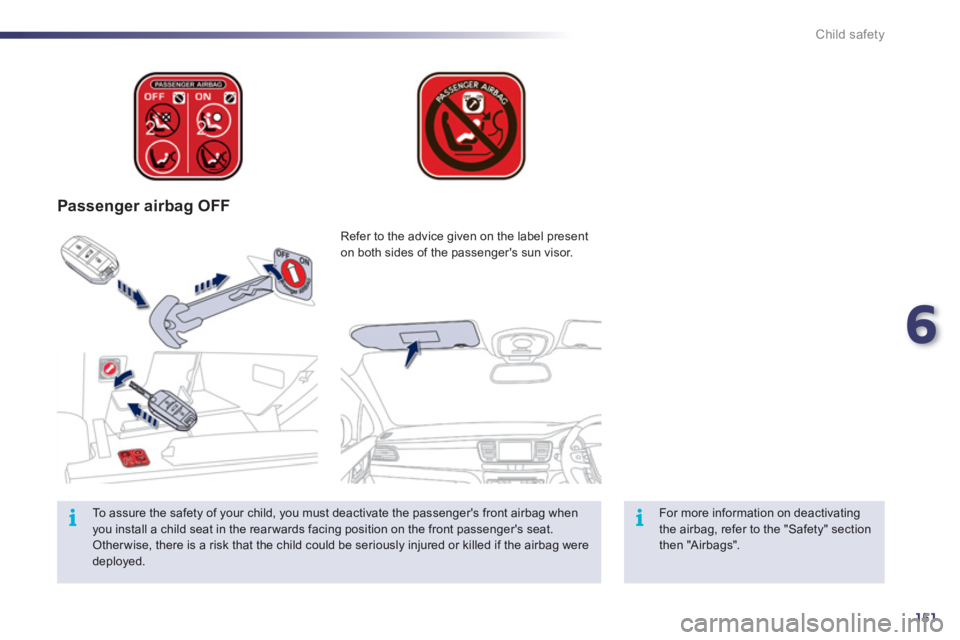

Passenger airbag OFF


For more information on deactivatingthe airbag, refer to the "Safety" sectionthen "Airbags". Re
fer to the advice given on the label present
on both sides of the passenger's sun visor.


To assure the safety of your child, you must deactivate the passenger's front airbag whenyou install a child seat in the rear wards facing position on the front passenger's seat. Other wise, there is a risk that the child could be seriously injured or killed if the airbag weredeployed.

152
Child safety





Child seats recommended by PEUGEOT
Group 1: from 9 to 18 kg




L1"RÖMER/BRITAX Baby-Safe Plus". Installed in the rear wards-facing position.



L2"RÖMER Duo Plus ISOFIX".
Groups 2 and 3: from 15 to 36 kg




L4"RECARO Start''.



L5"KLIPPAN Optima".
From the age of 6 years (approximately 22 kg), the booster
is used on its own. PEU
GEOT offers a complete range of recommended child seats which are secured using a three point seat belt
:

6
153./..
Child safety














Installing child seats attached using the seat belt
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt and universally approved (a)in accordance with the weight of the child and the seat in the vehicle.
Weight of the child and indicative age
SeatUnder 13 kg
(groups 0(
b )and 0+)Up to approx 1 year
From 9 to 18 kg(group 1)1 to 3 years approx
From 15 to 25 kg
(group 2)3 to 6 years approx
From 22 to 36 kg(group 3) 6 to 10 years approx

Front passenger seat(
c )with height adjuster U (R)U (R)U (R)U (R)

Front passenger seat (c)without height adjuster UUUU
Saloon
Outer rear seats UUUU
Centre rear seat XXXX
SW
Outer rear seats UUUU
Centre rear seat XXXX

154
Child safety
a: universal child seat, child seat that can be installed in all vehicles using a seat belt. b:
group 0, from bir th to 10 kg. Shells seats and baby carriers cannot be installed in the front passenger seat.
c:
consult the legislation in force in your country before installing your child on this seat.U:
seat suitable for the installation of a child seat secured using a seat belt and universally approved, "rear wards-facing" and/or "for wards-facing". U (R):idem U, with the vehicle's seat adjusted to the highest position and as far back as possible. X:
seat position not suitable for installation of a child seat for the weight class indicated.

6
155
!
Child safety
The incorrect installation of a child seat in avehicle compromises the child's protection in the event of an accident.
Remember to fasten the seat belts or the child seat harnesses keeping the slack relative to the child's body to a minimum,
even for shor t journeys.
When installing a child seat using the seat belt, ensure that the seat belt is tightenedcorrectly on the child seat and that it secures the child seat firmly on the seat of your vehicle. If your passenger seat is adjustable, move it for wards if necessary.
For optimum installation of the "forwards-facing" child seat, ensure that the back of the child seat is in contact with the back of the vehicle's seat and that the head restraint does not cause any discomfort.
If the head restraint has to be removed, ensure that it is stored or attached securely to prevent it from being thrown around the vehicle in the event of sharp braking.

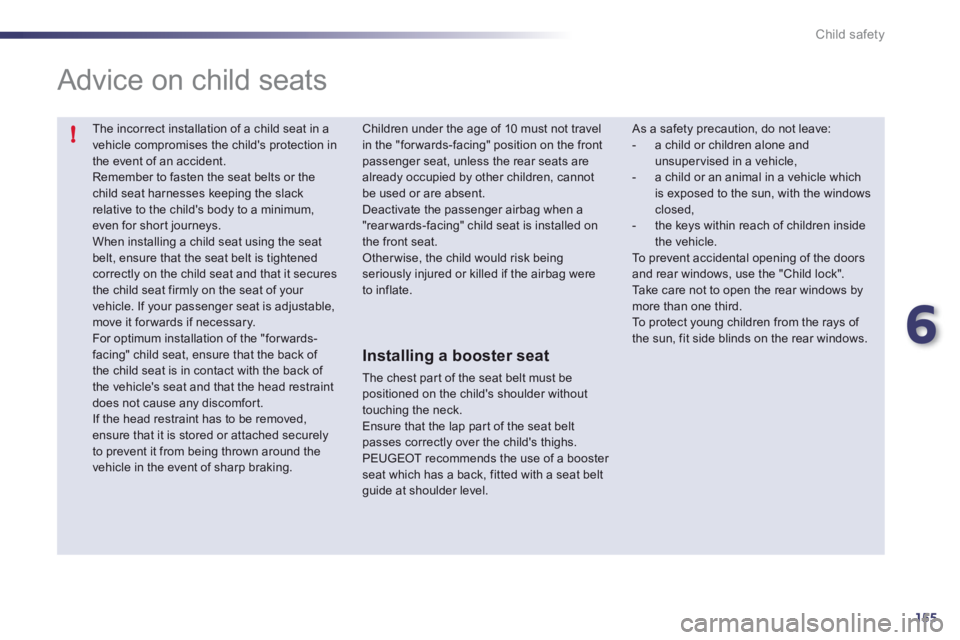

Advice on child seats

As a safety precaution, do not leave: - a child or children alone and unsupervised in a vehicle, - a child or an animal in a vehicle whichis exposed to the sun, with the windows closed,
- the keys within reach of children inside the vehicle. To prevent accidental opening of the doors and rear windows, use the "Child lock". Take care not to open the rear windows bymore than one third.To protect young children from the rays of the sun, fit side blinds on the rear windows.

Children under the age of 10 must not travel in the "forwards-facing" position on the front passenger seat, unless the rear seats are already occupied by other children, cannot be used or are absent.
Deactivate the passenger airbag when a
"rearwards-facing" child seat is installed on the front seat. Other wise, the child would risk beingseriously injured or killed if the airbag were to inflate.


Installing a booster seat

The chest par t of the seat belt must be positioned on the child's shoulder without touching the neck.
Ensure that the lap part of the seat belt passes correctly over the child's thighs.
PEUGEOT recommends the use of a booster seat which has a back, fitted with a seat belt guide at shoulder level.

156
!
Child safety
Your vehicle has been approved in accordance
with the latestISOFIX regulations .
The seats, represented below, are fitted with
regulation ISOFIX mountings:

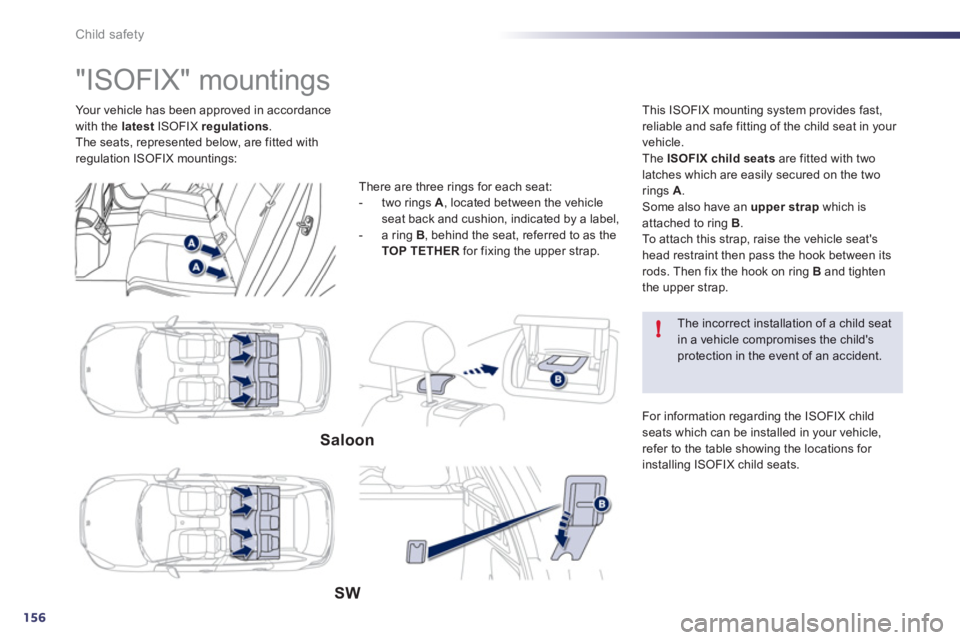

"ISOFIX" mountings

There are three rings for each seat:


- two rings A, located between the vehicle seat back and cushion, indicated by a label,

- a rin
g B
, behind the seat, referred to as theTOP TETHER
for fixing the upper strap. This IS
OFIX mounting system provides fast,
reliable and safe fitting of the child seat in your
vehicle.
The ISOFIX child seatsare fitted with two latches which are easily secured on the two
rings A. Some also have an upper strapwhich isattached to ring B.
To attach this strap, raise the vehicle seat's
head restraint then pass the hook between its
rods. Then fix the hook on ring Band tighten
the upper strap.


Saloon

SW


The incorrect installation of a child seat in a vehicle compromises the child'sprotection in the event of an accident.
For information re
garding the ISOFIX childseats which can be installed in your vehicle,
refer to the table showing the locations for
installing ISOFIX child seats.

6
157
i
Child safety

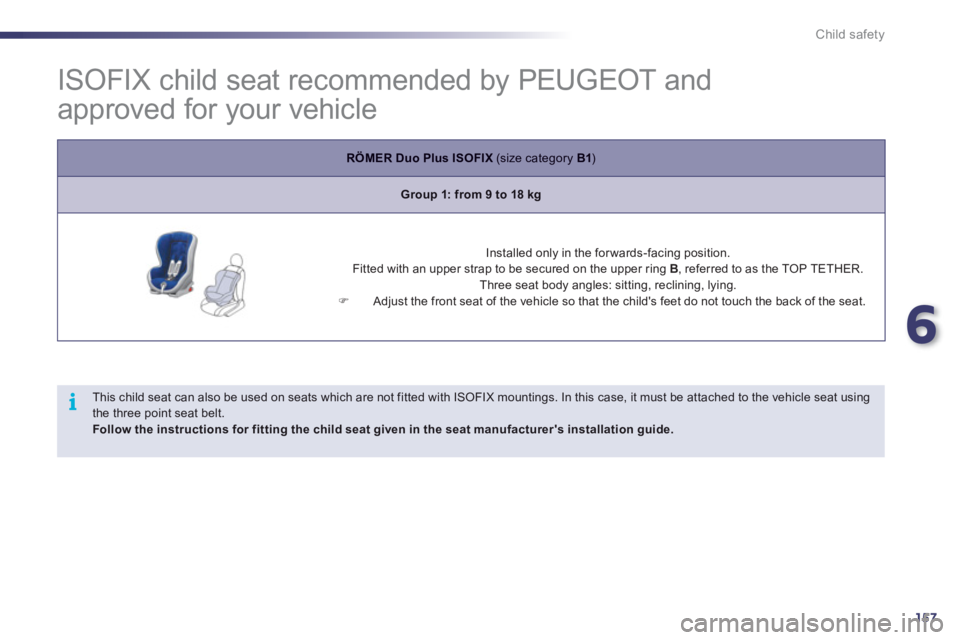

ISOFIX child seat recommended by PEUGEOT and
approved for your vehicle
RÖMERDuo Plus ISOFIX (size category B1 )

Group 1: from 9 to 18 kg
Installed only in the for wards-facing position. Fitted with an upper strap to be secured on the upper ring B
, referred to as the TOP TETHER. Three seat body angles: sitting, reclining, lying.)
Adjust the front seat of the vehicle so that the child's feet do not touch the back of the seat.


This child seat can also be used on seats which are not fitted with ISOFIX mountings. In this case, it must be attached to the vehicle seat using the three point seat belt.Follow the instructions for fitting the child seat given in the seat manufacturer's installation guide.

158
Child safety












Locations for installing ISOFIX child seats
In accordance with European Regulations, this table indicates the options for installing ISOFIX child seats on seats in the vehicle fitted with ISOFIXmountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from Ato G , is indicated on the childseat next to the ISOFIX logo.
Weight of the child
/indicative age
Less than 10 kg(group 0)Up to approx. 6 months
Less than 10 kg(group 0)
Less than 13 kg(group 0+)Up to approx. 1 year
From 9 to 18 kg (group 1)From approx. 1 to 3 years
Type of ISOFIX child seatShell"rearwards-facing""rearwards-facing""forwards-facing"
ISOFIX size categoryFGCDECDABB1


Front passenger seat Non Isofix
Saloon

Outer rear seatsXIL-SUIL-SUIUF
IL-S
U

Centre rear seat Non Isofix
SW

Outer rear seatsXIL-SUIL-SUIUF
IL-S
U
Centre rear seat Non Isofix
