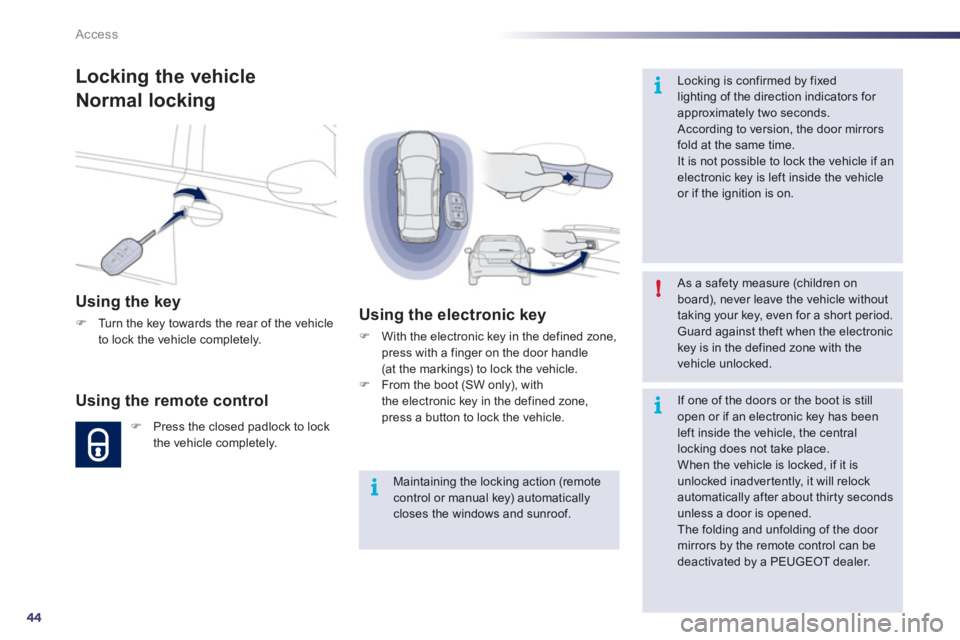

Locking the vehicle
Normal locking
Using the key
)Turn the key towards the rear of the vehicle
to lock the vehicle completely.

Using the remote control
)Press the closed padlock to lock
the vehicle completely.


Using the electronic key
)
With the electronic key in the defined zone,
press with a finger on the door handle(at the markings) to lock the vehicle.) From the boot (SW only), with
the electronic key in the defined zone,
press a button to lock the vehicle.

Maintaining the locking action (remotecontrol or manual key) automaticallycloses the windows and sunroof.


As a safety measure (children on board), never leave the vehicle without taking your key, even for a shor t period. Guard against theft when the electronickey is in the defined zone with thevehicle unlocked.


Locking is confirmed by fixedlighting of the direction indicators for approximately two seconds.
According to version, the door mirrors fold at the same time.

It is not possible to lock the vehicle if an electronic key is left inside the vehicleor if the ignition is on.


If one of the doors or the boot is stillopen or if an electronic key has been left inside the vehicle, the centrallocking does not take place.
When the vehicle is locked, if it isunlocked inadvertently, it will relock automatically after about thir ty seconds unless a door is opened.
The folding and unfolding of the door mirrors by the remote control can be deactivated by a PEUGEOT dealer.

58
Access








Sunroof

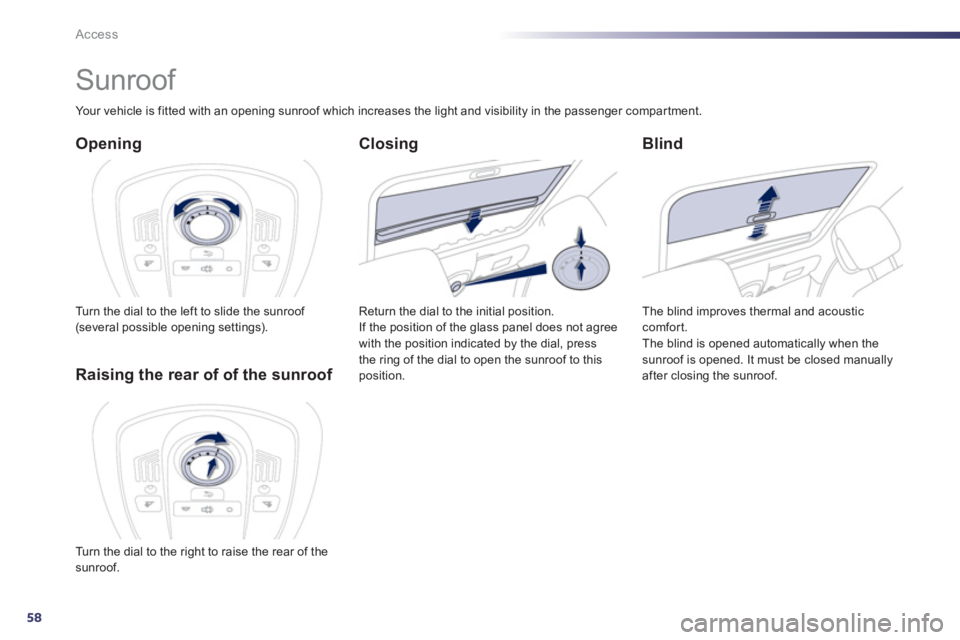

Opening
Turn the dial to the left to slide the sunroof (several possible opening settings).


Blind

The blind improves thermal and acoustic comfort.
The blind is opened automatically when the sunroof is opened. It must be closed manually
after closing the sunroof.Raising the rear of of the sunroof
Your vehicle is fitted with an opening sunroof which increases the light and visibility in the passenger compartment.
Return the dial to the initial position.
If the position of the
glass panel does not agree
with the position indicated by the dial, press
the ring of the dial to open the sunroof to thisposition.

Closing
Turn the dial to the right to raise the rear of thesunroof.

2
59
!
Access

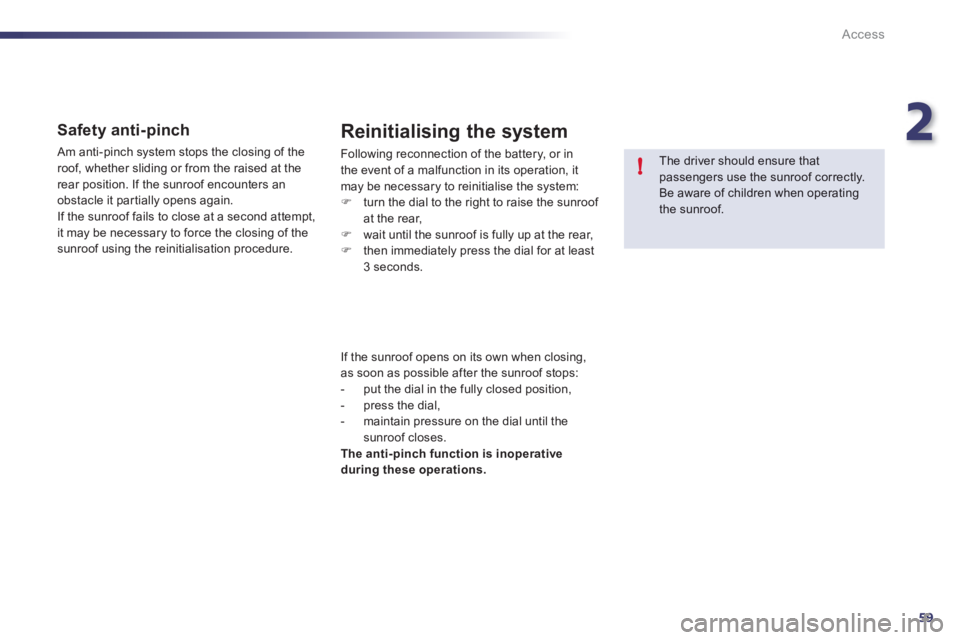

Safety anti-pinch
Am anti-pinch system stops the closing of the
roof, whether slidin
g or from the raised at the
rear position. If the sunroof encounters an
o
bstacle it par tially opens again.
If the sunroof fails to close at a second attempt,
it may be necessary to force the closing of thesunroof using the reinitialisation procedure.

Reinitialising the system
Following reconnection of the battery, or in
the event of a malfunction in its operation, it
may be necessary to reinitialise the system:
) turn the dial to the right to raise the sunroof
at the rear,
) wait until the sunroof is fully up at the rear,)
then immediately press the dial for at least3 seconds.

I
f the sunroof opens on its own when closing,as soon as possible after the sunroof stops:
- put the dial in the fully closed position,
- press the dial,
- maintain pressure on the dial until the
sunroof closes.The anti-pinch function is inoperative during these operations.

The driver should ensure that passengers use the sunroof correctly. Be aware of children when operatingthe sunroof.

60
!
Access

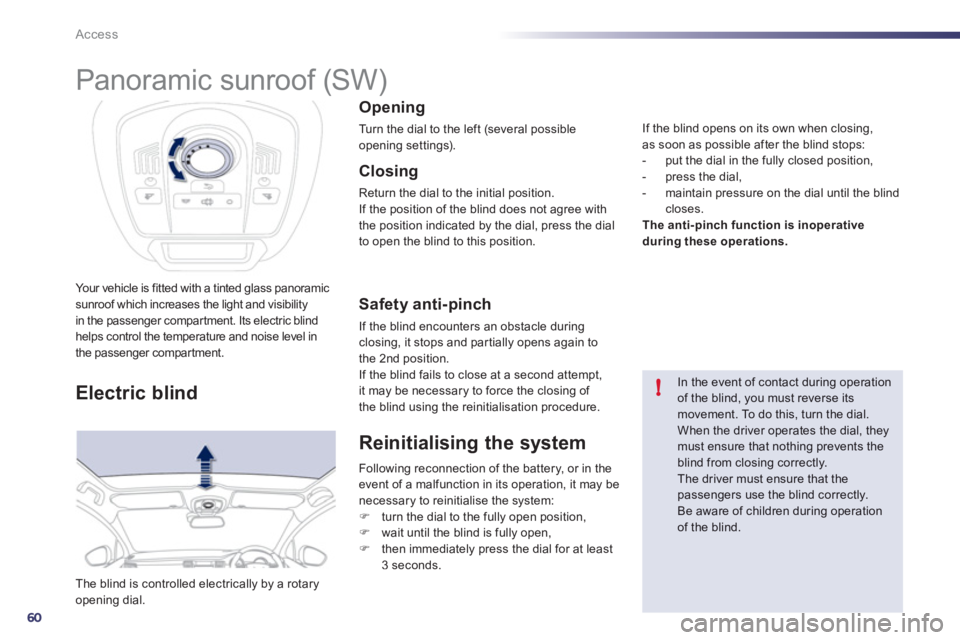

Your vehicle is fitted with a tinted glass panoramicsunroof which increases the light and visibilityin the passenger compartment. Its electric blind helps control the temperature and noise level in
the passenger compartment.
The blind is controlled electrically by a rotaryopening dial.

Opening

Turn the dial to the left (several possible
opening settings).


Safety anti-pinch

If the blind encounters an obstacle duringclosing, it stops and par tially opens again to
the 2nd position.
If the blind fails to close at a second attempt,
it ma
y be necessary to force the closing of
the blind using the reinitialisation procedure.



Closing

Return the dial to the initial position.
If the position of the blind does not agree with
the position indicated by the dial, press the dial
to open the blind to this position.
Electric blind

In the event of contact during operationof the blind, you must reverse its movement. To do this, turn the dial. When the driver operates the dial, theymust ensure that nothing prevents theblind from closing correctly.
The driver must ensure that the passengers use the blind correctly.
Be aware of children during operationof the blind.


Reinitialising the system


Following reconnection of the battery, or in the event of a malfunction in its operation, it may be
necessary to reinitialise the system: ) turn the dial to the fully open position, )
wait until the blind is fully open,
)
then immediately press the dial for at least3 seconds.

I
f the blind opens on its own when closing,
as soon as possible after the blind stops:


- put the dial in the full
y closed position,

- press the dial,

- maintain pressure on the dial until the blind
closes. The anti-pinch function is inoperativeduring these operations.





Panoramic sunroof (SW)

198
Practical information
Fuse N°Rating (A)Functions
F
315 Driver’s electric window panel, 12 V socket for rear seats.
F
415 12 V socket in boot.
F530 One-touch rear window.
F
630 One-touch front window.
F1
120
Trailer unit.
F12 20
Audio ampli
fier.
F1
520
Panoramic sunroof blind (SW).
F1
65
Driver’s electric window switch panel.

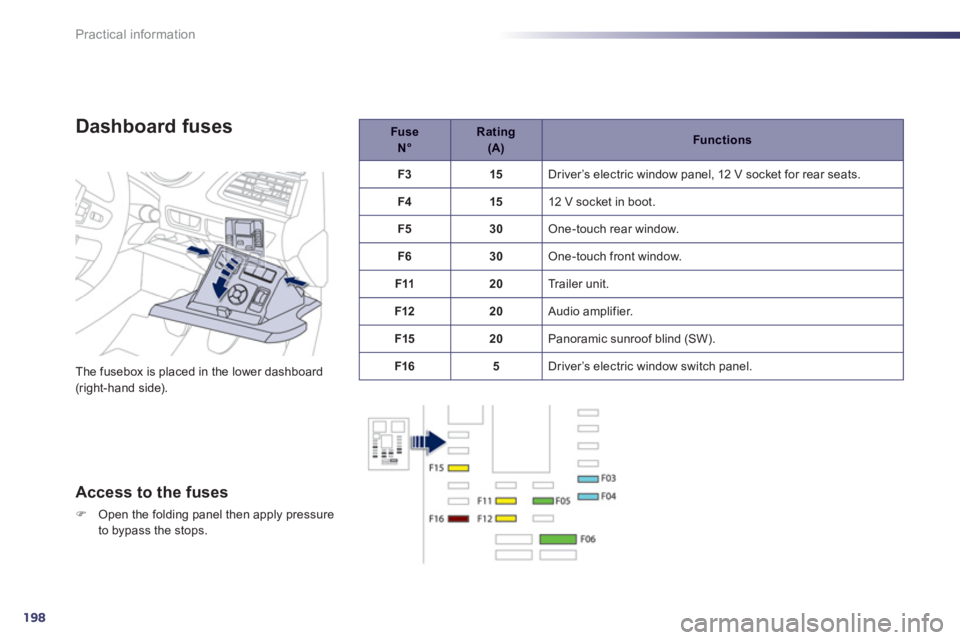

Dashboard fuses
The fusebox is placed in the lower dashboard (right-hand side).
Access to the fuses
)Open the folding panel then apply pressure
to bypass the stops.

202
!
i
Practical information
The batteries contain harmful substancessuch as sulphuric acid and lead. Theymust be disposed of in accordancewith regulations and must not, in any circumstances, be discarded withhousehold waste. Take used remote control batteries andvehicle batteries to a special collection point.


Do not reverse the polarity and use only a 12 V charger.
Do not disconnect the terminals whilethe engine is running.
Do not charge the batteries without disconnecting the terminals first. Do not push the vehicle to star tthe engine if it is fitted with the 6 -speedelectronic gearbox system or an automatic gearbox.

It is advisable to disconnect the battery if the vehicle is to be left unused for more than one month.


Before disconnecting the battery

Wait 2 minutes after switching off the ignitionbefore disconnecting the battery.

Close the windows and the doors beforedisconnecting the battery.

Following reconnection of thebattery

Following reconnection of the battery, switch on
the ignition and wait 1 minute before star ting to
permit initialisation of the electronic systems.However, if problems remain following this
operation, contact a PEUGEOT dealer or a
qualified workshop.

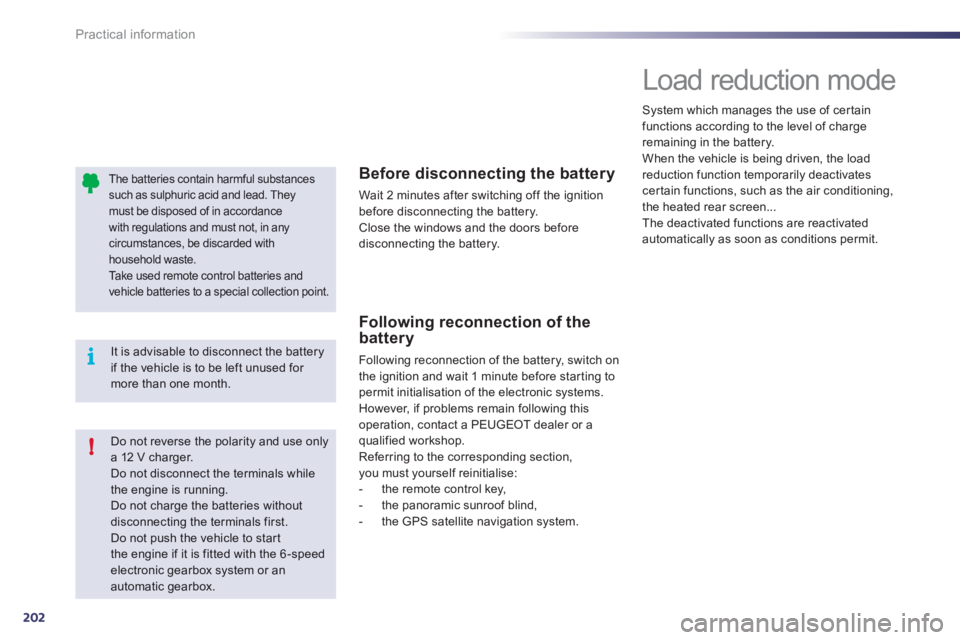

Referring to the corresponding section, you must yourself reinitialise:
