Engine compartment fuses


Access to the fuses
)Unclip the cover. )Change the fuse (see corresponding paragraph).)When you have finished, close the cover carefully to ensure correct sealing of the
fusebox.


Fuse N°

Rating (A)Functions
F20 15
Front /rear screenwash pump.
F2
120 Headlamp wash pump.
F2215 Horn.
F2
315 Right-hand main beam headlamp.
F2
415 Left-hand main beam headlamp.
F27 5
Le
ft hand lamp mask.
F2
85 Right hand lamp mask. The fusebox is placed in the engine compartment near the battery.

200
i !
!
Practical information











12 V battery
The presence of this label indicatesthe use of a 12 V lead-acid battery withspecial technology and specification,for which the involvement of a PEUGEOT dealer or qualifiedworkshop is required when replacing or disconnecting the battery.
Failure to observe this recommendation may cause premature wear of thebattery.

After refitting the battery, the Stop & Start system will only be active after several hours depending on the climaticconditions and the state of charge of the battery (up to about 8 hours).
The battery is located under the bonnet.
To gain access to it:
)
open the bonnet using the interior releaselever, then the exterior safety catch, )
remove the plastic cover to gain access to
the two terminals,) unclip the fusebox to remove the battery,
if necessary.

Access to the battery
)Raise the locking tab fully.




Disconnecting the cables

Reconnecting the cables
)Position the open clip 1of the cable on the positive terminal (+) of the battery.
)Press ver tically on the clip 1
to position it correctly against the battery.)Lock the clip by spreading the positioning
lug and then lowering the tab 2.
Do not force the tab as locking will not
be possible if the clip is not positionedcorrectly; star t the procedure again.

8
201
i
Practical information
)Connect the red cable to the positive
terminal (+) of the flat battery A , then to the positive terminal (+) of the slave battery B
.


Starting using another
battery
)
Disconnect the battery from the vehicle.)
Follow the instructions for use provided by
the manufacturer of the charger. ) Reconnect starting with the negative
terminal (-). ) Check that the terminals and connectorsare clean. If they are covered with sulphate (whitish or greenish deposit), remove themand clean them.


Charging the battery using
a battery charger


The Stop & Star t battery does not have to be disconnected for charging.
)
Connect one end of the green or black cable to the negative terminal (-) of the
slave battery B.)
Connect the other end of the green or blackcable to the ear th point C
on your vehicle (engine mounting).)
Operate the star ter, let the engine run.)
Wait until the engine returns to idle and disconnect the cables.

202
!
i
Practical information

The batteries contain harmful substances such as sulphuric acid and lead. They must be disposed of inaccordance with regulations and must not, in any circumstances, be discarded with household waste. Ta k e used remote control batteries andvehicle batteries to a special collectionpoint.


Do not reverse the polarity and use only a 12 V charger.
Do not disconnect the terminals whilethe engine is running.
Do not charge the batteries without disconnecting the terminals first. Do not push the vehicle to star t the engine if it is fitted with the 6 -speed electronic gearbox system or an automatic gearbox.

It is advisable to disconnect the battery if the vehicle is to be left unused for more than one month.


Before disconnecting the battery

Wait 2 minutes after switching off the ignitionbefore disconnecting the battery.

Close the windows and the doors beforedisconnecting the battery.

Following reconnection of thebattery

Following reconnection of the battery, switch on
the ignition and wait 1 minute before star ting to
permit initialisation of the electronic systems.However, if problems remain following this
operation, contact a PEUGEOT dealer or a
qualified workshop.
Referring to the corresponding section, you must yourself reinitialise:


- the remote control key,

- the panoramic sunroof blind,

- the GPS satellite navigation system.









Load reduction mode

System which manages the use of cer tain
functions according to the level of charge
remaining in the battery.
When the vehicle is bein
g driven, the load
reduction function temporarily deactivates certain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit.

8
203
Practical information
System which manages the duration of use of certain functions to conserve a sufficient level
of charge in the battery.

After the engine has stopped, you can still use functions such as the audio andtelematics system, windscreen wipers, dipped
beam headlamps, cour tesy lamps, etc. for a maximum combined duration of aboutforty minutes.

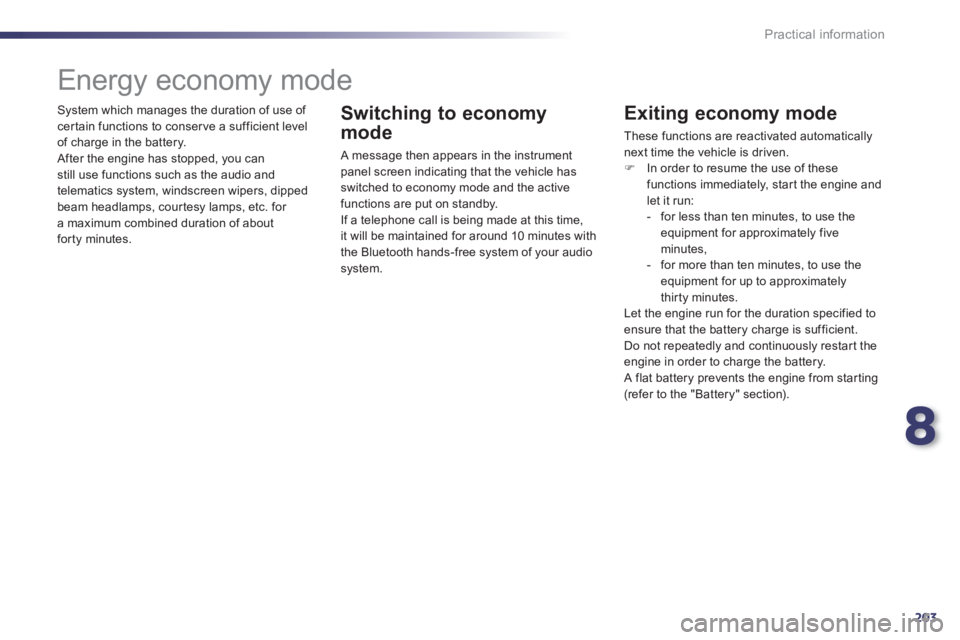

Energy economy mode
Switching to economy
mode

A message then appears in the instrument panel screen indicating that the vehicle has
switched to economy mode and the active functions are put on standby.
I
f a telephone call is being made at this time,it will be maintained for around 10 minutes with
the Bluetooth hands-free system of your audio
system.


Exiting economy mode

These functions are reactivated automatically
next time the vehicle is driven.
) In order to resume the use of thesefunctions immediately, star t the engine and let it run:
- for less than ten minutes, to use theequipment for approximately five minutes,
- for more than ten minutes, to use the
equipment for up to approximatelythirty minutes.

Let the engine run for the duration specified toensure that the battery charge is sufficient.
Do not repeatedly and continuously restar t theengine in order to charge the battery.
A flat battery prevents the engine from star ting (refer to the "Battery" section).

204
Practical information

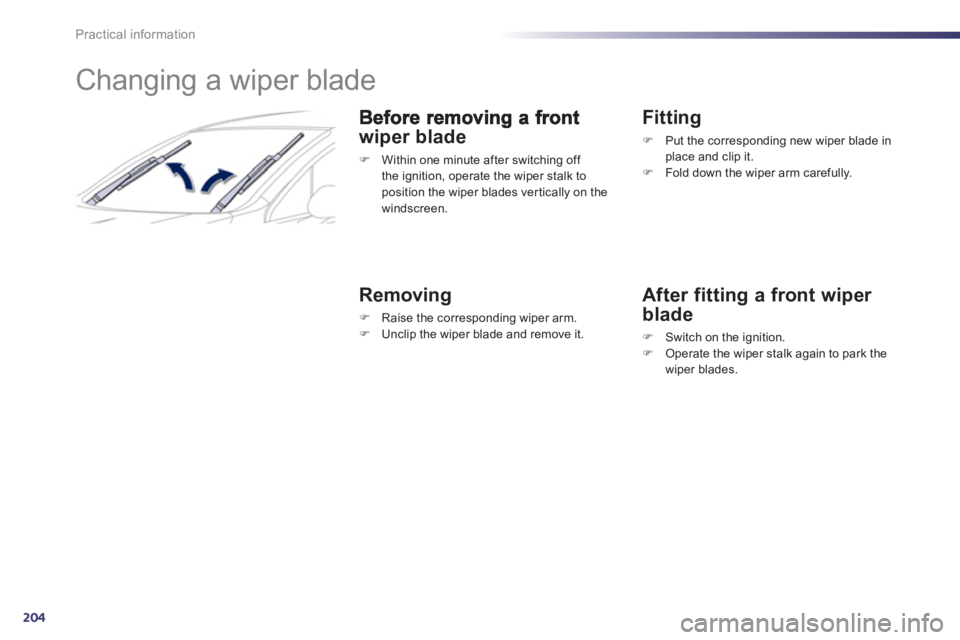

Changing a wiper blade
wiper blade
)
Within one minute after switching off
the ignition, operate the wiper stalk to
position the wiper blades vertically on the
windscreen.


Removing
)
Raise the corresponding wiper arm. )
Unclip the wiper blade and remove it.



Fitting
)Put the corresponding new wiper blade inplace and clip it.
)Fold down the wiper arm carefully.



After fitting a front wiper
blade
)Switch on the ignition.)Operate the wiper stalk again to park the
wiper blades.

8
205
i
Practical information

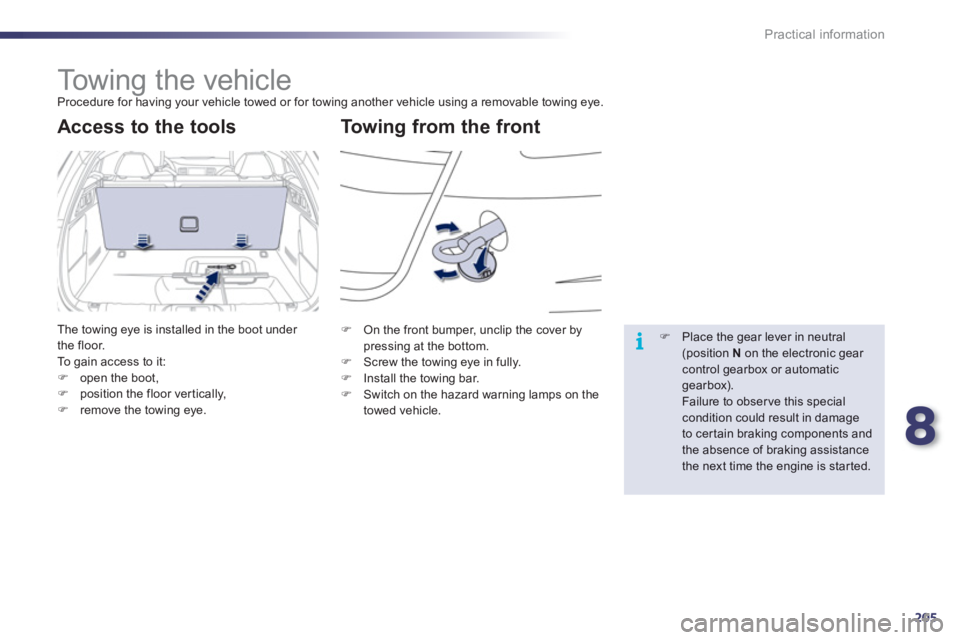

Towing the vehicle
Procedure for having your vehicle towed or for towing another vehicle using a removable towing eye.
To w i ng from the front Access to the tools

The towing eye is installed in the boot under
the floor.
To gain access to it: )open the boot, )position the floor vertically,)remove the towing eye.
)
On the front bumper, unclip the cover by
pressing at the bottom.) Screw the towing eye in fully.)
Install the towing bar.)
Switch on the hazard warning lamps on the
towed vehicle.
) Place the gear lever in neutral (position Non the electronic gear control gearbox or automaticgearbox). Failure to obser ve this specialcondition could result in damage to cer tain braking components andthe absence of braking assistance the next time the engine is started.

206
!
Practical information
General
recommendations
Observe the legislation in force in your country.Ensure that the weight of the towing vehicle is higher than that of the towedvehicle.The driver must stay at the wheel of thetowed vehicle. Driving on motor ways and fast roads is prohibited when towing.When towing a vehicle with all four wheels on the ground, always use an approved towing bar; rope and straps are prohibited. When towing a vehicle with the engine off, there is no longer any power assistance for braking or steering.In the following cases, you must always call on a professional recovery service:- vehicle broken down on a motor way
or fast road,- when it is not possible to put the gearbox into neutral, unlock thesteering, or release the parkingbrake, - towing with only two wheels on theground, - where there is no approved towing bar available...

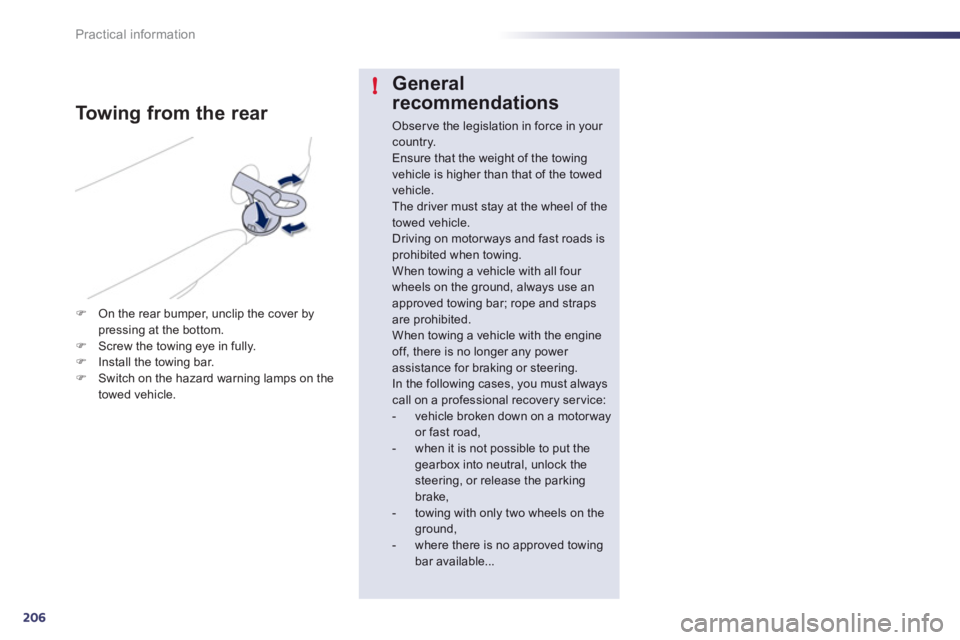

To w i ng from the rear
)On the rear bumper, unclip the cover by pressing at the bottom. )Screw the towing eye in fully. )Install the towing bar.)Switch on the hazard warning lamps on the
towed vehicle.

8
207
i
!
Practical information





Towing a trailer, ...

We recommend the use of genuine PEUGEOT towbars and their harnesses that have been tested and approvedfrom the design stage of your vehicle, and that the fitting of the towbar isentrusted to a PEUGEOT dealer or aqualified workshop.
If the towbar is not fitted by a PEUGEOT dealer, it is imperative that itis fitted in accordance with the vehicle manufacturer's instructions.

T
owbar suitable for the attachment of a trailer
with additional lighting and signalling.
Your vehicle is primarily designed for
transporting people and luggage, but it mayalso be used for towing a trailer.
Blanking cover
When towing, you must remove the blanking cover in the front bumper if your vehiclehas one. Contact a PEUGEOT dealer or a qualifiedworkshop for this.

Driving with a trailer places greater demands on the towing vehicle and the driver must take par ticular care.

208
i
Practical information
Driving advice
Distribution of loads
)Distribute the load in the trailer so that theheaviest items are as close as possible to
the axle and the nose weight approaches
the maximum permitted without exceeding it.

Air density decreases with altitude, thus reducing engine performance. Above
1 000 metres, the maximum towed load must
be reduced b
y 10 % for every 1 000 metres of altitude.
Refer to the "Technical Data" section for details
of the weights and towed loads which apply to your vehicle.
Side wind
)Take into account the increased sensitivity
to side wind.

Cooling

To w i ng a trailer on a slope increases the
temperature of the coolant.
As the fan is electricall
y controlled, its cooling capacity is not dependent on the engine speed.
)
To lower the engine speed, reduce your speed.
The maximum towed load on a long incline
depends on the
gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.
)If the warning lamp and the
STOP warning lamp come on, stop the vehicle and switch off
the engine as soon as possible.



Braking

To w i ng a trailer increases the braking distance.
To avoid overheating of the brakes on a longmountain type of descent, the use of engine braking is recommended.


Tyres
)Check the tyre pressures of the towingvehicle and of the trailer, obser ving the recommended pressures.



Lighting
)Check the electrical lighting and signalling on the trailer.

The rear parking sensors will be deactivated automatically if a genuine PEUGEOT towbar is used.
