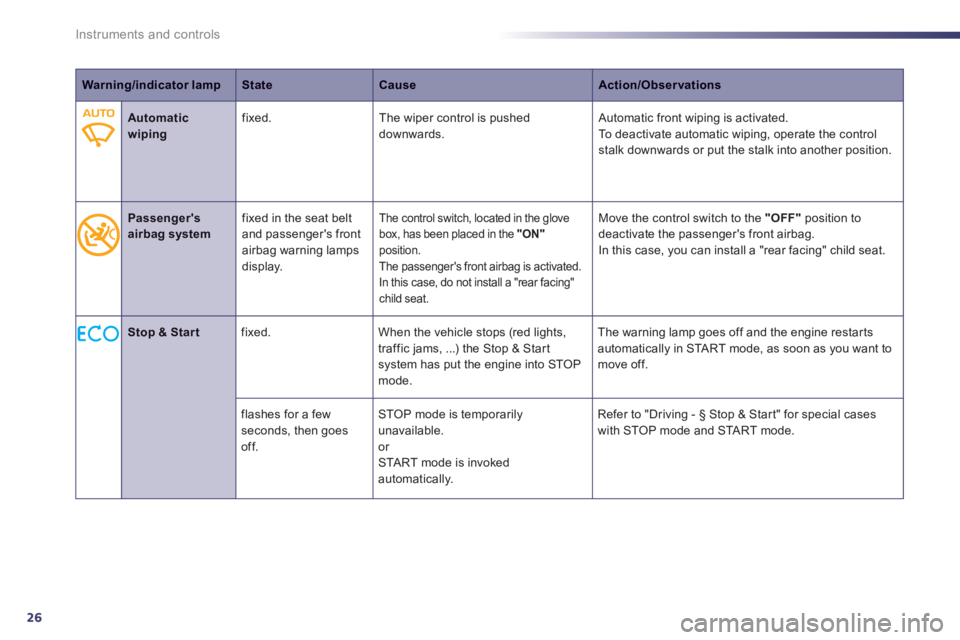

26
Instruments and controls
Warning/indicator lampStateCauseAction/Observations



Automatic wipingfixed.The wiper control is pushed downwards. Automatic front wiping is activated. To deactivate automatic wiping, operate the controlstalk downwards or put the stalk into another position.
Passenger's
airbag systemfix
ed in the seat belt
and passenger's front airbag warning lampsdisplay.
The control switch, located in the glove
box, has been placed in the
"ON" position.
The passenger's front airbag is activated.
In this case, do not install a "rear facing"child seat.
Move the control switch to the "OFF"
position to
deactivate the passen
ger's front airbag.
In this case, you can install a "rear facing" child seat.
Stop & Start

fixed. When the vehicle stops (red lights,
traffic jams, ...) the Stop & Star t system has put the engine into STOP mode. The warnin
g lamp goes off and the engine restarts
automatically in START mode, as soon as you want to
move off.

fl
ashes for a few seconds, then goes off. STOP mode is temporaril
y unavailable.
or
STA R T mode is invoked
automatically. Refer to "Drivin
g - § Stop & Star t" for special cases
with STOP mode and STA R T m o d e .

1

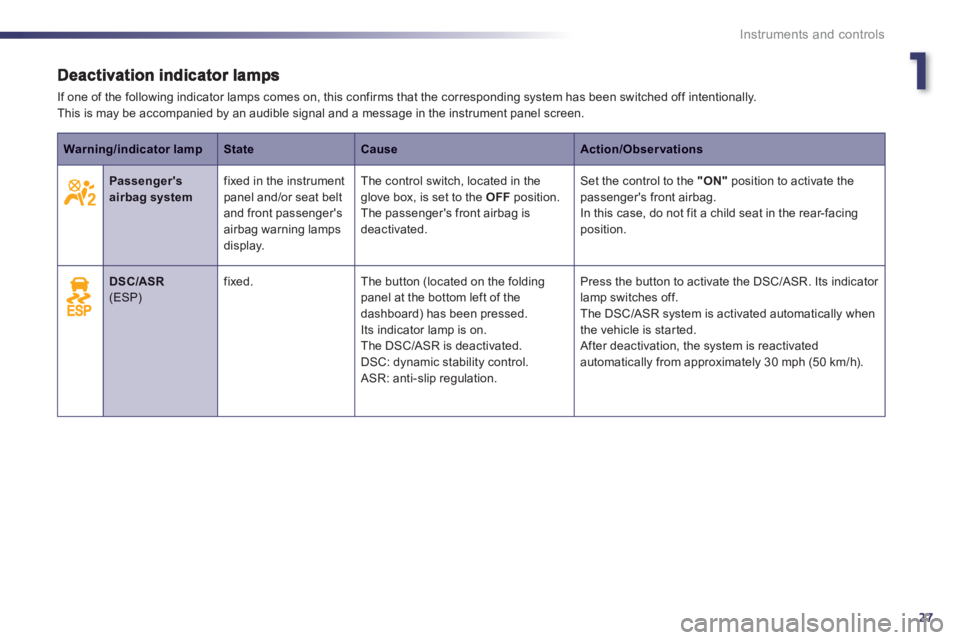

27
Instruments and controls
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.This is may be accompanied by an audible signal and a message in the instrument panel screen.

Warning/indicator lampStateCauseAction/Observations



Passenger's airbag system fixed in the instrument
panel and/or seat belt
and front passen
ger's
airbag warning lamps
display.The control switch, located in the
glove box, is set to the OFF
position.
The passenger's front airbag is deactivated.
Set the control to the "ON"position to activate the passenger's front airbag.
In this case, do not fit a child seat in the rear-facing position.
DSC/ASR (ESP)
fixed. The button (located on the foldingpanel at the bottom left of the
dashboard) has been pressed.Its indicator lamp is on.
The DSC/ASR is deactivated.
DSC: dynamic stability control.
ASR: anti-slip regulation. Press the button to activate the DSC/ASR. Its indicator
lamp switches off.
The DSC/ASR s
ystem is activated automatically when
the vehicle is started.
After deactivation, the system is reactivated
automatically from approximately 30 mph (50 km/h).

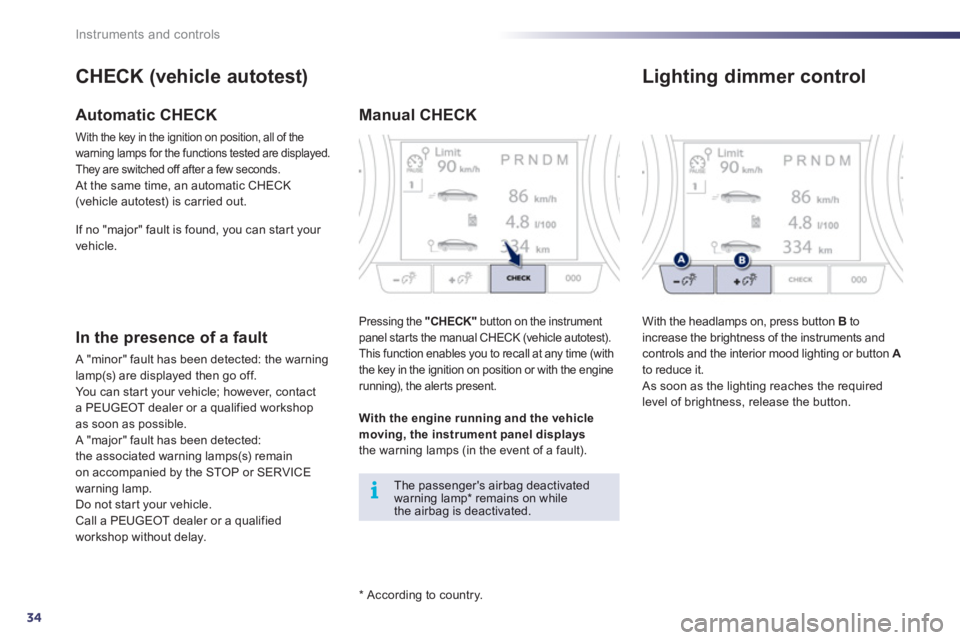

34
i
Instruments and controls

* According to country.
CHECK (vehicle autotest)
Automatic CHECK
With the key in the ignition on position, all of the
warning lamps for the functions tested are displayed.
They are switched off after a few seconds. At the same time, an automatic CHECK(vehicle autotest) is carried out.
In the presence of a fault
A "minor" fault has been detected: the warning
lamp(s) are displayed then go off.You can star t your vehicle; however, contact a PEUGEOT dealer or a qualified workshop as soon as possible.
A "major" fault has been detected:
the associated warning lamps(s) remain
on accompanied by the STOP or SERVICE
warning lamp.
Do not star t your vehicle. Call a PEUGEOT dealer or a qualified
wor
kshop without delay.

Manual CHECK

Pressing the "CHECK"button on the instrument
panel star ts the manual CHECK (vehicle autotest).
This function enables you to recall at any time (with
the key in the ignition on position or with the engine
running), the aler ts present.
The passenger's airbag deactivated warning lamp * remains on while the airbag is deactivated.
With the en
gine running and the vehiclemoving, the instrument panel displaysthe warning lamps (in the event of a fault). I
f no "major" fault is found, you can star t your
vehicle.

Lighting dimmer control

With the headlamps on, press button B
to
increase the brightness of the instruments and controls and the interior mood lighting or button Ato reduce it.
As soon as the lighting reaches the required
level of brightness, release the button.

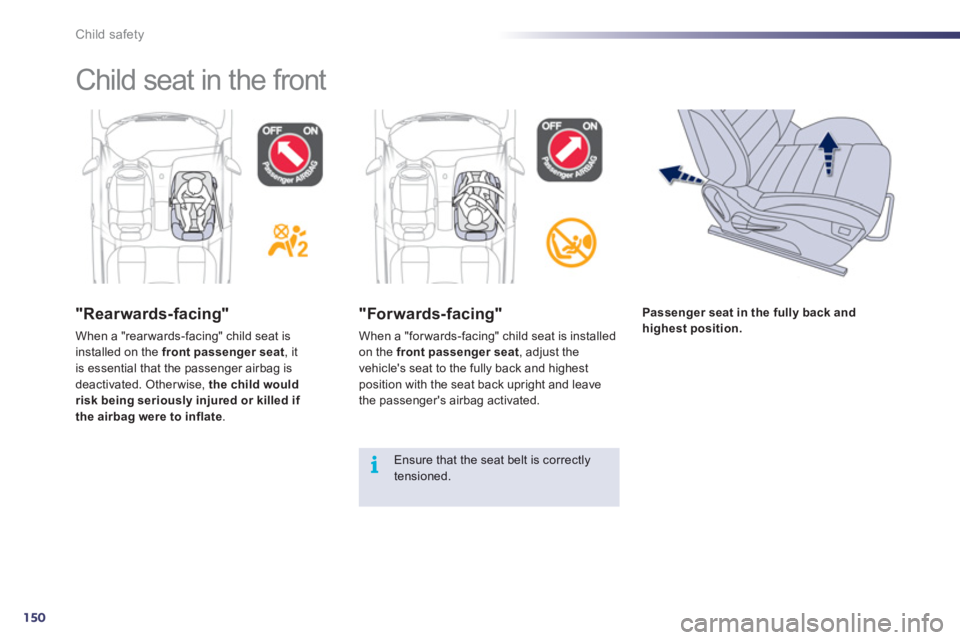

150
i
Child safety
Child seat in the front
"Rearwards-facing"
When a "rear wards-facing" child seat is installed on the front passenger seat, itis essential that the passenger airbag is
deactivated. Other wise, the child would risk being seriously injured or killed if
the airbag were to inflate .


"Forwards-facing"

When a "for wards-facing" child seat is installed on the front passenger seat, adjust the
vehicle's seat to the fully back and highest
position with the seat back upright and leave
the passenger's airbag activated.
Passenger seat in the fully back and
highest position.
Ensure that the seat belt is correctlytensioned.

6

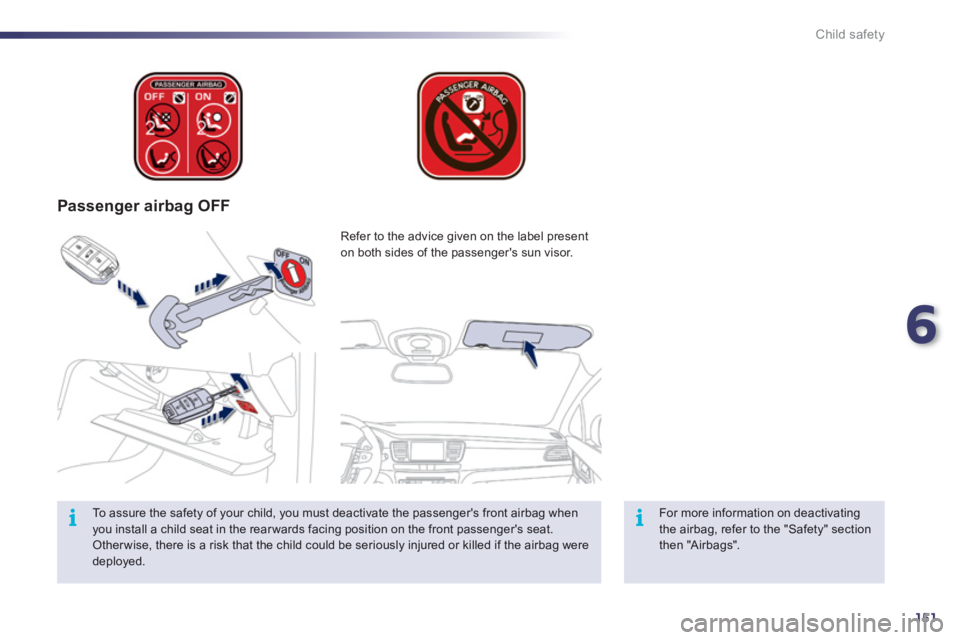

151
ii
Child safety


Passenger airbag OFF


For more information on deactivatingthe airbag, refer to the "Safety" sectionthen "Airbags". Re
fer to the advice given on the label present
on both sides of the passenger's sun visor.


To assure the safety of your child, you must deactivate the passenger's front airbag whenyou install a child seat in the rear wards facing position on the front passenger's seat. Other wise, there is a risk that the child could be seriously injured or killed if the airbag weredeployed.

6

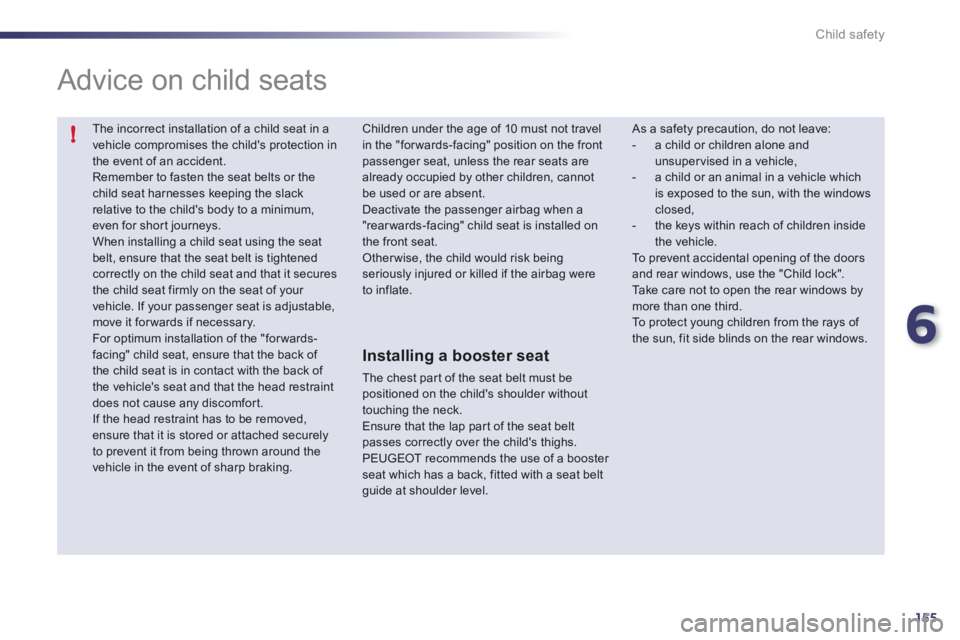

155
!
Child safety
The incorrect installation of a child seat in avehicle compromises the child's protection in the event of an accident.
Remember to fasten the seat belts or the child seat harnesses keeping the slack relative to the child's body to a minimum,
even for shor t journeys.
When installing a child seat using the seat belt, ensure that the seat belt is tightenedcorrectly on the child seat and that it secures the child seat firmly on the seat of your vehicle. If your passenger seat is adjustable, move it for wards if necessary.
For optimum installation of the "forwards-facing" child seat, ensure that the back of the child seat is in contact with the back of the vehicle's seat and that the head restraint does not cause any discomfort.
If the head restraint has to be removed, ensure that it is stored or attached securely to prevent it from being thrown around the vehicle in the event of sharp braking.






Advice on child seats

As a safety precaution, do not leave: - a child or children alone and unsupervised in a vehicle, - a child or an animal in a vehicle whichis exposed to the sun, with the windows closed,
- the keys within reach of children inside the vehicle. To prevent accidental opening of the doors and rear windows, use the "Child lock". Take care not to open the rear windows bymore than one third.To protect young children from the rays of the sun, fit side blinds on the rear windows.

Children under the age of 10 must not travel in the "forwards-facing" position on the front passenger seat, unless the rear seats are already occupied by other children, cannot be used or are absent.
Deactivate the passenger airbag when a
"rearwards-facing" child seat is installed on the front seat. Other wise, the child would risk beingseriously injured or killed if the airbag were to inflate.


Installing a booster seat

The chest par t of the seat belt must be positioned on the child's shoulder without touching the neck.
Ensure that the lap part of the seat belt passes correctly over the child's thighs.
PEUGEOT recommends the use of a booster seat which has a back, fitted with a seat belt guide at shoulder level.

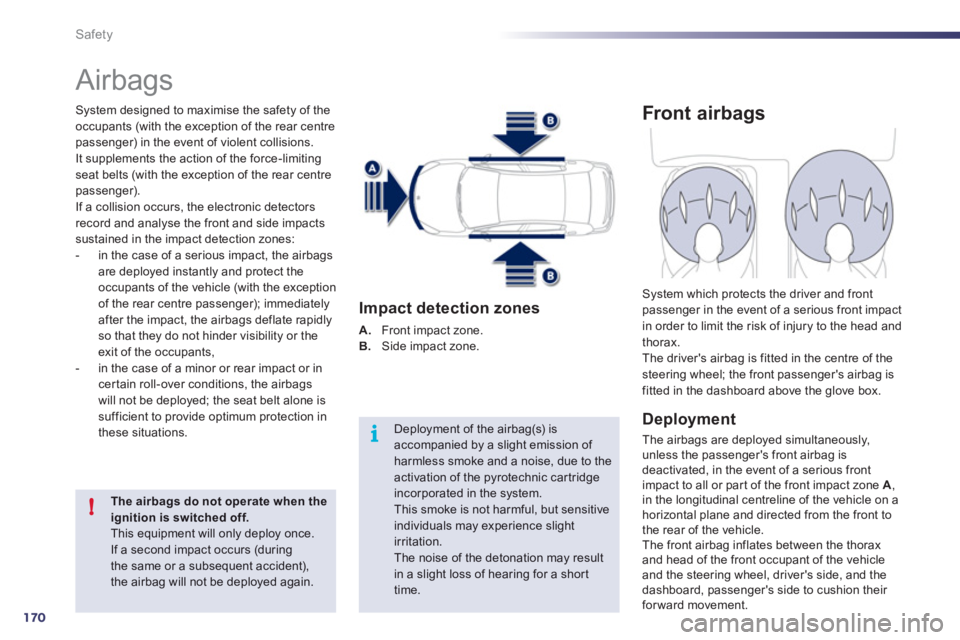

170
i
!
Safety
Airbags
System designed to maximise the safety of the
occupants (with the exception of the rear centrepassenger) in the event of violent collisions.
It supplements the action of the force-limiting seat belts (with the exception of the rear centrepassenger).
If a collision occurs, the electronic detectors record and analyse the front and side impacts sustained in the impact detection zones:
- in the case of a serious impact, the airbagsare deployed instantly and protect the
occupants of the vehicle (with the exception
of the rear centre passenger); immediately after the impact, the airbags deflate rapidlyso that they do not hinder visibility or the
exit of the occupants,
- in the case of a minor or rear impact or incer tain roll-over conditions, the airbags
will not be deployed; the seat belt alone is
sufficient to provide optimum protection in
th
ese situations.
The airbags do not operate when the ignition is switched off. This equipment will only deploy once.If a second impact occurs (during the same or a subsequent accident),the airbag will not be deployed again.
Deployment of the airbag(s) is accompanied by a slight emission of harmless smoke and a noise, due to theactivation of the pyrotechnic cartridgeincorporated in the system.This smoke is not harmful, but sensitiveindividuals may experience slight irritation. The noise of the detonation may result in a slight loss of hearing for a shorttime.

Impact detection zones
A.
Front impact zone. B.
Side impact zone.
Front airbags

Deployment
The airbags are deployed simultaneously,
unless the passenger's front airbag is
deactivated, in the event of a serious front
impact to all or part of the front impact zone A,
in the longitudinal centreline of the vehicle on a horizontal plane and directed from the front to
the rear of the vehicle.
The front airbag inflates between the thorax
and head of the front occupant of the vehicle
an
d the steering wheel, driver's side, and the
dashboard, passenger's side to cushion their
forward movement.
System which protects the driver and frontpassenger in the event of a serious front impact
in order to limit the risk of injury to the head and
thorax.
The driver's airbag is fitted in the centre of the steering wheel; the front passenger's airbag isfitted in the dashboard above the glove box.

7

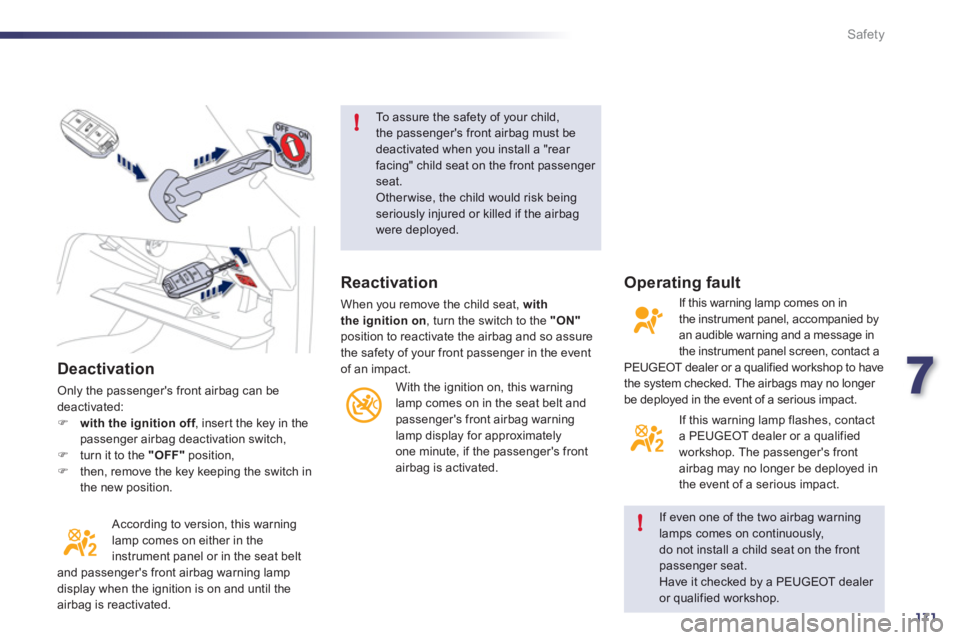

171
!
!
Safety

Deactivation
Only the passenger's front airbag can be deactivated:)with the ignition off, inser t the key in thefpassenger airbag deactivation switch, )turn it to the "OFF"position, )then, remove the key keeping the switch in
the new position.

According to version, this warning lamp comes on either in the instrument panel or in the seat belt
and passenger's front airbag warning lamp
displa
y when the ignition is on and until the
airbag is reactivated.
To assure the safety of your child,the passenger's front airbag must be deactivated when you install a "rear facing" child seat on the front passenger seat.Other wise, the child would risk beingseriously injured or killed if the airbag were deployed.

If even one of the two airbag warning
lamps comes on continuously, do not install a child seat on the front passenger seat.
Have it checked by a PEUGEOT dealer or qualified workshop.

Reactivation
When you remove the child seat, with
the ignition on, turn the switch to the "ON"position to reactivate the airbag and so assure
the safety of your front passenger in the event
of an impact.

With the ignition on, this warninglamp comes on in the seat belt and
passenger's front airbag warning
lamp display for approximately one minute, if the passenger's front
airbag is activated.

Operating fault
If this warning lamp comes on in
the instrument panel, accompanied byan audible warning and a message in
the instrument panel screen, contact a
PEUGEOT dealer or a qualified workshop to have
the system checked. The airbags may no longer
be deployed in the event of a serious impact.
If this warnin
g lamp flashes, contacta PEUGEOT dealer or a qualified
workshop. The passenger's front airbag may no longer be deployed in
the event of a serious impact.
