service interval Peugeot 508 2012 Owner's Manual

36
i
i

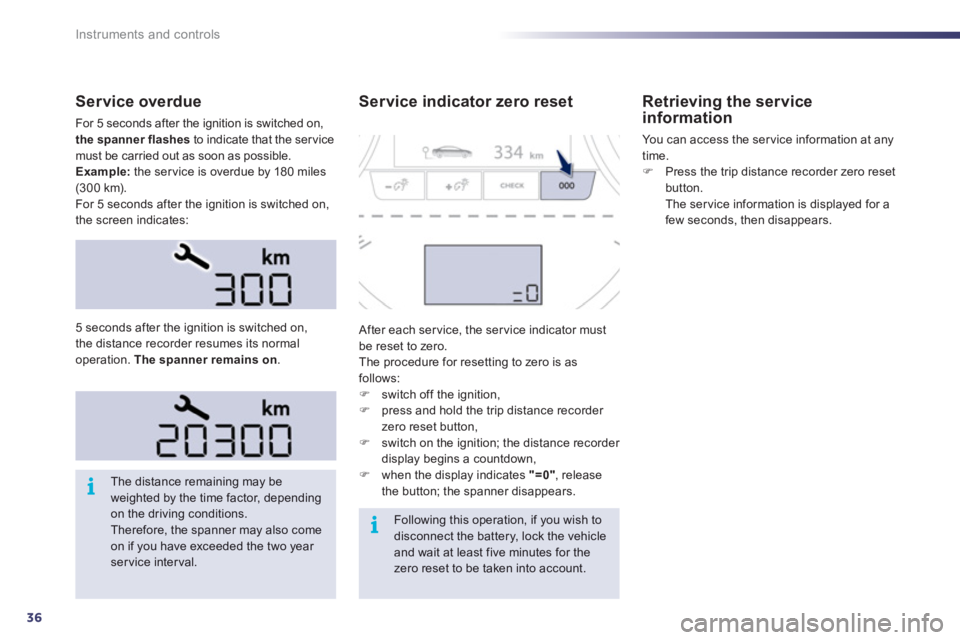

Instruments and controls
Service overdue
For 5 seconds after the ignition is switched on,
the spanner flashesto indicate that the service must be carried out as soon as possible.
Example:the ser vice is overdue by 18 0 miles(300 km).
For 5 seconds after the ignition is switched on,
the screen indicates:
The distance remaining may be weighted by the time factor, dependingon the driving conditions.
Therefore, the spanner may also come
on if you have exceeded the two year service interval.
Following this operation, if you wish to disconnect the battery, lock the vehicle and wait at least five minutes for the zero reset to be taken into account. 5 seconds a
fter the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on.
Service indicator zero reset

After each ser vice, the ser vice indicator mustbe reset to zero.
The procedure for resetting to zero is as
follows: ) switch off the ignition,)
press and hold the trip distance recorder
zero reset button,
) switch on the ignition; the distance recorder
display begins a countdown, ) when the display indicates "=0", release
the button; the spanner disappears.
Retrieving the serviceinformation

You can access the ser vice information at any
time.
)Press the trip distance recorder zero reset button.
The ser vice information is displayed for a
few seconds, then disappears.

222
!

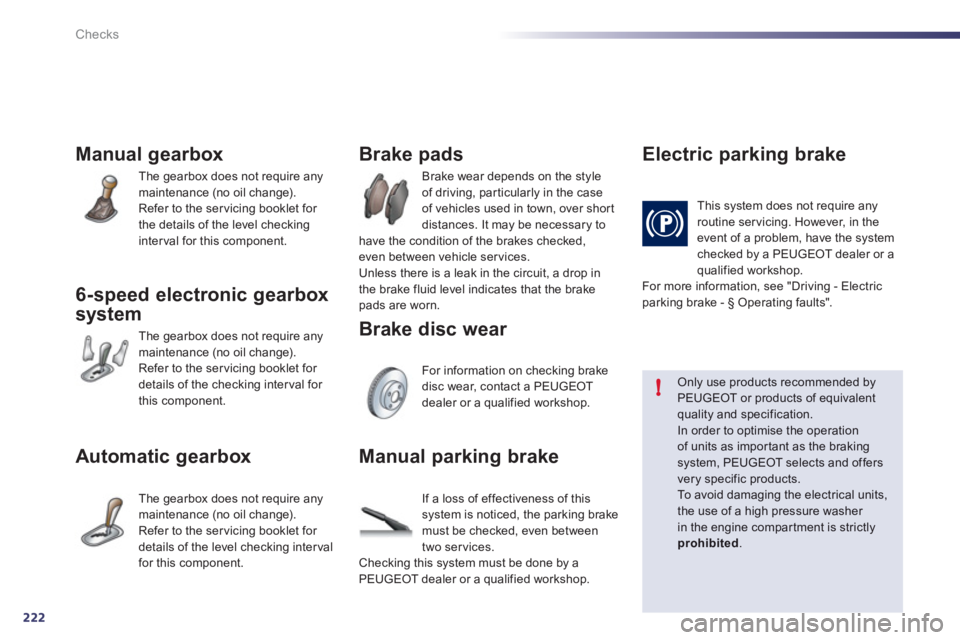

Checks
Manual gearbox
The gearbox does not require anymaintenance (no oil change).
Refer to the servicing booklet for
the details of the level checking
interval for this component.
6-speed electronic gearbox
s
ystem
The gearbox does not require anymaintenance (no oil change).
Refer to the servicing booklet for
details of the checking interval for
this component.
Automatic gearbox
The gearbox does not require anymaintenance (no oil change).
Refer to the ser vicing booklet for
details of the level checkin
g interval
for this component. Brake wear depends on the st
yle
of driving, par ticularly in the case
of vehicles used in town, over shor t
distances. It ma
y be necessary to
have the condition of the brakes checked,even between vehicle services.
Unless there is a leak in the circuit, a drop in
the brake fluid level indicates that the brake pads are worn.
















Brake pads

For information on checking brake
disc wear, contact a PEUGEOT
dealer or a qualified workshop.


Brake disc wear














Electric parkin
g brake
This system does not require any routine servicing. However, in the
event of a problem, have the systemchecked by a PEUGEOT dealer or a qualified workshop.
For more information, see "Driving - Electric parking brake - § Operating faults".
















Only use products recommended by PEUGEOT or products of equivalentquality and specification. In order to optimise the operationof units as impor tant as the braking system, PEUGEOT selects and offersvery specific products.
To a v o i d d a m aging the electrical units,the use of a high pressure washer in the engine compar tment is strictly
prohibited.
Manual parking brake

If a loss of effectiveness of this system is noticed, the parking brake
must be checked, even between
tw
o services.
Checking this system must be done by aPEUGEOT dealer or a qualified workshop.
