Peugeot 508 2013 Owner's Manual - RHD (UK, Australia)

279

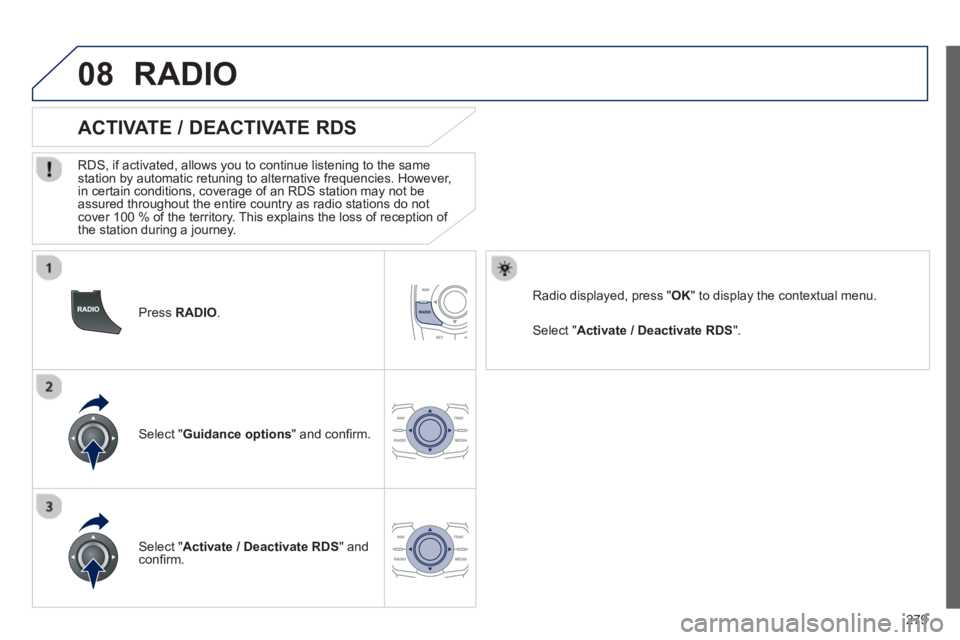

08
Press RADIO .

ACTIVATE / DEACTIVATE RDS
RDS, if activated, allows you to continue listening to the same station by automatic retuning to alternative frequencies. However,
in certain conditions, coverage of an RDS station may not be
assured throughout the entire country as radio stations do not cover 100 % of the territory. This explains the loss of reception of
the station during a journey.

Select "Guidance options " and confi rm.

Select " Activate / Deactivate RDS " and confi rm.
RADIO
Select " Activate / Deactivate RDS".
Radio displayed, press "OK " to display the contextual menu.

280

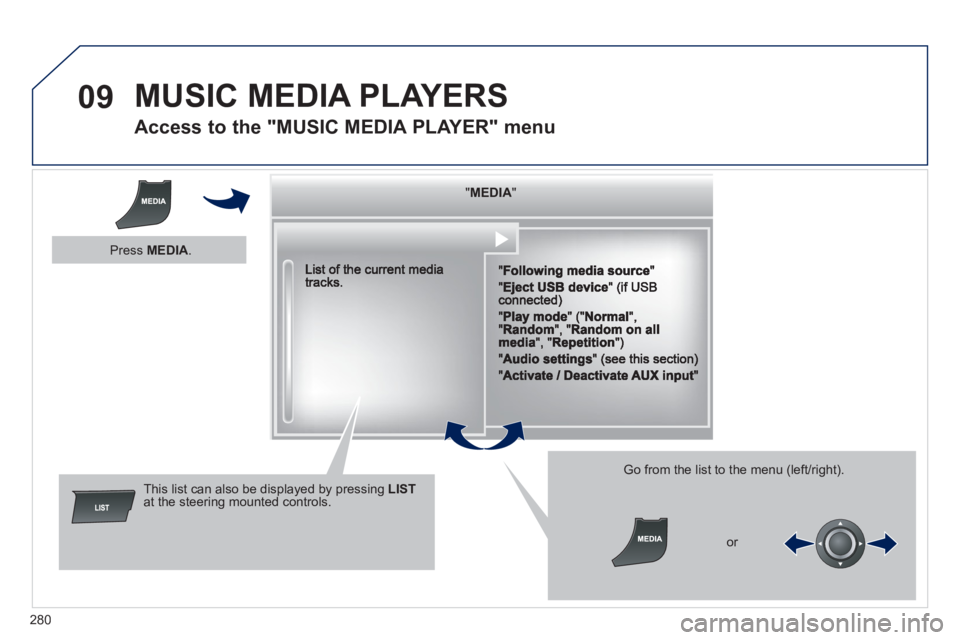

09 MUSIC MEDIA PLAYERS

Access to the "MUSIC MEDIA PLAYER" menu
""""""""MEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIA""""""""
This list can also be displayed by pressing LISTat the steering mounted controls.
Go from the list to the menu (left/right).
or
Press MEDIA.

281

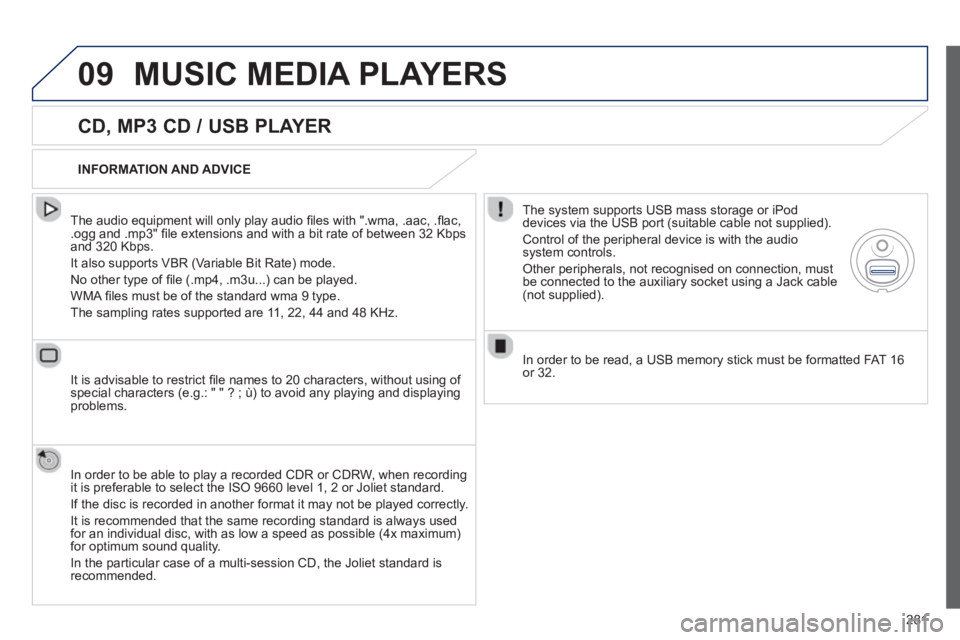

09MUSIC MEDIA PLAYERS

CD, MP3 CD / USB PLAYER
The audio equipment will only play audio fi les with ".wma, .aac, . fl ac, .ogg and .mp3" fi le extensions and with a bit rate of between 32 Kbps
and 320 Kbps.
It also supports VBR
(Variable Bit Rate) mode.
No other t
ype of fi le (.mp4, .m3u...) can be played.
WMA fi les must be of the standard wma 9 t
ype.
The samplin
g rates supported are 11, 22, 44 and 48 KHz.
It is advisable to restrict fi le names to 20 characters, without usin
g of special characters (e.g.: " " ? ; ù) to avoid any playing and displayingproblems.
In order to be able to play a recorded
CDR or CDRW, when recording
it is preferable to select the ISO 9660 level 1, 2 or Joliet standard.
I
f the disc is recorded in another format it may not be played correctly.
It is recommended that the same recordin
g standard is always used
for an individual disc, with as low a speed as possible (4x maximum)for optimum sound quality.
In the particular case of a multi-session CD, the Joliet standard is
recommended.
INFORMATION AND ADVICE
The s
ystem supports USB mass storage or iPod
devices via the USB port (suitable cable not supplied).

Control of the peripheral device is with the audiosystem controls.

Other peripherals, not recognised on connection, must
be connected to the auxiliary socket using a Jack cable (not supplied).
In order to be read, a U
SB memory stick must be formatted FAT 16
or 32.

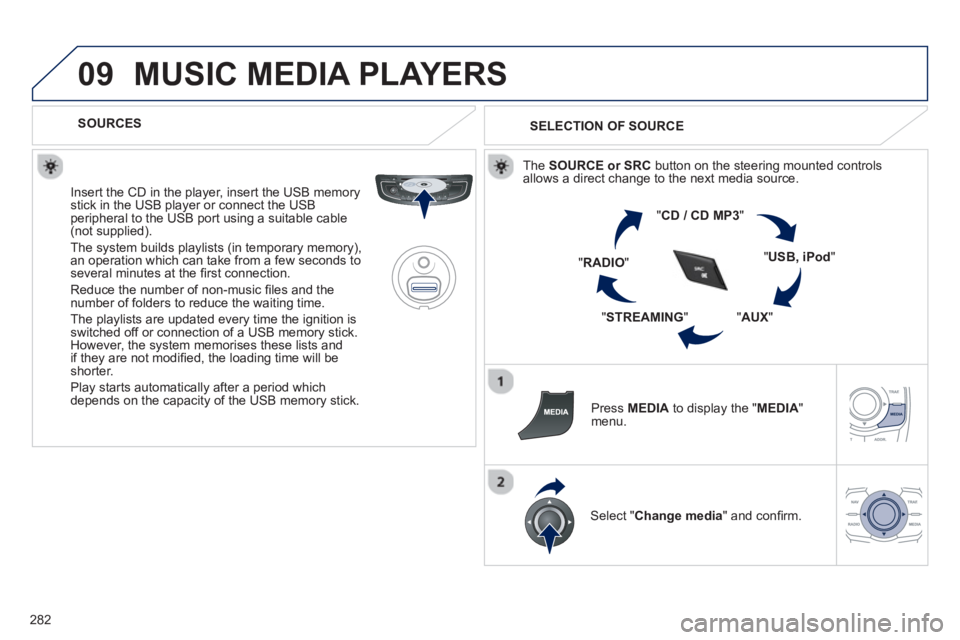

282
09MUSIC MEDIA PLAYERS
SOURCES
Insert the
CD in the player, insert the USB memorystick in the USB player or connect the USBperipheral to the USB port using a suitable cable (not supplied) .
The s
ystem builds playlists (in temporary memory),
an operation which can take from a few seconds to several minutes at the fi rst connection.
R
educe the number of non-music fi les and the number of folders to reduce the waiting time.

The playlists are updated every time the ignition isswitched off or connection of a USB memory stick. However, the system memorises these lists and
if they are not modifi ed, the loading time will be shorter.
Pla
y starts automatically after a period which
depends on the capacity of the USB memory stick. SELECTION OF SOURCE
Th
e SOURCE or SRCbutton on the steering mounted controlsallows a direct change to the next media source.
" CD / CD MP
3 "
"
USB, iPod "
" AUX "
"
STREAMING "
"
RADIO "
Pr
ess MEDIAto display the " MEDIA " menu.

Select " Change media" and confi rm.

283

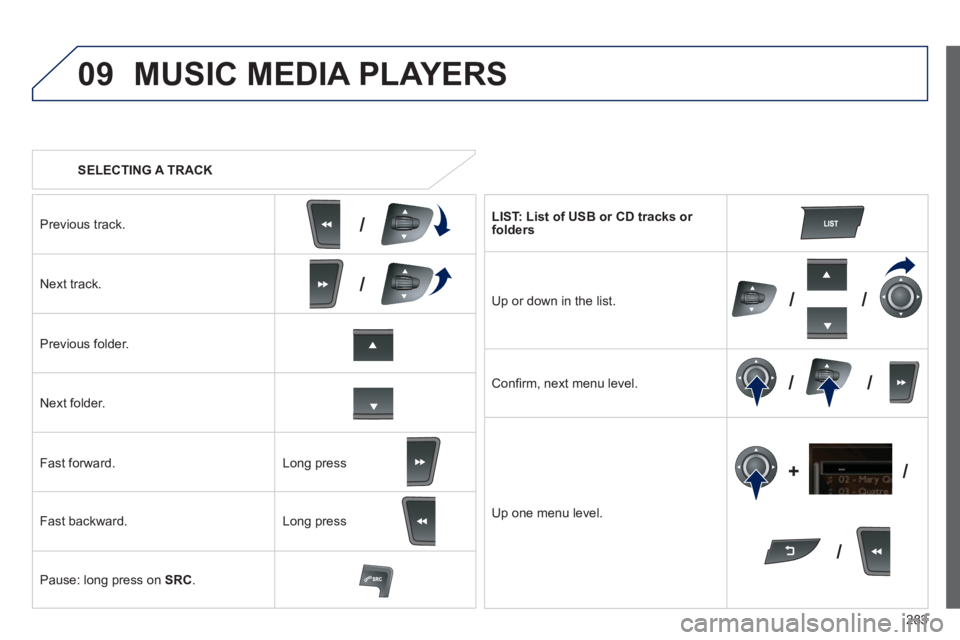

09
/
///
//
/
+/
SELECTING A TRACK
MUSIC MEDIA PLAYERS
Previous track.
Next track.

Pr
evious folder.
N
ext folder.
F
ast forward.
F
ast backward.
Pause: lon
g press on SRC. LI
ST: List of USB or CD tracks or folders


Up or down in the list.

Confi rm, next menu level.
U
p one menu level.
Lon
g press

Lon
g press

284
09

AUDIO STREAMING
vehicle's speakers.
Connect the telephone: see "USING THE TELEPHONE".
Select " Audio" or " All" profi le.
I
f play does not start automatically, it may be necessary to start the audio playback from the telephone.
Control is from the peripheral device or b
y using the audio system buttons.
Once connected in streaming mode, the telephone is considered
to be a media source.
It is recommended that you activate "
Repeat" on the Bluetooth
peripheral.
MUSIC MEDIA PLAYERS

CONNECTING APPLE ®
PLAYERS
Connect the Apple ®player to the USB port using a suitable cable (not supplied).
Pla
y starts automatically.
Control is via the audio system.
The classi
fi cations available are those of the portable deviceconnected (artists / albums / genres / playlists / audiobooks / podcasts).
The default classi fi cation used is b
y artist. To modify the classi fi cationused, return to the fi rst level of the menu then select the desired classi fi cation (playlists for example) and con fi rm to go down through
the menu to the desired track.
The version o
f software in the audio system may not be compatible
with the generation of your Apple® player.®
The list of devices compatible with software versions is available fromPEUGEOT dealers.

285

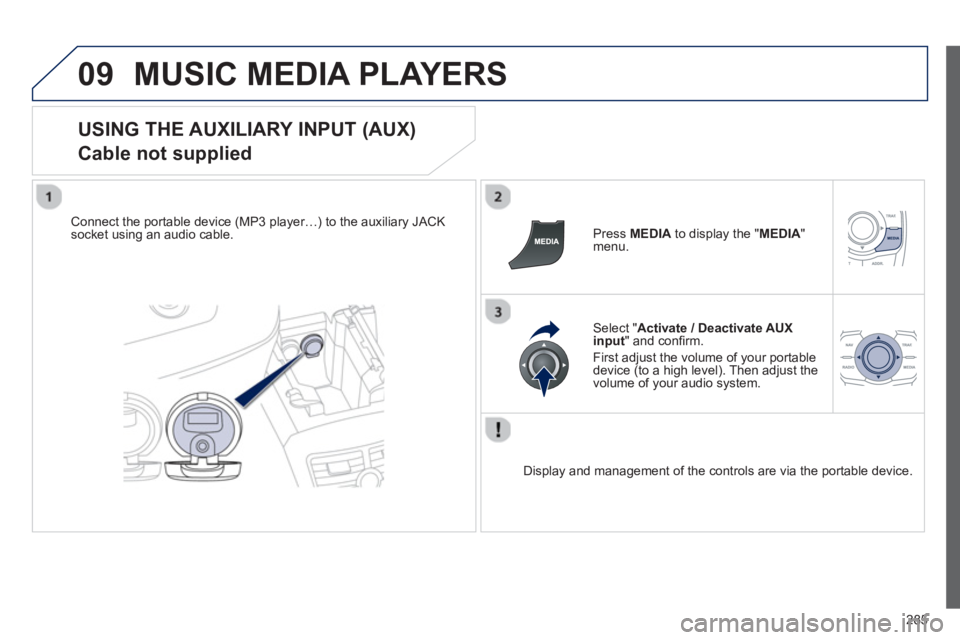

09MUSIC MEDIA PLAYERS

USING THE AUXILIARY INPUT (AUX)
Cable not supplied
Connect the portable device (MP3 player…) to the auxiliary JACK
socket using an audio cable. Press MEDIAto display the " MEDIA"menu.


Select " Activate / Deactivate AUX
input " and con fi rm.
First ad
just the volume of your portable
device (to a high level). Then adjust the
volume of your audio system.
Displa
y and management of the controls are via the portable device.

286

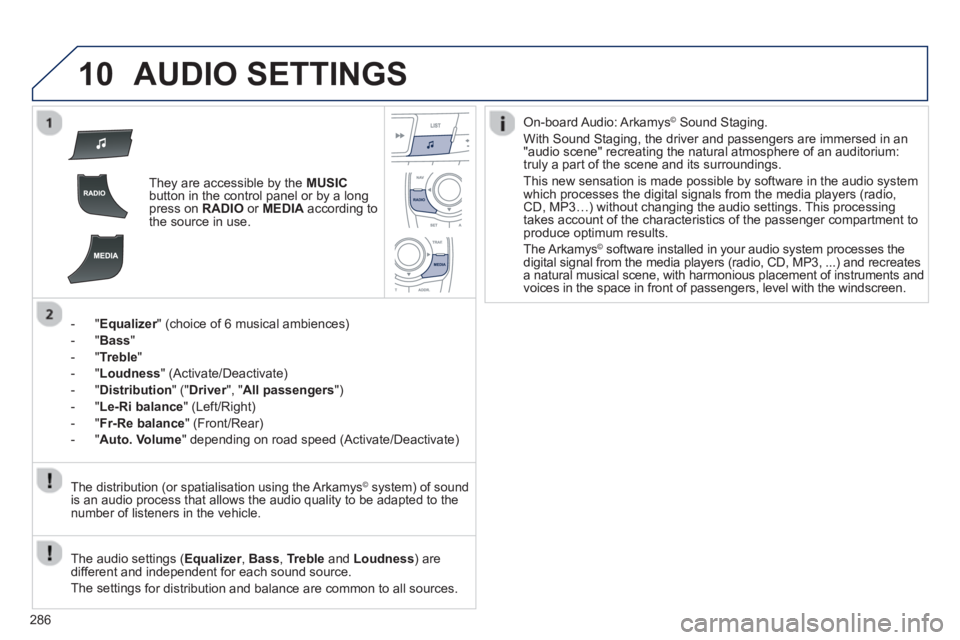

10AUDIO SETTINGS
They are accessible by the MUSICbutton in the control panel or by a longpress on RADIO or MEDIAaccording to
the source in use.
- "
Equalizer" (choice of 6 musical ambiences) r
- " Bass "
- " Trebl
e "
-" Loudness "
(Activate/Deactivate)
-
"Distribution" (" Driver ", "rAll passengers ")
-
"Le-Ri balance " (Left/Right)
-
" Fr-Re balance " (Front/Rear)
- " Auto. Volume " depending on road speed (Activate/Deactivate)
The audio settings ( Equalizer, rBass , Trebleand Loudness) are
different and independent for each sound source.
The settings
for distribution and balance are common to all sources.
The distribution (or spatialisation using the Arkamys©system) of sound
is an audio process that allows the audio quality to be adapted to thenumber of listeners in the vehicle.
On-board Audio: Arkamys© Sound Staging.©
With Sound Staging, the driver and passengers are immersed in an"audio scene" recreating the natural atmosphere of an auditorium:
truly a part of the scene and its surroundings.
This new sensation is made possible b
y software in the audio system
which processes the digital signals from the media players (radio, CD, MP3…) without changing the audio settings. This processingtakes account of the characteristics of the passenger compartment toproduce optimum results.

The Arkam
ys©software installed in your audio system processes the ©
digital signal from the media players (radio, CD, MP3, ...) and recreates
a natural musical scene, with harmonious placement of instruments and
voices in the space in front of passengers, level with the windscreen.

287

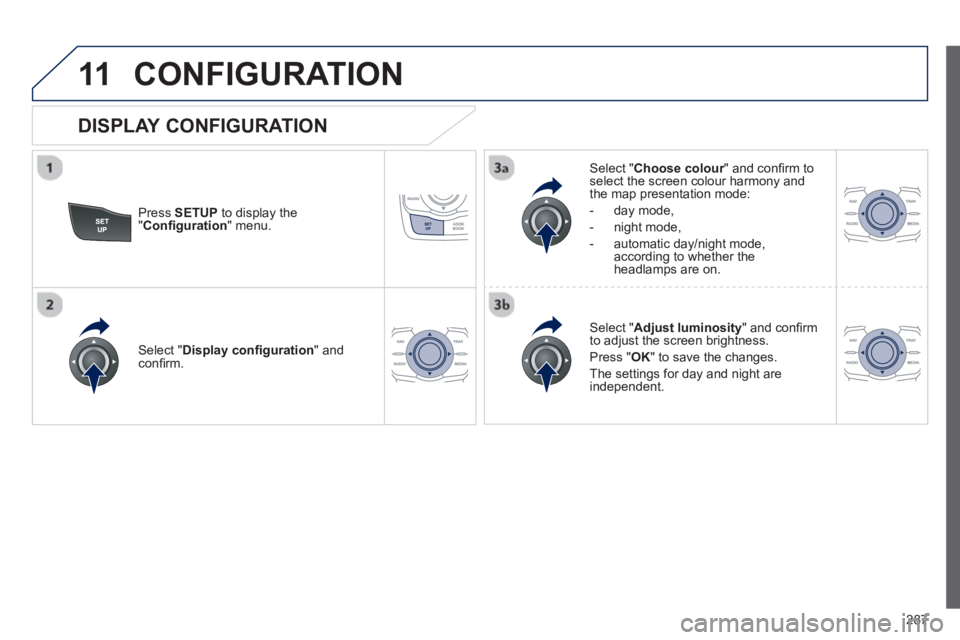

11CONFIGURATION
Press SETUP to display the"Con fi guration " menu.
Select " Choose colour" and confi rm torselect the screen colour harmony and
the map presentation mode:
- da
y mode,
- ni
ght mode,
- automatic da
y/night mode,according to whether theheadlamps are on.

Select " Adjust luminosity " and confi rm
to adjust the screen brightness.
Pr
ess " OK" to save the changes.
The settin
gs for day and night are independent.
Select " Display con fi guration" andcon fi rm.
DISPLAY CONFIGURATION

288
12

"Navigation - guidance"
MENU
Enter an address
Select destination
Directory
GPS coordinates (Archive)
Journey leg and route
Add a sta
ge
Enter an address
Director
y Pr
evious destinations
Order/delete
journey legs
Divert route
Chosen destination
Guidance o
ptions
De fi ne calculation criteria
Set speech synthesis
Delete last destinations
Map management
Map orientation Select TMC station
Automatic TMC
Manual TMCList of TMC stations
Displa
y / Do not display messages

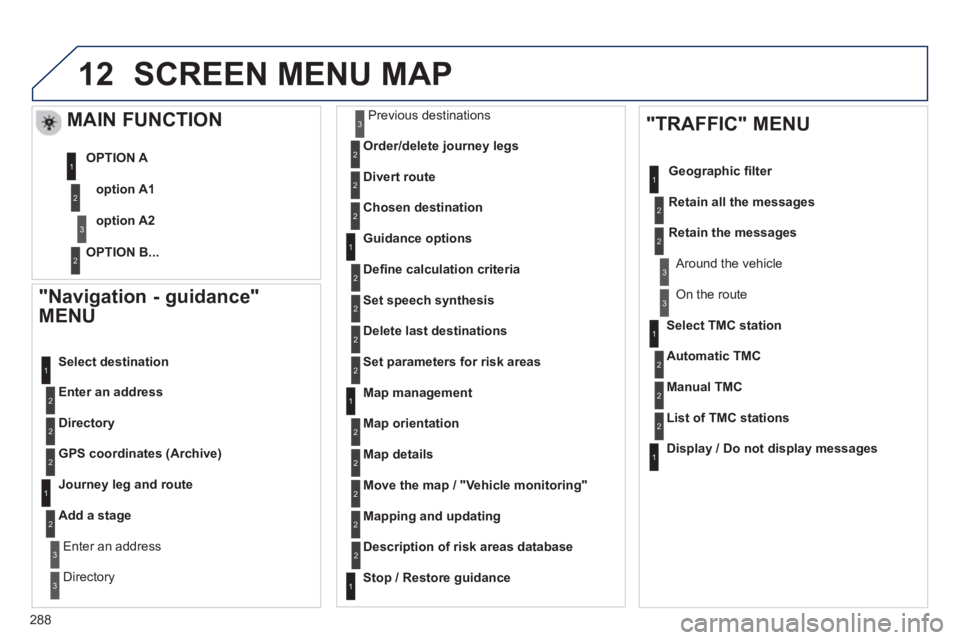

SCREEN MENU MAP
MAIN FUNCTION
option A1
option A2
OPTION A
OPTION B...
Map details
Move the map / "Vehicle monitoring"
Mapping and updating
Description of risk areas database
Stop / Restore guidance
"TRAFFIC" MENU
Geographic
fi lter
Retain all the messa
ges
Retain the messa
ges

Around the vehicle

On the route
Set
parameters for risk areas
1
2
3
2
1
2
2
2
1
2
2
3
3
1
1
3
3
2
2
2
2
1
3
1
1
2
2
2
2
2
2
2
2
2
2
2
1
2
