Peugeot 508 2013 Owner's Manual - RHD (UK, Australia)

259

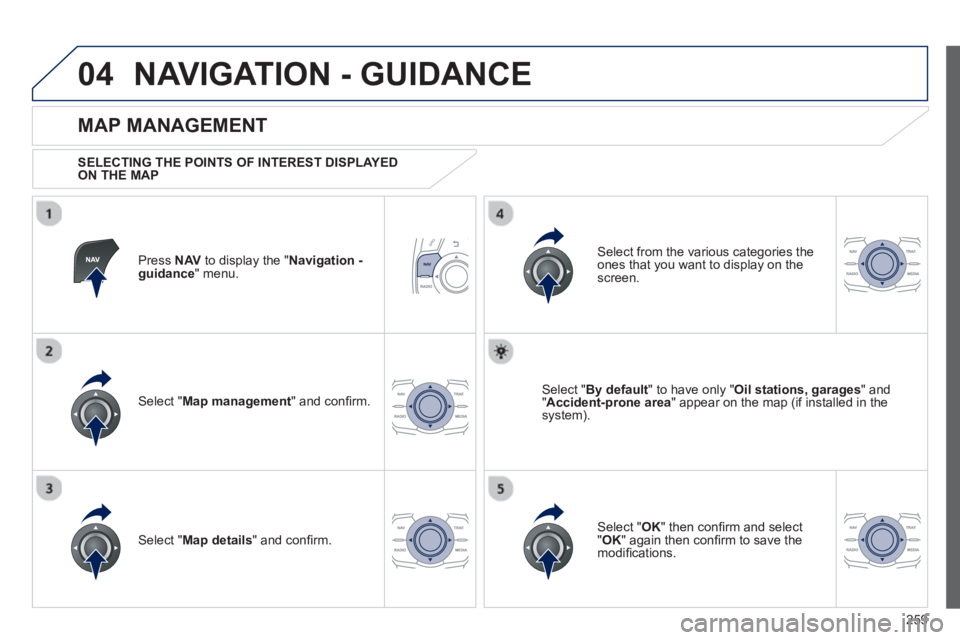

04NAVIGATION - GUIDANCE
Press NAV to display the " Navigation - guidance" menu.

MAP MANAGEMENT
SELECTING THE POINTS OF INTEREST DISPLAYED
ON THE MAP
Select " Map management " and con fi rm.
Select from the various categories the
ones that you want to display on thescreen.
Select " Map details " and confi rm.
Select " By default" to have only "Oil stations, garages " and"Accident-prone area " appear on the map (if installed in the
system).
Select " OK
" then confi rm and select "OK" again then confi rm to save the
modifi cations.

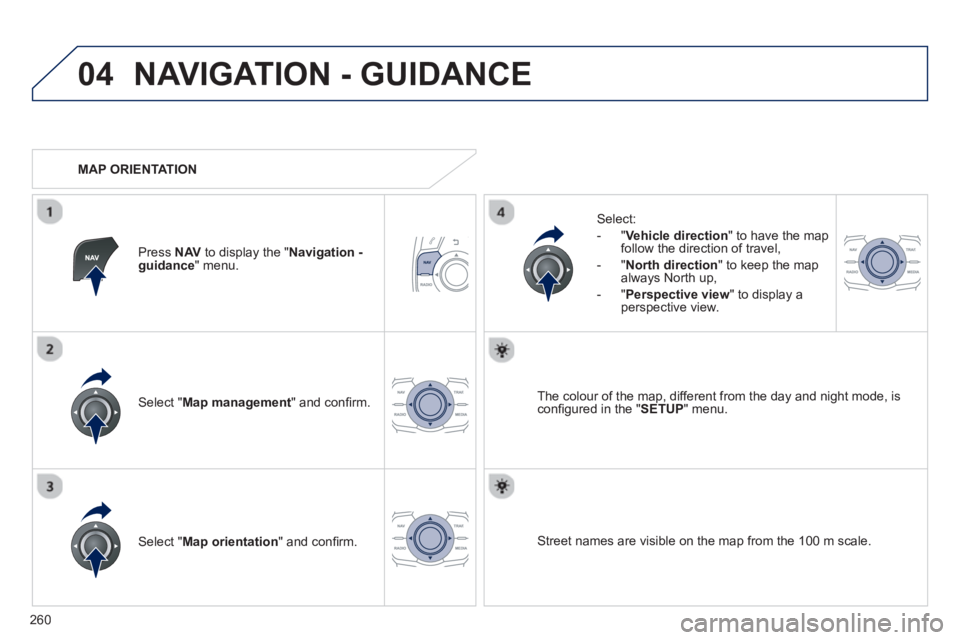

260
04NAVIGATION - GUIDANCE
Select " Map management " and confi rm.
Select:
-
"Vehicle direction" to have the map follow the direction of travel,
- " North direction " to keep the map
alwa
ys North up,
-" Perspective view " to displa
y aperspective view.
Select " Map orientation" and confi rm. The colour o
f the map, different from the day and night mode, is confi gured in the " SETUP
" menu.
MAP ORIENTATION

Pr
ess NAV to display the " Navigation - guidance" menu.
Street names are visible on the map from the 100 m scale.

261

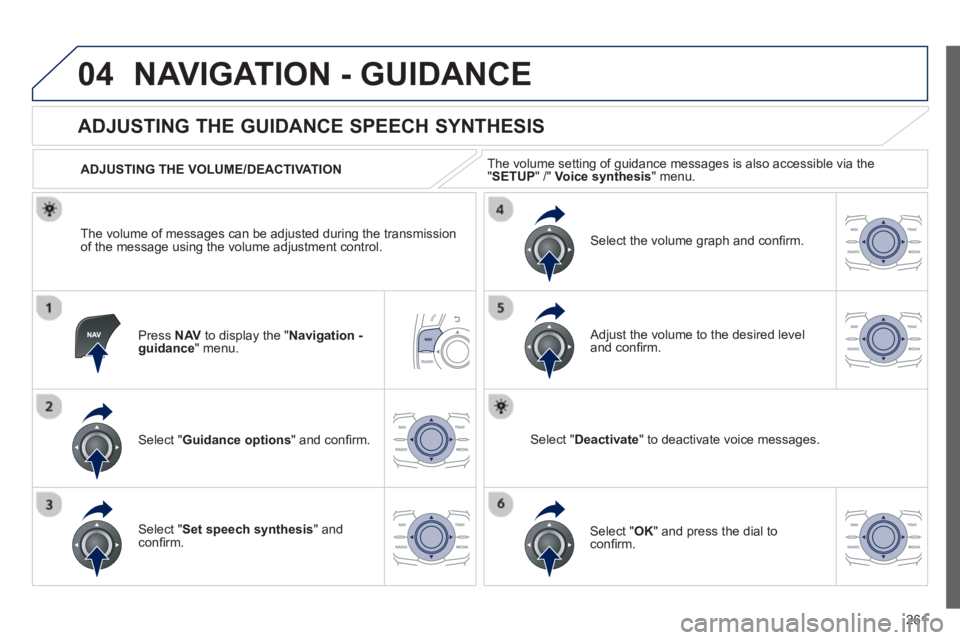

04NAVIGATION - GUIDANCE
Press NAVto display the " Navigation - guidance" menu.

ADJUSTING THE GUIDANCE SPEECH SYNTHESIS
Select " Guidance options " and confi rm.
ADJUSTING THE VOLUME/DEACTIVATION

Select " Set speech synthesis " andconfi rm.
Select the volume graph and confi rm.


Select "Deactivate " to deactivate voice messages.
Select " OK " and press the dial to confi rm.

Adjust the volume to the desired level and con
fi rm.
The volume o
f messages can be adjusted during the transmissionof the message using the volume adjustment control.
The volume settin
g of guidance messages is also accessible via the "SETUP" /" Voice synthesis
" menu.

262

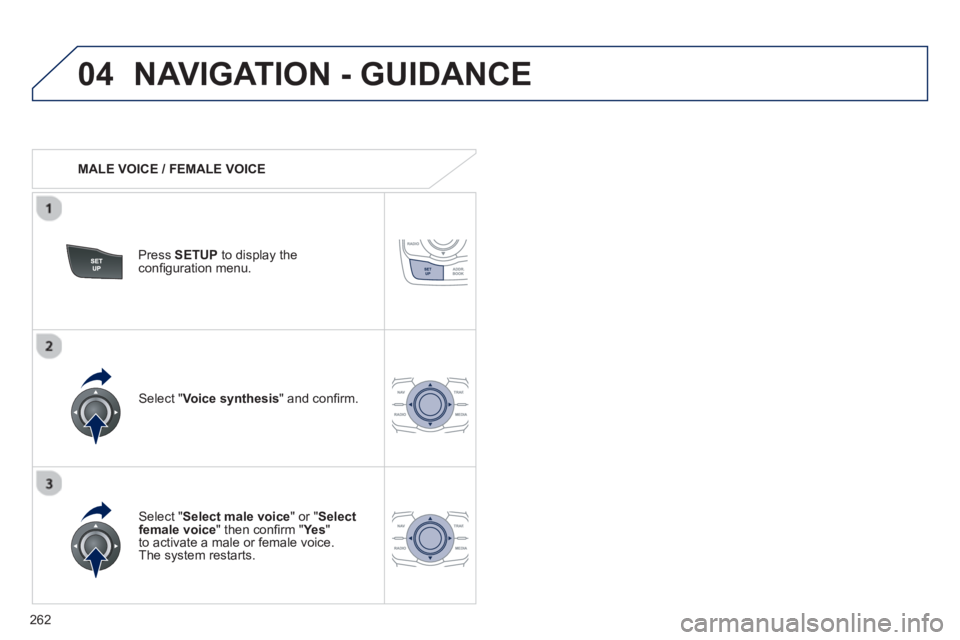

04NAVIGATION - GUIDANCE
MALE VOICE / FEMALE VOICE
Press SETUP to display theconfi guration menu.

Select "Select male voice " or "Selectfemale voice" then con fi rm " Ye s "
to activate a male or female voice.
The system restarts.

Select "Voice synthesis
" and confi rm.

263

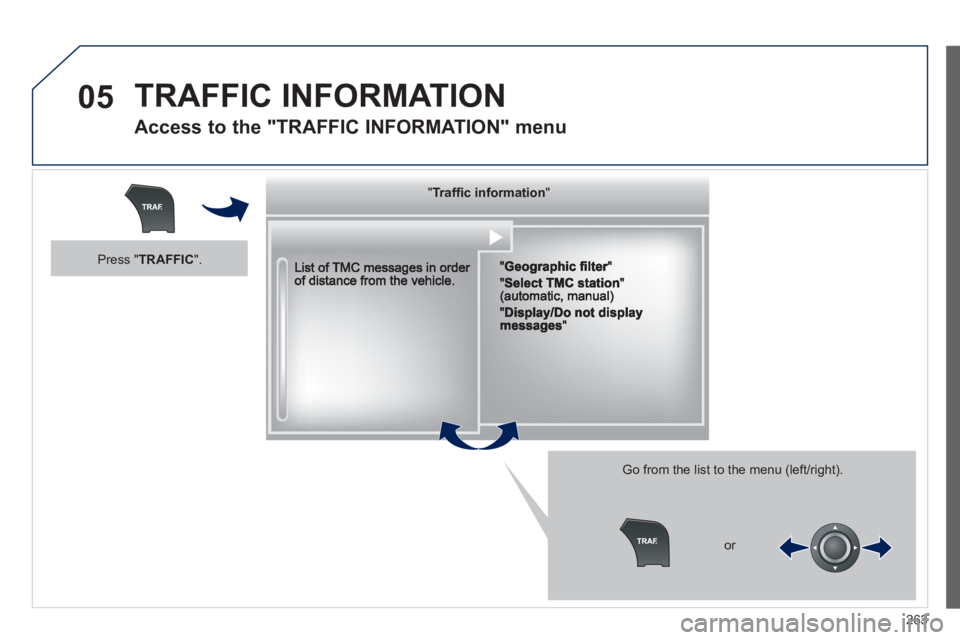

05 TRAFFIC INFORMATION

Access to the "TRAFFIC INFORMATION" menu
Go from the list to the menu (left/right).

"""""""ac o at oTraf fi c informationTraffic informationTraf fic informationTraf fic informationTraf fic informationTraf fic informationTraf fic informationTraf fic informationTraf fic informationTraf fic informationTraf fic informationTraf fic informationTraf fic informationTraf fic informationTf fiif tiTf fiif tiTf fiif tiTf fiif ti"""""""
or
Press "TRAFFIC".

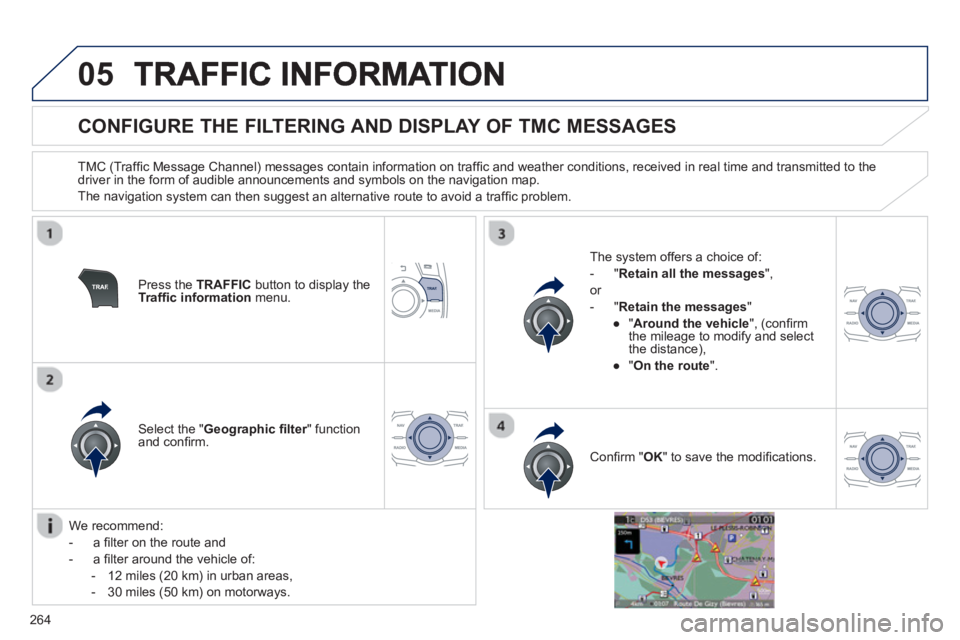

264
05

CONFIGURE THE FILTERING AND DISPLAY OF TMC MESSAGES
TMC (Traffi c Message Channel) messages contain information on traffi c and weather conditions, received in real time and transmitted to the
driver in the form of audible announcements and symbols on the navigation map.
The navi
gation system can then suggest an alternative route to avoid a traf fi c problem.
Pr
ess the TRAFFICbutton to display the Traf fi c information menu.
Select the "Geographic fi lter" function rand con fi rm. The s
ystem offers a choice of:
- " Retain all the messa
ges",
or
-" Retain the messa
ges"
●
"Around the vehicle
", (con fi rm
the mileage to modify and select
the distance),

●
" On the rout
e".
Con fi rm " OK
" to save the modifi cations.

We recommend:
-
a fi lter on the route and
-
a fi lter around the vehicle of:
- 12 miles
(20 km) in urban areas,
- 30 miles
(50 km) on motorways.

265

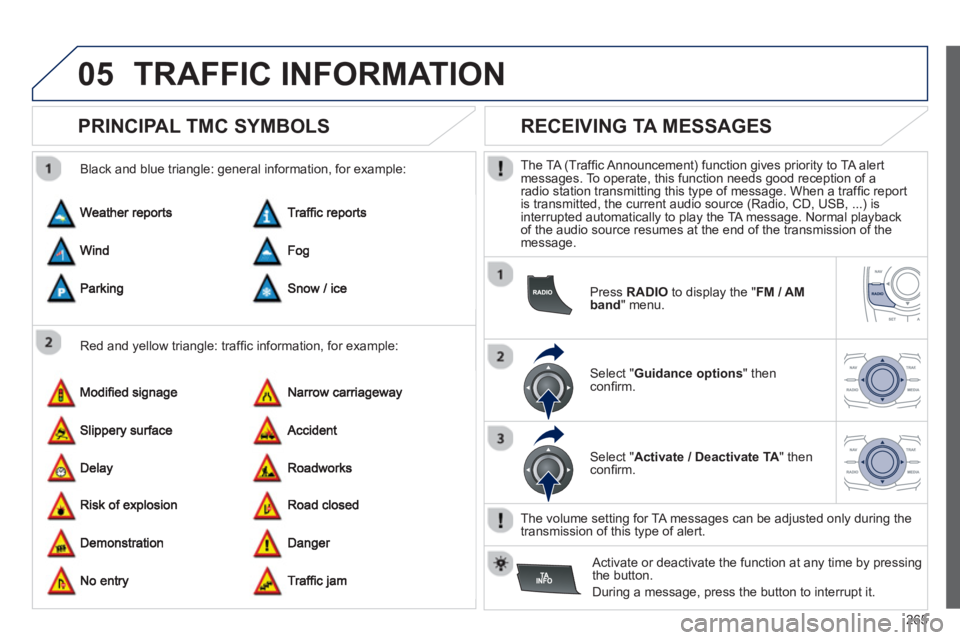

05TRAFFIC INFORMATION

PRINCIPAL TMC SYMBOLS
Red and yellow triangle: traffi c information, for example:
Black and blue trian
gle: general information, for example:

RECEIVING TA MESSAGES

The TA (Traf
fi c Announcement) function gives priority to TA alert messages. To operate, this function needs good reception of a radio station transmitting this type of message. When a traf fi c report
is transmitted, the current audio source (Radio, CD, USB, ...) isinterrupted automatically to play the TA message. Normal playbackof the audio source resumes at the end of the transmission of themessage.
Pr
ess RADIO to display the "FM / AM
band
" menu.
Select " Guidance options " then confi rm.
Select " Activate / Deactivate TA" thenconfi rm.
The volume settin
g for TA messages can be adjusted only during the
transmission of this type of alert.
Activate or deactivate the function at an
y time by pressing
the button.

During a message, press the button to interrupt it.

266

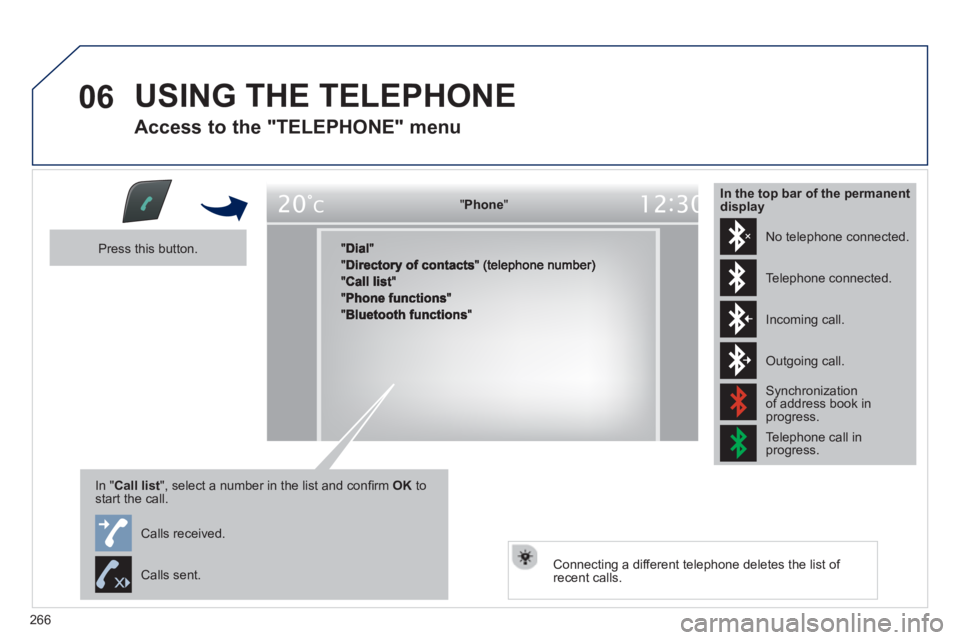

06 USING THE TELEPHONE

Access to the "TELEPHONE" menu
"""""""oePhonePhonePhonePhonePhonePhonePhonePhonePhonePhonePhonePhonePhonePhonePhPhPhPh"""""""
Press this button.
In "Call list ", select a number in the list and confi rm OK tostart the call.

Connecting a different telephone deletes the list of recent calls.
No telephone connected.
Telephone connected.
Incoming call.
Outgoing call.
Synchronization of address book in progress.
Telephone call in progress.
In the top bar of the permanentdisplay
Calls received.
Calls sent.

267
06

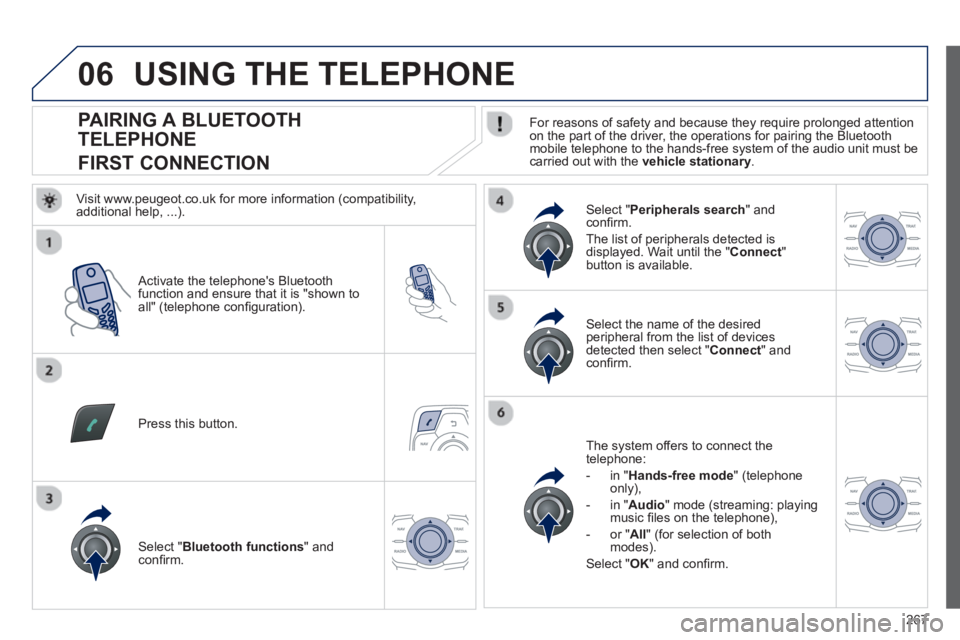

PAIRING A BLUETOOTH
TELEPHONE
FIRST CONNECTION For reasons of safety and because they require prolonged attention on the part of the driver, the operations for pairing the Bluetooth
mobile telephone to the hands-free system of the audio unit must becarried out with the vehicle stationary.
Activate the telephone's Bluetooth
function and ensure that it is "shown to all" (telephone con fi guration).
Pr
ess this button.
Select the name of the desired
peripheral from the list of devicesdetected then select " Connect" andconfi rm.
The s
ystem offers to connect the
telephone:
- in " Hands-free mod
e " (telephone
only),
- in "
Audio " mode (streaming: playing music fi les on the telephone),
-
or "All" (for selection of bothmodes).
Select " OK" and confi rm.
Select " Bluetooth functions " and confi rm.
Select "Peripherals search " andconfi rm.
The list of
peripherals detected is
displayed. Wait until the " Connect"button is available.
USING THE TELEPHONE
Visit www.peugeot.co.uk for more information (compatibility,
additional help, ...).

268

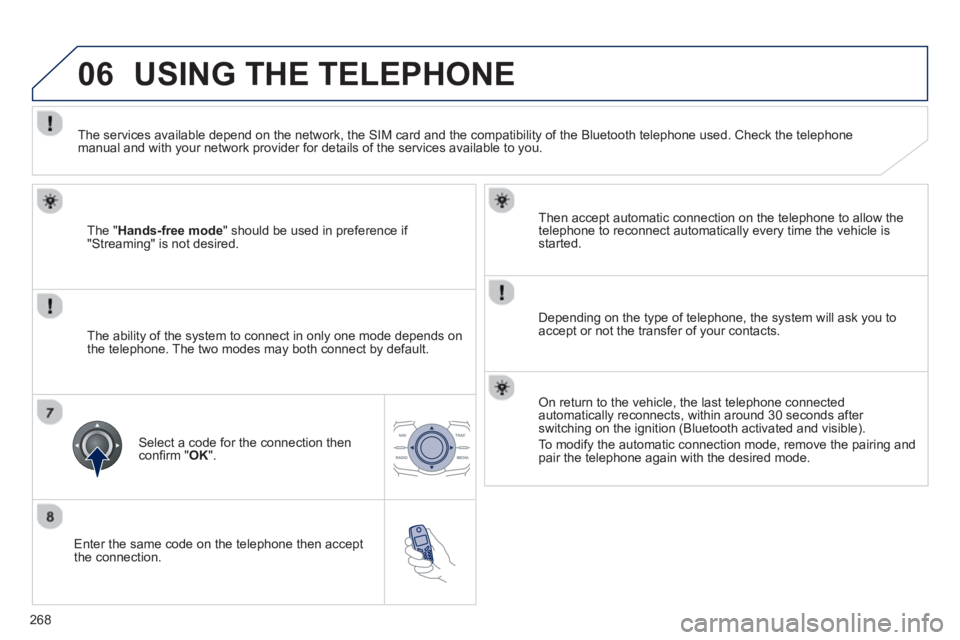

06
Enter the same code on the telephone then accept
the connection. Then accept automatic connection on the telephone to allow the
telephone to reconnect automaticall
y every time the vehicle is started.

Dependin
g on the type of telephone, the system will ask you to
accept or not the transfer of your contacts.
USING THE TELEPHONE
The "Hands-free mode" should be used in preference if "Streaming" is not desired.
The services available depend on the network, the
SIM card and the compatibility of the Bluetooth telephone used. Check the telephone manual and with your network provider for details of the services available to you.

The ability o
f the system to connect in only one mode depends on
the telephone. The two modes may both connect by default.

Select a code for the connection then confi rm " OK ".
On return to the vehicle, the last telephone connected
automatically reconnects, within around 30 seconds after
switching on the ignition (Bluetooth activated and visible).
To modif
y the automatic connection mode, remove the pairing and pair the telephone again with the desired mode.
