Peugeot 508 2014 - RHD (UK, Australia) Owners Manual

3

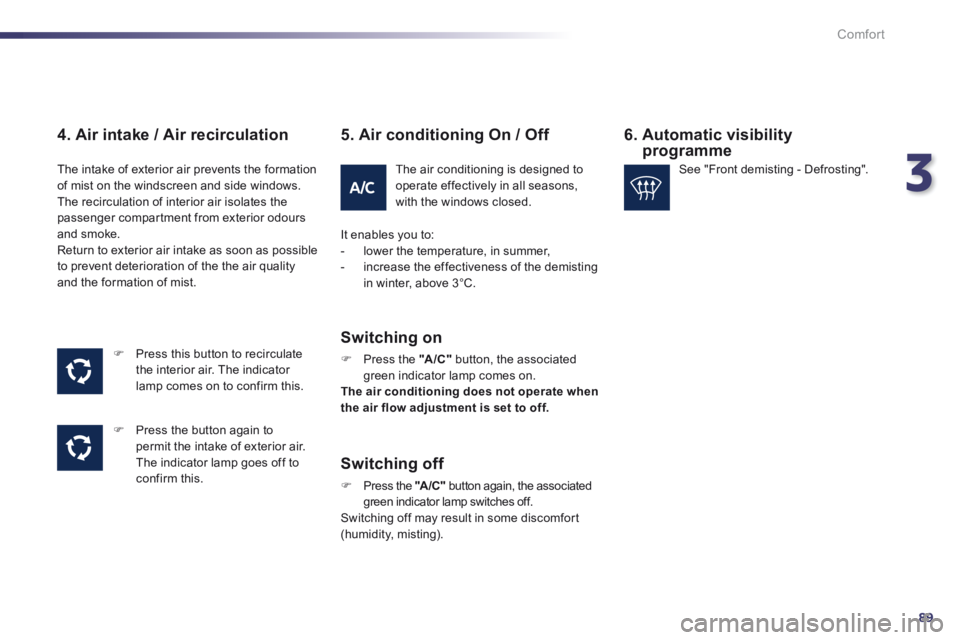

89
Comfort
4. Air intake / Air recirculation
 Press this button to recirculate the interior air. The indicator lamp comes on to confirm this.
 Press the button again to permit the intake of exterior air. The indicator lamp goes off to confirm this.
The intake of exterior air prevents the formation of mist on the windscreen and side windows. The recirculation of interior air isolates the passenger compartment from exterior odours
and smoke. Return to exterior air intake as soon as possible to prevent deterioration of the the air quality and the formation of mist.
5. Air conditioning On / Off
The air conditioning is designed to operate effectively in all seasons, with the windows closed.
It enables you to: - lower the temperature, in summer, - increase the effectiveness of the demisting in winter, above 3°C.
Switching on
 Press the "A /C " button, the associated green indicator lamp comes on. The air conditioning does not operate when the air flow adjustment is set to off.
Switching off
 Press the "A /C " button again, the associated green indicator lamp switches off. Switching off may result in some discomfort (humidity, misting).
6. Automatic visibility programme
See "Front demisting - Defrosting".

90
Comfort

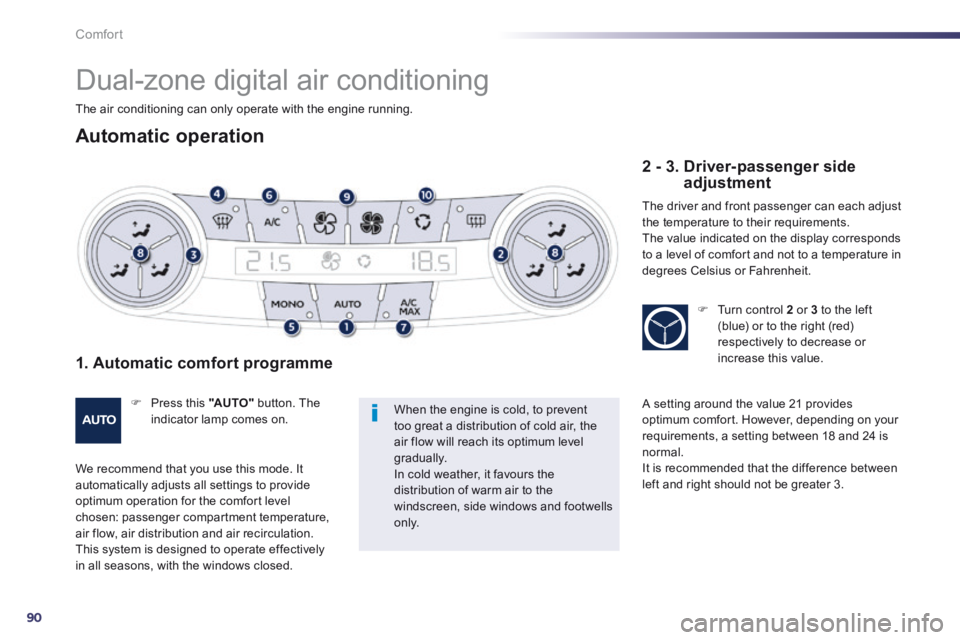

Dual-zone digital air conditioning
Automatic operation
1. Automatic comfort programme
 Press this "AUTO" button. The indicator lamp comes on.
We recommend that you use this mode. It automatically adjusts all settings to provide optimum operation for the comfort level chosen: passenger compartment temperature, air flow, air distribution and air recirculation. This system is designed to operate effectively in all seasons, with the windows closed.
When the engine is cold, to prevent too great a distribution of cold air, the air flow will reach its optimum level gradually. In cold weather, it favours the distribution of warm air to the windscreen, side windows and footwells o n l y.
2 - 3. Driver-passenger side adjustment
The driver and front passenger can each adjust the temperature to their requirements. The value indicated on the display corresponds to a level of comfort and not to a temperature in degrees Celsius or Fahrenheit.
 Turn control 2 or 3 to the left (blue) or to the right (red) respectively to decrease or increase this value.
A setting around the value 21 provides optimum comfort. However, depending on your requirements, a setting between 18 and 24 is normal. It is recommended that the difference between left and right should not be greater 3.
The air conditioning can only operate with the engine running.

3

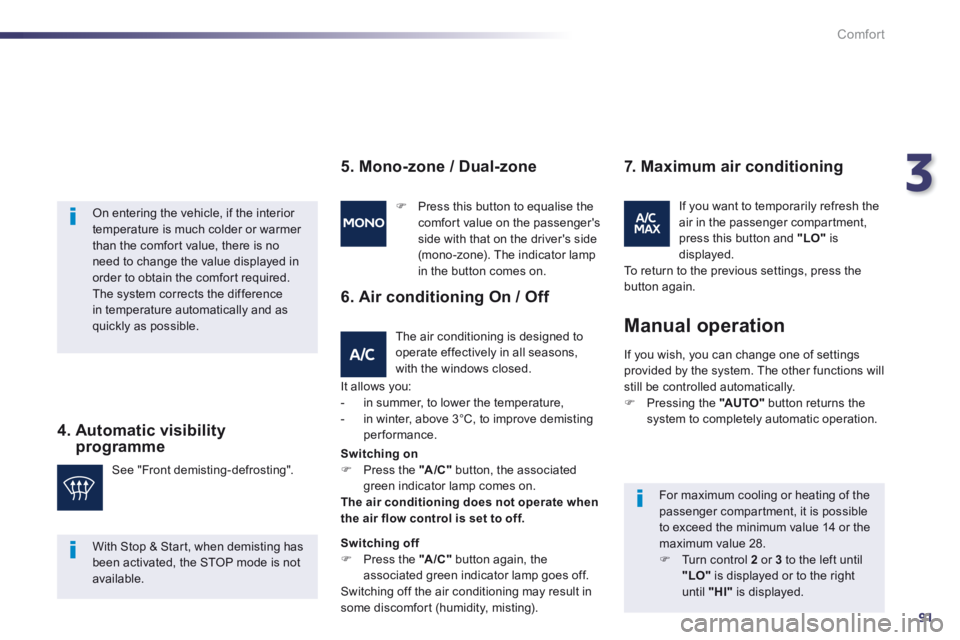

91
Comfort
On entering the vehicle, if the interior
temperature is much colder or warmer than the comfort value, there is no need to change the value displayed in order to obtain the comfort required. The system corrects the difference in temperature automatically and as quickly as possible.
4. Automatic visibility programme
For maximum cooling or heating of the passenger compartment, it is possible to exceed the minimum value 14 or the maximum value 28.  Turn control 2 or 3 to the left until "LO" is displayed or to the right until "HI" is displayed.
See "Front demisting-defrosting".
 Press this button to equalise the comfort value on the passenger's side with that on the driver's side (mono-zone). The indicator lamp in the button comes on.
If you wish, you can change one of settings provided by the system. The other functions will still be controlled automatically.  Pressing the "AUTO" button returns the system to completely automatic operation.
Manual operation
5. Mono-zone / Dual-zone
The air conditioning is designed to operate effectively in all seasons, with the windows closed.
6. Air conditioning On / Off
It allows you: - in summer, to lower the temperature, - in winter, above 3°C, to improve demisting
performance.
7. Maximum air conditioning
If you want to temporarily refresh the air in the passenger compartment, press this button and "LO" is displayed. To return to the previous settings, press the button again.
With Stop & Start, when demisting has been activated, the STOP mode is not available.
Switching on Press the "A/C" button, the associated green indicator lamp comes on. The air conditioning does not operate when the air flow control is set to off.
Switching off Press the "A /C " button again, the associated green indicator lamp goes off. Switching off the air conditioning may result in some discomfort (humidity, misting).

92
Comfort
8. Air distribution adjustment
 Press the corresponding button for:
Windscreen and side windows.
Centre and side vents.
Footwells.
To suit your requirements, you can combine two distribution buttons or select the three distribution modes simultaneously.
9. Air fl ow adjustment
 Press this "full fan" button to increase the air flow.
 Press "empty fan" button to reduce the air flow.
10. Air intake / Air recirculation
 Press this "empty fan" air flow button until the fan symbol disappears and "--" appears.
Switching the system off
 Press this button for recirculation of the interior air. The indicator lamp on the button comes on.
Air recirculation enables the passenger compartment to be isolated from exterior odours and smoke. It is activated automatically when operating the screenwash.
Avoid driving for long periods with the system off (risk of condensation and deterioration of the air quality). Pressing the "full fan" button reactivates the system with the values in use at the time it was switched off.
The air flow symbol, the fan, fills progressively according to the value requested.
This action switches off all of the functions of the air conditioning system. Temperature related comfort is no longer guaranteed but a slight flow of air, due to the for ward movement of the vehicle, can still be felt.
 As soon as possible, press this button again to permit the intake of outside air and prevent the formation of condensation. The indicator lamp in the button goes off.

3
93
Comfort

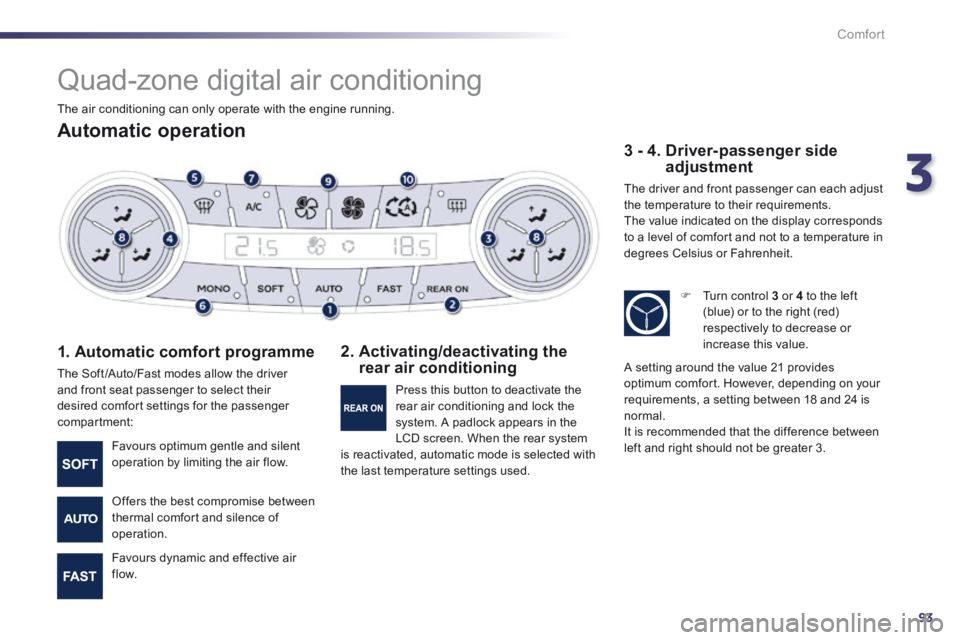

Quad-zone digital air conditioning
Automatic operation
1. Automatic comfort programme
The Soft /Auto/Fast modes allow the driver and front seat passenger to select their desired comfort settings for the passenger compartment:
2. Activating/deactivating the rear air conditioning
3 - 4. Driver-passenger side adjustment
The driver and front passenger can each adjust the temperature to their requirements. The value indicated on the display corresponds to a level of comfort and not to a temperature in degrees Celsius or Fahrenheit.
Favours optimum gentle and silent operation by limiting the air flow.
Offers the best compromise between thermal comfort and silence of operation.
Favours dynamic and effective air f low.
Press this button to deactivate the rear air conditioning and lock the system. A padlock appears in the LCD screen. When the rear system is reactivated, automatic mode is selected with the last temperature settings used.
 Turn control 3 or 4 to the left (blue) or to the right (red) respectively to decrease or increase this value.
A setting around the value 21 provides optimum comfort. However, depending on your requirements, a setting between 18 and 24 is normal. It is recommended that the difference between left and right should not be greater 3.
The air conditioning can only operate with the engine running.

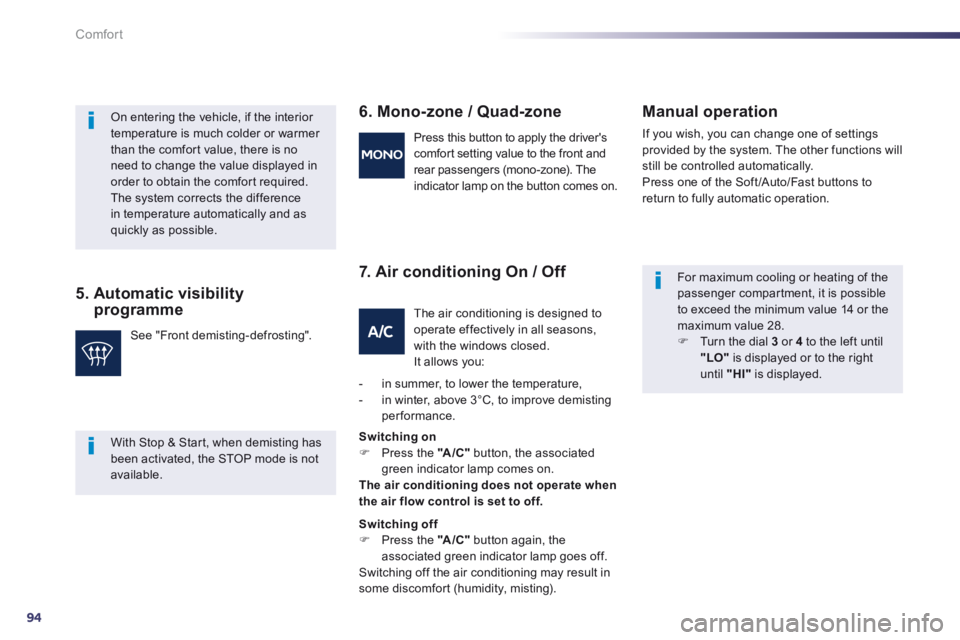

94
Comfort
5. Automatic visibility programme
6. Mono-zone / Quad-zone
7. Air conditioning On / Off
Manual operation
If you wish, you can change one of settings provided by the system. The other functions will still be controlled automatically. Press one of the Soft /Auto/Fast buttons to return to fully automatic operation.
On entering the vehicle, if the interior temperature is much colder or warmer than the comfort value, there is no need to change the value displayed in order to obtain the comfort required. The system corrects the difference in temperature automatically and as quickly as possible.
See "Front demisting-defrosting".
Press this button to apply the driver's comfort setting value to the front and rear passengers (mono-zone). The indicator lamp on the button comes on.
The air conditioning is designed to operate effectively in all seasons, with the windows closed. It allows you:
- in summer, to lower the temperature, - in winter, above 3°C, to improve demisting performance.
Switching on Press the "A /C " button, the associated green indicator lamp comes on. The air conditioning does not operate when the air flow control is set to off.
Switching off Press the "A /C " button again, the associated green indicator lamp goes off. Switching off the air conditioning may result in some discomfort (humidity, misting).
For maximum cooling or heating of the passenger compartment, it is possible to exceed the minimum value 14 or the maximum value 28.  Turn the dial 3 or 4 to the left until "LO" is displayed or to the right
until "HI" is displayed.
With Stop & Start, when demisting has been activated, the STOP mode is not available.

3

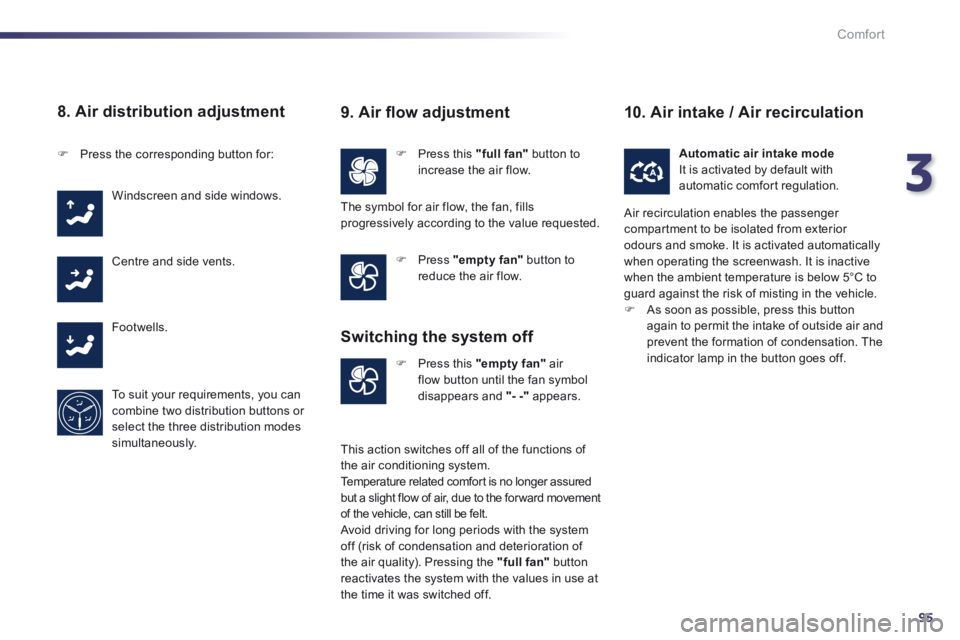

95
Comfort
8. Air distribution adjustment
 Press this "full fan" button to increase the air flow.  Press the corresponding button for:
Windscreen and side windows.
Centre and side vents.
Footwells.
To suit your requirements, you can combine two distribution buttons or select the three distribution modes
simultaneously.
 Press "empty fan" button to reduce the air flow.
 Press this "empty fan" air flow button until the fan symbol disappears and "- -" appears.
Automatic air intake mode It is activated by default with automatic comfort regulation.
9. Air fl ow adjustment
The symbol for air flow, the fan, fills progressively according to the value requested.
Switching the system off
This action switches off all of the functions of the air conditioning system. Temperature related comfort is no longer assured but a slight flow of air, due to the for ward movement of the vehicle, can still be felt. Avoid driving for long periods with the system off (risk of condensation and deterioration of the air quality). Pressing the "full fan" button reactivates the system with the values in use at the time it was switched off.
10. Air intake / Air recirculation
Air recirculation enables the passenger compartment to be isolated from exterior odours and smoke. It is activated automatically when operating the screenwash. It is inactive when the ambient temperature is below 5°C to guard against the risk of misting in the vehicle.  As soon as possible, press this button again to permit the intake of outside air and prevent the formation of condensation. The indicator lamp in the button goes off.

96
Comfort

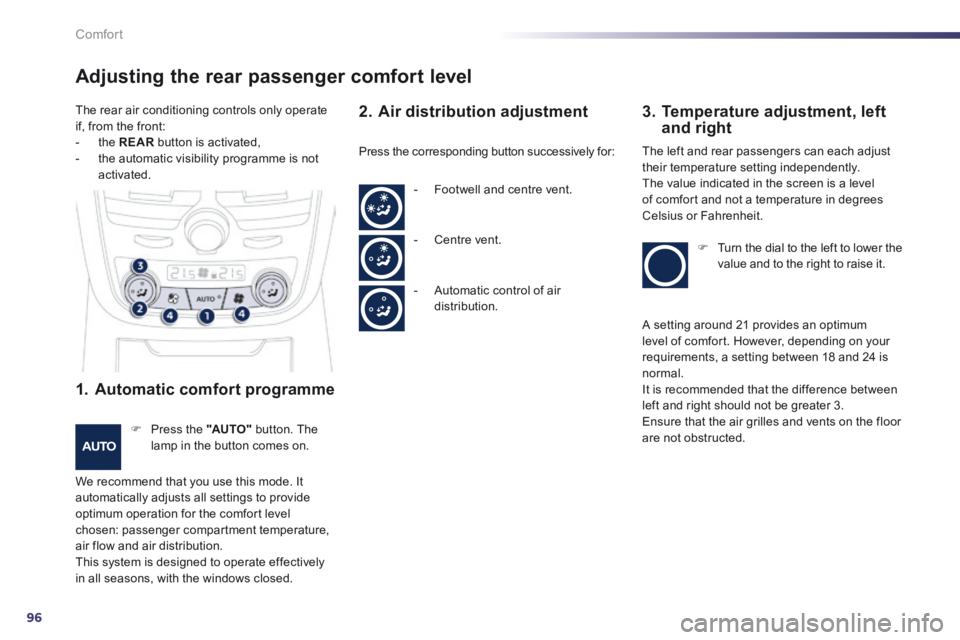

Adjusting the rear passenger comfort level
1. Automatic comfort programme
 Press the "AUTO" button. The
lamp in the button comes on.
We recommend that you use this mode. It automatically adjusts all settings to provide optimum operation for the comfort level chosen: passenger compartment temperature, air flow and air distribution. This system is designed to operate effectively in all seasons, with the windows closed.
2. Air distribution adjustment 3. Temperature adjustment, left and right
Press the corresponding button successively for: The left and rear passengers can each adjust their temperature setting independently. The value indicated in the screen is a level of comfort and not a temperature in degrees Celsius or Fahrenheit.
 Turn the dial to the left to lower the value and to the right to raise it.
- Footwell and centre vent.
- Centre vent.
- Automatic control of air distribution.
The rear air conditioning controls only operate if, from the front: - the REAR button is activated, - the automatic visibility programme is not activated.
A setting around 21 provides an optimum level of comfort. However, depending on your requirements, a setting between 18 and 24 is normal. It is recommended that the difference between left and right should not be greater 3. Ensure that the air grilles and vents on the floor are not obstructed.

3

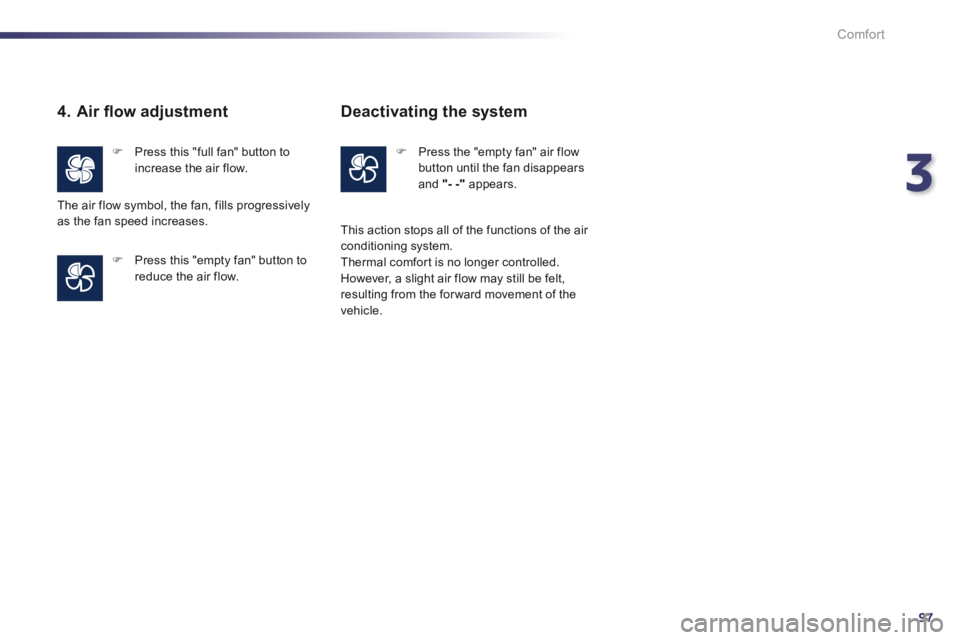

97
Comfort
4. Air fl ow adjustment
 Press this "full fan" button to increase the air flow.
 Press this "empty fan" button to reduce the air flow.
The air flow symbol, the fan, fills progressively as the fan speed increases.
Deactivating the system
 Press the "empty fan" air flow button until the fan disappears and "- -" appears.
This action stops all of the functions of the air conditioning system. Thermal comfort is no longer controlled. However, a slight air flow may still be felt, resulting from the for ward movement of the vehicle.

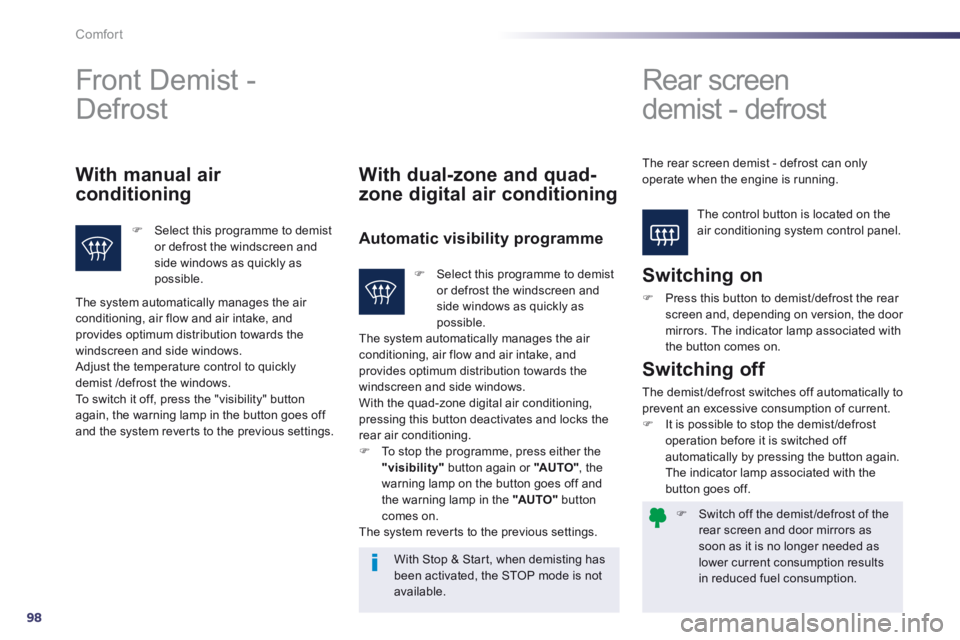

98
Comfort
 Switch off the demist /defrost of the rear screen and door mirrors as soon as it is no longer needed as lower current consumption results in reduced fuel consumption.
Front Demist -
Defrost Rear screen
demist - defrost
The control button is located on the air conditioning system control panel.
With manual air
conditioning
 Select this programme to demist or defrost the windscreen and side windows as quickly as possible.
With dual-zone and quad-
zone digital air conditioning
Automatic visibility programme
Switching on
 Press this button to demist /defrost the rear screen and, depending on version, the door mirrors. The indicator lamp associated with the button comes on.
With Stop & Start, when demisting has been activated, the STOP mode is not available.
Switching off
The demist /defrost switches off automatically to prevent an excessive consumption of current.  It is possible to stop the demist /defrost operation before it is switched off automatically by pressing the button again. The indicator lamp associated with the button goes off.
The system automatically manages the air conditioning, air flow and air intake, and provides optimum distribution towards the windscreen and side windows. Adjust the temperature control to quickly demist /defrost the windows. To switch it off, press the "visibility" button again, the warning lamp in the button goes off and the system reverts to the previous settings.
 Select this programme to demist or defrost the windscreen and side windows as quickly as possible. The system automatically manages the air conditioning, air flow and air intake, and provides optimum distribution towards the windscreen and side windows. With the quad-zone digital air conditioning, pressing this button deactivates and locks the rear air conditioning.  To stop the programme, press either the "visibility" button again or "AUTO" , the warning lamp on the button goes off and the warning lamp in the "AUTO" button comes on. The system reverts to the previous settings.
The rear screen demist - defrost can only operate when the engine is running.
