Peugeot 508 2014 Owner's Manual - RHD (UK, Australia)
Manufacturer: PEUGEOT, Model Year: 2014, Model line: 508, Model: Peugeot 508 2014Pages: 352, PDF Size: 13.51 MB
Page 1 of 352
HANDBOOK
Page 2 of 352
On-line user guide
You can find your user guide on the PEUGEOT website, under the heading "Personal space". Referring to the user guide on-line also gives you access to the latest information available, easily identified by the bookmarks, associated with this pictogram:
If the heading "Personal space" is not available on the public website for your country, you can find your user guide at the following address: http://public.servicebox.peugeot.com
the link in "Private customer access", the language, the model, the edition date appropriate for the date of registration of your vehicle.
Please note the following point: The fitting of electrical equipment or accessories which are not recommended by PEUGEOT may result in a failure of your vehicle’s electronic system. Please note this specific warning. It is advisable to contact a PEUGEOT dealer to be shown the recommended equipment and accessories.
Select:
You will find your user guide, presented in the same way as the paper version.
Page 3 of 352

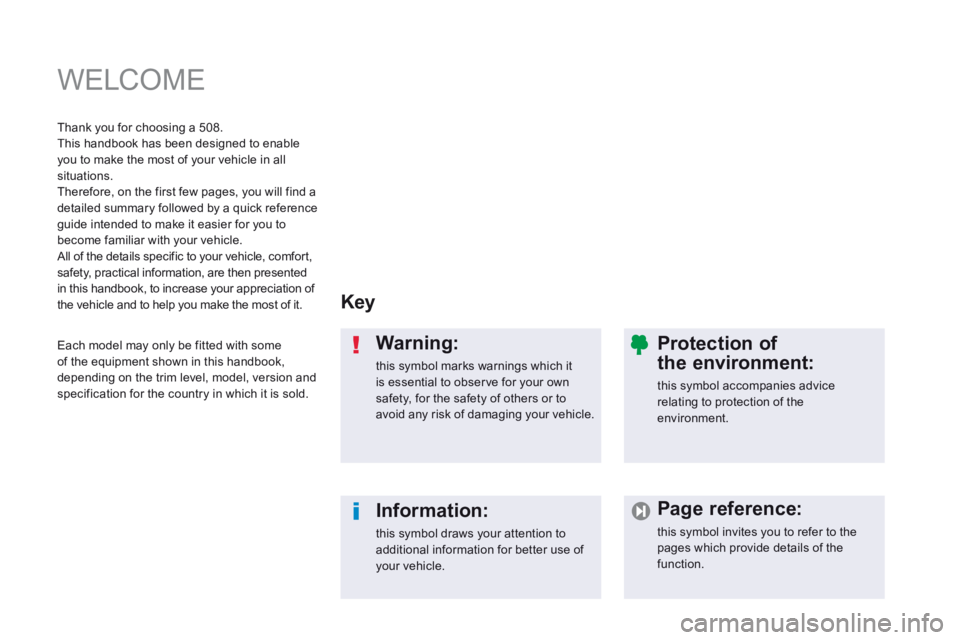

WELCOME
Key
Warning:
this symbol marks warnings which it is essential to observe for your own safety, for the safety of others or to avoid any risk of damaging your vehicle.
Information:
this symbol draws your attention to additional information for better use of your vehicle.
Protection of
the environment:
this symbol accompanies advice relating to protection of the environment.
Page reference:
this symbol invites you to refer to the pages which provide details of the function.
Thank you for choosing a 508. This handbook has been designed to enable you to make the most of your vehicle in all situations. Therefore, on the first few pages, you will find a detailed summary followed by a quick reference
guide intended to make it easier for you to become familiar with your vehicle. All of the details specific to your vehicle, comfort, safety, practical information, are then presented in this handbook, to increase your appreciation of the vehicle and to help you make the most of it.
Each model may only be fitted with some of the equipment shown in this handbook, depending on the trim level, model, version and specification for the country in which it is sold.
Page 4 of 352
.

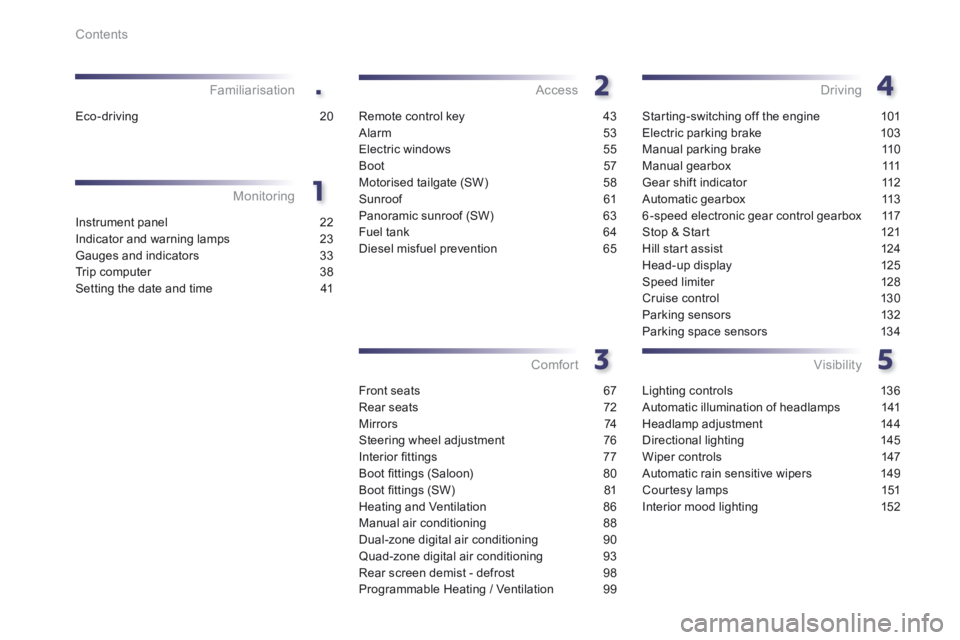

Contents
Instrument panel 22
Indicator and warning lamps 23
Gauges and indicators 33
Trip computer 38
Setting the date and time 41
Monitoring
Familiarisation
Remote control key
43
Alarm 53
Electric windows 55
Boot 57
Motorised tailgate (SW) 58
Sunroof 61
Panoramic sunroof (SW) 63
Fuel tank 64
Diesel misfuel prevention 65
Access
Front seats 67
Rear seats 72
M i r r o r s 74
Steering wheel adjustment 76
Interior fi ttings 77
Boot fi ttings (Saloon) 80
Boot fi ttings (SW) 81
Heating and Ventilation 86
Manual air conditioning 88
Dual-zone digital air conditioning 90
Quad-zone digital air conditioning 93
Rear screen demist - defrost 98
Programmable Heating / Ventilation 99
Comfort
Starting-switching off the engine 101
Electric parking brake 103
Manual parking brake 110
Manual gearbox 111
Gear shift indicator 112
Automatic gearbox 113
6-speed electronic gear control gearbox 117
Stop & Start 121
Hill start assist 124
Head-up display 125
Speed limiter 128
Cruise control 130
Parking sensors 132
Parking space sensors 134
Driving
Lighting controls 136
Automatic illumination of headlamps 141
Headlamp adjustment 144
Directional lighting 145
Wiper controls 147
Automatic rain sensitive wipers 149
Courtesy lamps 151
Interior mood lighting 152
Visibility
Eco-driving 20

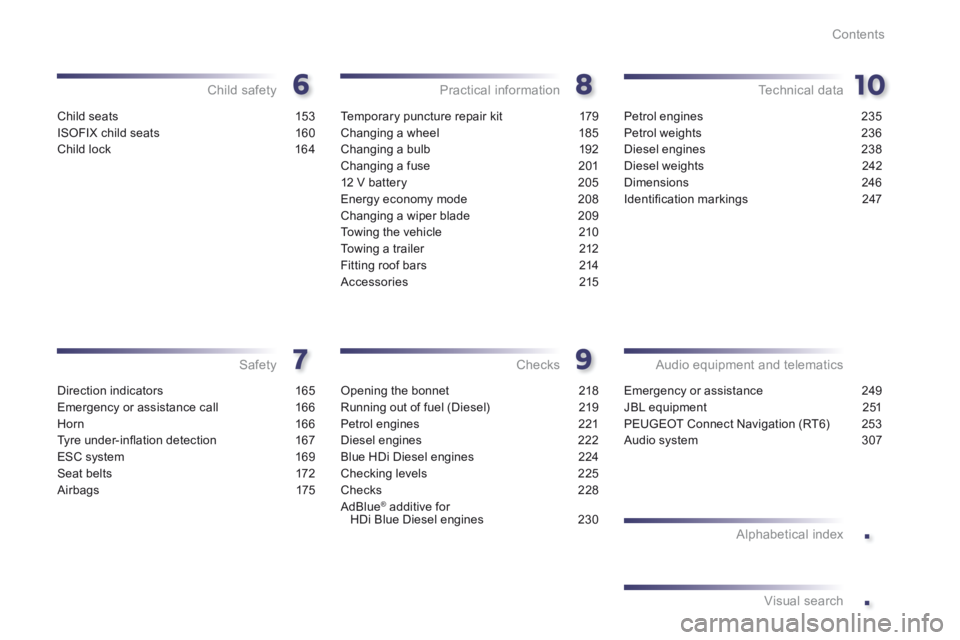

Page 5 of 352
.
.
Contents
Child seats 153
ISOFIX child seats 160
Child lock 164
Child safety
Direction indicators 165
Emergency or assistance call 166
Horn 166
Tyre under-infl ation detection 167
ESC system 169
Seat belts 172
Airbags 175
Safety
Temporary puncture repair kit 179
Changing a wheel 185
Changing a bulb 192
Changing a fuse 201
12 V battery 205
Energy economy mode 208
Changing a wiper blade 209
Towing the vehicle 210
Towing a trailer 212
Fitting roof bars 214
Accessories 215
Practical information
Opening the bonnet 218
Running out of fuel (Diesel) 219
Petrol engines 221
Diesel engines 222
Blue HDi Diesel engines 224
Checking levels 225
Checks 228
AdBlue® additive for ® additive for ®
HDi Blue Diesel engines 230
Checks
Petrol engines 235
Petrol weights 236
Diesel engines 238
Diesel weights 242
Dimensions 246
Identifi cation markings 247
Technical data
Emergency or assistance 249
JBL equipment 251
PEUGEOT Connect Navigation (RT6) 253
Audio system 307
Audio equipment and telematics
Alphabetical indexVisual search

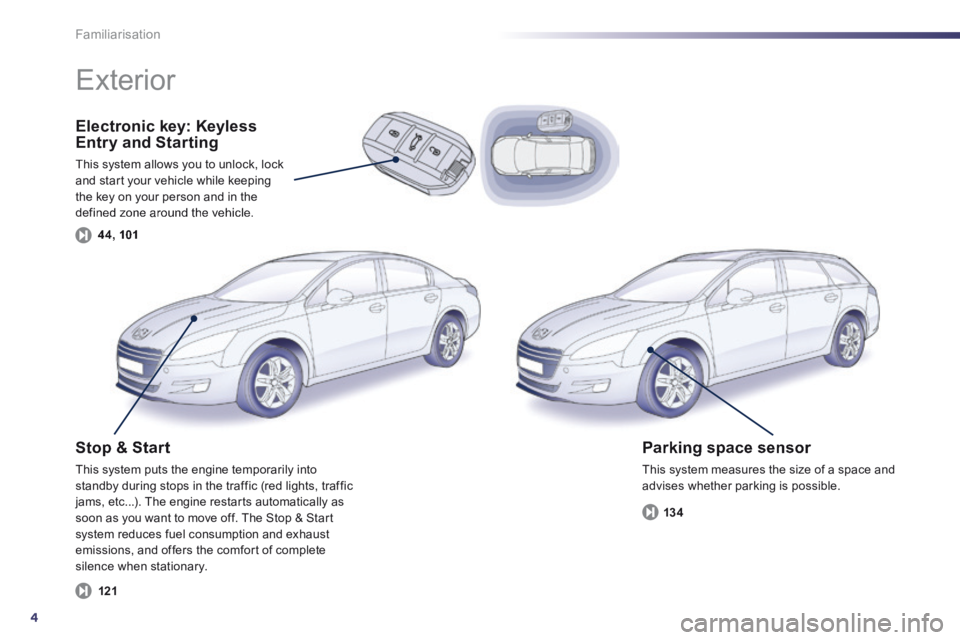

Page 6 of 352
4
Familiarisation
Electronic key: Keyless Entry and Starting
This system allows you to unlock, lock and start your vehicle while keeping the key on your person and in the defined zone around the vehicle. defined zone around the vehicle.
4 4, 101
Parking space sensor
This system measures the size of a space and advises whether parking is possible.
13 4
Exterior
Stop & Start Stop & Start
This system puts the engine temporarily into standby during stops in the traffic (red lights, traffic jams, etc...). The engine restarts automatically as soon as you want to move off. The Stop & Start system reduces fuel consumption and exhaust emissions, and offers the comfort of complete silence when stationary.
121

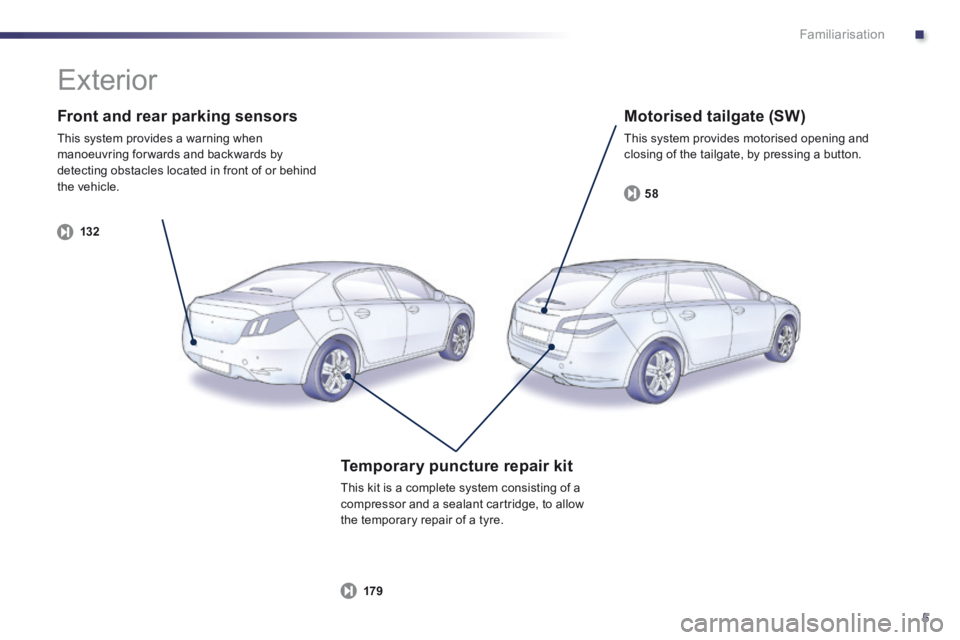

Page 7 of 352
.
5
Familiarisation
Front and rear parking sensors
This system provides a warning when manoeuvring forwards and backwards by detecting obstacles located in front of or behind the vehicle.
132
Motorised tailgate (SW)
This system provides motorised opening and closing of the tailgate, by pressing a button.
58
Temporary puncture repair kit
This kit is a complete system consisting of a compressor and a sealant cartridge, to allow the temporary repair of a tyre.
179
Exterior

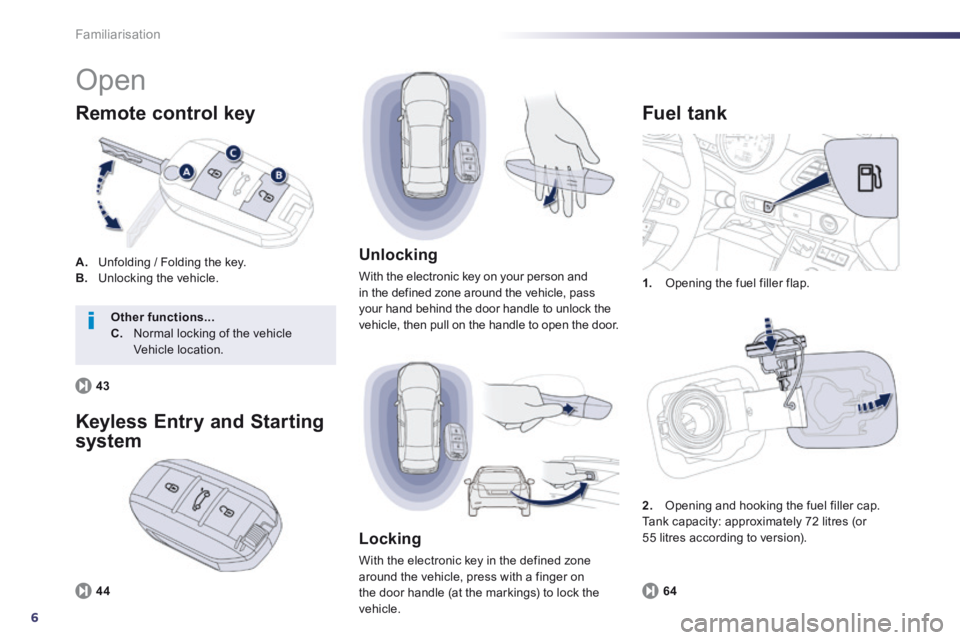

Page 8 of 352
6
Familiarisation
Open
A. Unfolding / Folding the key. B. Unlocking the vehicle.
Remote control key
1. Opening the fuel filler flap.
Fuel tank
64
Unlocking
With the electronic key on your person and in the defined zone around the vehicle, pass your hand behind the door handle to unlock the vehicle, then pull on the handle to open the door.
Locking
With the electronic key in the defined zone around the vehicle, press with a finger on the door handle (at the markings) to lock the vehicle.
Keyless Entry and Starting
system
2. Opening and hooking the fuel filler cap. Tank capacity: approximately 72 litres (or 55 litres according to version).
Other functions...C. Normal locking of the vehicle Vehicle location.
44
43
Page 9 of 352
.
7
Familiarisation

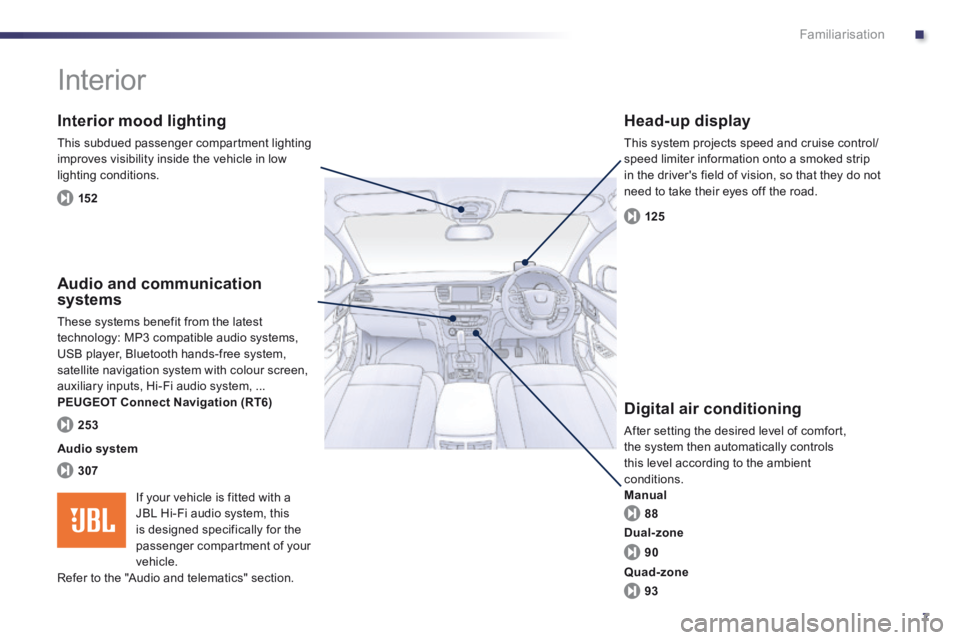

Interior
Interior mood lighting
This subdued passenger compartment lighting improves visibility inside the vehicle in low lighting conditions.
Head-up display
This system projects speed and cruise control/speed limiter information onto a smoked strip in the driver's field of vision, so that they do not need to take their eyes off the road.
Digital air conditioning
After setting the desired level of comfort, the system then automatically controls this level according to the ambient conditions. Manual
Audio and communication systems
These systems benefit from the latest technology: MP3 compatible audio systems, USB player, Bluetooth hands-free system, satellite navigation system with colour screen, auxiliary inputs, Hi-Fi audio system, ... PEUGEOT Connect Navigation (RT6)
152
125
88
307
253
Audio system
90
93
Dual-zone
Quad-zone
If your vehicle is fitted with a JBL Hi-Fi audio system, this is designed specifically for the
passenger compartment of your vehicle. Refer to the "Audio and telematics" section.
Page 10 of 352
8
Familiarisation
Lighting of the indicator lamp indicates the state of the corresponding function.

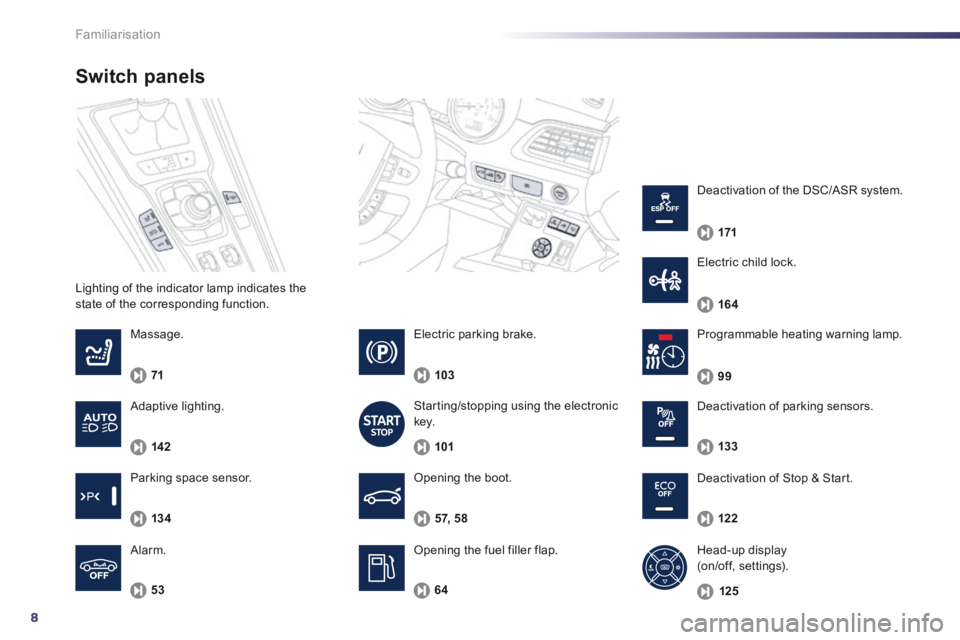

Switch panels
Opening the boot.
Opening the fuel filler flap.
5 7, 5 8
Massage.
71
53
Alarm.
Programmable heating warning lamp.
64
99
Electric parking brake.
103
Starting/stopping using the electronic key.
101
Deactivation of Stop & Start.
122
Head-up display (on/off, settings).
125
Deactivation of parking sensors.
133
Parking space sensor.
13 4
Electric child lock.
164
Deactivation of the DSC/ASR system.
171
Adaptive lighting.
142
