Peugeot 508 2014 Owner's Manual - RHD (UK, Australia)

249

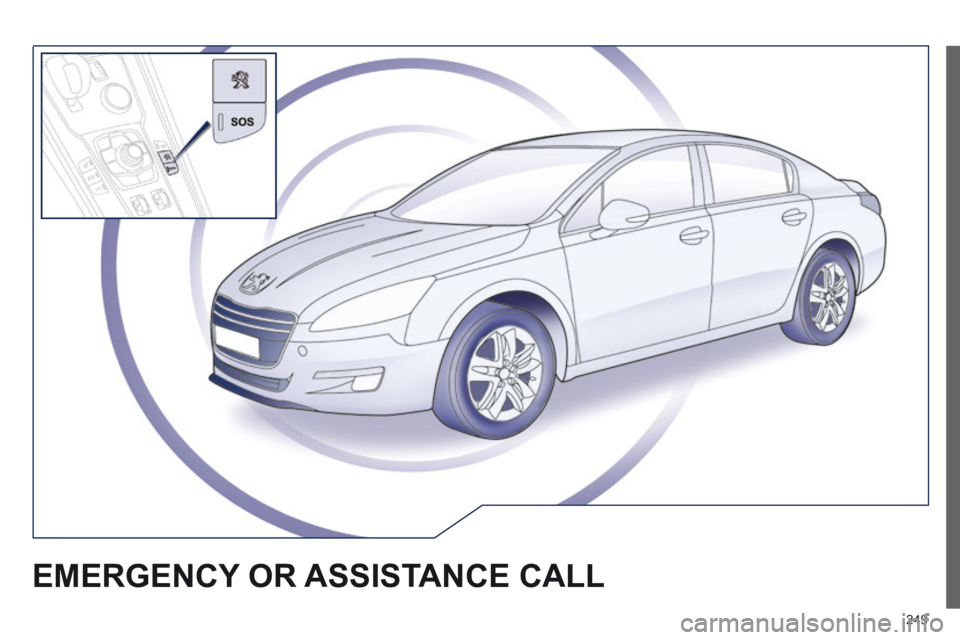

EMERGENCY OR ASSISTANCE CALL

250

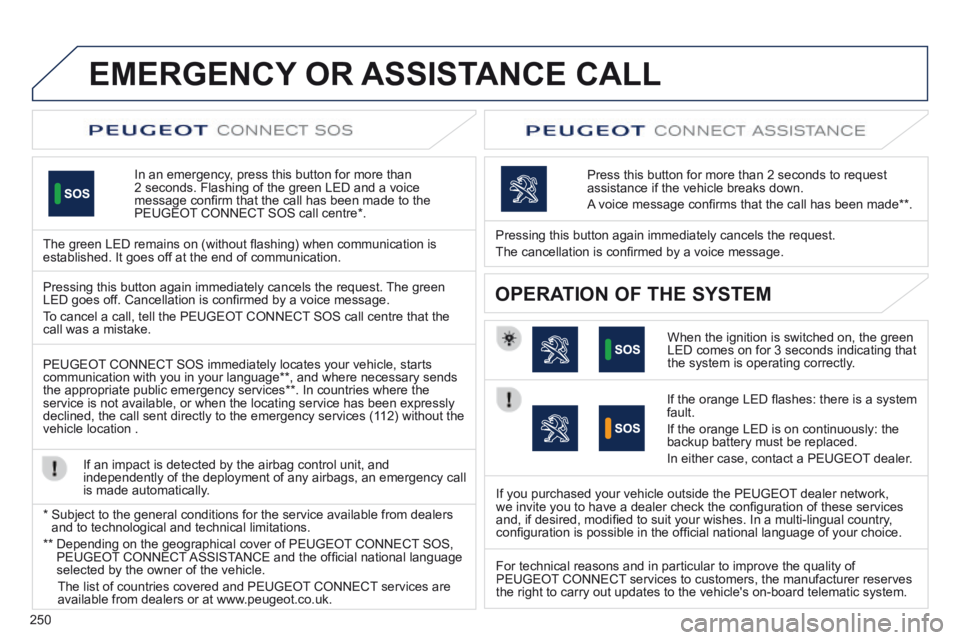

EMERGENCY OR ASSISTANCE CALL
In an emergency, press this button for more than 2 seconds. Flashing of the green LED and a voice message confi rm that the call has been made to the PEUGEOT CONNECT SOS call centre * .
The green LED remains on (without fl ashing) when communication is established. It goes off at the end of communication.
When the ignition is switched on, the green LED comes on for 3 seconds indicating that the system is operating correctly.
Pressing this button again immediately cancels the request.
The cancellation is confi rmed by a voice message.
Press this button for more than 2 seconds to request assistance if the vehicle breaks down.
A voice message confi rms that the call has been made ** .
OPERATION OF THE SYSTEM Pressing this button again immediately cancels the request. The green LED goes off. Cancellation is confi rmed by a voice message .
To cancel a call, tell the PEUGEOT CONNECT SOS call centre that the call was a mistake.
PEUGEOT CONNECT SOS immediately locates your vehicle, starts communication with you in your language ** , and where necessary sends the appropriate public emergency services ** . In countries where the service is not available, or when the locating service has been expressl\
y declined, the call sent directly to the emergency services (112) without the vehicle location .
If an impact is detected by the airbag control unit, and independently of the deployment of any airbags, an emergency call is made automatically.
* Subject to the general conditions for the service available from dealers\
and to technological and technical limitations.
** Depending on the geographical cover of PEUGEOT CONNECT SOS, PEUGEOT CONNECT ASSISTANCE and the offi cial national language selected by the owner of the vehicle.
The list of countries covered and PEUGEOT CONNECT services are available from dealers or at www.peugeot.co.uk.
If the orange LED fl ashes: there is a system fault.
If the orange LED is on continuously: the backup battery must be replaced.
In either case, contact a PEUGEOT dealer.
If you purchased your vehicle outside the PEUGEOT dealer network, we invite you to have a dealer check the confi guration of these services and, if desired, modifi ed to suit your wishes. In a multi-lingual country, confi guration is possible in the offi cial national language of your choice.
For technical reasons and in particular to improve the quality of PEUGEOT CONNECT services to customers, the manufacturer reserves the right to carry out updates to the vehicle's on-board telematic syste\
m.

251

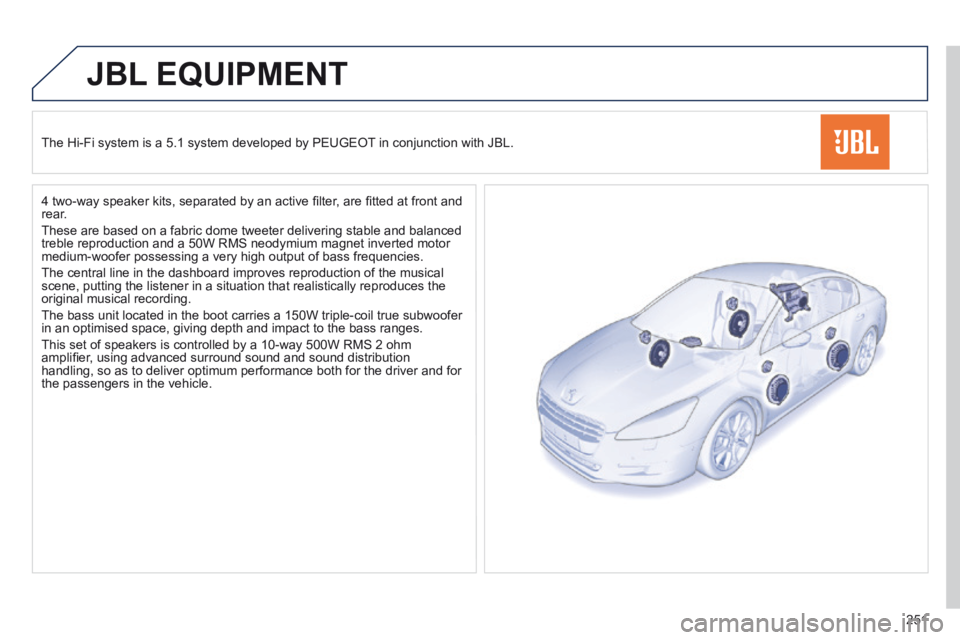

JBL EQUIPMENT
The Hi-Fi system is a 5.1 system developed by PEUGEOT in conjunction with JBL.
4 two-way speaker kits, separated by an active fi lter, are fi tted at front and rear.
These are based on a fabric dome tweeter delivering stable and balanced \
treble reproduction and a 50W RMS neodymium magnet inverted motor medium-woofer possessing a very high output of bass frequencies.
The central line in the dashboard improves reproduction of the musical scene, putting the listener in a situation that realistically reproduces\
the original musical recording.
The bass unit located in the boot carries a 150W triple-coil true subwoo\
fer in an optimised space, giving depth and impact to the bass ranges.
This set of speakers is controlled by a 10-way 500W RMS 2 ohm amplifi er, using advanced surround sound and sound distribution handling, so as to deliver optimum performance both for the driver and f\
or the passengers in the vehicle.

252

253
The system is protected in such a way that it will only operate in your vehicle.

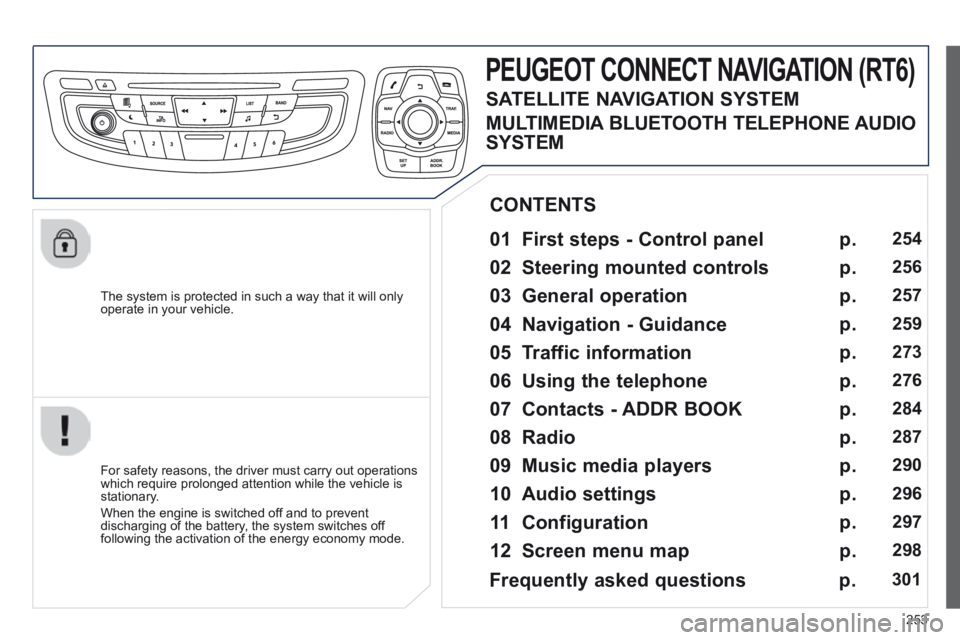

PEUGEOT CONNECT NAVIGATION (RT6)
01 First steps - Control panel
For safety reasons, the driver must carry out operations which require prolonged attention while the vehicle is stationary.
When the engine is switched off and to prevent discharging of the battery, the system switches off following the activation of the energy economy mode.
CONTENTS
02 Steering mounted controls
03 General operation
04 Navigation - Guidance
05 Traffic information
06 Using the telephone
07 Contacts - ADDR BOOK
08 Radio
09 Music media players
10 Audio settings
11 Configuration
12 Screen menu map p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
254
256
257
259
273
276
284
287
290
296
297
298
Frequently asked questions
p. 301
SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH TELEPHONE AUDIO
SYSTEM

254

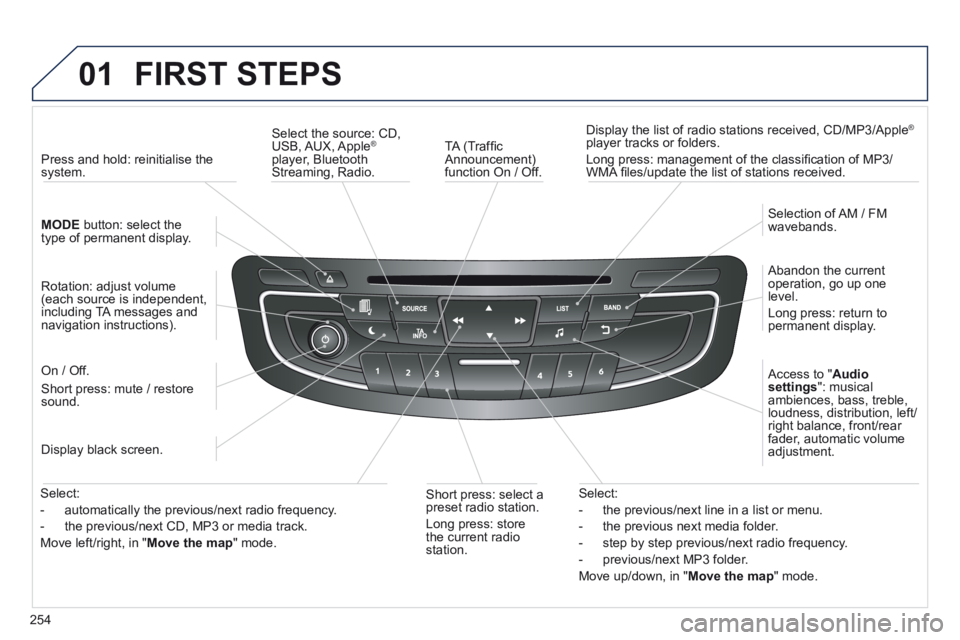

01 FIRST STEPS
TA (Traffi c Announcement) function On / Off.
Display the list of radio stations received, CD/MP3/Apple ®
player tracks or folders.
Long press: management of the classifi cation of MP3/WMA fi les/update the list of stations received.
Select the source: CD, USB, AUX, Apple ®
player, Bluetooth Streaming, Radio.
Access to " Audio settings ": musical ambiences, bass, treble, loudness, distribution, left/right balance, front/rear fader, automatic volume adjustment.
Abandon the current operation, go up one level.
Long press: return to permanent display.
Selection of AM / FM wavebands.
Display black screen.
MODE button: select the type of permanent display.
Short press: mute / restore sound.
Press and hold: reinitialise the system.
Short press: select a preset radio station.
Long press: store the current radio station.
Select:
- the previous/next line in a list or menu.
- the previous next media folder.
- step by step previous/next radio frequency.
- previous/next MP3 folder.
Move up/down, in " Move the map " mode.
Rotation: adjust volume (each source is independent, including TA messages and navigation instructions).
Select:
- automatically the previous/next radio frequency.
- the previous/next CD, MP3 or media track.
Move left/right, in " Move the map " mode.
On / Off.

255
01

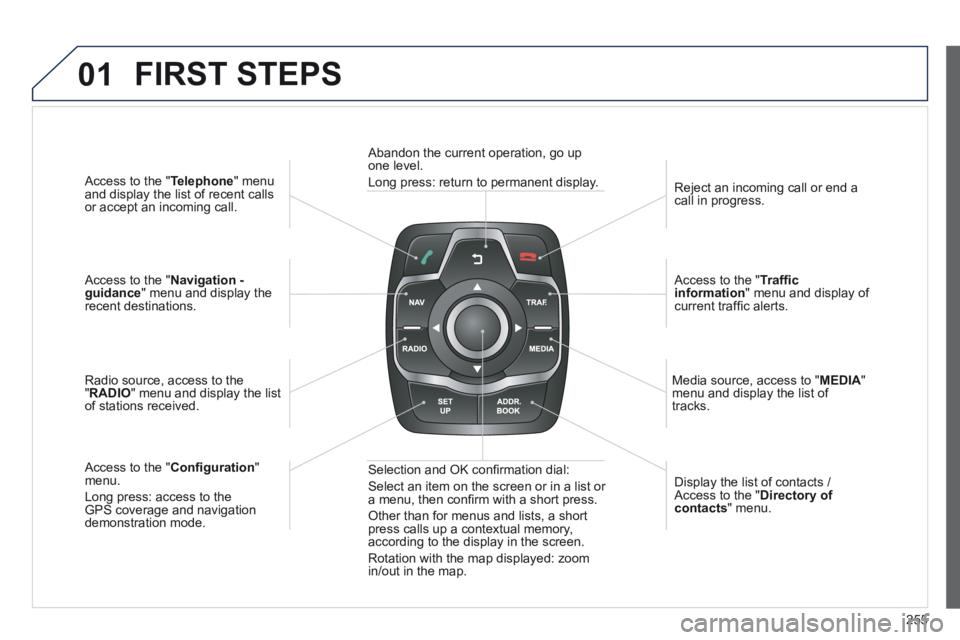

Access to the " Telephone " menu and display the list of recent calls or accept an incoming call.
Access to the " Navigation - guidance " menu and display the recent destinations.
Radio source, access to the " RADIO " menu and display the list of stations received.
Access to the " Confi guration " menu.
Long press: access to the GPS coverage and navigation demonstration mode.
Reject an incoming call or end a call in progress.
Access to the " Traffi c information " menu and display of current traffi c alerts.
Media source, access to " MEDIA " menu and display the list of tracks.
Abandon the current operation, go up one level.
Long press: return to permanent display.
Selection and OK confi rmation dial:
Select an item on the screen or in a list or a menu, then confi rm with a short press.
Other than for menus and lists, a short press calls up a contextual memory, according to the display in the screen.
Rotation with the map displayed: zoom in/out in the map.
Display the list of contacts / Access to the " Directory of contacts " menu.
FIRST STEPS

256

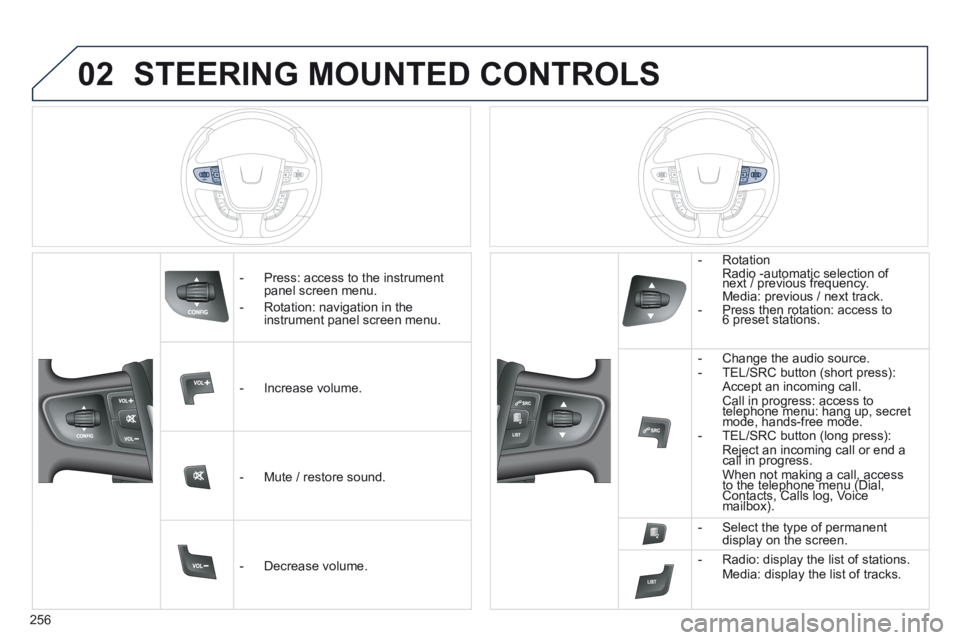

02 STEERING MOUNTED CONTROLS
- Press: access to the instrument panel screen menu.
- Rotation: navigation in the instrument panel screen menu.
- Increase volume.
- Mute / restore sound.
- Decrease volume.
- Rotation Radio -automatic selection of next / previous frequency. Media: previous / next track. - Press then rotation: access to 6 preset stations.
- Change the audio source. - TEL/SRC button (short press): Accept an incoming call . Call in progress: access to telephone menu: hang up, secret Call in progress: access to telephone menu: hang up, secret Call in progress: access to
mode, hands-free mode. telephone menu: hang up, secret mode, hands-free mode. telephone menu: hang up, secret
- TEL/SRC button (long press): Reject an incoming call or end a call in progress. Reject an incoming call or end a call in progress. Reject an incoming call or end a
When not making a call, access to the telephone menu (Dial, When not making a call, access to the telephone menu (Dial, When not making a call, access
Contacts, Calls log, Voice to the telephone menu (Dial, Contacts, Calls log, Voice to the telephone menu (Dial,
mailbox). Contacts, Calls log, Voice mailbox). Contacts, Calls log, Voice
- Select the type of permanent display on the screen.
- Radio: display the list of stations. Media: display the list of tracks.

257
03

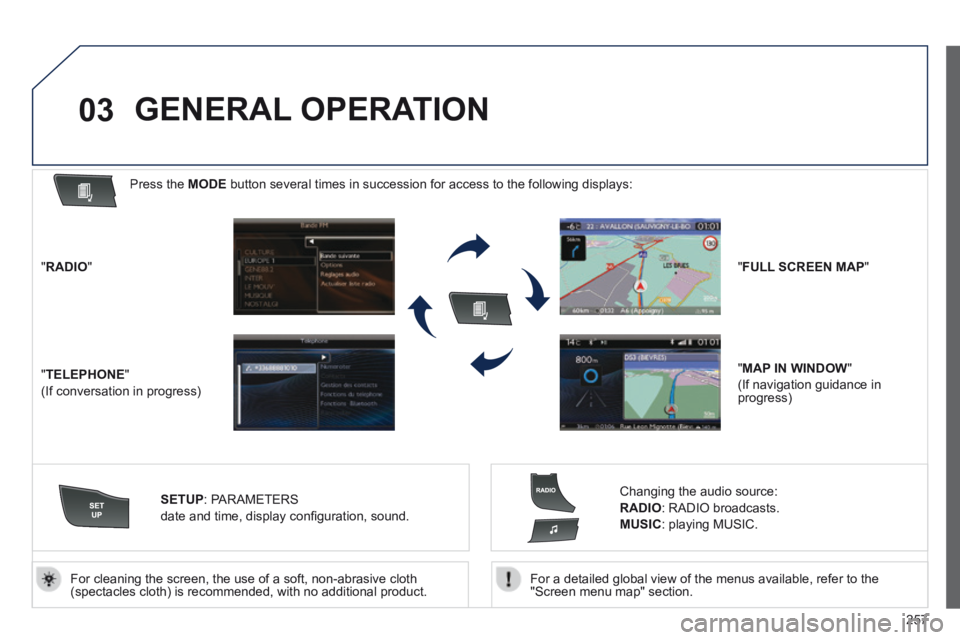

For a detailed global view of the menus available, refer to the "Screen menu map" section. For cleaning the screen, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, with no additional product.
" RADIO "
" TELEPHONE "
(If conversation in progress)
SETUP : PARAMETERS
date and time, display confi guration, sound.
Changing the audio source:
RADIO : RADIO broadcasts.
MUSIC : playing MUSIC.
Press the MODE button several times in succession for access to the following displays\
:
GENERAL OPERATION
" FULL SCREEN MAP "
" MAP IN WINDOW "
(If navigation guidance in progress)

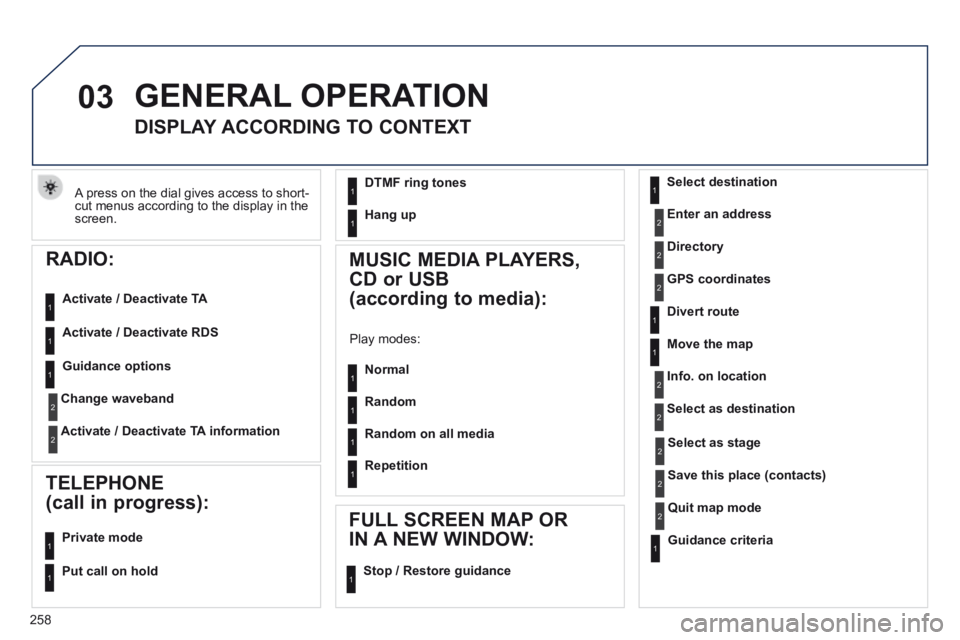

258
03
A press on the dial gives access to short-cut menus according to the display in the screen.
GENERAL OPERATION

DISPLAY ACCORDING TO CONTEXT
Select destination
Enter an address
Directory
GPS coordinates
Divert route
Move the map
Info. on location
Select as destination
Select as stage
Save this place (contacts)
Quit map mode
Guidance criteria
2
2
2
2
2
1
2
2
2
1
1
1
RADIO:
Activate / Deactivate TA
Activate / Deactivate RDS
MUSIC MEDIA PLAYERS,
CD or USB
(according to media):
Play modes:
Normal
Random
Random on all media
Repetition
TELEPHONE
(call in progress):
Private mode FULL SCREEN MAP OR
IN A NEW WINDOW:
Stop / Restore guidance Put call on hold
1
1
1
1
1
1
1
11
DTMF ring tones
Hang up 1
1
Guidance options 1
Change waveband
Activate / Deactivate TA information
2
2
