239
PEUGEOT Connect Nav

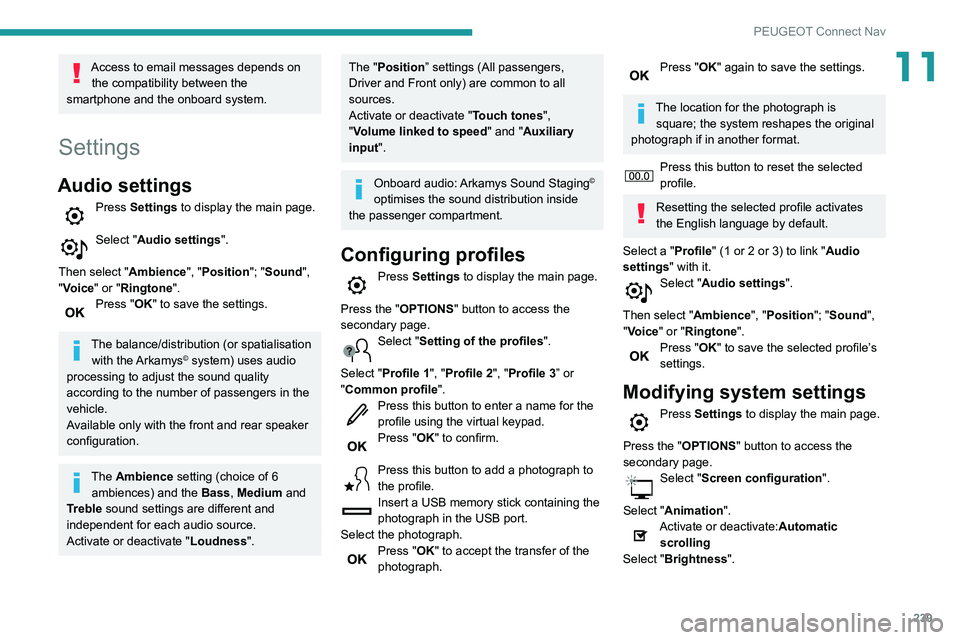

11Access to email messages depends on the compatibility between the
smartphone and the onboard system.
Settings
Audio settings
Press Settings to display the main page.
Select "Audio settings ".
Then select "Ambience", "Position"; "Sound ",
"Voice" or "Ringtone ".
Press "OK" to save the settings.
The balance/distribution (or spatialisation
with the Arkamys© system) uses audio
processing to adjust the sound quality
according to the number of passengers in the
vehicle.
Available only with the front and rear speaker
configuration.
The Ambience setting (choice of 6 ambiences) and the Bass, Medium and
Treble sound settings are different and
independent for each audio source.
Activate or deactivate "Loudness".
The "Position ” settings (All passengers,
Driver and Front only) are common to all
sources.
Activate or deactivate "Touch tones ",
"Volume linked to speed " and "Auxiliary
input ".
Onboard audio: Arkamys Sound Staging©
optimises the sound distribution inside
the passenger compartment.
Configuring profiles
Press Settings to display the main page.
Press the "OPTIONS " button to access the
secondary page.
Select "Setting of the profiles ".
Select "Profile 1", "Profile 2", "Profile 3” or
"Common profile ".
Press this button to enter a name for the
profile using the virtual keypad.
Press "OK" to confirm.
Press this button to add a photograph to
the profile.
Insert a USB memory stick containing the
photograph in the USB port.
Select the photograph.
Press "OK" to accept the transfer of the
photograph.
Press "OK" again to save the settings.
The location for the photograph is square; the system reshapes the original
photograph if in another format.
Press this button to reset the selected
profile.
Resetting the selected profile activates
the English language by default.
Select a "Profile" (1 or 2 or 3) to link "Audio
settings" with it.
Select "Audio settings ".
Then select "Ambience", "Position"; "Sound ",
"Voice" or "Ringtone ".
Press "OK" to save the selected profile’s
settings.
Modifying system settings
Press Settings to display the main page.
Press the "OPTIONS " button to access the
secondary page.
Select "Screen configuration".
Select "Animation".
Activate or deactivate:Automatic scrolling
Select "Brightness".

240
PEUGEOT Connect Nav
Navigation
I cannot enter the navigation address.
The address is not recognised.
► Use the "intuitive method" by pressing
the "Search…" button at the bottom of the
"Navigation” page.
The route calculation is not successful.
The route settings may conflict with the current
location (for example, if toll roads are excluded
but the vehicle is on a toll road).
► Check the route settings in the "Navigation"
menu.
I do not receive "Danger zone” alerts.
You have not subscribed to the online services
option.
► If you have subscribed to the option:
- a few days may elapse before the service is
activated,
- services may not be selected in the system
menu,
- online services are not active ("TOMTOM
TRAFFIC" not shown on the map).
The POIs do not appear.
The POIs have not been selected.
► Set the zoom level to 600 ft (200 m) or select
POIs in the POI list.
The "Danger zone" audible warning feature is
not working.
The audible warning is not active or the volume
is too low.

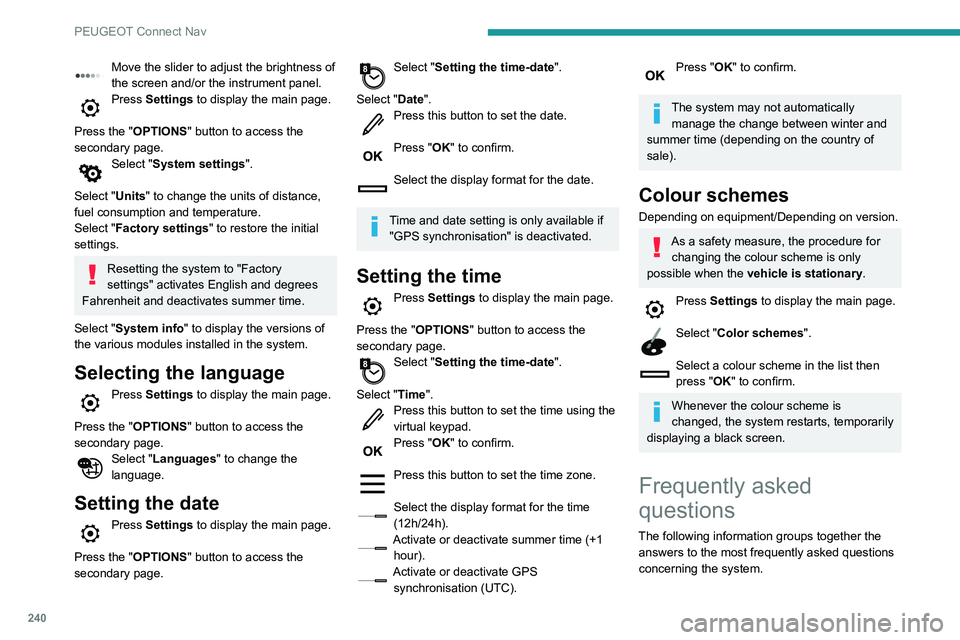

Move the slider to adjust the brightness of
the screen and/or the instrument panel.
Press Settings to display the main page.
Press the "OPTIONS " button to access the
secondary page.
Select "System settings".
Select "Units" to change the units of distance,
fuel consumption and temperature.
Select "Factory settings" to restore the initial
settings.
Resetting the system to "Factory
settings" activates English and degrees
Fahrenheit and deactivates summer time.
Select "System info" to display the versions of
the various modules installed in the system.
Selecting the language
Press Settings to display the main page.
Press the "OPTIONS " button to access the
secondary page.
Select "Languages" to change the
language.
Setting the date
Press Settings to display the main page.
Press the "OPTIONS " button to access the
secondary page.
Select "Setting the time-date".
Select "Date".
Press this button to set the date.
Press "OK" to confirm.
Select the display format for the date.
Time and date setting is only available if "GPS synchronisation" is deactivated.
Setting the time
Press Settings to display the main page.
Press the "OPTIONS " button to access the
secondary page.
Select "Setting the time-date".
Select "Time".
Press this button to set the time using the
virtual keypad.
Press "OK" to confirm.
Press this button to set the time zone.
Select the display format for the time
(12h/24h).
Activate or deactivate summer time (+1 hour).
Activate or deactivate GPS synchronisation (UTC).
Press "OK" to confirm.
The system may not automatically manage the change between winter and
summer time (depending on the country of
sale).
Colour schemes
Depending on equipment/Depending on version.
As a safety measure, the procedure for changing the colour scheme is only
possible when the vehicle is stationary.
Press Settings to display the main page.
Select "Color schemes".
Select a colour scheme in the list then
press "OK" to confirm.
Whenever the colour scheme is
changed, the system restarts, temporarily
displaying a black screen.
Frequently asked
questions
The following information groups together the answers to the most frequently asked questions
concerning the system.

241
PEUGEOT Connect Nav

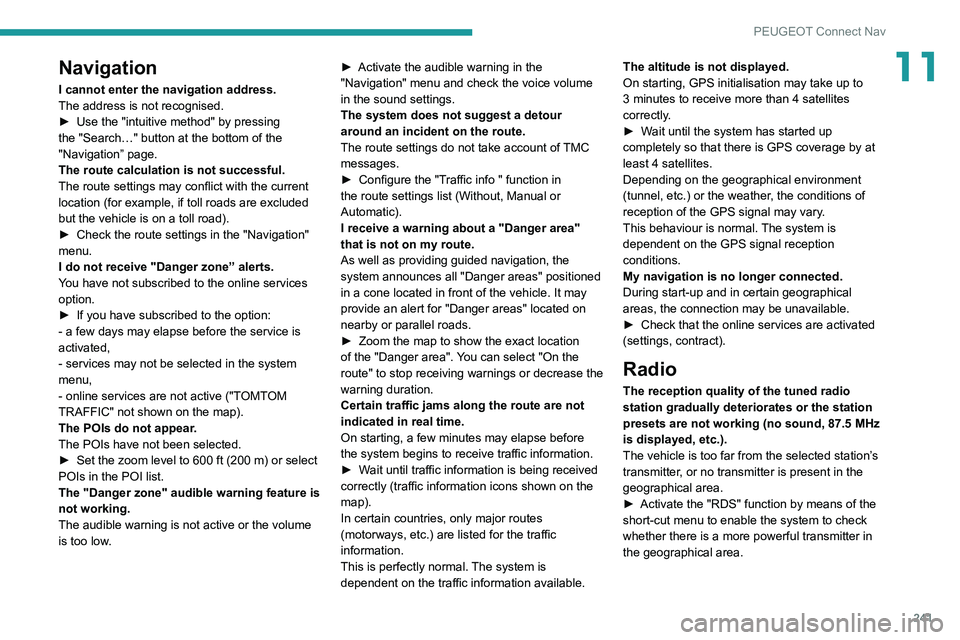

11Navigation
I cannot enter the navigation address.
The address is not recognised.
►
Use the "intuitive method" by pressing
the "Search…" button at the bottom of the
"Navigation” page.
The route calculation is not successful.
The route settings may conflict with the current
location (for example, if toll roads are excluded
but the vehicle is on a toll road).
►


Check the route settings in the "Navigation"
menu.
I do not receive "Danger zone” alerts.
Y

ou have not subscribed to the online services
option.
►

If you have subscribed to the option:
- a few days may elapse before the service is
activated,
- services may not be selected in the system
menu,
- online services are not active ("T

OMTOM
TRAFFIC" not shown on the map).
The POIs do not appear.
The POIs have not been selected.
►

Set the zoom level to 600 ft (200 m) or select
POIs in the POI list.
The "Danger zone" audible warning feature is
not working.
The audible warning is not active or the volume
is too low

. ►

Activate the audible warning in the
"Navigation" menu and check the voice volume
in the sound settings.
The system does not suggest a detour
around an incident on the route.
The route settings do not take account of

TMC
messages.
►

Configure the "T
raffic info " function in
the route settings list (Without, Manual or
Automatic).
I receive a warning about a "Danger area"
that is not on my route.
As well as providing guided navigation, the
system announces all "Danger areas" positioned
in a cone located in front of the vehicle. It may
provide an alert for "Danger areas" located on
nearby or parallel roads.
►

Zoom the map to show the exact location
of the "Danger area".

You can select "On the
route" to stop receiving warnings or decrease the
warning duration.
Certain traffic jams along the route are not
indicated in real time.
On starting, a few minutes may elapse before
the system begins to receive traffic information.
►

W
ait until traffic information is being received
correctly (traffic information icons shown on the
map).
In certain countries, only major routes
(motorways, etc.) are listed for the traffic
information.
This is perfectly normal. The system is
dependent on the traffic information available. The altitude is not displayed.
On starting, GPS initialisation may take up to
3 minutes to receive more than 4 satellites
correctly.
►

W
ait until the system has started up
completely so that there is GPS coverage by at
least 4
satellites.
Depending on the geographical environment
(tunnel, etc.) or the weather, the conditions of
reception of the GPS signal may vary.
This behaviour is normal. The system is
dependent on the GPS signal reception
conditions.
My navigation is no longer connected.
During start-up and in certain geographical
areas, the connection may be unavailable.
►

Check that the online services are activated
(settings, contract).
Radio
The reception quality of the tuned radio
station gradually deteriorates or the station
presets are not working (no sound, 87.5 MHz
is displayed, etc.).
The vehicle is too far from the selected station’s
transmitter, or no transmitter is present in the
geographical area.
►

Activate the "RDS" function by means of the
short-cut menu to enable the system to check
whether there is a more powerful transmitter in
the geographical area.

242
PEUGEOT Connect Nav
Settings
When the treble and bass settings are
changed, the ambience is deselected.
When the ambience is changed, the treble
and bass settings are reset.
Selecting an ambience imposes the treble and
bass settings, and vice versa.
► Modify the treble and bass or ambience
settings to obtain the desired musical ambience.
When the balance settings are changed, the
distribution is deselected.
When the distribution setting is changed, the
balance settings are deselected.
Selecting a distribution setting imposes the
balance settings, and vice versa.
► Modify the balance setting or the distribution
setting to obtain the desired sound quality.
There is a difference in sound quality
between audio sources.
To allow for optimal listening quality, the sound
settings can be tailored to different audio
sources, which can generate audible differences
when changing source.
► Check that the sound settings are appropriate
to the sources listened to. We recommend
setting the sound functions (Bass:, Treble:,
Balance) to the middle position, setting the
musical ambience to "None", setting loudness
correction to "Active" in USB mode and "Inactive"
in Radio mode.
► In all cases, after applying sound settings,
adjust the volume level on the portable device (to

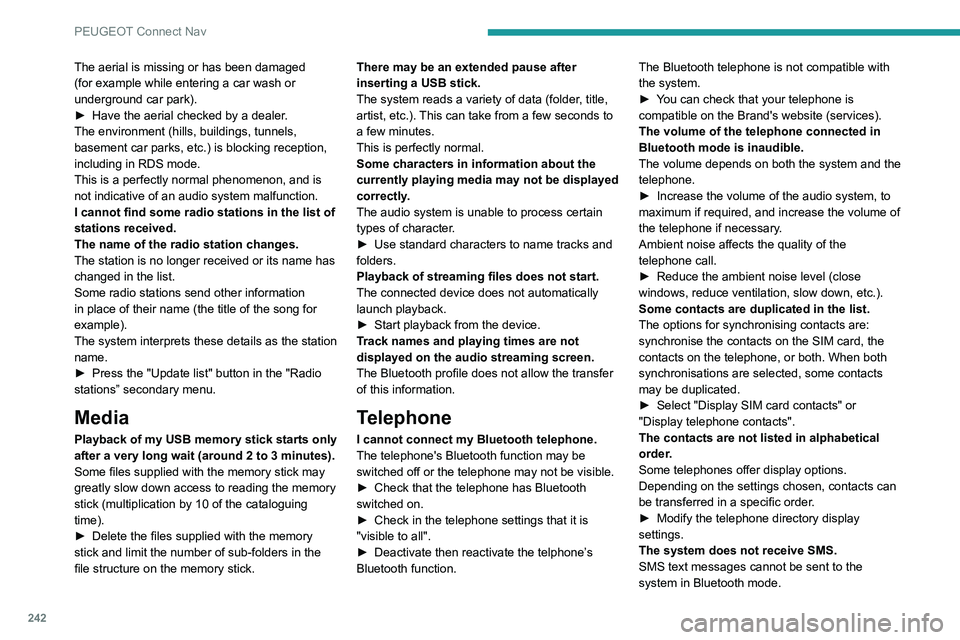

The aerial is missing or has been damaged
(for example while entering a car wash or
underground car park).
►

Have the aerial checked by a dealer
.
The environment (hills, buildings, tunnels,
basement car parks, etc.) is blocking reception,
including in RDS mode.
This is a perfectly normal phenomenon, and is
not indicative of an audio system malfunction.
I cannot find some radio stations in the list of
stations received.
The name of the radio station changes.
The station is no longer received or its name has
changed in the list.
Some radio stations send other information
in place of their name (the title of the song for
example).
The system interprets these details as the station
name.
►

Press the "Update list" button in the "Radio
stations” secondary menu.
Media
Playback of my USB memory stick starts only
after a very long wait (around 2 to 3 minutes).
Some files supplied with the memory stick may
greatly slow down access to reading the memory
stick (multiplication by 10 of the cataloguing
time).
►

Delete the files supplied with the memory
stick and limit the number of sub-folders in the
file structure on the memory stick. There may be an extended pause after
inserting a USB stick.
The system reads a variety of data (folder

, title,
artist, etc.). This can take from a few seconds to
a few minutes.
This is perfectly normal.
Some characters in information about the
currently playing media may not be displayed
correctly.
The audio system is unable to process certain
types of character.
►
Use standard characters to name tracks and
folders.
Playback of streaming files does not start.
The connected device does not automatically
launch playback.
►

Start playback from the device.
T
rack names and playing times are not
displayed on the audio streaming screen.
The Bluetooth profile does not allow the transfer
of this information.
Telephone
I cannot connect my Bluetooth telephone.
The telephone's Bluetooth function may be
switched off or the telephone may not be visible.
►

Check that the telephone has Bluetooth
switched on.
►


Check in the telephone settings that it is
"visible to all".
►


Deactivate then reactivate the telphone’
s
Bluetooth function. The Bluetooth telephone is not compatible with
the system.
►

Y
ou can check that your telephone is
compatible on the Brand's website (services).
The volume of the telephone connected in
Bluetooth mode is inaudible.
The volume depends on both the system and the
telephone.
►
Increase the volume of the audio system, to
maximum if required, and increase the volume of
the telephone if necessary
.
Ambient noise affects the quality of the
telephone call.
►
Reduce the ambient noise level (close
windows, reduce ventilation, slow down, etc.).
Some contacts are duplicated in the list.
The options for synchronising contacts are:
synchronise the contacts on the SIM card, the
contacts on the telephone, or both. When both
synchronisations are selected, some contacts
may be duplicated.
►

Select "Display SIM card contacts" or
"Display telephone contacts".
The contacts are not listed in alphabetical
order
.
Some telephones offer display options.
Depending on the settings chosen, contacts can
be transferred in a specific order.
►

Modify the telephone directory display
settings.
The system does not receive SMS.
SMS text messages cannot be sent to the
system in Bluetooth mode.

243
PEUGEOT Connect Nav
11Settings
When the treble and bass settings are
changed, the ambience is deselected.
When the ambience is changed, the treble
and bass settings are reset.
Selecting an ambience imposes the treble and
bass settings, and vice versa.
►
Modify the treble and bass or ambience
settings to obtain the desired musical ambience.
When the balance settings are changed, the
distribution is deselected.
When the distribution setting is changed, the
balance settings are deselected.
Selecting a distribution setting imposes the
balance settings, and vice versa.
►


Modify the balance setting or the distribution
setting to obtain the desired sound quality

.
There is a difference in sound quality
between audio sources.
To allow for optimal listening quality, the sound
settings can be tailored to different audio
sources, which can generate audible differences
when changing source.
►

Check that the sound settings are appropriate
to the sources listened to. W

e recommend
setting the sound functions (Bass:, Treble:,
Balance) to the middle position, setting the
musical ambience to "None", setting loudness
correction to "Active" in USB mode and "Inactive"
in Radio mode.
►

In all cases, after applying sound settings,
adjust the volume level on the portable device (to a high level) first.

Then adjust the volume level
on the audio system.
When the engine is off, the system switches
off after several minutes of use.
When the engine is switched off, the system's
operating time depends on the state of charge of
the battery.
The switch-off is normal: the system
automatically goes into energy economy mode
and switches off to maintain an adequate charge
in the battery.
►

Start the vehicle’
s engine to increase the
charge of the battery.
The date and time cannot be set.
Setting of the date and time is only available
if the synchronisation with the satellites is
deactivated.
►

Settings menu / Options /
Time-Date setting.
Select the "Time" tab and deactivate the "GPS
synchronisation" (UTC).

244
Alphabetical index
180° rear vision 141
A
ABS 78
Accelerated charging unit (Wallbox)
154
Accessories

75, 161
Active Safety Brake

128–130
Active suspension

107
Active Suspension Control

107
Adaptive LED Technology

28, 65
Adaptive rear lighting

65
AdBlue®

18, 168
AdBlue® tank

169
Additive, Diesel

166
Adjusting headlamps

67
Adjusting head restraints

42
Adjusting seat

42–43
Adjusting the air distribution

50–51
Adjusting the air flow

50–51
Adjusting the date

216, 240
Adjusting the height and reach of the
steering wheel

45
Adjusting the lumbar support

42–43
Adjusting the seat angle

42
Adjusting the temperature

50
Adjusting the time

216, 240
Advice on care and maintenance

153, 170
Advice on driving

7, 96
Airbags

81–84, 86
Airbags, curtain

83–84
Airbags, front 82, 84, 87
Airbags, lateral
83–84
Air conditioning

48, 51
Air conditioning, automatic

52
Air conditioning, digital

49
Air conditioning, dual-zone automatic

49
Air intake

50–51
Air vents

48
Alarm

31–32
Amplifier, audio

56
Android Auto connection

231
Anti-lock braking system (ABS)

78
Antitheft / Immobiliser

26
Apple CarPlay connection

212, 230
Applications

231
Armrest, front

58
Armrest, rear

59
Assistance call

76
Assistance, emergency braking

78, 130
Audible warning

76
Audio streaming (Bluetooth)

211, 235
B
Battery 162
Battery, 12 V
166, 189–193
Battery, ancillaries

192
Battery, charging

152, 156, 190, 193
Battery (Hybrid)

153, 156
Battery, remote control

30, 54
Bicycle carrier

161
Blind 39–40
Blind spot monitoring system, active
135
Blind spot sensors

135
BlueHDi

18, 166, 172
Bluetooth (hands-free)

213–214, 236–237
Bluetooth (telephone)

213–214, 236–237
Bodywork

171
Bonnet

162–163
Bonnet, active

84
Boot

34, 37, 64
Brake discs

167
Brake lamps

182–183
Brakes

167
Braking

106
Braking assistance system

78
Braking, automatic emergency

128–130
Braking, dynamic emergency

100–101
Brightness

215
Bulbs

182
Bulbs (changing)

180–183
C
Cable, audio 235
Cable, Jack
235
Capacity, fuel tank

151
Care of the bodywork

171
CD

2 11
CD, MP3

2 11
Central locking

28, 30
Changing a bulb

180–183

245
Alphabetical index
Changing a fuse 183–184, 187–188
Changing a wheel
173, 177
Changing a wiper blade

72–73
Changing the remote control battery

30
Charge level indicator

20
Charger, induction

57
Charger, wireless

57
Charging cable

154–155, 157
Charging connector

153, 156–157
CHECK

20
Checking the engine oil level

17
Checking the levels

164–165
Checking tyre pressures
(using the kit)

174, 176
Checks

164–165, 166–168
Checks, routine

166–167
Child lock

94
Children

81, 88–91, 93
Children (safety)

94
Child seats

81, 85–88
Child seats, conventional

87–88
Child seats, i-Size

93
Child seats, ISOFIX

89–91
Cigar lighter

55
Cleaning (advice)

153, 170–171
Closing the boot

27–28, 34
Closing the doors

27–28, 33
Collision Risk Alert

128–129
Comfort mode

108
Configuration, vehicle

22, 24
Connected applications

231–232
Connection, Bluetooth

213–214, 232, 236–237Connection, MirrorLink 212–213, 231
Connection, Wi-Fi network
232–233
Connectivity

230
Consumption figures

23
Container, AdBlue®

169
Control, emergency boot release

34
Control, emergency door

29
Control, heated seats

44
Controls, steering mounted

102–105
Control stalk, lighting

65–66
Control stalk, wipers

71–74
Control unit

154–155, 157
Courtesy lamp, front

59
Courtesy lamps

59–60
Cover, load space

61
Cruise control

115–116, 118–121
Cruise control, adaptive

121
Cruise control by speed limit
recognition

115–116
Cruise control, dynamic with Stop
function

115–116
Cup holder

55
D
DAB (Digital Audio Broadcasting) -
Digital radio
210, 234
Date (setting)

216, 240
Daytime running lamps

66, 181
Deactivating the passenger airbag

82, 86–87
Deadlocking

26, 28
Deferred charging 24, 153, 156, 158
Defrosting
52
Defrosting, front

52
Demisting

52
Demisting, front

52
Demisting, rear

52
Demisting, rear screen

52
Dials and gauges

9
Digital instrument panel

9–10
Dimensions

203
Dipstick

17, 164
Direction indicators

66, 181–183
Domestic charging

155, 158
Door pockets

55
Doors

33
Drive Assist Plus

121
Driver’s attention warning

131
Driving

41, 96
Driving aids camera (warnings)

11 2
Driving aids (recommendations)

11 2
Driving economically

7
Driving modes

107
Driving positions (storing)

44
Dynamic stability control (DSC)

78–79
E
EBFD 78
Eco-driving (advice)
7
ECO mode

107
Economy mode

162

246
Alphabetical index
Electric automatic gearbox (Hybrid) 105
Electric windows
38
Electronic brake force distribution (EBFD)

78
Emergency braking assistance (EBA)

78
Emergency call

76
Emergency switching off

99
Emergency warning lamps

75, 172
Emissions control system, SCR

19, 168
Energy economy mode

162
Energy flows

23
Energy recovery

19, 106
Engine

168
Engine compartment

164–165
Engine, Diesel

151, 164, 172, 199, 201
Engine, petrol

108, 164, 198
Engines

197–199, 201
Environment

7, 30, 54
e-Save function (energy reserve)

24
ESC (electronic stability control)

78
Expanded traffic sign recognition

11 6
F
Fatigue detection 130–131
Filling the AdBlue® tank
166, 169
Filling the fuel tank

151–152
Filter, air

166
Filter, oil

166
Filter, particle

166
Filter, passenger compartment

48, 166
Fitting a wheel

178–179
Fitting roof bars 160–161
Fittings, boot
60
Fittings, interior

55
Fittings, rear

59
Flap, charging

153, 156–158
Flap, fuel filler

151–152
Flashing indicators

66, 182
Flat bed (recovery)

195
Fluid, brake

165
Fluid, engine coolant

165
Foglamps, rear

65, 183
Folding the rear seats

47–48
Four-wheel drive (4WD)

162
Frequency (radio)

233–234
Fuel

7, 151
Fuel consumption

7, 19
Fuel tank

151–152
Full Park Assist

145
Fusebox, dashboard

184
Fusebox, engine compartment

184, 187–188
Fuses

183–184, 187–188
Fuses, dashboard

184
Fuses, engine compartment

189
G
Gauge, fuel 151
Gearbox, automatic
102–105, 107, 110, 167, 190
Gearbox, manual

102, 107, 110, 167
Gear lever, manual gearbox

102
Gear shift indicator ~ Gear efficiency
indicator
108–109
Glove box

55
G.P.S.

227
Grab handles

55
H
Hands-free access 36
Hands-free tailgate
34, 36–37
Hazard warning lamps

75, 172
headlamp adjustment

67
Headlamp adjustment

67
Headlamps, automatic dipping

68–69
Headlamps, automatic illumination

67
Headlamps, dipped beam

181–182
Headlamps, halogen

67, 181–182
Headlamps, main beam

181–182
Head restraints, front

42
Head restraints, rear

46–48
Heating

48, 53–54
Heating, additional

53–54
Heating, programmable

24, 53–54
Hi-Fi system

56
Hill start assist

106–107
Histogramme, fuel consumption

23–24
Horn

76
Horn for pedestrians

76
Hybrid

23, 98, 152, 202
Hybrid engine

202

247
Alphabetical index
I
i-Cockpit® amplify function 44
Ignition
98, 238
Ignition on

98
Immobiliser, electronic

97
Indicator, AdBlue® range

18
Indicator, coolant temperature

18
Indicator, engine oil level

17
Indicators, direction

66, 182
Inflating tyres

167, 204
Inflating tyres and accessories
(using the kit)

174, 176
Infrared camera

69, 112
Instrument panel

9, 20–21, 113
Instrument panel (Hybrid)

9
Internet browser

228, 232
ISOFIX mountings

89
J
Jack 173–174, 177, 235
Jump starting
189
K
Key 25–26, 29
Key, electronic
27–28
Keyless Entry and Starting

27–29, 97–98
Key not recognised

99
Key with remote control 25, 97
Kit, hands-free
213–214, 236–237
Kit, puncture repair

173–174
Kit, temporary puncture repair

173–176
L
Labels, identification 204
Lamp, boot
64
Lamps, parking

66
Lamps, rear

182–183
Lams with “Full LED" technology

67, 69, 181
Lane assist

121, 125–126, 128
Lane departure warning active

131, 135
Leather (care)

171
LEDs - Light-emitting diodes

66, 181–183
Level, AdBlue®

166
Level, brake fluid

165
Level, Diesel additive

166
Level, engine coolant

18, 165
Level, engine oil

17, 164
Levels and checks

164–166
Level, screenwash fluid

72, 165
Light-emitting diodes - LEDs

66, 181–183
Lighting, cornering

69
Lighting dimmer

20
Lighting, exterior

65
Lighting, guide-me home

26, 67–68
Lighting, interior

58–59
Lighting, mood

59
Lighting, welcome

67–68
Loading 160–161
Load reduction mode
162
Locating your vehicle

26
Locking

26–27
Locking from the inside

30
Locking the doors

30–31
Long objects, transporting

60
Low fuel level

151
Lumbar

42–43
M
Mains socket (domestic network) 154, 158
Maintenance (advice)
153, 170
Maintenance, routine

113, 166
Manoeuvring aids (recommendations)

11 2
Map reading lamps

59–60
Markings, identification

204
Massage function

44
Massage, multi-point

44
Mat

58, 113
Memorising a speed

120–121
Menu

212
Menu, main

23
Menus (audio)

207–208, 220–221
Menu short cuts

23
Messages

238
Messages, quick

238
Mirror, rear view

46
Mirrors, door

45–46, 52, 135
Mirror, vanity

55

248
Alphabetical index
Misfuel prevention 152
Motor, electric
108, 152, 202
Motorised tailgate

34–35, 37
Mountings, ISOFIX

89
N
Navigation 225–227
Navigation, connected
228–230
Net, high load retaining

62–63
Night vision

69
Night Vision

69
O
Obstacle detection 136
Oil change
164
Oil consumption

164
OIl, engine

164
On-board tools

64, 173–174
Opening the bonnet

162–163
Opening the boot

27, 34
Opening the doors

27, 33
Opening the windows

25
P
Pads, brake 167
Paint
171, 204
Paint colour code 204
Parcel shelf, rear
61
Park Assist

142
Parking brake, electric

99–101, 167
Parking sensors, audible and visual

136
Parking sensors, front

137
Parking sensors, rear

137
Personalisation

9–10
Plates, identification

204
Player, Apple®

211, 235
Player, USB

210, 235
Port, USB

56, 59, 210, 230, 235
Power

19
Power indicator

19
Pressures, tyres

167, 177, 204
Pre-tensioning seat belts

81
Priming pump

173
Priming the fuel system

172
Profiles

215, 239
Programmable cruise control

119
Protecting children

82, 85–91, 93
Puncture

174–175, 177
Q
Quiet vehicle warning sound 76
R
Radar (warnings) 11 2
Radio 208–209, 211, 233
Radio, digital (Digital Audio
Broadcasting - DAB)

210, 234
Range, AdBlue

18, 166
RDS

209, 233–234
READY lamp

163
Rear screen, demisting

52
Rechargeable hybrid
system

6, 23, 98, 108, 152
Recharging the battery

190, 193
Recirculation, air

50–51
Recovery

194, 196
Recovery of the vehicle

195
Reduction of electrical load

162
Regeneration of the particle filter

166
Regenerative braking (deceleration
by engine braking)

106
Reinitialisation of the under-inflation
detection system

111
Reinitialising the remote control

30
Reminder, lighting on

65
Remote control

25–29
Remote functions

24, 54, 157–158
Removing a wheel

178–179
Removing the mat

58
Replacing bulbs

180–183
Replacing fuses

183–184, 189
Replacing the air filter

166
Replacing the oil filter

166
Replacing the passenger compartment
filter

166
Reservoir, screenwash

165
