oil filter PEUGEOT 508 2021 Owners Manual

8
Eco-driving
Eco-driving
Eco-driving refers to a range of everyday
practices that allow the motorist to optimise
the vehicle's energy consumption (fuel and/or
electricity) and CO
2 emissions.
Optimise your use of the gearbox
With an automatic gearbox, favour automatic
mode. Do not depress the accelerator pedal
heavily or suddenly.
The gear shift indicator prompts you to engage
the most suitable gear. Whenever this indication
is displayed on the instrument panel, follow it
straight away.
With an automatic gearbox, this indicator
appears only in manual mode.
Drive smoothly
Maintain a safe distance between vehicles, use
engine braking rather than the brake pedal and
press the accelerator gradually. These practices
help to save on energy consumption, reduce
CO
2 emissions and decrease general traffic
noise.
Favour the use of the "Eco" driving mode by
selecting it using the "DRIVE MODE" control.
With an EAT8 gearbox, with the gear selector in
mode
D, and except in Sport mode, favour "free-
wheeling" by gradually and fully lifting your foot
off the accelerator pedal in order to save fuel.
When the traffic is flowing smoothly, select the
cruise control.
Control the use of electrical equipment
Before moving off, if the passenger compartment
is too warm, ventilate it by opening the windows
and air vents before using the air conditioning.
At speeds above 31
mph (50 km/h), close the
windows and leave the air vents open.
Consider using equipment that can help keep
the temperature in the passenger compartment
down (e.g.
sunroof blind, window blinds).
Unless automatically regulated, switch off the air
conditioning as soon as the desired temperature
has been reached.
Switch off the demisting and defrosting functions,
if they are not managed automatically.
Switch off the heated seat as soon as possible.
Adapt your use of the headlamps and/or
foglamps to the level of visibility, in accordance
with current legislation in the country in which
you are driving.
Avoid running the engine before moving off,
particularly in winter (other than in severe wintry
conditions: temperature below -23°C). The
vehicle will warm up much faster while driving.
As a passenger, avoid connecting your
multimedia devices (e.g.
film, music, video
game) to help reduce the consumption of energy.
Disconnect all portable devices before leaving
the vehicle.
Limit the causes of excess consumption
Spread loads throughout the vehicle. Place the
heaviest items in the boot as close as possible to
the rear seats. Limit the loads carried in the vehicle and
minimise wind resistance (e.g.
roof bars, roof
rack, bicycle carrier, trailer). Preferably, use a
roof box.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit
summer tyres.
Comply with the servicing instructions
Check tyre pressures regularly, with the tyres
cold, referring to the label in the door aperture on
the driver's side.
Carry out this check in particular:
–

before a long journey
.
–

at each change of season.
–


after a long period out of use.
Do not forget the spare wheel and, where
applicable, the tyres on your trailer or caravan.
Have your vehicle serviced regularly (e.g.

engine
oil, oil filter, air filter, passenger compartment
filter, etc.). Observe the schedule of operations in
the manufacturer's service schedule.
With a BlueHDi Diesel engine, if the SCR system
has a fault, your vehicle will emit pollution. Visit
a PEUGEOT dealer or a qualified workshop
as soon as possible to restore your vehicle's
nitrogen oxide emissions to legal levels.
When filling the fuel tank, do not continue after
the third cut-out of the nozzle, to avoid overflow.
You will only see the fuel consumption of your
new vehicle settle down to a consistent average
after the first 1,900 miles (3,000 kilometres).
Optimising the driving range
(rechargeable hybrid vehicles)
Connect the vehicle as soon as possible.
Favour the ECO zone of the power indicator by
driving smoothly and at a steady speed.
Anticipate slowing down as much as possible
and, if possible, favour decelerations with
regenerative braking mode activated (power
indicator in the CHARGE zone).
With the vehicle connected, carry out
temperature pre-conditioning before setting off.
To optimise consumption during a journey:
► Programme a destination in the vehicle’s
GPS navigation system.
► Select the Hybrid driving mode.
► Make sure that the battery charge level is
close to maximum.
► Do not use the e-Save function while driving.
► Use the heating/air conditioning system
wisely.

174
Practical information

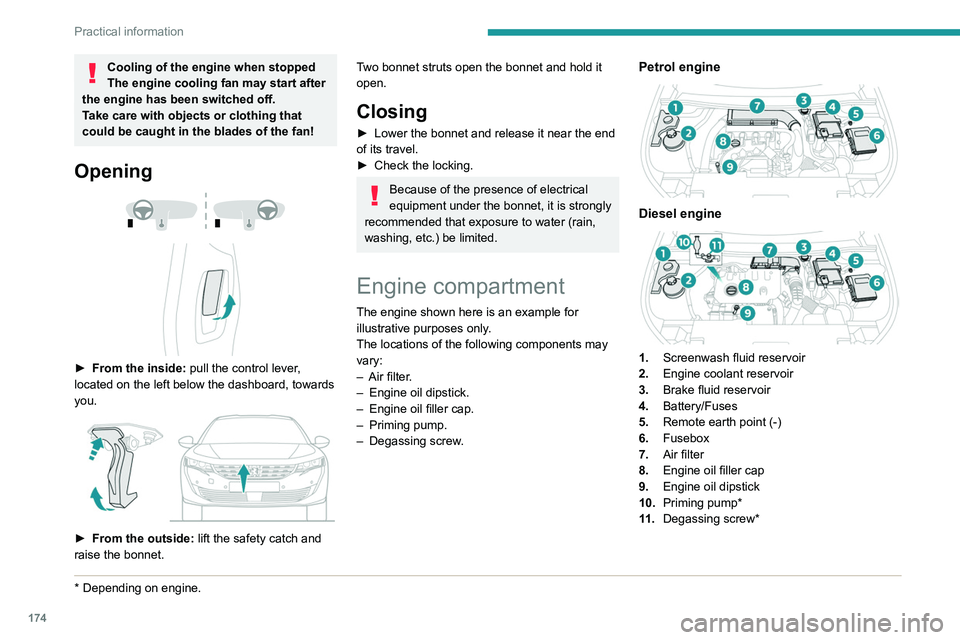

Cooling of the engine when stopped
The engine cooling fan may start after
the engine has been switched off.
Take care with objects or clothing that
could be caught in the blades of the fan!
Opening



► From the inside: pull the control lever ,
located on the left below the dashboard, towards
you.


► From the outside: lift the safety catch and
raise the bonnet.
* Depending on engine.
Two bonnet struts open the bonnet and hold it
open.
Closing
► Lower the bonnet and release it near the end
of its travel.
►

Check the locking.
Because of the presence of electrical
equipment under the bonnet, it is strongly
recommended that exposure to water (rain,
washing, etc.) be limited.
Engine compartment
The engine shown here is an example for
illustrative purposes only.
The locations of the following components may
vary:
–

Air filter
.
–

Engine oil dipstick.
–


Engine oil filler cap.
–


Priming pump.
–


Degassing screw
.
Petrol engine

Diesel engine

1.Screenwash fluid reservoir
2. Engine coolant reservoir
3. Brake fluid reservoir
4. Battery/Fuses
5. Remote earth point (-)
6. Fusebox
7. Air filter
8. Engine oil filler cap
9. Engine oil dipstick
10. Priming pump*
11 . Degassing screw*
Diesel fuel system
This system is under very high pressure.
All work must be carried out only by a
PEUGEOT dealer or a qualified workshop
Checking levels
Check all of the following levels regularly in
accordance with the manufacturer's service
schedule. Top them up if required, unless
otherwise indicated.
If a level drops significantly, have the
corresponding system checked by a PEUGEOT
dealer or a qualified workshop.
The fluids must comply with the manufacturer's requirements and with
the vehicle's engine.
Take care when working under the bonnet, as certain areas of the engine
may be extremely hot (risk of burns) and the
cooling fan could start at any time (even with
the ignition off).
Used products
Avoid prolonged contact of used oil or fluids with the skin.
Most of these fluids are harmful to health and
very corrosive.

176
Practical information

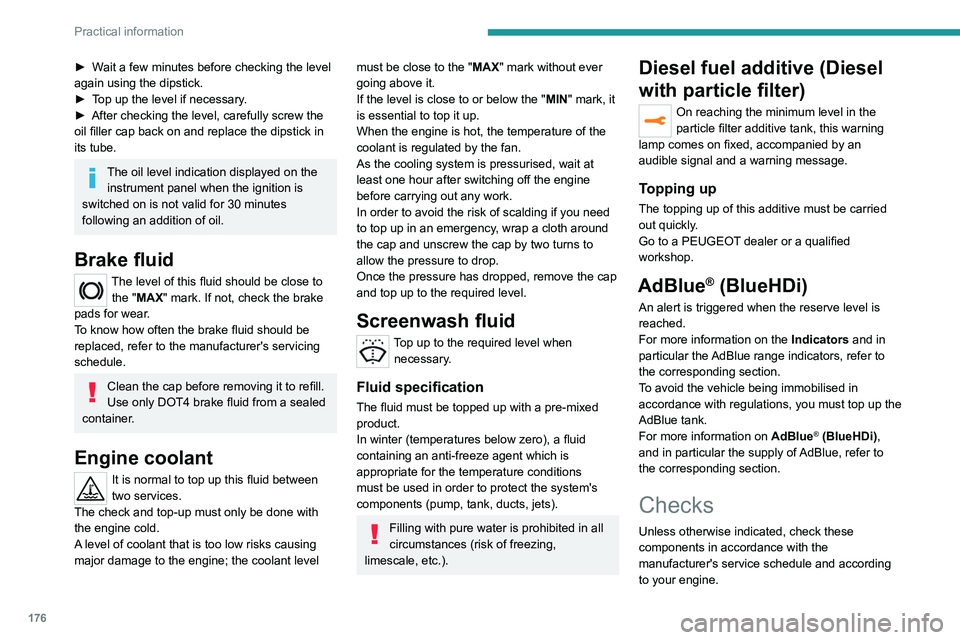

► Wait a few minutes before checking the level
again using the dipstick.
►
T
op up the level if necessary.
►

After checking the level, carefully screw the
oil filler cap back on

and replace the dipstick in
its tube.
The oil level indication displayed on the instrument panel when the ignition is
switched on is not valid for 30 minutes
following an addition of oil.
Brake fluid
The level of this fluid should be close to the "MAX" mark. If not, check the brake
pads for wear.
To know how often the brake fluid should be
replaced, refer to the manufacturer's servicing
schedule.
Clean the cap before removing it to refill.
Use only DOT4 brake fluid from a sealed
container.
Engine coolant
It is normal to top up this fluid between
two services.
The check and top-up must only be done with
the engine cold.
A level of coolant that is too low risks causing
major damage to the engine; the coolant level
must be close to the "MAX" mark without ever
going above it.
If the level is close to or below the " MIN" mark, it
is essential to top it up.
When the engine is hot, the temperature of the
coolant is regulated by the fan.
As the cooling system is pressurised, wait at
least one hour after switching off the engine
before carrying out any work.
In order to avoid the risk of scalding if you need
to top up in an emergency, wrap a cloth around
the cap and unscrew the cap by two turns to
allow the pressure to drop.
Once the pressure has dropped, remove the cap
and top up to the required level.
Screenwash fluid
Top up to the required level when necessary.
Fluid specification
The fluid must be topped up with a pre-mixed
product.
In winter (temperatures below zero), a fluid
containing an anti-freeze agent which is
appropriate for the temperature conditions
must be used in order to protect the system's
components (pump, tank, ducts, jets).
Filling with pure water is prohibited in all
circumstances (risk of freezing,
limescale, etc.).
Diesel fuel additive (Diesel
with particle filter)
On reaching the minimum level in the
particle filter additive tank, this warning
lamp comes on fixed, accompanied by an
audible signal and a warning message.
Topping up
The topping up of this additive must be carried
out quickly.
Go to a PEUGEOT dealer or a qualified
workshop.
AdBlue® (BlueHDi)
An alert is triggered when the reserve level is
reached.
For more information on the Indicators and in
particular the AdBlue range indicators, refer to
the corresponding section.
To avoid the vehicle being immobilised in
accordance with regulations, you must top up the
AdBlue tank.
For more information on AdBlue
® (BlueHDi),
and in particular the supply of AdBlue, refer to
the corresponding section.
Checks
Unless otherwise indicated, check these
components in accordance with the
manufacturer's service schedule and according
to your engine.
Otherwise, have them checked by a PEUGEOT
dealer or a qualified workshop.
Only use products recommended by
PEUGEOT or products of equivalent
quality and specification.
In order to optimise the operation of
components as important as those in the
braking system, PEUGEOT selects and offers
very specific products.
12 V battery
The battery does not require any maintenance.
Check regularly that the terminals are correctly
tightened (versions without quick-release
terminals) and that the connections are clean.
For more information on the precautions
to take before any work on the 12 V
battery, refer to the corresponding section.
Versions equipped with Stop & Start are
fitted with a 12 V lead-acid battery of
specific technology and specification.
Its replacement should be carried out only by
a PEUGEOT dealer or a qualified workshop.
Passenger compartment
filter
Depending on the environment and the
use of the vehicle (e.g. dusty atmosphere,

177
Practical information

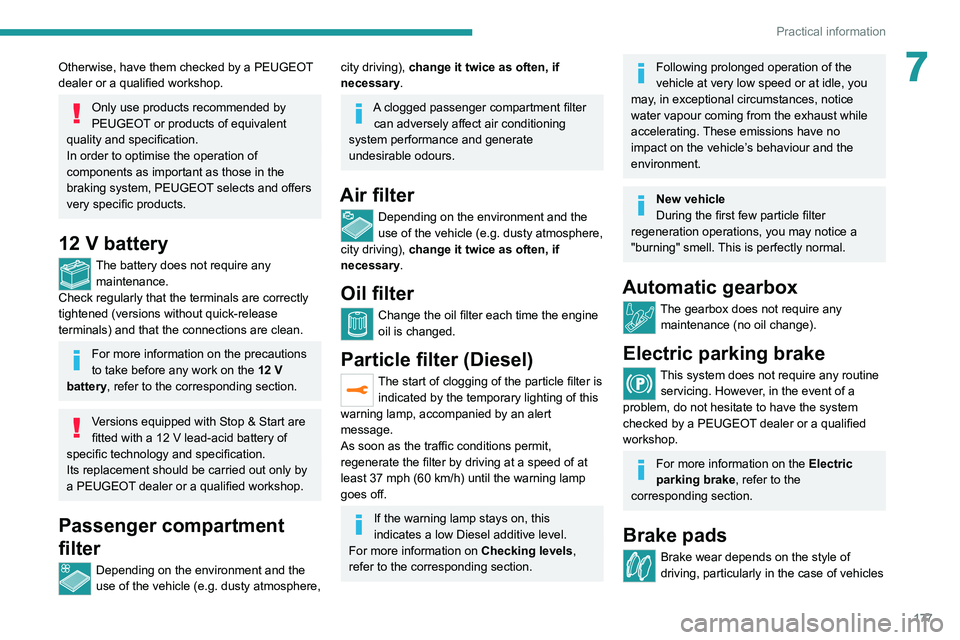

7Otherwise, have them checked by a PEUGEOT
dealer or a qualified workshop.
Only use products recommended by
PEUGEOT or products of equivalent
quality and specification.
In order to optimise the operation of
components as important as those in the
braking system, PEUGEOT selects and offers
very specific products.
12 V battery
The battery does not require any maintenance.
Check regularly that the terminals are correctly
tightened (versions without quick-release
terminals) and that the connections are clean.
For more information on the precautions
to take before any work on the 12 V
battery, refer to the corresponding section.
Versions equipped with Stop & Start are
fitted with a 12 V lead-acid battery of
specific technology and specification.
Its replacement should be carried out only by
a PEUGEOT dealer or a qualified workshop.
Passenger compartment
filter
Depending on the environment and the
use of the vehicle (e.g. dusty atmosphere,
city driving), change it twice as often, if
necessary .
A clogged passenger compartment filter
can adversely affect air conditioning
system performance and generate
undesirable odours.
Air filter
Depending on the environment and the
use of the vehicle (e.g. dusty atmosphere,
city driving), change it twice as often, if
necessary .
Oil filter
Change the oil filter each time the engine
oil is changed.
Particle filter (Diesel)
The start of clogging of the particle filter is
indicated by the temporary lighting of this
warning lamp, accompanied by an alert
message.
As soon as the traffic conditions permit,
regenerate the filter by driving at a speed of at
least 37
mph (60 km/h) until the warning lamp
goes off.
If the warning lamp stays on, this
indicates a low Diesel additive level.
For more information on Checking levels,
refer to the corresponding section.
Following prolonged operation of the
vehicle at very low speed or at idle, you
may, in exceptional circumstances, notice
water vapour coming from the exhaust while
accelerating. These emissions have no
impact on the vehicle’s behaviour and the
environment.
New vehicle
During the first few particle filter
regeneration operations, you may notice a
"burning" smell. This is perfectly normal.
Automatic gearbox
The gearbox does not require any maintenance (no oil change).
Electric parking brake
This system does not require any routine servicing. However, in the event of a
problem, do not hesitate to have the system
checked by a PEUGEOT dealer or a qualified
workshop.
For more information on the Electric
parking brake, refer to the
corresponding section.
Brake pads
Brake wear depends on the style of
driving, particularly in the case of vehicles

253

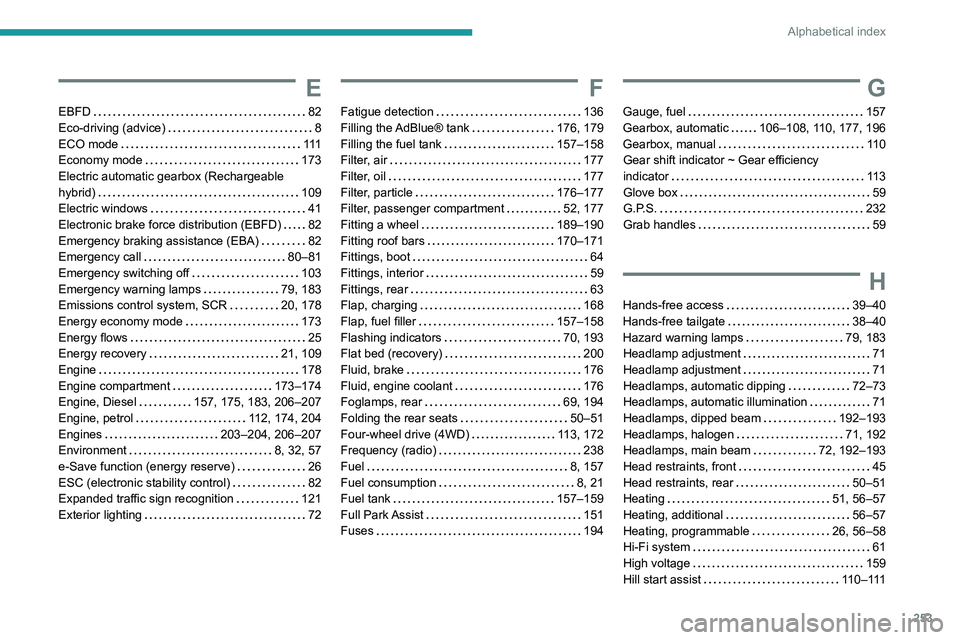

Alphabetical index
E
EBFD 82
Eco-driving (advice)
8
ECO mode

111
Economy mode

173
Electric automatic gearbox (Rechargeable
hybrid)

109
Electric windows

41
Electronic brake force distribution (EBFD)

82
Emergency braking assistance (EBA)

82
Emergency call

80–81
Emergency switching off

103
Emergency warning lamps

79, 183
Emissions control system, SCR

20, 178
Energy economy mode

173
Energy flows

25
Energy recovery

21, 109
Engine

178
Engine compartment

173–174
Engine, Diesel

157, 175, 183, 206–207
Engine, petrol

112, 174, 204
Engines

203–204, 206–207
Environment

8, 32, 57
e-Save function (energy reserve)

26
ESC (electronic stability control)

82
Expanded traffic sign recognition

121
Exterior lighting

72
F
Fatigue detection 136
Filling the AdBlue® tank
176, 179
Filling the fuel tank

157–158
Filter, air

177
Filter, oil

177
Filter, particle

176–177
Filter, passenger compartment

52, 177
Fitting a wheel

189–190
Fitting roof bars

170–171
Fittings, boot

64
Fittings, interior

59
Fittings, rear

63
Flap, charging

168
Flap, fuel filler

157–158
Flashing indicators

70, 193
Flat bed (recovery)

200
Fluid, brake

176
Fluid, engine coolant

176
Foglamps, rear

69, 194
Folding the rear seats

50–51
Four-wheel drive (4WD)

113, 172
Frequency (radio)

238
Fuel

8, 157
Fuel consumption

8, 21
Fuel tank

157–159
Full Park Assist

151
Fuses

194
G
Gauge, fuel 157
Gearbox, automatic
106–108, 110, 177, 196
Gearbox, manual

11 0
Gear shift indicator ~ Gear efficiency
indicator

11 3
Glove box

59
G.P.S.

232
Grab handles

59
H
Hands-free access 39–40
Hands-free tailgate
38–40
Hazard warning lamps

79, 183
Headlamp adjustment

71
Headlamp adjustment

71
Headlamps, automatic dipping

72–73
Headlamps, automatic illumination

71
Headlamps, dipped beam

192–193
Headlamps, halogen

71, 192
Headlamps, main beam

72, 192–193
Head restraints, front

45
Head restraints, rear

50–51
Heating

51, 56–57
Heating, additional

56–57
Heating, programmable

26, 56–58
Hi-Fi system

61
High voltage

159
Hill start assist

11 0 – 111

255

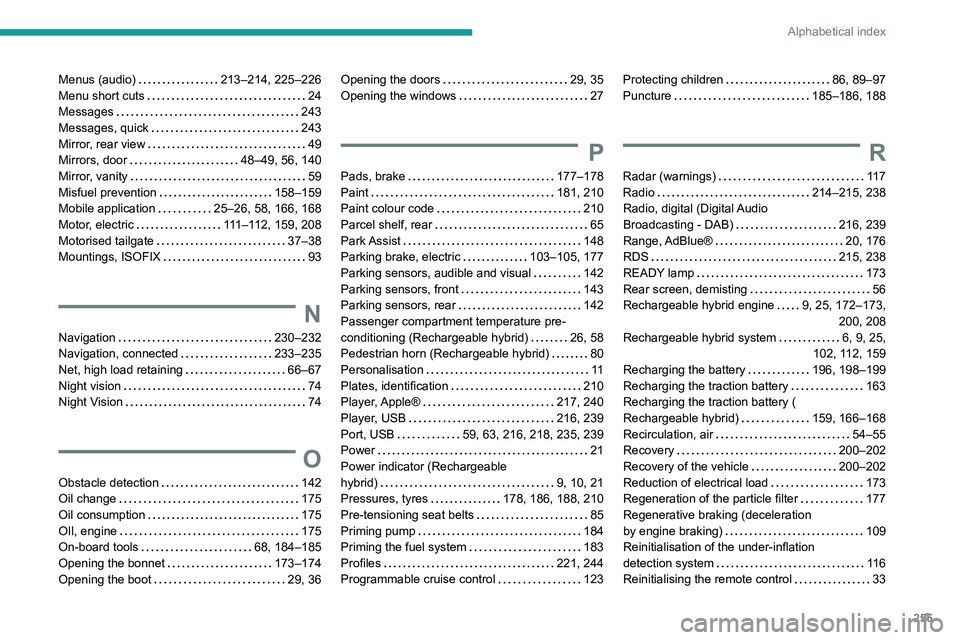

Alphabetical index
Menus (audio) 213–214, 225–226
Menu short cuts
24
Messages

243
Messages, quick

243
Mirror, rear view

49
Mirrors, door

48–49, 56, 140
Mirror, vanity

59
Misfuel prevention

158–159
Mobile application

25–26, 58, 166, 168
Motor, electric

111–112, 159, 208
Motorised tailgate

37–38
Mountings, ISOFIX

93
N
Navigation 230–232
Navigation, connected
233–235
Net, high load retaining

66–67
Night vision

74
Night Vision

74
O
Obstacle detection 142
Oil change
175
Oil consumption

175
OIl, engine

175
On-board tools

68, 184–185
Opening the bonnet

173–174
Opening the boot

29, 36
Opening the doors 29, 35
Opening the windows
27
P
Pads, brake 177–178
Paint
181, 210
Paint colour code

210
Parcel shelf, rear

65
Park Assist

148
Parking brake, electric

103–105, 177
Parking sensors, audible and visual

142
Parking sensors, front

143
Parking sensors, rear

142
Passenger compartment temperature pre-
conditioning (Rechargeable hybrid)

26, 58
Pedestrian horn (Rechargeable hybrid)

80
Personalisation

11
Plates, identification

210
Player, Apple®

217, 240
Player, USB

216, 239
Port, USB

59, 63, 216, 218, 235, 239
Power

21
Power indicator (Rechargeable
hybrid)

9, 10, 21
Pressures, tyres

178, 186, 188, 210
Pre-tensioning seat belts

85
Priming pump

184
Priming the fuel system

183
Profiles

221, 244
Programmable cruise control

123
Protecting children 86, 89–97
Puncture
185–186, 188
R
Radar (warnings) 11 7
Radio
214–215, 238
Radio, digital (Digital Audio
Broadcasting - DAB)

216, 239
Range, AdBlue®

20, 176
RDS

215, 238
READY lamp

173
Rear screen, demisting

56
Rechargeable hybrid engine

9, 25, 172–173, 200, 208
Rechargeable hybrid system

6, 9, 25,
102, 112, 159
Recharging the battery

196, 198–199
Recharging the traction battery

163
Recharging the traction battery (
Rechargeable hybrid)

159, 166–168
Recirculation, air

54–55
Recovery

200–202
Recovery of the vehicle

200–202
Reduction of electrical load

173
Regeneration of the particle filter

177
Regenerative braking (deceleration
by engine braking)

109
Reinitialisation of the under-inflation
detection system

11 6
Reinitialising the remote control

33

256

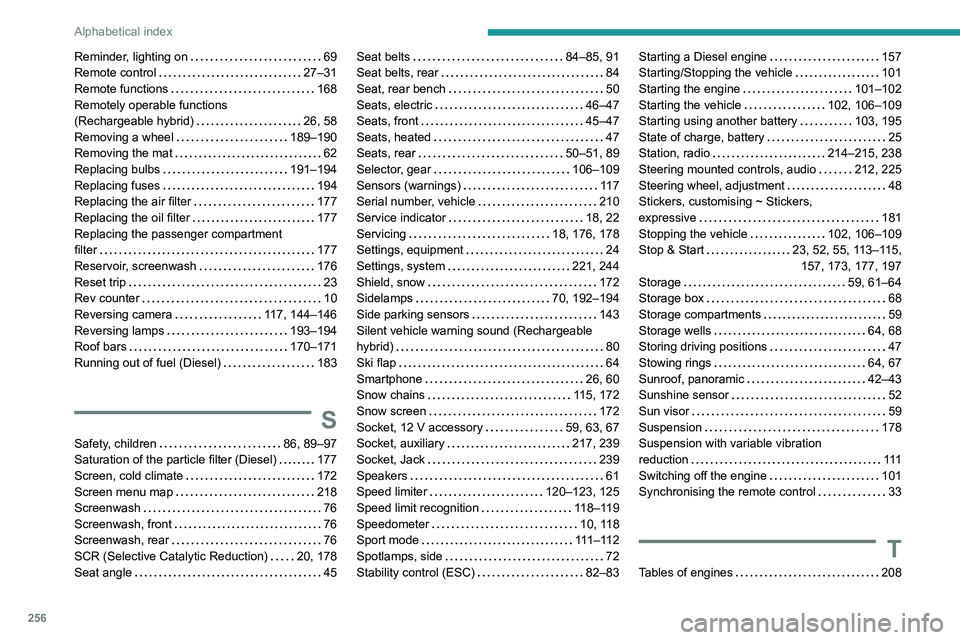

Alphabetical index
Reminder, lighting on 69
Remote control
27–31
Remote functions

168
Remotely operable functions
(Rechargeable hybrid)

26, 58
Removing a wheel

189–190
Removing the mat

62
Replacing bulbs

191–194
Replacing fuses

194
Replacing the air filter

177
Replacing the oil filter

177
Replacing the passenger compartment
filter

177
Reservoir, screenwash

176
Reset trip

23
Rev counter

10
Reversing camera

117, 144–146
Reversing lamps

193–194
Roof bars

170–171
Running out of fuel (Diesel)

183
S
Safety, children 86, 89–97
Saturation of the particle filter (Diesel)
177
Screen, cold climate

172
Screen menu map

218
Screenwash

76
Screenwash, front

76
Screenwash, rear

76
SCR (Selective Catalytic Reduction)

20, 178
Seat angle

45
Seat belts 84–85, 91
Seat belts, rear
84
Seat, rear bench

50
Seats, electric

46–47
Seats, front

45–47
Seats, heated

47
Seats, rear

50–51, 89
Selector, gear

106–109
Sensors (warnings)

11 7
Serial number, vehicle

210
Service indicator

18, 22
Servicing

18, 176, 178
Settings, equipment

24
Settings, system

221, 244
Shield, snow

172
Sidelamps

70, 192–194
Side parking sensors

143
Silent vehicle warning sound (Rechargeable
hybrid)

80
Ski flap

64
Smartphone

26, 60
Snow chains

115, 172
Snow screen

172
Socket, 12 V accessory

59, 63, 67
Socket, auxiliary

217, 239
Socket, Jack

239
Speakers

61
Speed limiter

120–123, 125
Speed limit recognition

118–119
Speedometer

10, 118
Sport mode

111 – 11 2
Spotlamps, side

72
Stability control (ESC)

82–83Starting a Diesel engine 157
Starting/Stopping the vehicle
101
Starting the engine

101–102
Starting the vehicle

102, 106–109
Starting using another battery

103, 195
State of charge, battery

25
Station, radio

214–215, 238
Steering mounted controls, audio

212, 225
Steering wheel, adjustment

48
Stickers, customising ~ Stickers,
expressive

181
Stopping the vehicle

102, 106–109
Stop & Start

23, 52, 55, 113–115, 157, 173, 177, 197
Storage

59, 61–64
Storage box

68
Storage compartments

59
Storage wells

64, 68
Storing driving positions

47
Stowing rings

64, 67
Sunroof, panoramic

42–43
Sunshine sensor

52
Sun visor

59
Suspension

178
Suspension with variable vibration
reduction

111
Switching off the engine

101
Synchronising the remote control

33
T
Tables of engines 208
