sensor PEUGEOT 508 2023 Owner's Guide

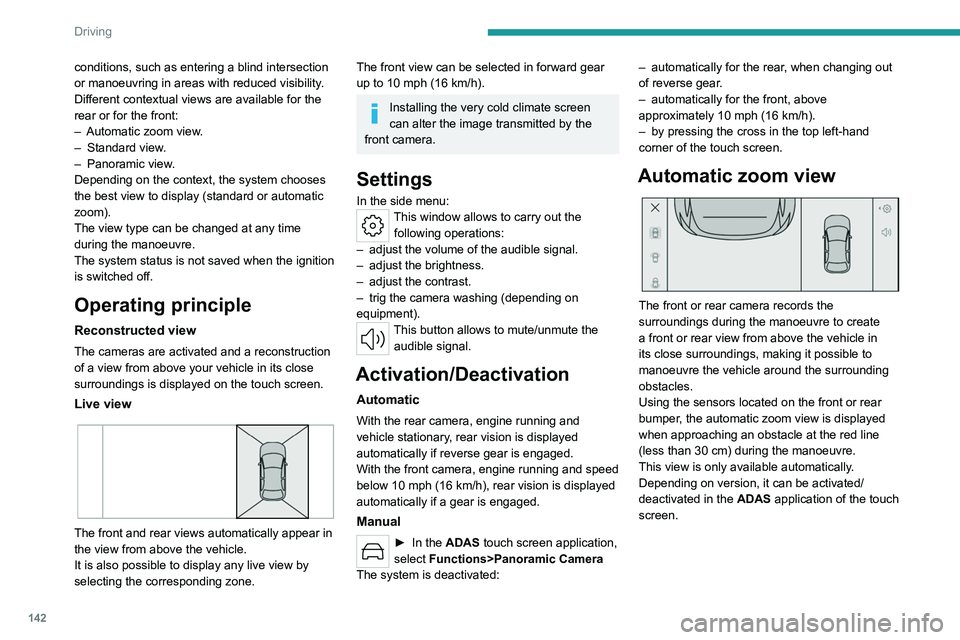

142
Driving
conditions, such as entering a blind intersection
or manoeuvring in areas with reduced visibility.
Different contextual views are available for the
rear or for the front:
–
Automatic zoom view
.
–

Standard view
.
–

Panoramic view
.
Depending on the context, the system chooses
the best view to display (standard or automatic
zoom).
The view type can be changed at any time
during the manoeuvre.
The system status is not saved when the ignition
is switched off.
Operating principle
Reconstructed view
The cameras are activated and a reconstruction
of a view from above your vehicle in its close
surroundings is displayed on the touch screen.
Live view

The front and rear views automatically appear in
the view from above the vehicle.
It is also possible to display any live view by
selecting the corresponding zone.
The front view can be selected in forward gear
up to 10 mph (16 km/h).
Installing the very cold climate screen
can alter the image transmitted by the
front camera.
Settings
In the side menu:This window allows to carry out the following operations:
–

adjust the volume of the audible signal.
–


adjust the brightness.
–


adjust the contrast.
–


trig the camera washing (depending on
equipment).
This button allows to mute/unmute the audible signal.
Activation/Deactivation
Automatic
With the rear camera, engine running and
vehicle stationary, rear vision is displayed
automatically if reverse gear is engaged.
With the front camera, engine running and speed
below 10 mph (16 km/h), rear vision is displayed
automatically if a gear is engaged.
Manual
► In the ADAS touch screen application,
select Functions>Panoramic Camera
The system is deactivated: –

automatically for the rear
, when changing out
of reverse gear.
–
automatically for the front, above
approximately 10 mph (16 km/h).
–

by pressing the cross in the top left-hand
corner of the touch screen.
Automatic zoom view

The front or rear camera records the
surroundings during the manoeuvre to create
a front or rear view from above the vehicle in
its close surroundings, making it possible to
manoeuvre the vehicle around the surrounding
obstacles.
Using the sensors located on the front or rear
bumper, the automatic zoom view is displayed
when approaching an obstacle at the red line
(less than 30 cm) during the manoeuvre.
This view is only available automatically.
Depending on version, it can be activated/
deactivated in the ADAS application of the touch
screen.

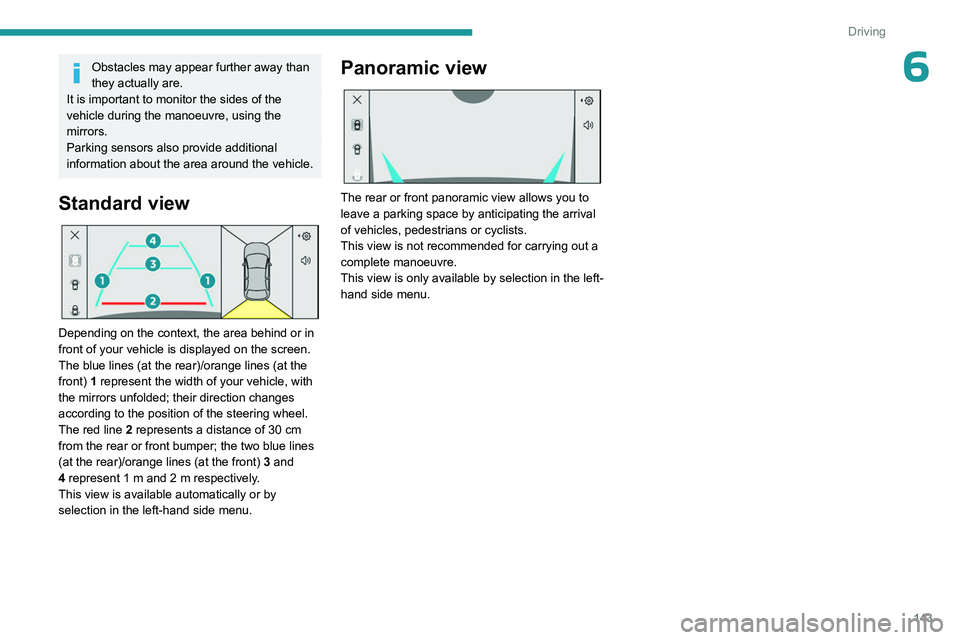

143
Driving
6Obstacles may appear further away than
they actually are.
It is important to monitor the sides of the
vehicle during the manoeuvre, using the
mirrors.
Parking sensors also provide additional
information about the area around the vehicle.
Standard view

Depending on the context, the area behind or in
front of your vehicle is displayed on the screen.
The blue lines (at the rear)/orange lines (at the
front) 1 represent the width of your vehicle, with
the mirrors unfolded;
their direction changes
according to the position of the steering wheel.
The red line 2 represents a distance of 30 cm
from the rear or front bumper; the two blue lines
(at the rear)/orange lines (at the front)

3
and
4
represent 1 m and 2 m respectively.
This view is available automatically or by
selection in the left-hand side menu.
Panoramic view

The rear or front panoramic view allows you to
leave a parking space by anticipating the arrival
of vehicles, pedestrians or cyclists.
This view is not recommended for carrying out a
complete manoeuvre.
This view is only available by selection in the left-
hand side menu.

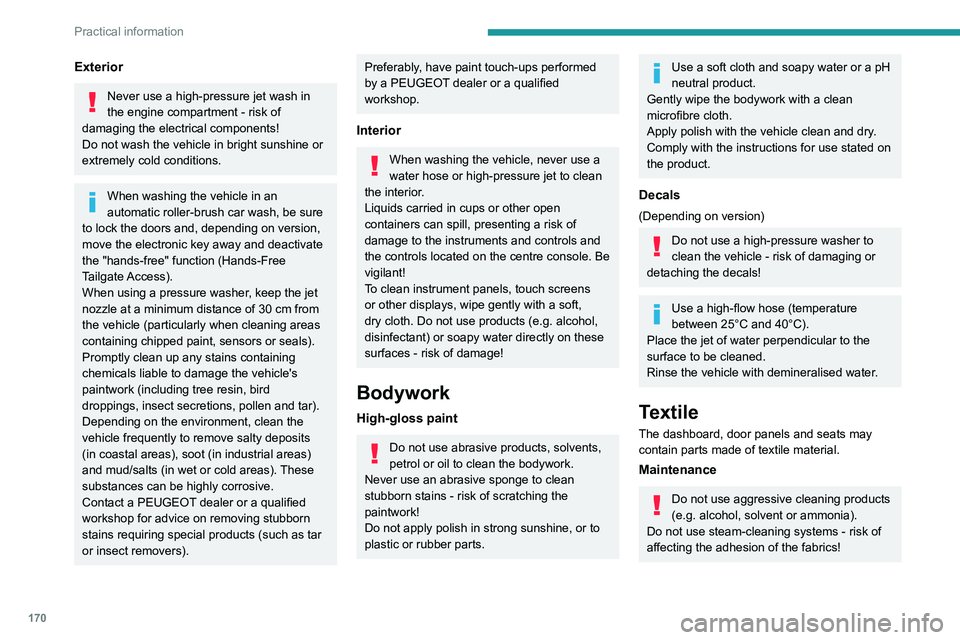

170
Practical information
Exterior
Never use a high-pressure jet wash in
the engine compartment - risk of
damaging the electrical components!
Do not wash the vehicle in bright sunshine or
extremely cold conditions.
When washing the vehicle in an
automatic roller-brush car wash, be sure
to lock the doors and, depending on version,
move the electronic key away and deactivate
the "hands-free" function (Hands-Free
Tailgate Access).
When using a pressure washer, keep the jet
nozzle at a minimum distance of 30 cm from
the vehicle (particularly when cleaning areas
containing chipped paint, sensors or seals).
Promptly clean up any stains containing
chemicals liable to damage the vehicle's
paintwork (including tree resin, bird
droppings, insect secretions, pollen and tar).
Depending on the environment, clean the
vehicle frequently to remove salty deposits
(in coastal areas), soot (in industrial areas)
and mud/salts (in wet or cold areas). These
substances can be highly corrosive.
Contact a PEUGEOT dealer or a qualified
workshop for advice on removing stubborn
stains requiring special products (such as tar
or insect removers).
Preferably, have paint touch-ups performed
by a PEUGEOT dealer or a qualified
workshop.
Interior
When washing the vehicle, never use a
water hose or high-pressure jet to clean
the interior.
Liquids carried in cups or other open
containers can spill, presenting a risk of
damage to the instruments and controls and
the controls located on the centre console. Be
vigilant!
To clean instrument panels, touch screens
or other displays, wipe gently with a soft,
dry cloth. Do not use products (e.g. alcohol,
disinfectant) or soapy water directly on these
surfaces - risk of damage!
Bodywork
High-gloss paint
Do not use abrasive products, solvents,
petrol or oil to clean the bodywork.
Never use an abrasive sponge to clean
stubborn stains - risk of scratching the
paintwork!
Do not apply polish in strong sunshine, or to
plastic or rubber parts.
Use a soft cloth and soapy water or a pH
neutral product.
Gently wipe the bodywork with a clean
microfibre cloth.
Apply polish with the vehicle clean and dry.
Comply with the instructions for use stated on
the product.
Decals
(Depending on version)
Do not use a high-pressure washer to
clean the vehicle - risk of damaging or
detaching the decals!
Use a high-flow hose (temperature
between 25°C and 40°C).
Place the jet of water perpendicular to the
surface to be cleaned.
Rinse the vehicle with demineralised water.
Textile
The dashboard, door panels and seats may
contain parts made of textile material.
Maintenance
Do not use aggressive cleaning products
(e.g. alcohol, solvent or ammonia).
Do not use steam-cleaning systems - risk of
affecting the adhesion of the fabrics!

196

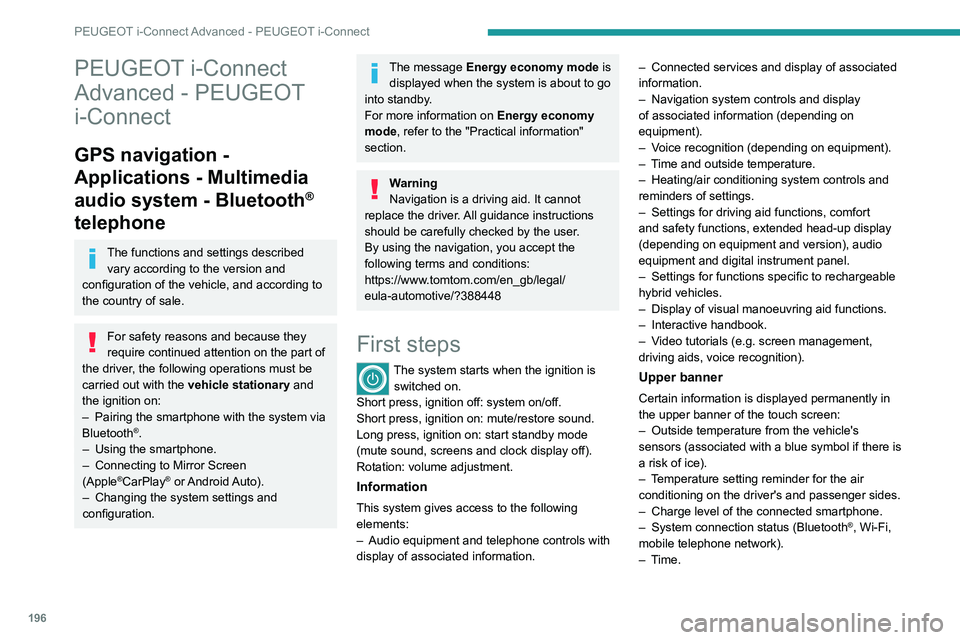

PEUGEOT i-Connect Advanced - PEUGEOT i-Connect
PEUGEOT i-Connect
Advanced - PEUGEOT
i-Connect
GPS navigation -
Applications - Multimedia
audio system - Bluetooth
®
telephone
The functions and settings described
vary according to the version and
configuration of the vehicle, and according to
the country of sale.
For safety reasons and because they
require continued attention on the part of
the driver, the following operations must be
carried out with the vehicle stationary and
the ignition on:
–

Pairing the smartphone with the system via
Bluetooth®.
–
Using the smartphone.
–

Connecting to Mirror Screen
(Apple®CarPlay® or Android Auto).
–
Changing the system settings and
configuration.
The message Energy economy mode is displayed when the system is about to go
into standby.
For more information on Energy economy
mode, refer to the "Practical information"
section.
Warning
Navigation is a driving aid. It cannot
replace the driver. All guidance instructions
should be carefully checked by the user.
By using the navigation, you accept the
following terms and conditions:
https://www.tomtom.com/en_gb/legal/
eula-automotive/?388448
First steps
The system starts when the ignition is switched on.
Short press, ignition off: system on/off.
Short press, ignition on: mute/restore sound.
Long press, ignition on: start standby mode
(mute sound, screens and clock display off).
Rotation: volume adjustment.
Information
This system gives access to the following
elements:
–

Audio equipment and telephone controls with
display of associated information. –


Connected services and display of associated
information.
–

Navigation system controls and display
of associated information (depending on
equipment).
–

V
oice recognition (depending on equipment).
–
T
ime and outside temperature.
–
Heating/air conditioning system controls and
reminders of settings.
–

Settings for driving aid functions, comfort
and safety functions, extended head-up display
(depending on equipment and version), audio
equipment and digital instrument panel.
–

Settings for functions specific to rechargeable
hybrid vehicles.
–

Display of visual manoeuvring aid functions.
–

Interactive handbook.
–

V
ideo tutorials (e.g. screen management,
driving aids, voice recognition).
Upper banner
Certain information is displayed permanently in
the upper banner of the touch screen:
–

Outside temperature from the vehicle's
sensors (associated with a blue symbol if there is
a risk of ice).
–


T
emperature setting reminder for the air
conditioning on the driver's and passenger sides.
–

Charge level of the connected smartphone.
–


System connection status (Bluetooth®, Wi-Fi,
mobile telephone network).
–

Time.

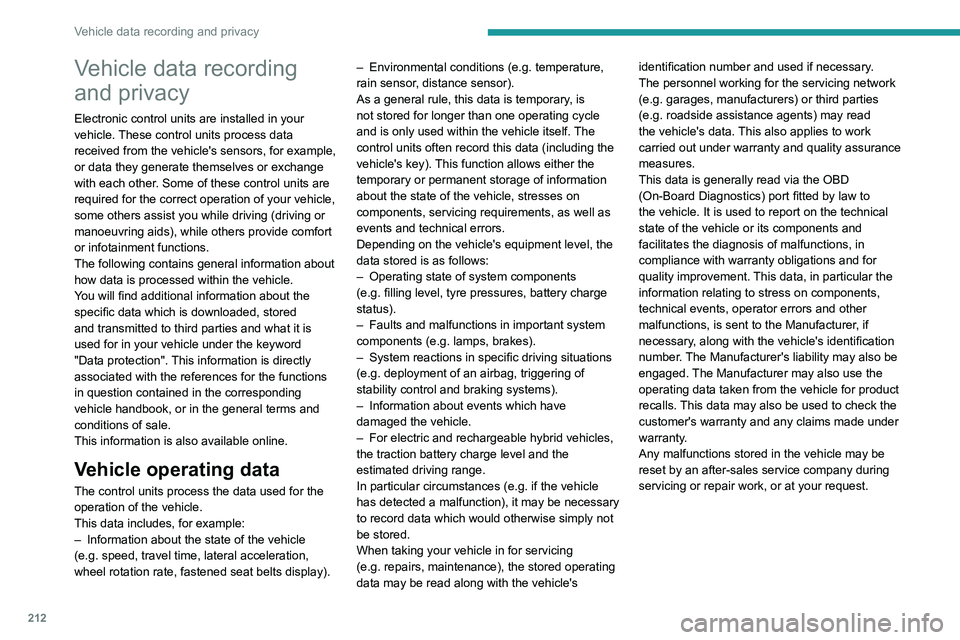

212
Vehicle data recording and privacy
Vehicle data recording
and privacy
Electronic control units are installed in your
vehicle. These control units process data
received from the vehicle's sensors, for example,
or data they generate themselves or exchange
with each other. Some of these control units are
required for the correct operation of your vehicle,
some others assist you while driving (driving or
manoeuvring aids), while others provide comfort
or infotainment functions.
The following contains general information about
how data is processed within the vehicle.
You will find additional information about the
specific data which is downloaded, stored
and transmitted to third parties and what it is
used for in your vehicle under the keyword
"Data protection". This information is directly
associated with the references for the functions
in question contained in the corresponding
vehicle handbook, or in the general terms and
conditions of sale.
This information is also available online.
Vehicle operating data
The control units process the data used for the
operation of the vehicle.
This data includes, for example:
–
Information about the state of the vehicle
(e.g.

speed, travel time, lateral acceleration,
wheel rotation rate, fastened seat belts display). –

Environmental conditions (e.g.
temperature,
rain sensor, distance sensor).
As a general rule, this data is temporary, is
not stored for longer than one operating cycle
and is only used within the vehicle itself. The
control units often record this data (including the
vehicle's key). This function allows either the
temporary or permanent storage of information
about the state of the vehicle, stresses on
components, servicing requirements, as well as
events and technical errors.
Depending on the vehicle's equipment level, the
data stored is as follows:
–
Operating state of system components
(e.g.
filling level, tyre pressures, battery charge
status).
–
Faults and malfunctions in important system
components (e.g.
lamps, brakes).
–
System reactions in specific driving situations
(e.g.
deployment of an airbag, triggering of
stability control and braking systems).
–
Information about events which have
damaged the vehicle.
–

For electric and rechargeable hybrid vehicles,
the traction battery charge level and the
estimated driving range.
In particular circumstances (e.g.
if the vehicle
has detected a malfunction), it may be necessary
to record data which would otherwise simply not
be stored.
When taking your vehicle in for servicing
(e.g.
repairs, maintenance), the stored operating
data may be read along with the vehicle's identification number and used if necessary.
The personnel working for the servicing network
(e.g.
garages, manufacturers) or third parties
(e.g. roadside assistance agents) may read
the vehicle's data. This also applies to work
carried out under warranty and quality assurance
measures.
This data is generally read via the OBD
(On-Board Diagnostics) port fitted by law to
the vehicle. It is used to report on the technical
state of the vehicle or its components and
facilitates the diagnosis of malfunctions, in
compliance with warranty obligations and for
quality improvement. This data, in particular the
information relating to stress on components,
technical events, operator errors and other
malfunctions, is sent to the Manufacturer, if
necessary, along with the vehicle's identification
number. The Manufacturer's liability may also be
engaged. The Manufacturer may also use the
operating data taken from the vehicle for product
recalls. This data may also be used to check the
customer's warranty and any claims made under
warranty.
Any malfunctions stored in the vehicle may be
reset by an after-sales service company during
servicing or repair work, or at your request.

219

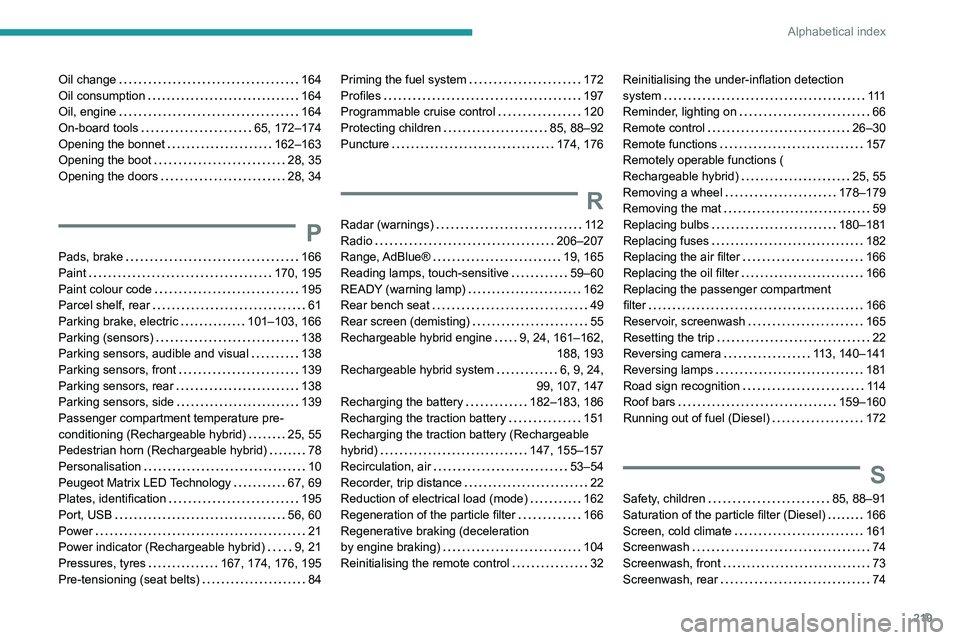

Alphabetical index
Oil change 164
Oil consumption
164
Oil, engine

164
On-board tools

65, 172–174
Opening the bonnet

162–163
Opening the boot

28, 35
Opening the doors

28, 34
P
Pads, brake 166
Paint
170, 195
Paint colour code

195
Parcel shelf, rear

61
Parking brake, electric

101–103, 166
Parking (sensors)

138
Parking sensors, audible and visual

138
Parking sensors, front

139
Parking sensors, rear

138
Parking sensors, side

139
Passenger compartment temperature pre-
conditioning (Rechargeable hybrid)

25, 55
Pedestrian horn (Rechargeable hybrid)

78
Personalisation

10
Peugeot Matrix LED Technology

67, 69
Plates, identification

195
Port, USB

56, 60
Power

21
Power indicator (Rechargeable hybrid)

9, 21
Pressures, tyres

167, 174, 176, 195
Pre-tensioning (seat belts)

84
Priming the fuel system 172
Profiles
197
Programmable cruise control

120
Protecting children

85, 88–92
Puncture

174, 176
R
Radar (warnings) 11 2
Radio
206–207
Range, AdBlue®

19, 165
Reading lamps, touch-sensitive

59–60
READY (warning lamp)

162
Rear bench seat

49
Rear screen (demisting)

55
Rechargeable hybrid engine

9, 24, 161–162, 188, 193
Rechargeable hybrid system

6, 9, 24,
99, 107, 147
Recharging the battery

182–183, 186
Recharging the traction battery

151
Recharging the traction battery (Rechargeable
hybrid)

147, 155–157
Recirculation, air

53–54
Recorder, trip distance

22
Reduction of electrical load (mode)

162
Regeneration of the particle filter

166
Regenerative braking (deceleration
by engine braking)

104
Reinitialising the remote control

32
Reinitialising the under-inflation detection
system
111
Reminder, lighting on

66
Remote control

26–30
Remote functions

157
Remotely operable functions (
Rechargeable hybrid)

25, 55
Removing a wheel

178–179
Removing the mat

59
Replacing bulbs

180–181
Replacing fuses

182
Replacing the air filter

166
Replacing the oil filter

166
Replacing the passenger compartment
filter

166
Reservoir, screenwash

165
Resetting the trip

22
Reversing camera

113, 140–141
Reversing lamps

181
Road sign recognition

11 4
Roof bars

159–160
Running out of fuel (Diesel)

172
S
Safety, children 85, 88–91
Saturation of the particle filter (Diesel)
166
Screen, cold climate

161
Screenwash

74
Screenwash, front

73
Screenwash, rear

74

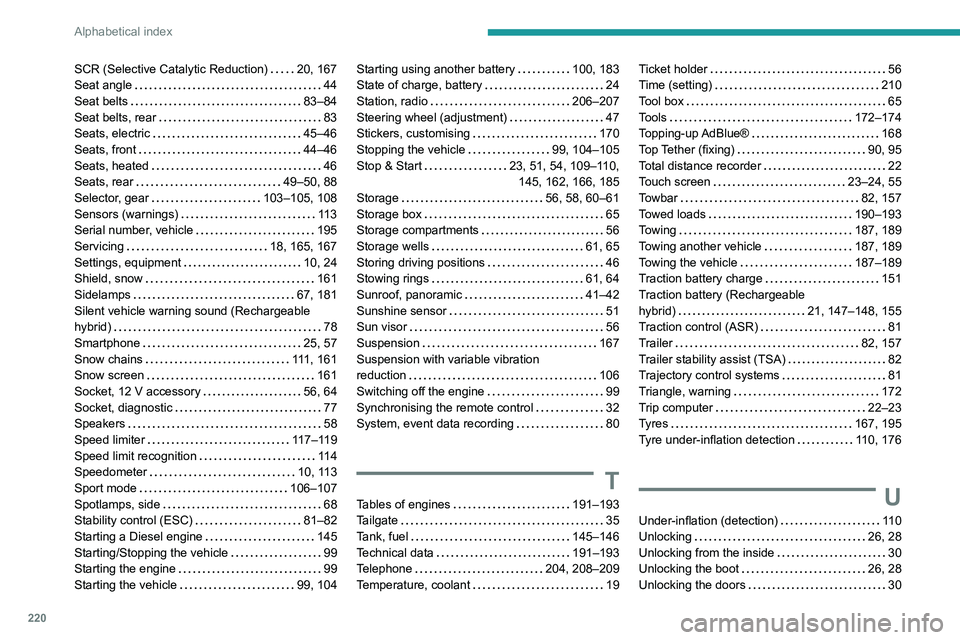

220
Alphabetical index
SCR (Selective Catalytic Reduction) 20, 167
Seat angle
44
Seat belts

83–84
Seat belts, rear

83
Seats, electric

45–46
Seats, front

44–46
Seats, heated

46
Seats, rear

49–50, 88
Selector, gear

103–105, 108
Sensors (warnings)

11 3
Serial number, vehicle

195
Servicing

18, 165, 167
Settings, equipment

10, 24
Shield, snow

161
Sidelamps

67, 181
Silent vehicle warning sound (Rechargeable
hybrid)

78
Smartphone

25, 57
Snow chains

111, 161
Snow screen

161
Socket, 12 V accessory

56, 64
Socket, diagnostic

77
Speakers

58
Speed limiter

117–119
Speed limit recognition

11 4
Speedometer

10, 113
Sport mode

106–107
Spotlamps, side

68
Stability control (ESC)

81–82
Starting a Diesel engine

145
Starting/Stopping the vehicle

99
Starting the engine

99
Starting the vehicle

99, 104Starting using another battery 100, 183
State of charge, battery
24
Station, radio

206–207
Steering wheel (adjustment)

47
Stickers, customising

170
Stopping the vehicle

99, 104–105
Stop & Start

23, 51, 54, 109–110,
145, 162, 166, 185
Storage

56, 58, 60–61
Storage box

65
Storage compartments

56
Storage wells

61, 65
Storing driving positions

46
Stowing rings

61, 64
Sunroof, panoramic

41–42
Sunshine sensor

51
Sun visor

56
Suspension

167
Suspension with variable vibration
reduction

106
Switching off the engine

99
Synchronising the remote control

32
System, event data recording

80
T
Tables of engines 191–193
Tailgate
35
Tank, fuel

145–146
Technical data

191–193
Telephone

204, 208–209
Temperature, coolant

19
Ticket holder 56
Time (setting)
210
Tool box

65
Tools

172–174
Topping-up AdBlue®

168
Top Tether (fixing)

90, 95
Total distance recorder

22
Touch screen

23–24, 55
Towbar

82, 157
Towed loads

190–193
Towing

187, 189
Towing another vehicle

187, 189
Towing the vehicle

187–189
Traction battery charge

151
Traction battery (Rechargeable
hybrid)

21, 147–148, 155
Traction control (ASR)

81
Trailer

82, 157
Trailer stability assist (TSA)

82
Trajectory control systems

81
Triangle, warning

172
Trip computer

22–23
Tyres

167, 195
Tyre under-inflation detection

110, 176
U
Under-inflation (detection) 11 0
Unlocking
26, 28
Unlocking from the inside

30
Unlocking the boot

26, 28
Unlocking the doors

30
