Peugeot 508 Hybrid 2016 Owner's Manual

99
508_en_Chap03_ergonomie-et-confort_ed01-2016

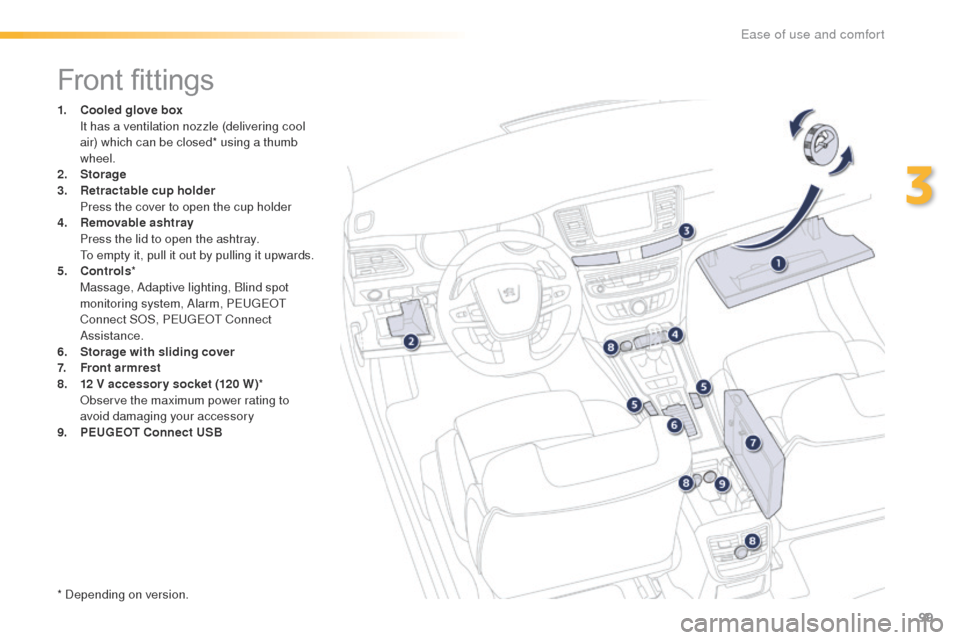

Front fittings
1. Cooled glove box I
t has a ventilation nozzle (delivering cool
air) which can be closed* using a thumb
wheel.
2.
Sto

rage
3.
R

etractable cup holder
P

ress the cover to open the cup holder
4.
Re

movable ashtray
P

ress the lid to open the ashtray.


t
o e
mpty it, pull it out by pulling it upwards.
5.
C

ontrols *
M

assage, Adaptive lighting, Blind spot
monitoring system, Alarm, P
e

uge
Ot

Connect SOS, P
e

uge
Ot
Connect
Assistance.
6.
S

torage with sliding cover
7.
F

ront armrest
8.
1 2

V accessory socket (120 W )*
O

bserve the maximum power rating to
avoid damaging your accessory
9.
P

EUGEOT Connect USB
* Depending on version.
3
ease of use and comfort

100
508_en_Chap03_ergonomie-et-confort_ed01-2016
Mats
When fitting the mat for the first time, on the
driver's side use only the fixings provided in the
wallet attached.
th
e other mats are simply placed on the
carpet.
Fitting
Removal Refitting
to avoid any risk of jamming of the
pedals:
-

o
nly use mats which are suited to
the fixings already present in the
vehicle; these fixings must be used,
-

n
ever fit one mat on top of another.
th

e use of mats not approved by
P
e

uge
Ot
may inter fere with access to
the pedals and hinder the operation of
the cruise control
/ speed limiter.
th

e mats approved by P
e
uge
Ot
have
two fixings located below the seat.
to r

emove the mat on the driver's side:
F

m

ove the seat as far back as possible,
F

un

clip the fixings,
F

r

emove the mat.
to r

efit the mat on the driver's side:
F

p

osition the mat correctly,
F

r

efit the fixings by pressing,
F

c

heck that the mat is secured correctly.
ease of use and comfort

101
508_en_Chap03_ergonomie-et-confort_ed01-2016

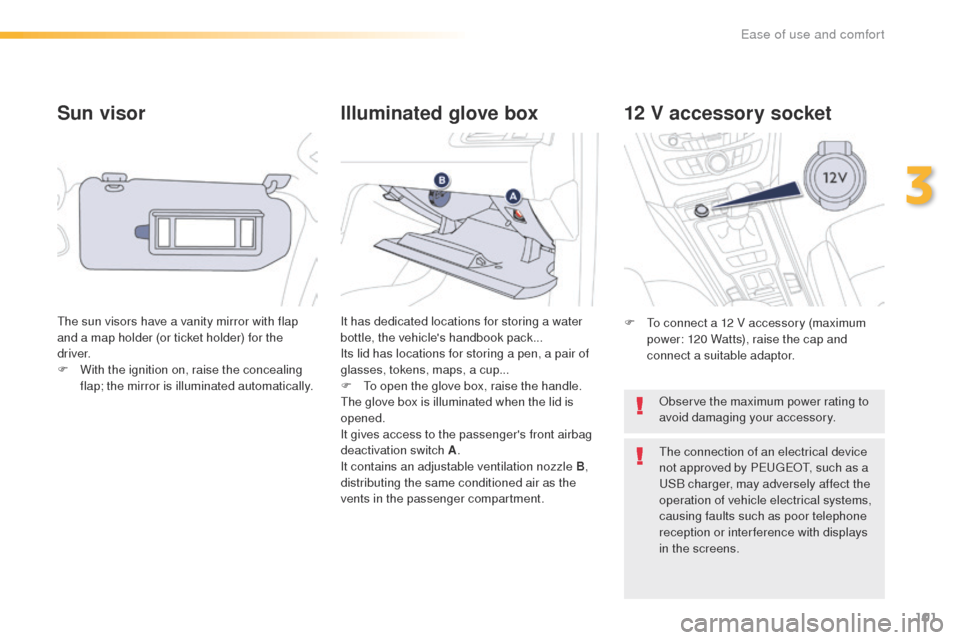

Sun visor
the sun visors have a vanity mirror with flap
and a map holder (or ticket holder) for the
driver.
F
W
ith the ignition on, raise the concealing
flap; the mirror is illuminated automatically.
Illuminated glove box 12 V accessory socket
Observe the maximum power rating to
avoid damaging your accessory.
th

e connection of an electrical device
not approved by P
e

uge
Ot, s
uch as a
uS

B charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or inter ference with displays
in the screens.
It has dedicated locations for storing a water
bottle, the vehicle's handbook pack...
Its lid has locations for storing a pen, a pair of
glasses, tokens, maps, a cup...
F
to o
pen the glove box, raise the handle.th
e glove box is illuminated when the lid is
opened.
It gives access to the passenger's front airbag
deactivation switch A .
It contains an adjustable ventilation nozzle B ,
distributing the same conditioned air as the
vents in the passenger compartment. F
t
o c
onnect a 12 V accessory (maximum
power: 120 Watts), raise the cap and
connect a suitable adaptor.
3
ease of use and comfort

102
508_en_Chap03_ergonomie-et-confort_ed01-2016
1. Front courtesy lamp
2. Front map reading lamp s
3.
R

ear map reading lamp s
4.
I

nterior mood LEDs
Courtesy lamps
In this position, the courtesy lamp
comes on gradually:
Front courtesy lamps
take care to avoid leaving anything in
contact with the courtesy lamps.
With the "permanent lighting" mode, the lighting
time varies according to the circumstances:
- with the ignition off, approximately ten minutes,
- in energy economy mode, approximately thirty seconds,
- with the engine running, unlimited.
- when the vehicle is unlocked,
- w hen the key is removed from the ignition,
-
w

hen opening a door,
-

w
hen the remote control locking button is
activated, in order to locate your vehicle.
It switches off gradually:
-

w
hen the vehicle is locked,
-

w
hen the ignition is switched on,
-

3
0 seconds after the last door is closed.Permanently off.
Permanent lighting.
Front and rear map reading
lamps
F With the ignition on, press the corresponding switch.
When the front courtesy lamp is on "permanent
lighting", the rear map reading lamp comes on
as well, unless it is "permanently off ".
From the front, you can deactivate the rear map
reading lamps so as to not disturb sleeping
rear passengers, for example. However, the
rear passengers can force the illumination of
a lamp.
ease of use and comfort

103
508_en_Chap03_ergonomie-et-confort_ed01-2016

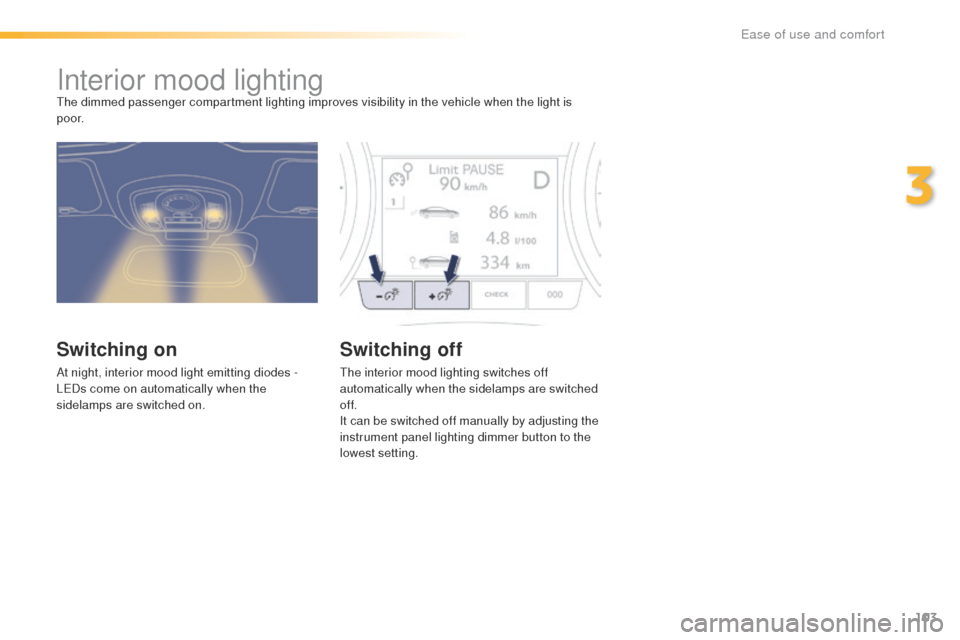

Interior mood lightingthe dimmed passenger compartment lighting improves visibility in the vehicle when the light is
p o o r.
Switching on
At night, interior mood light emitting diodes -
LeD s come on automatically when the
sidelamps are switched on.
Switching off
the interior mood lighting switches off
automatically when the sidelamps are switched
of f.
It can be switched off manually by adjusting the
instrument panel lighting dimmer button to the
lowest setting.
3
ease of use and comfort

104
508_en_Chap03_ergonomie-et-confort_ed01-2016
Sunroof
Opening
turn the dial to the left to slide the sunroof
(several possible opening settings).
Blind
the blind improves thermal and acoustic
comfort.
the
blind is opened automatically when the
sunroof is opened. It must be closed manually
after closing the sunroof.
Raising the rear of of the sunroof
Your vehicle is fitted with an opening sunroof which increases the light and visibility in the passenger compartment.
Return the dial to the initial position.
If the position of the glass panel does not agree
with the position indicated by the dial, press
the ring of the dial to open the sunroof to this
position.
Closing
turn the dial to the right to raise the rear of the
sunroof.
ease of use and comfort

105
508_en_Chap03_ergonomie-et-confort_ed01-2016

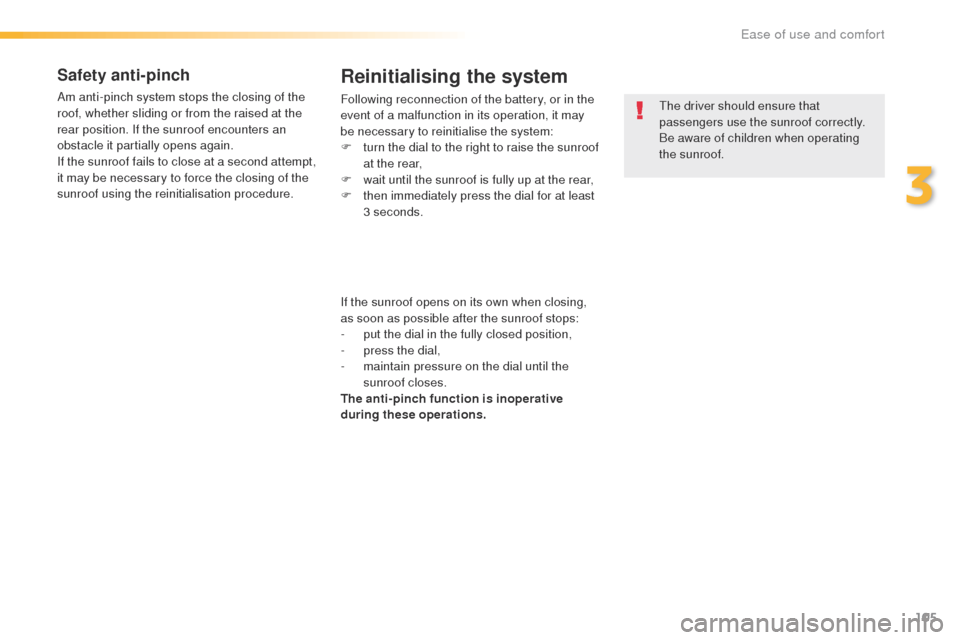

Safety anti-pinch
Am anti-pinch system stops the closing of the
roof, whether sliding or from the raised at the
rear position. If the sunroof encounters an
obstacle it partially opens again.
If the sunroof fails to close at a second attempt,
it may be necessary to force the closing of the
sunroof using the reinitialisation procedure.
Reinitialising the system
Following reconnection of the battery, or in the
event of a malfunction in its operation, it may
be necessary to reinitialise the system:
F
t
urn the dial to the right to raise the sunroof
at the rear,
F

w
ait until the sunroof is fully up at the rear,
F

t
hen immediately press the dial for at least
3 seconds.
If the sunroof opens on its own when closing,
as soon as possible after the sunroof stops:
-

p
ut the dial in the fully closed position,
-

p
ress the dial,
-

m
aintain pressure on the dial until the
sunroof closes.
The anti-pinch function is inoperative
during these operations.th e driver should ensure that
passengers use the sunroof correctly.
Be aware of children when operating
the sunroof.
3
ease of use and comfort

106
508_en_Chap03_ergonomie-et-confort_ed01-2016
Your vehicle is fitted with a tinted glass
panoramic sunroof which increases the light
and visibility in the passenger compartment. Its
electric blind helps control the temperature and
noise level in the passenger compartment.
th
e blind is operated electrically by a rotary
control dial.
Opening
turn the dial to the left (several possible
opening settings).
Safety anti-pinch
If the blind encounters an obstacle during
closing, it stops and partially opens again to the
2nd position.
If the blind fails to close at a second attempt,
it may be necessary to force the closing of the
blind using the reinitialisation procedure.
Closing
Return the dial to the initial position.
If the position of the blind does not agree with
the position indicated by the dial, press the dial
to open the blind to this position.
Electric blind
In the event of contact during operation
of the blind, you must reverse its
movement.
t
o d
o this, turn the dial.
When the driver operates the dial, they
must ensure that nothing prevents the
blind from closing correctly.
th

e driver must ensure that the
passengers use the blind correctly.
Be aware of children during operation
of the blind.
Reinitialising the system
Following reconnection of the battery, or in the
event of a malfunction in its operation, it may
be necessary to reinitialise the system:
F

t
urn the dial to the fully open position,
F

w
ait until the blind is fully open,
F

t
hen immediately press the dial for at least
3 seconds. If the blind opens on its own when closing, as
soon as possible after the blind stops:
-

p
ut the dial in the fully closed position,
-
p
ress the dial,
-
m
aintain pressure on the dial until the blind
closes.
The anti-pinch function is inoperative
during these operations.
Panoramic sunroof (SW and non-hybrid RHX)
ease of use and comfort

107
508_en_Chap03_ergonomie-et-confort_ed01-2016

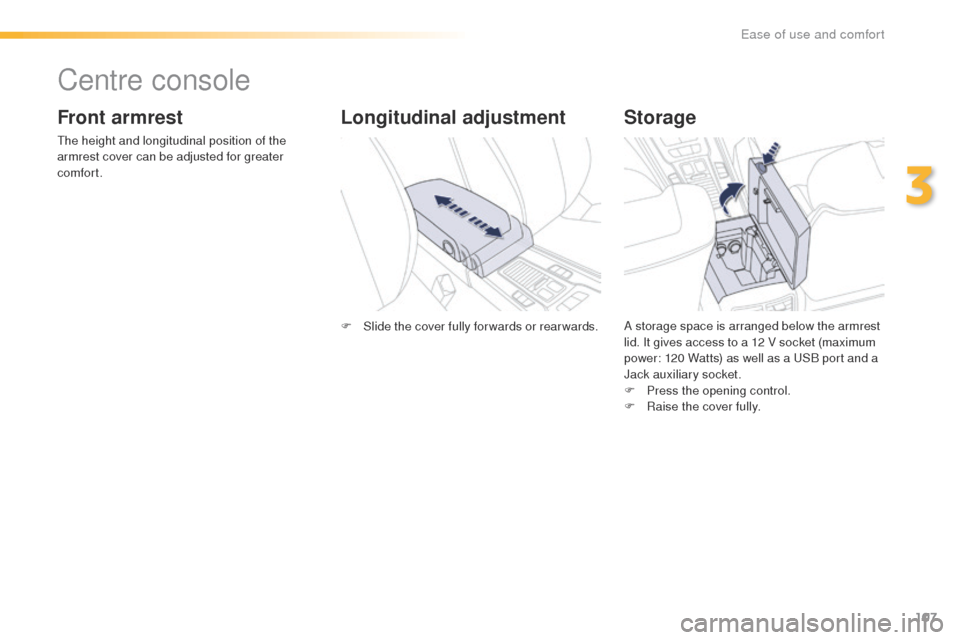

Centre console
Front armrest
the height and longitudinal position of the
armrest cover can be adjusted for greater
comfort.
Storage
A storage space is arranged below the armrest
lid. It gives access to a 12 V socket (maximum
power: 120 Watts) as well as a u
S
B port and a
Jack auxiliary socket.
F

P
ress the opening control.
F

Ra
ise the cover fully.
Longitudinal adjustment
F Slide the cover fully for wards or rear wards.
3
ease of use and comfort

108
508_en_Chap03_ergonomie-et-confort_ed01-2016
12 V accessory socket
Observe the maximum power rating to
avoid damaging your accessory.
th
e connection of an electrical device
not approved by P
e

uge
Ot, s
uch as a
uS

B charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or inter ference with displays
in the screens.
PEUGEOT Connect USB
this connection box comprises a uS B port and a Jack auxiliary socket.
USB port
the uSB port allows the connection of a
portable device, such as a digital audio player
of the iPod
® type or a uS B memory stick.th
e
uS
B player reads your audio files, which
are transmitted to your audio system and
played via the vehicle's speakers.
th

e management of these files is from the
steering mounted controls or the audio system.
Jack auxiliary socket
the Jack auxiliary socket allows the connection
of a portable device, such as a digital audio
player, so that your audio files can be heard
through the vehicle's speakers.
th

e management of these files is from the
portable device.
For more information, refer to the
corresponding part of the "Audio
equipment and telematics" section.
When connected to the
u
S

B port, the portable
device charges automatically.
While charging, a message is displayed if the
power consumption of the portable device
exceeds the current delivered by the vehicle.
F
t
o c

onnect a 12 V accessory (maximum
power: 120 Watts), lift the cover and
connect a suitable adaptor.
ease of use and comfort
