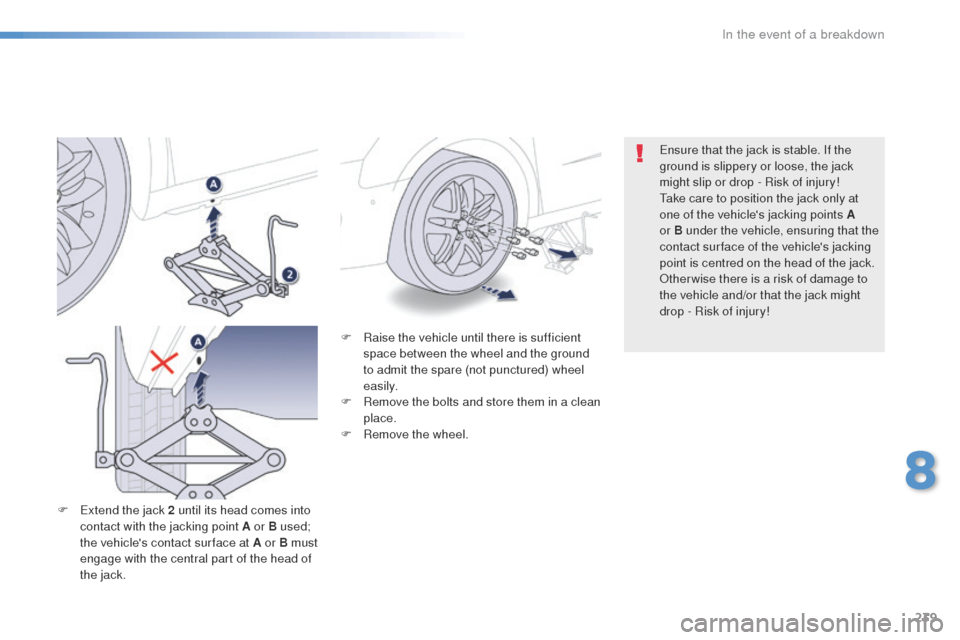

F Raise the vehicle until there is sufficient space between the wheel and the ground
to admit the spare (not punctured) wheel
easily.
F

R
emove the bolts and store them in a clean
place.
F

R
emove the wheel.
F
e
x

tend the jack 2 until its head comes into
contact with the jacking point A or B used;
the vehicle's contact sur face at A or B must
engage with the central part of the head of
the jack.
en
sure that the jack is stable. If the
ground is slippery or loose, the jack
might slip or drop - Risk of injury!
ta
ke care to position the jack only at
one of the vehicle's jacking points A
or B under the vehicle, ensuring that the
contact sur face of the vehicle's jacking
point is centred on the head of the jack.
Otherwise there is a risk of damage to
the vehicle and/or that the jack might
drop - Risk of injury!
8
In the event of a breakdown

240
508_en_Chap08_en-cas-de-pannes_ed01-2016

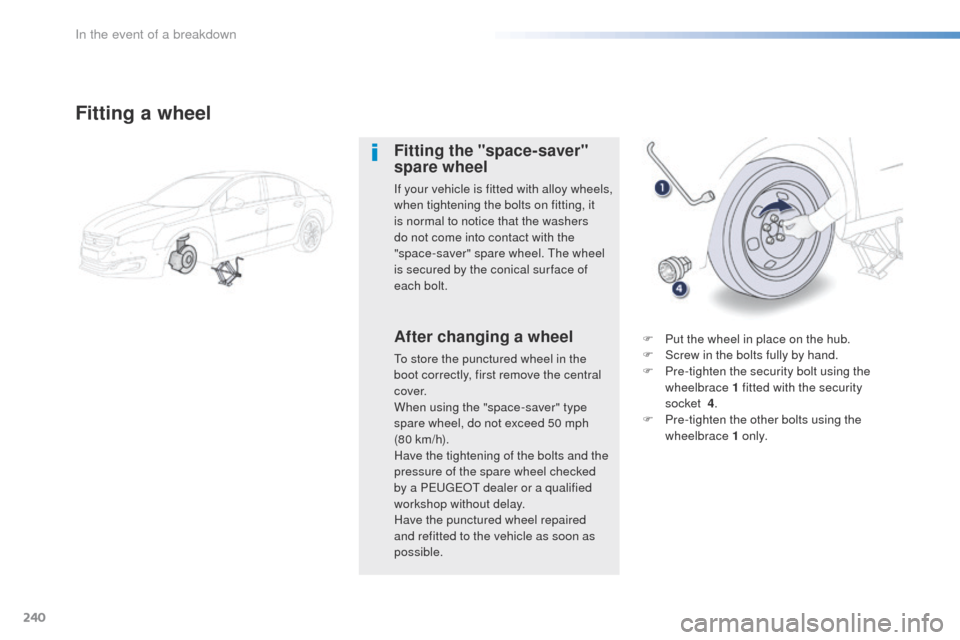

Fitting a wheel
Fitting the "space-saver"
spare wheel
If your vehicle is fitted with alloy wheels,
when tightening the bolts on fitting, it
is normal to notice that the washers
do not come into contact with the
"space-saver" spare wheel. t
h
e wheel
is secured by the conical sur face of
each bolt.
After changing a wheel
to store the punctured wheel in the
boot correctly, first remove the central
c ove r.
When using the "space-saver" type
spare wheel, do not exceed 50 mph
(80


km/h).
Have the tightening of the bolts and the
pressure of the spare wheel checked
by a P
e

uge
Ot
dealer or a qualified
workshop without delay.
Have the punctured wheel repaired
and refitted to the vehicle as soon as
possible. F

P
ut the wheel in place on the hub.
F S crew in the bolts fully by hand.
F P re-tighten the security bolt using the
wheelbrace 1 fitted with the security
socket
4.
F

P
re-tighten the other bolts using the
wheelbrace 1 o n l y.
In the event of a breakdown

241
508_en_Chap08_en-cas-de-pannes_ed01-2016

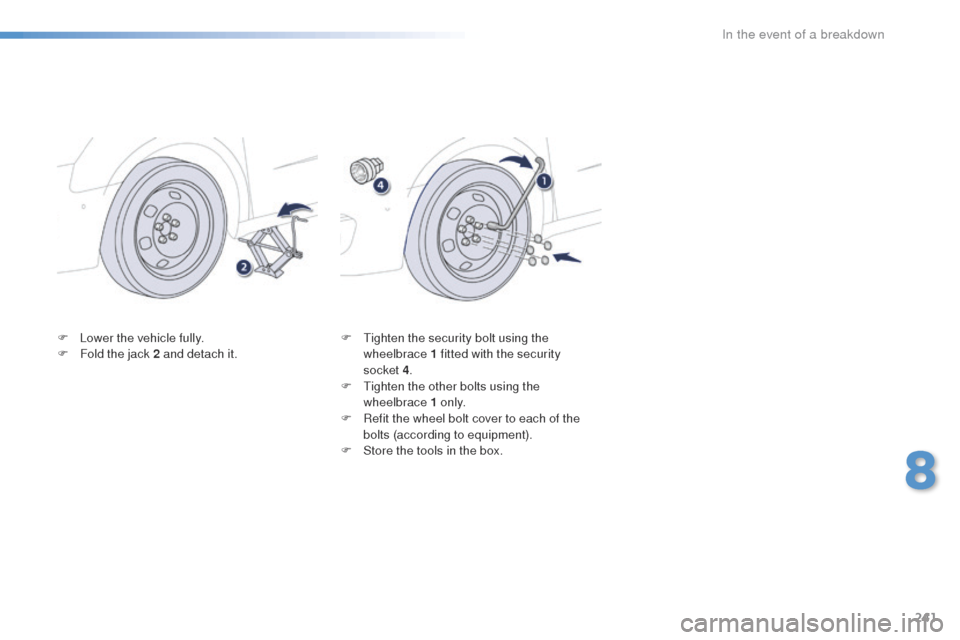

F Lower the vehicle fully.
F F old the jack 2 and detach it. F
ti ghten the security bolt using the
wheelbrace 1 fitted with the security
socket


4.
F
t
i
ghten the other bolts using the
wheelbrace 1 o n l y.
F

R
efit the wheel bolt cover to each of the
bolts (according to equipment).
F

S
tore the tools in the box.
8
In the event of a breakdown

242
508_en_Chap08_en-cas-de-pannes_ed01-2016

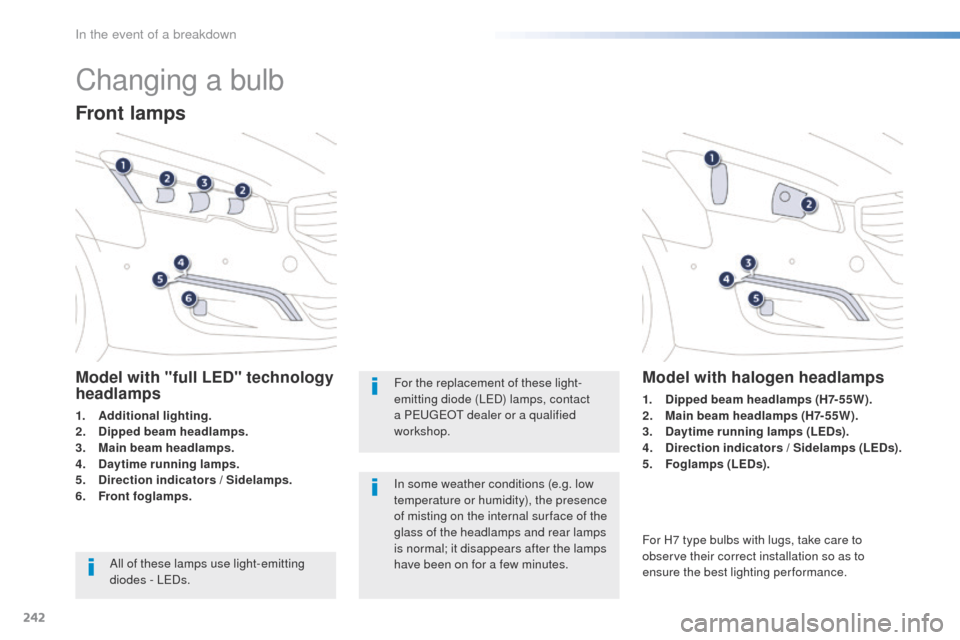

Changing a bulb
Front lamps
Model with "full LED" technology
headlamps
1. Additional lighting.
2. Dipped beam headlamps.
3.
M

ain beam headlamps.
4.
D

aytime running lamps.
5.
D

irection indicators / Sidelamps.
6.
F

ront foglamps. In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes. For the replacement of these light-
emitting diode (L
eD
) lamps, contact
a Pe ugeOt dealer or a qualified
workshop.
All of these lamps use light-emitting
diodes - L
eD

s.
Model with halogen headlamps
1. Dipped beam headlamps (H7-55W).
2. Main beam headlamps (H7-55W).
3.
D

aytime running lamps (LEDs).
4.
D

irection indicators / Sidelamps (LEDs).
5.
F

oglamps (LEDs).
For H7 type bulbs with lugs, take care to
observe their correct installation so as to
ensure the best lighting performance.
In the event of a breakdown

243
508_en_Chap08_en-cas-de-pannes_ed01-2016

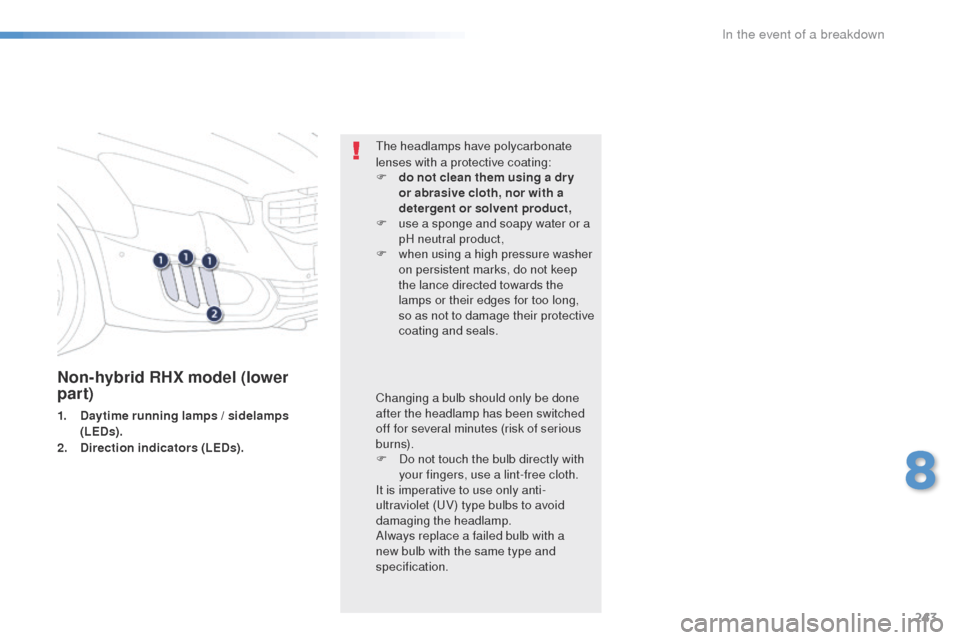

Non-hybrid RHX model (lower
par t)
1. Daytime running lamps / sidelamps (LEDs).
2.
D

irection indicators (LEDs).
th
e headlamps have polycarbonate
lenses with a protective coating:
F
d
o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F
u
se a sponge and soapy water or a
pH neutral product,
F
w
hen using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.
Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F
D
o not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (
uV

) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
8
In the event of a breakdown

244
508_en_Chap08_en-cas-de-pannes_ed01-2016

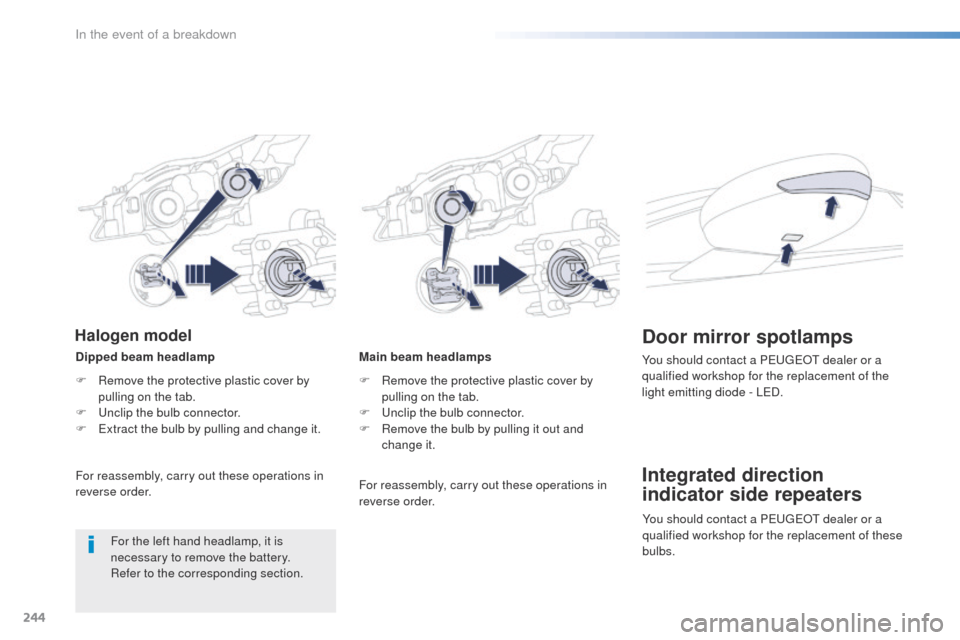

Main beam headlamps
F
R
emove the protective plastic cover by
pulling on the tab.
F
u
n
clip the bulb connector.
F

R
emove the bulb by pulling it out and
change it.
Integrated direction
indicator side repeaters Door mirror spotlamps
You should contact a Pe ugeOt dealer or a
qualified workshop for the replacement of the
light emitting diode - L
eD

.
For reassembly, carry out these operations in
reverse order.
Dipped beam headlamp
Halogen model
F Remove the protective plastic cover by
pulling on the tab.
F
u
n
clip the bulb connector.
F
e
x
tract the bulb by pulling and change it.
For reassembly, carry out these operations in
reverse order.
For the left hand headlamp, it is
necessary to remove the battery.
Refer to the corresponding section. You should contact a P
e

uge
Ot
dealer or a
qualified workshop for the replacement of these
bulbs.
In the event of a breakdown

245
508_en_Chap08_en-cas-de-pannes_ed01-2016

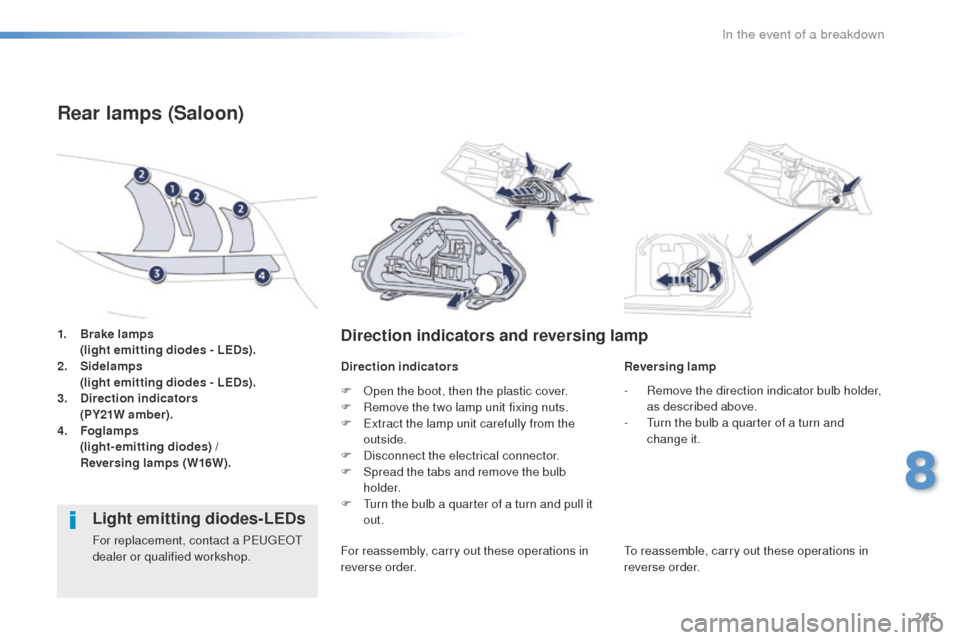

1. Brake lamps
( light emitting diodes - LEDs).
2.
Si

delamps


(
light emitting diodes - LEDs).
3.
D

irection indicators


(
PY21W amber).
4.
Fo

glamps


(
light-emitting diodes) /
R

eversing lamps (W16W).
Rear lamps (Saloon)
Direction indicators and reversing lamp
Direction indicators Reversing lamp
Light emitting diodes-LEDs
For replacement, contact a PeugeOt
dealer or qualified workshop. F

O
pen the boot, then the plastic cover.
F
R
emove the two lamp unit fixing nuts.
F e
x
tract the lamp unit carefully from the
outside.
F
D
isconnect the electrical connector.
F
S
pread the tabs and remove the bulb
h o l d e r.
F t
u
rn the bulb a quarter of a turn and pull it
out.
For reassembly, carry out these operations in
reverse order. -

R
emove the direction indicator bulb holder,
as described above.
- t
u
rn the bulb a quarter of a turn and
change it.to r eassemble, carry out these operations in
reverse order.
8
In the event of a breakdown

246
508_en_Chap08_en-cas-de-pannes_ed01-2016

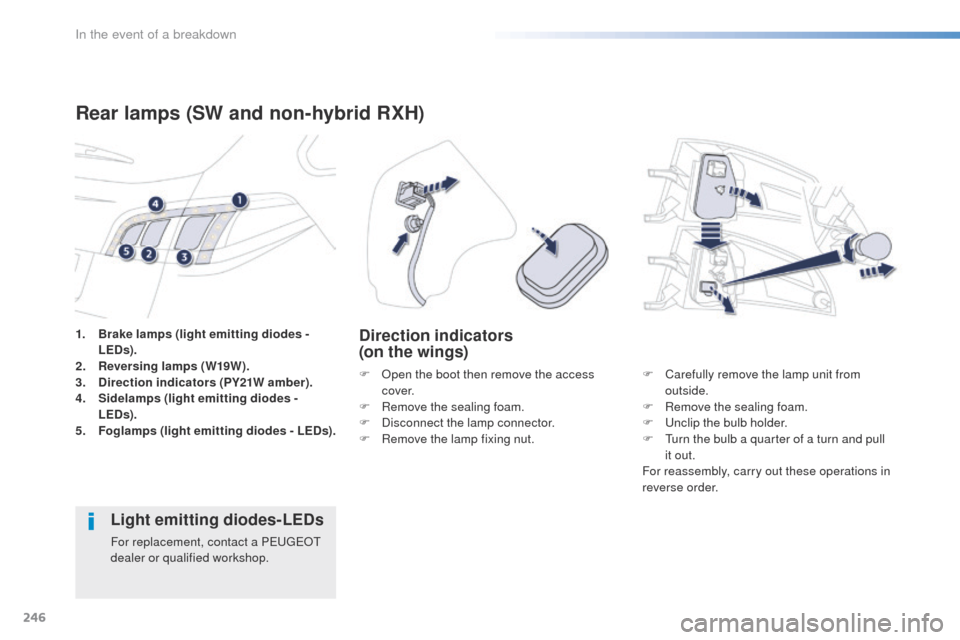

1. Brake lamps (light emitting diodes - LEDs).
2.
R

eversing lamps (W19W).
3.
D

irection indicators (PY21W amber).
4.
S

idelamps (light emitting diodes -
LEDs).
5.
F

oglamps (light emitting diodes - LEDs).
Rear lamps (SW and non-hybrid RXH)
F Open the boot then remove the access c ove r.
F

R
emove the sealing foam.
F

D
isconnect the lamp connector.
F

R
emove the lamp fixing nut.
Direction indicators
(on the wings)
F Carefully remove the lamp unit from
outside.
F

R
emove the sealing foam.
F
u
n
clip the bulb holder.
F
t
u
rn the bulb a quarter of a turn and pull
it
out.
For reassembly, carry out these operations in
reverse order.
Light emitting diodes-LEDs
For replacement, contact a Pe ugeOt
dealer or qualified workshop.
In the event of a breakdown

247
508_en_Chap08_en-cas-de-pannes_ed01-2016

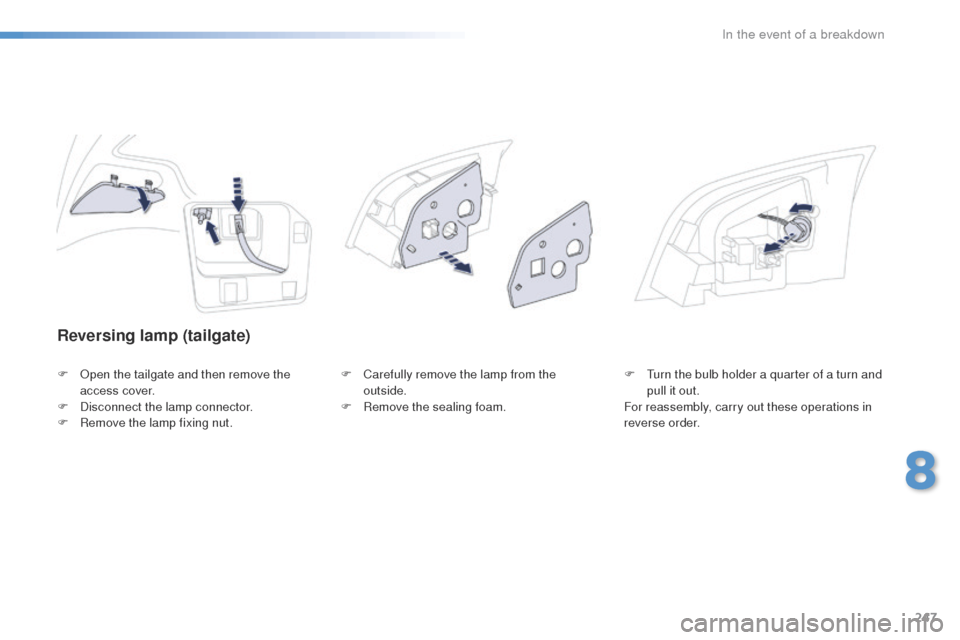

Reversing lamp (tailgate)
F Open the tailgate and then remove the access cover.
F

D
isconnect the lamp connector.
F

R
emove the lamp fixing nut. F
C arefully remove the lamp from the
outside.
F

R
emove the sealing foam.F
tu rn the bulb holder a quarter of a turn and
pull it out.
For reassembly, carry out these operations in
reverse order.
8
In the event of a breakdown

248
508_en_Chap08_en-cas-de-pannes_ed01-2016

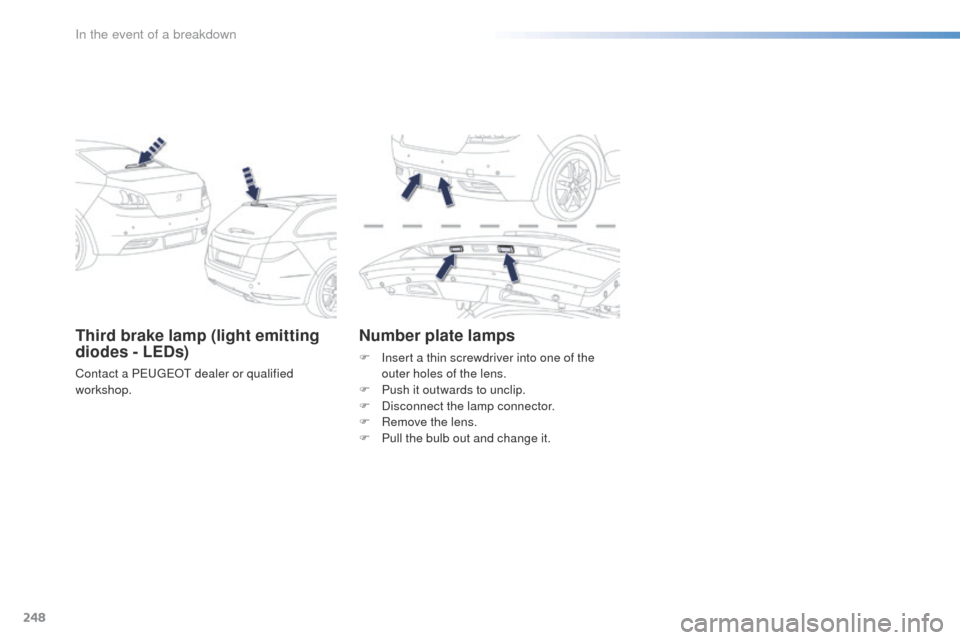

Third brake lamp (light emitting
diodes - LEDs)
Contact a PeugeOt dealer or qualified
workshop.
Number plate lamps
F Insert a thin screwdriver into one of the outer holes of the lens.
F

P
ush it outwards to unclip.
F

D
isconnect the lamp connector.
F

R
emove the lens.
F

P
ull the bulb out and change it.
