Peugeot 508 Hybrid 2016 Owner's Manual

5
.Hybrid4 system
508HY-comp_en_Chap00b_hybrid_ed01-2016

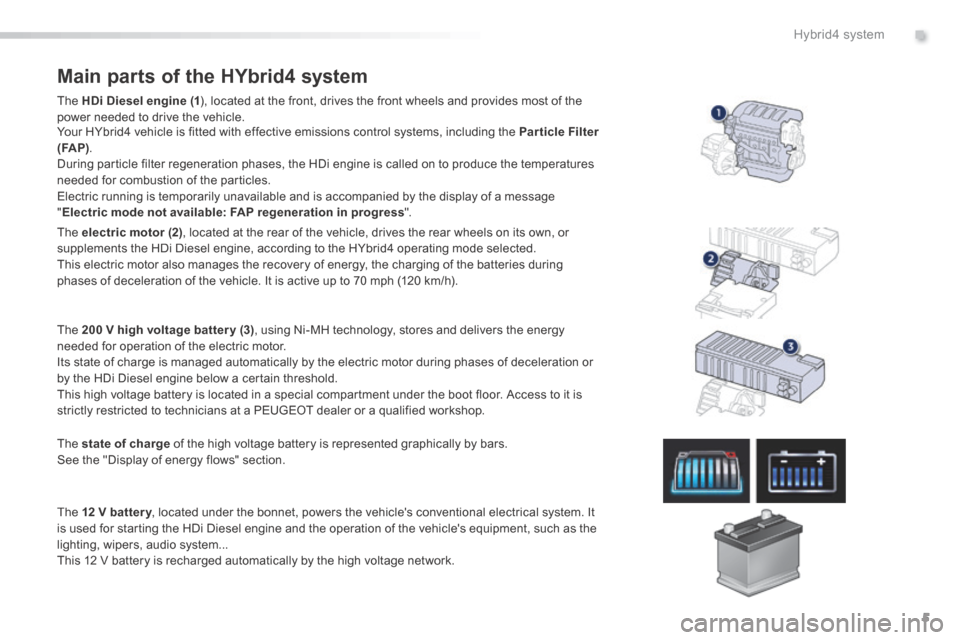

Main parts of the HYbrid4 system
The HDi Diesel engine (1 ), located at the front, drives the front wheels and provides most of the power needed to drive the vehicle.
The electric motor (2) , located at the rear of the vehicle, drives the rear wheels on its own, or supplements the HDi Diesel engine, according to the HYbrid4 operating mode selected. This electric motor also manages the recovery of energy, the charging of the batteries during phases of deceleration of the vehicle. It is active up to 70 mph (120 km/h).
The 200 V high voltage batter y (3) , using Ni-MH technology, stores and delivers the energy needed for operation of the electric motor. Its state of charge is managed automatically by the electric motor during phases of deceleration or by the HDi Diesel engine below a certain threshold. This high voltage battery is located in a special compartment under the boot floor. Access to it is strictly restricted to technicians at a PEUGEOT dealer or a qualified workshop.
The state of charge of the high voltage battery is represented graphically by bars. See the "Display of energy flows" section.
The 12 V batter y , located under the bonnet, powers the vehicle's conventional electrical system. It 12 V batter y , located under the bonnet, powers the vehicle's conventional electrical system. It 12 V batter yis used for starting the HDi Diesel engine and the operation of the vehicle's equipment, such as the lighting, wipers, audio system... This 12 V battery is recharged automatically by the high voltage network.
Your HYbrid4 vehicle is fitted with effective emissions control systems, including the Par ticle Filter (FA P) . During particle filter regeneration phases, the HDi engine is called on to produce the temperatures needed for combustion of the particles. Electric running is temporarily unavailable and is accompanied by the display of a message " Electric mode not available: FAP regeneration in progress ".

6
Hybrid4 system
508HY-comp_en_Chap00b_hybrid_ed01-2016

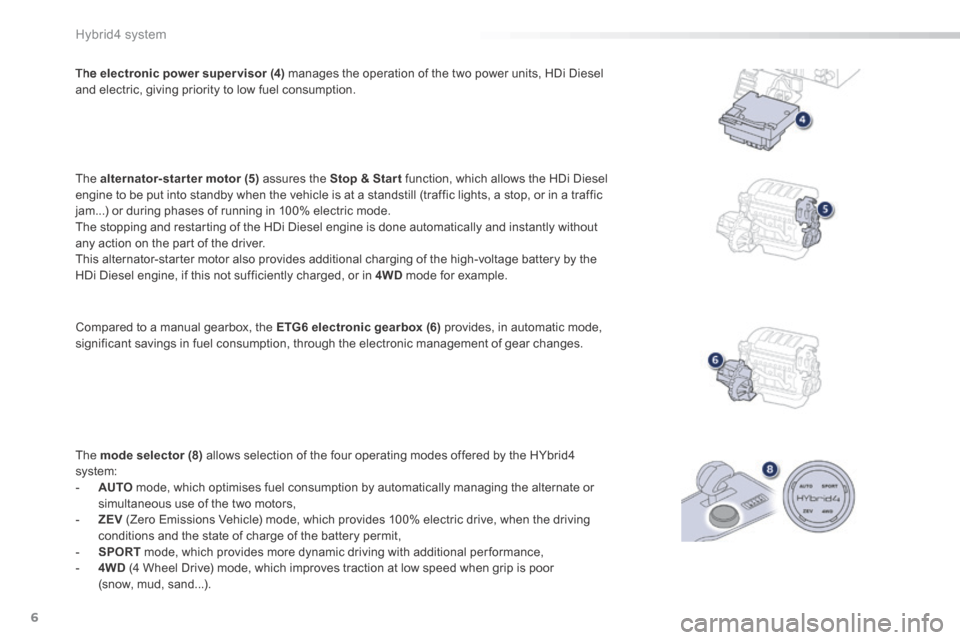

The electronic power super visor (4) manages the operation of the two power units, HDi Diesel and electric, giving priority to low fuel consumption.
The alternator-star ter motor (5) assures the Stop & Star t function, which allows the HDi Diesel engine to be put into standby when the vehicle is at a standstill (traffic lights, a stop, or in a traffic jam...) or during phases of running in 100% electric mode.
The stopping and restarting of the HDi Diesel engine is done automatically and instantly without any action on the part of the driver. This alternator-starter motor also provides additional charging of the high-voltage battery by the HDi Diesel engine, if this not sufficiently charged, or in 4WD mode for example.
Compared to a manual gearbox, the ETG6 electronic gearbox (6) provides, in automatic mode, significant savings in fuel consumption, through the electronic management of gear changes.
The mode selector (8) allows selection of the four operating modes offered by the HYbrid4 system: - AUTO mode, which optimises fuel consumption by automatically managing the alternate or simultaneous use of the two motors, - ZEV (Zero Emissions Vehicle) mode, which provides 100% electric drive, when the driving conditions and the state of charge of the battery permit, - SPORT mode, which provides more dynamic driving with additional per formance, - 4WD (4 Wheel Drive) mode, which improves traction at low speed when grip is poor (snow, mud, sand...).

7
.Hybrid4 system
508HY-comp_en_Chap00b_hybrid_ed01-2016

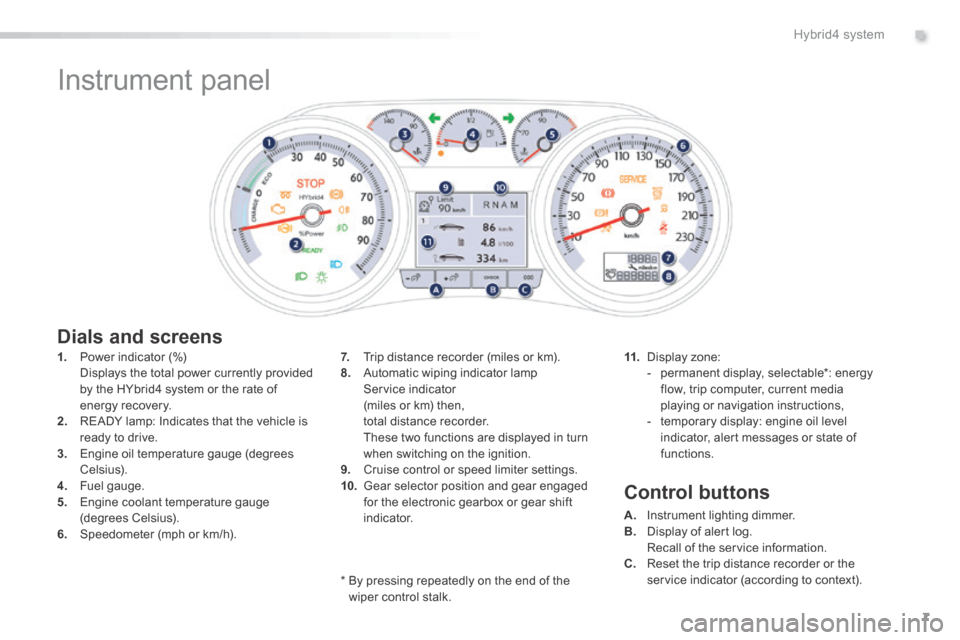

Instrument panel
Dials and screens
7. Trip distance recorder (miles or km). 8. Automatic wiping indicator lamp Service indicator (miles or km) then, total distance recorder. These two functions are displayed in turn when switching on the ignition. 9. Cruise control or speed limiter settings. 10. Gear selector position and gear engaged for the electronic gearbox or gear shift i n d i c a t o r.
1. Power indicator (%) Displays the total power currently provided by the HYbrid4 system or the rate of energy recovery. 2. READY lamp: Indicates that the vehicle is ready to drive. 3. Engine oil temperature gauge (degrees Celsius). 4. Fuel gauge. 5. Engine coolant temperature gauge (degrees Celsius). 6. Speedometer (mph or km/h).
11. Display zone: - permanent display, selectable * : energy flow, trip computer, current media playing or navigation instructions, - temporary display: engine oil level indicator, alert messages or state of functions.
* By pressing repeatedly on the end of the wiper control stalk.
Control buttons
A. Instrument lighting dimmer. B. Display of alert log. Recall of the service information. C. Reset the trip distance recorder or the service indicator (according to context).

8
Hybrid4 system
508HY-comp_en_Chap00b_hybrid_ed01-2016

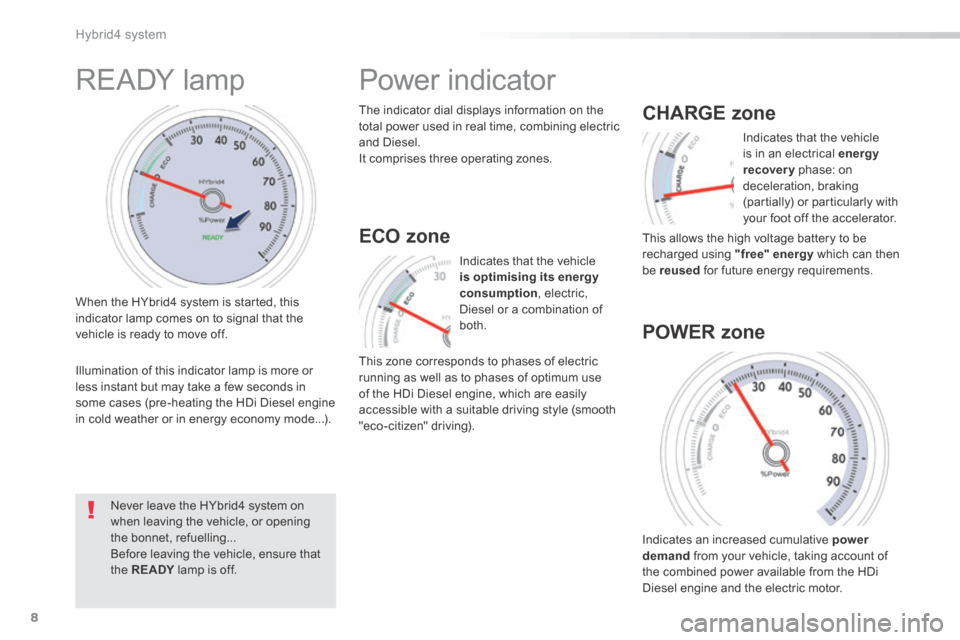

Power indicator
The indicator dial displays information on the total power used in real time, combining electric and Diesel. It comprises three operating zones.
CHARGE zone
Indicates that the vehicle is in an electrical energy recovery phase: on deceleration, braking (partially) or particularly with your foot off the accelerator.
POWER zone
Indicates an increased cumulative power demand from your vehicle, taking account of the combined power available from the HDi
Diesel engine and the electric motor.
Indicates that the vehicle is optimising its energy consumption , electric, Diesel or a combination of both.
E C O z o n e

READY lamp
When the HYbrid4 system is started, this indicator lamp comes on to signal that the vehicle is ready to move off.
Never leave the HYbrid4 system on when leaving the vehicle, or opening the bonnet, refuelling... Before leaving the vehicle, ensure that the RE ADY lamp is off. RE ADY lamp is off. RE ADY
Illumination of this indicator lamp is more or less instant but may take a few seconds in some cases (pre-heating the HDi Diesel engine in cold weather or in energy economy mode...).
This zone corresponds to phases of electric running as well as to phases of optimum use of the HDi Diesel engine, which are easily accessible with a suitable driving style (smooth "eco-citizen" driving).
This allows the high voltage battery to be recharged using "free" energy which can then be reused for future energy requirements.

9
.Hybrid4 system
508HY-comp_en_Chap00b_hybrid_ed01-2016

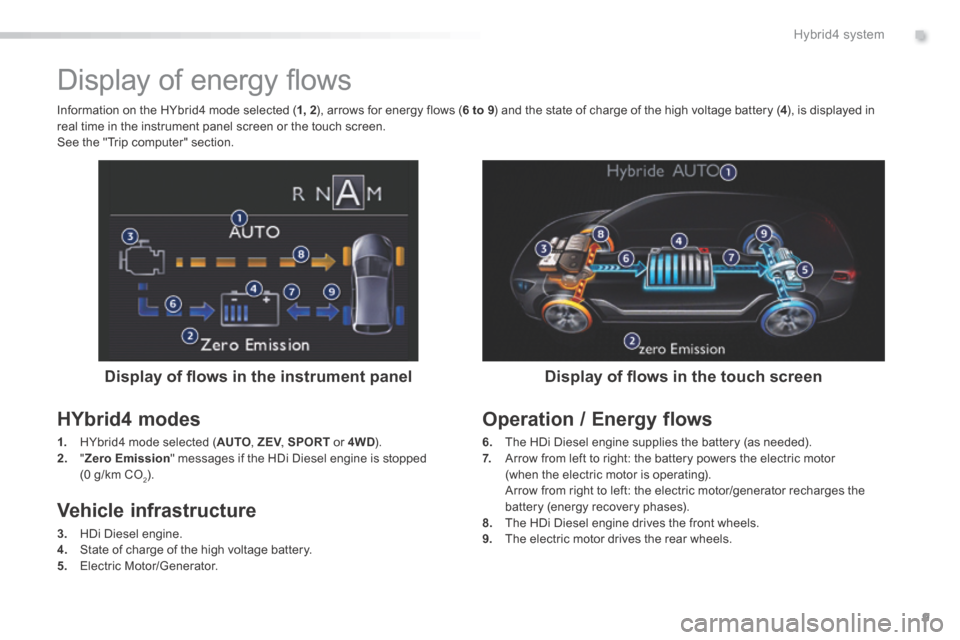

Display of energy fl ows
Display of fl ows in the instrument panel
HYbrid4 modes
1. HYbrid4 mode selected ( AUTO , ZEV , ZEV , ZEVSPORT or 4WD ). 2. "Zero Emission" messages if the HDi Diesel engine is stopped (0 g/km CO2).
Operation / Energy flows
6. The HDi Diesel engine supplies the battery (as needed). 7. Arrow from left to right: the battery powers the electric motor (when the electric motor is operating). Arrow from right to left: the electric motor/generator recharges the battery (energy recovery phases).
8. The HDi Diesel engine drives the front wheels. 9. The electric motor drives the rear wheels.
Information on the HYbrid4 mode selected ( 1, 2 ), arrows for energy flows ( 6 to 9 ) and the state of charge of the high voltage battery ( 4 ), is displayed in real time in the instrument panel screen or the touch screen. See the "Trip computer" section.
Display of fl ows in the touch screen
Vehicle infrastructure
3. HDi Diesel engine. 4. State of charge of the high voltage battery. 5. Electric Motor/Generator.

10
Hybrid4 system
508HY-comp_en_Chap00b_hybrid_ed01-2016

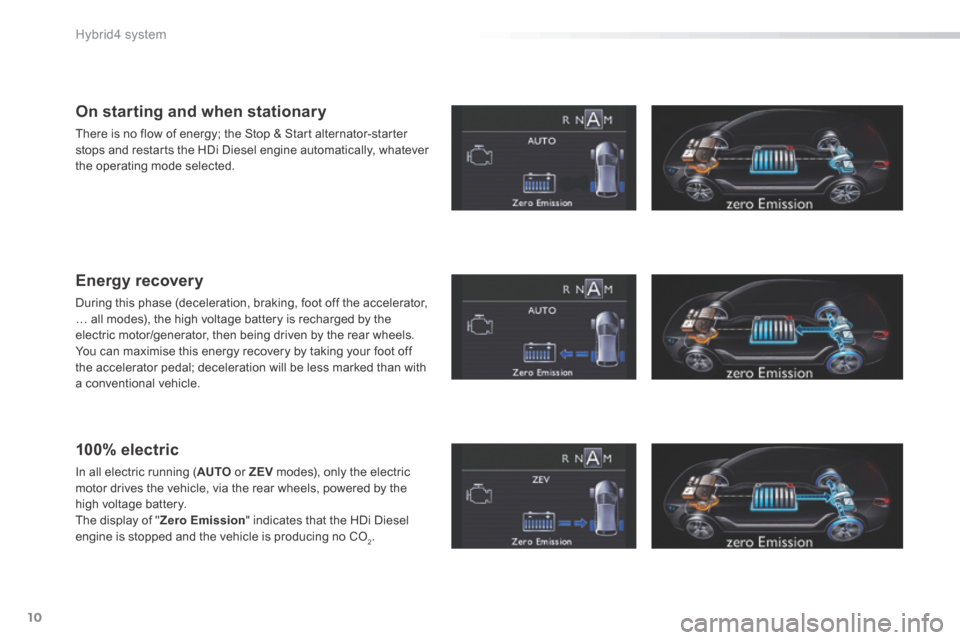

On starting and when stationary
There is no flow of energy; the Stop & Start alternator-starter stops and restarts the HDi Diesel engine automatically, whatever the operating mode selected.
Energy recovery
During this phase (deceleration, braking, foot off the accelerator, … all modes), the high voltage battery is recharged by the electric motor/generator, then being driven by the rear wheels. You can maximise this energy recovery by taking your foot off the accelerator pedal; deceleration will be less marked than with a conventional vehicle.
100% electric
In all electric running (AUTO or ZEV modes), only the electric motor drives the vehicle, via the rear wheels, powered by the high voltage battery. The display of " Zero Emission " indicates that the HDi Diesel
engine is stopped and the vehicle is producing no CO2.

11
.Hybrid4 system
508HY-comp_en_Chap00b_hybrid_ed01-2016

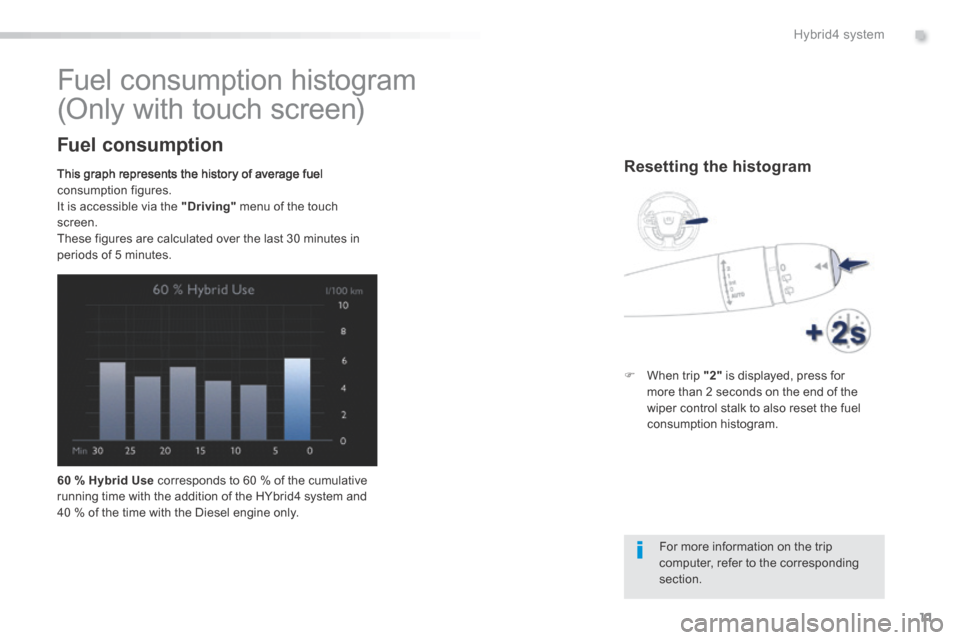

Fuel consumption histogram
(Only with touch screen)
This graph represents the history of average fuel consumption figures. It is accessible via the "Driving" menu of the touch screen.
These figures are calculated over the last 30 minutes in periods of 5 minutes.
R e s e t t i n g t h e h i s t o g r a m
 When trip "2" is displayed, press for more than 2 seconds on the end of the wiper control stalk to also reset the fuel consumption histogram.
For more information on the trip computer, refer to the corresponding section.
60 % Hybrid Use corresponds to 60 % of the cumulative running time with the addition of the HYbrid4 system and 40 % of the time with the Diesel engine only.
Fuel consumption

12
Hybrid4 system
508HY-comp_en_Chap00b_hybrid_ed01-2016

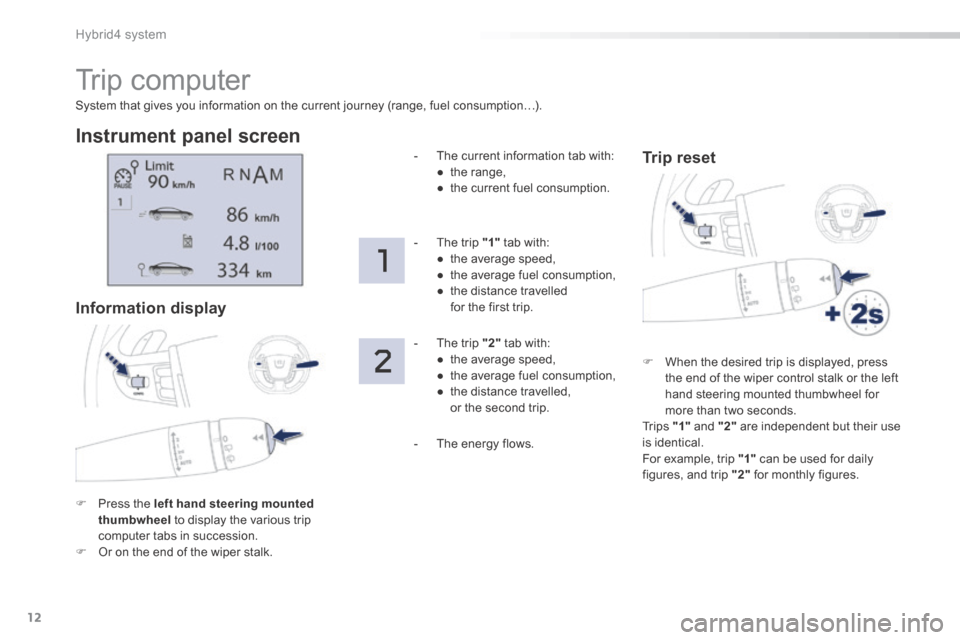

Trip computer
System that gives you information on the current journey (range, fuel consumption…).
Instrument panel screen
 Press the left hand steering mounted thumbwheel to display the various trip computer tabs in succession.  Or on the end of the wiper stalk.
Information display
- The current information tab with: ● t h e r a n g e , ● the current fuel consumption.
- The trip "1" tab with: ● the average speed, ● the average fuel consumption, ● the distance travelled for the first trip.
- The trip "2" tab with: ● the average speed, ● the average fuel consumption, ● the distance travelled, or the second trip.
 When the desired trip is displayed, press the end of the wiper control stalk or the left hand steering mounted thumbwheel for more than two seconds. Tr i p s "1" and "2" are independent but their use is identical. For example, trip "1" can be used for daily figures, and trip "2" for monthly figures.
Trip reset
- The energy flows.

13
.Hybrid4 system
508HY-comp_en_Chap00b_hybrid_ed01-2016

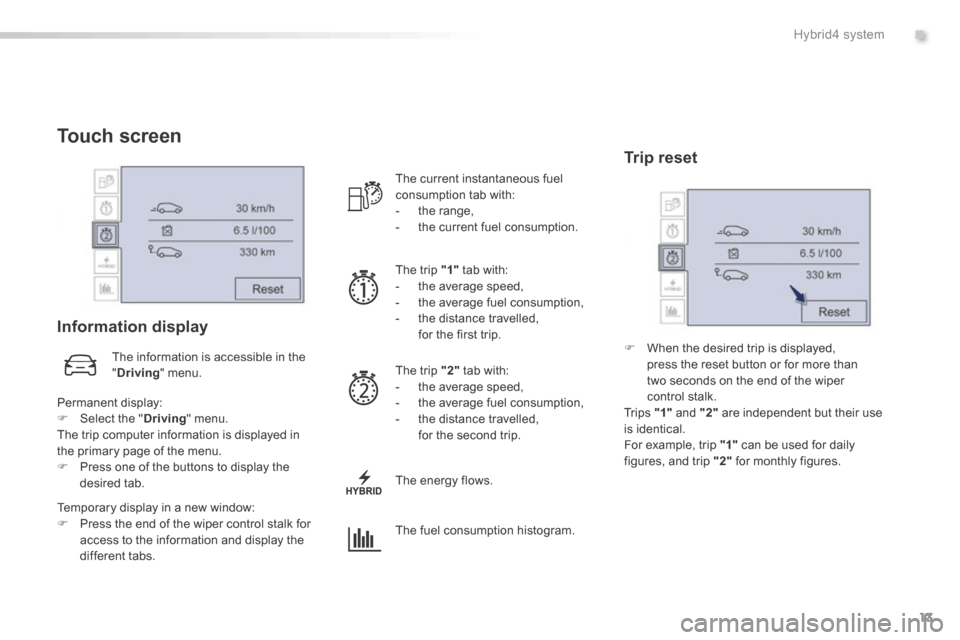

Touch screen
The information is accessible in the " Driving " menu.
Permanent display:  Select the " Driving " menu.
The trip computer information is displayed in the primary page of the menu.  Press one of the buttons to display the desired tab.
Temporary display in a new window:  Press the end of the wiper control stalk for access to the information and display the different tabs.
The current instantaneous fuel consumption tab with: - the range,
- the current fuel consumption.
The trip "1" tab with: - the average speed, - the average fuel consumption, - the distance travelled, for the first trip.
The trip "2" tab with: - the average speed, - the average fuel consumption, - the distance travelled, for the second trip.
 When the desired trip is displayed, press the reset button or for more than two seconds on the end of the wiper control stalk. Tr i p s "1" and "2" are independent but their use is identical.
For example, trip "1" can be used for daily figures, and trip "2" for monthly figures.
Information display
Trip reset
The energy flows.
The fuel consumption histogram.

14
Hybrid4 system
508HY-comp_en_Chap00b_hybrid_ed01-2016
Never leave children alone inside the vehicle when the HYbrid4 system is active.
The RE ADY can come on after a RE ADY can come on after a RE ADYfew seconds if the HYbrid4 system is activated after going into energy economy mode.

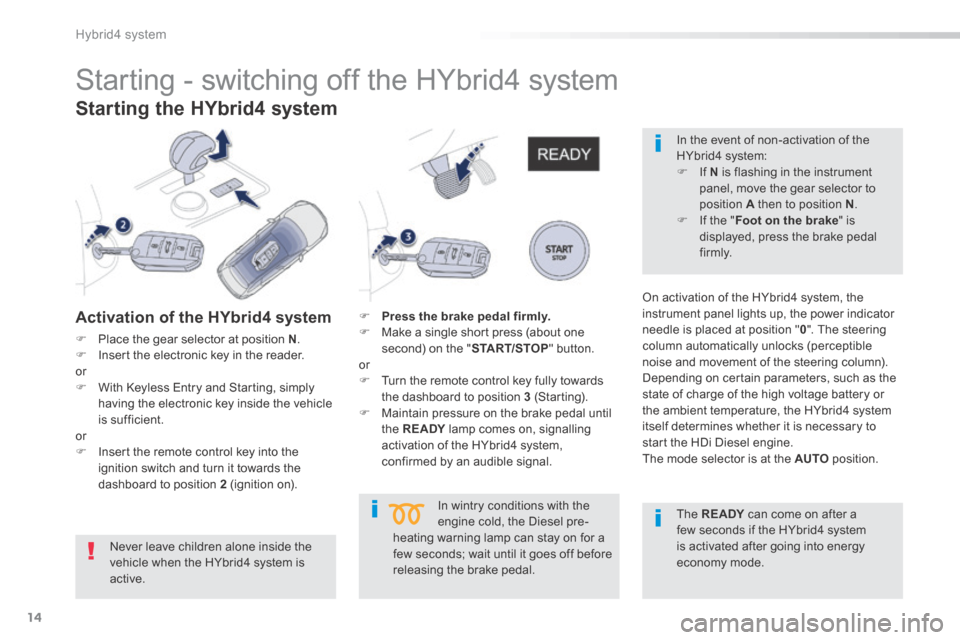

Starting - switching off the HYbrid4 system
Starting the HYbrid4 system
Activation of the HYbrid4 system
In wintry conditions with the engine cold, the Diesel pre-heating warning lamp can stay on for a few seconds; wait until it goes off before releasing the brake pedal.
In the event of non-activation of the HYbrid4 system:  If N is flashing in the instrument panel, move the gear selector to position A then to position N .  If the " Foot on the brake " is displayed, press the brake pedal f i r m l y.
 Place the gear selector at position N .  Insert the electronic key in the reader. or  With Keyless Entry and Starting, simply having the electronic key inside the vehicle is sufficient. or  Insert the remote control key into the ignition switch and turn it towards the dashboard to position 2 (ignition on).
 Press the brake pedal firmly. Make a single short press (about one second) on the " START/STOP " button. or  Turn the remote control key fully towards the dashboard to position 3 (Starting).  Maintain pressure on the brake pedal until the RE ADY lamp comes on, signalling RE ADY lamp comes on, signalling RE ADY
activation of the HYbrid4 system, confirmed by an audible signal.
On activation of the HYbrid4 system, the instrument panel lights up, the power indicator needle is placed at position " 0 ". The steering column automatically unlocks (perceptible noise and movement of the steering column). Depending on certain parameters, such as the state of charge of the high voltage battery or the ambient temperature, the HYbrid4 system itself determines whether it is necessary to
start the HDi Diesel engine. The mode selector is at the AUTO position.
