Peugeot 508 Hybrid 2016 Owner's Manual

15
.Hybrid4 system
508HY-comp_en_Chap00b_hybrid_ed01-2016
You can change the operating mode of the HYbrid4 system at any time using its mode selector. Driving in ZEV mode requires that particular conditions be met.

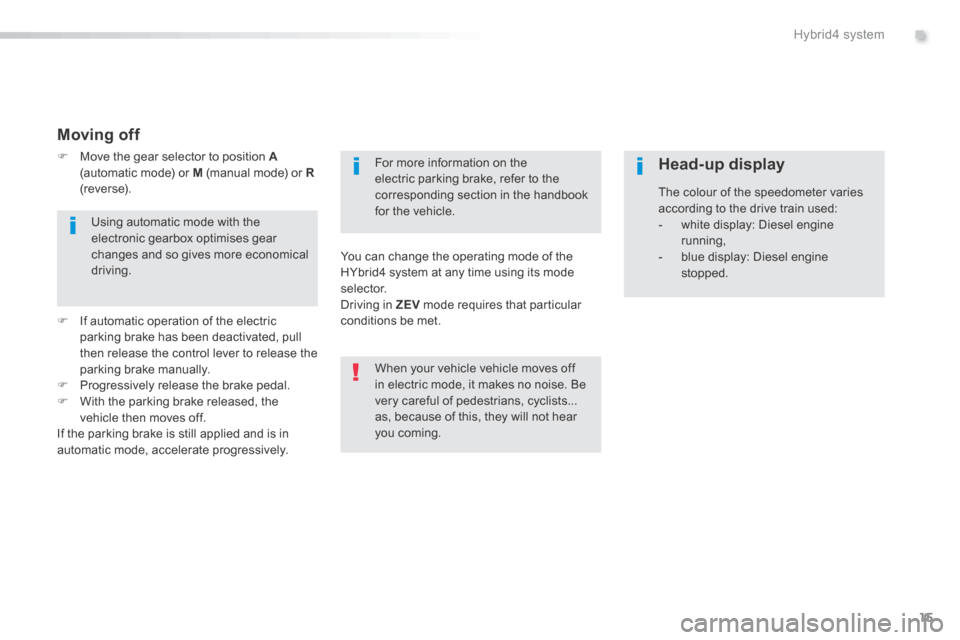

Moving off
 Move the gear selector to position A(automatic mode) or M (manual mode) or R(reverse).
For more information on the electric parking brake, refer to the corresponding section in the handbook for the vehicle.
When your vehicle vehicle moves off in electric mode, it makes no noise. Be very careful of pedestrians, cyclists... as, because of this, they will not hear you coming.
Using automatic mode with the
electronic gearbox optimises gear changes and so gives more economical driving.
 If automatic operation of the electric parking brake has been deactivated, pull then release the control lever to release the parking brake manually.  Progressively release the brake pedal.  With the parking brake released, the vehicle then moves off. If the parking brake is still applied and is in automatic mode, accelerate progressively.
Head-up display
The colour of the speedometer varies according to the drive train used: - white display: Diesel engine running, - blue display: Diesel engine stopped.

16
Hybrid4 system
508HY-comp_en_Chap00b_hybrid_ed01-2016

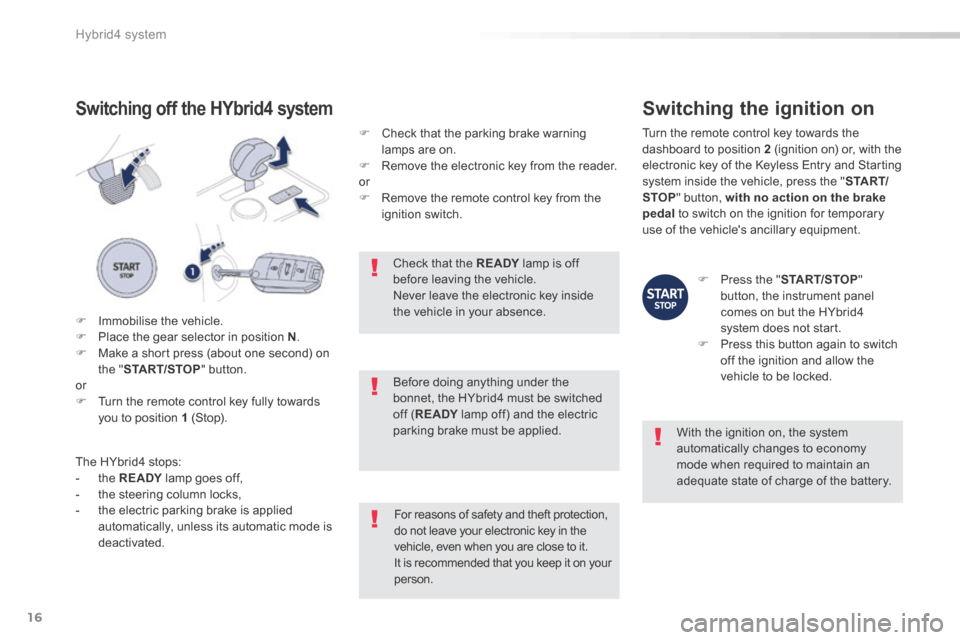

Switching the ignition on
Turn the remote control key towards the dashboard to position 2 (ignition on) or, with the electronic key of the Keyless Entry and Starting system inside the vehicle, press the " S TA R T/STOP " button, with no action on the brake pedal to switch on the ignition for temporary use of the vehicle's ancillary equipment.
 Press the " START/STOP " button, the instrument panel comes on but the HYbrid4 system does not start.  Press this button again to switch off the ignition and allow the vehicle to be locked.
With the ignition on, the system automatically changes to economy mode when required to maintain an adequate state of charge of the battery.
For reasons of safety and theft protection, do not leave your electronic key in the
vehicle, even when you are close to it. It is recommended that you keep it on your person.
Switching off the HYbrid4 system
 Immobilise the vehicle.  Place the gear selector in position N .  Make a short press (about one second) on the " START/STOP " button. or  Turn the remote control key fully towards you to position 1 (Stop).
Check that the RE ADY lamp is off RE ADY lamp is off RE ADYbefore leaving the vehicle. Never leave the electronic key inside the vehicle in your absence.
The HYbrid4 stops: - the RE ADY lamp goes off, RE ADY lamp goes off, RE ADY - the steering column locks, - the electric parking brake is applied automatically, unless its automatic mode is deactivated.
 Check that the parking brake warning lamps are on.  Remove the electronic key from the reader. or  Remove the remote control key from the ignition switch.
Before doing anything under the bonnet, the HYbrid4 must be switched off ( RE ADY lamp off) and the electric RE ADY lamp off) and the electric RE ADY
parking brake must be applied.

17
.Hybrid4 system
508HY-comp_en_Chap00b_hybrid_ed01-2016

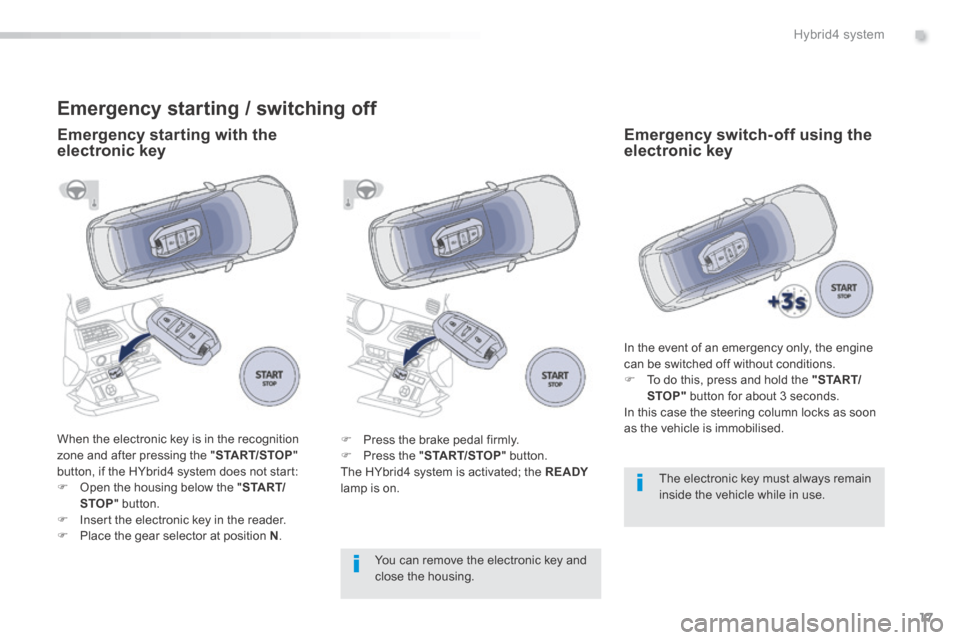

Emergency starting / switching off
Emergency starting with the electronic key Emergency switch-off using the electronic key
In the event of an emergency only, the engine can be switched off without conditions.  To do this, press and hold the " S TA R T/STOP" button for about 3 seconds. In this case the steering column locks as soon as the vehicle is immobilised.
The electronic key must always remain inside the vehicle while in use.
 Press the brake pedal firmly.  Press the "START/STOP " button. The HYbrid4 system is activated; the RE ADYlamp is on.
When the electronic key is in the recognition zone and after pressing the "START/STOP"button, if the HYbrid4 system does not start:  Open the housing below the "S TA R T/STOP" button.  Insert the electronic key in the reader.  Place the gear selector at position N .
You can remove the electronic key and close the housing.

18
Hybrid4 system
508HY-comp_en_Chap00b_hybrid_ed01-2016

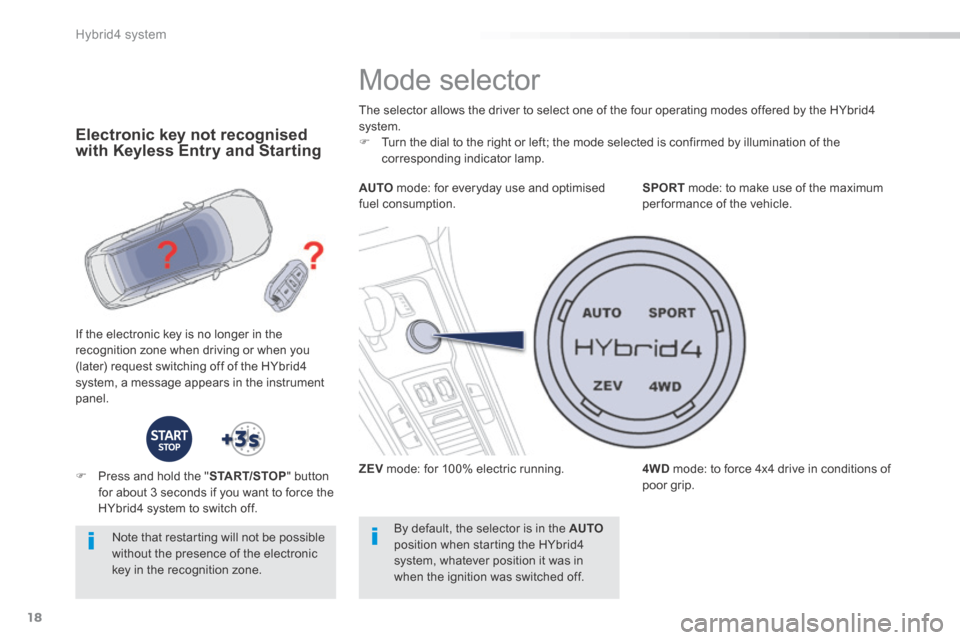

Mode selector
AUTO mode: for everyday use and optimised fuel consumption.
ZEV mode: for 100% electric running.
SPORT mode: to make use of the maximum per formance of the vehicle.
4WD mode: to force 4x4 drive in conditions of poor grip.
The selector allows the driver to select one of the four operating modes offered by the HYbrid4 system.  Turn the dial to the right or left; the mode selected is confirmed by illumination of the corresponding indicator lamp.
By default, the selector is in the AUTOposition when starting the HYbrid4 system, whatever position it was in when the ignition was switched off.
Electronic key not recognised with Keyless Entry and Starting
If the electronic key is no longer in the recognition zone when driving or when you (later) request switching off of the HYbrid4 system, a message appears in the instrument panel.
 Press and hold the " START/STOP " button for about 3 seconds if you want to force the HYbrid4 system to switch off.
Note that restarting will not be possible without the presence of the electronic key in the recognition zone.

19
.Hybrid4 system
508HY-comp_en_Chap00b_hybrid_ed01-2016

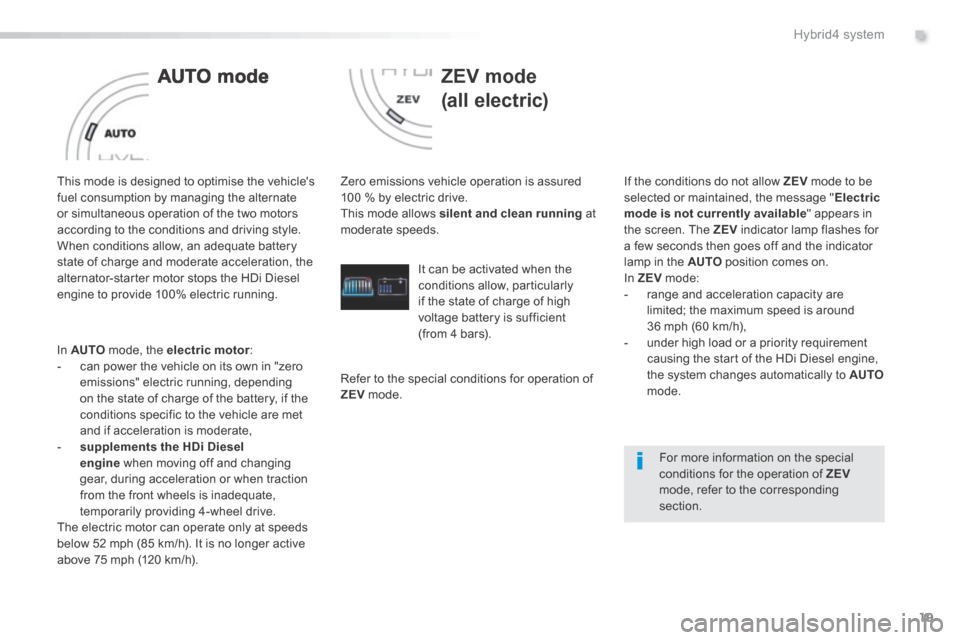

AUTO mode
This mode is designed to optimise the vehicle's fuel consumption by managing the alternate or simultaneous operation of the two motors according to the conditions and driving style. When conditions allow, an adequate battery state of charge and moderate acceleration, the alternator-starter motor stops the HDi Diesel engine to provide 100% electric running.
Z E V m o d e
(all electric)
Zero emissions vehicle operation is assured 100 % by electric drive. This mode allows silent and clean running at moderate speeds.
If the conditions do not allow ZEV mode to be selected or maintained, the message " Electric mode is not currently available " appears in the screen. The ZEV indicator lamp flashes for a few seconds then goes off and the indicator lamp in the AUTO position comes on. In ZEV mode: - range and acceleration capacity are limited; the maximum speed is around 36 mph (60 km/h), - under high load or a priority requirement causing the start of the HDi Diesel engine, the system changes automatically to AUTOmode.
For more information on the special conditions for the operation of ZEVmode, refer to the corresponding section.
It can be activated when the conditions allow, particularly if the state of charge of high voltage battery is sufficient (from 4 bars).
In AUTO mode, the electric motor : - can power the vehicle on its own in "zero emissions" electric running, depending on the state of charge of the battery, if the conditions specific to the vehicle are met
and if acceleration is moderate, - supplements the HDi Diesel engine when moving off and changing gear, during acceleration or when traction from the front wheels is inadequate, temporarily providing 4-wheel drive. The electric motor can operate only at speeds below 52 mph (85 km/h). It is no longer active above 75 mph (120 km/h).
Refer to the special conditions for operation of ZEV mode.

20
Hybrid4 system
508HY-comp_en_Chap00b_hybrid_ed01-2016

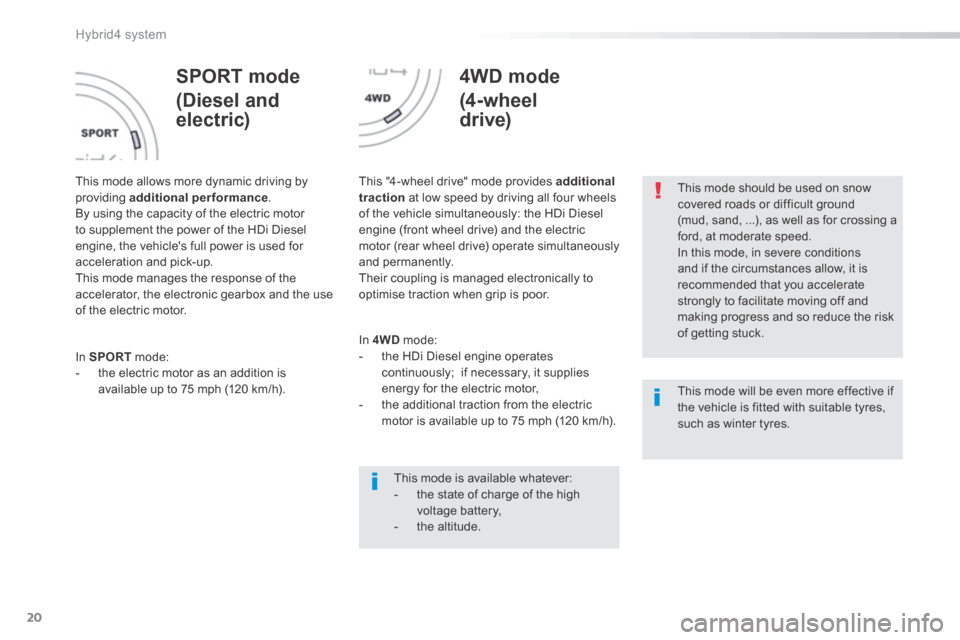

S P O R T m o d e
(Diesel and
electric)
This mode allows more dynamic driving by providing additional performance . By using the capacity of the electric motor to supplement the power of the HDi Diesel engine, the vehicle's full power is used for acceleration and pick-up. This mode manages the response of the accelerator, the electronic gearbox and the use of the electric motor.
4 W D m o d e
(4 - wheel
drive)
This "4-wheel drive" mode provides additional traction at low speed by driving all four wheels of the vehicle simultaneously: the HDi Diesel engine (front wheel drive) and the electric motor (rear wheel drive) operate simultaneously and permanently. Their coupling is managed electronically to optimise traction when grip is poor.
This mode should be used on snow covered roads or difficult ground (mud, sand, ...), as well as for crossing a ford, at moderate speed. In this mode, in severe conditions and if the circumstances allow, it is recommended that you accelerate strongly to facilitate moving off and making progress and so reduce the risk of getting stuck.
This mode will be even more effective if the vehicle is fitted with suitable tyres, such as winter tyres.
In 4WD mode: - the HDi Diesel engine operates continuously; if necessary, it supplies energy for the electric motor, - the additional traction from the electric motor is available up to 75 mph (120 km/h).
In SPORT mode: - the electric motor as an addition is available up to 75 mph (120 km/h).
This mode is available whatever: - the state of charge of the high voltage battery, - the altitude.

21
.Hybrid4 system
508HY-comp_en_Chap00b_hybrid_ed01-2016

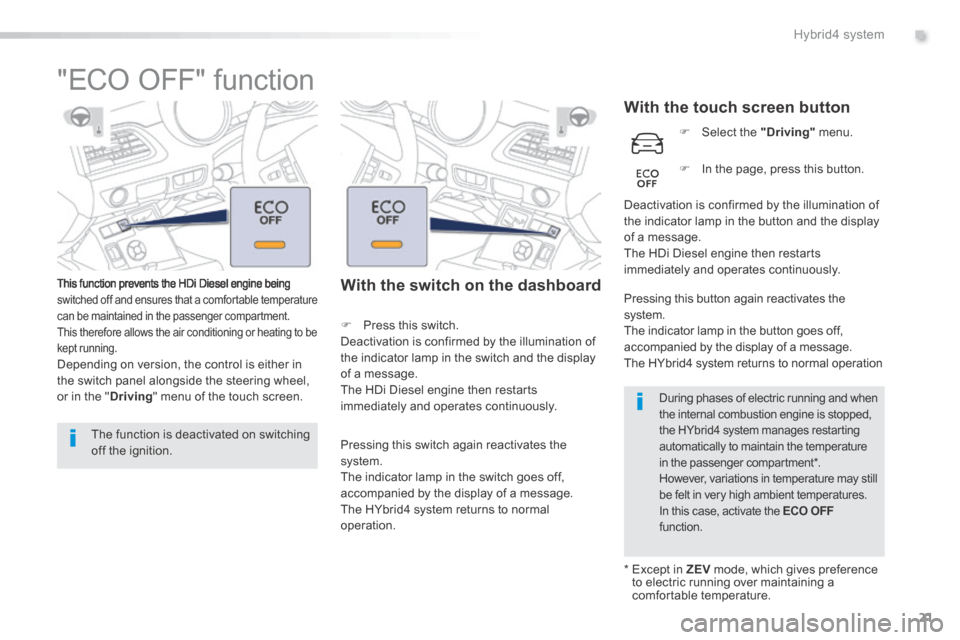

"ECO OFF" function
This function prevents the HDi Diesel engine being switched off and ensures that a comfortable temperature can be maintained in the passenger compartment. This therefore allows the air conditioning or heating to be kept running. Depending on version, the control is either in the switch panel alongside the steering wheel, or in the " Driving " menu of the touch screen.
The function is deactivated on switching off the ignition.
With the touch screen button
During phases of electric running and when the internal combustion engine is stopped,
the HYbrid4 system manages restarting automatically to maintain the temperature in the passenger compartment * . However, variations in temperature may still be felt in very high ambient temperatures. In this case, activate the ECO OFF function.
With the switch on the dashboard
Pressing this switch again reactivates the system. The indicator lamp in the switch goes off, accompanied by the display of a message. The HYbrid4 system returns to normal operation.
* Except in ZEV mode, which gives preference to electric running over maintaining a comfortable temperature.
Pressing this button again reactivates the system. The indicator lamp in the button goes off, accompanied by the display of a message. The HYbrid4 system returns to normal operation
 Press this switch. Deactivation is confirmed by the illumination of the indicator lamp in the switch and the display of a message. The HDi Diesel engine then restarts immediately and operates continuously.
 Select the "Driving" menu.
 In the page, press this button.
Deactivation is confirmed by the illumination of the indicator lamp in the button and the display of a message. The HDi Diesel engine then restarts immediately and operates continuously.

22
Hybrid4 system
508HY-comp_en_Chap00b_hybrid_ed01-2016

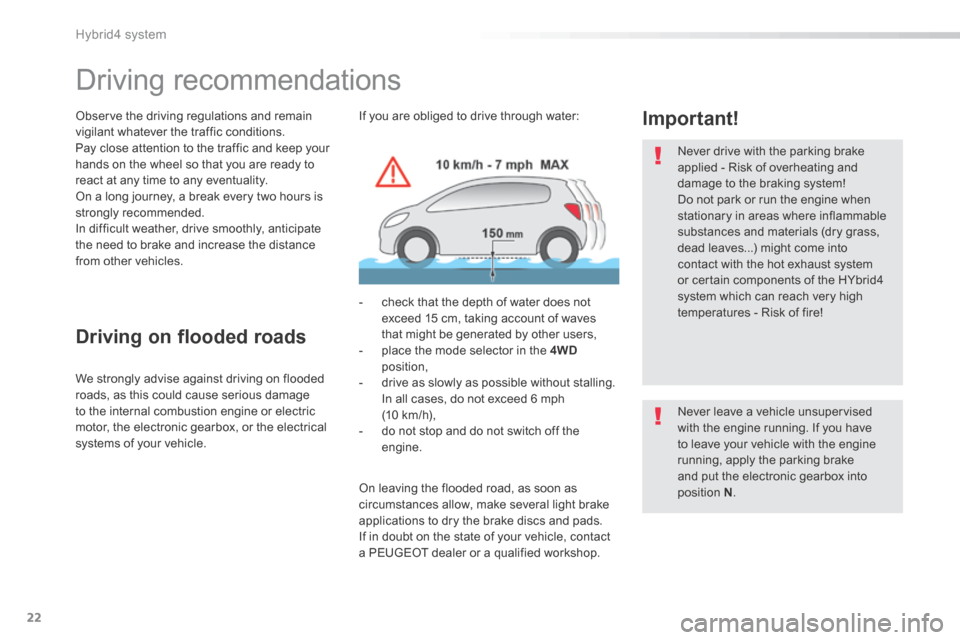

Driving recommendations
Observe the driving regulations and remain vigilant whatever the traffic conditions. Pay close attention to the traffic and keep your hands on the wheel so that you are ready to react at any time to any eventuality. On a long journey, a break every two hours is strongly recommended. In difficult weather, drive smoothly, anticipate the need to brake and increase the distance from other vehicles.
Driving on flooded roads
We strongly advise against driving on flooded roads, as this could cause serious damage to the internal combustion engine or electric motor, the electronic gearbox, or the electrical
systems of your vehicle.
- check that the depth of water does not exceed 15 cm, taking account of waves that might be generated by other users, - place the mode selector in the 4WDposition, - drive as slowly as possible without stalling. In all cases, do not exceed 6 mph (10 km/h),
- do not stop and do not switch off the engine.
On leaving the flooded road, as soon as circumstances allow, make several light brake applications to dry the brake discs and pads.
If in doubt on the state of your vehicle, contact a PEUGEOT dealer or a qualified workshop.
If you are obliged to drive through water: Important!
Never drive with the parking brake applied - Risk of overheating and damage to the braking system! Do not park or run the engine when stationary in areas where inflammable
substances and materials (dry grass, dead leaves...) might come into contact with the hot exhaust system or certain components of the HYbrid4 system which can reach very high temperatures - Risk of fire!
Never leave a vehicle unsupervised with the engine running. If you have to leave your vehicle with the engine running, apply the parking brake and put the electronic gearbox into position N .

23
.Hybrid4 system
508HY-comp_en_Chap00b_hybrid_ed01-2016

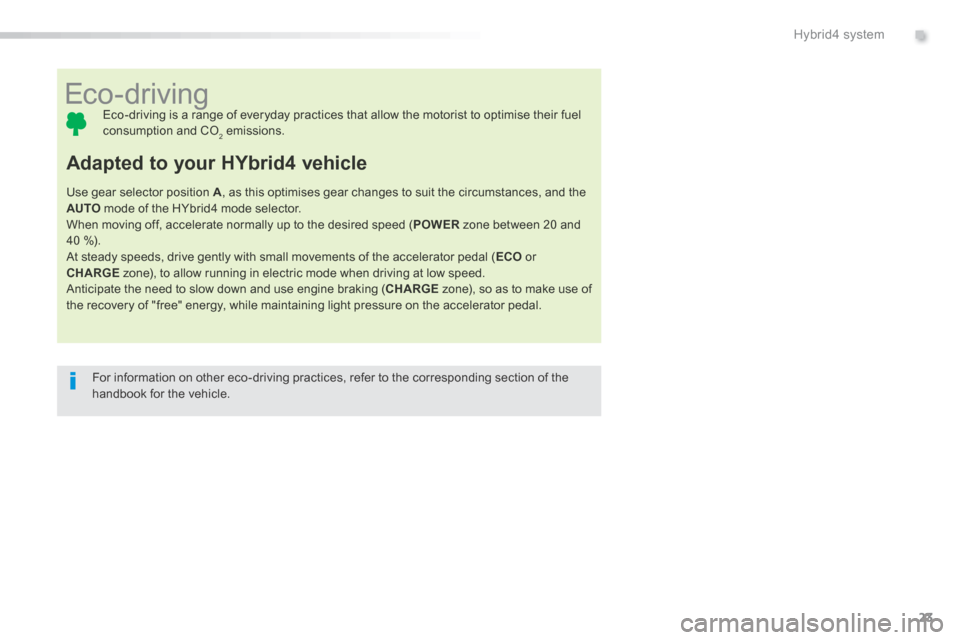

Eco-driving Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.
Adapted to your HYbrid4 vehicle
Use gear selector position A , as this optimises gear changes to suit the circumstances, and the AUTO mode of the HYbrid4 mode selector. When moving off, accelerate normally up to the desired speed ( POWER zone between 20 and 40 %). At steady speeds, drive gently with small movements of the accelerator pedal ( ECO or CHARGE zone), to allow running in electric mode when driving at low speed. Anticipate the need to slow down and use engine braking ( CHARGE zone), so as to make use of the recovery of "free" energy, while maintaining light pressure on the accelerator pedal.
For information on other eco-driving practices, refer to the corresponding section of the handbook for the vehicle.

24
Hybrid4 system
508HY-comp_en_Chap00b_hybrid_ed01-2016

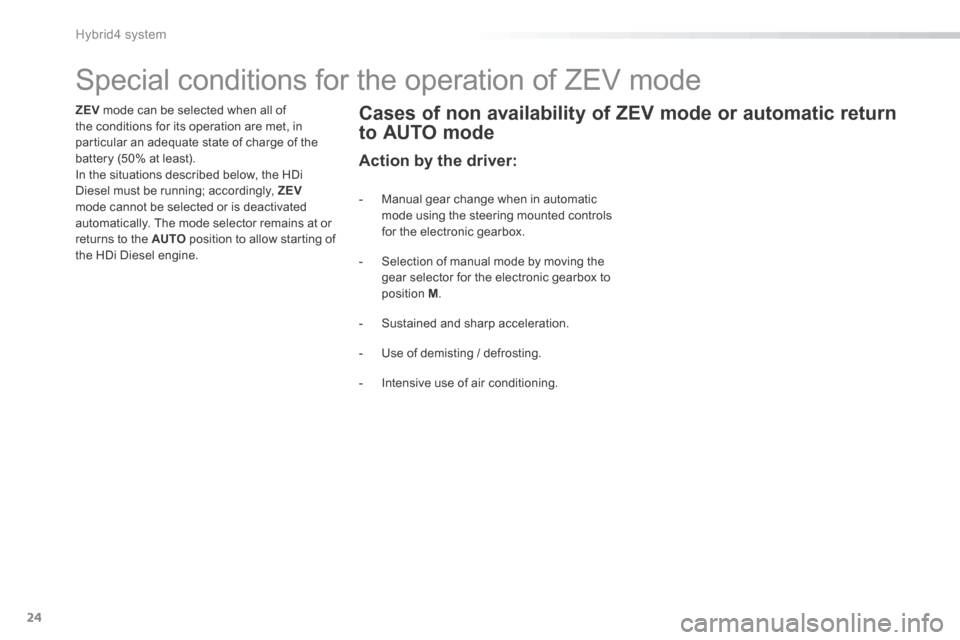

Special conditions for the operation of ZEV mode
ZEV mode can be selected when all of the conditions for its operation are met, in particular an adequate state of charge of the battery (50% at least). In the situations described below, the HDi Diesel must be running; accordingly, ZEVmode cannot be selected or is deactivated automatically. The mode selector remains at or returns to the AUTO position to allow starting of the HDi Diesel engine.
Cases of non availability of ZEV mode or automatic return
to AUTO mode
- Manual gear change when in automatic mode using the steering mounted controls
for the electronic gearbox.
- Selection of manual mode by moving the gear selector for the electronic gearbox to position M .
- Sustained and sharp acceleration.
- Use of demisting / defrosting.
- Intensive use of air conditioning.
Action by the driver:
