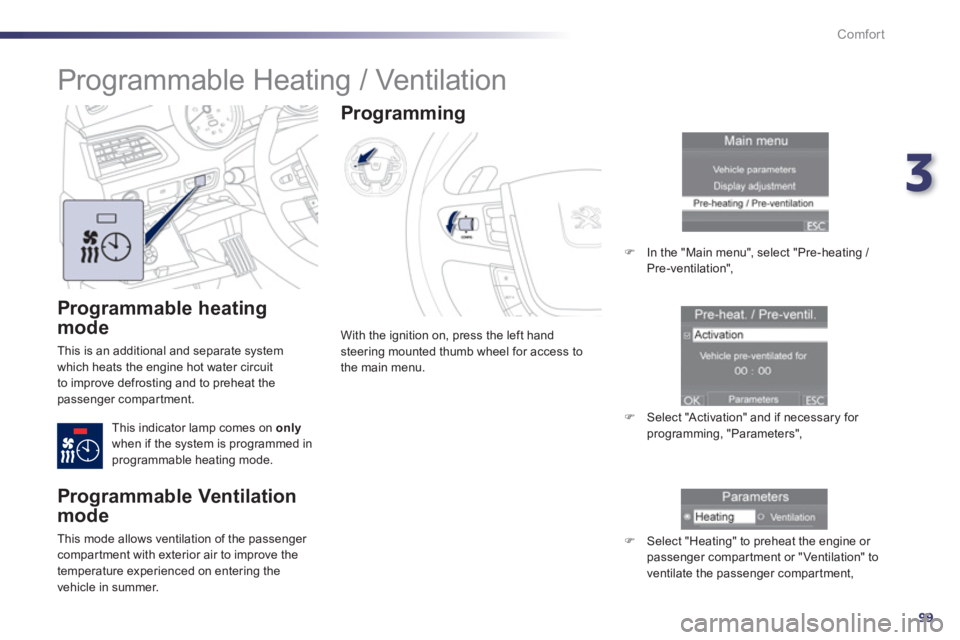

Comfort

Programmable heating
mode

This is an additional and separate system
which heats the engine hot water circuit
to improve defrosting and to preheat thepassenger compartment.
This indicator lam
p comes ononlywhen if the system is programmed inprogrammable heating mode. With the ignition on, press the le
ft hand
steering mounted thumb wheel for access to
the main menu.
Programming
) In the "Main menu", select "Pre-heating /
Pre-ventilation",
) Select "Activation" and if necessary for programming, "Parameters",

)
Select "Heating" to preheat the engine or passenger compar tment or "Ventilation" to
ventilate the passenger compartment,










Programmable Heating / Ventilation


Programmable Ventilation
mode

This mode allows ventilation of the passenger compartment with exterior air to improve the
temperature experienced on entering the
vehicle in summer.

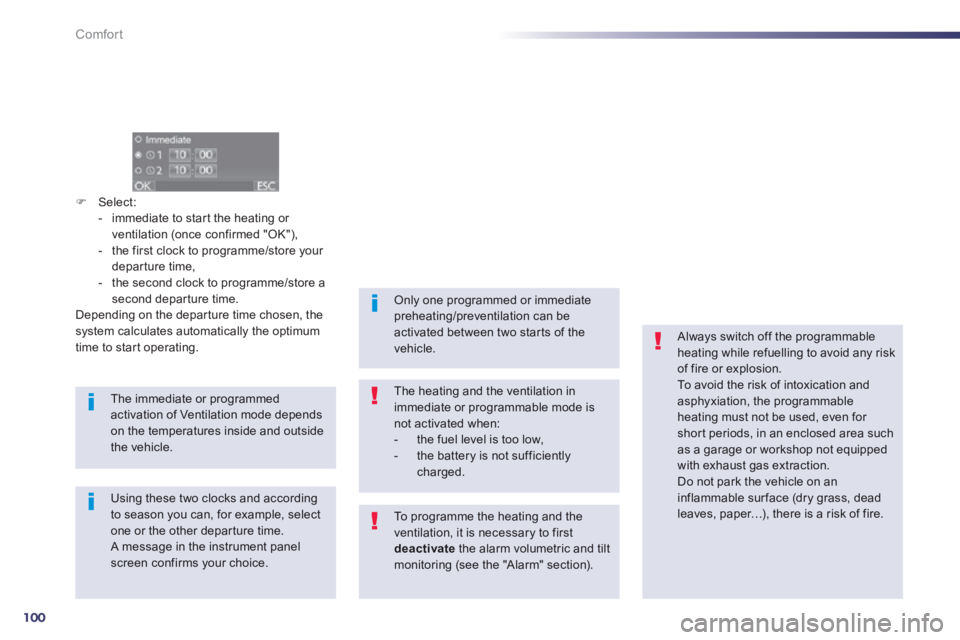

100
Comfort
)Select:
- immediate to star t the heating or
ventilation (once confirmed "OK"),
- the first clock to programme/store your departure time,
- the second clock to programme/store a
second depar ture time.

Depending on the depar ture time chosen, the system calculates automatically the optimum
time to star t operating.


The immediate or programmedactivation of Ventilation mode depends on the temperatures inside and outsidethe vehicle.


Always switch off the programmableheating while refuelling to avoid any riskof fire or explosion.
To avoid the risk of intoxication andasphyxiation, the programmable heating must not be used, even for shor t periods, in an enclosed area such as a garage or workshop not equipped with exhaust gas extraction.
Do not park the vehicle on an inflammable surface (dry grass, dead leaves, paper…), there is a risk of fire.


Using these two clocks and according to season you can, for example, select one or the other depar ture time. A message in the instrument panel screen confirms your choice.
Only one programmed or immediatepreheating/preventilation can beactivated between two starts of thevehicle.
The heating and the ventilation inimmediate or programmable mode isnot activated when: - the fuel level is too low,- the battery is not sufficientlycharged.
To p r ogramme the heating and the ventilation, it is necessary to firstdeactivate
the alarm volumetric and tiltmonitoring (see the "Alarm" section).

4
101
Driving











Starting-switching off the engine
With a manual gearbox
, put the gear lever in neutral.
With an electronic gear control gearbox, put the gear lever in N.
With an automatic gearbox
, put the gear lever in P
or N
.
)Inser t the key in the ignition switch. )Turn the key fully towards the dashboard toposition 3 (Starting).)When the engine star ts, release the key.


Starting using the key


Switching off using the key
)Immobilise the vehicle. )Turn the key fully towards you to position 1(Stop)
. )Remove the key from the ignition switch.

For Diesel vehicles, in very cold weather the engine will not star t until the pre-heater warning lamp has
gone off.


Key left in the ignition

If the key is left in the ignition switch,there is an audible signal on opening the driver's door.

If one of the star ting conditions is not met, a reminder message appears inthe instrument panel screen. In somecircumstances, it is necessary to turn the steering wheel slightly while pressing the "STA R T/STOP" button to assist unlocking of the steering; a message warns you when this is needed.


If the vehicle is not immobilised, theengine will not stop.)
With the electronic key inside the vehicle,
press the brake pedal on vehicles with
automatic or electronic
gear controlgearbox, or depress the clutch pedal fully
on vehicles with a manual gearbox and
maintain pressure until the engine star ts.
Starting using the electronic key
)Press the " STA R T/STOP"button.


Switching off using
the electronic key
)
Immobilise the vehicle.
)
With the electronic key inside
the vehicle, press the "START/
STOP"
button.
The en
gine stops and the steering column islocked.

Accessory position
With the electronic key inside the vehicle, press the "STA R T/STOP"button, with no action on the pedals, to switch the ignition on or off and so activate accessories.

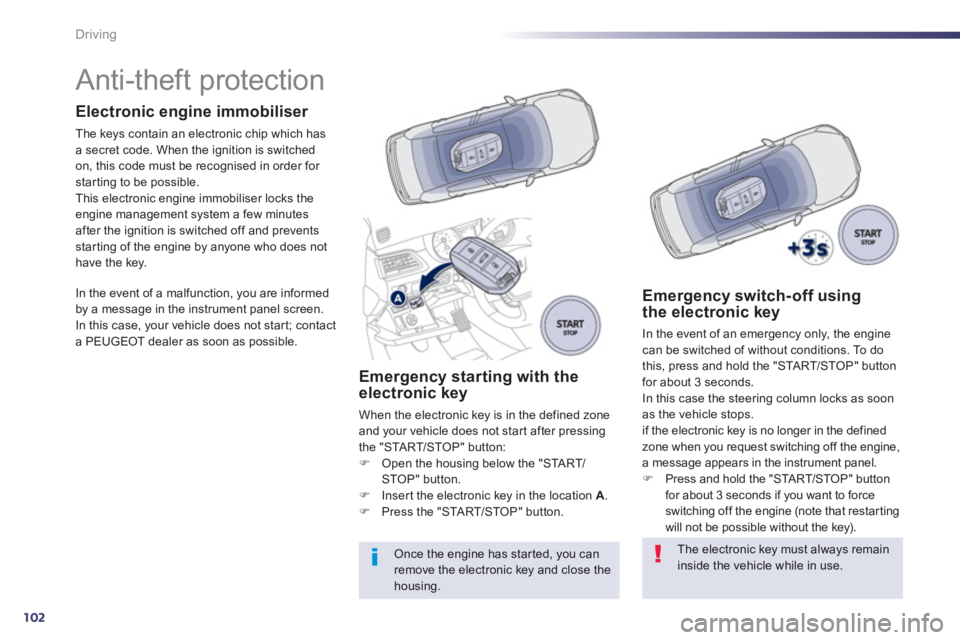

102
Driving











Anti-theft protection
Electronic engine immobiliser
The keys contain an electronic chip which has a secret code. When the ignition is switched
on, this code must be reco
gnised in order for starting to be possible.
This electronic engine immobiliser locks the
engine management system a few minutesafter the ignition is switched off and prevents starting of the engine by anyone who does nothave the key.
In the event o
f a malfunction, you are informed by a message in the instrument panel screen.In this case, your vehicle does not start; contacta PEUGEOT dealer as soon as possible.
Emergency starting with the electronic key
When the electronic key is in the defined zone
and your vehicle does not star t after pressing
the "STA R T/STOP" button: ) Open the housing below the "STA R T/STOP" button.)
Inser t the electronic key in the location A.)
Press the "STA R T/STOP" button.
Once the engine has started, you canremove the electronic key and close the housing.


Emergency switch- off using the electronic key

In the event of an emergency only, the engine can be switched of without conditions. To do
this, press and hold the "STA R T/STOP" button for about 3 seconds.
In this case the steering column locks as soon
as the vehicle stops.
if the electronic ke
y is no longer in the defined
zone when you request switching off the engine,
a message appears in the instrument panel. )Press and hold the "STA R T/STOP" button for about 3 seconds if you want to forceswitching off the engine (note that restarting
will not be possible without the key).



The electronic key must always remain inside the vehicle while in use.

4

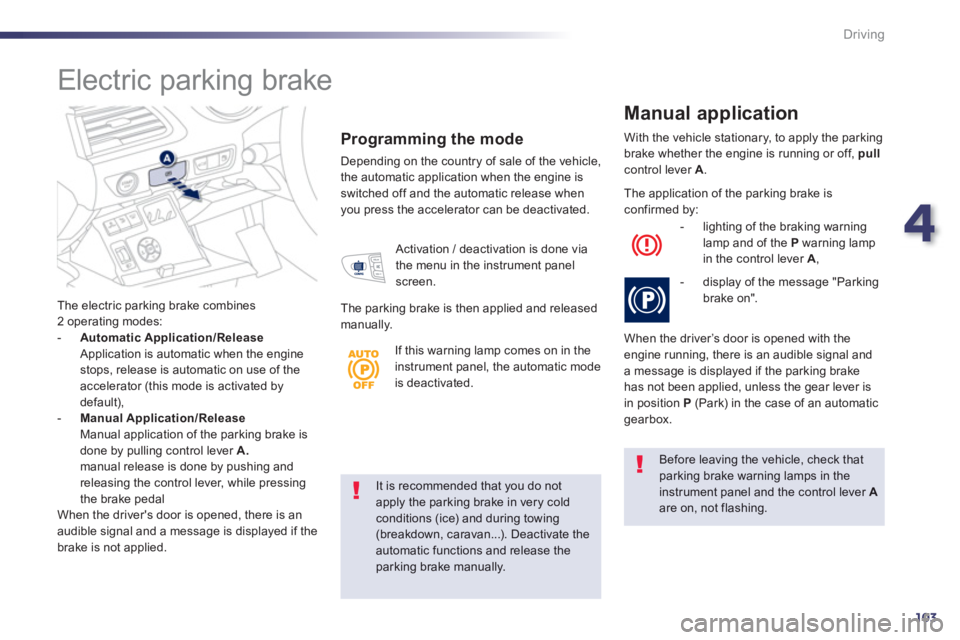

103
Driving
It is recommended that you do not apply the parking brake in very cold conditions (ice) and during towing
(breakdown, caravan...). Deactivate theautomatic functions and release theparking brake manually.



Before leaving the vehicle, check that parking brake warning lamps in the instrument panel and the control lever Aare on, not flashing.

The electric parking brake combines
2 operating modes:

-
Automatic Application/Release Application is automatic when the engine stops, release is automatic on use of the accelerator (this mode is activated by
default), -Manual Application/Release Manual application of the parking brake is done by pulling control lever A. manual release is done by pushing and releasing the control lever, while pressing
the brake pedal
When the driver's door is opened, there is an
audible si
gnal and a message is displayed if the
brake is not applied.

Programming the mode
Depending on the country of sale of the vehicle,
the automatic application when the engine is switched off and the automatic release whenyou press the accelerator can be deactivated. With the vehicle stationary, to apply the parking
brake whether the en
gine is running or off, pull
control lever A
.


Manual application
Activation / deactivation is done via
the menu in the instrument panel
screen.
The parkin
g brake is then applied and released
manually. The application o
f the parking brake isconfirmed by:


- li
ghting of the braking warning lamp and of the Pwarning lamp
in the control lever A,

- displa
y of the message "Parking brake on".
When the driver’s door is opened with the
engine running, there is an audible signal and
a message is displayed if the parking brake
has not been applied, unless the gear lever is in position P(Park) in the case of an automatic gearbox.








Electric parking brake
If this warning lamp comes on in the instrument panel, the automatic modeis deactivated.

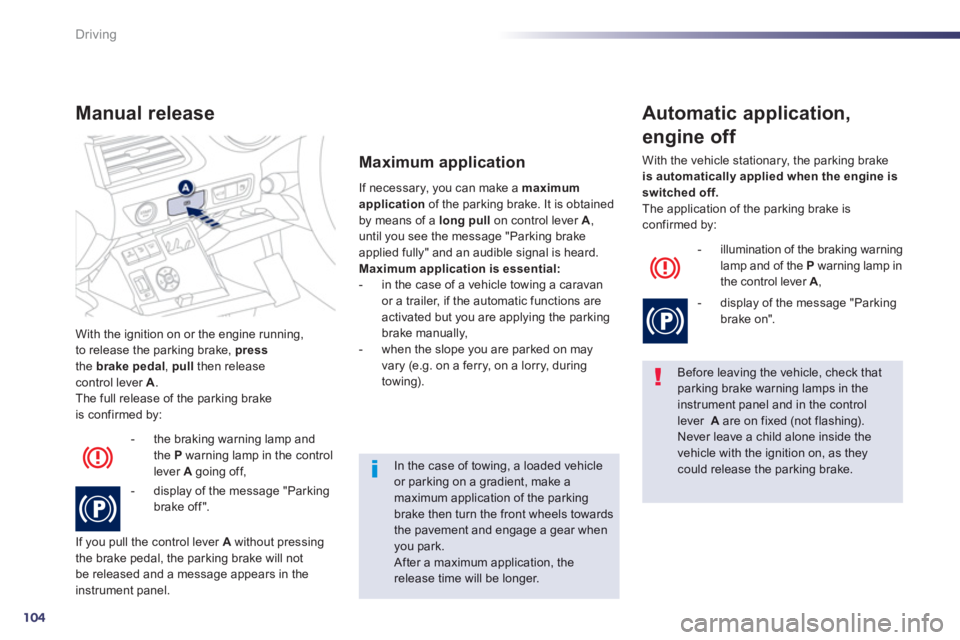

104
Driving
With the ignition on or the engine running,
to release the parking brake, pressthe brakepedal
, pullthen releasecontrol lever A
.
The full release of the parking brake
is confirmed by:
Manual release
- the braking warning lamp and
the P warning lamp in the controllever A
going off,
- displa
y of the message "Parking brake off".
I
f you pull the control lever Awithout pressing
the brake pedal, the parking brake will not
be released and a message appears in the
instrument panel. If necessar
y, you can make a maximum
applicationof the parking brake. It is obtained by means of a long pullon control lever A,
until you see the message "Parking brake
applied fully" and an audible signal is heard.Maximum application is essential:

- in the case of a vehicle towing a caravanor a trailer, if the automatic functions are
activated but you are applying the parkingbrake manually,

- when the slope you are parked on mayvary (e.g. on a ferry, on a lorry, during
towing).
Maximum application


Before leaving the vehicle, check that parking brake warning lamps in the instrument panel and in the control lever A
are on fixed (not flashing).

Never leave a child alone inside thevehicle with the ignition on, as they could release the parking brake.



Automatic application,
engine off



- illumination of the braking warning
lamp and of the Pwarning lamp in
the control lever A ,

- displa
y of the message "Parkingbrake on".
With the vehicle stationary, the parking brake is automatically applied when the engine is
switched off. The application of the parking brake is confirmed by:
In the case of towing, a loaded vehicleor parking on a gradient, make amaximum application of the parkingbrake then turn the front wheels towards the pavement and engage a gear whenyou park.
After a maximum application, the release time will be longer.

4

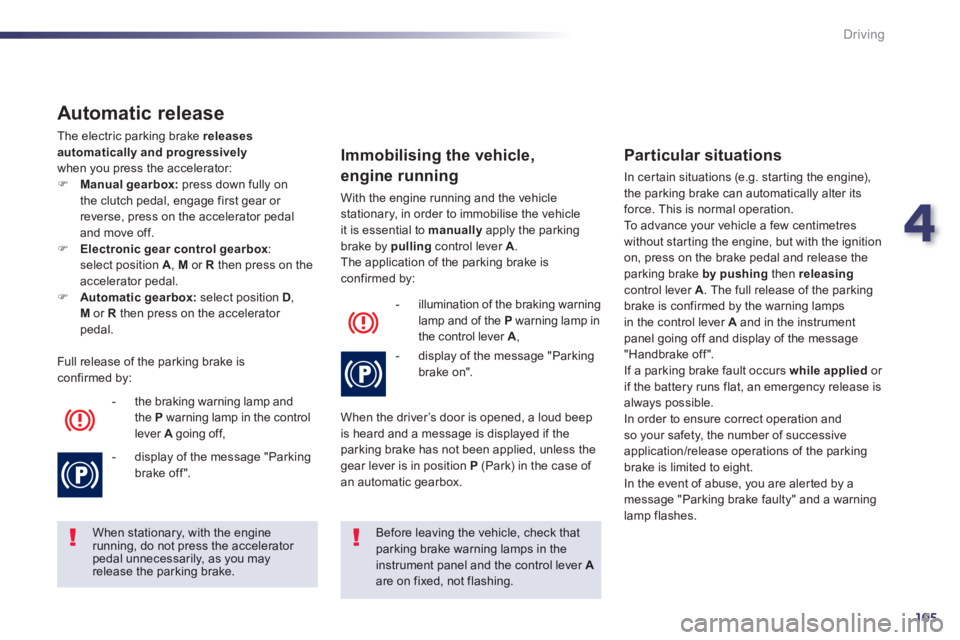

105
Driving

Automatic release

The electric parking brake releases automatically and progressively
when you press the accelerator:)Manual gearbox:
press down fully on
the clutch pedal, engage first gear or reverse, press on the accelerator pedaland move off.)Electronic gear control gearbox : select position A
, M
or Rthen press on theaccelerator pedal. ) Automatic gearbox:select position D , Mor R
then press on the accelerator pedal.
Full release o
f the parking brake is confirmed by:
- the braking warning lamp and
th
e P warning lamp in the control
lever Agoing off, A
- display of the message "Parking brake off".


When stationary, with the engine running, do not press the accelerator pedal unnecessarily, as you may release the parking brake.
Before leaving the vehicle, check thatparking brake warning lamps in theinstrument panel and the control lever Aare on fixed, not flashing.


Immobilising the vehicle,
engine running
With the engine running and the vehicle
stationary, in order to immobilise the vehicle it is essential to manually
apply the parking
brake by pulling
control lever A.
The application of the parking brake is confirmed by:


- illumination o
f the braking warning
lamp and of the Pwarning lamp in
the control lever A ,

- displa
y of the message "Parkingbrake on".
When the driver’s door is opened, a loud beep
is heard and a message is displayed if theparking brake has not been applied, unless thegear lever is in position P (Park) in the case of an automatic gearbox.

Particular situations

In cer tain situations (e.g. star ting the engine),
the parking brake can automatically alter itsforce. This is normal operation.
To advance your vehicle a few centimetres
without star ting the engine, but with the ignition on, press on the brake pedal and release the
parking brake by pushing then releasingcontrol lever A
. The full release of the parking
brake is confirmed by the warning lamps in the control lever Aand in the instrument
panel going off and display of the message
"Handbrake off".
If a parking brake fault occurs while appliedor
if the battery runs flat, an emergency release is
always possible.
In order to ensure correct operation and
so your safety, the number of successive
application/release operations of the parking brake is limited to eight.
In the event of abuse, you are aler ted by a
message "Parking brake faulty" and a warning
lamp flashes.

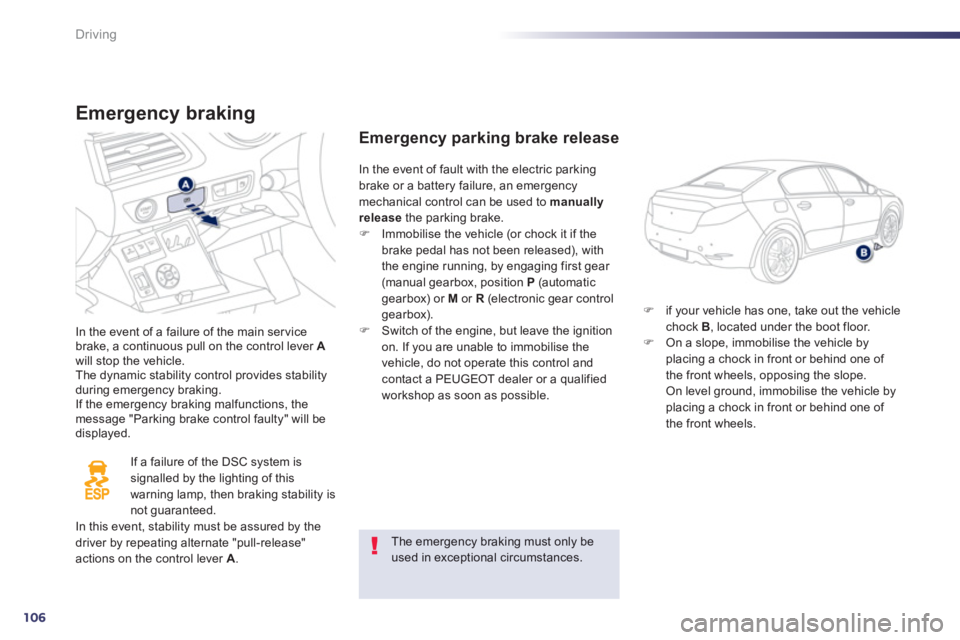

106
Driving
Emergency braking
In the event of a failure of the main servicebrake, a continuous pull on the control lever Awill stop the vehicle.The dynamic stability control provides stability during emergency braking.
If the emergency braking malfunctions, themessage "Parking brake control faulty" will be displayed.

If a failure of the DSC s
ystem is
signalled by the lighting of this
warning lamp, then braking stability is
not guaranteed.In this event, stability must be assured by thedriver by repeating alternate "pull-release" actions on the control lever A.
Emergency parking brake release
)if your vehicle has one, take out the vehicle chock B , located under the boot floor. )On a slope, immobilise the vehicle byplacing a chock in front or behind one of
the front wheels, opposing the slope. On level ground, immobilise the vehicle byplacing a chock in front or behind one of
the front wheels.
In the event o
f fault with the electric parkingbrake or a battery failure, an emergencymechanical control can be used to manually
releasethe parking brake.) Immobilise the vehicle (or chock it if the
brake pedal has not been released), with
the engine running, by engaging first gear (manual gearbox, position P(automatic gearbox) or M or R(electronic gear control
gearbox). ) Switch of the engine, but leave the ignition on. If you are unable to immobilise the
vehicle, do not operate this control and
contact a PEUGEOT dealer or a qualified
workshop as soon as possible.
The emergency braking must only be used in exceptional circumstances.

4

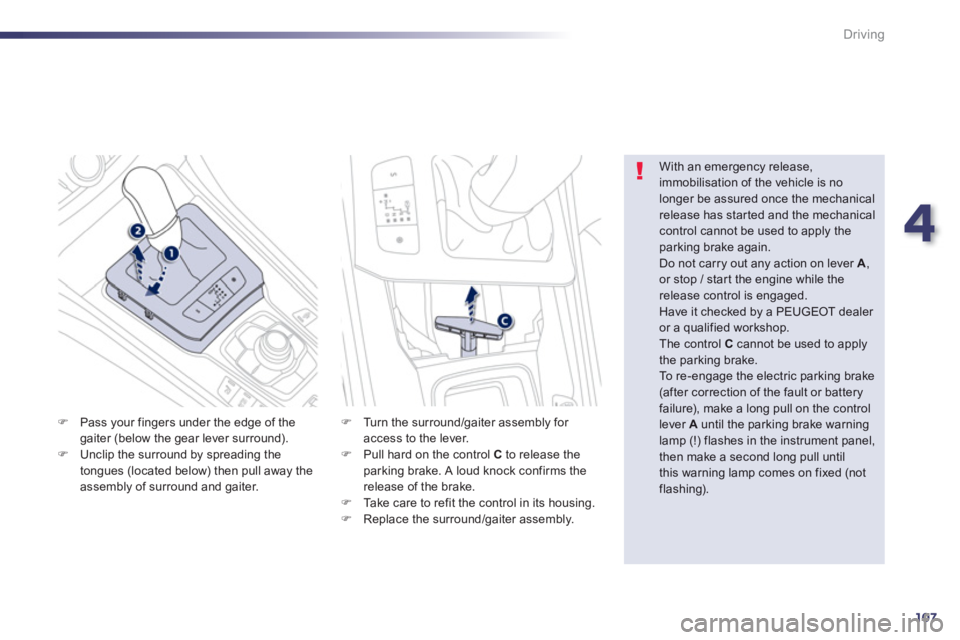

107
Driving
)Pass your fingers under the edge of thegaiter (below the gear lever surround).)Unclip the surround by spreading the
tongues (located below) then pull away theassembly of surround and gaiter.


With an emergency release,immobilisation of the vehicle is nolonger be assured once the mechanical release has started and the mechanical
control cannot be used to apply theparking brake again.
Do not carry out any action on lever A , or stop / star t the engine while therelease control is engaged.
Have it checked by a PEUGEOT dealer or a qualified workshop.
The control C
cannot be used to apply the parking brake.
To r e - e ngage the electric parking brake(after correction of the fault or batteryfailure), make a long pull on the controllever A
until the parking brake warninglamp (!) flashes in the instrument panel, then make a second long pull until this warning lamp comes on fixed (not flashing).
)
Turn the surround/gaiter assembly for access to the lever.)
Pull hard on the control C
to release theparking brake. A loud knock confirms the release of the brake. )
Take care to refit the control in its housing. )
Replace the surround/gaiter assembly.

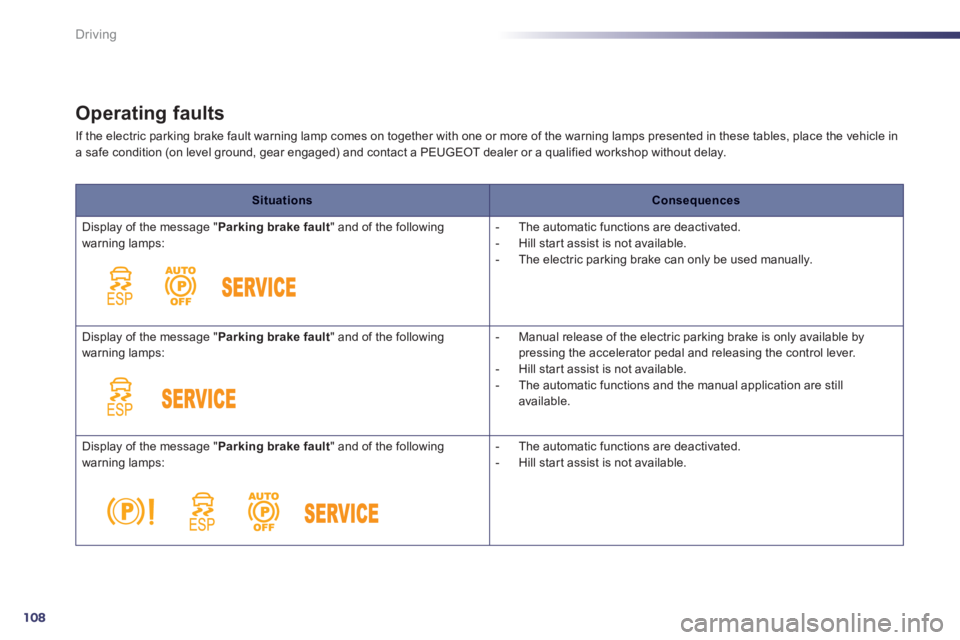

108
Driving
Operating faults
If the electric parking brake fault warning lamp comes on together with one or more of the warning lamps presented in these tables, place the vehicle ina safe condition (on level ground, gear engaged) and contact a PEUGEOT dealer or a qualified workshop without delay.
SituationsConsequences
Displa
y of the message "Parking brake fault" and of the following
warning lamps:

- The automatic functions are deactivated.

- Hill start assist is not available.

- The electric parking brake can only be used manually.
Displa
y of the message "Parking brake fault" and of the following
warning lamps:

- Manual release of the electric parking brake is only available by pressing the accelerator pedal and releasing the control lever.

- Hill start assist is not available.

- The automatic functions and the manual application are still available.
Displa
y of the message "Parking brake fault" and of the following
warning lamps:

- The automatic functions are deactivated.

- Hill start assist is not available.
