Access

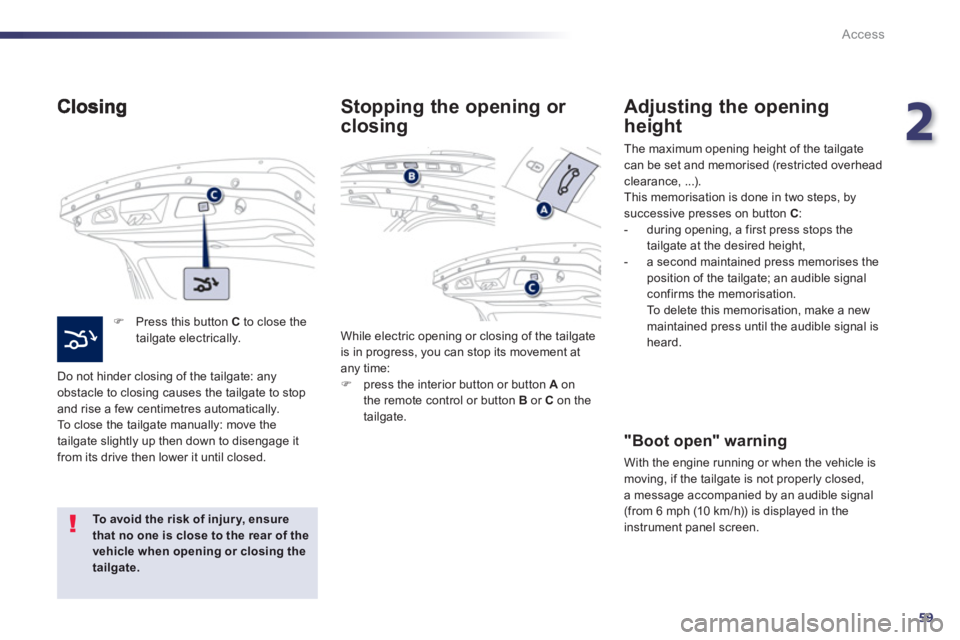

) Press this button Cto close thetailgate electrically.
Do not hinder closin
g of the tailgate: any
obstacle to closing causes the tailgate to stop
and rise a few centimetres automatically.
To close the tailgate manually: move the
tailgate slightly up then down to disengage it
from its drive then lower it until closed.
To avoid the risk of injury, ensure
that no one is close to the rear of thevehicle when opening or closing thetailgate.
While electric opening or closing of the tailgateis in progress, you can stop its movement atany time:)
press the interior button or button A
on
the remote control or button Bor C
on thetailgate.

Stopping the opening or
closing
Ad
justing the opening
height

The maximum opening height of the tailgate can be set and memorised (restricted overheadclearance, ...).
This memorisation is done in two steps, by
successive presses on button C:


- during opening, a first press stops the
tailgate at the desired height,

- a second maintained press memorises the
position of the tailgate; an audible signal confirms the memorisation.
To delete this memorisation, make a newmaintained press until the audible signal isheard.
"Boot open" warning
With the engine running or when the vehicle is
moving, if the tailgate is not properly closed,
a message accompanied by an audible signal
(from 6 mph (10 km/h)) is displayed in the
instrument panel screen.

60
Access

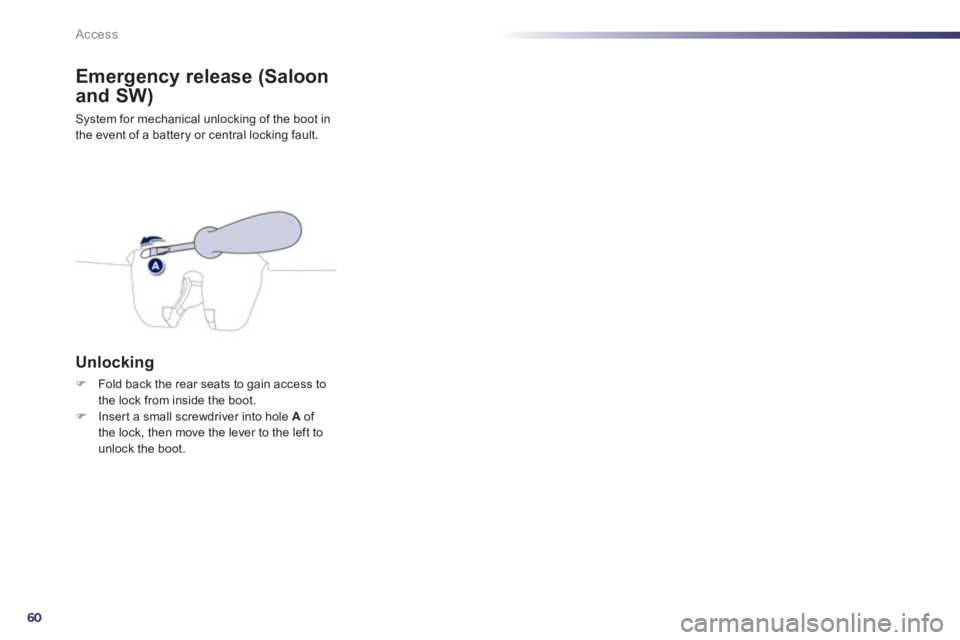

Emergency release (Saloon
and SW)
System for mechanical unlocking of the boot in
the event of a battery or central locking fault.
Unlocking
)Fold back the rear seats to gain access to
the lock from inside the boot.)Insert a small screwdriver into hole A of
the lock, then move the lever to the le
ft tounlock the boot.

2
61
Access

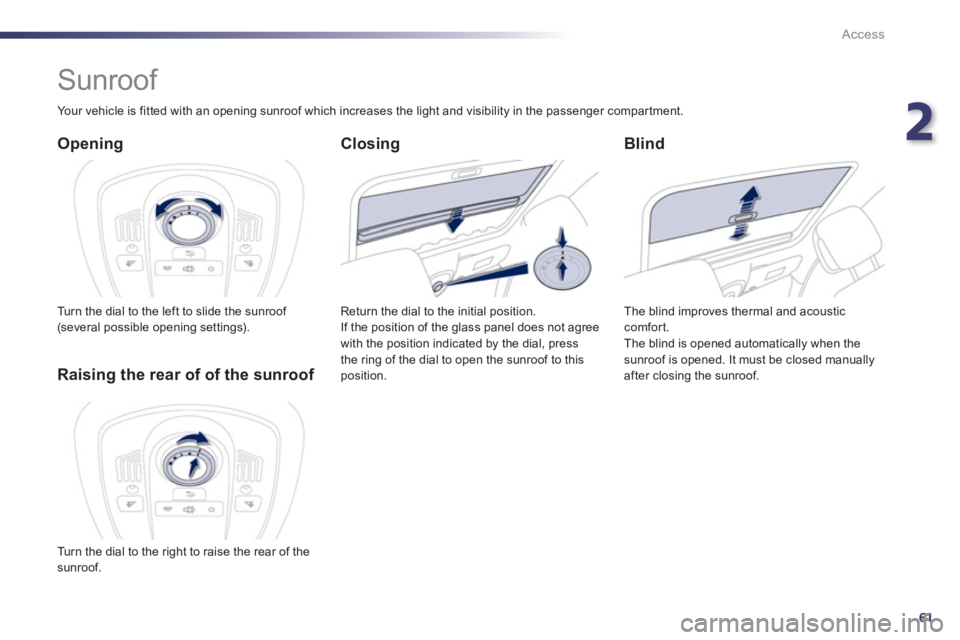

Sunroof


Opening

Turn the dial to the left to slide the sunroof (several possible opening settings).


Blind

The blind improves thermal and acoustic comfort.
The blind is opened automatically when the sunroof is opened. It must be closed manually
after closing the sunroof.

Raising the rear of of the sunroof

Your vehicle is fitted with an opening sunroof which increases the light and visibility in the passenger compartment.
Return the dial to the initial position.
If the position of the
glass panel does not agree with the position indicated by the dial, press
the ring of the dial to open the sunroof to thisposition.
Closing
Turn the dial to the right to raise the rear of the sunroof.

62
Access

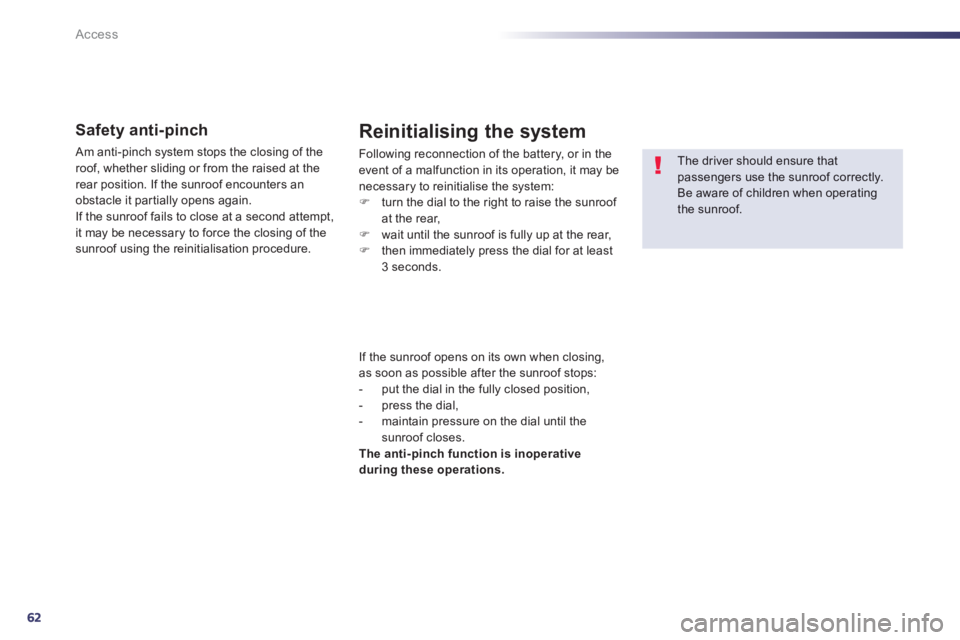

Safety anti-pinch
Am anti-pinch system stops the closing of the roof, whether sliding or from the raised at the rear position. If the sunroof encounters an
obstacle it par tially opens again.
If the sunroof fails to close at a second attempt,
it may be necessary to force the closing of thesunroof using the reinitialisation procedure.

Reinitialising the system


Following reconnection of the battery, or in the
event of a malfunction in its operation, it may be
necessary to reinitialise the system: ) turn the dial to the right to raise the sunroof
at the rear,
) wait until the sunroof is fully up at the rear,)
then immediately press the dial for at least3 seconds.


I
f the sunroof opens on its own when closing,
as soon as possible after the sunroof stops:


- put the dial in the full
y closed position,

- press the dial,

- maintain pressure on the dial until the
sunroof closes.The anti-pinch function is inoperative during these operations.

The driver should ensure that passengers use the sunroof correctly. Be aware of children when operatingthe sunroof.

2
63
Access

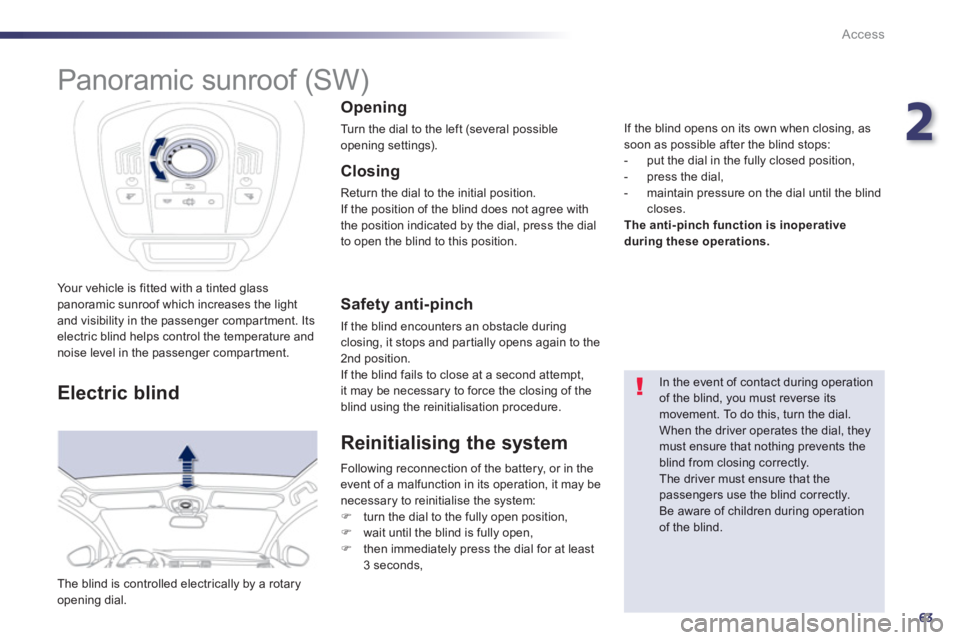

Your vehicle is fitted with a tinted glass panoramic sunroof which increases the light
and visibility in the passenger compartment. Itselectric blind helps control the temperature andnoise level in the passenger compartment.

The blind is controlled electrically by a rotaryopening dial.
Opening
Turn the dial to the left (several possible
opening settings).
Safety anti-pinch
If the blind encounters an obstacle during closing, it stops and par tially opens again to the 2nd position.
If the blind fails to close at a second attempt,
it may be necessary to force the closing of the blind using the reinitialisation procedure.
Closing
Return the dial to the initial position.
If the position of the blind does not agree with
the position indicated by the dial, press the dial
to open the blind to this position.

Electric blind

In the event of contact during operationof the blind, you must reverse its movement. To do this, turn the dial. When the driver operates the dial, theymust ensure that nothing prevents theblind from closing correctly.
The driver must ensure that the passengers use the blind correctly.
Be aware of children during operationof the blind.

Reinitialising the system
Following reconnection of the battery, or in the
event of a malfunction in its operation, it may be necessary to reinitialise the system: ) turn the dial to the fully open position,)
wait until the blind is fully open,
)
then immediately press the dial for at least3 seconds,
I
f the blind opens on its own when closing, assoon as possible after the blind stops:


- put the dial in the full
y closed position,

- press the dial,

- maintain pressure on the dial until the blind
closes.
The anti-pinch function is inoperative during these operations.




Panoramic sunroof (SW)

64
Access

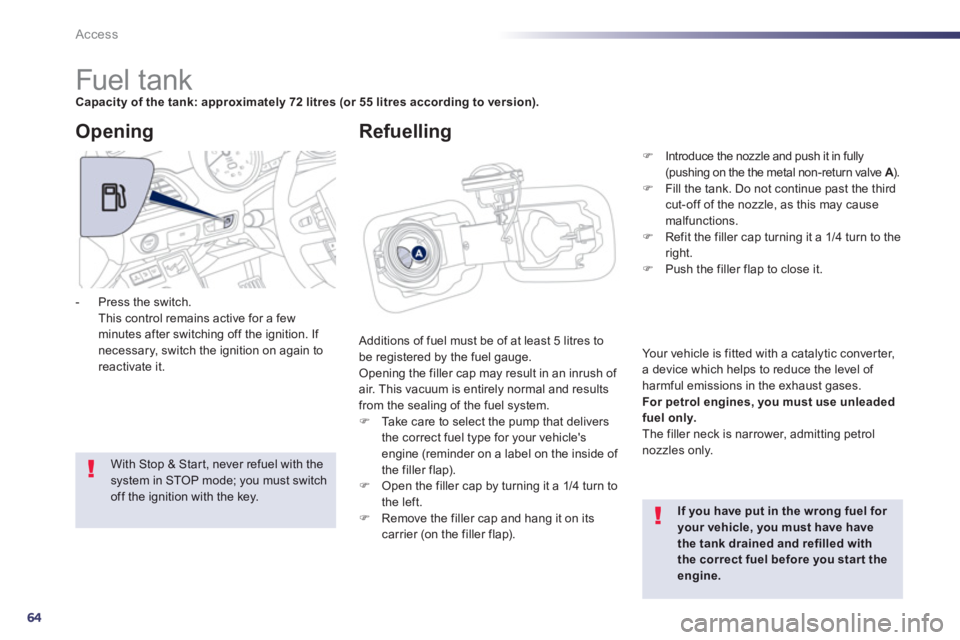

Fuel tank Capacity of the tank: approximately 72 litres(or 55 litres according to version).

Additions of fuel must be of at least 5 litres to be registered by the fuel gauge.
Opening the filler cap may result in an inrush of
air. This vacuum is entirely normal and results
from the sealing of the fuel system.) Take care to select the pump that delivers
the correct fuel type for your vehicle'sengine (reminder on a label on the inside of
the filler flap).) Open the filler cap by turning it a 1/4 turn to
the left. ) Remove the filler cap and hang it on its
carrier (on the filler flap).
Opening
If you have put in the wrong fuel for your vehicle, you must have have the tank drained and refilled with the correct fuel before you star t theengine.
With Stop & Star t, never refuel with the system in STOP mode; you must switch off the ignition with the key. - Pr
ess the switch.
This control remains active for a few minutes after switching off the ignition. If necessary, switch the ignition on again toreactivate it.



Refuelling
)Introduce the nozzle and push it in fully
(pushing on the the metal non-return valve A
). AA)Fill the tank. Do not continue past the thirdcut-off of the nozzle, as this may causemalfunctions. )Refit the filler cap turning it a 1/4 turn to the right. )Push the filler flap to close it.

Your vehicle is
fitted with a catalytic converter,
a device which helps to reduce the level of harmful emissions in the exhaust gases.
For petrol engines, you must useunleaded fuel only. The filler neck is narrower, admitting petrolnozzles only.

2
65
Access

Low fuel level
When the low fuel level in the
tank is reached, this warning lamp comes on in the instrument panel, accompanied by an audible warning and a message in the instrument panel screen.
When it first comes on, around 7 litres of fuel
r
emain in the tank.
You must refuel as soon as possible to avoid
runnin
g out.

Fuel supply cut-off

Your vehicle is equipped with a safety device
which cuts off the fuel supply in the event of a collision.


It is still possible to use a fuel can to fill
the tank but this must be done slowly. In order to ensure a good flow of fuel, do not place the nozzle of the fuel can in direct contact with the flap of themisfuel prevention device.


Diesel misfuel prevention
Mechanical device which prevents filling the tank of a Diesel vehicle with petrol. It avoids the risk of
engine damage that can result from filling with the wrong fuel.
Located in the filler neck, the misfuel prevention device appears when the filler cap is removed.
When a petrol
filler nozzle is introduced into the fuel filler neck of your Diesel vehicle, it comesinto contact with the flap. The system remains
closed and prevents filling. Do not persist but introduce a Diesel filler
nozzle.
Operation


Tr a v e l l i ng abroad
As Diesel fuel pump nozzles may be different
in other countries, the presence of the misfuel
prevention device may make refuellingimpossible.
Before travelling abroad, we recommend that you check with the PEUGEOT dealer network,
whether your vehicle is suitable for the fuel
pumps in the country in which you want to
travel.

66
DIESEL
Access

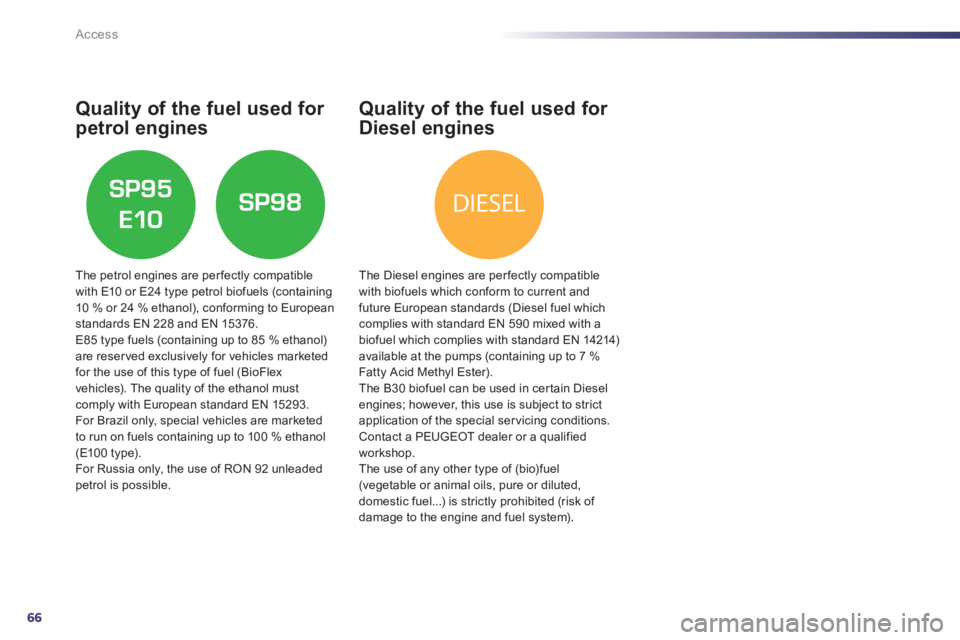

Quality of the fuel used for
petrol engines
The petrol engines are perfectly compatible
with E10 or E24 type petrol biofuels (containing10 % or 24 % ethanol), conforming to Europeanstandards EN 228 and EN 15376.
E85 type fuels (containing up to 85 % ethanol) are reserved exclusively for vehicles marketed
for the use of this type of fuel (BioFlex
vehicles). The quality of the ethanol mustcomply with European standard EN 15293.For Brazil only, special vehicles are marketed
to run on fuels containing up to 100 % ethanol (E10 0 t y p e).
For Russia only, the use of RON 92 unleaded petrol is possible.

Quality of the fuel used for
Diesel engines


The Diesel engines are perfectly compatible
with biofuels which conform to current andfuture European standards (Diesel fuel whichcomplies with standard EN 590 mixed with abiofuel which complies with standard EN 14214)available at the pumps (containing up to 7 %Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer tain Diesel engines; however, this use is subject to strict
application of the special ser vicing conditions.
Contact a PEUGEOT dealer or a qualified
workshop.
The use of any other type of (bio)fuel (vegetable or animal oils, pure or diluted,
domestic fuel...) is strictly prohibited (risk of
damage to the engine and fuel system).

3
67
Comfort

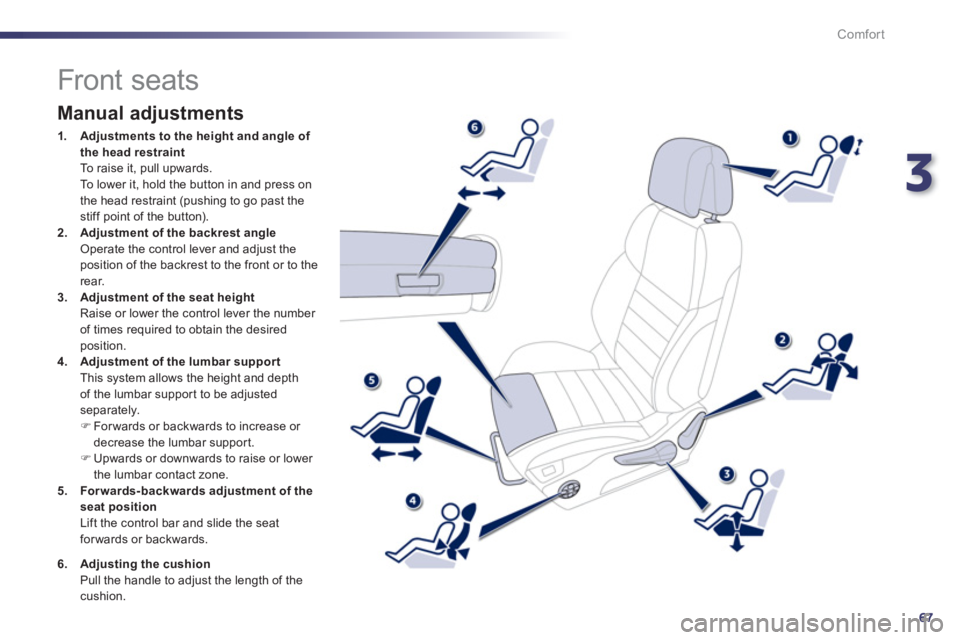

Front seats


Manual adjustments
1.Adjustments to the height and angle of
the head restraint
To raise it, pull upwards.
To lower it, hold the button in and press on
the head restraint (pushing to go past the stiff point of the button).2.Adjustment of the backrest angle Operate the control lever and adjust the position of the backrest to the front or to the rear. 3. Adjustment of the seat height Raise or lower the control lever the number
of times required to obtain the desiredposition.4.Adjustment of the lumbar support This system allows the height and depth
of the lumbar suppor t to be adjusted separately. )Forwards or backwards to increase or
decrease the lumbar suppor t.
)Upwards or downwards to raise or lower
the lumbar contact zone.
5.Forwards-backwards adjustment of the
seat position
Lift the control bar and slide the seatforwards or backwards.

6. Ad
justing the cushion
Pull the handle to adjust the length of the
cushion.

68
Comfort

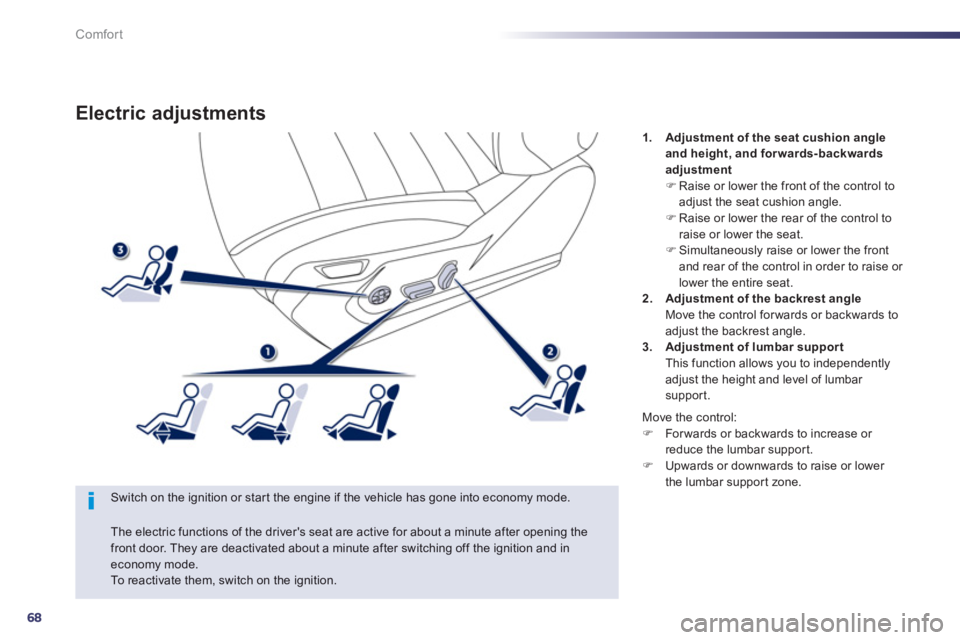

Electric adjustments
Switch on the ignition or star t the engine if the vehicle has gone into economy mode.
1.Adjustment of the seat cushion angleand height, and forwards-backwards
adjustment)Raise or lower the front of the control to adjust the seat cushion angle. )Raise or lower the rear of the control to raise or lower the seat.)Simultaneously raise or lower the frontand rear of the control in order to raise or lower the entire seat. 2.Adjustment of the backrest angle Move the control forwards or backwards to adjust the backrest angle. 3. Adjustment of lumbar support This function allows you to independentlyadjust the height and level of lumbar support.
The electric functions of the driver's seat are active for about a minute after opening the
front door. They are deactivated about a minute after switching off the ignition and in economy mode. To reactivate them, switch on the ignition.
M
ove the control:)Forwards or backwards to increase or reduce the lumbar suppor t. )Upwards or downwards to raise or lower
the lumbar suppor t zone.
