PEUGEOT 508 HYBRID DAG 2012 Owners Manual

269

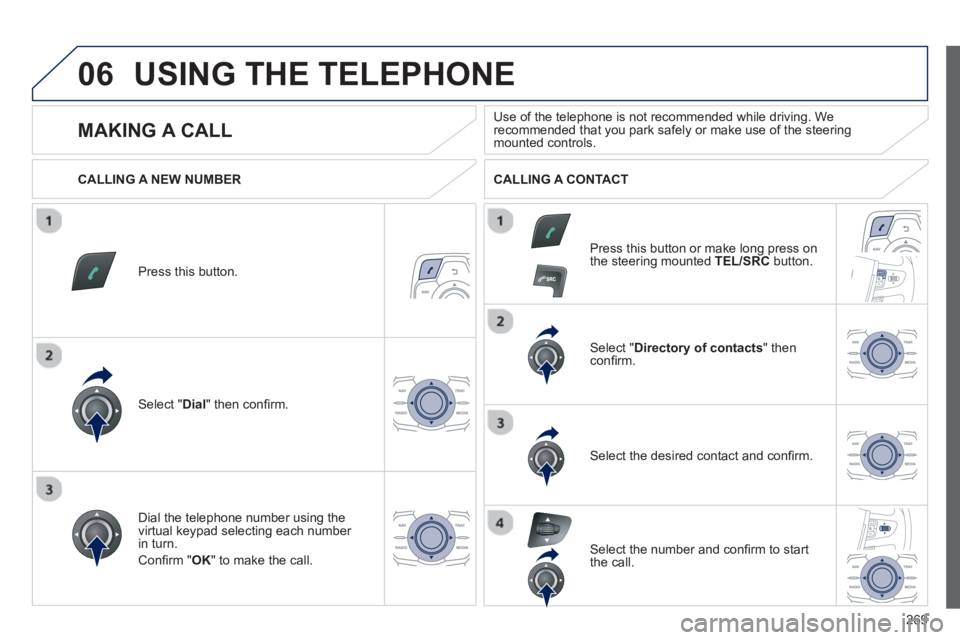

06USING THE TELEPHONE
Press this button.
Select " Dial" then confi rm.
Select " Directory of contacts" thenconfi rm.
Dial the telephone number using the
virtual ke
ypad selecting each number
in turn.
Con fi rm " OK " to make the call. Press this button or make lon
g press on
the steering mounted TEL/SRC button.
CALLING A NEW NUMBER
CALLING A CONTACT
Select the desired contact and con fi rm.
Select the number and con fi rm to start
the call.

MAKING A CALL Use of the telephone is not recommended while driving. Werecommended that you park safely or make use of the steering mounted controls.

270
06USING THE TELEPHONE

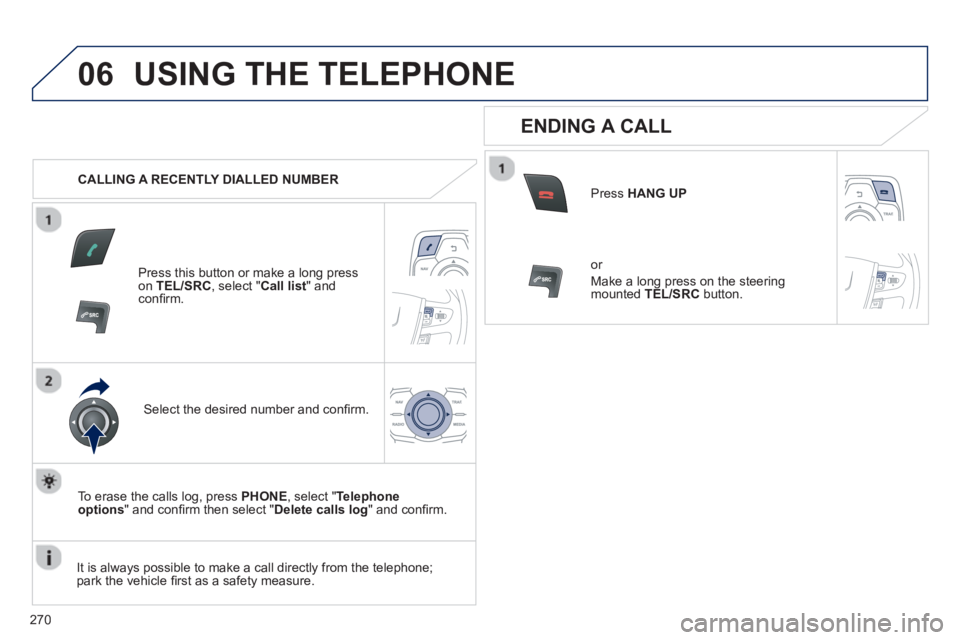

CALLING A RECENTLY DIALLED NUMBER
Press this button or make a long press on TEL/SRC, select "Call list" andconfi rm.
Select the desired number and confi rm.
To erase the calls lo
g, press PHONE , select " Telephoneoptions" and confi rm then select " Delete calls log " and con fi rm.

ENDING A CALL
Press HANG UP
or
Make a long press on the steeringmounted TEL/SRC button.
It is alwa
ys possible to make a call directly from the telephone;
park the vehicle fi rst as a safety measure.

271

06USING THE TELEPHONE

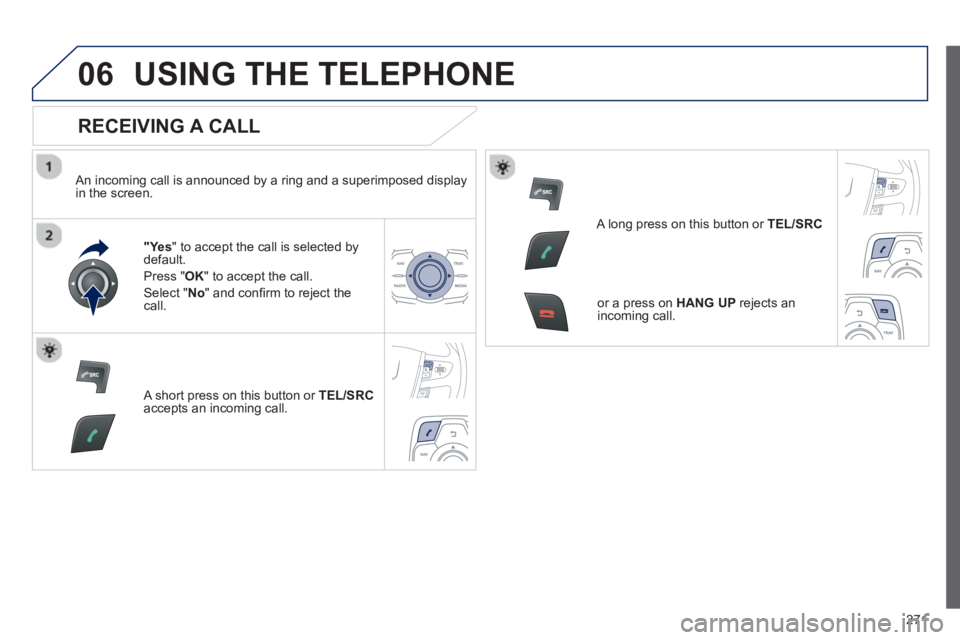

RECEIVING A CALL
An incoming call is announced by a ring and a superimposed displayin the screen.
"Ye s" to accept the call is selected bydefault.
Pr
ess " OK" to accept the call.
Select " No" and con fi rm to reject the call.

A short press on this button or TEL/SRC
accepts an incoming call.
A long press on this button or TEL/SRC
or a press on HANG UP
rejects anincoming call.

272

06

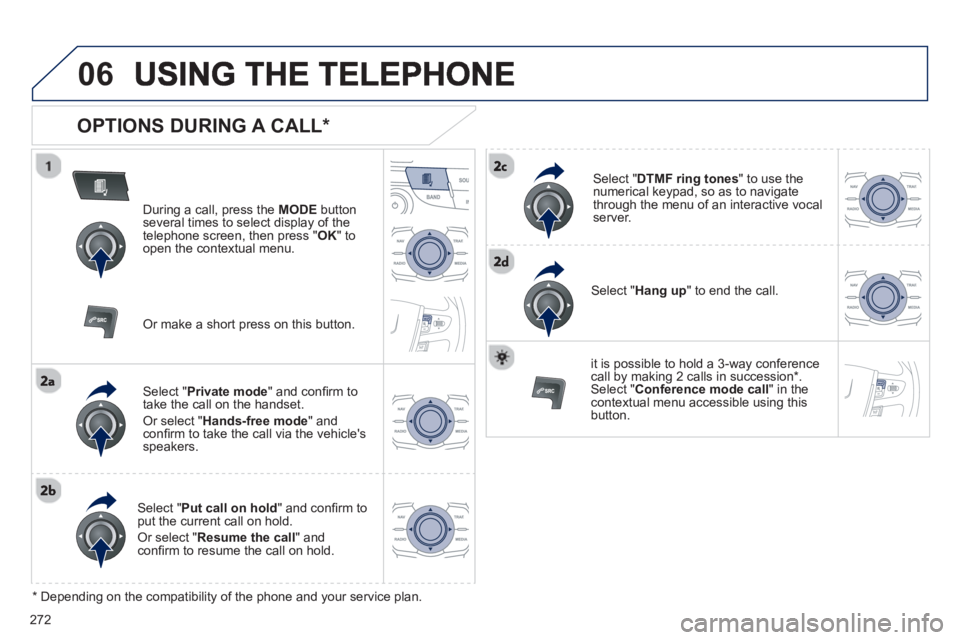

OPTIONS DURING A CALL *
During a call, press the MODE button
several times to select display of the
telephone screen, then press "
OK " to
open the contextual menu.
Select " Private mode " and confi rm totake the call on the handset.
Or select " Hands-free mode" andconfi rm to take the call via the vehicle's
speakers.
Select " Put call on hold" and confi rm to
put the current call on hold.
Or select " Resume the call " andconfi rm to resume the call on hold.
Select " DTMF ring tones
" to use thenumerical keypad, so as to navigate
through the menu of an interactive vocal server.

Select " Hang up " to end the call.
* Depending on the compatibility of the phone and your service plan. it is possible to hold a 3-wa
y conferencecall by making 2 calls in succession*. Select "
Conferencemode call " in the contextual menu accessible using thisbutton.
Or make a short press on this button.

273
06
Press this button.
Select " List of the paired peripherals"and confi rm.
It is possible to:
-
"Connect" or " Disconnect " theselected telephone,
- delete the pairin
g of the selected
telephone.
It is also possible to select all pairin
gs.

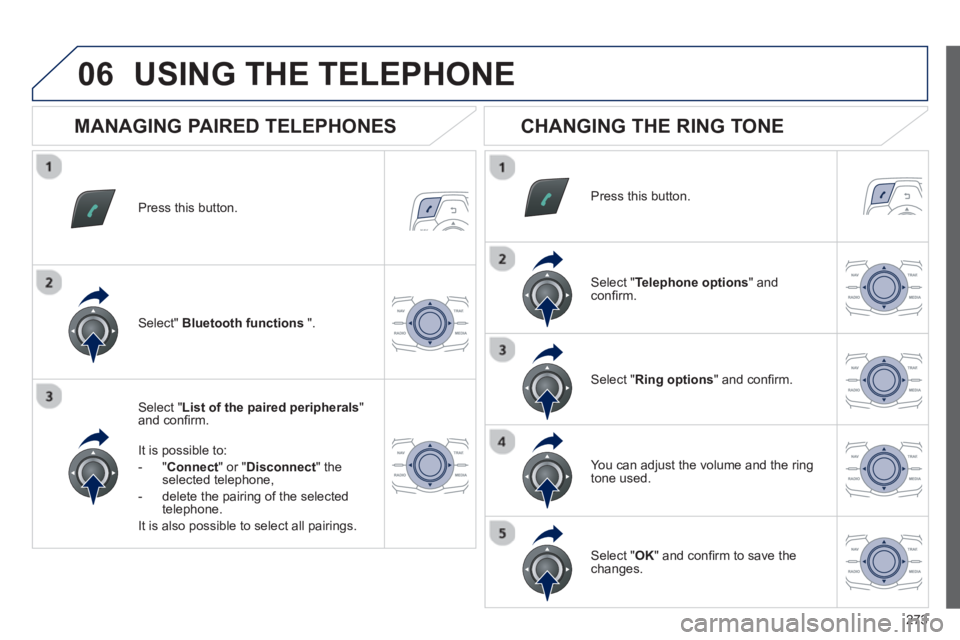

USING THE TELEPHONE

MANAGING PAIRED TELEPHONES
CHANGING THE RING TONE
Press this button.
Select " Telephone options" andconfi rm.
Select " Ring options " and confi rm.
You can ad
just the volume and the ring
tone used.
Select" Bluetooth functions".
Select " OK " and confi rm to save thechanges.

274

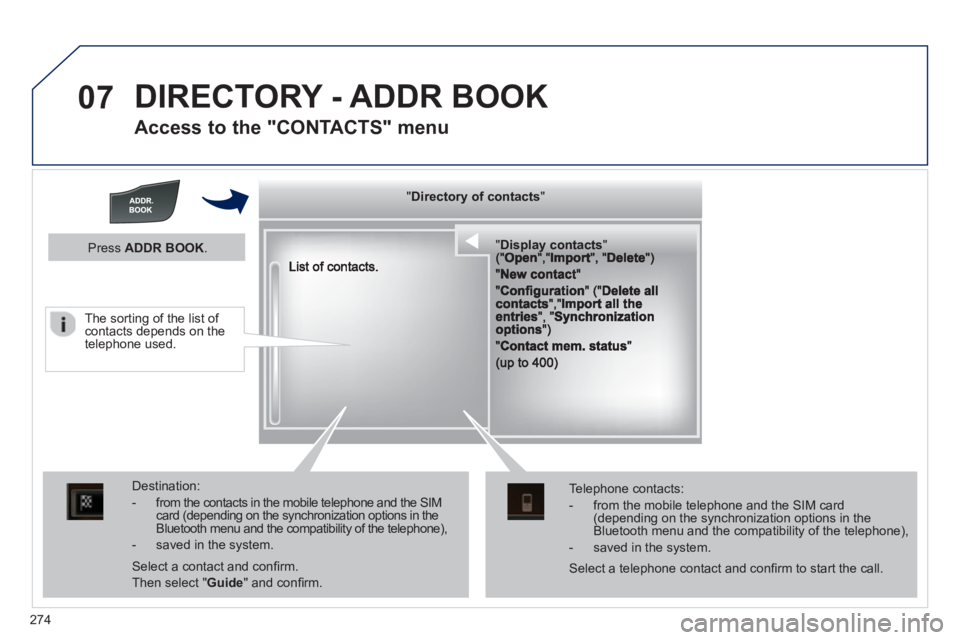

07 DIRECTORY - ADDR BOOK

Access to the "CONTACTS" menu

""""""""yyyyyDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDi t f t tDi t f t tDi t f t tDi t f t tDi f""""""""
""""""""""pypypypypypypysp ay co tactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDi l t tDi l t tDi l t tDi l t tDi l t tDi l t tDi l""""""""""("("("("(OOOOO""""""""ItItItIt""""""""DltDltDltDlt")")")"))
Destination:
- from the contacts in the mobile telephone and the SIMcard (depending on the synchronization options in theBluetooth menu and the compatibility of the telephone),
- saved in the system.
Select a contact and con fi rm.
Then select "Guide " and con fi rm.
Telephone contacts:
- from the mobile telephone and the SIM card(depending on the synchronization options in the Bluetooth menu and the compatibility of the telephone),
- saved in the system.
Press ADDR BOOK.
Select a telephone contact and confi rm to start the call.
The sorting of the list of contacts depends on the telephone used.

275
07

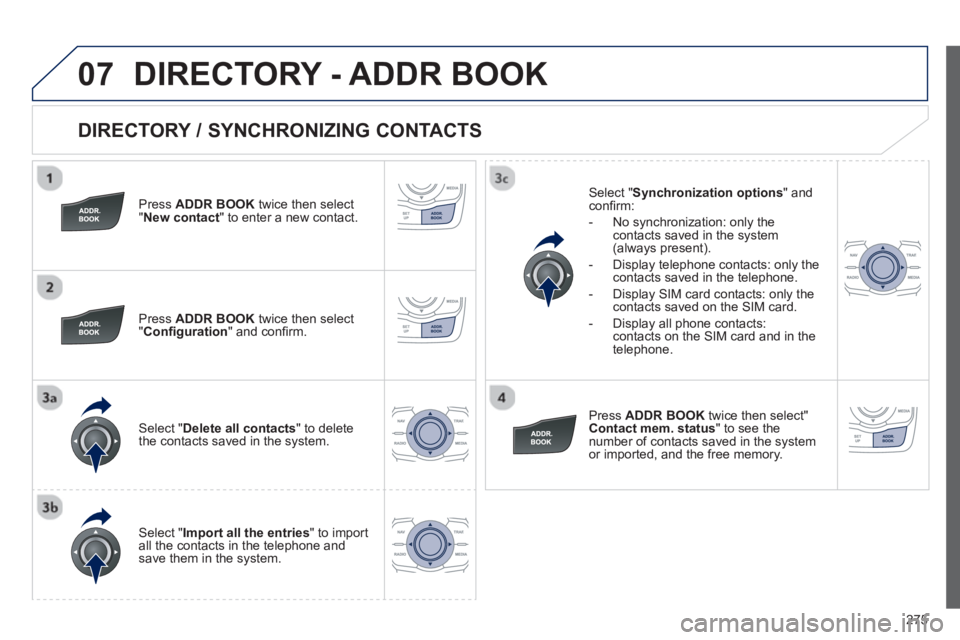

DIRECTORY / SYNCHRONIZING CONTACTS
Press ADDR BOOKtwice then select "New contact" to enter a new contact.
Pr
ess ADDR BOOKtwice then select
" Con fi guration" and con fi rm.

Select "Delete all contacts" to delete
the contacts saved in the system.

Select " Import all the entries " to import
all the contacts in the telephone and
save them in the system.
Select "
Synchronization options " and confi rm:
- No s
ynchronization: only the contacts saved in the system (always present).
-
Display telephone contacts: only the contacts saved in the telephone.
- Display
SIM card contacts: only thecontacts saved on the SIM card.
- Displa
y all phone contacts: contacts on the SIM card and in the
telephone.
Pr
ess ADDR BOOK twice then select"
Contact mem. status " to see thenumber of contacts saved in the systemor imported, and the free memory.
DIRECTORY - ADDR BOOK

276
07

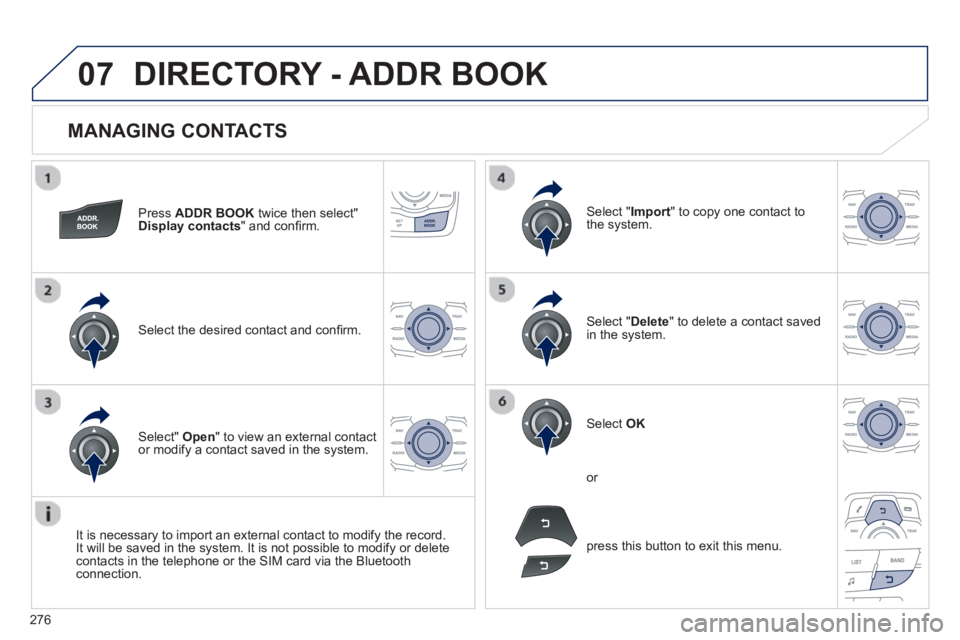

MANAGING CONTACTS
Press ADDR BOOK twice then select" Display contacts" and confi rm.
Select the desired contact and confi rm.
Select " Import" to copy one contact to
the system.
Select" Open
" to view an external contact
or modify a contact saved in the system.
Select OK
Select " Delete" to delete a contact savedin the system.
It is necessar
y to import an external contact to modify the record.
It will be saved in the system. It is not possible to modify or delete contacts in the telephone or the SIM card via the Bluetoothconnection.
DIRECTORY - ADDR BOOK
or
press t
his button to exit this menu.

277

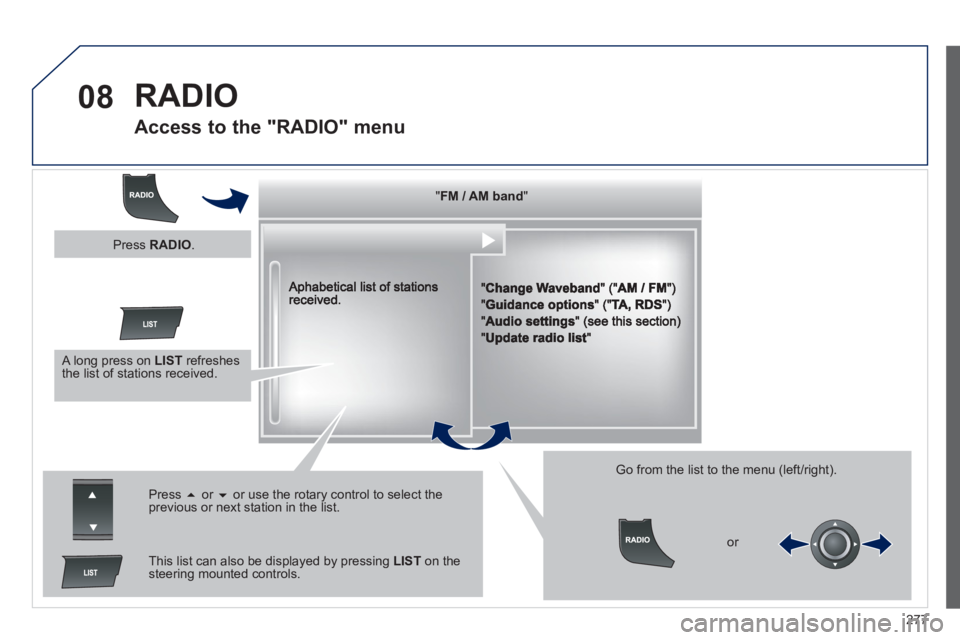

08 RADIO

Access to the "RADIO" menu
""""""""FM / AM bandFM / AM bandFM / AM bandFM / AM bandFM / AM bandFM / AM bandFM / AM bandFM / AM bandFM / AM bandFM / AM bandFM / AM bandFM / AM bandFM / AM bandFM / AM bandFM / AM b dFM / AM b dFM / AM b dFM / AM b dFM / AM b d""""""""
Press  or  or use the rotary control to select theprevious or next station in the list.
This list can also be displayed by pressing LISTon thesteering mounted controls.
Go from the list to the menu (left/right).
or
A long press on LIST
refreshesthe list of stations received.
Press RADIO.

278

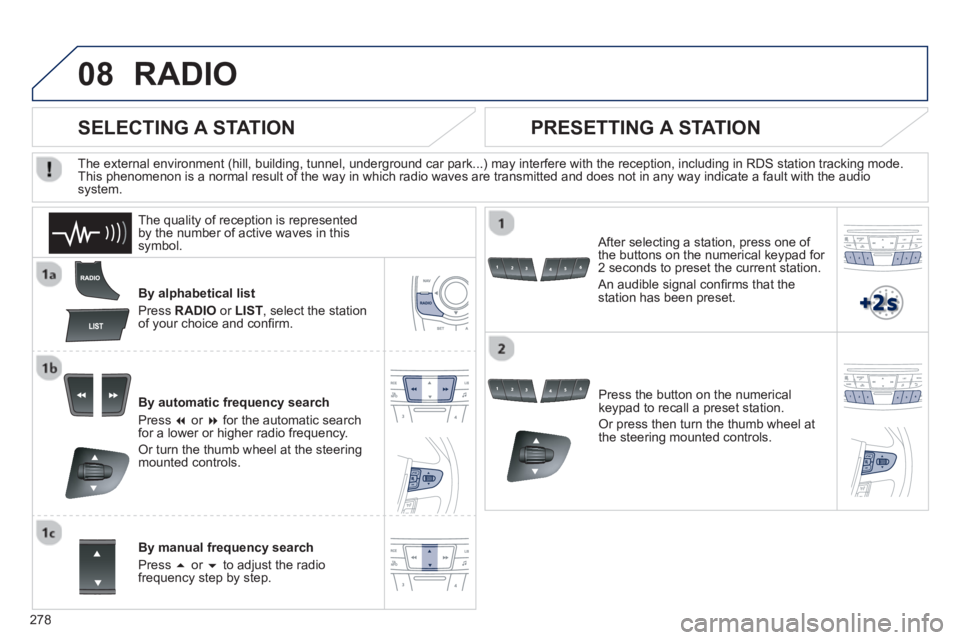

08RADIO
By alphabetical list
Pr
ess RADIOor LIST , select the station
of your choice and con fi rm.
B
y automatic frequency search
Pr
ess or for the automatic searchfor a lower or higher radio frequency.
Or turn the thumb wheel at the steeringmounted controls.
B
y manual frequency search
Pr
ess or to adjust the radiofrequency step by step.
Press the button on the numericalkeypad to recall a preset station.

Or press then turn the thumb wheel at
the steering mounted controls.

SELECTING A STATION
The external environment (hill, building, tunnel, underground car park...) may interfere with the reception, including in RDS station tracking mode. This phenomenon is a normal result of the way in which radio waves are transmitted and does not in any way indicate a fault with the audiosystem.

PRESETTING A STATION
After selecting a station, press one of
the buttons on the numerical keypad for 2 seconds to preset the current station.
An audible si
gnal confi rms that the
station has been preset.
The qualit
y of reception is represented by the number of active waves in this
symbol.
