PEUGEOT 508 HYBRID DAG 2012 Owners Manual

02

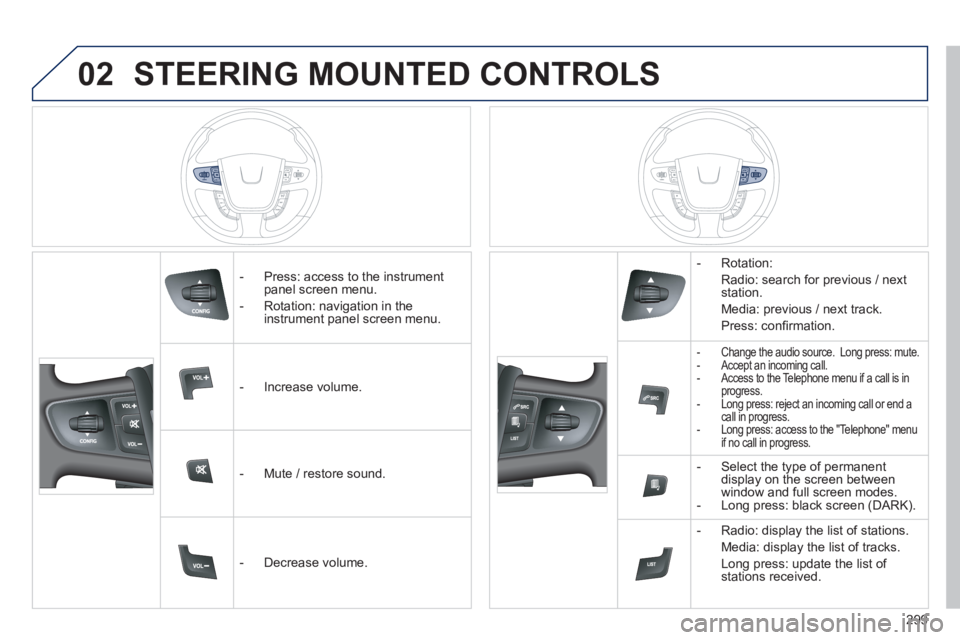

299
STEERING MOUNTED CONTROLS


- Press: access to the instrumentpanel screen menu.

- Rotation: navi
gation in the
instrument panel screen menu.


- In
crease volume.


- Mute
/ restore sound.


- D
ecrease volume. - R
otation:
Radio: search for previous / next
station.
Media: previous
/ next track.
Pr
ess: confi rmation.
- Change the audio source. Long press: mute.
- Accept an incoming call.
- Access to the Telephone menu if a call is in progress.
- Long press: reject an incoming call or end acall in progress.
- Long press: access to the "Telephone" menu
if no call in progress.
- Select the type of permanentdisplay on the screen between
window and full screen modes.
- Long press: black screen (DARK).
- Radio: displa
y the list of stations.
Media: displa
y the list of tracks.
Lon
g press: update the list of stations received.

03

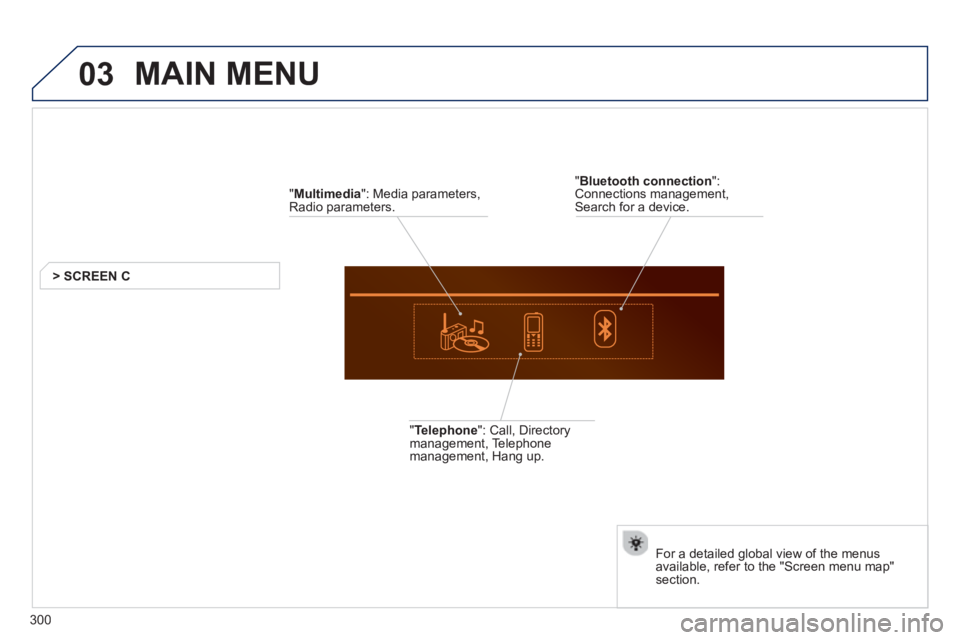

300
MAIN MENU


" Multimedia
": Media parameters,Radio parameters.
> SCREEN C

"
Telephone": Call, Directory
management, Telephone
management, Hang up.

For a detailed
global view of the menus
available, refer to the "Screen menu map" section.

" Bluetooth connection
":
Connections management,Search for a device.

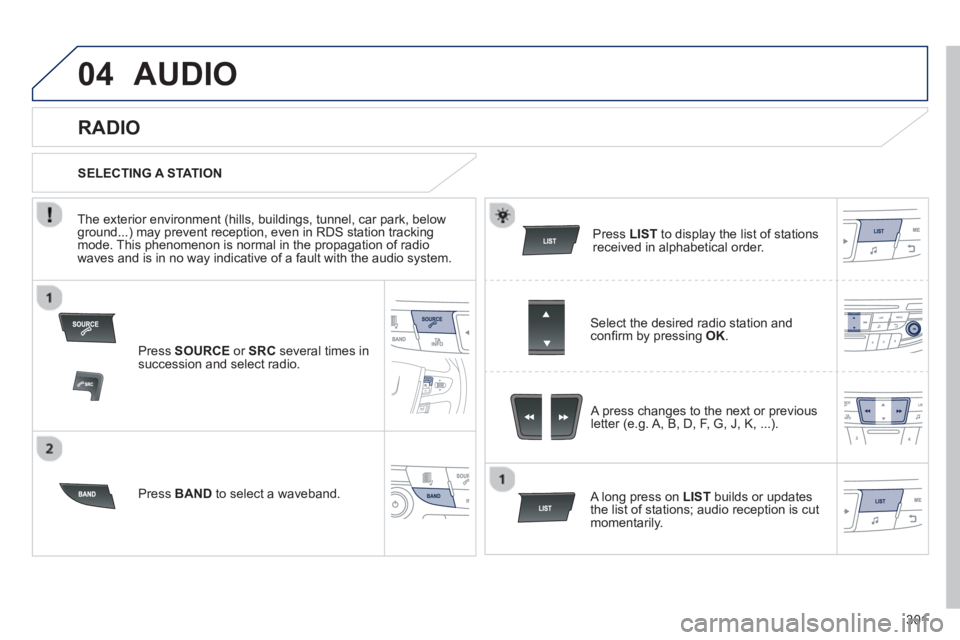

301
04AUDIO
Press SOURCEor SRCseveral times in succession and select radio.
Press BAND
to select a waveband. Pr
ess LISTto display the list of stationsreceived in alphabetical order.

A press chan
ges to the next or previous letter (e.g. A, B, D, F, G, J, K, ...).







RADIO

Select the desired radio station andconfi rm by pressing OK.

SELECTING A STATION

A lon
g press on LIST
builds or updates
the list of stations; audio reception is cut
momentar
ily.
The exterior environment
(hills, buildings, tunnel, car park, belowground...) may prevent reception, even in RDS station tracking mode. This phenomenon is normal in the propagation of radio
waves and is in no way indicative of a fault with the audio system.

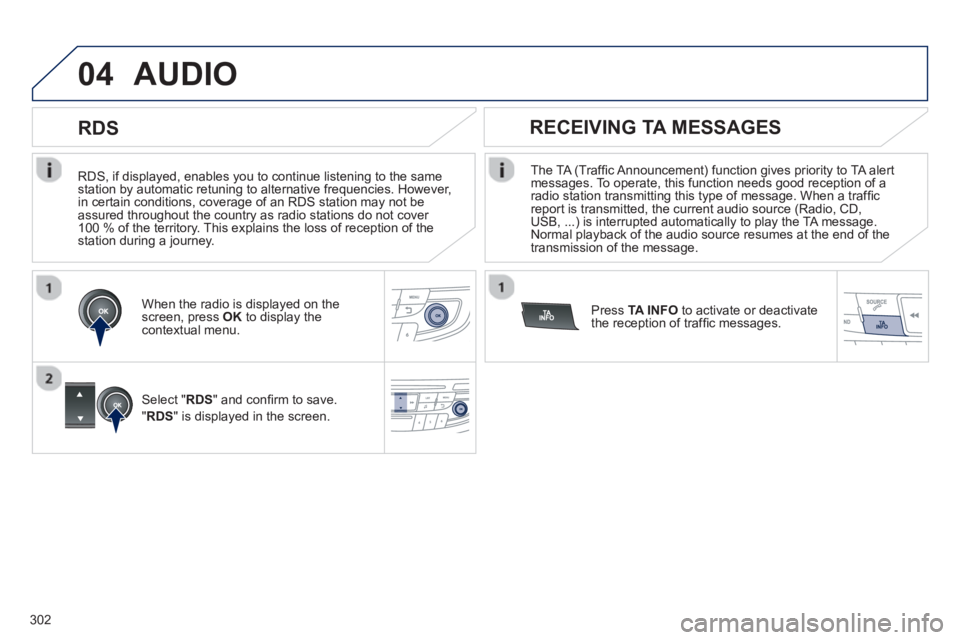

302
04

RDS, if displayed, enables you to continue listening to the samestation by automatic retuning to alternative frequencies. However,
in certain conditions, coverage of an RDS station may not be
assured throughout the country as radio stations do not cover
100 % of the territory. This explains the loss of reception of the station during a journey.

AUDIO


RDS





RECEIVING TA MESSAGES


The TA (Traffi c Announcement) function gives priority to TA alert messages. To operate, this function needs good reception of a radio station transmitting this type of message. When a traffi c report is transmitted, the current audio source (Radio, CD,
USB, ...) is interrupted automatically to play the TA message. Normal playback of the audio source resumes at the end of the
transmission of the message.

Pr
ess TA INFO
to activate or deactivatethe reception of traffi c messages.
When the radio is displayed on the screen, press OKto display thecontextual menu.
Select " RDS
" and confi rm to save.
"RDS " is displayed in the screen.

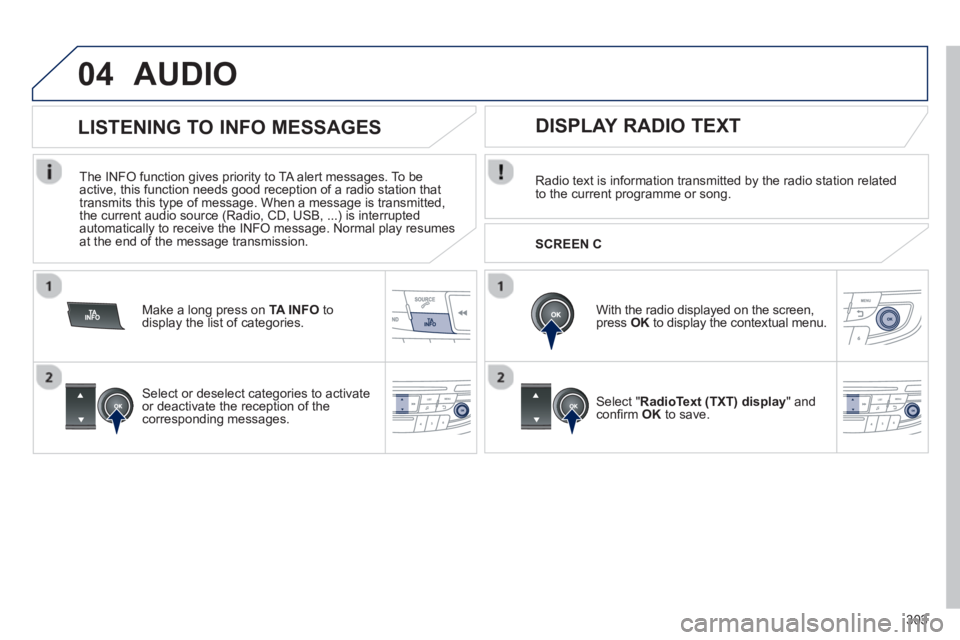

303
04AUDIO
Radio text is information transmitted by the radio station related
to the current programme or song.

With the radio displayed on the screen,
press OKto display the contextual menu. K

Select "RadioText (TXT) display" andconfi rm OKto save.


DISPLAY RADIO TEXT
The INFO function gives priority to TA alert messages. To beactive, this function needs good reception of a radio station that
transmits this type of message. When a message is transmitted,
the current audio source (Radio, CD, USB, ...) is interrupted automatically to receive the INFO message. Normal play resumes at the end of the message transmission.
Make a long press on TA INFO
to
display the list of categories.

LISTENING TO INFO MESSAGES
Select or deselect categories to activate
or deactivate the reception of thecorresponding messages. SCREEN C

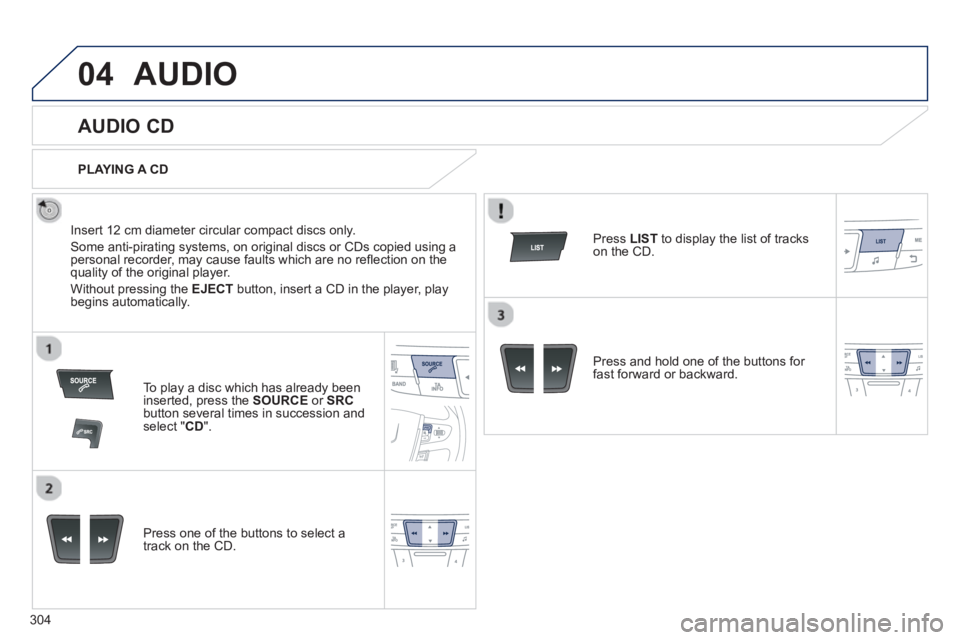

304
04AUDIO






AUDIO CD


Insert 12 cm diameter circular compact discs only.
Some anti-piratin
g systems, on original discs or CDs copied using apersonal recorder, may cause faults which are no refl ection on thequality of the original player.

Without pressing the EJECT
button, insert a CD in the player, playbegins automatically.

To play a disc which has already beeninserted, press the SOURCEor SRCbutton several times in succession and select " CD".

Pr
ess one of the buttons to select a
track on the CD.
PLAYING A CD

Pr
ess LIST
to display the list of trackson the CD.

Pr
ess and hold one of the buttons for fast forward or backward.

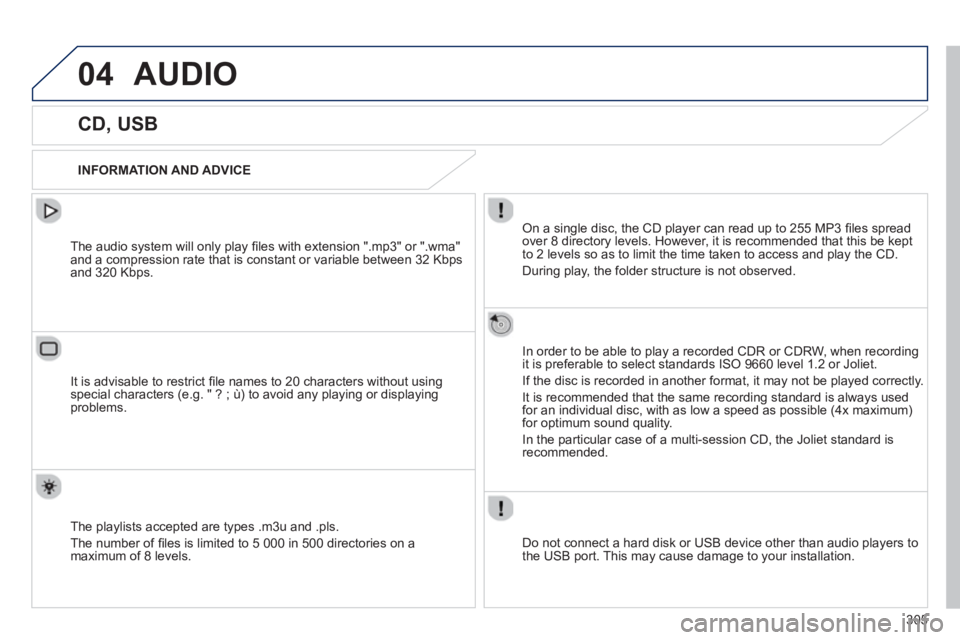

305
04AUDIO












CD, USB


INFORMATION AND ADVICE
On a single disc, the CD player can read up to 255 MP3 fi les spread
over 8 directory levels. However, it is recommended that this be kept
to 2 levels so as to limit the time taken to access and play the CD.
Durin
g play, the folder structure is not observed.
In order to be able to pla
y a recorded CDR or CDRW, when recordingit is preferable to select standards ISO 9660 level 1.2 or Joliet.
If the disc is recorded in another format, it ma
y not be played correctly.
It is recommended that the same recording standard is always usedfor an individual disc, with as low a speed as possible (4x maximum)for optimum sound quality.
In the particular case o
f a multi-session CD, the Joliet standard is
recommended.
Do not connect a hard disk or U
SB device other than audio players to
the USB port. This may cause damage to your installation.
The audio system will only play
fi les with extension ".mp3" or ".wma"
and a compression rate that is constant or variable between 32 Kbps
and 320 Kbps.

It is advisable to restrict fi le names to 20 characters without usin
gspecial characters (e.g. " ? ; ù) to avoid any playing or displaying problems.

The pla
ylists accepted are types .m3u and .pls.
The number o
f fi les is limited to 5 000 in 500 directories on a maximum of 8 levels.

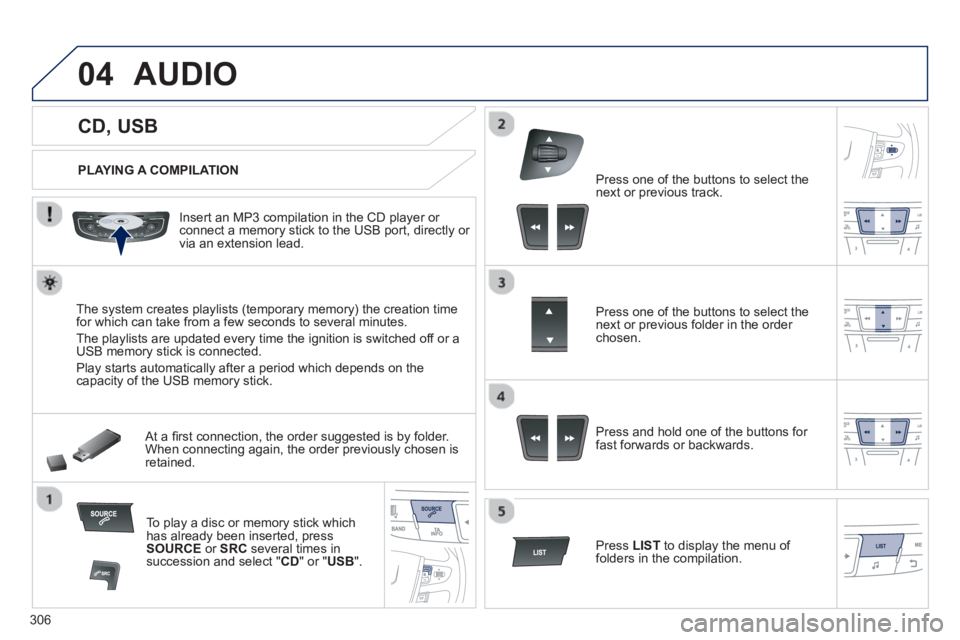

306
04












CD, USB
AUDIO


PLAYING A COMPILATION

Insert an MP3 compilation in the
CD player or connect a memory stick to the USB port, directly or
via an extension lead.
The s
ystem creates playlists (temporary memory) the creation time
for which can take from a few seconds to several minutes.
The pla
ylists are updated every time the ignition is switched off or aUSB memory stick is connected.
Pla
y starts automatically after a period which depends on the capacity of the USB memory stick.

At a fi rst connection, the order suggested is by folder.When connecting again, the order previously chosen is retained.

To play a disc or memory stick whichhas already been inserted, press
SOURCE
or SRC
several times insuccession and select " CD" or "USB".
Pr
ess one of the buttons to select the next or previous track.

Pr
ess one of the buttons to select the next or previous folder in the order chosen.

Pr
ess and hold one of the buttons for
fast forwards or backwards.

Press LISTto display the menu of folders in the compilation.

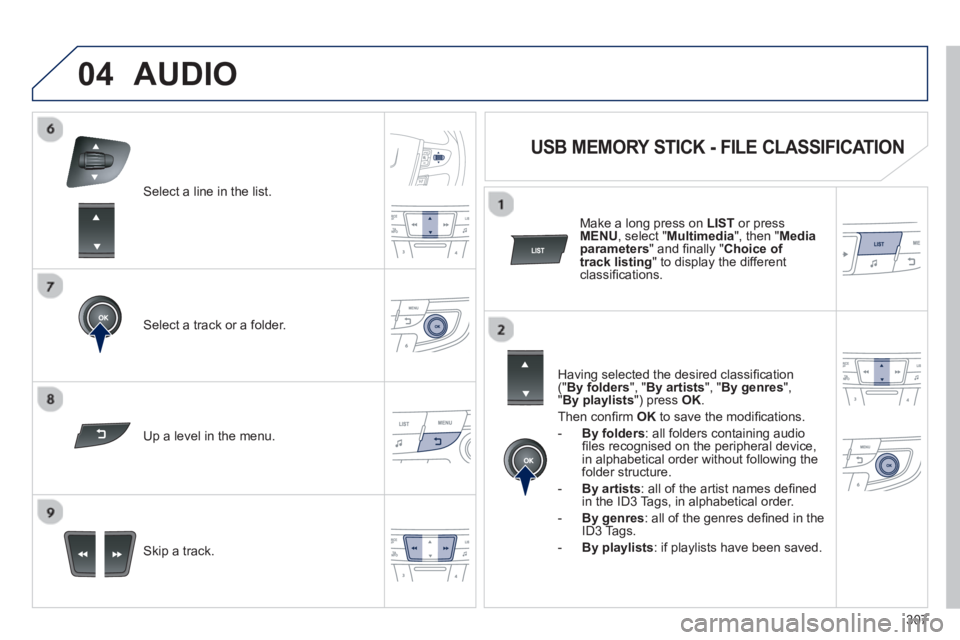

307
04
Select a line in the list.
Select a track or a folder.
Skip a track.
Up a level in the menu.
AUDIO









USB MEMORY STICK - FILE CLASSIFICATION


Having selected the desired classifi cation (" By folders", " By artists", " By genres",
"By playlists ") press OK.

Then confi rm OKto save the modifi cations.


-
By folders: all folders containing audiofi les recognised on the peripheral device, in alphabetical order without following the folder structure.

-
By artists
: all of the artist names defi ned in the ID3 Tags, in alphabetical order.
-By genres
: all of the genres defi ned in the ID3 Tags.

-
By playlists
: if playlists have been saved.


Make a long press on LIST
or pressMENU
, select " Multimedia
", then "Mediaparameters
" and fi nally " Choice of
track listing " to display the differentclassifi cations.

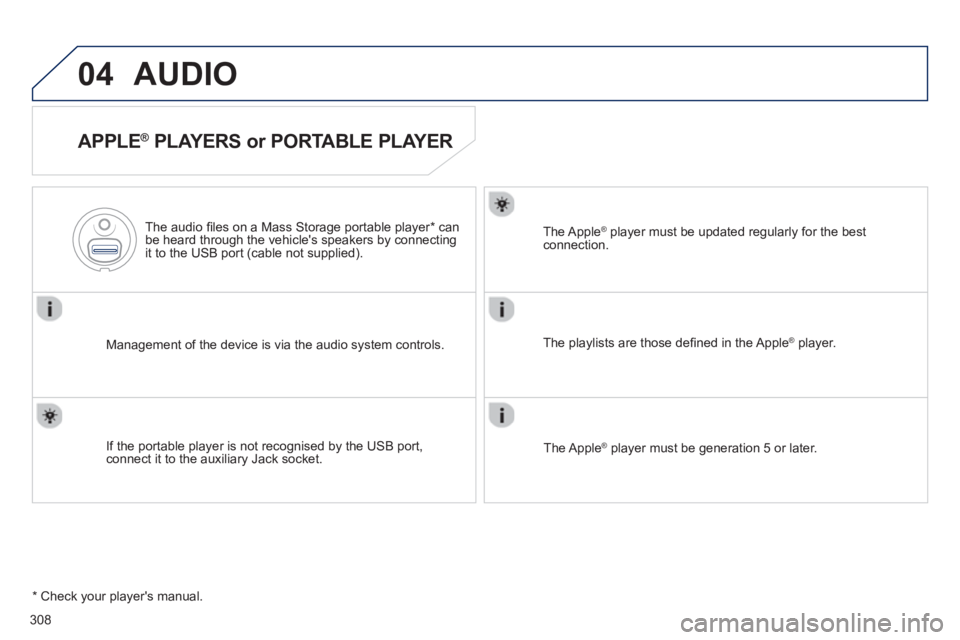

308
04AUDIO

APPLE ®
PLAYERS or PORTABLE PLAYER
Management of the device is via the audio system controls.
The audio
fi les on a Mass Storage portable player *
can
be heard through the vehicle's speakers by connectingit to the USB port (cable not supplied).
If the portable pla
yer is not recognised by the USB port,connect it to the auxiliary Jack socket.The Apple
Æ player must be updated regularly for the bestÆ
connection.
The pla
ylists are those defi ned in the Apple Æplayer.
The Apple
Æplayer must be generation 5 or later.

*

Check your player's manual.
